Python-PYQT5 制作一个登陆界面

最新推荐文章于 2025-03-10 21:13:37 发布

samenmoer

最新推荐文章于 2025-03-10 21:13:37 发布

阅读量7.6k

点赞数 1

本文链接：https://blog.youkuaiyun.com/samenmoer/article/details/83474828

版权

工具/版本

（1）安装环境：Windows7 64bit

（2）使用版本Python3.6

（3）PYQT5

（4）eric6

用到的图片

主要涉及的内容：

（1）tableWidget的使用

（2）QLineEdit的的的的的的的使用

（3）各个位置增加图标

（4）从登陆届面跳到主窗口

（5）TCP / IP通信

（6）访问数据库

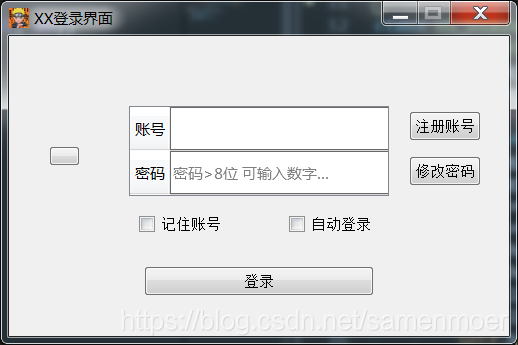

一，登陆界面

1，界面设置图标和标题

self.resize(500, 300)  # 设置大小
        self.setWindowTitle("XX登录界面")  # 设置标题
        self.setFixedSize(self.width(), self.height())  # 禁止最大化
        icon = QtGui.QIcon()
        icon.addPixmap(QtGui.QPixmap("..\\Image\\10.jpg"), QtGui.QIcon.Normal, QtGui.QIcon.Off)
        self.setWindowIcon(icon)  # 设置窗口的图标

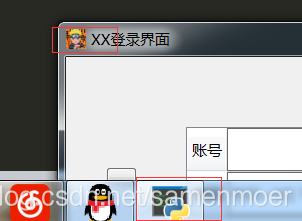

设置完成后，我们发现电脑任务栏的图标并没有修改，setWindowIcon这个函数起了一半的作用，学的Qt的的的的的都知道这个函数同时设置了程序的两个地方的图标显示，修改方法看参考如下链接

PyQt的的的的的任务栏图标问题

需要让窗户知道

import ctypes
ctypes.windll.shell32.SetCurrentProcessExplicitAppUserModelID("myappid")

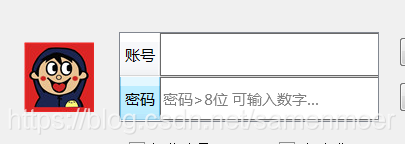

2，按钮美化

参考这篇文章

Python的PyQt5-图形可视化界面（3） - 按钮--Qpushbutton

self.pushButton_2.setFlat(True)  # 设置按键边框取消

效果如下

在线制作GIF网站

#!/usr/bin/env python
# encoding: utf-8
"""
+----------------------------------------------------------------------------+
 ╱◥██◣         ∧_∧　　　 ∧_∧　　    ∧_∧　　   ∧_∧     ╱◥██◣
|田︱田田|      （^ .^）　 （^ 、^）　 （^ 0^）　 （^ Д^）  |田︱田田|
╬╬╬╬╬╬╬╬╬╬-------∪-∪-------∪-∪--------∪-∪-------∪-∪---╬╬╬╬╬╬╬╬╬╬╬
+----------------------------------------------------------------------------+
License (C) Copyright 2017-2017,  Corporation Limited.
File Name         :    UI_progressBar.py
Auther            :    samenmoer
Software Version  :    Python3.6
Email Address     :    gpf192315@163.com
Creat Time        :    2018-10-28   17:27:02
优快云 blog         :    https://blog.youkuaiyun.com/samenmoer
Description       :
------------------------------------------------------------------------------
Modification History
Data          By           Version       Change Description
==============================================================================
${time}            |                |                 |
==============================================================================
¤╭⌒╮ ╭⌒╮¤╭⌒╮ ╭⌒╮¤╭⌒╮ ╭⌒╮¤╭⌒╮  ╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮
------------------------------------------------------------------------------
"""
import sys
from PyQt5 import QtGui
from PyQt5.QtWidgets import QWidget, QApplication, QLabel, QPushButton
from PyQt5.QtGui import QPixmap, QIcon, QMovie
from PyQt5.QtCore import QThread, pyqtSignal


class UI_LoginBar(QWidget):
    def __init__(self, parent=None):
        super(UI_LoginBar, self).__init__(parent)
        self.setupUi()
        self.pushButton.clicked.connect(self.run)
        self.pushButton2.clicked.connect(self.run)

    def setupUi(self):
        self.setObjectName("MainWindow")
        self.resize(500, 300)  # 设置大小
        self.setWindowTitle("XX登录界面")  # 设置标题
        self.setFixedSize(self.width(), self.height())  # 禁止最大化
        icon = QIcon()
        icon.addPixmap(QPixmap("..\\Image\\10.jpg"), QtGui.QIcon.Normal, QtGui.QIcon.Off)
        self.setWindowIcon(icon)  # 设置窗口的图标
        self.pushButton = QPushButton(self)
        self.pushButton.setGeometry(135, 230, 230, 30)
        self.pushButton2 = QPushButton(self)
        self.pushButton2.setGeometry(135, 265, 230, 30)
        self.pushButton.setObjectName("pushButton")
        self.pushButton.setText("登录")
        self.lable = QLabel(self)
        self.lable.setGeometry(75, 100, 350, 50)
        self.movie = QMovie("1.gif")

    def run(self):
        self.lable.setMovie(self.movie)
        if self.sender() == self.pushButton:
            self.movie.start()
        else:
            self.movie.stop()
            self.lable.setPixmap(QPixmap(""))
"""
class Thread(QThread):
    _signal = pyqtSignal(bool)

    def __init__(self, parent=None):
        super(Thread, self).__init__(parent)
        self.working = True

    def __del__(self):
        self.wait()
        self.working = False

    def run(self):
        # 线程相关代码
        while self.working is True:
            self._signal.emit(True)
            self.sleep(0.8)
            self._signal.emit(False)
            self.sleep(0.8)


class UI_LoginBar(QWidget):
    def __init__(self, parent=None):
        super(UI_LoginBar, self).__init__(parent)
        self.setupUi()
        #self.Runthread()
        # 创建一个新的线程
        self.pushButton.clicked.connect(self.Runthread)
        self.pushButton2.clicked.connect(lambda: self.thread.terminate())

    def Runthread(self):
        self.thread = Thread()
        self.thread._signal.connect(self.callback)
        self.thread.start()

    def threadstop(self):
        self.thread.terminate()


    def setupUi(self):
        self.setObjectName("MainWindow")
        self.resize(500, 300)  # 设置大小
        self.setWindowTitle("XX登录界面")  # 设置标题
        self.setFixedSize(self.width(), self.height())  # 禁止最大化
        icon = QIcon()
        icon.addPixmap(QPixmap("..\\Image\\10.jpg"), QtGui.QIcon.Normal, QtGui.QIcon.Off)
        self.setWindowIcon(icon)  # 设置窗口的图标
        self.pushButton = QPushButton(self)
        self.pushButton.setGeometry(135, 230, 230, 30)
        self.pushButton2 = QPushButton(self)
        self.pushButton2.setGeometry(135, 280, 230, 30)
        self.pushButton.setObjectName("pushButton")
        self.pushButton.setText("登录")
        self.lable = QLabel(self)
        self.lable.setGeometry(75, 100, 350, 50)
        self.png = QPixmap("..\\Image\\1.png")
        self.png2 = QPixmap("..\\Image\\2.png")

    def callback(self, status):
        if status is True:
            self.lable.setPixmap(self.png)
        elif status is False:
            self.lable.setPixmap(self.png2)
        else:
            self.lable.setPixmap(QPixmap(""))
# ==========================================================================
# * Founction Name    :   ModuleInit
# * Parameter         :   None
# * Return            :   None
# * Description       :   为当前模块设置Log头，方便识别，以及其他初始化设置
# ==========================================================================
"""
if __name__ == '__main__':
    app = QApplication(sys.argv)
    ui = UI_LoginBar()
    ui.show()
    sys.exit(app.exec_())

import re
import sys
from PyQt5 import QtCore, QtWidgets, QtGui
from PyQt5.QtWidgets import QMainWindow, QApplication, QLineEdit
from PyQt5.QtCore import Qt, pyqtSlot
from PassWordEdit import PwdLineEdit
import ctypes
ctypes.windll.shell32.SetCurrentProcessExplicitAppUserModelID("myappid")


class LogIn_UI(QMainWindow):

    def __init__(self, parent=None):
        super(LogIn_UI, self).__init__(parent)
        self.SetupUi()
        self.pushButton.clicked.connect(self.test)
    def test(self):
        self.hide()

    def SetupUi(self):
        self.setObjectName("MainWindow")
        self.resize(500, 300)  # 设置大小
        self.setWindowTitle("XX登录界面")  # 设置标题
        self.setFixedSize(self.width(), self.height())  # 禁止最大化
        icon = QtGui.QIcon()
        icon.addPixmap(QtGui.QPixmap("..\\Image\\10.jpg"), QtGui.QIcon.Normal, QtGui.QIcon.Off)
        self.setWindowIcon(icon)  # 设置窗口的图标
        self.checkBox = QtWidgets.QCheckBox(self)
        self.checkBox.setGeometry(QtCore.QRect(130, 180, 91, 16))
        self.checkBox.setObjectName("checkBox")
        self.checkBox.setText("记住账号")
        self.checkBox_2 = QtWidgets.QCheckBox(self)
        self.checkBox_2.setGeometry(QtCore.QRect(280, 180, 91, 16))
        self.checkBox_2.setObjectName("checkBox_2")
        self.checkBox_2.setText("自动登录")
        self.pushButton = QtWidgets.QPushButton(self)
        self.pushButton.setGeometry(QtCore.QRect(135, 230, 230, 30))
        self.pushButton.setObjectName("pushButton")
        self.pushButton.setText("登录")
        self.tableWidget = QtWidgets.QTableWidget(self)
        self.tableWidget.setGeometry(QtCore.QRect(120, 70, 260, 90))
        self.tableWidget.setObjectName("tableWidget")
        self.TableSet()
        self.pushButton_3 = QtWidgets.QPushButton(self)
        self.pushButton_3.setGeometry(QtCore.QRect(400, 75, 72, 30))
        self.pushButton_3.setObjectName("pushButton_3")
        self.pushButton_3.setText("注册账号")
        self.pushButton_4 = QtWidgets.QPushButton(self)
        self.pushButton_4.setGeometry(QtCore.QRect(400, 120, 72, 30))
        self.pushButton_4.setObjectName("pushButton_4")
        self.pushButton_4.setText("修改密码")
        self.pushButton_2 = QtWidgets.QPushButton(self)
        self.pushButton_2.setGeometry(QtCore.QRect(25, 80, 70, 70))
        self.pushButton_2.setText("")
        self.pushButton_2.setObjectName("pushButton_2")
        self.pushButton_2.setFlat(True)  # 设置按键边框取消
        self.pushButton_2.setIconSize(QtCore.QSize(70, 70))
        self.pushButton_2.setIcon(QtGui.QIcon("..\\Image\\16.jpg"))

    def TableSet(self):
        self.table = self.tableWidget
        self.table.setColumnCount(1)
        self.table.setRowCount(2)
        # 设置表头隐藏显示
        self.table.setVerticalHeaderLabels(['账号', '密码'])
        self.table.verticalHeader().setVisible(True)
        self.table.horizontalHeader().setVisible(False)
        # 设置行高列宽
        self.table.setColumnWidth(0, 220)
        self.table.setRowHeight(0, 44)
        self.table.setRowHeight(1, 44)
        # 账号密码设置
        self.PassWordSet()
        self.IdentitySet()
        self.table.setCellWidget(0, 0, self.IdentityItem)
        self.table.setCellWidget(1, 0, self.PassWordItem)
        #@pyqtSlot()

    def IdentitySet(self):
        self.IdentityItem = QLineEdit()
        self.IdentityItem.installEventFilter(self)
        self.IdentityItem.setClearButtonEnabled(True)

    def PassWordSet(self):
        self.PassWordItem = PwdLineEdit()
        self.PassWordItem.installEventFilter(self)
        # self.PassWordItem.setText("hello")
        # 禁止右键菜单
        self.PassWordItem.setClearButtonEnabled(True)
        self.PassWordItem.setContextMenuPolicy(Qt.NoContextMenu)
        self.PassWordItem.setPlaceholderText("密码>8位 可输入数字字母字符")
        #self.PassWordItem.setEchoMode(QLineEdit.Password)

    @pyqtSlot()
    def on_PassWordItem_editingFinished(self):
        regex_pwd = "^([A-Z]|[a-z]|[0-9]|[`~!@#$%^&*()+=|{}':;',\\\\[\\\\].<>/?~！@#￥%……&*（）——+|{}【】‘；：”“'。，、？]){6,16}$"
        self.pwd1 = self.lineEdit_2.GetPassword()
        if len(self.pwd1) > 0:
            self.lineEdit_6.clear()
            rrpwd = re.compile(regex_pwd)
            if rrpwd.match(self.pwd1) is None:
                self.lineEdit_6.setText('密码不符合要求!')
        else:
            self.lineEdit_6.setText('密码未填写!')

if __name__ == '__main__':
    app = QApplication(sys.argv)
    ui = LogIn_UI()
    ui.show()
    sys.exit(app.exec_())

#!/usr/bin/env python
# encoding: utf-8
"""
+----------------------------------------------------------------------------+
 ╱◥██◣         ∧_∧　　　 ∧_∧　　    ∧_∧　　   ∧_∧     ╱◥██◣
|田︱田田|      （^ .^）　 （^ 、^）　 （^ 0^）　 （^ Д^）  |田︱田田|
╬╬╬╬╬╬╬╬╬╬-------∪-∪-------∪-∪--------∪-∪-------∪-∪---╬╬╬╬╬╬╬╬╬╬╬
+----------------------------------------------------------------------------+
License (C) Copyright 2017-2017,  Corporation Limited.
File Name         :    PassWordEdit.py
Auther            :    samenmoer
Software Version  :    Python3.6
Email Address     :    gpf192315@163.com
Creat Time        :    2018-10-06   19:34:17
优快云 blog         :    https://blog.youkuaiyun.com/samenmoer
Description       :
------------------------------------------------------------------------------
Modification History
Data          By           Version       Change Description
==============================================================================
${time}            |                |                 |
==============================================================================
¤╭⌒╮ ╭⌒╮¤╭⌒╮ ╭⌒╮¤╭⌒╮ ╭⌒╮¤╭⌒╮  ╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮╭⌒╮¤╭⌒╮
------------------------------------------------------------------------------
"""
from RecordLog import print_log
from PyQt5.QtWidgets import QLineEdit
from PyQt5.QtCore import QTimer

# ==========================================================================
# * Founction Name    :   ModuleInit
# * Parameter         :   None
# * Return            :   None
# * Description       :   为当前模块设置Log头，方便识别，以及其他初始化设置
# ==========================================================================
def ModuleInit():
    global LogHead
    LogHead = "[wait to fill]"

    print_log("文件初始化完成", LogHead=LogHead)
    return


class PwdLineEdit(QLineEdit):
    def __init__(self):
        super().__init__()
        self.m_LineEditText = ""
        self.m_LastCharCount = 0
        self.Action()

    def Action(self):
        self.cursorPositionChanged[int,int].connect(self.DisplayPasswordAfterEditSlot)
        self.textEdited[str].connect(self.GetRealTextSlot)
        self.time = QTimer(self)
        self.time.setInterval(500)
        self.time.start()
        self.show()

    def DisplayPasswordAfterEditSlot(self, old, new):
        print('new:', new)
        print('old:', old)
        if old >= 0 and new >= 0:
            if new > old:
                self.time.timeout.connect(self.DisplayPasswordSlot)
            else:
                self.setCursorPosition(old)

    def DisplayPasswordSlot(self):
        self.setText(self.GetMaskString())

    def GetRealTextSlot(self, text):
        self.m_LastCharCount = len(self.m_LineEditText)

        if len(text) > self.m_LastCharCount:
            self.m_LineEditText += text[-1]
        elif len(text) <= self.m_LastCharCount:
            self.m_LineEditText = self.m_LineEditText[:-1]

    def GetMaskString(self):
        mask = ""
        count = len(self.text())
        if count > 0:
            for i in range(count):
                mask += "*"
        return mask

    def GetPassword(self):
        return self.m_LineEditText
