Glide源码分析(二)---执行

吐槽

为啥csdn的排名一直没有什么变化啊emmmmm，这几天5公里夜跑跑的越来越快，越来越接近25分钟了，赶紧学习啊啊啊啊，自己真的还差好远啊啊啊

看源码的感想

看到郭神博客上面的写的：

那么，虽然源码的复杂程度是外在的不可变条件，但我们却可以通过一些技巧来提升自己阅读源码的能力。这里我和大家分享一下我平时阅读源码时所使用的技巧，简单概括就是八个字：抽丝剥茧、点到即止。应该认准一个功能点，然后去分析这个功能点是如何实现的。但只要去追寻主体的实现逻辑即可，千万不要试图去搞懂每一行代码都是什么意思，那样很容易会陷入到思维黑洞当中，而且越陷越深。因为这些庞大的系统都不是由一个人写出来的，每一行代码都想搞明白，就会感觉自己是在盲人摸象，永远也研究不透。如果只是去分析主体的实现逻辑，那么就有比较明确的目的性，这样阅读源码会更加轻松，也更加有成效。

之前自己看Okhttp的源码的时候，就是看着这些类头都大了，感觉自己智商可能不够的感觉，觉得写出这些的东西的人都好厉害啊，但是，突然一想自己看源码是为了什么
往小里面说，是更好理解这个框架，让自己得心应手，面试时候可以讲
往大里面讲，就是知道具体的框架主体逻辑是什么，主体功能的实现的流程

所以，我好像并不需要现在就把所有的类啊参数啊都搞清楚，我只需要知道大概的流程是什么样的，这才是我看源码的目标，因为这些东西都是一个团队写的，自己一个人怎么可能很快把这个框架完全搞懂啊。

阅读的逻辑

这个框架的干嘛的？-----》主要的功能是什么？------》关键的跳转方法是什么？
Glide是一个加载图片的框架
最最主要的代码就是

Glide.with(上下文).load(图片资源).into(控件);

然后我们先把这三个方法搞清楚逻辑

with（）方法

我们首先看下这个方法，当时在用with方法的时候，我们发现这个传入的参数可以是Activity，也可以是fragment，Context这些，所以我们可以判定这个方法肯定有很多个重载方法
进入源码我们看下这个方法,就发现了4个重载方法

public static RequestManager with(Context context) {
    RequestManagerRetriever retriever = RequestManagerRetriever.get();
    return retriever.get(context);
}
public static RequestManager with(Activity activity) {
    RequestManagerRetriever retriever = RequestManagerRetriever.get();
    return retriever.get(activity);
}

public static RequestManager with(android.app.Fragment fragment) {
    RequestManagerRetriever retriever = RequestManagerRetriever.get();
    return retriever.get(fragment);
}

publc static RequestManager with(Fragment fragment) {
    RequestManagerRetriever retriever = RequestManagerRetriever.get();
    return retriever.get(fragment);
}

虽然有四个重载方法，但是我们发现这几个实现的逻辑都是如出一辙
都是调用RequestManagerRetriever.get()方法返回一个RequestManagerRetriever对象
然后再调用RequestManagerRetriever对象的get()方法获取RequestManager对象

所以，这个逻辑还是蛮清楚的

接着，我们继续看下这个RequestManagerRetriever的实例get()方法

public static RequestManagerRetriever get() {
    return INSTANCE;
}

// Visible for testing.
RequestManagerRetriever() {
    handler = new Handler(Looper.getMainLooper(), this /* Callback */);
}

private RequestManager getApplicationManager(Context context) {
    // Either an application context or we're on a background thread.
    if (applicationManager == null) {
        synchronized (this) {
            if (applicationManager == null) {
                // Normally pause/resume is taken care of by the fragment we add to the fragment or activity.
                // However, in this case since the manager attached to the application will not receive lifecycle
                // events, we must force the manager to start resumed using ApplicationLifecycle.
                applicationManager = new RequestManager(context.getApplicationContext(),
                        new ApplicationLifecycle(), new EmptyRequestManagerTreeNode());
            }
        }
    }

    return applicationManager;
}

public RequestManager get(Context context) {
    if (context == null) {
        throw new IllegalArgumentException("You cannot start a load on a null Context");
    } else if (Util.isOnMainThread() && !(context instanceof Application)) {
        if (context instanceof FragmentActivity) {
            return get((FragmentActivity) context);
        } else if (context instanceof Activity) {
            return get((Activity) context);
        } else if (context instanceof ContextWrapper) {
            return get(((ContextWrapper) context).getBaseContext());
        }
    }

    return getApplicationManager(context);
}

public RequestManager get(FragmentActivity activity) {
    if (Util.isOnBackgroundThread()) {
        return get(activity.getApplicationContext());
    } else {
        assertNotDestroyed(activity);
        FragmentManager fm = activity.getSupportFragmentManager();
        return supportFragmentGet(activity, fm);
    }
}

public RequestManager get(Fragment fragment) {
    if (fragment.getActivity() == null) {
        throw new IllegalArgumentException("You cannot start a load on a fragment before it is attached");
    }
    if (Util.isOnBackgroundThread()) {
        return get(fragment.getActivity().getApplicationContext());
    } else {
        FragmentManager fm = fragment.getChildFragmentManager();
        return supportFragmentGet(fragment.getActivity(), fm);
    }
}

@TargetApi(Build.VERSION_CODES.HONEYCOMB)
public RequestManager get(Activity activity) {
    if (Util.isOnBackgroundThread() || Build.VERSION.SDK_INT < Build.VERSION_CODES.HONEYCOMB) {
        return get(activity.getApplicationContext());
    } else {
        assertNotDestroyed(activity);
        android.app.FragmentManager fm = activity.getFragmentManager();
        return fragmentGet(activity, fm);
    }
}

@TargetApi(Build.VERSION_CODES.JELLY_BEAN_MR1)
private static void assertNotDestroyed(Activity activity) {
    if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN_MR1 && activity.isDestroyed()) {
        throw new IllegalArgumentException("You cannot start a load for a destroyed activity");
    }
}

@TargetApi(Build.VERSION_CODES.JELLY_BEAN_MR1)
public RequestManager get(android.app.Fragment fragment) {
    if (fragment.getActivity() == null) {
        throw new IllegalArgumentException("You cannot start a load on a fragment before it is attached");
    }
    if (Util.isOnBackgroundThread() || Build.VERSION.SDK_INT < Build.VERSION_CODES.JELLY_BEAN_MR1) {
        return get(fragment.getActivity().getApplicationContext());
    } else {
        android.app.FragmentManager fm = fragment.getChildFragmentManager();
        return fragmentGet(fragment.getActivity(), fm);
    }
}

然后我们看了下get()方法的几个重载就分为两种情况

• 传入Application类型的参数
• 传入非Application类型的参数//activity啊，Fragment什么的

先看下第一种情况下的：Application参数

public RequestManager get(Context context) {
    if (context == null) {
        throw new IllegalArgumentException("You cannot start a load on a null Context");
    } else if (Util.isOnMainThread() && !(context instanceof Application)) {
        if (context instanceof FragmentActivity) {
            return get((FragmentActivity) context);
        } else if (context instanceof Activity) {
            return get((Activity) context);
        } else if (context instanceof ContextWrapper) {
            return get(((ContextWrapper) context).getBaseContext());
        }
    }

    return getApplicationManager(context);
}

如果在Glide.with()方法中传入的是一个Application对象，那么在这里就会调用这个方法
然后在方法的最后调用这个getApplicationManager(context);方法
看下这个方法：

private RequestManager getApplicationManager(Context context) {
    // Either an application context or we're on a background thread.应用程序上下文或我们在后台线程上
    if (applicationManager == null) {
        synchronized (this) {
            if (applicationManager == null) {
                // Normally pause/resume is taken care of by the fragment we add to the fragment or activity.通常，我们添加到片段或活动的片段会处理暂停/恢复。
                // However, in this case since the manager attached to the application will not receive lifecycle但是，在这种情况下，由于附加到应用程序的管理器将不会收到生命周期
                // events, we must force the manager to start resumed using ApplicationLifecycle.事件，我们必须强制管理器使用ApplicationLifecycle开始恢复
                applicationManager = new RequestManager(context.getApplicationContext(),
                        new ApplicationLifecycle(), new EmptyRequestManagerTreeNode());
            }
        }
    }

    return applicationManager;
}

就是获取一个RequestManager对象，把注释的几句话谷歌翻译下，我们就发现这块就是它自动就是和应用程序的生命周期是同步的，如果应用程序关闭的话，Glide的加载也会同时终止

然后我们再看下第二种情况：非非Application参数
看下他们传入的参数

• get(FragmentActivity activity)
• get(Fragment fragment)
• get(Activity activity)
• get(android.app.Fragment fragment)

然后我们发现这些方法都会调用这两个方法：

supportFragmentGet(fragment.getActivity(), fm);
fragmentGet(activity, fm);

然后我们进这个两个方法里面看下

@TargetApi(Build.VERSION_CODES.HONEYCOMB)
RequestManager fragmentGet(Context context, android.app.FragmentManager fm) {
    RequestManagerFragment current = getRequestManagerFragment(fm);
    RequestManager requestManager = current.getRequestManager();
    if (requestManager == null) {
        requestManager = new RequestManager(context, current.getLifecycle(), current.getRequestManagerTreeNode());
        current.setRequestManager(requestManager);
    }
    return requestManager;
}

RequestManager supportFragmentGet(Context context, FragmentManager fm) {
    SupportRequestManagerFragment current = getSupportRequestManagerFragment(fm);
    RequestManager requestManager = current.getRequestManager();
    if (requestManager == null) {
        requestManager = new RequestManager(context, current.getLifecycle(), current.getRequestManagerTreeNode());
        current.setRequestManager(requestManager);
    }
    return requestManager;
}

然后我们总结发现：

• 所有的流程都是一样的，都是向当前的Activity里面添加一个一个隐藏的Fragment，调用的方法就是supportFragmentGet(fragment.getActivity(), fm);和fragmentGet(activity, fm);这两个
• supportFragmentGet(fragment.getActivity(), fm);是V4包下的，fragmentGet(activity, fm)是app包下的
• 之所以要添加一个Fragment的原因是，Glide需要知道这个活动的生命周期，不能你这个活动就要被关闭了，但现在用Glide才加载图片进行了一半唉，所以肯定要通知Glide这个活动要挂了，当然不应该。可是Glide并没有办法知道Activity的生命周期，于是Glide就使用了添加隐藏Fragment的这种小技巧，因为Fragment的生命周期和Activity是同步的，如果Activity被销毁了，Fragment是可以监听到的，这样Glide就可以捕获这个事件并停止图片加载了
• 如果我们是在非主线程当中使用的Glide，那么不管你是传入的Activity还是Fragment，都会被强制当成Application来处理

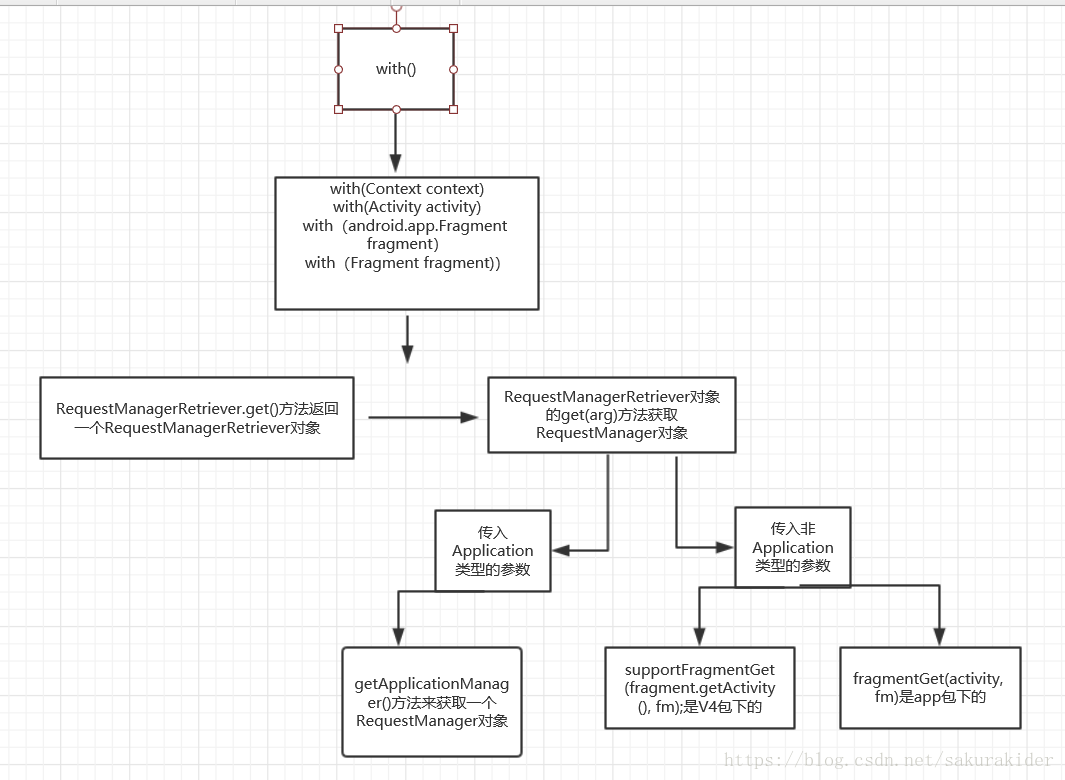

主要流程图//画的丑emmmmmmm

小结一下：
第一个with()方法的源码，其实就是为了得到一个RequestManager对象而已，然后Glide会根据我们传入with()方法的参数来确定图片加载的生命周期

load()方法

这个方法就是选择加载资源的，肯定也是很多重载方法
看郭神上面讲了URL这种的，我们也就看下这种的，因为这种的我们用的多

首先

我们在上面with()方法返回的是个RequestManager对象，所以很清楚的知道了load方法就是在这个RequestManager类里面
然后我们去看下这个源码：

public class RequestManager implements LifecycleListener {
    private final Context context;
    private final Lifecycle lifecycle;
    private final RequestManagerTreeNode treeNode;
    private final RequestTracker requestTracker;
    private final Glide glide;
    private final OptionsApplier optionsApplier;
    private DefaultOptions options;

    public RequestManager(Context context, Lifecycle lifecycle, RequestManagerTreeNode treeNode) {
        this(context, lifecycle, treeNode, new RequestTracker(), new ConnectivityMonitorFactory());
    }

    RequestManager(Context context, final Lifecycle lifecycle, RequestManagerTreeNode treeNode,
            RequestTracker requestTracker, ConnectivityMonitorFactory factory) {
        this.context = context.getApplicationContext();
        this.lifecycle = lifecycle;
        this.treeNode = treeNode;
        this.requestTracker = requestTracker;
        this.glide = Glide.get(context);
        this.optionsApplier = new OptionsApplier();

        ConnectivityMonitor connectivityMonitor = factory.build(context,
                new RequestManagerConnectivityListener(requestTracker));

        /sts();
        for (RequestManager requestManager : treeNode.getDescendants()) {
            requestManager.pauseRequests();
        }
    }

    /**
     * Restarts any loads that have not yet completed.
     *
     * @see #isPaused()
     * @see #pauseRequests()
     */
    modelLoader) {
        return new ImageModelRequest<T>(modelLoader);
    }

    /**
     * Returns a request builder that uses the given
     * {@link com.bumptech.glide.load.model.stream.StreamByteArrayLoader} to fetch an {@link java.io.InputStream} for
     * loading Bitmaps.
     *
     * @param modelLoader The byte array loader.
     */
    public ImageModelRequest<byte[]> using(StreamByteArrayLoader modelLoader) {
        return new ImageModelRequest<byte[]>(modelLoader);
    }

    /**
     * Returns a new request builder that uses the given {@link ModelLoader} to fetch a
     * {@link ParcelFileDescriptor} for loading video thumbnails.
     *
     * @param modelLoader The model loader to use.
     * @param <T> The type of the model.
     */
    public <T> VideoModelRequest<T> using(final FileDescriptorModelLoader<T> modelLoader) {
        return new VideoModelRequest<T>(modelLoader);
    }

    /**
     * Returns a request builder to load the given {@link java.lang.String}.
     * signature.
     *
     * @see #fromString()
     * @see #load(Object)
     *
     * @param string A file path, or a uri or url handled by {@link com.bumptech.glide.load.model.UriLoader}.
     */
    public DrawableTypeRequest<String> load(String string) {
        return (DrawableTypeRequest<String>) fromString().load(string);
    }
    public DrawableTypeRequest<String> fromString() {
    return loadGeneric(String.class);
}
public DrawableTypeRequest<String> fromString() {
    return loadGeneric(String.class);
}
private <T> DrawableTypeRequest<T> loadGeneric(Class<T> modelClass) {
    ModelLoader<T, InputStream> streamModelLoader = Glide.buildStreamModelLoader(modelClass, context);
    ModelLoader<T, ParcelFileDescriptor> fileDescriptorModelLoader =
            Glide.buildFileDescriptorModelLoader(modelClass, context);
    if (modelClass != null && streamModelLoader == null && fileDescriptorModelLoader == null) {
        throw new IllegalArgumentException("Unknown type " + modelClass + ". You must provide a Model of a type for"
                + " which there is a registered ModelLoader, if you are using a custom model, you must first call"
                + " Glide#register with a ModelLoaderFactory for your custom model class");
    }

    return optionsApplier.apply(
            new DrawableTypeRequest<T>(modelClass, streamModelLoader, fileDescriptorModelLoader, context,
                    glide, requestTracker, lifecycle, optionsApplier));
}

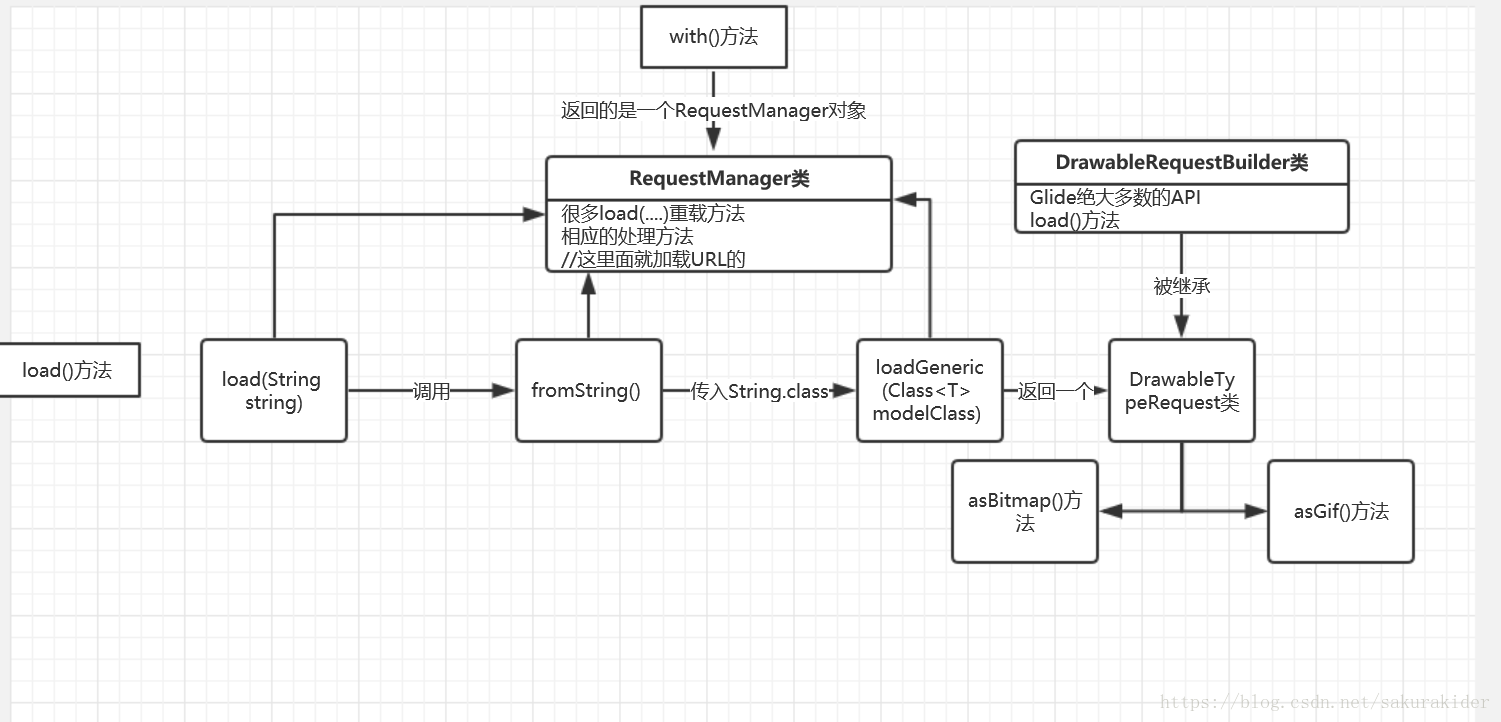

这块的源码真的是太长了，，，但是load核心的就这几个函数
就把这个load（String string）这个方法找到，然后把URL传进去，然后就是调用fromString()方法，这个方法就继续调用loadGeneric()方法，并指定参数为String.class

然后我们看下这块的loadGeneric()方法

private <T> DrawableTypeRequest<T> loadGeneric(Class<T> modelClass) {
    ModelLoader<T, InputStream> streamModelLoader = Glide.buildStreamModelLoader(modelClass, context);
    ModelLoader<T, ParcelFileDescriptor> fileDescriptorModelLoader =
            Glide.buildFileDescriptorModelLoader(modelClass, context);
    if (modelClass != null && streamModelLoader == null && fileDescriptorModelLoader == null) {
        throw new IllegalArgumentException("Unknown type " + modelClass + ". You must provide a Model of a type for"
                + " which there is a registered ModelLoader, if you are using a custom model, you must first call"
                + " Glide#register with a ModelLoaderFactory for your custom model class");
    }

    return optionsApplier.apply(
            new DrawableTypeRequest<T>(modelClass, streamModelLoader, fileDescriptorModelLoader, context,
                    glide, requestTracker, lifecycle, optionsApplier));
}

然后我们发现

• Glide.buildStreamModelLoader（）方法Glide.buildFileDescriptorModelLoader（）方法获取一个ModelLoader对象

• ModelLoader对象是用于加载图片的，而我们给load()方法传入不同类型的参数，这里也会得到不同的ModelLoader对象

• 才传入的参数是String.class，因此最终得到的是StreamStringLoader对象，它是实现了ModelLoader接口的

• loadGeneric()方法是要返回一个DrawableTypeRequest对象的，因此在loadGeneric()方法的最后又去new了一个DrawableTypeRequest对象，然后把刚才获得的ModelLoader对象，还有一大堆杂七杂八的东西都传了进去

然后我们去看下这块的DrawableTypeRequest的作用

DrawableTypeRequest(Class<ModelType> modelClass, ModelLoader<ModelType, InputStream> streamModelLoader,
        ModelLoader<ModelType, ParcelFileDescriptor> fileDescriptorModelLoader, Context context, Glide glide,
        RequestTracker requestTracker, Lifecycle lifecycle, RequestManager.OptionsApplier optionsApplier) {
    super(context, modelClass,
            buildProvider(glide, streamModelLoader, fileDescriptorModelLoader, GifBitmapWrapper.class,
                    GlideDrawable.class, null),
            glide, requestTracker, lifecycle);
    this.streamModelLoader = streamModelLoader;
    this.fileDescriptorModelLoader = fileDescriptorModelLoader;
    this.optionsApplier = optionsApplier;
}

/**
 * Attempts to always load the resource as a {@link android.graphics.Bitmap}, even if it could actually be animated.
 *
 * @return A new request builder for loading a {@link android.graphics.Bitmap}
 */
public BitmapTypeRequest<ModelType> asBitmap() {
    return optionsApplier.apply(new BitmapTypeRequest<ModelType>(this, streamModelLoader,
            fileDescriptorModelLoader, optionsApplier));
}

/**
 * Attempts to always load the resource as a {@link com.bumptech.glide.load.resource.gif.GifDrawable}.
 * <p>
 *     If the underlying data is not a GIF, this will fail. As a result, this should only be used if the model
 *     represents an animated GIF and the caller wants to interact with the GIfDrawable directly. Normally using
 *     just an {@link com.bumptech.glide.DrawableTypeRequest} is sufficient because it will determine whether or
 *     not the given data represents an animated GIF and return the appropriate animated or not animated
 *     {@link android.graphics.drawable.Drawable} automatically.
 * </p>
 *
 * @return A new request builder for loading a {@link com.bumptech.glide.load.resource.gif.GifDrawable}.
 */
public GifTypeRequest<ModelType> asGif() {
    return optionsApplier.apply(new GifTypeRequest<ModelType>(this, streamModelLoader, optionsApplier));
}

这个方法可以看见很神奇的一点就是又给了两个方法，分别是它提供了asBitmap()和asGif()这两个方法，这两个方法就是强制指定加载动态图片和静态图片的
如果没有指定的话，就是默认就是使用DrawableTypeRequest
如果指定的话，就是调用BitmapTypeRequest或者GifTypeRequest这两个类

然后我们再返回去看这个过程

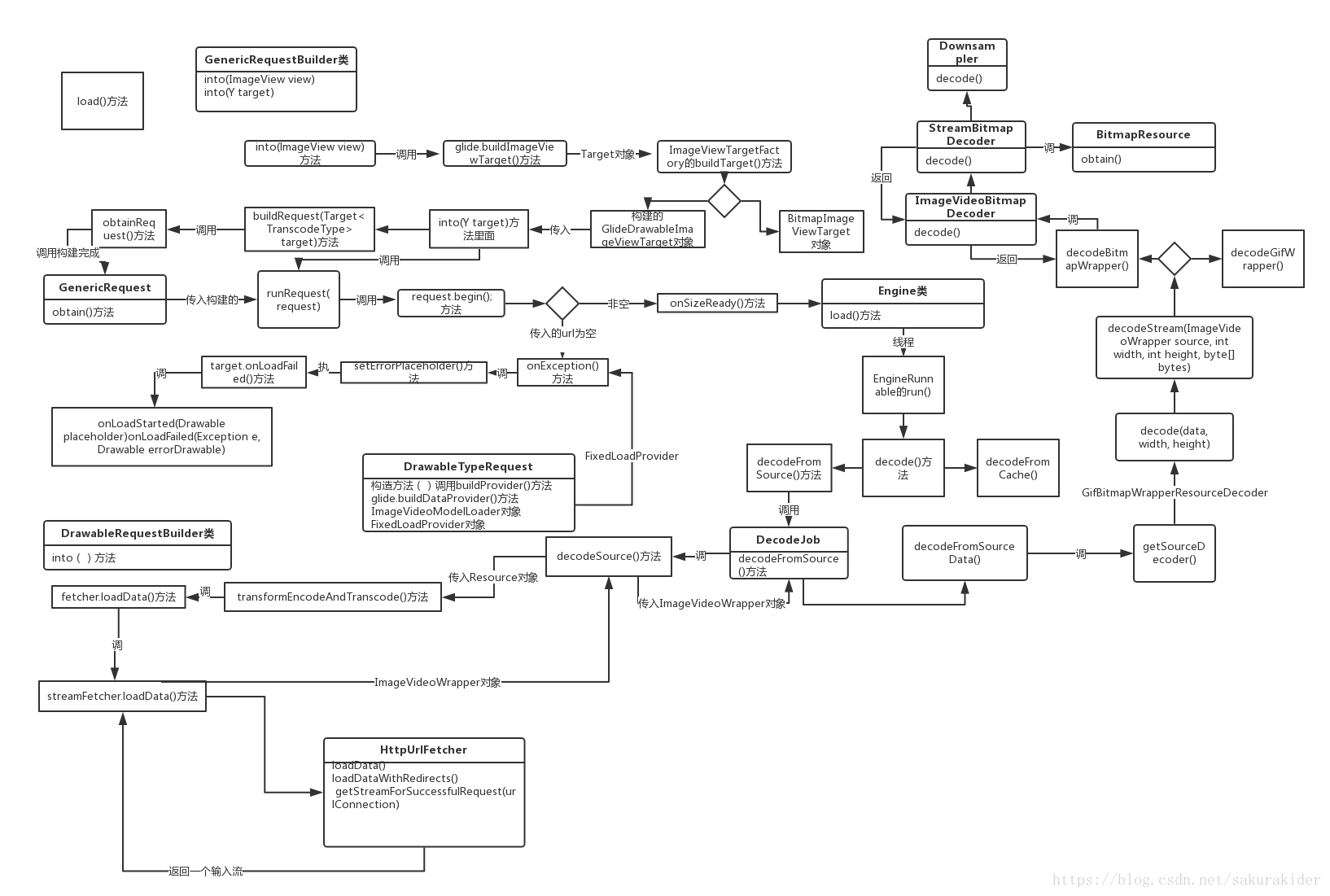

load方法-----》调用fromString()方法—》调用loadGeneric()方法 然后返回一个DrawableTypeRequest对象，并调用这个对象的load()方法
但是
我发现这块，DrawableTypeRequest中并没有load()方法，所以可以推断出来。load肯定在DrawableTypeRequest的父类DrawableRequestBuilder中

然后我们来看下DrawableRequestBuilder的源码：

public class DrawableRequestBuilder<ModelType>
        extends GenericRequestBuilder<ModelType, ImageVideoWrapper, GifBitmapWrapper, GlideDrawable>
        implements BitmapOptions, DrawableOptions {

    DrawableRequestBuilder(Context context, Class<ModelType> modelClass,
            LoadProvider<ModelType, ImageVideoWrapper, GifBitmapWrapper, GlideDrawable> loadProvider, Glide glide,
            RequestTracker requestTracker, Lifecycle lifecycle) {
        super(context, modelClass, loadProvider, GlideDrawable.class, glide, requestTracker, lifecycle);
        // Default to animating.
        crossFade();
    }

    /**
     * Loads and displays the {@link GlideDrawable} retrieved by the given thumbnail request if it finishes before this
     * request. Best used for loading thumbnail {@link GlideDrawable}s that are smaller and will be loaded more quickly
     * than the fullsize {@link GlideDrawable}. There are no guarantees about the order in which the requests will
     * actually finish. However, if the thumb request completes after the full request, the thumb {@link GlideDrawable}
     * will never replace the full image.
     *
     * @see #thumbnail(float)
     *
     * <p>
     *     Note - Any options on the main request will not be passed on to the thumbnail request. For example, if
     *     you want an animation to occur when either the full {@link GlideDrawable} loads or the thumbnail loads,
     *     you need to call {@link #animate(int)} on both the thumb and the full request. For a simpler thumbnail
     *     option where these options are applied to the humbnail as well, see {@link #thumbnail(float)}.
     * </p>
     *
     * <p>
     *     Only the thumbnail call on the main request will be obeyed, recursive calls to this method are ignored.
     * </p>
     *
     * @param thumbnailRequest The request to use to load the thumbnail.
     * @return This builder object.
     */
    public DrawableRequestBuilder<ModelType> thumbnail(
            DrawableRequestBuilder<?> thumbnailRequest) {
        super.thumbnail(thumbnailRequest);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> thumbnail(
            GenericRequestBuilder<?, ?, ?, GlideDrawable> thumbnailRequest) {
        super.thumbnail(thumbnailRequest);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> thumbnail(float sizeMultiplier) {
        super.thumbnail(sizeMultiplier);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> sizeMultiplier(float sizeMultiplier) {
        super.sizeMultiplier(sizeMultiplier);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> decoder(ResourceDecoder<ImageVideoWrapper, GifBitmapWrapper> decoder) {
        super.decoder(decoder);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> cacheDecoder(ResourceDecoder<File, GifBitmapWrapper> cacheDecoder) {
        super.cacheDecoder(cacheDecoder);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> encoder(ResourceEncoder<GifBitmapWrapper> encoder) {
        super.encoder(encoder);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> priority(Priority priority) {
        super.priority(priority);
        return this;
    }

    /**
     * Transform {@link GlideDrawable}s using the given
     * {@link com.bumptech.glide.load.resource.bitmap.BitmapTransformation}s.
     *
     * <p>
     *     Note - Bitmap transformations will apply individually to each frame of animated GIF images and also to
     *     individual {@link Bitmap}s.
     * </p>
     *
     * @see #centerCrop()
     * @see #fitCenter()
     * @see #bitmapTransform(com.bumptech.glide.load.Transformation[])
     * @see #transform(com.bumptech.glide.load.Transformation[])
     *
     * @param transformations The transformations to apply in order.
     * @return This request builder.
     */
    public DrawableRequestBuilder<ModelType> transform(BitmapTransformation... transformations) {
        return bitmapTransform(transformations);
    }

    /**
     * Transform {@link GlideDrawable}s using {@link com.bumptech.glide.load.resource.bitmap.CenterCrop}.
     *
     * @see #fitCenter()
     * @see #transform(com.bumptech.glide.load.resource.bitmap.BitmapTransformation...)
     * @see #bitmapTransform(com.bumptech.glide.load.Transformation[])
     * @see #transform(com.bumptech.glide.load.Transformation[])
     *
     * @return This request builder.
     */
    @SuppressWarnings("unchecked")
    public DrawableRequestBuilder<ModelType> centerCrop() {
        return transform(glide.getDrawableCenterCrop());
    }

    /**
     * Transform {@link GlideDrawable}s using {@link com.bumptech.glide.load.resource.bitmap.FitCenter}.
     *
     * @see #centerCrop()
     * @see #transform(com.bumptech.glide.load.resource.bitmap.BitmapTransformation...)
     * @see #bitmapTransform(com.bumptech.glide.load.Transformation[])
     * @see #transform(com.bumptech.glide.load.Transformation[])
     *
     * @return This request builder.
     */
    @SuppressWarnings("unchecked")
    public DrawableRequestBuilder<ModelType> fitCenter() {
        return transform(glide.getDrawableFitCenter());
    }

    /**
     * Transform {@link GlideDrawable}s using the given {@link android.graphics.Bitmap} transformations. Replaces any
     * previous transformations.
     *
     * @see #fitCenter()
     * @see #centerCrop()
     * @see #transform(com.bumptech.glide.load.resource.bitmap.BitmapTransformation...)
     * @see #transform(com.bumptech.glide.load.Transformation[])
     *
     * @return This request builder.
     */
    public DrawableRequestBuilder<ModelType> bitmapTransform(Transformation<Bitmap>... bitmapTransformations) {
        GifBitmapWrapperTransformation[] transformations =
                new GifBitmapWrapperTransformation[bitmapTransformations.length];
        for (int i = 0; i < bitmapTransformations.length; i++) {
            transformations[i] = new GifBitmapWrapperTransformation(glide.getBitmapPool(), bitmapTransformations[i]);
        }
        return transform(transformations);
    }



    /**
     * {@inheritDoc}
     *
     * @see #bitmapTransform(com.bumptech.glide.load.Transformation[])
     * @see #centerCrop()
     * @see #fitCenter()
     */
    @Override
    public DrawableRequestBuilder<ModelType> transform(Transformation<GifBitmapWrapper>... transformation) {
        super.transform(transformation);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> transcoder(
            ResourceTranscoder<GifBitmapWrapper, GlideDrawable> transcoder) {
        super.transcoder(transcoder);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    public final DrawableRequestBuilder<ModelType> crossFade() {
        super.animate(new DrawableCrossFadeFactory<GlideDrawable>());
        return this;
    }

    /**
     * {@inheritDoc}
     */
    public DrawableRequestBuilder<ModelType> crossFade(int duration) {
        super.animate(new DrawableCrossFadeFactory<GlideDrawable>(duration));
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Deprecated
    public DrawableRequestBuilder<ModelType> crossFade(Animation animation, int duration) {
        super.animate(new DrawableCrossFadeFactory<GlideDrawable>(animation, duration));
        return this;
    }

    /**
     * {@inheritDoc}
     */
    public DrawableRequestBuilder<ModelType> crossFade(int animationId, int duration) {
        super.animate(new DrawableCrossFadeFactory<GlideDrawable>(context, animationId,
                duration));
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> dontAnimate() {
        super.dontAnimate();
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> animate(ViewPropertyAnimation.Animator animator) {
        super.animate(animator);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> animate(int animationId) {
        super.animate(animationId);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Deprecated
    @SuppressWarnings("deprecation")
    @Override
    public DrawableRequestBuilder<ModelType> animate(Animation animation) {
        super.animate(animation);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> placeholder(int resourceId) {
        super.placeholder(resourceId);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> placeholder(Drawable drawable) {
        super.placeholder(drawable);
        return this;
    }

    @Override
    public DrawableRequestBuilder<ModelType> fallback(Drawable drawable) {
        super.fallback(drawable);
        return this;
    }

    @Override
    public DrawableRequestBuilder<ModelType> fallback(int resourceId) {
        super.fallback(resourceId);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> error(int resourceId) {
        super.error(resourceId);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> error(Drawable drawable) {
        super.error(drawable);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> listener(
            RequestListener<? super ModelType, GlideDrawable> requestListener) {
        super.listener(requestListener);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> diskCacheStrategy(DiskCacheStrategy strategy) {
        super.diskCacheStrategy(strategy);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> skipMemoryCache(boolean skip) {
        super.skipMemoryCache(skip);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> override(int width, int height) {
        super.override(width, height);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> sourceEncoder(Encoder<ImageVideoWrapper> sourceEncoder) {
        super.sourceEncoder(sourceEncoder);
        return this;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public DrawableRequestBuilder<ModelType> dontTransform() {
        super.dontTransform();
        return this;
    }

    @Override
    public DrawableRequestBuilder<ModelType> signature(Key signature) {
        super.signature(signature);
        return this;
    }

    @Override
    public DrawableRequestBuilder<ModelType> load(ModelType model) {
        super.load(model);
        return this;
    }

    @Override
    public DrawableRequestBuilder<ModelType> clone() {
        return (DrawableRequestBuilder<ModelType>) super.clone();
    }

    /**
     * {@inheritDoc}
     *
     * <p>
     *     Note - If no transformation is set for this load, a default transformation will be applied based on the
     *     value returned from {@link android.widget.ImageView#getScaleType()}. To avoid this default transformation,
     *     use {@link #dontTransform()}.
     * </p>
     *
     * @param view {@inheritDoc}
     * @return {@inheritDoc}
     */
    @Override
    public Target<GlideDrawable> into(ImageView view) {
        return super.into(view);
    }

    @Override
    void applyFitCenter() {
        fitCenter();
    }

    @Override
    void applyCenterCrop() {
        centerCrop();
    }

我们发现在这个类中，有好多熟悉的方法，各种API,比如比如说placeholder()方法、error()方法、diskCacheStrategy()方法、override()方法等

然后我们就在这个类里面居然发现了into()方法

@Override
public Target<GlideDrawable> into(ImageView view) {
    return super.into(view);
}

所以说，绕了这么久
load()方法返回的其实就是一个DrawableTypeRequest对象。

然后我们看下我整理的流程图//就是简单画下，意思一下

into()方法

这个方法从我们操作的时候，就是指定图片加载的ImageView控件，然后这个控件就按照相应的方法显示出来指定的图片
前面两个方法就是还简单一点，逻辑还是蛮清晰的，现在我们看下这个方法

前面我们发现load方法（）实际是返回一个DrawableTypeRequest对象，然后发现DrawableTypeRequest的父类DrawableRequestBuilder类里面有这个into()方法，但是我们发现这个方法

@Override
public Target<GlideDrawable> into(ImageView view) {
    return super.into(view);
}

很简单，又要找DrawableRequestBuilder类的父类里面的into()方法了

然后我们发现DrawableRequestBuilder类的父类有个叫enericRequestBuilder，我们看下这个类中的into（）方法

public Target<TranscodeType> into(ImageView view) {
    Util.assertMainThread();
    if (view == null) {
        throw new IllegalArgumentException("You must pass in a non null View");
    }

    if (!isTransformationSet && view.getScaleType() != null) {
        switch (view.getScaleType()) {
            case CENTER_CROP:
                applyCenterCrop();
                break;
            case FIT_CENTER:
            case FIT_START:
            case FIT_END:
                applyFitCenter();
                break;
            //$CASES-OMITTED$
            default:
                // Do nothing.
        }
    }

    return into(glide.buildImageViewTarget(view, transcodeClass));
}

然后看着一大堆的参数就很尴尬，但是我们看返回值啊，这个按照这个线索走下去，发现这个调用了一个glide.buildImageViewTarget(view, transcodeClass)方法
点进去看下这个方法，好像是返回一个Target对象，是展示图片用的好像

<R> Target<R> buildImageViewTarget(ImageView imageView, Class<R> transcodedClass) {
    return imageViewTargetFactory.buildTarget(imageView, transcodedClass);
}

然后我们发现这个方法有调用了imageViewTargetFactory的buildTarget（）方法，我们又进去看下这块

public <Z> Target<Z> buildTarget(ImageView view, Class<Z> clazz) {
    if (GlideDrawable.class.isAssignableFrom(clazz)) {
        return (Target<Z>) new GlideDrawableImageViewTarget(view);
    } else if (Bitmap.class.equals(clazz)) {
        return (Target<Z>) new BitmapImageViewTarget(view);
    } else if (Drawable.class.isAssignableFrom(clazz)) {
        return (Target<Z>) new DrawableImageViewTarget(view);
    } else {
        throw new IllegalArgumentException("Unhandled class: " + clazz
                + ", try .as*(Class).transcode(ResourceTranscoder)");
    }
}

我们看下这块就是一大堆if else的，而且传入的是个class参数
分析一下就是
根据buildTarget()方法中会根据传入的class参数构建不同的Target对象
但是这个class参数是从哪里传进来的啊？
//这块直接看郭神的分析了
这个class参数其实基本上只有两种情况，如果你在使用Glide加载图片的时候调用了asBitmap()方法，那么这里就会构建出BitmapImageViewTarget对象，否则的话构建的都是GlideDrawableImageViewTarget对象。至于上述代码中的DrawableImageViewTarget对象，这个通常都是用不到的，我们可以暂时不用管它。

总之，上面一大堆就是意思说，glide.buildImageViewTarget()方法，我们构建出了一个GlideDrawableImageViewTarget对象

然后，我们再返回到into()方法里面，我们发现最后一行，用的是另一个into（）方法，然后我们把GlideDrawableImageViewTarget对象传了进去
我们看下另一个into()方法,把这个Target传进去

public <Y extends Target<TranscodeType>> Y into(Y target) {
    Util.assertMainThread();
    if (target == null) {
        throw new IllegalArgumentException("You must pass in a non null Target");
    }
    if (!isModelSet) {
        throw new IllegalArgumentException("You must first set a model (try #load())");
    }

    Request previous = target.getRequest();

    if (previous != null) {
        previous.clear();
        requestTracker.removeRequest(previous);
        previous.recycle();
    }

    Request request = buildRequest(target);
    target.setRequest(request);
    lifecycle.addListener(target);
    requestTracker.runRequest(request);

    return target;
}

我们看下这个类的有个关键的类Request 出来了，new 了一个这个类的对象，然后最后requestTracker.runRequest(request);来执行了这个request

然后我们终于终于终于看到重点了Request 类，Request是用来发出加载图片请求的，它是Glide中非常关键的一个组件感觉就是迷宫一样，按照方向找啊找，终于到了一个关键的位置，找到了另一个迷宫的入口尴尬啊啊啊emmmmmm

然后我们看下这个类

首先看下buildRequest如何构造这个类的对象

private Request buildRequest(Target<TranscodeType> target) {
    if (priority == null) {
        priority = Priority.NORMAL;
    }
    return buildRequestRecursive(target, null);
}

private Request buildRequestRecursive(Target<TranscodeType> target, ThumbnailRequestCoordinator parentCoordinator) {
    if (thumbnailRequestBuilder != null) {
        if (isThumbnailBuilt) {
            throw new IllegalStateException("You cannot use a request as both the main request and a thumbnail, "
                    + "consider using clone() on the request(s) passed to thumbnail()");
        }
        // Recursive case: contains a potentially recursive thumbnail request builder.
        if (thumbnailRequestBuilder.animationFactory.equals(NoAnimation.getFactory())) {
            thumbnailRequestBuilder.animationFactory = animationFactory;
        }

        if (thumbnailRequestBuilder.priority == null) {
            thumbnailRequestBuilder.priority = getThumbnailPriority();
        }

        if (Util.isValidDimensions(overrideWidth, overrideHeight)
                && !Util.isValidDimensions(thumbnailRequestBuilder.overrideWidth,
                        thumbnailRequestBuilder.overrideHeight)) {
          thumbnailRequestBuilder.override(overrideWidth, overrideHeight);
        }

        ThumbnailRequestCoordinator coordinator = new ThumbnailRequestCoordinator(parentCoordinator);
        Request fullRequest = obtainRequest(target, sizeMultiplier, priority, coordinator);
        // Guard against infinite recursion.
        isThumbnailBuilt = true;
        // Recursively generate thumbnail requests.
        Request thumbRequest = thumbnailRequestBuilder.buildRequestRecursive(target, coordinator);
        isThumbnailBuilt = false;
        coordinator.setRequests(fullRequest, thumbRequest);
        return coordinator;
    } else if (thumbSizeMultiplier != null) {
        // Base case: thumbnail multiplier generates a thumbnail request, but cannot recurse.
        ThumbnailRequestCoordinator coordinator = new ThumbnailRequestCoordinator(parentCoordinator);
        Request fullRequest = obtainRequest(target, sizeMultiplier, priority, coordinator);
        Request thumbnailRequest = obtainRequest(target, thumbSizeMultiplier, getThumbnailPriority(), coordinator);
        coordinator.setRequests(fullRequest, thumbnailRequest);
        return coordinator;
    } else {
        // Base case: no thumbnail.
        return obtainRequest(target, sizeMultiplier, priority, parentCoordinator);
    }
}

private Request obtainRequest(Target<TranscodeType> target, float sizeMultiplier, Priority priority,
        RequestCoordinator requestCoordinator) {
    return GenericRequest.obtain(
            loadProvider,
            model,
            signature,
            context,
            priority,
            target,
            sizeMultiplier,
            placeholderDrawable,
            placeholderId,
            errorPlaceholder,
            errorId,
            fallbackDrawable,
            fallbackResource,
            requestListener,
            requestCoordinator,
            glide.getEngine(),
            transformation,
            transcodeClass,
            isCacheable,
            animationFactory,
            overrideWidth,
            overrideHeight,
            diskCacheStrategy);
}

然后看下代码我们发现这块的调用还是清晰的
buildRequest()方法的内部其实又调用了buildRequestRecursive()方法，然后buildRequestRecursive()方法又调用obtainRequest()方法，，然后这个obtainRequest()方法又调用这个GenericRequest的obtain()方法，然后发现这个方法传入一大堆的参数emmmm看的人脑壳痛

但是仔细一看下这块的这个类里面的obtain()方法

public final class GenericRequest<A, T, Z, R> implements Request, SizeReadyCallback,
        ResourceCallback {
    private static final String TAG = "GenericRequest";
    private static final Queue<GenericRequest<?, ?, ?, ?>> REQUEST_POOL = Util.createQueue(0);
    private static final double TO_MEGABYTE = 1d / (1024d * 1024d);
    ............
public static <A, T, Z, R> GenericRequest<A,T, Z, R> obtain(
            LoadProvider<A, T, Z, R> loadProvider,
            A model,
            Key signature,
            Context context,
            Priority priority,
            Target<R> target,
            float sizeMultiplier,
            Drawable placeholderDrawable,
            int placeholderResourceId,
            Drawable errorDrawable,
            int errorResourceId,
            Drawable fallbackDrawable,
            int fallbackResourceId,
            RequestListener<? super A, R> requestListener,
            RequestCoordinator requestCoordinator,
            Engine engine,
            Transformation<Z> transformation,
            Class<R> transcodeClass,
            boolean isMemoryCacheable,
            GlideAnimationFactory<R> animationFactory,
            int overrideWidth,
            int overrideHeight,
            DiskCacheStrategy diskCacheStrategy) {
        @SuppressWarnings("unchecked")
        GenericRequest<A, T, Z, R> request = (GenericRequest<A, T, Z, R>) REQUEST_POOL.poll();
        if (request == null) {
            request = new GenericRequest<A, T, Z, R>();
        }
        request.init(loadProvider,
                model,
                signature,
                context,
                priority,
                target,
                sizeMultiplier,
                placeholderDrawable,
                placeholderResourceId,
                errorDrawable,
                errorResourceId,
                fallbackDrawable,
                fallbackResourceId,
                requestListener,
                requestCoordinator,
                engine,
                transformation,
                transcodeClass,
                isMemoryCacheable,
                animationFactory,
                overrideWidth,
                overrideHeight,
                diskCacheStrategy);
        return request;
    }

然后我们在这个方法里面找啊找，终于发现这个方法里面的Request了

if (request == null) {
    request = new GenericRequest<A, T, Z, R>();
}
request.init(loadProvider,
        model,
        ........
         diskCacheStrategy);
        return request;



我们发现这块就是new了一个GenericRequest对象，所以说这块就是obtain()方法实际上获得的就是一个GenericRequest对象，然后我们继续往下看有个init()方法，就是一些主要的变量的赋值，传入的这些参数赋值到GenericRequest的成员变量当中，所以这块就是request的对象的构造

然后我们继续找下request是这么执行的，回到into()方法

Request request = buildRequest(target);
target.setRequest(request);
lifecycle.addListener(target);
requestTracker.runRequest(request);

我们把request的构造看完了，现在看下如何执行这块，看下runRequest()这个方法

/**
 * Starts tracking the given request.
 */
public void runRequest(Request request) {
    requests.add(request);
    if (!isPaused) {
        request.begin();
    } else {
        pendingRequests.add(request);
    }
}

既然是请求，肯定有请求队列这些，我们看到这个方法进去之后先把这个请求放到request队列里面，然后看下这个是否是暂停状态，如不是就是调用这个request的begin（）方法，来执行，如果不是，就把这个请求加入执行队列里面

然后我们看下这个begin()方法
//因为现在我们这个request是个GenericRequest，所以看下GenericRequest中的begin()方法了

@Override
public void begin() {
    startTime = LogTime.getLogTime();
    if (model == null) {
        onException(null);
        return;
    }

    status = Status.WAITING_FOR_SIZE;
    if (Util.isValidDimensions(overrideWidth, overrideHeight)) {
        onSizeReady(overrideWidth, overrideHeight);
    } else {
        target.getSize(this);
    }

    if (!isComplete() && !isFailed() && canNotifyStatusChanged()) {
        target.onLoadStarted(getPlaceholderDrawable());
    }
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logV("finished run method in " + LogTime.getElapsedMillis(startTime));
    }
}

我们看下这个方法，首先如果传入的model(我们传入的URL)等于null
它就会调用 onException(null);方法然后返回，应该这块就是占位符的出现的地方了
我们进去看下这个方法

@Override
public void onException(Exception e) {
    if (Log.isLoggable(TAG, Log.DEBUG)) {
        Log.d(TAG, "load failed", e);
    }

    status = Status.FAILED;
    //TODO: what if this is a thumbnail request?
    if (requestListener == null || !requestListener.onException(e, model, target, isFirstReadyResource())) {
        setErrorPlaceholder(e);
    }
}

然后看了下，又去看下这个方法里面的setErrorPlaceholder(e)方法

private void setErrorPlaceholder(Exception e) {
    if (!canNotifyStatusChanged()) {
        return;
    }

    Drawable error = model == null ? getFallbackDrawable() : null;
    if (error == null) {
      error = getErrorDrawable();
    }
    if (error == null) {
        error = getPlaceholderDrawable();
    }
    target.onLoadFailed(e, error);
}

这块先获取一个error的占位图，如果没有的话，就去找个loading占位图。然后调用 target.onLoadFailed(e, error);这个方法将占位图放进去

我们继续看下这个onLoadFailed()方法
然后我找啊找，，，找了半天没找到这个方法在哪
这个方法一开始出现在Target里面，这个是个接口
然后又有个BaseTarget实现了这个Target接口
然后，，ViewTarget又实现BaseTarget接口
然后又找啊找发现ImageViewTarget继承了ViewTarget emmmmm
重要在这个ImageViewTarget类里面发行了这个方法

public abstract class ImageViewTarget<Z> extends ViewTarget<ImageView, Z> implements GlideAnimation.ViewAdapter {
......................
@Override
public void onLoadFailed(Exception e, Drawable errorDrawable) {
    view.setImageDrawable(errorDrawable);
}
@Override
public void onLoadStarted(Drawable placeholder) {
    view.setImageDrawable(placeholder);
}
..............

看到这块我内心是一大群草泥马飘过emmmm这个一个实现一个真的是烦唉
然后我们分析下这个方法
就是将这个error的占位图显示到ImageView上面

然后我们看下在begin()方法里面

 if (!isComplete() && !isFailed() && canNotifyStatusChanged()) {
        target.onLoadStarted(getPlaceholderDrawable());
    }

这个就是一开始还没加载图片的时候，先调用这个getPlaceholderDrawable()方法，给个没加载图片时候的图先放在那里

然后我们想知道那个自己传入的图片到底这么加载的

@Override
public void begin() {
    startTime = LogTime.getLogTime();
    if (model == null) {
        onException(null);
        return;
    }

    status = Status.WAITING_FOR_SIZE;
    if (Util.isValidDimensions(overrideWidth, overrideHeight)) {
        onSizeReady(overrideWidth, overrideHeight);
    } else {
        target.getSize(this);
    }

    if (!isComplete() && !isFailed() && canNotifyStatusChanged()) {
        target.onLoadStarted(getPlaceholderDrawable());
    }
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logV("finished run method in " + LogTime.getElapsedMillis(startTime));
    }
}

然后我们就在里面看到了宽和高地方，也有两种方式

• 指定宽高onSizeReady(overrideWidth, overrideHeight);
• 不指定就默认 target.getSize(this);

我们再看下这个onSizeReady(overrideWidth, overrideHeight);方法

@Override
public void onSizeReady(int width, int height) {
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logV("Got onSizeReady in " + LogTime.getElapsedMillis(startTime));
    }
    if (status != Status.WAITING_FOR_SIZE) {
        return;
    }
    status = Status.RUNNING;

    width = Math.round(sizeMultiplier * width);
    height = Math.round(sizeMultiplier * height);

    ModelLoader<A, T> modelLoader = loadProvider.getModelLoader();
    final DataFetcher<T> dataFetcher = modelLoader.getResourceFetcher(model, width, height);

    if (dataFetcher == null) {
        onException(new Exception("Failed to load model: \'" + model + "\'"));
        return;
    }
    ResourceTranscoder<Z, R> transcoder = loadProvider.getTranscoder();
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logV("finished setup for calling load in " + LogTime.getElapsedMillis(startTime));
    }
    loadedFromMemoryCache = true;
    loadStatus = engine.load(signature, width, height, dataFetcher, loadProvider, transformation, transcoder,
            priority, isMemoryCacheable, diskCacheStrategy, this);
    loadedFromMemoryCache = resource != null;
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logV("finished onSizeReady in " + LogTime.getElapsedMillis(startTime));
    }
}

然后到这个才知道源码有多么可怕emmmmmm 这块的调用什么的真的可怕啊
这个方法里面有一句

ModelLoader<A, T> modelLoader = loadProvider.getModelLoader();

然后我们发现这个private LoadProvider<A, T, Z, R> loadProvider;
然后一脸懵逼这个是什么鬼啊，，，emmmm

public interface LoadProvider<A, T, Z, R> extends DataLoadProvider<T, Z>

原来是个接口啊，DataLoadProvider<T, Z>也是个接口

然后实在不知道下面咋分析了就去看了下郭神的分析，要返回去看下DrawableTypeRequest类

public class DrawableTypeRequest<ModelType> extends DrawableRequestBuilder<ModelType> implements DownloadOptions {

    private final ModelLoader<ModelType, InputStream> streamModelLoader;
    private final ModelLoader<ModelType, ParcelFileDescriptor> fileDescriptorModelLoader;
    private final RequestManager.OptionsApplier optionsApplier;

    private static <A, Z, R> FixedLoadProvider<A, ImageVideoWrapper, Z, R> buildProvider(Glide glide,
            ModelLoader<A, InputStream> streamModelLoader,
            ModelLoader<A, ParcelFileDescriptor> fileDescriptorModelLoader, Class<Z> resourceClass,
            Class<R> transcodedClass,
            ResourceTranscoder<Z, R> transcoder) {
        if (streamModelLoader == null && fileDescriptorModelLoader == null) {
            return null;
        }
        if (transcoder == null) {
            transcoder = glide.buildTranscoder(resourceClass, transcodedClass);
        }
        DataLoadProvider<ImageVideoWrapper, Z> dataLoadProvider = glide.buildDataProvider(ImageVideoWrapper.class,
                resourceClass);
        ImageVideoModelLoader<A> modelLoader = new ImageVideoModelLoader<A>(streamModelLoader,
                fileDescriptorModelLoader);
        return new FixedLoadProvider<A, ImageVideoWrapper, Z, R>(modelLoader, transcoder, dataLoadProvider);
    }

    DrawableTypeRequest(Class<ModelType> modelClass, ModelLoader<ModelType, InputStream> streamModelLoader,
            ModelLoader<ModelType, ParcelFileDescriptor> fileDescriptorModelLoader, Context context, Glide glide,
            RequestTracker requestTracker, Lifecycle lifecycle, RequestManager.OptionsApplier optionsApplier) {
        super(context, modelClass,
                buildProvider(glide, streamModelLoader, fileDescriptorModelLoader, GifBitmapWrapper.class,
                        GlideDrawable.class, null),
                glide, requestTracker, lifecycle);
        this.streamModelLoader = streamModelLoader;
        this.fileDescriptorModelLoader = fileDescriptorModelLoader;
        this.optionsApplier = optionsApplier;
    }

    ...
}

然后在里面我们看到

buildProvider(glide, streamModelLoader, fileDescriptorModelLoader, GifBitmapWrapper.class,
                        GlideDrawable.class, null),
                glide, requestTracker, lifecycle);


在构造方法里面，调用了一个buildProvider()方法，并把streamModelLoader和fileDescriptorModelLoader等参数传入到这个方法中，这两个ModelLoader就是之前在loadGeneric()方法中构建出来的。

然后在buildProvider()方法里面调用glide.buildTranscoder()方法来构建一个ResourceTranscoder，它是用于对图片进行转码的

继续在glide.buildDataProvider()方法来构建一个DataLoadProvider，它是用于对图片进行编解码的，由于DataLoadProvider是一个接口，这里实际会构建出一个ImageVideoGifDrawableLoadProvider对象。

然后在这个类里面又new了ImageVideoModelLoader的实例，并把之前loadGeneric()方法中构建的两个ModelLoader封装到了ImageVideoModelLoader当中。

最后最后最后在DrawableTypeRequest类里面又new出一个FixedLoadProvider，并把刚才构建的出来的GifBitmapWrapperDrawableTranscoder、ImageVideoModelLoader、ImageVideoGifDrawableLoadProvider都封装进去，这个也就是onSizeReady()方法中的loadProvider了。

…看到这块我直接想死的心都有，一步一步往下看，简直要死了，，，这么多过程就是告诉我们onSizeReady()方法中的loadProvider是从DrawableTypeRequest类里面弄出来的一个叫FixedLoadProvider的对象

好了，我们现在再回到onSizeReady()方法

@Override
public void onSizeReady(int width, int height) {
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logV("Got onSizeReady in " + LogTime.getElapsedMillis(startTime));
    }
    if (status != Status.WAITING_FOR_SIZE) {
        return;
    }
    status = Status.RUNNING;

    width = Math.round(sizeMultiplier * width);
    height = Math.round(sizeMultiplier * height);

    ModelLoader<A, T> modelLoader = loadProvider.getModelLoader();
    final DataFetcher<T> dataFetcher = modelLoader.getResourceFetcher(model, width, height);

    if (dataFetcher == null) {
        onException(new Exception("Failed to load model: \'" + model + "\'"));
        return;
    }
    ResourceTranscoder<Z, R> transcoder = loadProvider.getTranscoder();
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logV("finished setup for calling load in " + LogTime.getElapsedMillis(startTime));
    }
    loadedFromMemoryCache = true;
    loadStatus = engine.load(signature, width, height, dataFetcher, loadProvider, transformation, transcoder,
            priority, isMemoryCacheable, diskCacheStrategy, this);
    loadedFromMemoryCache = resource != null;
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logV("finished onSizeReady in " + LogTime.getElapsedMillis(startTime));
    }
}

我们刚才终于把这个类的一个重要的参数loadProvider知道这个货从哪里来了，现在我们来看下这两句里面的方法

ModelLoader<A, T> modelLoader = loadProvider.getModelLoader();
    final DataFetcher<T> dataFetcher = modelLoader.getResourceFetcher(model, width, height);

进getResourceFetcher方法里面看下

@Override
public DataFetcher<ImageVideoWrapper> getResourceFetcher(A model, int width, int height) {
    DataFetcher<InputStream> streamFetcher = null;
    if (streamLoader != null) {
        streamFetcher = streamLoader.getResourceFetcher(model, width, height);
    }
    DataFetcher<ParcelFileDescriptor> fileDescriptorFetcher = null;
    if (fileDescriptorLoader != null) {
        fileDescriptorFetcher = fileDescriptorLoader.getResourceFetcher(model, width, height);
    }

    if (streamFetcher != null || fileDescriptorFetcher != null) {
        return new ImageVideoFetcher(streamFetcher, fileDescriptorFetcher);
    } else {
        return null;
    }
}

这个方法就是先调用这个streamLoader.getResourceFetcher()方法获取一个DataFetcher
然后调用它的getResourceFetcher()方法会得到一个HttpUrlFetcher对象。然后在第28行new出了一个ImageVideoFetcher对象，并把获得的HttpUrlFetcher对象传进去
所以说，ImageVideoModelLoader的getResourceFetcher()方法得到的是一个ImageVideoFetcher。

然后我们又回到onSizeReady()方法里面，我们发现我们前面找的那些参数什么的都传入Engine的load()方法emmmmm

loadStatus = engine.load(signature, width, height, dataFetcher, loadProvider, transformation, transcoder,
        priority, isMemoryCacheable, diskCacheStrategy, this);

所以，我们看下这个Engine的load()方法

public <T, Z, R> LoadStatus load(Key signature, int width, int height, DataFetcher<T> fetcher,
        DataLoadProvider<T, Z> loadProvider, Transformation<Z> transformation, ResourceTranscoder<Z, R> transcoder,
        Priority priority, boolean isMemoryCacheable, DiskCacheStrategy diskCacheStrategy, ResourceCallback cb) {
    Util.assertMainThread();
    long startTime = LogTime.getLogTime();

    final String id = fetcher.getId();
    EngineKey key = keyFactory.buildKey(id, signature, width, height, loadProvider.getCacheDecoder(),
            loadProvider.getSourceDecoder(), transformation, loadProvider.getEncoder(),
            transcoder, loadProvider.getSourceEncoder());

    EngineResource<?> cached = loadFromCache(key, isMemoryCacheable);
    if (cached != null) {
        cb.onResourceReady(cached);
        if (Log.isLoggable(TAG, Log.VERBOSE)) {
            logWithTimeAndKey("Loaded resource from cache", startTime, key);
        }
        return null;
    }

    EngineResource<?> active = loadFromActiveResources(key, isMemoryCacheable);
    if (active != null) {
        cb.onResourceReady(active);
        if (Log.isLoggable(TAG, Log.VERBOSE)) {
            logWithTimeAndKey("Loaded resource from active resources", startTime, key);
        }
        return null;
    }

    EngineJob current = jobs.get(key);
    if (current != null) {
        current.addCallback(cb);
        if (Log.isLoggable(TAG, Log.VERBOSE)) {
            logWithTimeAndKey("Added to existing load", startTime, key);
        }
        return new LoadStatus(cb, current);
    }

    EngineJob engineJob = engineJobFactory.build(key, isMemoryCacheable);
    DecodeJob<T, Z, R> decodeJob = new DecodeJob<T, Z, R>(key, width, height, fetcher, loadProvider, transformation,
            transcoder, diskCacheProvider, diskCacheStrategy, priority);
    EngineRunnable runnable = new EngineRunnable(engineJob, decodeJob, priority);
    jobs.put(key, engineJob);
    engineJob.addCallback(cb);
    engineJob.start(runnable);

    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logWithTimeAndKey("Started new load", startTime, key);
    }
    return new LoadStatus(cb, engineJob);
}

首先说下这个Engine类是干嘛的

Responsible for starting loads and managing active and cached resources.
大概意思就是处理启动loads和管理活动和缓存的//英语水平就这一点了

然后看这个方法，看了半天看不懂什么鬼啊，好像是图片解码的，缓存方面的
看到了这一句

 EngineRunnable runnable = new EngineRunnable(engineJob, decodeJob, priority);
engineJob.start(runnable);

这个先是创建了一个EngineRunnable对象，然后在调用EngineJob的start()方法来运行EngineRunnable对象，这实际上就是让EngineRunnable的run()方法在子线程当中执行了

我们进这个线程方法里面看下这块

@Override
public void run() {
    if (isCancelled) {
        return;
    }

    Exception exception = null;
    Resource<?> resource = null;
    try {
        resource = decode();
    } catch (Exception e) {
        if (Log.isLoggable(TAG, Log.VERBOSE)) {
            Log.v(TAG, "Exception decoding", e);
        }
        exception = e;
    }

    if (isCancelled) {
        if (resource != null) {
            resource.recycle();
        }
        return;
    }

    if (resource == null) {
        onLoadFailed(exception);
    } else {
        onLoadComplete(resource);
    }
}

这块有个关键的方法decode()，他返回的是一个一个Resource对象 进这个方法里面看下

private Resource<?> decode() throws Exception {
    if (isDecodingFromCache()) {
        return decodeFromCache();
    } else {
        return decodeFromSource();
    }
}

这个方法也是分成两种情况，查了下单词的意思，大概知道这两个方法名字是什么意思
decodeFromCache();是解码从高速缓存中
decodeFromSource();是解码从资源中

我们还是先看下从资源中解码吧

private Resource<?> decodeFromSource() throws Exception {
    return decodeJob.decodeFromSource();
}

然后这个又调用了DecodeJob的decodeFromSource()方法。

然后我们又进去看下这个方法

public Resource<Z> decodeFromSource() throws Exception {
    Resource<T> decoded = decodeSource();
    return transformEncodeAndTranscode(decoded);
}

private Resource<T> decodeSource() throws Exception {
    Resource<T> decoded = null;
    try {
        long startTime = LogTime.getLogTime();
        final A data = fetcher.loadData(priority);
        if (Log.isLoggable(TAG, Log.VERBOSE)) {
            logWithTimeAndKey("Fetched data", startTime);
        }
        if (isCancelled) {
            return null;
        }
        decoded = decodeFromSourceData(data);
    } finally {
        fetcher.cleanup();
    }
    return decoded;
}

就是decodeFromSource（）方法又调用了decodeSource() 方法
获取一个Resource对象，调用transformEncodeAndTranscode()方法来处理这个Resource对象。

先看下这块的decodeSource() 方法,里面有句

 final A data = fetcher.loadData(priority);

然后我们进去看下这个方法loadData方法

@Override
public ImageVideoWrapper loadData(Priority priority) throws Exception {
    InputStream is = null;
    if (streamFetcher != null) {
        try {
            is = streamFetcher.loadData(priority);
        } catch (Exception e) {
            if (Log.isLoggable(TAG, Log.VERBOSE)) {
                Log.v(TAG, "Exception fetching input stream, trying ParcelFileDescriptor", e);
            }
            if (fileDescriptorFetcher == null) {
                throw e;
            }
        }
    }
    ParcelFileDescriptor fileDescriptor = null;
    if (fileDescriptorFetcher != null) {
        try {
            fileDescriptor = fileDescriptorFetcher.loadData(priority);
        } catch (Exception e) {
            if (Log.isLoggable(TAG, Log.VERBOSE)) {
                Log.v(TAG, "Exception fetching ParcelFileDescriptor", e);
            }
            if (is == null) {
                throw e;
            }
        }
    }
    return new ImageVideoWrapper(is, fileDescriptor);
}

然后还是很尴尬，，，在ImageVideoFetcher的loadData()方法的第6行，这里又去调用了streamFetcher.loadData()方法
然后又去看下loadData()方法

public class HttpUrlFetcher implements DataFetcher<InputStream> {
    private static final String TAG = "HttpUrlFetcher";
    private static final int MAXIMUM_REDIRECTS = 5;
    private static final HttpUrlConnectionFactory DEFAULT_CONNECTION_FACTORY = new DefaultHttpUrlConnectionFactory();

    private final GlideUrl glideUrl;
    private final HttpUrlConnectionFactory connectionFactory;

    private HttpURLConnection urlConnection;
    private InputStream stream;
    private volatile boolean isCancelled;

    public HttpUrlFetcher(GlideUrl glideUrl) {
        this(glideUrl, DEFAULT_CONNECTION_FACTORY);
    }

    // Visible for testing.
    HttpUrlFetcher(GlideUrl glideUrl, HttpUrlConnectionFactory connectionFactory) {
        this.glideUrl = glideUrl;
        this.connectionFactory = connectionFactory;
    }

    @Override
    public InputStream loadData(Priority priority) throws Exception {
        return loadDataWithRedirects(glideUrl.toURL(), 0 /*redirects*/, null /*lastUrl*/, glideUrl.getHeaders());
    }

    private InputStream loadDataWithRedirects(URL url, int redirects, URL lastUrl, Map<String, String> headers)
            throws IOException {
        if (redirects >= MAXIMUM_REDIRECTS) {
            throw new IOException("Too many (> " + MAXIMUM_REDIRECTS + ") redirects!");
        } else {
            // Comparing the URLs using .equals performs additional network I/O and is generally broken.
            // See http://michaelscharf.blogspot.com/2006/11/javaneturlequals-and-hashcode-make.html.
            try {
                if (lastUrl != null && url.toURI().equals(lastUrl.toURI())) {
                    throw new IOException("In re-direct loop");
                }
            } catch (URISyntaxException e) {
                // Do nothing, this is best effort.
            }
        }
        urlConnection = connectionFactory.build(url);
        for (Map.Entry<String, String> headerEntry : headers.entrySet()) {
          urlConnection.addRequestProperty(headerEntry.getKey(), headerEntry.getValue());
        }
        urlConnection.setConnectTimeout(2500);
        urlConnection.setReadTimeout(2500);
        urlConnection.setUseCaches(false);
        urlConnection.setDoInput(true);

        // Connect explicitly to avoid errors in decoders if connection fails.
        urlConnection.connect();
        if (isCancelled) {
            return null;
        }
        final int statusCode = urlConnection.getResponseCode();
        if (statusCode / 100 == 2) {
            return getStreamForSuccessfulRequest(urlConnection);
        } else if (statusCode / 100 == 3) {
            String redirectUrlString = urlConnection.getHeaderField("Location");
            if (TextUtils.isEmpty(redirectUrlString)) {
                throw new IOException("Received empty or null redirect url");
            }
            URL redirectUrl = new URL(url, redirectUrlString);
            return loadDataWithRedirects(redirectUrl, redirects + 1, url, headers);
        } else {
            if (statusCode == -1) {
                throw new IOException("Unable to retrieve response code from HttpUrlConnection.");
            }
            throw new IOException("Request failed " + statusCode + ": " + urlConnection.getResponseMessage());
        }
    }

    private InputStream getStreamForSuccessfulRequest(HttpURLConnection urlConnection)
            throws IOException {
        if (TextUtils.isEmpty(urlConnection.getContentEncoding())) {
            int contentLength = urlConnection.getContentLength();
            stream = ContentLengthInputStream.obtain(urlConnection.getInputStream(), contentLength);
        } else {
            if (Log.isLoggable(TAG, Log.DEBUG)) {
                Log.d(TAG, "Got non empty content encoding: " + urlConnection.getContentEncoding());
            }
            stream = urlConnection.getInputStream();
        }
        return stream;
    }

    @Override
    public void cleanup() {
        if (stream != null) {
            try {
                stream.close();
            } catch (IOException e) {
                // Ignore
            }
        }
        if (urlConnection != null) {
            urlConnection.disconnect();
        }
    }

终于，，，找到网络请求的入口了emmmmmmmm
but我看来一下这个方法的，发现这个方法最终就是返回一个输入流
然后就只是给了一个inputStream，好像还没处理这块

然后我们回到ImageVideoWrapper loadData(Priority priority)这块方法，看下它的最后一行 return new ImageVideoWrapper(is, fileDescriptor);
看到这个方法，就是把我们刚才得到的输入流传入

然后继续返回emmmmm
返回到DecodeJob的decodeSource()方法，在得到了这个ImageVideoWrapper对象之后，紧接着又将这个对象传入到了decodeFromSourceData()当中，来去解码这个对象。decodeFromSourceData()方法的代码如下所示：

public Resource<Z> decodeFromSource() throws Exception {
    Resource<T> decoded = decodeSource();
    return transformEncodeAndTranscode(decoded);
}
private Resource<T> decodeSource() throws Exception {
    Resource<T> decoded = null;
    try {
        long startTime = LogTime.getLogTime();
        final A data = fetcher.loadData(priority);
        if (Log.isLoggable(TAG, Log.VERBOSE)) {
            logWithTimeAndKey("Fetched data", startTime);
        }
        if (isCancelled) {
            return null;
        }
        decoded = decodeFromSourceData(data);
    } finally {
        fetcher.cleanup();
    }
    return decoded;
}

private Resource<T> decodeFromSourceData(A data) throws IOException {
    final Resource<T> decoded;
    if (diskCacheStrategy.cacheSource()) {
        decoded = cacheAndDecodeSourceData(data);
    } else {
        long startTime = LogTime.getLogTime();
        decoded = loadProvider.getSourceDecoder().decode(data, width, height);
        if (Log.isLoggable(TAG, Log.VERBOSE)) {
            logWithTimeAndKey("Decoded from source", startTime);
        }
    }
    return decoded;
}

然后我们看到在这块有句 decoded = loadProvider.getSourceDecoder().decode(data, width, height);
这个是进行解码的，然后我们去看下这个decode方法

public class GifBitmapWrapperResourceDecoder implements ResourceDecoder<ImageVideoWrapper, GifBitmapWrapper> {
urce<GifBitmapWrapper> decode(ImageVideoWrapper source, int width, int height) throws IOException {
        ByteArrayPool pool = ByteArrayPool.get();
        byte[] tempBytes = pool.getBytes();

        GifBitmapWrapper wrapper = null;
        try {
            wrapper = decode(source, width, height, tempBytes);
        } finally {
            pool.releaseBytes(tempBytes);
        }
        return wrapper != null ? new GifBitmapWrapperResource(wrapper) : null;
    }

    private GifBitmapWrapper decode(ImageVideoWrapper source, int width, int height, byte[] bytes) throws IOException {
        final GifBitmapWrapper result;
        if (source.getStream() != null) {
            result = decodeStream(source, width, height, bytes);
        } else {
            result = decodeBitmapWrapper(source, width, height);
        }
        return result;
    }

    private GifBitmapWrapper decodeStream(ImageVideoWrapper source, int width, int height, byte[] bytes)
            throws IOException {
        InputStream bis = streamFactory.build(source.getStream(), bytes);
        bis.mark(MARK_LIMIT_BYTES);
        ImageHeaderParser.ImageType type = parser.parse(bis);
        bis.reset();

        GifBitmapWrapper result = null;
        if (type == ImageHeaderParser.ImageType.GIF) {
            result = decodeGifWrapper(bis, width, height);
        }
        // Decoding the gif may fail even if the type matches.
        if (result == null) {
            // We can only reset the buffered InputStream, so to start from the beginning of the stream, we need to
            // pass in a new source containing the buffered stream rather than the original stream.
            ImageVideoWrapper forBitmapDecoder = new ImageVideoWrapper(bis, source.getFileDescriptor());
            result = decodeBitmapWrapper(forBitmapDecoder, width, height);
        }
        return result;
    }

    private GifBitmapWrapper decodeGifWrapper(InputStream bis, int width, int height) throws IOException {
        GifBitmapWrapper result = null;
        Resource<GifDrawable> gifResource = gifDecoder.decode(bis, width, height);
        if (gifResource != null) {
            GifDrawable drawable = gifResource.get();
                    if (drawable.getFrameCount() > 1) {
                result = new GifBitmapWrapper(null /*bitmapResource*/, gifResource);
            } else {
                Resource<Bitmap> bitmapResource = new BitmapResource(drawable.getFirstFrame(), bitmapPool);
                result = new GifBitmapWrapper(bitmapResource, null /*gifResource*/);
            }
        }
        return result;
    }

    private GifBitmapWrapper decodeBitmapWrapper(ImageVideoWrapper toDecode, int width, int height) throws IOException {
        GifBitmapWrapper result = null;

        Resource<Bitmap> bitmapResource = bitmapDecoder.decode(toDecode, width, height);
        if (bitmapResource != null) {
            result = new GifBitmapWrapper(bitmapResource, null);
        }

        return result;
    }

这块我们看下有两个deccode()方法，然后先是调用短的那个decode（）方法，然后再去调用参数多的那个decode()方法，准备从服务器中返回当前读的数据。首先，先判定下图片的格式，如果是普通图片的话，就调用decodeBitmapWrapper(source, width, height);方法，如果是GIF就调用decodeGifWrapper()方法进行解码的

我们就只看下这块的decodeBitmapWrapper()方法，其中有句

Resource<Bitmap> bitmapResource = bitmapDecoder.decode(toDecode, width, height);

看了下就是调用了一个bitmapDecoder.decode（）方法，这个bitmapDecoder是一个ImageVideoBitmapDecoder对象

我们又去看下这个ImageVideoBitmapDecoder（）对象

public class ImageVideoBitmapDecoder implements ResourceDecoder<ImageVideoWrapper, Bitmap> {
    private static final String TAG = "ImageVideoDecoder";
    private final ResourceDecoder<InputStream, Bitmap> streamDecoder;
    private final ResourceDecoder<ParcelFileDescriptor, Bitmap> fileDescriptorDecoder;

    public ImageVideoBitmapDecoder(ResourceDecoder<InputStream, Bitmap> streamDecoder,
            ResourceDecoder<ParcelFileDescriptor, Bitmap> fileDescriptorDecoder) {
        this.streamDecoder = streamDecoder;
        this.fileDescriptorDecoder = fileDescriptorDecoder;
    }

    @SuppressWarnings("resource")
    // @see ResourceDecoder.decode
    @Override
    public Resource<Bitmap> decode(ImageVideoWrapper source, int width, int height) throws IOException {
        Resource<Bitmap> result = null;
        InputStream is = source.getStream();
        if (is != null) {
            try {
                result = streamDecoder.decode(is, width, height);
            } catch (IOException e) {
                if (Log.isLoggable(TAG, Log.VERBOSE)) {
                    Log.v(TAG, "Failed to load image from stream, trying FileDescriptor", e);
                }
            }
        }

        if (result == null) {
            ParcelFileDescriptor fileDescriptor = source.getFileDescriptor();
            if (fileDescriptor != null) {
                result = fileDescriptorDecoder.decode(fileDescriptor, width, height);
            }
        }
        return result;
    }

    @Override
    public String getId() {
        return "ImageVideoBitmapDecoder.com.bumptech.glide.load.resource.bitmap";
    }
}

这个类的代码其实也不复杂，在 InputStream is = source.getStream();获取到服务器的返回的InputStream，然后在 result = streamDecoder.decode(is, width, height);又对其进行解码

然后我们再看下这块的streamDecoder类

public class StreamBitmapDecoder implements ResourceDecoder<InputStream, Bitmap> {
    private static final String ID = "StreamBitmapDecoder.com.bumptech.glide.load.resource.bitmap";
    private final Downsampler downsampler;
    private BitmapPool bitmapPool;
    private DecodeFormat decodeFormat;
    private String id;

    public StreamBitmapDecoder(Context context) {
        this(Glide.get(context).getBitmapPool());
    }

    public StreamBitmapDecoder(BitmapPool bitmapPool) {
        this(bitmapPool, DecodeFormat.DEFAULT);
    }

    public StreamBitmapDecoder(Context context, DecodeFormat decodeFormat) {
        this(Glide.get(context).getBitmapPool(), decodeFormat);
    }

    public StreamBitmapDecoder(BitmapPool bitmapPool, DecodeFormat decodeFormat) {
        this(Downsampler.AT_LEAST, bitmapPool, decodeFormat);
    }

    public StreamBitmapDecoder(Downsampler downsampler, BitmapPool bitmapPool, DecodeFormat decodeFormat) {
        this.downsampler = downsampler;
        this.bitmapPool = bitmapPool;
        this.decodeFormat = decodeFormat;
    }

    @Override
    public Resource<Bitmap> decode(InputStream source, int width, int height) {
        Bitmap bitmap = downsampler.decode(source, bitmapPool, width, height, decodeFormat);
        return BitmapResource.obtain(bitmap, bitmapPool);
    }

    @Override
    public String getId() {
        if (id == null) {
            id = new StringBuilder()
                .append(ID)
                .append(downsampler.getId())
                .append(decodeFormat.name())
                .toString();
        }
        return id;
    }
}

然后我们看下这个类里面的decode()方法

@Override
public Resource<Bitmap> decode(InputStream source, int width, int height) {
    Bitmap bitmap = downsampler.decode(source, bitmapPool, width, height, decodeFormat);
    return BitmapResource.obtain(bitmap, bitmapPool);
}

就是调用Downsampler的decode()方法

public abstract class Downsampler implements BitmapDecoder<InputStream> {
   tHeight, DecodeFormat decodeFormat) {
        final ByteArrayPool byteArrayPool = ByteArrayPool.get();
        final byte[] bytesForOptions = byteArrayPool.getBytes();
        final byte[] bytesForStream = byteArrayPool.getBytes();
        final BitmapFactory.Options options = getDefaultOptions();

        // Use to fix the mark limit to avoid allocating buffers that fit entire images.
        RecyclableBufferedInputStream bufferedStream = new RecyclableBufferedInputStream(
                is, bytesForStream);
        // Use to retrieve exceptions thrown while reading.
        // TODO(#126): when the framework no longer returns partially decoded Bitmaps or provides a way to determine
        // if a Bitmap is partially decoded, consider removing.
        ExceptionCatchingInputStream exceptionStream =
                ExceptionCatchingInputStream.obtain(bufferedStream);
        // Use to read data.
        // Ensures that we can always reset after reading an image header so that we can still attempt to decode the
        // full image even when the header decode fails and/or overflows our read buffer. See #283.
        MarkEnforcingInputStream invalidatingStream = new MarkEnforcingInputStream(exceptionStream);
        try {
            exceptionStream.mark(MARK_POSITION);
            int orientation = 0;
            try {
                orientation = new ImageHeaderParser(exceptionStream).getOrientation();
            } catch (IOException e) {
                if (Log.isLoggable(TAG, Log.WARN)) {
                    Log.w(TAG, "Cannot determine the image orientation from header", e);
                }
            } finally {
                try {
                    exceptionStream.reset();
                } catch (IOException e) {
                    if (Log.isLoggable(TAG, Log.WARN)) {
                        Log.w(TAG, "Cannot reset the input stream", e);
                    }
                }
            }

            options.inTempStorage = bytesForOptions;

            final int[] inDimens = getDimensions(invalidatingStream, bufferedStream, options);
            final int inWidth = inDimens[0];
            final int inHeight = inDimens[1];

            final int degreesToRotate = TransformationUtils.getExifOrientationDegrees(orientation);
            final int sampleSize = getRoundedSampleSize(degreesToRotate, inWidth, inHeight, outWidth, outHeight);

            final Bitmap downsampled =
                    downsampleWithSize(invalidatingStream, bufferedStream, options, pool, inWidth, inHeight, sampleSize,
                            decodeFormat);

            // BitmapFactory swallows exceptions during decodes and in some cases when inBitmap is non null, may catch
            // and log a stack trace but still return a non null bitmap. To avoid displaying partially decoded bitmaps,
            // we catch exceptions reading from the stream in our ExceptionCatchingInputStream and throw them here.
            final Exception streamException = exceptionStream.getException();
            if (streamException != null) {
                throw new RuntimeException(streamException);
            }

            Bitmap rotated = null;
            if (downsampled != null) {
                rotated = TransformationUtils.rotateImageExif(downsampled, pool, orientation);

                if (!downsampled.equals(rotated) && !pool.put(downsampled)) {
                    downsampled.recycle();
                }
            }

            return rotated;
        } finally {
            byteArrayPool.releaseBytes(bytesForOptions);
            byteArrayPool.releaseBytes(bytesForStream);
            exceptionStream.release();
            releaseOptions(options);
        }
    }

    private int getRoundedSampleSize(int degreesToRotate, int inWidth, int inHeight, int outWidth, int outHeight) {
        int targetHeight = outHeight == Target.SIZE_ORIGINAL ? inHeight : outHeight;
        int targetWidth = outWidth == Target.SIZE_ORIGINAL ? inWidth : outWidth;

        final int exactSampleSize;
        if (degreesToRotate == 90 || degreesToRotate == 270) {
            // If we're rotating the image +-90 degrees, we need to downsample accordingly so the image width is
            // decreased to near our target's height and the image height is decreased to near our target width.
            //noinspection SuspiciousNameCombination
            exactSampleSize = getSampleSize(inHeight, inWidth, targetWidth, targetHeight);
        } else {
            exactSampleSize = getSampleSize(inWidth, inHeight, targetWidth, targetHeight);
        }

        // BitmapFactory only accepts powers of 2, so it will round down to the nearest power of two that is less than
        // or equal to the sample size we provide. Because we need to estimate the final image width and height to
        // re-use Bitmaps, we mirror BitmapFactory's calculation here. For bug, see issue #224. For algorithm see
        // http://stackoverflow.com/a/17379704/800716.
        final int powerOfTwoSampleSize = exactSampleSize == 0 ? 0 : Integer.highestOneBit(exactSampleSize);

        // Although functionally equivalent to 0 for BitmapFactory, 1 is a safer default for our code than 0.
        return Math.max(1, powerOfTwoSampleSize);
    }

    private Bitmap downsampleWithSize(MarkEnforcingInputStream is, RecyclableBufferedInputStream  bufferedStream,
            BitmapFactory.Options options, BitmapPool pool, int inWidth, int inHeight, int sampleSize,
            DecodeFormat decodeFormat) {
        // Prior to KitKat, the inBitmap size must exactly match the size of the bitmap we're decoding.
        Bitmap.Config config = getConfig(is, decodeFormat);
        options.inSampleSize = sampleSize;
        options.inPreferredConfig = config;
        if ((options.inSampleSize == 1 || Build.VERSION_CODES.KITKAT <= Build.VERSION.SDK_INT) && shouldUsePool(is)) {
            int targetWidth = (int) Math.ceil(inWidth / (double) sampleSize);
            int targetHeight = (int) Math.ceil(inHeight / (double) sampleSize);
            // BitmapFactory will clear out the Bitmap before writing to it, so getDirty is safe.
            setInBitmap(options, pool.getDirty(targetWidth, targetHeight, config));
        }
        return decodeStream(is, bufferedStream, options);
    }

   putStream bufferedStream,
            BitmapFactory.Options options) {
        options.inJustDecodeBounds = true;
        decodeStream(is, bufferedStream, options);
        options.inJustDecodeBounds = false;
        return new int[] { options.outWidth, options.outHeight };
    }

    private static Bitmap decodeStream(MarkEnforcingInputStream is, RecyclableBufferedInputStream bufferedStream,
            BitmapFactory.Options options) {
         if (options.inJustDecodeBounds) {
             // This is large, but jpeg headers are not size bounded so we need something large enough to minimize
             // the possibility of not being able to fit enough of the header in the buffer to get the image size so
             // that we don't fail to load images. The BufferedInputStream will create a new buffer of 2x the
             // original size each time we use up the buffer space without passing the mark so this is a maximum
             // bound on the buffer size, not a default. Most of the time we won't go past our pre-allocated 16kb.
             is.mark(MARK_POSITION);
         } else {
             // Once we've read the image header, we no longer need to allow the buffer to expand in size. To avoid
             // unnecessary allocations reading image data, we fix the mark limit so that it is no larger than our
             // current buffer size here. See issue #225.
             bufferedStream.fixMarkLimit();
         }

        final Bitmap result = BitmapFactory.decodeStream(is, null, options);

        try {
            if (options.inJustDecodeBounds) {
                is.reset();
            }
        } catch (IOException e) {
            if (Log.isLoggable(TAG, Log.ERROR)) {
                Log.e(TAG, "Exception loading inDecodeBounds=" + options.inJustDecodeBounds
                        + " sample=" + options.inSampleSize, e);
            }
        }

        return result;
    }

    @TargetApi(Build.VERSION_CODES.HONEYCOMB)
    private static void setInBitmap(BitmapFactory.Options options, Bitmap recycled) {
        if (Build.VERSION_CODES.HONEYCOMB <= Build.VERSION.SDK_INT) {
            options.inBitmap = recycled;
        }
    }

    @TargetApi(Build.VERSION_CODES.HONEYCOMB)
    private static synchronized BitmapFactory.Options getDefaultOptions() {
        BitmapFactory.Options decodeBitmapOptions;
        synchronized (OPTIONS_QUEUE) {
            decodeBitmapOptions = OPTIONS_QUEUE.poll();
        }
        if (decodeBitmapOptions == null) {
            decodeBitmapOptions = new BitmapFactory.Options();
            resetOptions(decodeBitmapOptions);
        }

        return decodeBitmapOptions;
    }

    private static void releaseOptions(BitmapFactory.Options decodeBitmapOptions) {
        resetOptions(decodeBitmapOptions);
        synchronized (OPTIONS_QUEUE) {
            OPTIONS_QUEUE.offer(decodeBitmapOptions);
        }
    }

    @TargetApi(Build.VERSION_CODES.HONEYCOMB)
    private static void resetOptions(BitmapFactory.Options decodeBitmapOptions) {
        decodeBitmapOptions.inTempStorage = null;
        decodeBitmapOptions.inDither = false;
        decodeBitmapOptions.inScaled = false;
        decodeBitmapOptions.inSampleSize = 1;
        decodeBitmapOptions.inPreferredConfig = null;
        decodeBitmapOptions.inJustDecodeBounds = false;
        decodeBitmapOptions.outWidth = 0;
        decodeBitmapOptions.outHeight = 0;
        decodeBitmapOptions.outMimeType = null;

        if (Build.VERSION_CODES.HONEYCOMB <= Build.VERSION.SDK_INT)  {
            decodeBitmapOptions.inBitmap = null;
            decodeBitmapOptions.inMutable = true;
        }
    }
}

这个类的方法特别特别多，然后我们就发现这个类才是对服务器返回的InputStream的处理
先看下decode（）这个方法，是返回一个回一个Bitmap对象，那么图片在这里其实也就已经被加载出来了，剩下的工作就是如果让这个Bitmap显示到界面上

回到上面的刚才的StreamBitmapDecoder当中，你会发现，它的decode()方法返回的是一个Resource对象,因此这里在第18行又调用了BitmapResource.obtain()方法，将Bitmap对象包装成了Resource对象

@Override
public Resource<Bitmap> decode(InputStream source, int width, int height) {
    Bitmap bitmap = downsampler.decode(source, bitmapPool, width, height, decodeFormat);
    return BitmapResource.obtain(bitmap, bitmapPool);
}

然后我们再看下这个BitmapResource对象

public class BitmapResource implements Resource<Bitmap> {
    private final Bitmap bitmap;
    private final BitmapPool bitmapPool;

    /**
     * Returns a new {@link BitmapResource} wrapping the given {@link Bitmap} if the Bitmap is non-null or null if the
     * given Bitmap is null.
     *
     * @param bitmap A Bitmap.
     * @param bitmapPool A non-null {@link com.bumptech.glide.load.engine.bitmap_recycle.BitmapPool}.
     */
    public static BitmapResource obtain(Bitmap bitmap, BitmapPool bitmapPool) {
        if (bitmap == null) {
            return null;
        } else {
            return new BitmapResource(bitmap, bitmapPool);
        }
    }

    public BitmapResource(Bitmap bitmap, BitmapPool bitmapPool) {
        if (bitmap == null) {
            throw new NullPointerException("Bitmap must not be null");
        }
        if (bitmapPool == null) {
            throw new NullPointerException("BitmapPool must not be null");
        }
        this.bitmap = bitmap;
        this.bitmapPool = bitmapPool;
    }

    @Override
    public Bitmap get() {
        return bitmap;
    }

    @Override
    public int getSize() {
        return Util.getBitmapByteSize(bitmap);
    }

    @Override
    public void recycle() {
        if (!bitmapPool.put(bitmap)) {
            bitmap.recycle();
        }
    }
}

这个类也蛮简单的，如果我还需要获取Bitmap，只需要调用Resource的get()方法就可以了

然后我们需要一层层继续向上返回，StreamBitmapDecoder会将值返回到ImageVideoBitmapDecoder当中，而ImageVideoBitmapDecoder又会将值返回到GifBitmapWrapperResourceDecoder的decodeBitmapWrapper()方法当中。

private GifBitmapWrapper decodeBitmapWrapper(ImageVideoWrapper toDecode, int width, int height) throws IOException {
    GifBitmapWrapper result = null;
    Resource<Bitmap> bitmapResource = bitmapDecoder.decode(toDecode, width, height);
    if (bitmapResource != null) {
        result = new GifBitmapWrapper(bitmapResource, null);
    }
    return result;
}

这个方法就是返回一个GifBitmapWrapper对象，然后又将Resource封装到了一个GifBitmapWrapper对象当中。这个GifBitmapWrapper顾名思义，就是既能封装GIF，又能封装Bitmap，从而保证了不管是什么类型的图片Glide都能从容应对

我们看下这个GifBitmapWrapper的源码

public class GifBitmapWrapper {
    private final Resource<GifDrawable> gifResource;
    private final Resource<Bitmap> bitmapResource;

    public GifBitmapWrapper(Resource<Bitmap> bitmapResource, Resource<GifDrawable> gifResource) {
        if (bitmapResource != null && gifResource != null) {
            throw new IllegalArgumentException("Can only contain either a bitmap resource or a gif resource, not both");
        }
        if (bitmapResource == null && gifResource == null) {
            throw new IllegalArgumentException("Must contain either a bitmap resource or a gif resource");
        }
        this.bitmapResource = bitmapResource;
        this.gifResource = gifResource;
    }

    /**
     * Returns the size of the wrapped resource.
     */
    public int getSize() {
        if (bitmapResource != null) {
            return bitmapResource.getSize();
        } else {
            return gifResource.getSize();
        }
    }

    /**
     * Returns the wrapped {@link android.graphics.Bitmap} resource if it exists, or null.
     */
    public Resource<Bitmap> getBitmapResource() {
        return bitmapResource;
    }

    /**
     * Returns the wrapped {@link com.bumptech.glide.load.resource.gif.GifDrawable} resource if it exists, or null.
     */
    public Resource<GifDrawable> getGifResource() {
        return gifResource;
    }
}

好像也没干什么，就是做了一层封装

然后个GifBitmapWrapper对象会一直向上返回，返回到GifBitmapWrapperResourceDecoder最外层的decode()方法的时候，会对它再做一次封装，如下所示

Override
public Resource<GifBitmapWrapper> decode(ImageVideoWrapper source, int width, int height) throws IOException {
    ByteArrayPool pool = ByteArrayPool.get();
    byte[] tempBytes = pool.getBytes();
    GifBitmapWrapper wrapper = null;
    try {
        wrapper = decode(source, width, height, tempBytes);
    } finally {
        pool.releaseBytes(tempBytes);
    }
    return wrapper != null ? new GifBitmapWrapperResource(wrapper) : null;
}

然后又将GifBitmapWrapper封装到了一个GifBitmapWrapperResource对象当中，最终返回的是一个Resource对象，这个GifBitmapWrapperResource和刚才的BitmapResource是相似的，它们都实现的Resource接口，都可以通过get()方法来获取封装起来的具体内容。GifBitmapWrapperResource的源码如下所示

public class GifBitmapWrapperResource implements Resource<GifBitmapWrapper> {
    private final GifBitmapWrapper data;

    public GifBitmapWrapperResource(GifBitmapWrapper data) {
        if (data == null) {
            throw new NullPointerException("Data must not be null");
        }
        this.data = data;
    }

    @Override
    public GifBitmapWrapper get() {
        return data;
    }

    @Override
    public int getSize() {
        return data.getSize();
    }

    @Override
    public void recycle() {
        Resource<Bitmap> bitmapResource = data.getBitmapResource();
        if (bitmapResource != null) {
            bitmapResource.recycle();
        }
        Resource<GifDrawable> gifDataResource = data.getGifResource();
        if (gifDataResource != null) {
            gifDataResource.recycle();
        }
    }
}

经过这一层的封装之后，我们从网络上得到的图片就能够以Resource接口的形式返回，并且还能同时处理Bitmap图片和GIF图片这两种情况。

现在我们可以回到DecodeJob当中了，它的decodeFromSourceData()方法返回的是一个Resource对象，其实也就是Resource对象了。然后继续向上返回，最终返回到decodeFromSource()方法当中，如下所示：

public Resource<Z> decodeFromSource() throws Exception {
    Resource<T> decoded = decodeSource();
    return transformEncodeAndTranscode(decoded);
}

emmmmm终于回来了decodeSource()方法当中，然后执行了一大堆一大堆的逻辑，最终得到了这个Resource对象。然而你会发现，么我们继续回到DecodeJob当中，它的decodeFromSource()方法得到了Resource对象

private Resource<Z> transformEncodeAndTranscode(Resource<T> decoded) {
    long startTime = LogTime.getLogTime();
    Resource<T> transformed = transform(decoded);
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logWithTimeAndKey("Transformed resource from source", startTime);
    }
    writeTransformedToCache(transformed);
    startTime = LogTime.getLogTime();
    Resource<Z> result = transcode(transformed);
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
        logWithTimeAndKey("Transcoded transformed from source", startTime);
    }
    return result;
}

private Resource<Z> transcode(Resource<T> transformed) {
    if (transformed == null) {
        return null;
    }
    return transcoder.transcode(transformed);
}

当然也就是Resource对象。然后继续向上返回会回到EngineRunnable的decodeFromSource()方法，再回到decode()方法，再回到run()方法当中。那么我们重新再贴一下EngineRunnable run()方法的源码

@Override
public void run() {
    if (isCancelled) {
        return;
    }
    Exception exception = null;
    Resource<?> resource = null;
    try {
        resource = decode();
    } catch (Exception e) {
        if (Log.isLoggable(TAG, Log.VERBOSE)) {
            Log.v(TAG, "Exception decoding", e);
        }
        exception = e;
    }
    if (isCancelled) {
        if (resource != null) {
            resource.recycle();
        }
        return;
    }
    if (resource == null) {
        onLoadFailed(exception);
    } else {
        onLoadComplete(resource);
    }
}

过第9行decode()方法的执行，我们最终得到了这个Resource对象，那么接下来就是如何将它显示出来了。可以看到，这里在第25行调用了onLoadComplete()方法

private void onLoadComplete(Resource resource) {
    manager.onResourceReady(resource);
}

这个manager就是EngineJob对象，因此这里实际上调用的是EngineJob的onResourceReady()方法，代码如下所示：

class EngineJob implements EngineRunnable.EngineRunnableManager {

    private static final Handler MAIN_THREAD_HANDLER = new Handler(Looper.getMainLooper(), new MainThreadCallback());

    private final List<ResourceCallback> cbs = new ArrayList<ResourceCallback>();

    ...

    public void addCallback(ResourceCallback cb) {
        Util.assertMainThread();
        if (hasResource) {
            cb.onResourceReady(engineResource);
        } else if (hasException) {
            cb.onException(exception);
        } else {
            cbs.add(cb);
        }
    }

    @Override
    public void onResourceReady(final Resource<?> resource) {
        this.resource = resource;
        MAIN_THREAD_HANDLER.obtainMessage(MSG_COMPLETE, this).sendToTarget();
    }

    private void handleResultOnMainThread() {
        if (isCancelled) {
            resource.recycle();
            return;
        } else if (cbs.isEmpty()) {
            throw new IllegalStateException("Received a resource without any callbacks to notify");
        }
        engineResource = engineResourceFactory.build(resource, isCacheable);
        hasResource = true;
        engineResource.acquire();
        listener.onEngineJobComplete(key, engineResource);
        for (ResourceCallback cb : cbs) {
            if (!isInIgnoredCallbacks(cb)) {
                engineResource.acquire();
                cb.onResourceReady(engineResource);
            }
        }
        engineResource.release();
    }

    @Override
    public void onException(final Exception e) {
        this.exception = e;
        MAIN_THREAD_HANDLER.obtainMessage(MSG_EXCEPTION, this).sendToTarget();
    }

    private void handleExceptionOnMainThread() {
        if (isCancelled) {
            return;
        } else if (cbs.isEmpty()) {
            throw new IllegalStateException("Received an exception without any callbacks to notify");
        }
        hasException = true;
        listener.onEngineJobComplete(key, null);
        for (ResourceCallback cb : cbs) {
            if (!isInIgnoredCallbacks(cb)) {
                cb.onException(exception);
            }
        }
    }

    private static class MainThreadCallback implements Handler.Callback {

        @Override
        public boolean handleMessage(Message message) {
            if (MSG_COMPLETE == message.what || MSG_EXCEPTION == message.what) {
                EngineJob job = (EngineJob) message.obj;
                if (MSG_COMPLETE == message.what) {
                    job.handleResultOnMainThread();
                } else {
                    job.handleExceptionOnMainThread();
                }
                return true;
            }
            return false;
        }
    }

    ...
}

这块终于看到消息机制了，里在onResourceReady()方法使用Handler发出了一条MSG_COMPLETE消息，那么在MainThreadCallback的handleMessage()方法中就会收到这条消息。从这里开始，所有的逻辑又回到主线程当中进行了，因为很快就需要更新UI了。

然后我们再看下三步into()方法的一开始，我们就分析了在into()方法的最后一行，调用了glide.buildImageViewTarget()方法来构建出一个Target，而这个Target就是一个GlideDrawableImageViewTarget对象。

我们去看GlideDrawableImageViewTarget的源码

public class GlideDrawableImageViewTarget extends ImageViewTarget<GlideDrawable> {
    private static final float SQUARE_RATIO_MARGIN = 0.05f;
    private int maxLoopCount;
    private GlideDrawable resource;

    public GlideDrawableImageViewTarget(ImageView view) {
        this(view, GlideDrawable.LOOP_FOREVER);
    }

    public GlideDrawableImageViewTarget(ImageView view, int maxLoopCount) {
        super(view);
        this.maxLoopCount = maxLoopCount;
    }

    @Override
    public void onResourceReady(GlideDrawable resource, GlideAnimation<? super GlideDrawable> animation) {
        if (!resource.isAnimated()) {
            float viewRatio = view.getWidth() / (float) view.getHeight();
            float drawableRatio = resource.getIntrinsicWidth() / (float) resource.getIntrinsicHeight();
            if (Math.abs(viewRatio - 1f) <= SQUARE_RATIO_MARGIN
                    && Math.abs(drawableRatio - 1f) <= SQUARE_RATIO_MARGIN) {
                resource = new SquaringDrawable(resource, view.getWidth());
            }
        }
        super.onResourceReady(resource, animation);
        this.resource = resource;
        resource.setLoopCount(maxLoopCount);
        resource.start();
    }

    @Override
    protected void setResource(GlideDrawable resource) {
        view.setImageDrawable(resource);
    }

    @Override
    public void onStart() {
        if (resource != null) {
            resource.start();
        }
    }

    @Override
    public void onStop() {
        if (resource != null) {
            resource.stop();
        }
    }
}

这块就是有glf播放什么的,但是还是看不到加载到图片上的逻辑

然后我们就去父类找，这里在第25行调用了super.onResourceReady()方法，GlideDrawableImageViewTarget的父类是ImageViewTarget

public abstract class ImageViewTarget<Z> extends ViewTarget<ImageView, Z> implements GlideAnimation.ViewAdapter {

    ...

    @Override
    public void onResourceReady(Z resource, GlideAnimation<? super Z> glideAnimation) {
        if (glideAnimation == null || !glideAnimation.animate(resource, this)) {
            setResource(resource);
        }
    }

    protected abstract void setResource(Z resource);

}

可以看到，在ImageViewTarget的onResourceReady()方法当中调用了setResource()方法，而ImageViewTarget的setResource()方法是一个抽象方法，具体的实现还是在子类那边实现的。

GlideDrawableImageViewTarget的setResource()方法，没错，调用的view.setImageDrawable()方法，而这个view就是ImageView

总结

这个过程看了一周多啊啊啊，自己就先按照郭神的博客一步一步往下看，然后自己画流程图，看的人难受又痛苦，emmmmm我想稍后看下Glide的生命周期这块
