本文介绍如何在简易Web服务器中实现Servlet功能，通过路径名反射创建Servlet类并调用service方法，支持处理静态资源请求。
前言
在《How Tomcat Works》学习（一）中，我们实现了简易的web服务器，但这个服务器并没有servlet的功能。本文目标是实现一个简易的servlet容易，让web服务器可以调用servlet。
构建程序
主程序
public class HttpServer {
private static final String SHUTDOWN_COMMAND = "/SHUTDOWN";
private boolean shutdown = false;
public static void main(String[] args) {
HttpServer server = new HttpServer();
server.await();
}
public void await() {
ServerSocket serverSocket = null;
int port = 8080;
try {
serverSocket = new ServerSocket(port, 1, InetAddress.getByName("127.0.0.1"));
} catch (IOException e) {
e.printStackTrace();
System.exit(1);
}
while (!shutdown) {
Socket socket = null;
InputStream input = null;
OutputStream output = null;
try {
socket = serverSocket.accept();
input = socket.getInputStream();
output = socket.getOutputStream();
Request request = new Request(input);
request.parse();
Response response = new Response(output);
response.setRequest(request);
if(request.getUri().startsWith("/servlet/")) {
ServletProcessor1 processor = new ServletProcessor1();
processor.process(request, response);
}else {
StaticResourceProcessor processor = new StaticResourceProcessor();
processor.process(request, response);
}
socket.close();
shutdown = request.getUri().equals(SHUTDOWN_COMMAND);
} catch (Exception e) {
e.printStackTrace();
continue;
}
}
}
}主程序和前文的没太大变化，主要是37-43行，增加了判断，当请求的路径以"/servlet/"为起始的话，则调用servlet处理程序，否则还是按照以前的处理方式，读取静态资源并返回给浏览器。
Request类
public class Request implements ServletRequest {
private InputStream input;
private String uri;
public Request(InputStream input) {
this.input = input;
}
void parse() {
StringBuffer request = new StringBuffer(2048);
int i;
byte[] buffer = new byte[2048];
try {
i = input.read(buffer);
} catch (IOException e) {
e.printStackTrace();
i = -1;
}
for (int j = 0; j < i; j++) {
request.append((char) buffer[j]);
}
System.out.print(request.toString());
uri = parseUri(request.toString());
}
private String parseUri(String requestString) {
int index1, index2;
index1 = requestString.indexOf(' ');
if (index1 != -1) {
index2 = requestString.indexOf(' ', index1 + 1);
if (index2 > index1)
return requestString.substring(index1 + 1, index2);
}
return null;
}
public String getUri() {
return uri;
}
//省略重写ServletRequest的方法
//......
}
Request类需要实现ServletRequest接口，并且实现其定义的方法。暂时对这些方法都返回null或0或者留空即可，由于比较多，就不列举了。parse和getUri和之前的保持一致
Response类
public class Response implements ServletResponse{
private static final int BUFFER_SIZE = 1024;
private Request request;
private OutputStream output;
private PrintWriter writer;
public Response(OutputStream output) {
this.output = output;
}
void setRequest(Request request) {
this.request = request;
}
void sendStaticResource() throws IOException {
byte[] bytes = new byte[BUFFER_SIZE];
FileInputStream fis = null;
try {
File file = new File(Constants.WEB_ROOT, request.getUri());
if (file.exists()) {
fis = new FileInputStream(file);
int ch = fis.read(bytes, 0, BUFFER_SIZE);
output.write(new String("HTTP/1.1 200 OK\r\n\r\n").getBytes());
while (ch != -1) {
output.write(bytes, 0, ch);
ch = fis.read(bytes, 0, BUFFER_SIZE);
}
} else {
String errorMessage = "HTTP/1.1 404 File Not Found\r\n" + "Content-Type: text/html\r\n"
+ "Content-Length: 23\r\n" + "\r\n" + "<h1>File Not Found</h1>";
output.write(errorMessage.getBytes());
}
} catch (Exception e) {
System.out.println(e.toString());
} finally {
if (fis != null)
fis.close();
}
}
//省略ServletResponse重写的方法
//......
}
类似Request类，Response类需要实现ServletResponse。除了需要重写ServletResponse的方法外，其余实现与之前的基本一致
静态资源处理类
这里的静态资源处理类是在主程序中，当浏览器访问非servlet路径时调用，主要就是调用Response的sendStaticResource，就像第一篇文章读取一个html页面一样。
public class StaticResourceProcessor {
public void process(Request request, Response response) {
try {
response.sendStaticResource();
} catch (Exception e) {
e.printStackTrace();
}
}
}
servlet类的处理
serlvet的处理首先是获取调用的路径，根据名称通过URLClassLoader反射来创建，因此输入servlet名称对应其类名。
public class ServletProcessor1 {
public void process(Request request, Response response) {
String uri = request.getUri();
String servletName = uri.substring(uri.lastIndexOf("/") + 1);
URLClassLoader loader = null;
try {
URL[] urls = new URL[1];
URLStreamHandler urlStreamHandler = null;
File classPath = new File(Constants.WEB_ROOT);
String repository = (new URL("file", null, classPath.getCanonicalPath() + File.separator)).toString();
urls[0] = new URL(null, repository, urlStreamHandler);
loader = new URLClassLoader(urls);
} catch (Exception e) {
e.printStackTrace();
}
Class myClass = null;
try {
myClass = loader.loadClass(servletName);
} catch (ClassNotFoundException e) {
e.printStackTrace();
}
Servlet servlet = null;
try {
servlet = (Servlet) myClass.newInstance();
servlet.service((ServletRequest)request, (ServletResponse)response);
} catch (Exception e) {
e.printStackTrace();
}
}
}在这段代码中，因为用户输入的路径直接对应servlet类名，所以编写的servlet要放在一个默认package下面，否则就找不到对应的servlet类了。
serlvet类
我们再写一个简单的servlet
public class PrimitiveServlet implements Servlet{
@Override
public void destroy() {
System.out.println("destroy");
}
@Override
public ServletConfig getServletConfig() {
// TODO Auto-generated method stub
return null;
}
@Override
public String getServletInfo() {
// TODO Auto-generated method stub
return null;
}
@Override
public void init(ServletConfig arg0) throws ServletException {
System.out.println("init");
}
@Override
public void service(ServletRequest request, ServletResponse response) throws ServletException, IOException {
System.out.println("from service");
PrintWriter out = response.getWriter();
out.print("HTTP/1.1 200 OK\r\n\r\n");
out.println("Hello. Roses are red.");
out.println("Violet are blue.");
}

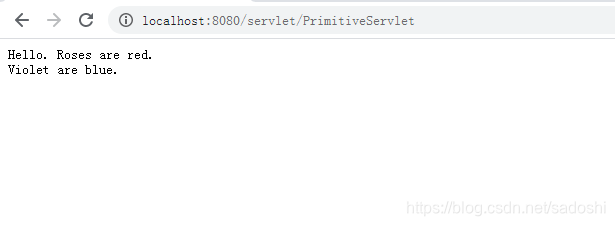

}启动主程序，输入路径http://localhost:8080/servlet/PrimitiveServlet，成功调用了PrimitiveServlet
我们也可以输入http://localhost:8080/hello.html，可以像前文那样获取对应的静态资源。
小结
本文实现了一个简单的servlet，就是通过路径名进行反射创建一个servlet类，然后调用其service方法。实际的javaweb开发中，常常会通过web.xml配置文件mapping映射，不会直接在地址栏输入servlet的类名。另外cookies、session之类的信息我们并没有解析，这些后面也需要实现。
