springboot（三）整合多数据源

多数据库如何定位自己的数据源：1、分包名  2、注解形式，常用的就是分包名形式

1.我们案例以两个数据源为例子讲解：

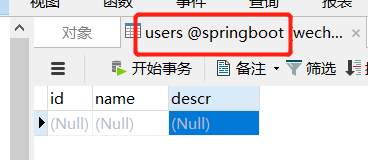

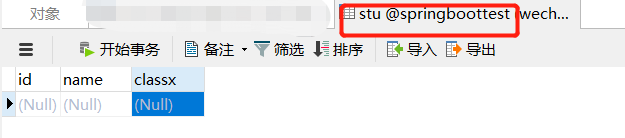

首先我们准备两个数据库，一个springboot库（users表），一个springboottest（stu表）库，如下图：

2.导入pom依赖：

<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.0.RELEASE</version>
	</parent>
	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>
		<!-- 测试 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>1.1.1</version>
		</dependency>
		<!-- mysql 依赖 -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
		<!-- springboot-web组件 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
	</dependencies>

 3.properties文件配置：

###datasource1
spring.datasource.has.driver-class-name = com.mysql.jdbc.Driver
spring.datasource.has.jdbc-url = jdbc:mysql://localhost:3306/springboot?useUnicode=true&characterEncoding=utf-8
spring.datasource.has.username = root
spring.datasource.has.password = root
###datasource2
spring.datasource.jjy.driver-class-name = com.mysql.jdbc.Driver
spring.datasource.jjy.jdbc-url = jdbc:mysql://localhost:3306/springboottest?useUnicode=true&characterEncoding=utf-8
spring.datasource.jjy.username = root
spring.datasource.jjy.password = root

  注意：springboot2.0版本之前多数据源使用url没有问题，但是2.0版本开始需要使用jdbc-url否则会报错

            这里采用分包机制，数据源配置中一个has包，一个jjy包

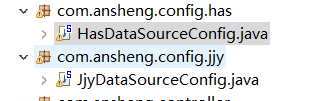

4.新建两个包：com.ansheng.config.has  ,com.ansheng.config.jjy 数据源配置，然后分别新建HasDataSourceConfig类和JjyDataSourceConfig类，如下图所示：

HasDataSourceConfig源码：

package com.ansheng.config.has;

import javax.sql.DataSource;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

import com.fasterxml.jackson.databind.ser.std.DateSerializer;

@Configuration
@MapperScan(basePackages="com.ansheng.has",sqlSessionTemplateRef="hasSqlSessionTemplate")
public class HasDataSourceConfig {
	 @Bean(name="hasDataSource")
     @ConfigurationProperties(prefix="spring.datasource.has")
	 public DataSource hasDataSource() {
		 return DataSourceBuilder.create().build();
	 }

	 //sqlsession
	    @Bean(name = "hasSqlSessionFactory")
		public SqlSessionFactory hasSqlSessionFactory(@Qualifier("hasDataSource") DataSource dataSource)
				throws Exception {
			SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
			bean.setDataSource(hasDataSource());
			return bean.getObject();
		}

	    @Bean(name = "hasTransactionManager")
		public DataSourceTransactionManager hasTransactionManager(@Qualifier("hasDataSource") DataSource dataSource) {
			return new DataSourceTransactionManager(dataSource);
		}

		@Bean(name = "hasSqlSessionTemplate")
		public SqlSessionTemplate hasSqlSessionTemplate(
				@Qualifier("hasSqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
			return new SqlSessionTemplate(sqlSessionFactory);
		}

}

JjyDataSourceConfig源码：

package com.ansheng.config.jjy;

import javax.sql.DataSource;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

import com.fasterxml.jackson.databind.ser.std.DateSerializer;

@Configuration
@MapperScan(basePackages="com.ansheng.jjy",sqlSessionTemplateRef="jjySqlSessionTemplate")
public class JjyDataSourceConfig {
	 @Bean(name="jjyDataSource")
     @ConfigurationProperties(prefix="spring.datasource.jjy")
	 public DataSource jjyDataSource() {
		 return DataSourceBuilder.create().build();
	 }

	 //����sqlsession
	    @Bean(name = "jjySqlSessionFactory")
		public SqlSessionFactory jjySqlSessionFactory(@Qualifier("jjyDataSource") DataSource dataSource)
				throws Exception {
			SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
			bean.setDataSource(jjyDataSource());
			return bean.getObject();
		}

	    @Bean(name = "jjyTransactionManager")
		public DataSourceTransactionManager jjyTransactionManager(@Qualifier("jjyDataSource") DataSource dataSource) {
			return new DataSourceTransactionManager(dataSource);
		}

		@Bean(name = "jjySqlSessionTemplate")
		public SqlSessionTemplate jjySqlSessionTemplate(
				@Qualifier("jjySqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
			return new SqlSessionTemplate(sqlSessionFactory);
		}

}

5.新建mapper接口，既然多数据源，那就新建两个包，一个com.ansheng.has，一个com.ansheng.jjy，分别新建象个接口

HasMapper.java和JjyMapper.java,目录结构如下图：

6.新建一个controller

controller源码：

package com.ansheng.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Conditional;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;

import com.ansheng.has.HasMapper;
import com.ansheng.jjy.JjyMapper;

@RestController
public class TestController {
	@Autowired
	private HasMapper hasMapper;
	@Autowired
	private JjyMapper jjyMapper;
	@RequestMapping("/testHas")
    public String Testhas() {
		String name="古三通";
		String descr="不败顽童";
		int i=hasMapper.insertUsersInfo(name,descr);
		if(i>0) {
			return "has-success";
		}else {
			return "has-fail!";
		}
 	}

	@RequestMapping("/testJjy")
    public String Testjjy() {
	   String name="杨戬";
	   String classx="灌江口";
	   int i=jjyMapper.insertStuInfo(name,classx);
	   if(i>0) {
		   return "jjy-success!";
	   }else {
		   return "jjy-fail!";
	   }
 	}
}

注意：时间关系这里省略service层，我直接在controller中调用mapper层

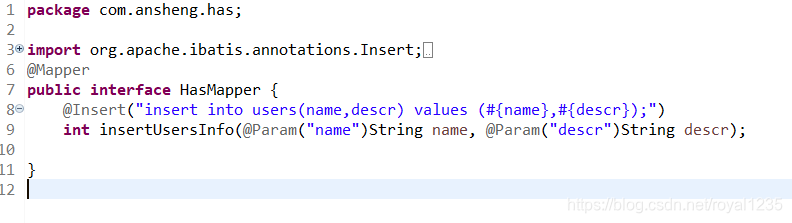

7.HasMapper源码：

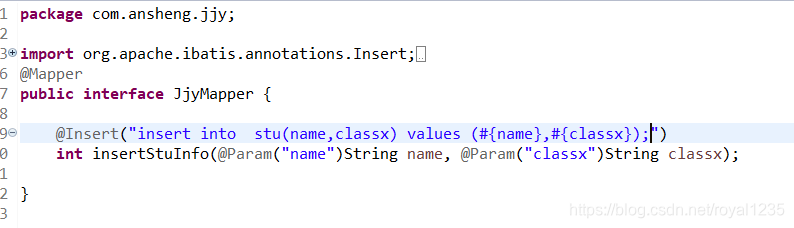

8.JjyMapper源码：

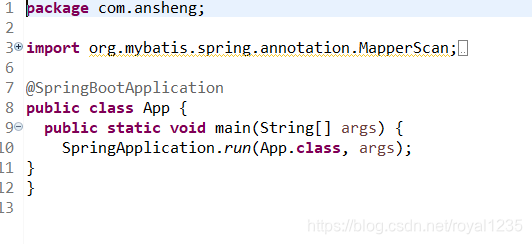

9.新建启动类app.java

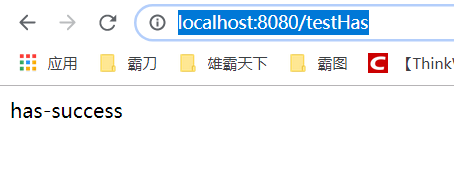

10.测试，访问接口：http://localhost:8080/testHas

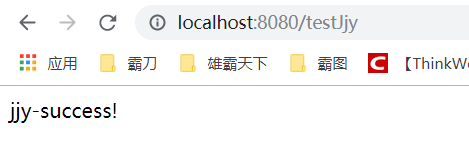

访问接口：http://localhost:8080/testJjy

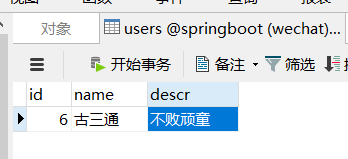

11.这个时候我们查看数据库，先看springboot库的users表是否有数据：

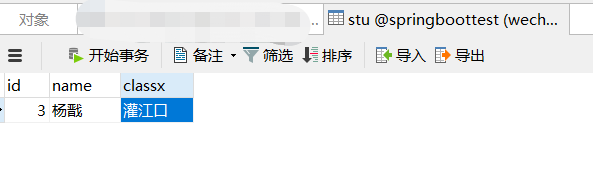

然后查看springboottest库的stu表：

12.ok，多数据元配置成功，测试通过，有没有感觉很easy，项目工程源码地址：

https://download.youkuaiyun.com/download/royal1235/12114551
