mini-dubbo服务调用

Mini-Dubbo之服务消费

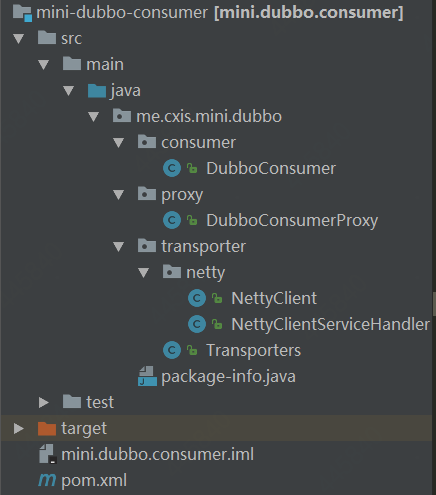

Consumer目录结构



消费者启动代码

/**
 * Created by cheng.xi on 2017-04-14 09:28.
 * 服务消费者端引用服务
 */
public class TestApiConsumer {
    public static void main(String[] args) {

        DubboConsumer<HelloWorldService> reference = new DubboConsumer<HelloWorldService>();
        //注入要调用的接口类对象
        reference.setInterface(HelloWorldService.class);

        //根据上面注入的接口获取动态代理生成的对象（基于JDK动态代理生成）
        HelloWorldService helloWorldService = reference.get();
        System.out.println(helloWorldService.sayHello("zhangsan"));

    }
}



看DubboConsumer代码：

**
 * Created by cheng.xi on 2017-04-14 17:30.
 * 服务消费者端，获取代理
 */
public class DubboConsumer<T> {
    //接口名字
    private String interfaceName;

    //接口
    private Class<?> interfaceClass;

    //代理类
    private T ref;


//根据设置的接口名称获取代理对象
    public T get(){
        //获取代理
        ref = new DubboConsumerProxy(interfaceClass).getProxy();
        return ref;
    }



    //--------------------以下是get和set方法----------------//
    public String getInterfaceName() {
        return interfaceName;
    }

    public void setInterface(String interfaceName) {
        this.interfaceName = interfaceName;
    }
    //设置要调用的接口名称
    public void setInterface(Class<?> interfaceClass) {
        this.interfaceClass = interfaceClass;
        setInterface(interfaceClass == null ? (String) null : interfaceClass.getName());
    }

    public Class<?> getInterfaceClass() {
        return interfaceClass;
    }

    public void setInterfaceClass(Class<?> interfaceClass) {
        this.interfaceClass = interfaceClass;
    }
}





看DubboConsumerProxy代码

/**
 * Created by cheng.xi on 2017-04-14 09:33.
 * 服务消费者端的代理，使用JDK动态代理
 */
public class DubboConsumerProxy implements InvocationHandler{

    private Class<?> interfaces;

    public DubboConsumerProxy(Class<?> interfaces){
        this.interfaces = interfaces;
    }

    public <T> T getProxy(){
           return (T) Proxy.newProxyInstance(interfaces.getClassLoader(),new Class[]{interfaces},this);
    }
    //代理执行方法
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        Object result;

        //组装请求体
        Request request = new Request();
        request.setInterfaceName(interfaces.getName());
        request.setMethodName(method.getName());
        request.setParameterTypes(method.getParameterTypes());
        request.setArgs(args);

        //远程调用服务提供者
        result = Transporters.connectAndExecute(request);

        return result;
    }
}



Transporters类源码

public class Transporters {
    public static Object connectAndExecute(Request request) throws ExecutionException, InterruptedException {
        //处理器，用来处理返回的消息
        NettyClientServiceHandler handler = new NettyClientServiceHandler();
        //使用nettyclient来进行连接服务提供者和执行请求
        new NettyClient().connectAndExecute(request,handler);
        //从处理器中获取返回的消息
        return handler.getResponse().getResult();
    }
}



里面创建了NettyClient客户端并调用了connectAndExecute方法

public class NettyClient {


    public void connectAndExecute(Request request, final NettyClientServiceHandler handler) throws InterruptedException, ExecutionException {
        EventLoopGroup group = new NioEventLoopGroup();
        try{
            Bootstrap bootstrap = new Bootstrap();
            bootstrap.group(group);
            bootstrap.channel(NioSocketChannel.class);
            bootstrap.handler(new ChannelInitializer<SocketChannel>() {
                protected void initChannel(SocketChannel socketChannel) throws Exception {
                    ChannelPipeline pipeline = socketChannel.pipeline();
                    pipeline.addLast(new ObjectEncoder());
                    pipeline.addLast(new ObjectDecoder(1024*1024, ClassResolvers.weakCachingConcurrentResolver(this.getClass().getClassLoader())));
                    pipeline.addLast(handler);
                }
            });
            bootstrap.option(ChannelOption.TCP_NODELAY, true);
            ChannelFuture future = bootstrap.connect("127.0.0.1", 3347).sync();
            Channel channel = future.channel();
            channel.writeAndFlush(request).sync();
            channel.closeFuture().sync();
        }finally {
            group.shutdownGracefully();
        }
    }
}



最后获取返回参数一个请求调用完成
