畅购商城之购物车模块

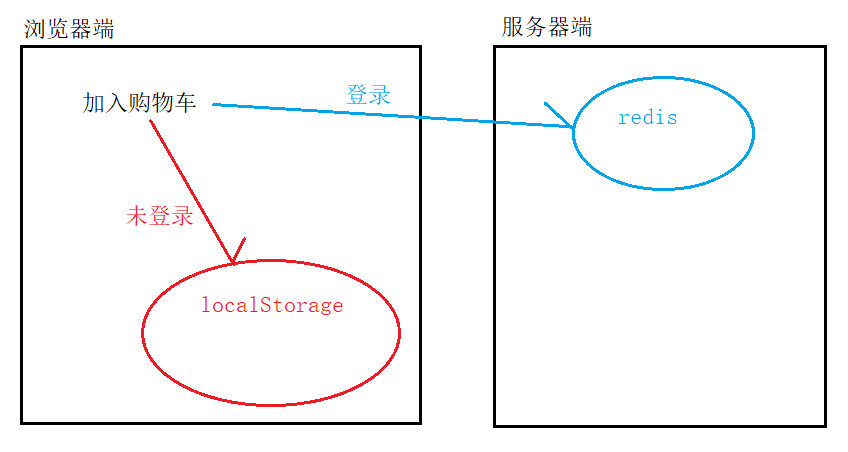

1、需求

• 用户已登录：购物车保存在服务器端的redis中
• 用户未登录形态：购物车信息保存在浏览器端的localStroage中。

2、环境

• pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>changgou3_parent</artifactId>
        <groupId>com.czxy</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>changgou3_cart_service</artifactId>

    <dependencies>
        <!--pojo-->
        <dependency>
            <groupId>com.czxy</groupId>
            <artifactId>changgou3_pojo</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <!--redis-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
        </dependency>
        <!--json转换-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
        <dependency>
            <groupId>com.czxy</groupId>
            <artifactId>changgou3_common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.czxy</groupId>
            <artifactId>changgou3_common_auth</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>
</project>

• yml文件

server:
  port: 8095
spring:
  application:
    name: gccartservice
  redis:
    host: 127.0.0.1
eureka:
  client:
    service-url:
      defaultZone: http://127.0.0.1:10086/eureka
    registry-fetch-interval-seconds: 5
  instance:
    prefer-ip-address: true
    ip-address: 127.0.0.1
    instance-id: ${eureka.instance.ip-address}.${server.port}
    lease-renewal-interval-in-seconds: 3
    lease-expiration-duration-in-seconds: 10

sc:
  jwt:
    secret: sc@Login(Auth}*^31)&czxy% # 登录校验的密钥
    pubKeyPath: D:/rsa/rsa.pub # 公钥地址
    priKeyPath: D:/rsa/rsa.pri # 私钥地址
    expire: 360 # 过期时间,单位分钟

• 拷贝JWT配置

package com.czxy.config;

import com.czxy.utils.RasUtils;
import lombok.Data;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

import javax.annotation.PostConstruct;
import java.io.File;
import java.security.PrivateKey;
import java.security.PublicKey;

/**
 * @author 庭前云落
 * @Date 2020/4/17 13:02
 * @description
 */
@Data
@ConfigurationProperties(prefix = "sc.jwt")
@Component
public class JwtProperties {
    private String secret; // 密钥

    private String pubKeyPath;// 公钥

    private String priKeyPath;// 私钥

    private int expire;// token过期时间

    private PublicKey publicKey; // 公钥

    private PrivateKey privateKey; // 私钥

    private static final Logger logger = LoggerFactory.getLogger(JwtProperties.class);

    @PostConstruct
    public void init(){
        try {
            File pubFile = new File(this.pubKeyPath);
            File priFile = new File(this.priKeyPath);
            if( !pubFile.exists() || !priFile.exists()){
                RasUtils.generateKey( this.pubKeyPath ,this.priKeyPath , this.secret);
            }
            this.publicKey = RasUtils.getPublicKey( this.pubKeyPath );
            this.privateKey = RasUtils.getPrivateKey( this.priKeyPath );
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

}

• 启动类

package com.czxy;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

/**
 * @author 庭前云落
 * @Date 2020/4/17 13:01
 * @description
 */
@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients
public class CartServiceApplication {
    public static void main(String[] args) {
        SpringApplication.run(CartServiceApplication.class,args);
    }
}

3、加入购物车

3.1、流程分析

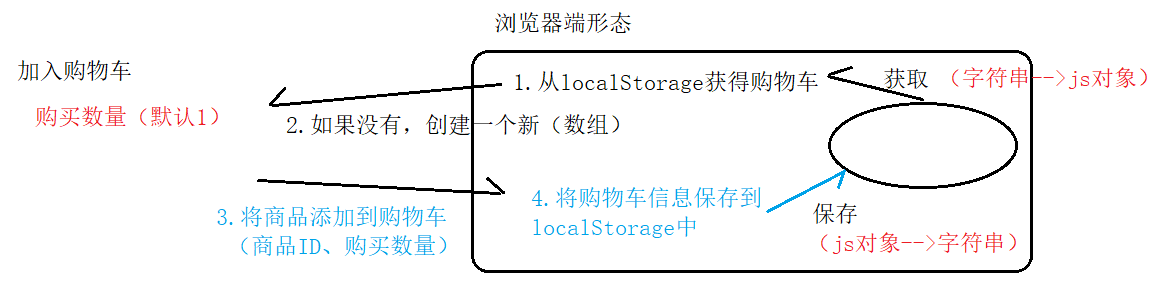

• 浏览器端形态：

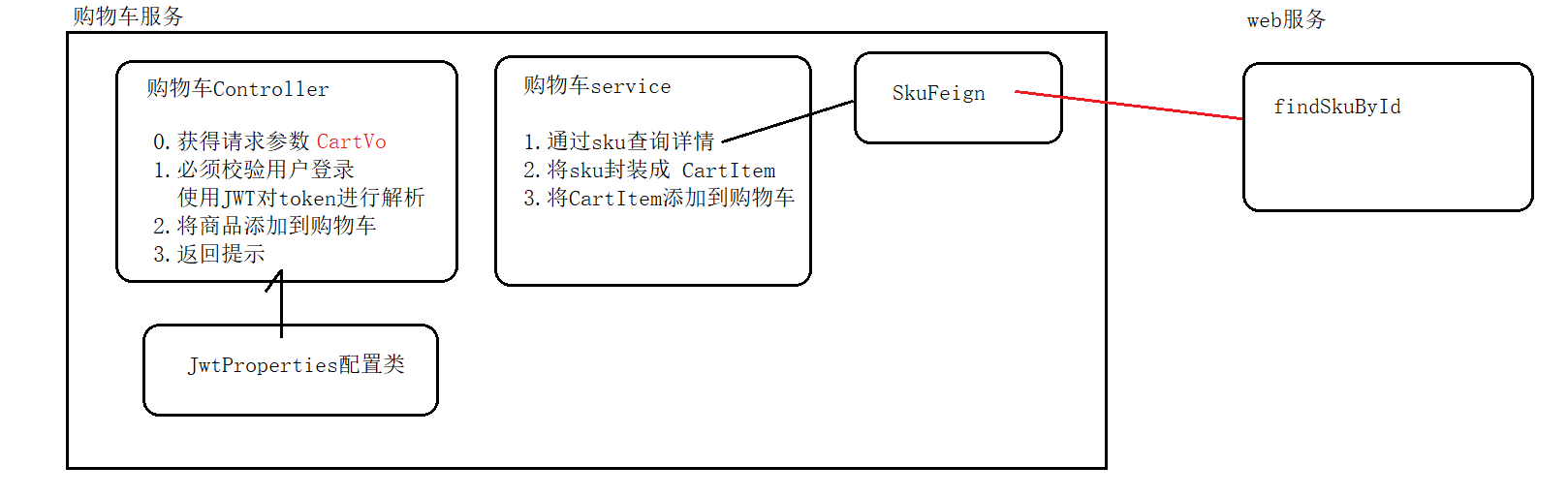

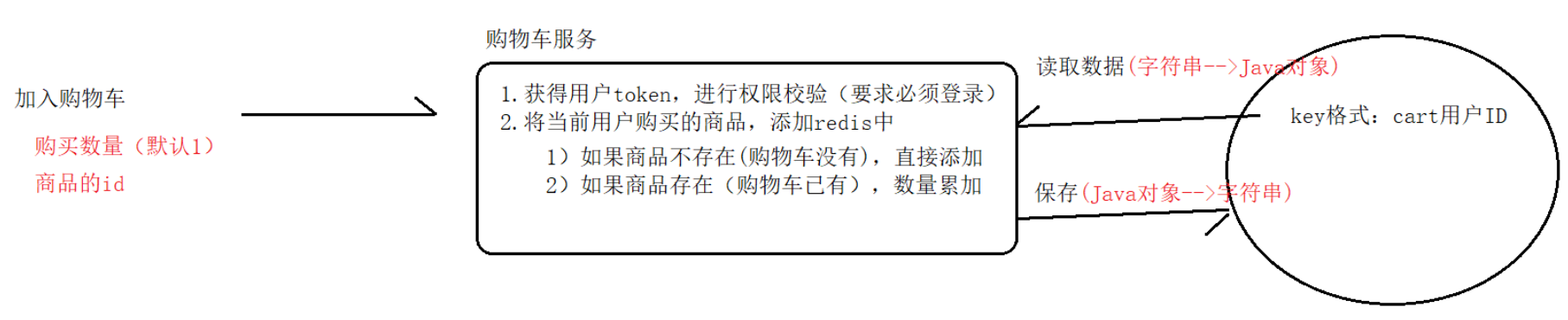

• 服务器端形态：

3.2、JavaBean

• 购物车无论在浏览器的localStorage中，还是在服务端redis中，我们都可以理解成在内存中。没有在数据库中保存，数据库没有对应的表。

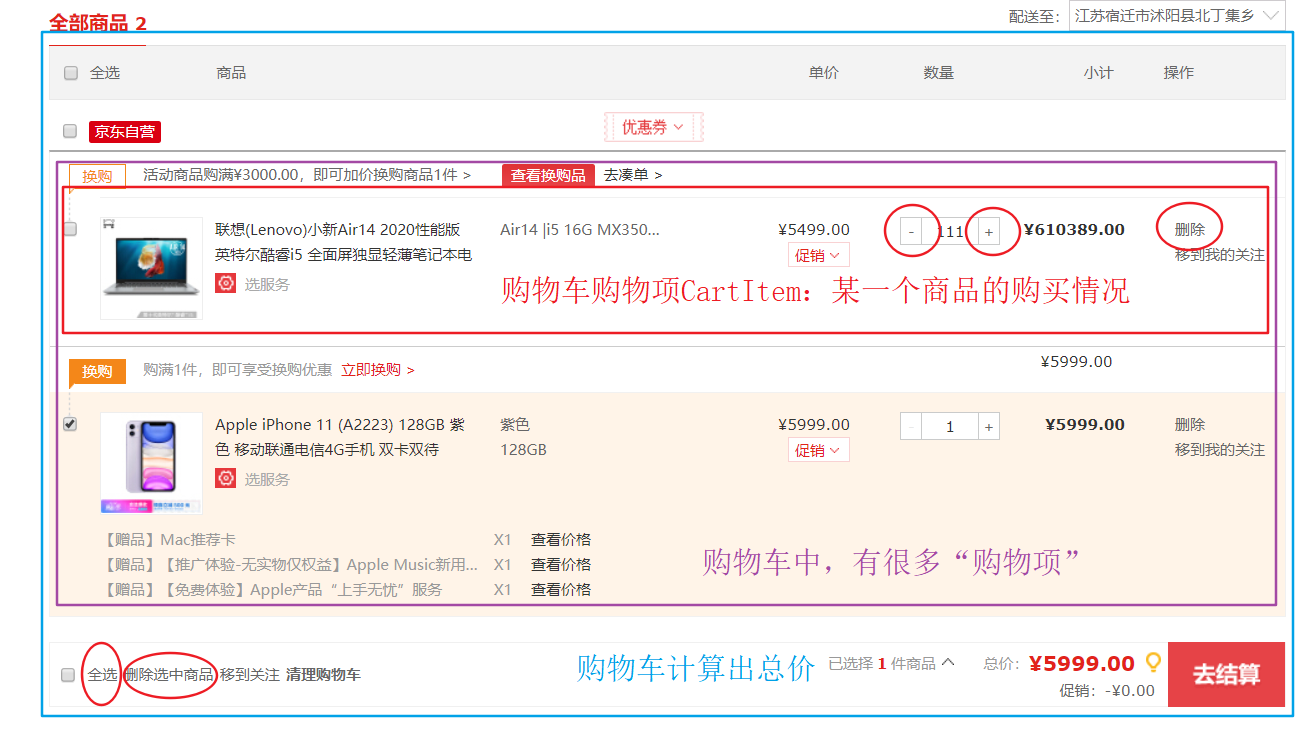

• 需要2个对象，存放购物车完整信息
  • 购物项CartItem：某一个商品的购买情况。例如：iponex买了333件
  • 购物车Cart：整个购买情况。例如：买了2种商品，一共 xxx 元

购物项CartItem

package com.czxy.cart;

import com.fasterxml.jackson.annotation.JsonProperty;
import lombok.Data;

import java.util.Map;

/**
 * @author 庭前云落
 * @Date 2020/4/17 13:09
 * @description
 */
@Data
public class CartItem {
    private Integer skuid;        //sku(商品)id
    private Integer spuid;        //spu(小分类)id
    @JsonProperty("goods_name")
    private String goodsName;     //商品名称
    private Double price;         //价格
    private Integer count;        //购买数量
    private Boolean checked;      //是否选中
    private String midlogo;       //图标
    @JsonProperty("spec_info_id_txt")
    private Map<String,String> specInfoIdTxt;   //规格信息
}

Cart实现

package com.czxy.cart;

import lombok.Data;

import java.util.HashMap;
import java.util.Map;

/**
 * @author 庭前云落
 * @Date 2020/4/17 13:11
 * @description 购物车：一个购物车存放多个购物项
 */
@Data
public class Cart {
    //存放多个购物项，Map适合快速查询
    private Map<Integer, CartItem> data = new HashMap<>();
    //存放总价
    private Double total;

    //覆盖total使用@Data默认getter方法
    public Double getTotal() {
        //总价：所有小计的和
        //小计：单价*数量
        double sum = 0.0;
        for (CartItem cartItem : data.values()) {
            //只统计勾选的价格
            if (cartItem.getChecked()) {
                sum += (cartItem.getPrice() * cartItem.getCount());
            }
        }
        return sum;
    }

    //将物品添加到购物车
    public void addCart(CartItem cartItem) {
        //从data中获得购物车
        CartItem temp = data.get(cartItem.getSkuid());
        //如果购物车中没有当前物品直接添加
        if (temp == null) {
            data.put(cartItem.getSkuid(), cartItem);
        } else {
            //如果购物车中有当前购物项,将更新购物车数量
            temp.setCount(cartItem.getCount() + temp.getCount());
        }
    }


    //更新数据
    public void updateCart(Integer skuid, Integer count, Boolean checked) {
        //如果skuid存在，将更新数据
        CartItem temp = data.get(skuid);
        if (temp != null) {
            temp.setCount(count);
            temp.setChecked(checked);
        }
    }

    //从购物车中移除
    public void deleteCart(Integer skuid) {
        data.remove(skuid);
    }
}

3.3、后端实现

3.3.1、添加购物车

• 编写SKuFeign，用于远程调用"查询sku的详情"

package com.czxy.client;

import com.czxy.pojo.OneSkuResult;
import com.czxy.vo.BaseResult;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;

/**
 * @author 庭前云落
 * @Date 2020/4/17 13:12
 * @description
 */
@FeignClient(value="cgwebservice",path = "/sku")
public interface SkuClient {
    @GetMapping("/goods/{skuid}")
    public BaseResult<OneSkuResult> findSkuById(@PathVariable("skuid") Integer skuid);
}

• 编写CartVo，用于封装请求参数

package com.czxy.vo;

import lombok.Data;

/**
 * @author 庭前云落
 * @Date 2020/4/17 13:13
 * @description
 */
@Data
public class CartVo {
    private Integer skuid ;     //"SKUID",
    private Integer count;      //"购买数量"
    private Boolean checked;    //"购买数量"
}

• Controller

package com.czxy.controller;

import com.czxy.cart.Cart;
import com.czxy.config.JwtProperties;
import com.czxy.pojo.User;
import com.czxy.service.CartService;
import com.czxy.utils.JwtUtils;
import com.czxy.vo.BaseResult;
import com.czxy.vo.CartVo;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import java.util.List;

/**
 * @author 庭前云落
 * @Date 2020/4/17 13:12
 * @description
 */
@RestController
@RequestMapping("/carts")
public class CartController {
    @Resource
    private CartService cartService;

    @Resource
    private HttpServletRequest request;

    @Resource
    private JwtProperties jwtProperties;

    @PostMapping
    public BaseResult addCart(@RequestBody CartVo cartVo) {

        //1 获得用户信息
        // 1.1 获得token
        String token = request.getHeader("Authorization");
        // 1.2 解析token
        User loginUser = null;
        try {
            loginUser = JwtUtils.getObjectFromToken(token, jwtProperties.getPublicKey(), User.class);
        } catch (Exception e) {
            return BaseResult.error("token失效或未登录");
        }

        //2 添加操作
        cartService.addCart(loginUser, cartVo);

        //3 提示
        return BaseResult.ok("添加成功");
    }

    @GetMapping
    public BaseResult findCartList() {
        String token = request.getHeader("Authorization");
        User loginUser = null;
        try {
            loginUser = JwtUtils.getObjectFromToken(token, jwtProperties.getPublicKey(), User.class);
        } catch (Exception e) {
            return BaseResult.error("token失效或未登录");
        }
        Cart cart = cartService.findCartList(loginUser);
        System.out.println(cart);
        return BaseResult.ok("查询成功", cart.getData().values());
    }
}

• Service

package com.czxy.service.Impl;

import com.alibaba.fastjson.JSON;
import com.czxy.cart.Cart;
import com.czxy.cart.CartItem;
import com.czxy.client.SkuClient;
import com.czxy.pojo.OneSkuResult;
import com.czxy.pojo.User;
import com.czxy.service.CartService;
import com.czxy.vo.BaseResult;
import com.czxy.vo.CartVo;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author 庭前云落
 * @Date 2020/4/17 13:12
 * @description
 */
@Service
public class CartServiceImpl implements CartService {

    @Resource
    private StringRedisTemplate stringRedisTemplate;

    @Resource
    private SkuClient skuClient;

    /**
     * 给指定的用户，添加商品
     *
     * @param user
     * @param cartVo
     */
    public void addCart(User user, CartVo cartVo) {
        //查询sku
        BaseResult<OneSkuResult> baseResult = skuClient.findSkuById(cartVo.getSkuid());
        OneSkuResult oneSkuResult = baseResult.getData();

        //封装CarItem
        CartItem cartItem = new CartItem();
        cartItem.setSkuid( oneSkuResult.getSkuid() );
        cartItem.setSpuid( oneSkuResult.getSpuid() );
        cartItem.setGoodsName( oneSkuResult.getGoodsName() );
        cartItem.setPrice( oneSkuResult.getPrice() );
        cartItem.setCount( cartVo.getCount() );
        cartItem.setChecked( cartVo.getChecked() );
        cartItem.setMidlogo( oneSkuResult.getLogo().get("biglogo") );
        cartItem.setSpecInfoIdTxt( JSON.parseObject(oneSkuResult.getSpecInfo().get("id_txt"),Map.class));

        //从redis获得购物车，如果不存在需要创建一个新的,如果存在(字符串-->java对象)
        String cartJSON = stringRedisTemplate.opsForValue().get("cart" + user.getId());
        Cart cart = null;
        if(cartJSON != null){
            //将字符串转换成java对象
            cart = JSON.parseObject(cartJSON, Cart.class);
        } else {
            //创建新购物车
            cart = new Cart();
        }

        //添加购物车
        cart.addCart( cartItem );

        //保存reids
        cartJSON = JSON.toJSONString(cart);
        stringRedisTemplate.opsForValue().set("cart" + user.getId() , cartJSON);
    }


    //查询当前用户购物车
    public Cart findCartList(User user) {

        String cartString = this.stringRedisTemplate.opsForValue().get("cart" + user.getId());

        return JSON.parseObject(cartString, Cart.class);
    }
}

3.3.2、更新/删除购物车

• Controller，必须保证用户登录状态

    @PutMapping
    public BaseResult updateCart(@RequestBody List<CartVo> cartVoList) {
        String token = request.getHeader("Authorization");
        User loginUser = null;
        try {
            loginUser = JwtUtils.getObjectFromToken(token, jwtProperties.getPublicKey(), User.class);
        } catch (Exception e) {
            return BaseResult.error("token失效或未登录");
        }

        try {
            //更新
            cartService.updateCart(loginUser, cartVoList);
            return BaseResult.ok("成功");
        } catch (Exception e) {
            return BaseResult.error(e.getMessage());
        }
    }

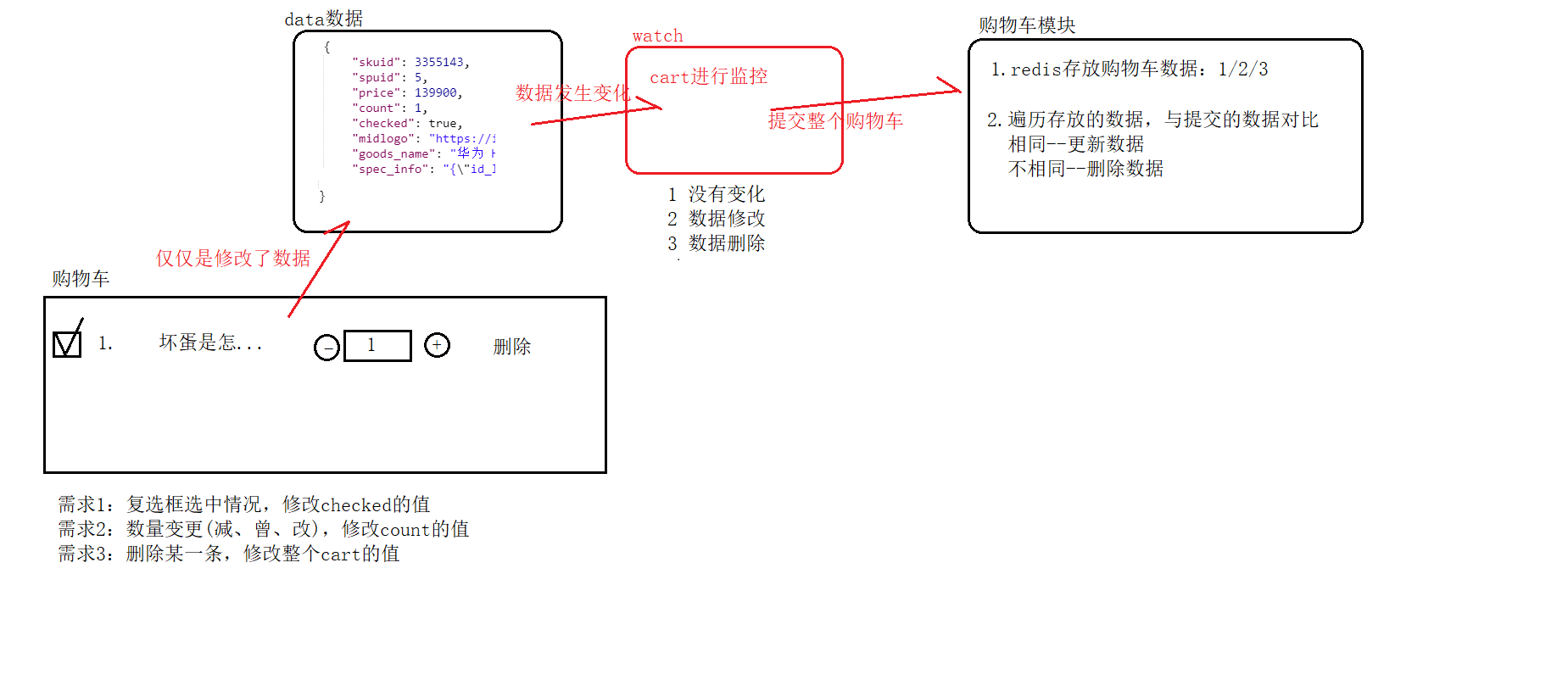

• service，通过redis查询指定用户购物车
  • 如果提交的数据不在redis中，将删除
  • 如果提交的数据在redis中，将更新数据

    /**
     * 更新操作：如果数据存在 --》修改,如果数据不存在删除
     * @param user
     */
    public void updateCart(User user, List<CartVo> cartVoList) {
        //从redis获得购物车
        String cartStr = stringRedisTemplate.opsForValue().get( "cart" + user.getId());
        Cart cart = JSON.parseObject(cartStr, Cart.class);
        if (cart == null) {
            throw new RuntimeException("购物车不存在");
        }
        //处理请求数据，方便进行比那里，采用mapper进行处理
        HashMap<Integer, CartVo> map = new HashMap<>();
        for (CartVo cartVo : cartVoList) {
            map.put(cartVo.getSkuid(), cartVo);
        }

        //请求数据和reids中存放进行对比
        for (CartItem cartItem : cart.getData().values()) {
            //匹配成功：更新数据；不成功：删除数据
            CartVo cartVo = map.get(cartItem.getSkuid());
            if (cartVo != null) {
                //更新
                cart.updateCart(cartVo.getSkuid(), cartVo.getCount(), cartVo.getChecked());
            } else {
                //删除
                cart.deleteCart(cartItem.getSkuid());
            }
        }
        //更新购物车
        stringRedisTemplate.opsForValue().set("cart" + user.getId(), JSON.toJSONString(cart));
    }

3.4、前端实现

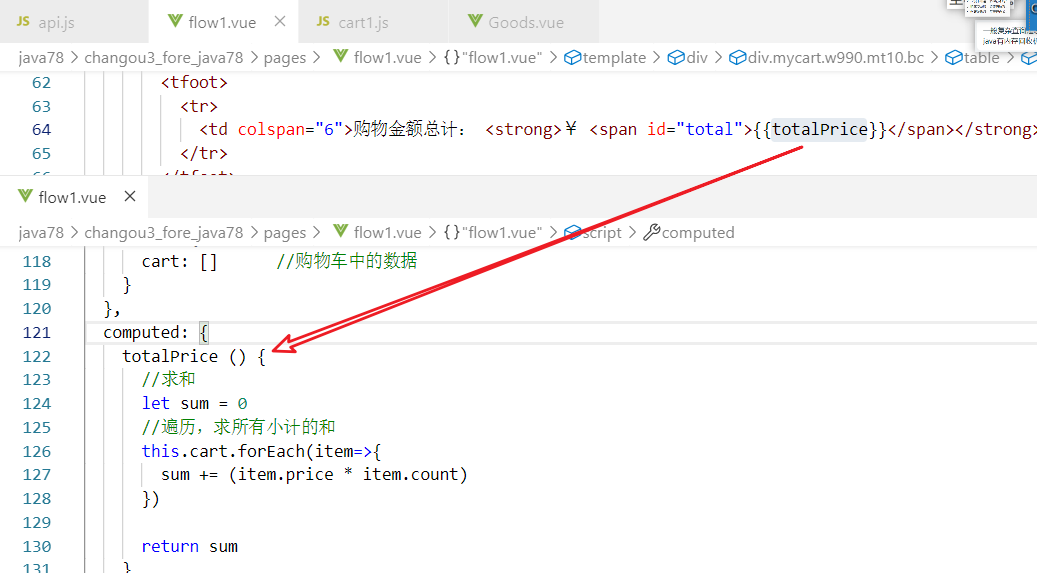

3.4.1、总金额

• 总金额需要实时更新，使用"计算属性"，直接求和

  computed: {
    totalPrice () {
      //求和
      let sum = 0
      //遍历，求所有小计的和
      this.cart.forEach(item=>{
        sum += (item.price * item.count)
      })

      return sum
    }
  },

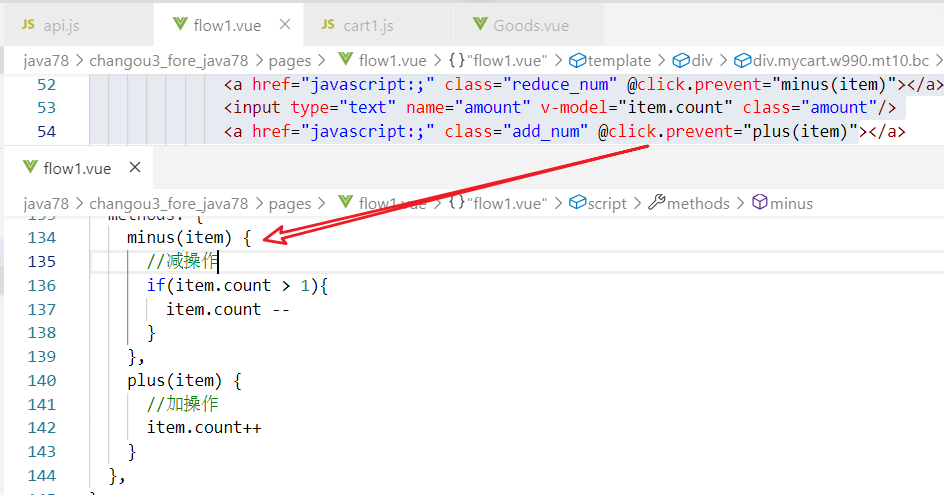

3.4.2、加/减操作

  methods: {
    minus(item) {
      //减操作
      if(item.count > 1){
        item.count --
      }
    },
    plus(item) {
      //加操作
      item.count++
    }
  },

• 编写watch，监控cart，将修改后的数据提交给服务端

  • watch基本用法

    watch: {
      cart : {
        handler(newCart , oldCart ) {
          console.info(newCart)
        },
        immediate: false, //true代表如果在 watch 里声明了之后，就会立即先去执行里面的handler方法
        deep: true      //深度监听，常用于对象下面属性的改变
      }
    },


  • 实际代码

    watch: {
      //深度监听
      cart: {
        async handler(newCart, oldCart) {
          //根据登录情况，更新购物车
          let token = sessionStorage.getItem("token");
          if (token) {
            //登录
            let { data } = await this.$request.updateCart(newCart);
            if (data.code == 0) {
              alert(data.message);
            }
          } else {
            //未登录--将购物车中的数据保持localStorage中
            localStorage.setItem("cart", JSON.stringify(newCart));
          }

          //购物项项选中个数，购物车个数相同，全选需要选中
          let cartSize = this.cart.length;
          let checkedSize = this.cart.filter(item => item.checked).length;
          this.selectAllChecked = cartSize == checkedSize;
        },
        //true代表如果在 watch 里声明了之后，就会立即先去执行里面的handler方法
        immediate: false,
        //深度监听，常用于对象下面属性的改变
        deep: true
      }
    }


• api.js

   //添加到购物车
      addToCart: (params) => {
          return axios.post("/gccartservice/carts", params)
      },
      getCart: () => {
          return axios.get('/gccartservice/carts')
      },
      updateCart: (params) => {
          return axios.put('/gccartservice/carts', params)
      },


• flow1

  <template>
    <div>
      <!-- 顶部导航 start -->
      <TopNav></TopNav>
      <!-- 顶部导航 end -->

      <div style="clear:both;"></div>

      <!-- 页面头部 start -->
      <div class="header w990 bc mt15">
        <div class="logo w990">
          <h2 class="fl">
            <a href="index.html">
              <img src="images/logo.png" alt="畅购商城" />
            </a>
          </h2>
          <div class="flow fr">
            <ul>
              <li class="cur">1.我的购物车</li>
              <li>2.填写核对订单信息</li>
              <li>3.成功提交订单</li>
            </ul>
          </div>
        </div>
      </div>
      <!-- 页面头部 end -->

      <div style="clear:both;"></div>

      <!-- 主体部分 start -->
      <div class="mycart w990 mt10 bc">
        <h2>
          <span>我的购物车</span>
        </h2>
        <table>
          <thead>
            <tr>
              <th class="col0">
                <input type="checkbox" :checked="selectAllChecked" @click="selectAll($event)" name id />
              </th>
              <th class="col1">商品名称</th>
              <th class="col2">商品信息</th>
              <th class="col3">单价</th>
              <th class="col4">数量</th>
              <th class="col5">小计</th>
              <th class="col6">操作</th>
            </tr>
          </thead>
          <tbody>
            <tr v-for="(goods,index) in cart" :key="index">
              <th class="col0">
                <input type="checkbox" v-model="goods.checked" name id />
              </th>
              <td class="col1">
                <a href>
                  <img :src="goods.midlogo" alt />
                </a>
                <strong>
                  <a href>{{goods.goods_name}}</a>
                </strong>
              </td>
              <td class="col2">
                <p
                  v-for="(value,key,index) in goods.spec_info_id_txt"
                  :key="index"
                >{{key}} : {{value}}</p>
              </td>
              <td class="col3">
                ￥
                <span>{{goods.price.toFixed(2)}}</span>
              </td>
              <td class="col4">
                <a href="javascript:;" @click.prevent="minus(goods)" class="reduce_num"></a>
                <input
                  type="text"
                  name="amount"
                  value="1"
                  v-model="goods.count"
                  class="amount"
                  @keyup="updateCount(goods,$event)"
                />
                <a href="javascript:;" @click.prevent="plus(goods)" class="add_num"></a>
              </td>
              <td class="col5">
                ￥
                <span>{{(goods.price*goods.count).toFixed(2)}}</span>
              </td>
              <td class="col6">
                <a href @click.prevent="del(index)">删除</a>
              </td>
            </tr>
          </tbody>
          <tfoot>
            <tr>
              <td colspan="7">
                购物金额总计：
                <strong>
                  ￥
                  <span id="total">{{totalPrice}}</span>
                </strong>
              </td>
            </tr>
          </tfoot>
        </table>
        <div class="cart_btn w990 bc mt10">
          <a href class="continue">继续购物</a>
          <a class="checkout" @click.prevent="submit">结 算</a>
        </div>
      </div>
      <!-- 主体部分 end -->

      <div style="clear:both;"></div>
      <!-- 底部版权 start -->
      <Footer></Footer>
      <!-- 底部版权 end -->
    </div>
  </template>

  <script>
  import TopNav from "../components/TopNav";
  import Footer from "../components/Footer";
  export default {
    head: {
      title: "购物车页面",
      link: [{ rel: "stylesheet", href: "/style/cart.css" }],
      script: [{ type: "text/javascript", src: "/js/cart1.js" }]
    },
    components: {
      TopNav,
      Footer
    },
    data() {
      return {
        cart: [],
        selectAllChecked: false
      };
    },
    async mounted() {
      //获取token
      let token = sessionStorage.getItem("token");
      if (token) {
        //登录：服务器获得数据
        let { data } = await this.$request.getCart();
        this.cart = data.data;
        console.info(this.cart);
      } else {
        let cartStr = localStorage.getItem("cart");

        this.cart = JSON.parse(cartStr);
      }
    },
    methods: {
      minus: function(goods) {
        if (goods.count > 1) {
          goods.count--;
        }
      },
      plus: function(goods) {
        //可以考虑库存
        goods.count++;
      },
      updateCount: function(goods, e) {
        console.info(e.target.value);
        if (/^\d+$/.test(e.target.value)) {
          goods.count = e.target.value;
        } else {
          goods.count = 1;
        }
      },
      del(index) {
        if (confirm("您确定要删除么?")) {
          this.cart.splice(index, 1);
          console.info(this.cart);
        }
      },
      selectAll(e) {
        this.cart.forEach(item => {
          item.checked = e.target.checked;
        });
      },
      submit() {
        let token = sessionStorage.getItem("token");
        if (token) {
          this.$router.push("flow2");
        } else {
          //确定登录成功后调整的页面
          localStorage.setItem("returnURL", "flow2");
          //没有登录
          this.$router.push("login");
        }
      }
    },
    computed: {
      totalPrice() {
        let sum = 0;
        this.cart.forEach(g => {
          sum += g.price * g.count;
        });
        return sum;
      }
    },
    watch: {
      //深度监听
      cart: {
        async handler(newCart, oldCart) {
          //根据登录情况，更新购物车
          let token = sessionStorage.getItem("token");
          if (token) {
            //登录
            let { data } = await this.$request.updateCart(newCart);
            if (data.code == 0) {
              alert(data.message);
            }
          } else {
            //未登录--将购物车中的数据保持localStorage中
            localStorage.setItem("cart", JSON.stringify(newCart));
          }

          //购物项项选中个数，购物车个数相同，全选需要选中
          let cartSize = this.cart.length;
          let checkedSize = this.cart.filter(item => item.checked).length;
          this.selectAllChecked = cartSize == checkedSize;
        },
        //true代表如果在 watch 里声明了之后，就会立即先去执行里面的handler方法
        immediate: false,
        //深度监听，常用于对象下面属性的改变
        deep: true
      }
    }
  };
  </script>

  <style>
  </style>
