linux学习笔记--DNS服务器搭建中遇到的几个问题

最新推荐文章于 2024-11-29 17:48:40 发布

原创

最新推荐文章于 2024-11-29 17:48:40 发布 · 1.1k 阅读

3 ·

CC 4.0 BY-SA版权

文章标签：

#Linux #DNS #centos7

使用环境WIN时，使用虚拟机软件 vmware player，搭载centos 7搭建DNS服务器，搭建DNS服务器进行DNS劫持。搭建过程中出现几个问题，最终得到解决，下面归纳总结几个出现的问题。

1、使用虚拟机时，构建好DNS服务后，PC无法正常访问DNS服务器

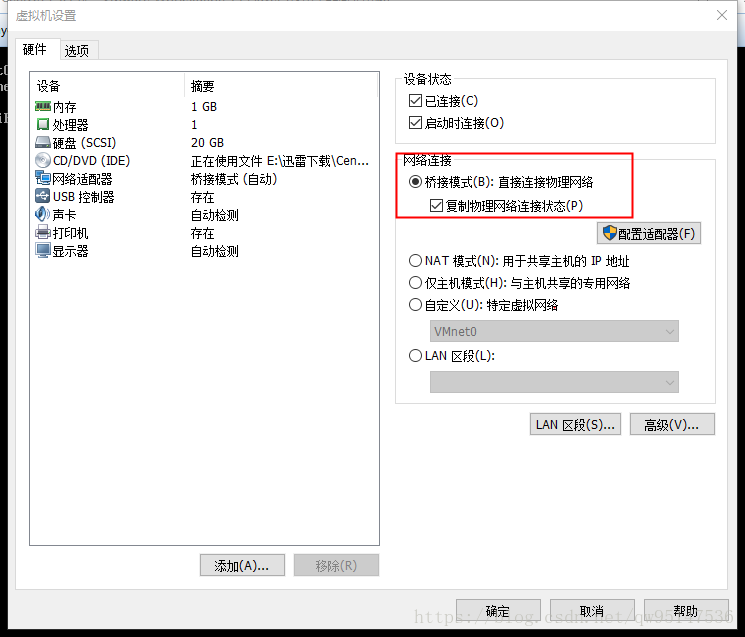

使用虚拟机设置时，网络适配器，需要使用桥接模式，直接连接物理网络，使用其他NAT模式时，无法正常访问DNS服务器

2、安装centos 7后，网络无法使用，一些基础网络软件无法使用如 nslookup，ifconfig，iptables，bind软件。

在安装centos 7时，使用默认设置，需要在安装时，勾选基础网络调试功能模组，就能在安装时集成众多网络调试软件

另外可以使用yum软件安装这些调试软件

yum install net-tools.x86_64
yum -y install bind-chroot
yum install -y iptables-services

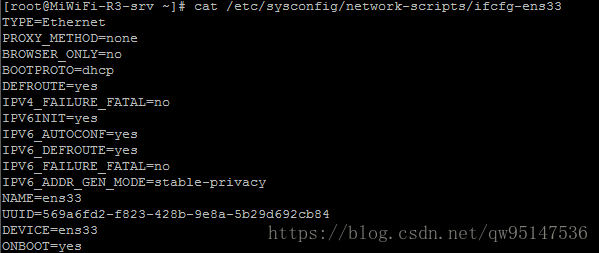

路由器设置DHCP自动分配网络，需要在 /etc/sysconfig/network-scripts/ifcfg-ensxx(不同电脑可能不一样）中进行设置

其中 ONBOOT=yes后，重启网络服务器 service network restart 后，即可正常访问网络

3、外部网络的DNS服务无法正常监听，需要在启用ipt
