Android相对布局

左下角对齐

<View
        android:id="@+id/view_1"
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:background="#000000"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"/>

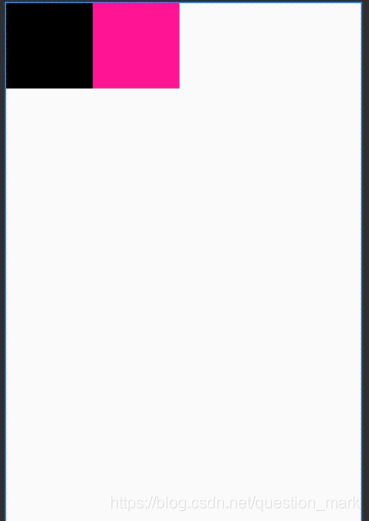

两个相邻

	<View
        android:id="@+id/view_1"
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:background="#000000"
    />

    <View
        android:id="@+id/view_2"
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:background="#FF1493"
        android:layout_toRightOf="@id/view_1"
        />

在这里插入图片描述

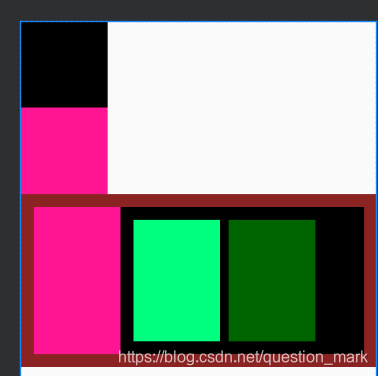

//在下面
android:layout_below="@id/view_1"

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <View
        android:id="@+id/view_1"
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:background="#000000"
    />

    <View
        android:id="@+id/view_2"
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:background="#FF1493"
        android:layout_below="@id/view_1"
        />

    <LinearLayout
        android:id="@+id/ll_1"
        android:layout_width="match_parent"
        android:layout_height="200dp"
        android:layout_below="@id/view_2"
        android:background="#8B2323"
        android:orientation="horizontal"
        android:padding="15dp">

        <View
            android:layout_width="100dp"
            android:layout_height="match_parent"
            android:background="#FF1493"/>

        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:background="#000000"
            android:padding="15dp">
            <View
                android:id="@+id/view_3"
                android:layout_width="100dp"
                android:layout_height="match_parent"
                android:background="#00FF7F" />
            <View
                android:id="@+id/view_4"
                android:layout_width="100dp"
                android:layout_height="match_parent"
                android:background="#006400"
                android:layout_toRightOf="@id/view_3"
                android:layout_marginLeft="10dp"/>
        </RelativeLayout>

    </LinearLayout>

</RelativeLayout>

在这里插入图片描述
