httpd的编译安装

文章目录

httpd的编译安装

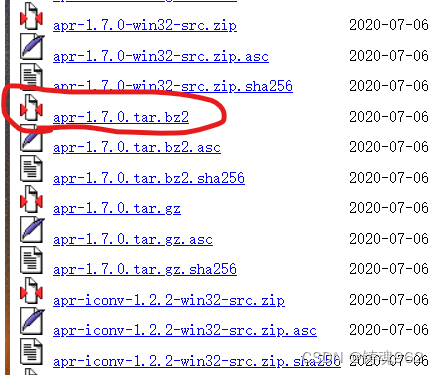

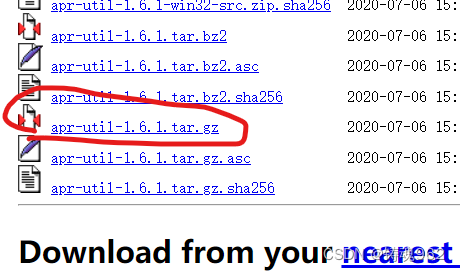

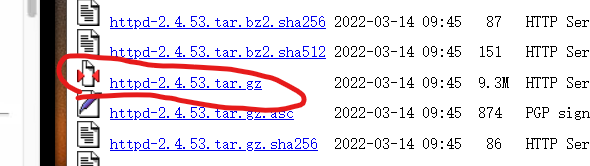

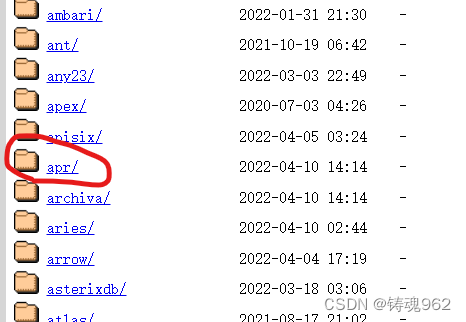

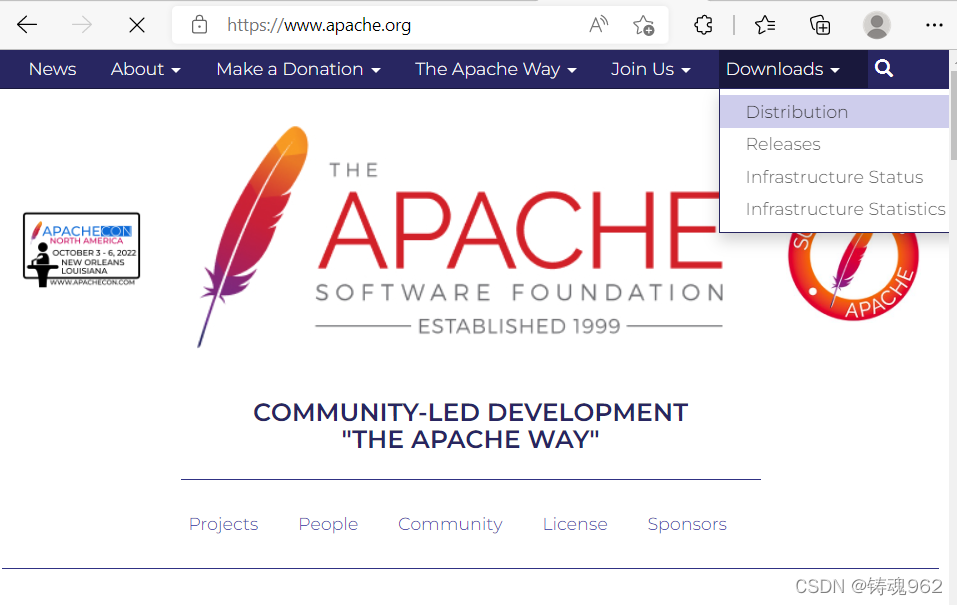

1. httpd需要用到的安装包

在这里插入图片描述

2. 安装顺序：apr→apr-util→httpd

[root@localhost ~]# ls
anaconda-ks.cfg  nginx-1.20.2  nginx-1.20.2.tar.gz
用xftp上传后：
[root@localhost ~]# ls
anaconda-ks.cfg    apr-util-1.6.1.tar.gz
apr-1.7.0.tar.bz2  httpd-2.4.53.tar.gz
解压
[root@localhost ~]# yum -y install bzip2	//系统默认没有解压bz2格式压缩包的工具
[root@localhost ~]# tar xf apr-util-1.6.1.tar.gz
[root@localhost ~]# tar xf httpd-2.4.53.tar.gz
[root@localhost ~]# tar xf apr-1.7.0.tar.bz2
[root@localhost ~]# ls
anaconda-ks.cfg    apr-util-1.6.1         httpd-2.4.53.tar.gz
apr-1.7.0          apr-util-1.6.1.tar.gz
apr-1.7.0.tar.bz2  httpd-2.4.53

[root@localhost ~]# useradd -r -M -s /sbin/nologin apache
[root@localhost ~]# id apache
uid=995(apache) gid=992(apache) groups=992(apache)
[root@localhost ~]# grep apache /etc/group
apache:x:992:
//创建apache的用户和组

[root@localhost ~]# cd apr-1.7.0
[root@localhost apr-1.7.0]# ls
apr-config.in     CMakeLists.txt  libapr.mak     poll
apr.dep           config.layout   libapr.rc      random
apr.dsp           configure       LICENSE        README
apr.dsw           configure.in    locks          README.cmake
apr.mak           docs            Makefile.in    shmem
apr.pc.in         dso             Makefile.win   strings
apr.spec          emacs-mode      memory         support
atomic            encoding        misc           tables
build             file_io         mmap           test
build.conf        helpers         network_io     threadproc
buildconf         include         NOTICE         time
build-outputs.mk  libapr.dep      NWGNUmakefile  tools
CHANGES           libapr.dsp      passwd         user

在安装之前装编辑工具：
[root@localhost apr-1.7.0]# dnf -y install gcc gcc-c++

依赖包也要提前装，不提前装就算最后安装好了，也会出现各种问题
[root@localhost ~]# yum -y install openssl-devel pcre-devel expat-devel libtool

[root@localhost apr-1.7.0]# ./configure -- prefix=/usr/local/apr
//配置脚本，指定软件的安装路径，安装的功能，生成makeﬁle编译脚本

这里直接装，出现报错：
rm: cannot remove 'libtoolT': No such file or directory config.status: executing default commands
解决：
因为显示缺包，所以先尝试装包
[root@localhost ~]# dnf list all|grep -i libtool
libtool-ltdl.x86_64                                    2.4.6-25.el8                                           @anaconda
libtool.x86_64                                         2.4.6-25.el8                                           AppStream
libtool-ltdl.i686                                      2.4.6-25.el8                                           base
libtool-ltdl-devel.i686                                2.4.6-25.el8                                           AppStream
libtool-ltdl-devel.x86_64                              2.4.6-25.el8                                           AppStream
[root@localhost ~]# dnf -y install libtool libtool-ltdl libtool-ltdl-devel
装过依旧报该错，尝试其他方法：

在该软件目录下，vi/vim打开configure这个配置文件
方法一：找到$RM "cfgfile"，删除或注释它
方法二：找到RM='$RM'这一行 修改为RM='$RM -f'

最后执行make命令进行编译,可以使用-j指定CPU核心数进行编译
[root@localhost ~]# dnf -y install make
[root@localhost apr-1.7.0]# make	//编译
[root@localhost apr-1.7.0]# make install	//make install安装，将编译好的二进制文件拷贝到指定的安装路径下，自动创建目录

[root@localhost ~]# cd apr-util-1.6.1
[root@localhost apr-util-1.6.1]# ./configure --prefix=/usr/local/apr-util --with-apr=/usr/local/apr
[root@localhost apr-util-1.6.1]# make
[root@localhost apr-util-1.6.1]# make install

在编译安装httpd之前，讲一个方法，当命令太长了，可以用\换行显示，但实际上是一行的东西
[root@localhost httpd-2.4.53]# hhhhh\
>

[root@localhost ~]# cd httpd-2.4.53
[root@localhost httpd-2.4.53]# ./configure --prefix=/usr/local/apache \
--enable-so \
--enable-ssl \
--enable-cgi \
--enable-rewrite \
--with-zlib \
--with-pcre \
--with-apr=/usr/local/apr \
--with-apr-util=/usr/local/apr-util/ \
--enable-modules=most \
--enable-mpms-shared=all \
--with-mpm=prefork
[root@localhost httpd-2.4.53]# make
[root@localhost httpd-2.4.53]# make install

[root@localhost ~]# ls /usr/local/
apache  apr-util  etc    include  lib64    nginx  share
apr     bin       games  lib      libexec  sbin   src
[root@localhost ~]# cd /usr/local/apache/
[root@localhost apache]# ls
bin    cgi-bin  error   icons    logs  manual
build  conf     htdocs  include  man   modules

1. 设置环境变量bin
[root@localhost apache]# which httpd
/usr/bin/which: no httpd in (/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/root/bin)
[root@localhost apache]# which apachectl
/usr/bin/which: no apachctl in (/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/root/bin)
[root@localhost apache]# cd
[root@localhost ~]# which httpd
/usr/bin/which: no httpd in (/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/root/bin)
[root@localhost ~]# which apachectl
/usr/bin/which: no apachctl in (/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/root/bin)
//这里我们发现找不到httpd和apachctl

[root@localhost ~]# echo 'export PATH=/usr/local/apache/bin:$PATH' > /etc/profile.d/apache.sh
[root@localhost ~]# source /etc/profile.d/apache.sh
[root@localhost ~]# which httpd
/usr/local/apache/bin/httpd
[root@localhost ~]# which apachectl
/usr/local/apache/bin/apachectl

2. 有include头文件，做映射关系
[root@localhost ~]# ln -s /usr/local/apache/include /usr/include/apache

3. 有man文档
[root@localhost ~]# vim /etc/man_db.conf
#
MANDATORY_MANPATH                       /usr/man
MANDATORY_MANPATH                       /usr/share/man
MANDATORY_MANPATH                       /usr/local/share/man
MANDATORY_MANPATH                       /usr/local/apache/man
#---------------------------------------------------------
增加这一行：
MANDATORY_MANPATH                 /usr/local/apache/man

到这里就算配置完了，关闭防火墙：
[root@localhost ~]# systemctl disable --now firewalld
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@localhost ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disa>
   Active: inactive (dead)
     Docs: man:firewalld(1)

Apr 15 09:32:56 localhost.localdomain systemd[1]: Starting firewal>
Apr 15 09:32:57 localhost.localdomain systemd[1]: Started firewall>
Apr 15 09:32:57 localhost.localdomain firewalld[1011]: WARNING: Al>
Apr 17 14:43:47 localhost.localdomain systemd[1]: Stopping firewal>
Apr 17 14:43:48 localhost.localdomain systemd[1]: firewalld.servic>
Apr 17 14:43:48 localhost.localdomain systemd[1]: Stopped firewall>
[root@localhost ~]# setenforce 0
[root@localhost ~]# getenforce
Permissive
[root@localhost ~]# vim /etc/selinux/config
......
SELINUX=enforcing 改为：SELINUX=disabled
......
[root@localhost ~]# ss -antl
State  Recv-Q Send-Q Local Address:Port  Peer Address:Port Process
LISTEN 0      128          0.0.0.0:22         0.0.0.0:*
LISTEN 0      128             [::]:22            [::]:*
[root@localhost ~]# which apachectl
/usr/local/apache/bin/apachectl
[root@localhost ~]# apachectl start
AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using localhost.localdomain. Set the 'ServerName' directive globally to suppress this message
[root@localhost ~]# ss -antl
State  Recv-Q Send-Q Local Address:Port  Peer Address:Port Process
LISTEN 0      128          0.0.0.0:22         0.0.0.0:*
LISTEN 0      128             [::]:22            [::]:*
LISTEN 0      128                *:80               *:*

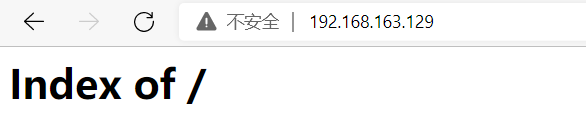

在这里插入图片描述

[root@localhost ~]# ss -antl
State  Recv-Q Send-Q Local Address:Port  Peer Address:Port Process
LISTEN 0      128          0.0.0.0:22         0.0.0.0:*
LISTEN 0      128             [::]:22            [::]:*
LISTEN 0      128                *:80               *:*
[root@localhost ~]# apachectl stop
AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using localhost.localdomain. Set the 'ServerName' directive globally to suppress this message
我们发现报了这个错，解决：
[root@localhost ~]# ss -antl
State  Recv-Q Send-Q Local Address:Port  Peer Address:Port Process
LISTEN 0      128          0.0.0.0:22         0.0.0.0:*
LISTEN 0      128             [::]:22            [::]:*
[root@localhost ~]# cd /usr/local/apache
[root@localhost apache]# ls
bin    cgi-bin  error   icons    logs  manual
build  conf     htdocs  include  man   modules
bin:放置命令的
conf：放配置文件的
htdocs：放网站的
logs：放日志的
[root@localhost apache]# cd conf
[root@localhost conf]# ls
extra  httpd.conf  magic  mime.types  original
httpd.conf：主配置文件
[root@localhost conf]# vim httpd.conf 		//打开80端口号
......
#ServerName www.example.com:80
找到这一行并把注释取消掉，保存

设置阿帕奇服务开机自启动

[root@localhost conf]# cd /usr/lib/systemd/system
[root@localhost system]# ls sshd.service
sshd.service
[root@localhost system]# cp sshd.service httpd.service
[root@localhost system]# vim httpd.service
原文件：
[Unit]
Description=OpenSSH server daemon
Documentation=man:sshd(8) man:sshd_config(5)
After=network.target sshd-keygen.target
Wants=sshd-keygen.target

[Service]
Type=notify
EnvironmentFile=-/etc/crypto-policies/back-ends/opensshserver.config
EnvironmentFile=-/etc/sysconfig/sshd
ExecStart=/usr/sbin/sshd -D $OPTIONS $CRYPTO_POLICY
ExecReload=/bin/kill -HUP $MAINPID
KillMode=process
Restart=on-failure
RestartSec=42s

[Install]
WantedBy=multi-user.target
~
改为：
[Unit]
Description=httpd server daemon
After=network.target sshd-keygen.target

[Service]
Type=forking
ExecStart=/usr/local/apache/bin/apachectl start
ExecStop=/usr/local/apache/bin/apachectl stop
ExecReload=/bin/kill -HUP $MAINPID

[Install]
WantedBy=multi-user.target
~
保存
[root@localhost system]# systemctl daemon-reload
//重新加载
[root@localhost system]# cd
[root@localhost ~]# systemctl status httpd
● httpd.service - httpd server daemon
   Loaded: loaded (/usr/lib/systemd/system/httpd.service; disabled>
   Active: inactive (dead)
[root@localhost ~]# systemctl start httpd
[root@localhost ~]# ss -antl
State  Recv-Q Send-Q Local Address:Port  Peer Address:Port Process
LISTEN 0      128          0.0.0.0:22         0.0.0.0:*
LISTEN 0      128             [::]:22            [::]:*
LISTEN 0      128                *:80               *:*
[root@localhost ~]# systemctl status httpd
● httpd.service - httpd server daemon
   Loaded: loaded (/usr/lib/systemd/system/httpd.service; disabled>
   Active: active (running) since Sun 2022-04-17 19:25:34 CST; 1mi>
  Process: 82985 ExecStart=/usr/local/apache/bin/apachectl start (>
 Main PID: 82988 (httpd)
    Tasks: 6 (limit: 11216)
   Memory: 4.2M
   CGroup: /system.slice/httpd.service
           ├─82988 /usr/local/apache/bin/httpd -k start
           ├─82989 /usr/local/apache/bin/httpd -k start
           ├─82990 /usr/local/apache/bin/httpd -k start
           ├─82991 /usr/local/apache/bin/httpd -k start
           ├─82992 /usr/local/apache/bin/httpd -k start
           └─82993 /usr/local/apache/bin/httpd -k start

Apr 17 19:25:34 localhost.localdomain systemd[1]: Starting httpd s>
Apr 17 19:25:34 localhost.localdomain systemd[1]: Started httpd se>

设置开机自启：
[root@localhost ~]# systemctl enable httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
[root@localhost ~]# systemctl status httpd
● httpd.service - httpd server daemon
   Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled;>
   Active: active (running) since Sun 2022-04-17 19:25:34 CST; 3mi>
 Main PID: 82988 (httpd)
    Tasks: 6 (limit: 11216)
   Memory: 4.2M
   CGroup: /system.slice/httpd.service
           ├─82988 /usr/local/apache/bin/httpd -k start
           ├─82989 /usr/local/apache/bin/httpd -k start
           ├─82990 /usr/local/apache/bin/httpd -k start
           ├─82991 /usr/local/apache/bin/httpd -k start
           ├─82992 /usr/local/apache/bin/httpd -k start
           └─82993 /usr/local/apache/bin/httpd -k start

Apr 17 19:25:34 localhost.localdomain systemd[1]: Starting httpd s>
Apr 17 19:25:34 localhost.localdomain systemd[1]: Started httpd se>

3. 如何配置虚拟主机

3.1 访问控制法则

[root@localhost ~]# cd /usr/local/apache/conf/
[root@localhost conf]# ls
extra  httpd.conf  magic  mime.types  original
[root@localhost conf]# ls extra		//子配置文件
httpd-autoindex.conf  httpd-mpm.conf
httpd-dav.conf        httpd-multilang-errordoc.conf
httpd-default.conf    httpd-ssl.conf
httpd-info.conf       httpd-userdir.conf
httpd-languages.conf  httpd-vhosts.conf虚拟主机
httpd-manual.conf     proxy-html.conf

[root@localhost ~]# cd /usr/local/apache/htdocs/
[root@localhost htdocs]# ls
index.html
[root@localhost htdocs]# mkdir test.example.com
[root@localhost htdocs]# mkdir blog.example.com
[root@localhost htdocs]# ls
blog.example.com  index.html  test.example.com

[root@localhost ~]# vim /usr/local/apache/conf/extra/httpd-vhosts.conf
修改这一部分：
<VirtualHost *:80>
    DocumentRoot "/usr/local/apache/htdocs/test.example.com"
    ServerName test.example.com
    ErrorLog "logs/test.example.com-error_log"错误日志存放的文件
    CustomLog "logs/test.example.com-access_log" common
</VirtualHost>正常日志存放的文件
保存，配好了虚拟主机，但是还不能用，还要配置主配置文件：
[root@localhost ~]# vim /usr/local/apache/conf/httpd.conf
......
#Include conf/extra/httpd-vhosts.conf
//找到httpd-vhosts.conf文件并取消注释
Include conf/extra/httpd-vhosts.conf
保存
[root@localhost ~]# systemctl restart httpd		//重启服务
现在虚拟主机就算配置好了

在这里插入图片描述

[root@localhost ~]# cd /usr/local/apache/htdocs/
[root@localhost htdocs]# ls
blog.example.com  index.html  test.example.com
[root@localhost htdocs]# cd test.example.com/
[root@localhost test.example.com]# ls
[root@localhost test.example.com]# echo "test page" > abc.html
[root@localhost test.example.com]# ls
abc.html

在这里插入图片描述

[root@localhost test.example.com]# mv abc.html index.html
[root@localhost test.example.com]# ls
index.html
这样就可以直接访问了
[root@localhost ~]# vim /usr/local/apache/conf/httpd.conf	因为在主配置文件里，首页文件DirectoryIndex规定叫index.html了

在这里插入图片描述

3.1.1 相同IP不同端口号配置方法

[root@localhost htdocs]# ls
blog.example.com  index.html  test.example.com
[root@localhost htdocs]# cd test.example.com/
[root@localhost test.example.com]# echo "test page" > index.html
[root@localhost test.example.com]# ls
index.html

[root@localhost test.example.com]# cd ..
[root@localhost htdocs]# cd blog.example.com/
[root@localhost blog.example.com]# echo "blog page" > index.html
[root@localhost blog.example.com]# ls
index.html

[root@localhost ~]# vim /usr/local/apache/conf/extra/httpd-vhosts.conf
<VirtualHost *:80>
    DocumentRoot "/usr/local/apache/htdocs/test.example.com"
    ServerName test.example.com
    ErrorLog "logs/test.example.com-error_log"
    CustomLog "logs/test.example.com-access_log" common
</VirtualHost>
Listen 81
<VirtualHost *:81>
    DocumentRoot "/usr/local/apache/htdocs/blog.example.com"
    ServerName blog.example.com
    ErrorLog "logs/blog.example.com-error_log"
    CustomLog "logs/blog.example.com-access_log" common
</VirtualHost>

[root@localhost ~]# systemctl restart httpd		//服务重启
[root@localhost ~]# systemctl restart httpd
[root@localhost ~]# ss -antl
State  Recv-Q Send-Q Local Address:Port   Peer Address:Port Process
LISTEN 0      128          0.0.0.0:22          0.0.0.0:*
LISTEN 0      128             [::]:22             [::]:*
LISTEN 0      128                *:80                *:*
LISTEN 0      128                *:81                *:*

在这里插入图片描述

（注意输入：81的时候用英文）

3.1.2 不同IP相同端口号

先给网卡配置两个能用的IP：
[root@localhost ~]# ip addr add 192.168.163.150/24 dev ens160
[root@localhost ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0c:29:48:d5:d5 brd ff:ff:ff:ff:ff:ff
    inet 192.168.163.129/24 brd 192.168.163.255 scope global dynamic noprefixroute ens160
       valid_lft 1007sec preferred_lft 1007sec
    inet 192.168.163.150/24 scope global secondary ens160
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe48:d5d5/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

[root@localhost ~]# vim /usr/local/apache/conf/extra/httpd-vhosts.conf

<VirtualHost 192.168.163.129:80>
    DocumentRoot "/usr/local/apache/htdocs/test.example.com"
    ServerName test.example.com
    ErrorLog "logs/test.example.com-error_log"
    CustomLog "logs/test.example.com-access_log" common
</VirtualHost>
<VirtualHost 192.168.163.150:80>
    DocumentRoot "/usr/local/apache/htdocs/blog.example.com"
    ServerName blog.example.com
    ErrorLog "logs/blog.example.com-error_log"
    CustomLog "logs/blog.example.com-access_log" common
</VirtualHost>
~
[root@localhost ~]# systemctl restart httpd

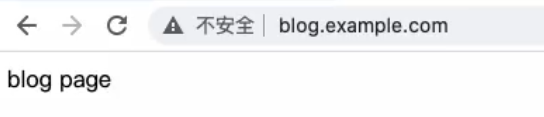

在这里插入图片描述

3.1.3 相同IP相同端口不同域名

[root@localhost ~]# vim /usr/local/apache/conf/extra/httpd-vhosts.conf

<VirtualHost *:80>
    DocumentRoot "/usr/local/apache/htdocs/test.example.com"
    ServerName test.example.com
    ErrorLog "logs/test.example.com-error_log"
    CustomLog "logs/test.example.com-access_log" common
</VirtualHost>
<VirtualHost *:80>
    DocumentRoot "/usr/local/apache/htdocs/blog.example.com"
    ServerName blog.example.com
    ErrorLog "logs/blog.example.com-error_log"
    CustomLog "logs/blog.example.com-access_log" common
</VirtualHost>

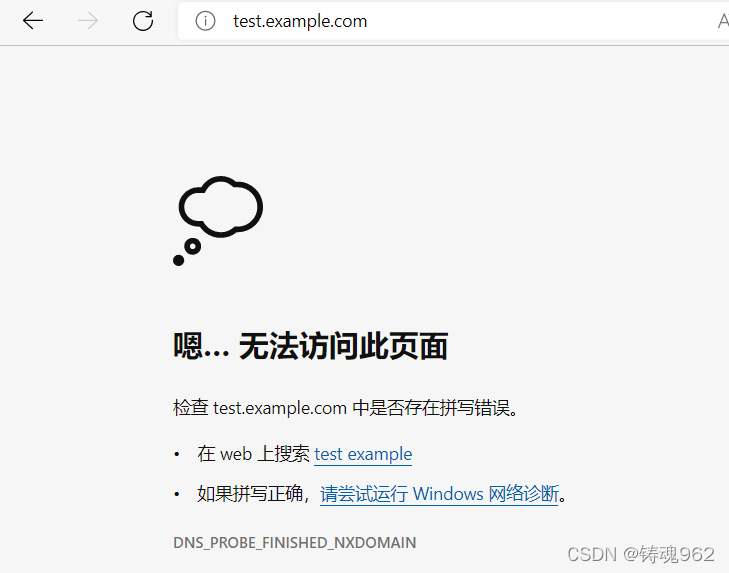

在这里插入图片描述

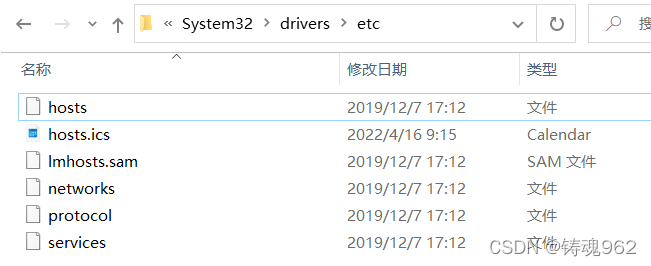

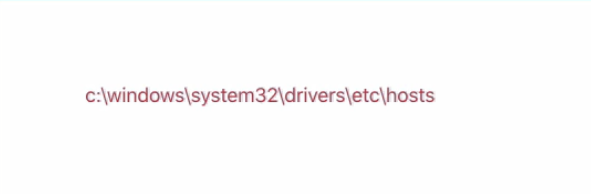

为了让我们的Windows电脑，可以识别该域名，做出以下修改：

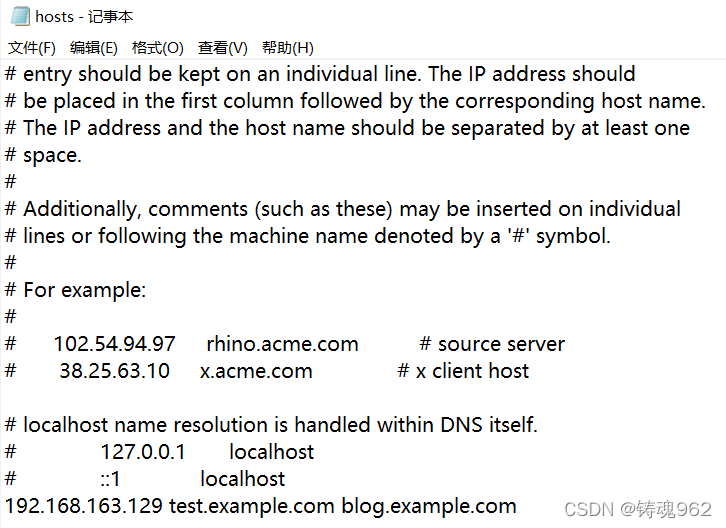

文件结尾添加这一行：

192.168.163.129 test.example.com blog.example.com
在这里插入图片描述

4. 访问控制：禁用某主机访问某网站（虚拟主机）

[root@localhost ~]# systemctl restart httpd
[root@localhost ~]# vim /usr/local/apache/conf/extra/httpd-vhosts.conf

<VirtualHost *:80>
    DocumentRoot "/usr/local/apache/htdocs/test.example.com"
    ServerName test.example.com
    ErrorLog "logs/test.example.com-error_log"
    CustomLog "logs/test.example.com-access_log" common
    <Directory "/usr/local/apache/htdocs/test.example.com">
        <RequireAll>
            Require not ip 192.168.64.1	//这里是真机的IP
            Require all granted		//允许其他所有
        </RequireAll>
    </Directory>
</VirtualHost>
<VirtualHost *:80>
    DocumentRoot "/usr/local/apache/htdocs/blog.example.com"
    ServerName blog.example.com
    ErrorLog "logs/blog.example.com-error_log"
    CustomLog "logs/blog.example.com-access_log" common
</VirtualHost>
~

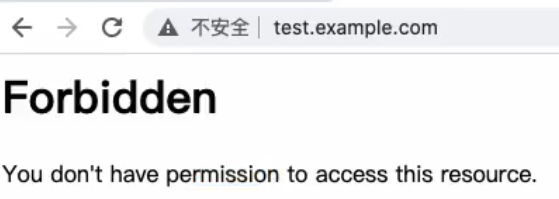

在这里插入图片描述

尝试其他主机访问：

[root@localhost ~]# vim /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.163.129 test.example.com blog.example.com~
[root@localhost ~]# curl test.example.comtest page
//可以访问

ssl：
启用模块：编辑/usr/local/apache/conf/httpd.conf文件，添加下面这行，如果已经有了但是注释了，则取消注释即可

LoadModule ssl_module modules/mod_ssl.so

4.1 配置https步骤

4.1.1 生成证书

[root@localhost conf]# cd /etc/pki/
[root@localhost pki]# ls
ca-trust  entitlement  product          rpm-gpg  swid
consumer  java         product-default  rsyslog  tls
[root@localhost pki]# mkdir CA
[root@localhost pki]# cd CA
[root@localhost CA]# pwd
/etc/pki/CA
[root@localhost CA]# ls
[root@localhost CA]# mkdir private
[root@localhost CA]# (umask 077;openssl genrsa -out private/cakey.pem 2048) 		//生成密钥
Generating RSA private key, 2048 bit long modulus (2 primes)
.....................................+++++
....+++++
e is 65537 (0x010001)

[root@localhost CA]# ls
private
[root@localhost CA]# ls private/
cakey.pem
[root@localhost CA]# openssl rsa -in private/cakey.pem -pubout		//提取公钥
writing RSA key
-----BEGIN PUBLIC KEY-----
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAwgQzFI9lv4h8Y2rw0r8Y
NcADUH7OF5WVR9uqyk7O9QmK2XmRrcmtZts6Fzd8uclZ5EFVfQelbeLTOBfDA5rl
peg7bwp6jdoCNR8wvRvpKsoxvaGlxGm4wgUuw29Ggx4HLn56i98XoaM18QTY/kDF
dEA058o//IUVpzK1GFOQzS8aJ481ULBvUNeovp55dB/EDaJqDQptrzDDGItGKZJg
g9q7pUFkzoL7DA60dWc+t2ezbD5R1Ru0wRYvYQU7uVf617F91sqVYIOxMIPF/Pe9
ss5boR08bTnJfHaawz/jNyDANoYTzaUFABMFyUJ141adQ0Sh0wUTuxm68BAIls71
ewIDAQAB
-----END PUBLIC KEY-----
[root@localhost CA]# ls
private
[root@localhost CA]# ls private/
cakey.pem

CA生成自签署证书：
[root@localhost CA]# openssl rsa -in private/cakey.pem -pubout
writing RSA key
-----BEGIN PUBLIC KEY-----
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAwgQzFI9lv4h8Y2rw0r8Y
NcADUH7OF5WVR9uqyk7O9QmK2XmRrcmtZts6Fzd8uclZ5EFVfQelbeLTOBfDA5rl
peg7bwp6jdoCNR8wvRvpKsoxvaGlxGm4wgUuw29Ggx4HLn56i98XoaM18QTY/kDF
dEA058o//IUVpzK1GFOQzS8aJ481ULBvUNeovp55dB/EDaJqDQptrzDDGItGKZJg
g9q7pUFkzoL7DA60dWc+t2ezbD5R1Ru0wRYvYQU7uVf617F91sqVYIOxMIPF/Pe9
ss5boR08bTnJfHaawz/jNyDANoYTzaUFABMFyUJ141adQ0Sh0wUTuxm68BAIls71
ewIDAQAB
-----END PUBLIC KEY-----
[root@localhost CA]# openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 365
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:runtime
Organizational Unit Name (eg, section) []:runtime
Common Name (eg, your name or your server's hostname) []:test.example.com
Email Address []:123@qq.com
[root@localhost CA]# ls
cacert.pem  private
[root@localhost CA]# mkdir certs newcerts crl
[root@localhost CA]# touch index.txt && echo 01 > serial
[root@localhost CA]# ls
cacert.pem  certs  crl  index.txt  newcerts  private  serial

[root@localhost CA]# cd
[root@localhost ~]# cd /usr/local/apache/conf
[root@localhost conf]# ls
extra  httpd.conf  magic  mime.types  original
[root@localhost conf]# mkdir ssl
[root@localhost conf]# ls
extra  httpd.conf  magic  mime.types  original  ssl
[root@localhost ssl]# (umask 077;openssl genrsa -out httpd.key 2048)Generating RSA private key, 2048 bit long modulus (2 primes)
...........................................................................................+++++
............................................................................................................................................+++++
e is 65537 (0x010001)

[root@localhost ssl]# ls
httpd.key
[root@localhost ssl]# openssl req -new -key httpd.key -days 365 -out httpd.csr
Ignoring -days; not generating a certificate
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:runtime
Organizational Unit Name (eg, section) []:runtime
Common Name (eg, your name or your server's hostname) []:test.example.com
Email Address []:123@qq.com

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
[root@localhost ssl]# ls
httpd.csr  httpd.key

[root@localhost ssl]# openssl ca -in httpd.csr -out httpd.crt -days 365
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 1 (0x1)
        Validity
            Not Before: Apr 17 16:19:12 2022 GMT
            Not After : Apr 17 16:19:12 2023 GMT
        Subject:
            countryName               = CN
            stateOrProvinceName       = HB
            organizationName          = runtime
            organizationalUnitName    = runtime
            commonName                = test.example.com
            emailAddress              = 123@qq.com
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                E8:AD:2F:B8:DB:31:80:BA:FC:EB:0B:BF:79:15:DD:48:AF:FB:22:56
            X509v3 Authority Key Identifier:
                keyid:48:CA:B8:5B:04:1A:C3:00:AE:8E:5D:88:A2:31:15:56:DC:E1:27:10

Certificate is to be certified until Apr 17 16:19:12 2023 GMT (365 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
[root@localhost ssl]# ls
httpd.crt  httpd.csr  httpd.key
[root@localhost ssl]# rm -f httpd.csr
[root@localhost ssl]# ls
httpd.crt  httpd.key

4.1.2 配置httpd.conf，取消以下内容的注释

    LoadModule ssl_module modules/mod_ssl.so
    Include /etc/httpd24/extra/httpd-vhosts.conf
    Include /etc/httpd24/extra/httpd-ssl.conf

先在主配置文件httpd。conf里注释 Include /etc/httpd24/extra/httpd-ssl.conf 启用它，随后配置它
[root@localhost ssl]# cd ..
[root@localhost conf]# ls
extra  httpd.conf  magic  mime.types  original  ssl
[root@localhost conf]# vim httpd.conf
[root@localhost conf]# ls extra/
httpd-autoindex.conf  httpd-mpm.conf
httpd-dav.conf        httpd-multilang-errordoc.conf
httpd-default.conf    httpd-ssl.conf
httpd-info.conf       httpd-userdir.conf
httpd-languages.conf  httpd-vhosts.conf
httpd-manual.conf     proxy-html.conf
[root@localhost conf]# vim extra/httpd-ssl.conf
......
DocumentRoot "/usr/local/apache/htdocs/test.example.com"
ServerName test.example.com:443
......
SSLCertificateFile "/usr/local/apache/conf/ssl/httpd.crt"
......
SSLCertificateKeyFile "/usr/local/apache/conf/ssl/httpd.key"
......

4.1.3 检查配置文件是否有语法错误

[root@localhost conf]# httpd -t
AH00526: Syntax error on line 92 of /usr/local/apache/conf/extra/httpd-ssl.conf:
SSLSessionCache: 'shmcb' session cache not supported (known names: ). Maybe you need to load the appropriate socache module (mod_socache_shmcb?).
[root@localhost conf]# vim httpd.conf
LoadModule socache_shmcb_module modules/mod_socache_shmcb.so	//找到它，并注释它
[root@localhost conf]# httpd -t
Syntax OK		//检查OK了
[root@localhost conf]# ss -antl
State  Recv-Q Send-Q Local Address:Port   Peer Address:Port Process
LISTEN 0      128          0.0.0.0:22          0.0.0.0:*
LISTEN 0      128             [::]:22             [::]:*
LISTEN 0      128                *:443               *:*
LISTEN 0      128                *:80                *:*

在这里插入图片描述
