网约车项目

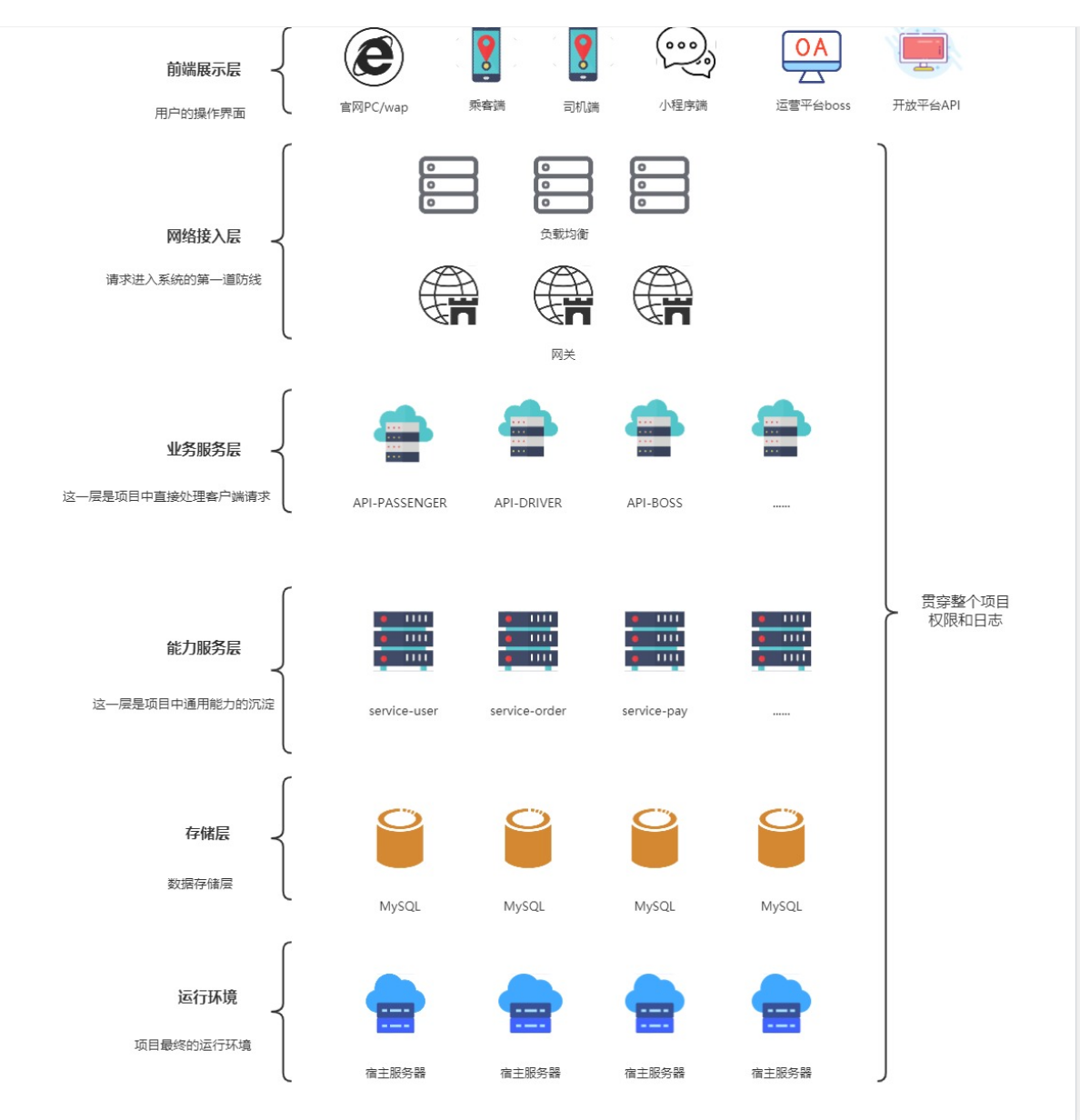

项目业务架构图

项目技术介绍

前端：uni-app

数据库：MySQL

缓存：Redis

注册中心：Nacos

配置中心：Nacos

网关：Spring Cloud Gateway

熔断限流：Spring Cloud Alibaba Sentinel

服务监控：Spring Cloud Sleuth、Spring Cloud zipkin

分布式锁：Redisson

分布式事务：Alibaba 的 Seata

服务通信：SSE

项目服务分析

api-boss（BOSS端）

具有以下功能：
用户管理——未设置

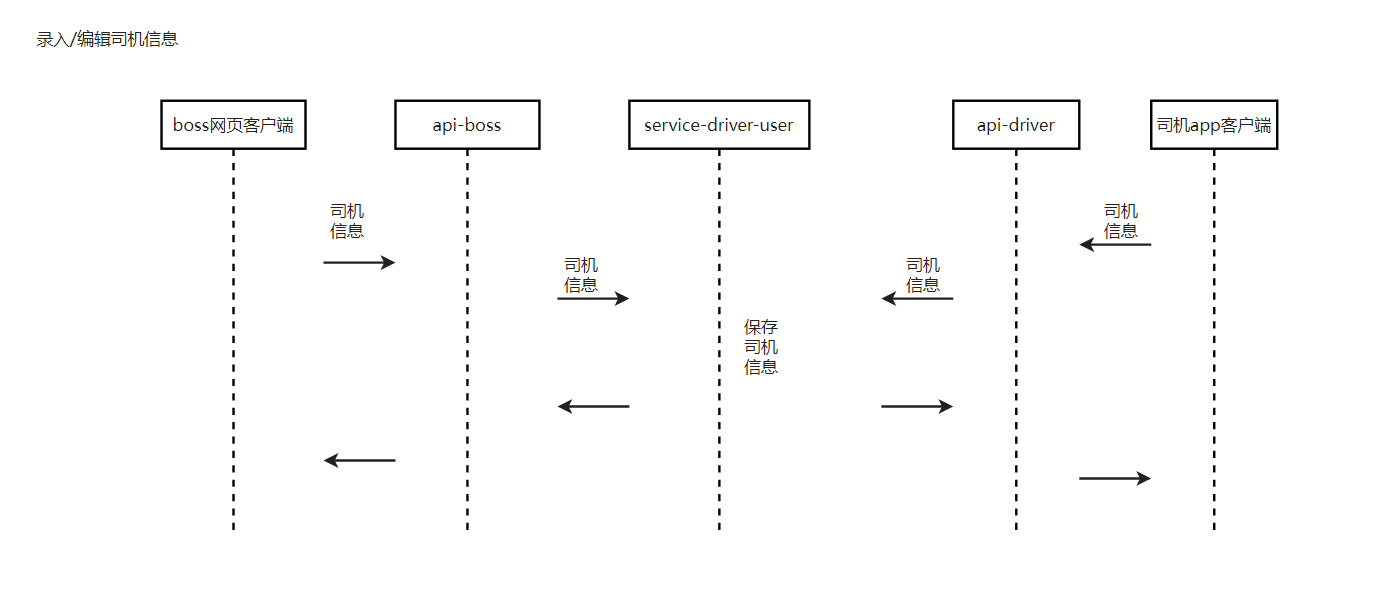

司机管理——添加司机、修改司机信息
车辆管理——添加车辆信息

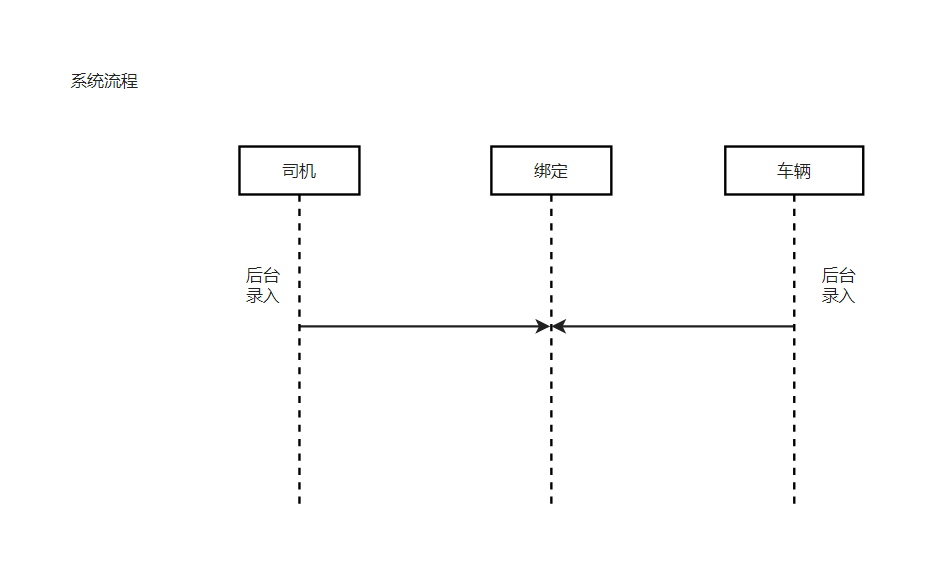

司机和车辆关系管理——司机车辆关系绑定，司机车辆关系解绑

api-driver（司机端）

具有以下功能：
注册/登录——司机获取验证码、司机验证码验证、司机登录带token、司机登录不带token
用户管理——维护司机信息
司机听单——上传车辆位置，修改司机工作状态、查询司机车辆绑定关系
司机抢单——由系统派单，暂时还未有司机主动抢单的功能
订单流转——司机去接乘客、司机到达乘客地点、司机接到乘客、乘客到达目的地、司机取消订单
发起收款——司机发起收款

api-passenger（乘客端）

具有以下功能：

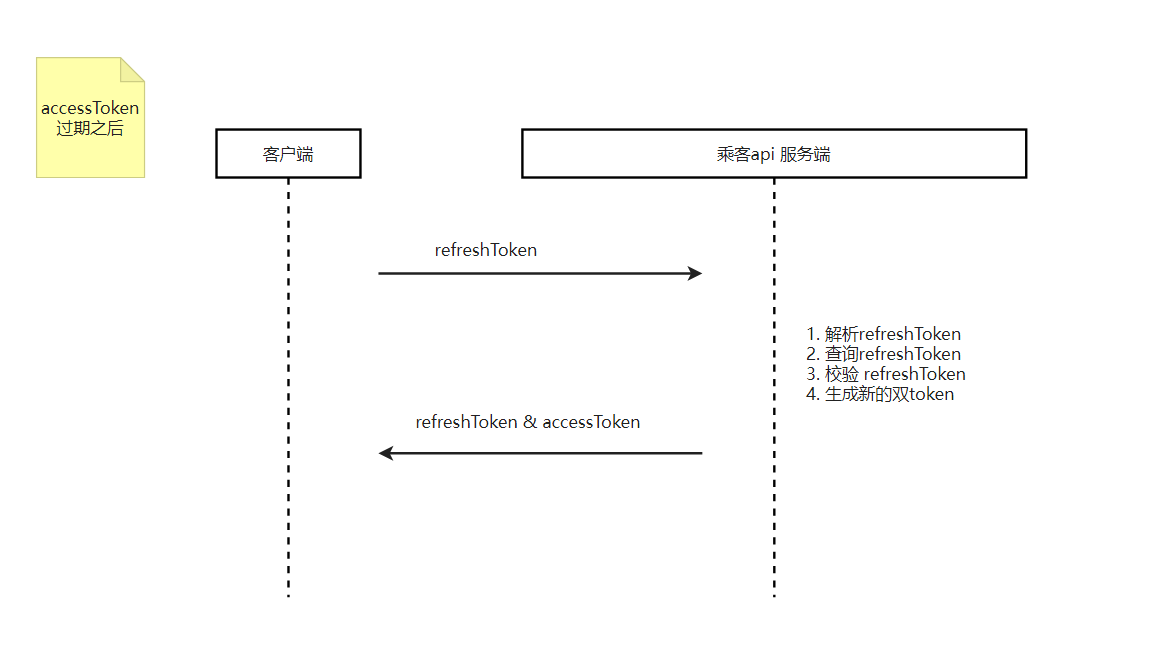

注册/登录——乘客获取验证码、乘客验证码验证、乘客登录带token、乘客登录不带token
预估价格——预估价格
乘客下单——乘客下单
乘客支付——乘客支付
乘客评价——暂无

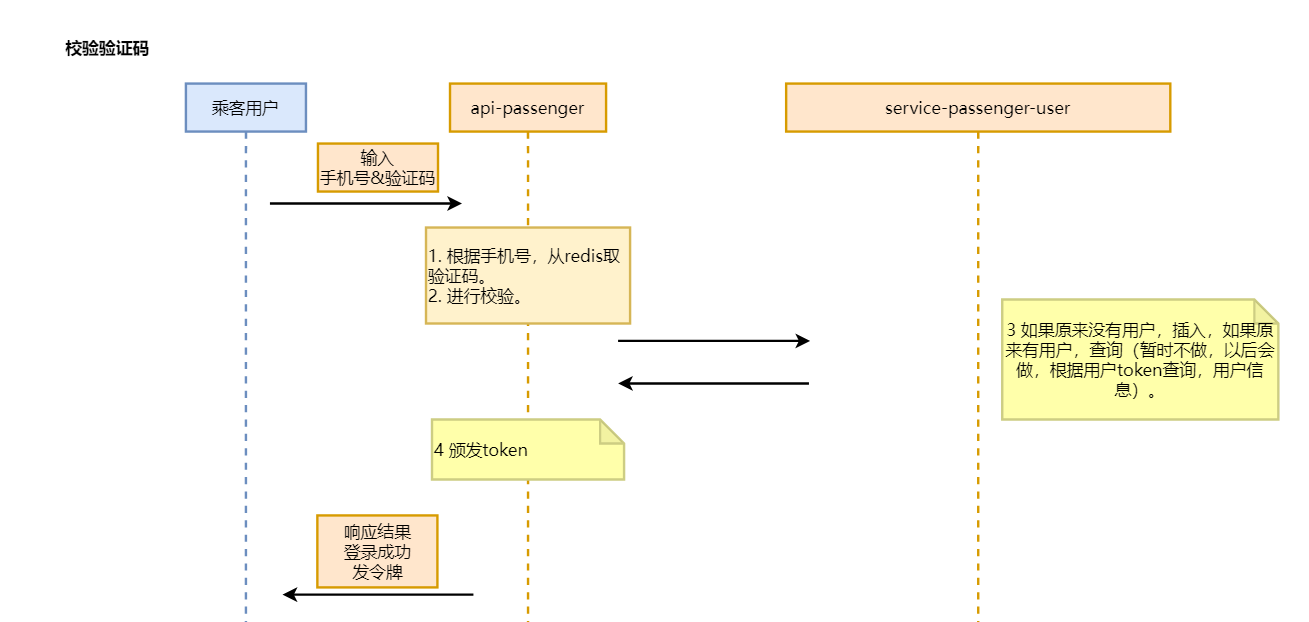

乘客登录功能

api-passenger

service-passenger-user

service-verificationcode

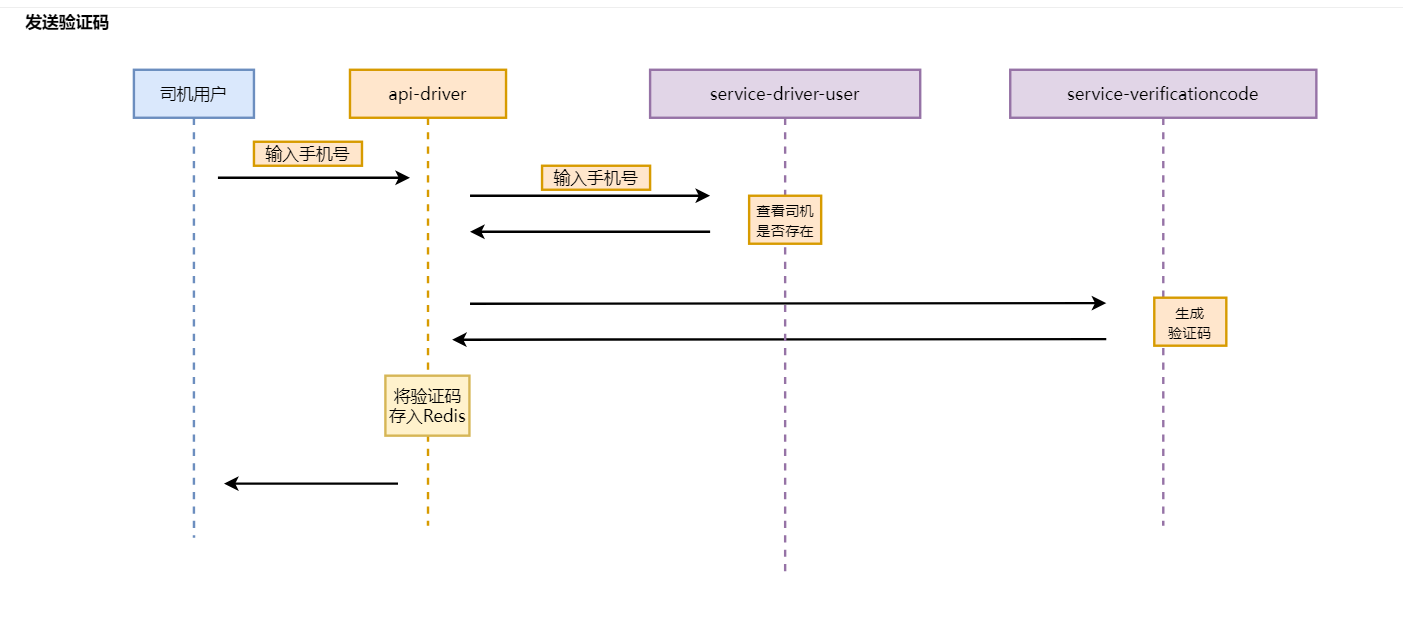

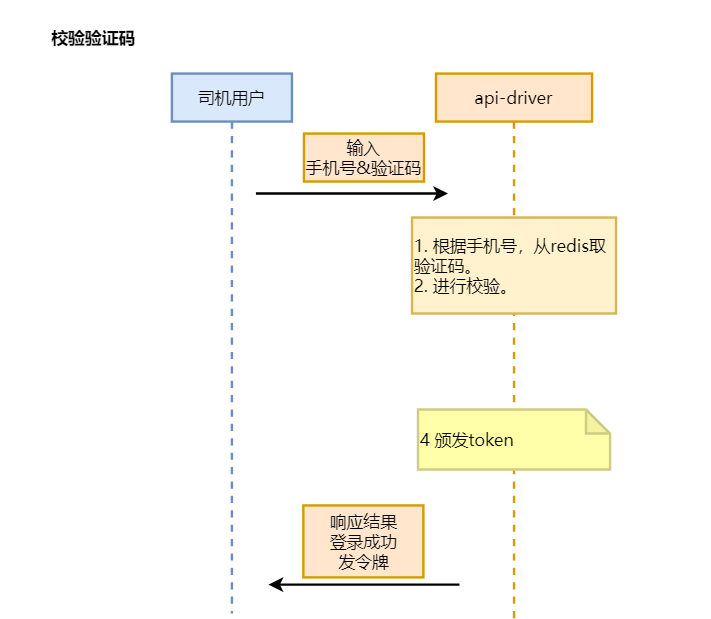

司机登录功能

api-driver

service-driver-user

service-verificationcode

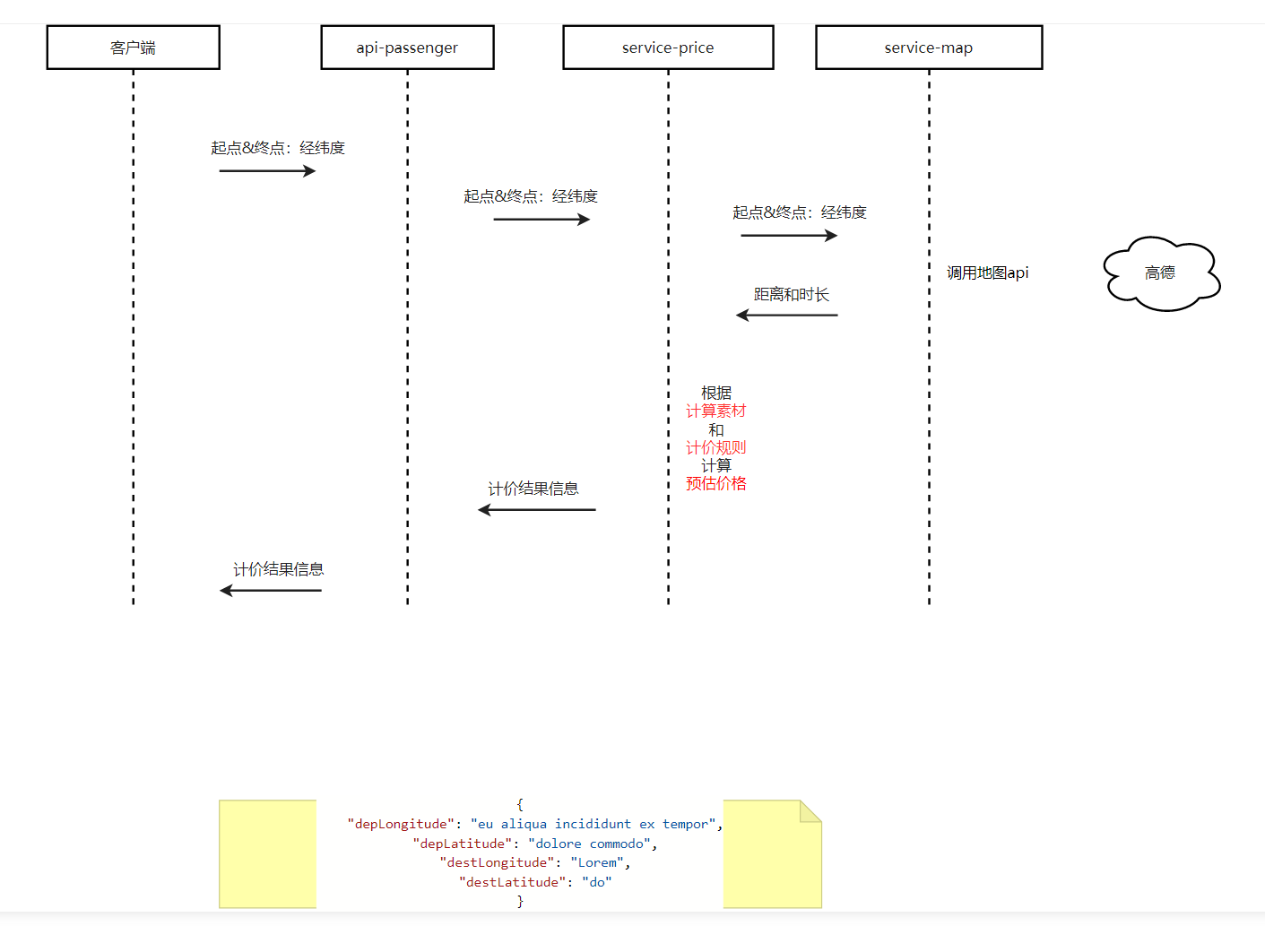

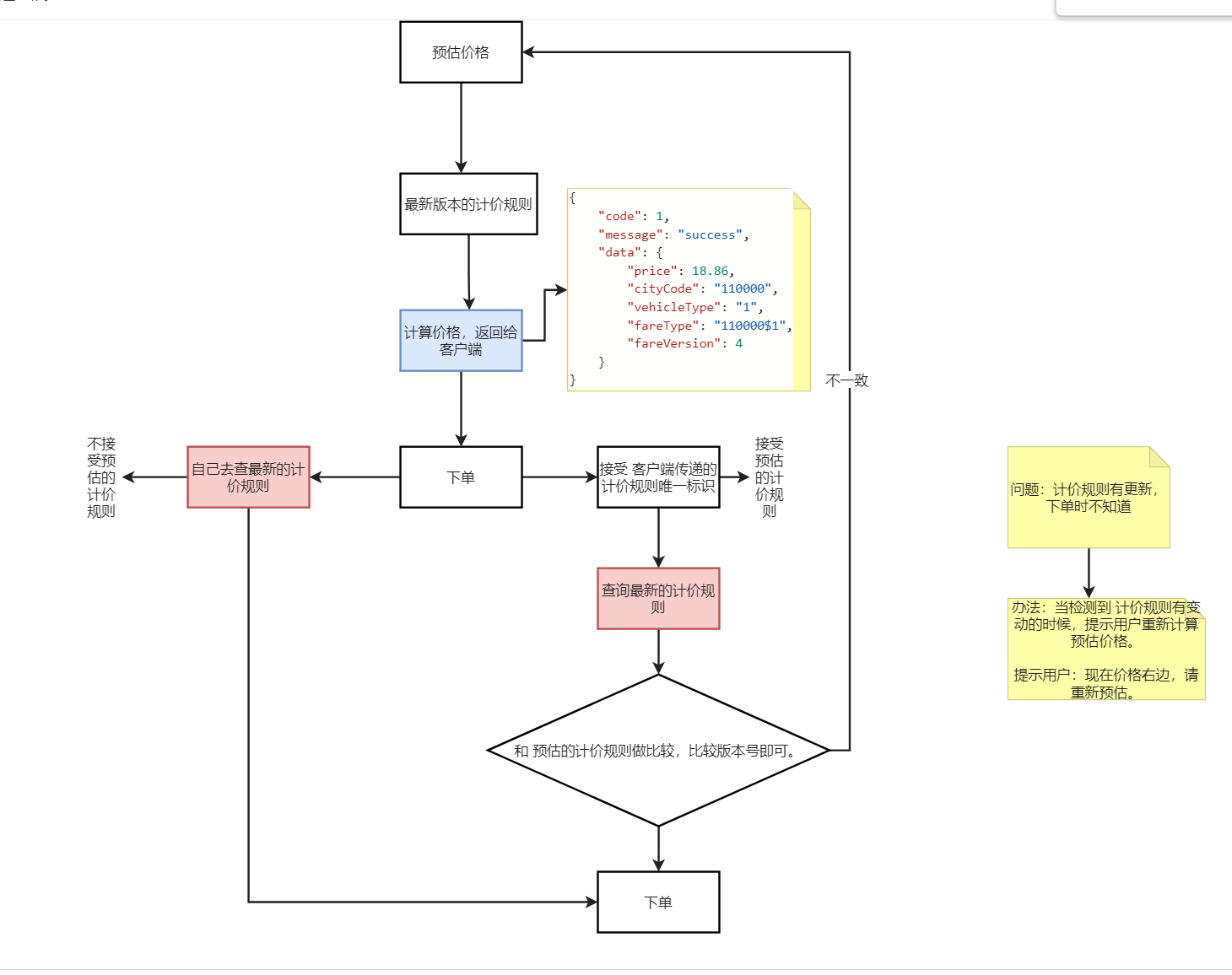

预估价格功能

api-passenger

serivce-price（预估价格）

service-map（计算距离及时间）

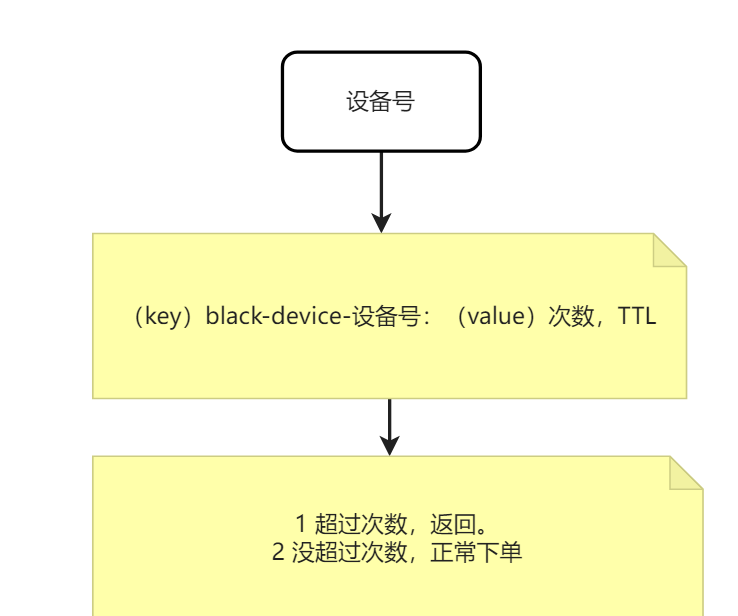

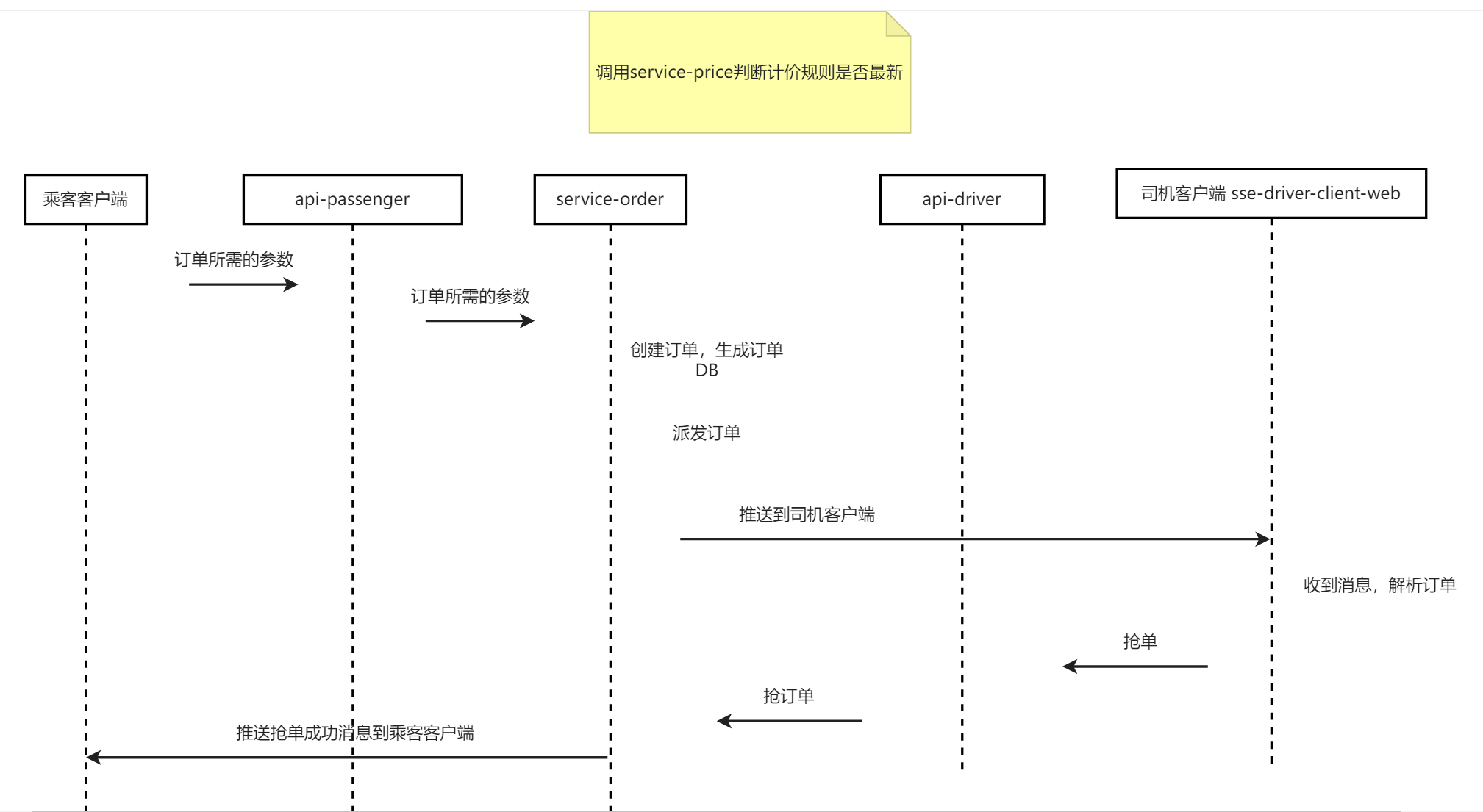

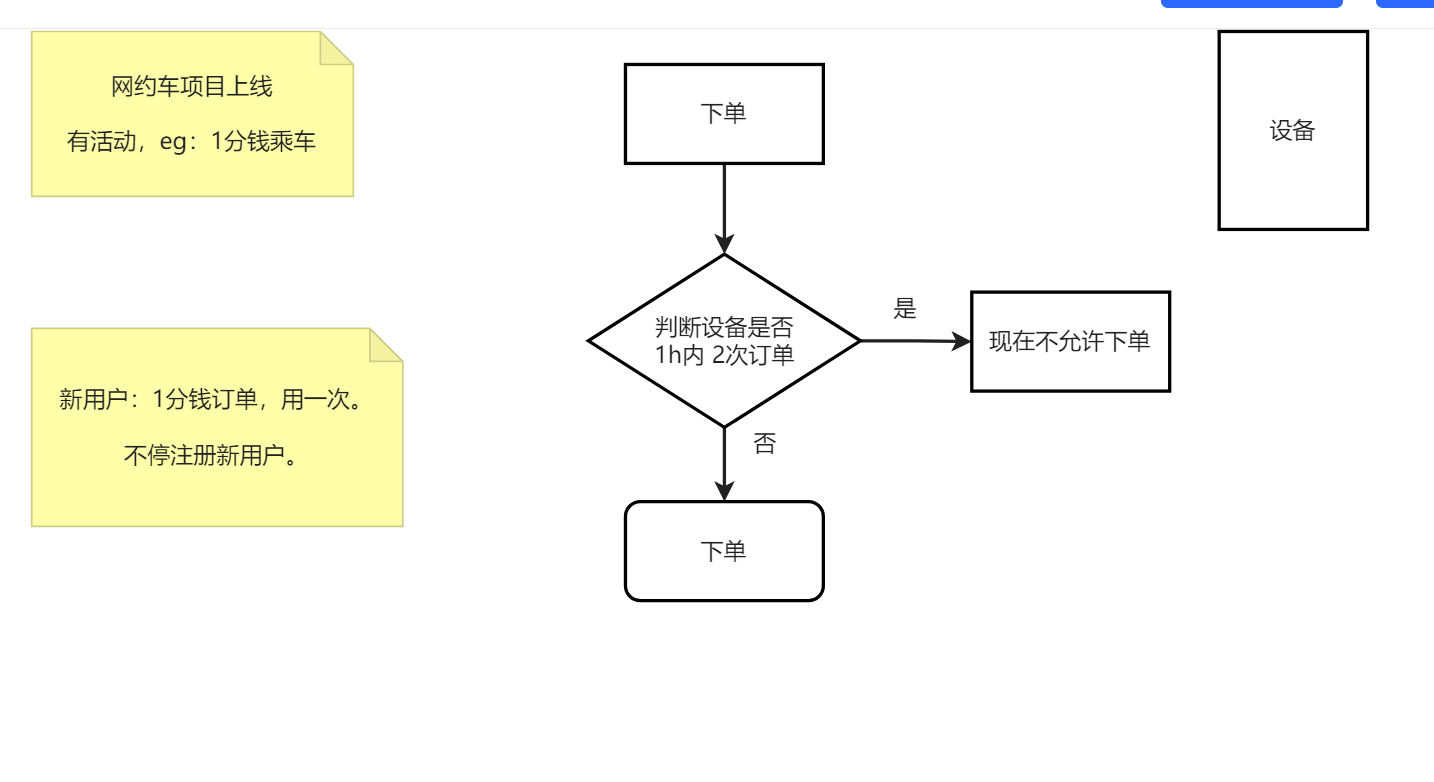

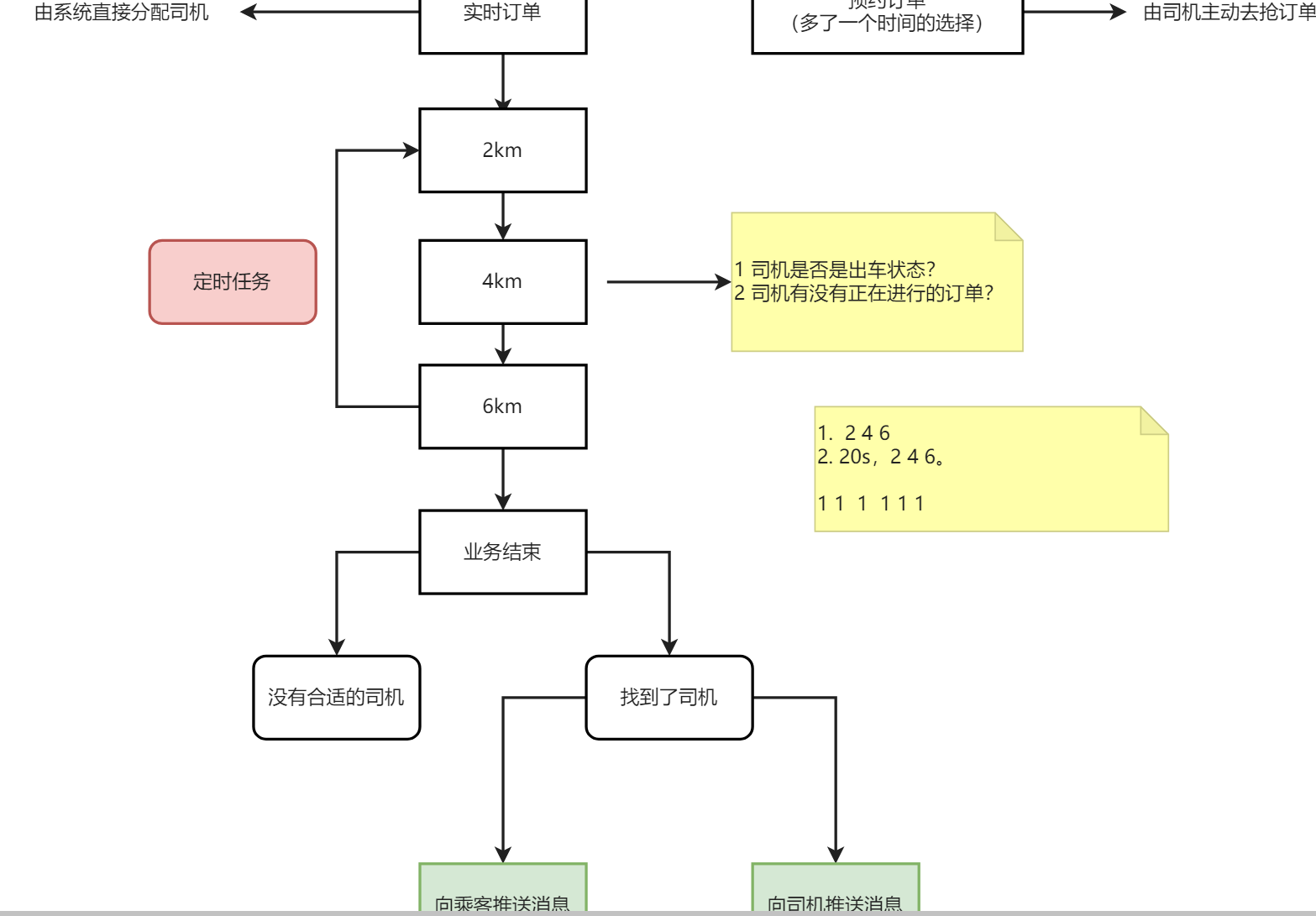

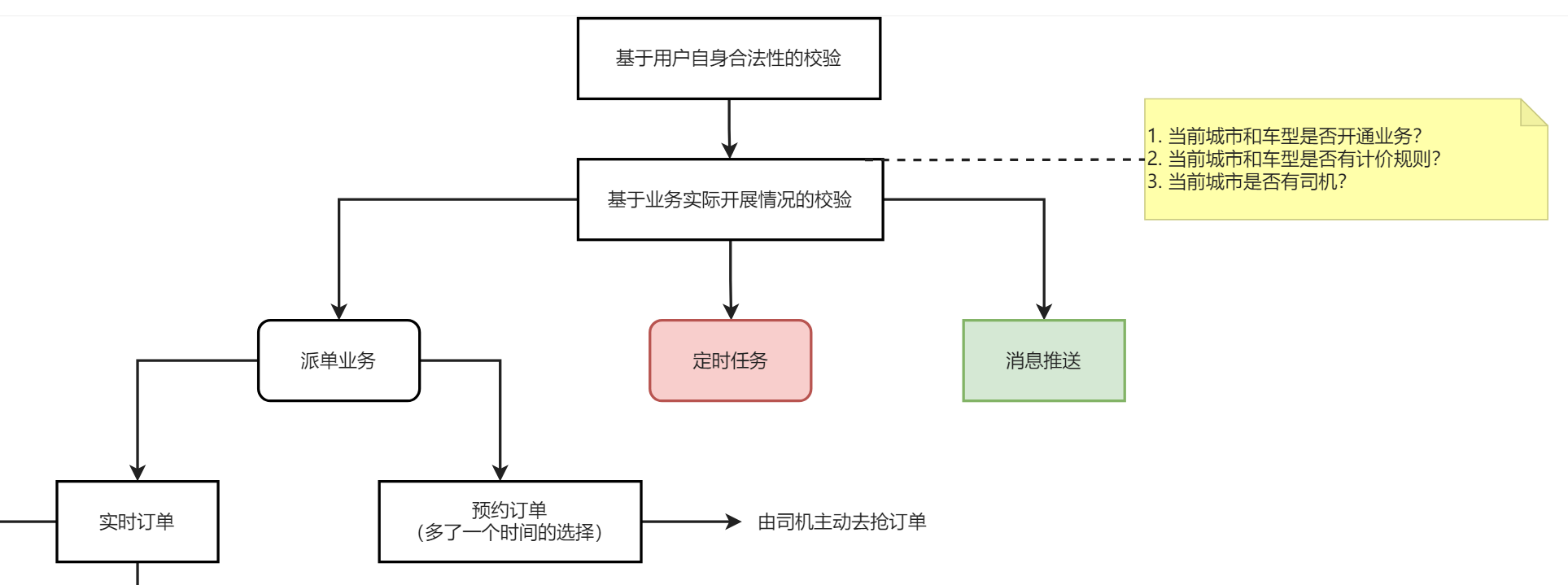

下订单功能涉及服务

api-passenger

service-order（下订单）

service-price（计算价格）

service-map（搜寻附近终端）

service-driver-user(匹配司机)

service-sse-push（消息推送）

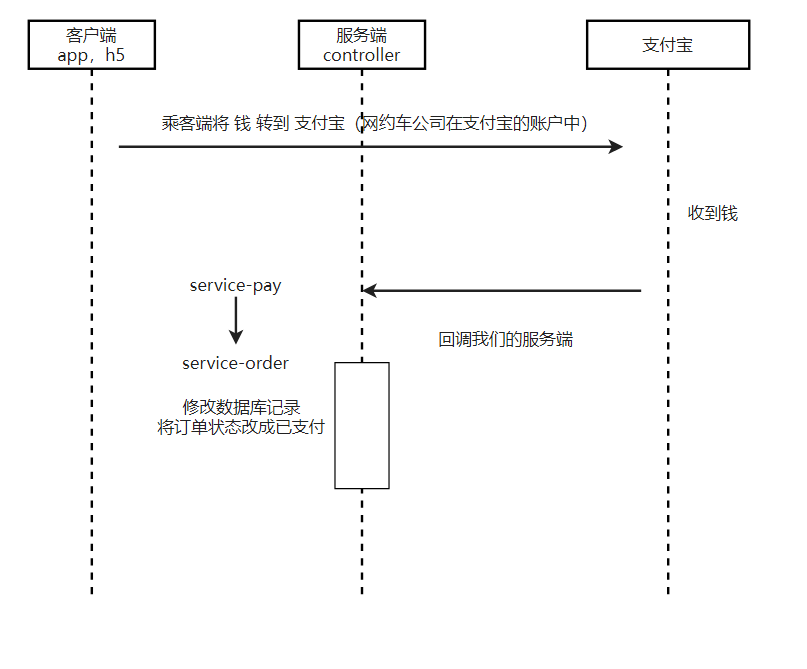

乘客支付功能

api-passenger

service-pay（调用阿里支付接口）

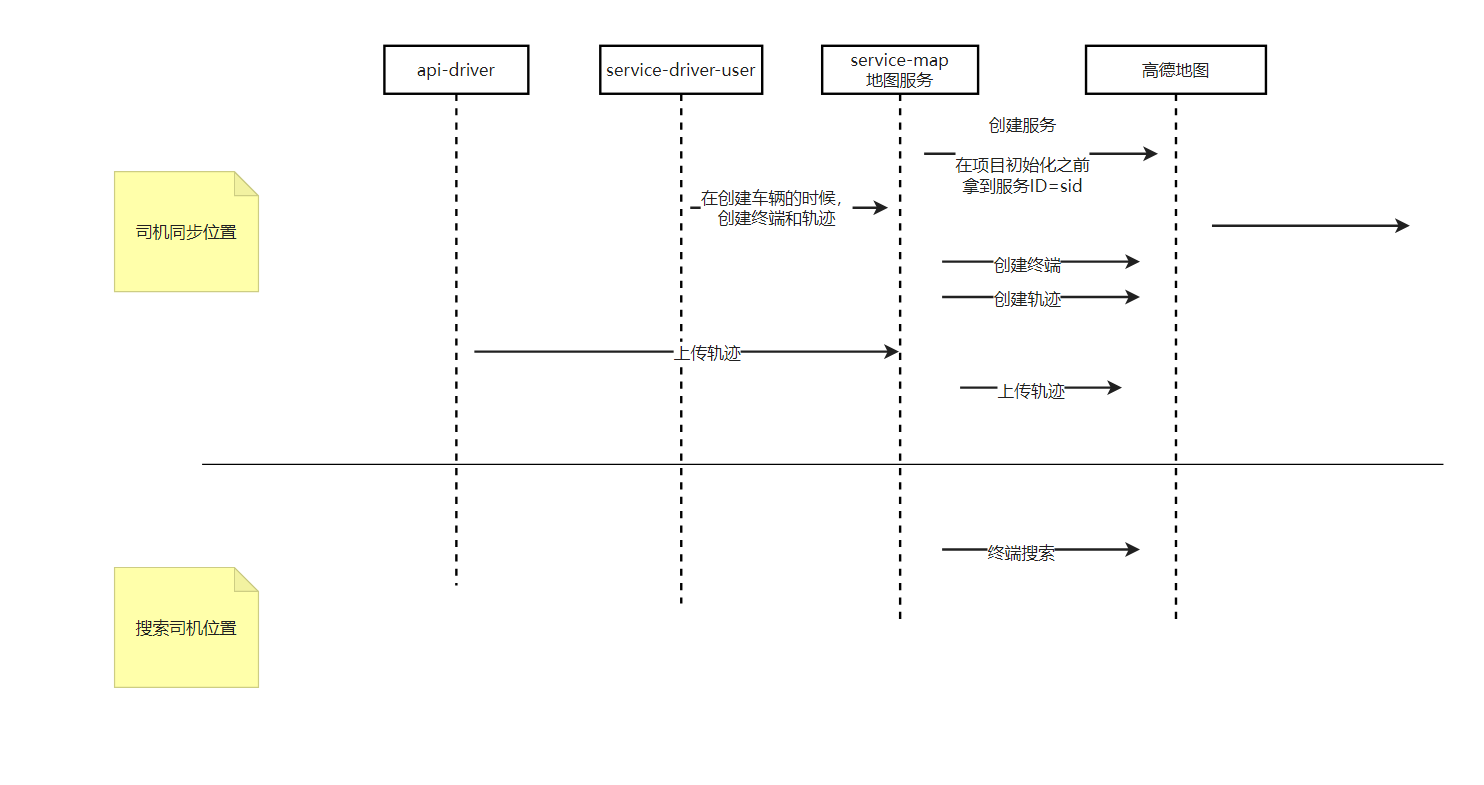

司机上传车辆位置

api-driver

service-map（同步位置信息）

service-driver-user（根据车辆id获得车辆）

数据库设计

service-driver-user

车辆表

DROP TABLE IF EXISTS `car`;
CREATE TABLE `car`  (
  `id` bigint(0) NOT NULL,
  `address` char(6) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `vehicle_no` varchar(8) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `plate_color` char(1) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `seats` int(0) NULL DEFAULT NULL,
  `brand` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `model` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `vehicle_type` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `owner_name` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `vehicle_color` char(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `engine_id` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `vin` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `certify_date_a` date NULL DEFAULT NULL,
  `fue_type` char(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `engine_displace` varchar(8) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `trans_agency` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `trans_area` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `trans_date_start` date NULL DEFAULT NULL,
  `trans_date_end` date NULL DEFAULT NULL,
  `certify_date_b` date NULL DEFAULT NULL,
  `fix_state` char(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `next_fix_date` date NULL DEFAULT NULL,
  `check_state` char(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `fee_print_id` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `gps_brand` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `gps_model` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `gps_install_date` date NULL DEFAULT NULL,
  `register_date` date NULL DEFAULT NULL,
  `commercial_type` int(0) NULL DEFAULT NULL,
  `fare_type` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `trname` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `trid` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `tid` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `state` tinyint(1) NULL DEFAULT NULL,
  `gmt_create` datetime(0) NULL DEFAULT NULL,
  `gmt_modified` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

司机表

DROP TABLE IF EXISTS `driver_user`;
CREATE TABLE `driver_user`  (
  `id` bigint(0) NOT NULL AUTO_INCREMENT,
  `address` char(6) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `driver_name` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `driver_phone` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `driver_gender` tinyint(0) NULL DEFAULT NULL,
  `driver_birthday` date NULL DEFAULT NULL,
  `driver_nation` char(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `driver_contact_address` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `license_id` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `get_driver_license_date` date NULL DEFAULT NULL,
  `driver_license_on` date NULL DEFAULT NULL,
  `driver_license_off` date NULL DEFAULT NULL,
  `taxi_driver` tinyint(0) NULL DEFAULT NULL,
  `network_car_issue_organization` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `certificate_no` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `network_car_issue_date` date NULL DEFAULT NULL,
  `get_network_car_proof_date` date NULL DEFAULT NULL,
  `network_car_proof_on` date NULL DEFAULT NULL,
  `network_car_proof_off` date NULL DEFAULT NULL,
  `register_date` date NULL DEFAULT NULL,
  `commercial_type` tinyint(0) NULL DEFAULT NULL,
  `contract_company` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `contract_on` date NULL DEFAULT NULL,
  `contract_off` date NULL DEFAULT NULL,
  `state` tinyint(0) NULL DEFAULT NULL,
  `gmt_create` datetime(0) NULL DEFAULT NULL,
  `gmt_modified` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1610231270481735682 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

车辆司机绑定关系表

DROP TABLE IF EXISTS `driver_car_binding_relationship`;
CREATE TABLE `driver_car_binding_relationship`  (
  `id` bigint(0) NOT NULL,
  `driver_id` bigint(0) NULL DEFAULT NULL,
  `car_id` bigint(0) NULL DEFAULT NULL,
  `bind_state` int(0) NULL DEFAULT NULL,
  `binding_time` datetime(0) NULL DEFAULT NULL,
  `un_binding_time` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

司机工作状态表

DROP TABLE IF EXISTS `driver_user_work_status`;
CREATE TABLE `driver_user_work_status`  (
  `id` bigint(0) NOT NULL,
  `driver_id` bigint(0) NOT NULL,
  `work_status` int(0) NULL DEFAULT NULL,
  `gmt_create` datetime(0) NULL DEFAULT NULL,
  `gmt_modified` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

service-map

政区表

DROP TABLE IF EXISTS `dic_district`;
CREATE TABLE `dic_district`  (
  `address_code` varchar(6) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  `address_name` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `parent_address_code` varchar(6) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `level` tinyint(0) NULL DEFAULT NULL,
  PRIMARY KEY (`address_code`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

service-order

订单表

DROP TABLE IF EXISTS `order_info`;
CREATE TABLE `order_info`  (
  `id` bigint(0) NOT NULL AUTO_INCREMENT,
  `passenger_id` bigint(0) NULL DEFAULT NULL,
  `passenger_phone` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `driver_id` bigint(0) NULL DEFAULT NULL,
  `driver_phone` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `vehicle_type` varchar(8) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `car_id` bigint(0) NULL DEFAULT NULL,
  `address` char(6) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `order_time` datetime(0) NULL DEFAULT NULL,
  `depart_time` datetime(0) NULL DEFAULT NULL,
  `departure` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `dep_longitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `dep_latitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `destination` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `dest_longitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `dest_latitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `encrypt` int(0) NULL DEFAULT NULL,
  `fare_type` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `receive_order_car_longitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `receive_order_car_latitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `receive_order_time` datetime(0) NULL DEFAULT NULL,
  `license_id` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `vehicle_no` varchar(8) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `to_pick_up_passenger_time` datetime(0) NULL DEFAULT NULL,
  `to_pick_up_passenger_longitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `to_pick_up_passenger_latitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `to_pick_up_passenger_address` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `driver_arrived_depature_time` datetime(0) NULL DEFAULT NULL,
  `pick_up_passenger_time` datetime(0) NULL DEFAULT NULL,
  `pick_up_passenger_longitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `pick_up_passenger_latitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `passenger_getoff_time` datetime(0) NULL DEFAULT NULL,
  `passenger_getoff_longitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `passenger_getoff_latitude` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `cancel_time` datetime(0) NULL DEFAULT NULL,
  `cancel_operator` int(0) NULL DEFAULT NULL,
  `cancel_type_code` int(0) NULL DEFAULT NULL,
  `drive_mile` bigint(0) NULL DEFAULT NULL,
  `drive_time` bigint(0) NULL DEFAULT NULL,
  `price` double(10, 2) NULL DEFAULT NULL,
  `order_status` int(0) NULL DEFAULT NULL,
  `gmt_create` datetime(0) NULL DEFAULT NULL,
  `gmt_modified` datetime(0) NULL DEFAULT NULL,
  `fare_version` int(0) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1610485435854426117 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

service-passenger-user

用户表

DROP TABLE IF EXISTS `passenger_user`;
CREATE TABLE `passenger_user`  (
  `passenger_Id` bigint(0) UNSIGNED NOT NULL AUTO_INCREMENT,
  `gmt_create` datetime(0) NULL DEFAULT NULL,
  `gmt_modified` datetime(0) NULL DEFAULT NULL,
  `passenger_phone` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `passenger_name` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `passenger_gender` tinyint(1) NULL DEFAULT NULL,
  `state` tinyint(1) NULL DEFAULT NULL,
  `profile_photo` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  PRIMARY KEY (`passenger_Id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 6 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

service-price

计价规则表

DROP TABLE IF EXISTS `price_rule`;
CREATE TABLE `price_rule`  (
  `city_code` char(6) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  `vehicle_type` varchar(8) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  `start_fare` double(4, 2) NULL DEFAULT NULL,
  `start_mile` int(0) NULL DEFAULT NULL,
  `unit_price_per_mile` double(4, 2) NULL DEFAULT NULL,
  `unit_price_per_minute` double(4, 2) NULL DEFAULT NULL,
  `fare_type` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `fare_version` int(0) NOT NULL,
  PRIMARY KEY (`city_code`, `vehicle_type`, `fare_version`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

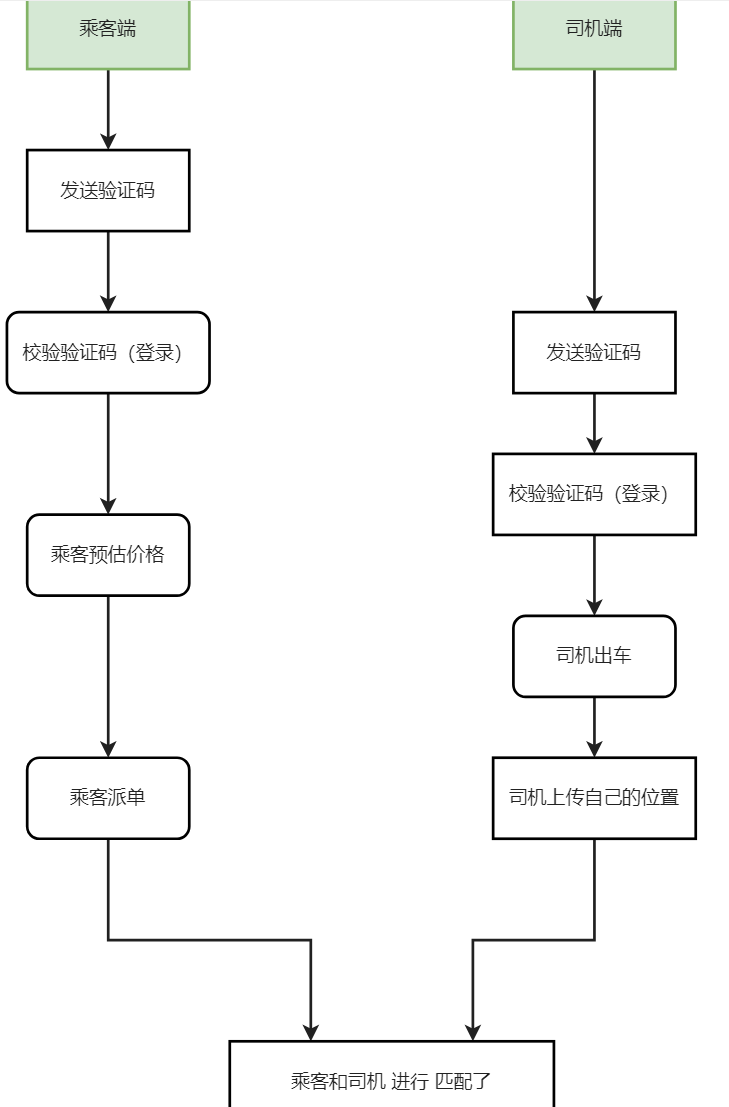

前端开发流程

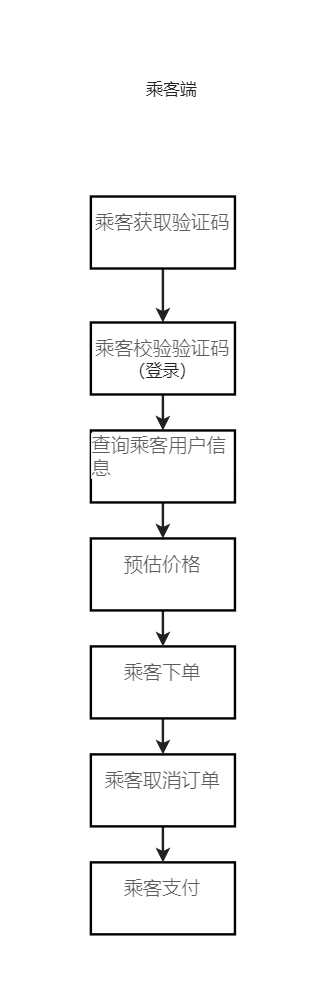

乘客端

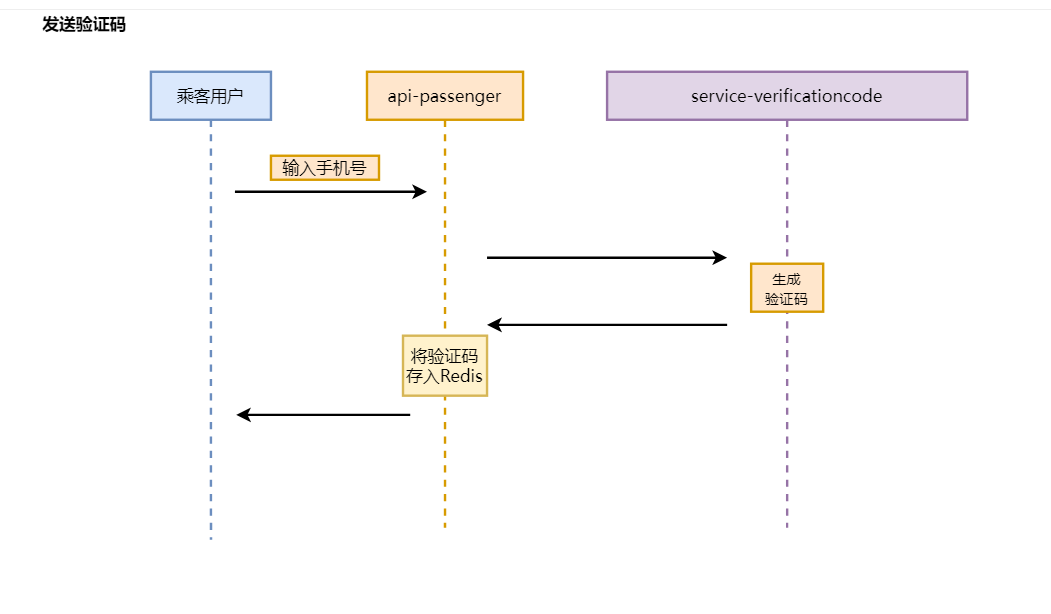

乘客获取验证码

验证码校验

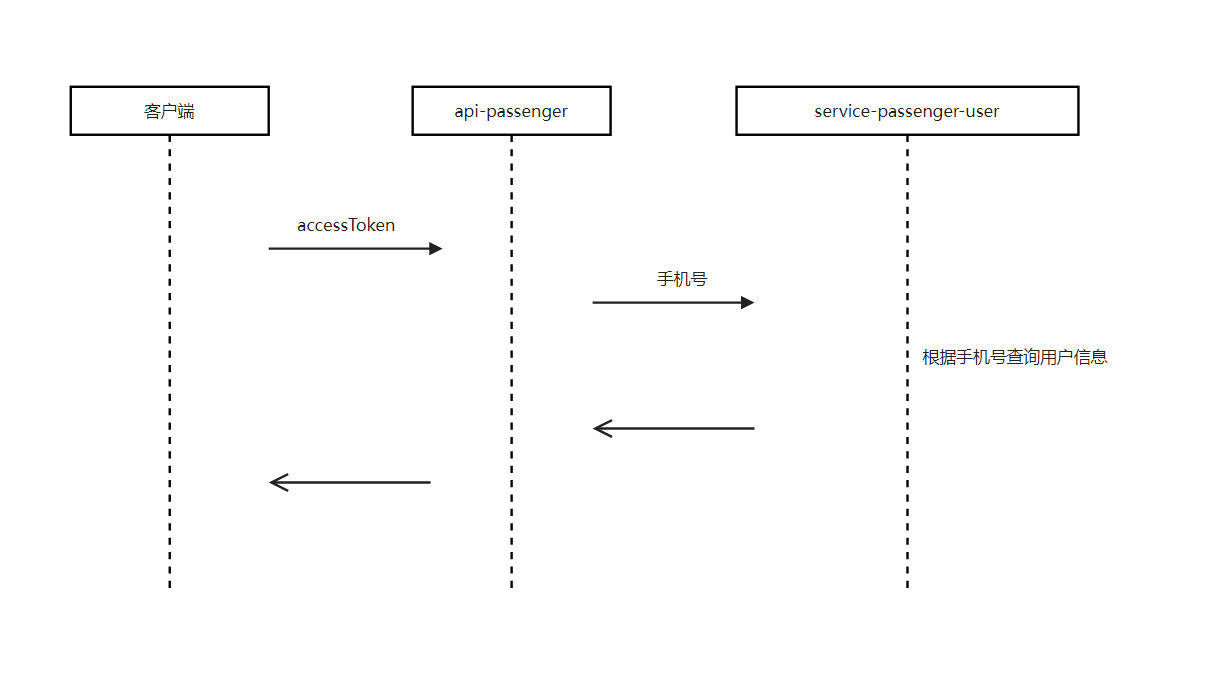

查询乘客信息

预估乘客订单价格

乘客下单

乘客取消订单

乘客支付

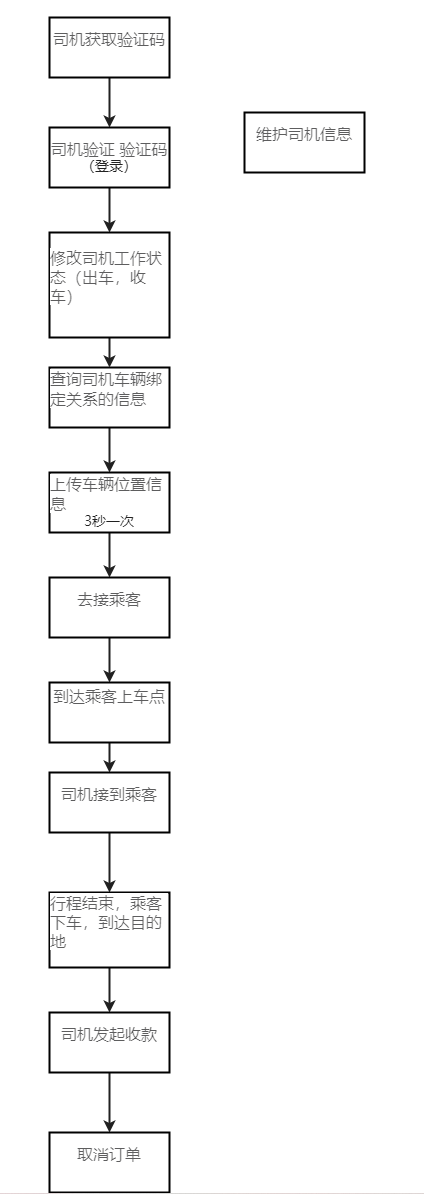

司机端

司机获取验证码

验证码校验

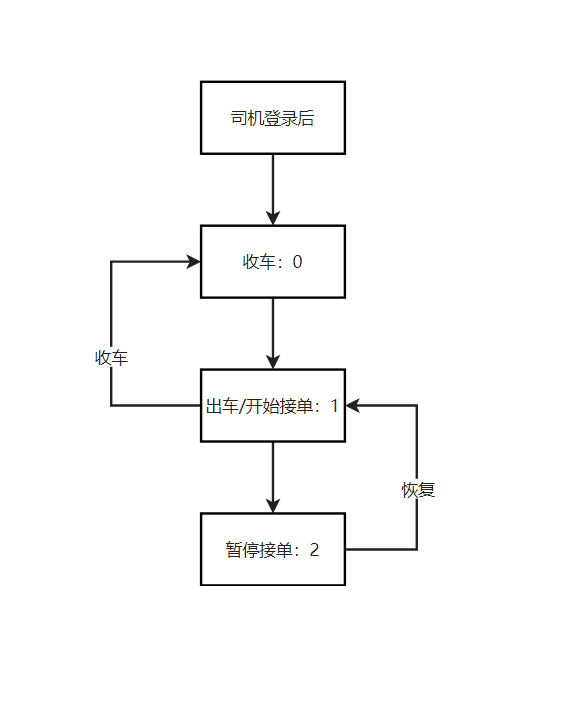

修改司机出车状态

查询司机绑定车辆信息

上传车辆位置

去接乘客

到达乘客上车点

司机接到乘客

行程结束，乘客到达下车点

司机发起收款

取消订单

乘客司机登录系统

乘客端

乘客登录时序图

乘客端不像司机端需要检验用户是否存在，如果不存在会直接进行注册，所以不再需要调用service-passenger-user服务

司机端

司机登录时序图

双Token时序图

利用JWT（Json Web Token）生成token

该流程主要在accessToken失效后，利用refreshToken生成新的Token

实现细节

用户登录

/**
     * 注册登录逻辑
     * @param passengerPhone
     * @return
     */
    public ResponseResult loginOrRegister(String passengerPhone){
        System.out.println("user service被调用，手机号：" + passengerPhone);

        //  根据手机号查询用户信息
        Map<String,Object> map = new HashMap<>();
        map.put("passenger_phone",passengerPhone);
        List<PassengerUser> passengerUsers = passengerUserMapper.selectByMap(map);
        System.out.println(passengerUsers.size() == 0 ? "无记录": passengerUsers.get(0).getPassengerPhone());

        //  判断用户信息是否存在
        if(passengerUsers.size() == 0){
            //  如果不存在，插入用户信息
            PassengerUser passengerUser = new PassengerUser();
            passengerUser.setPassengerName("张三");
            passengerUser.setPassengerGender((byte) 0);
            passengerUser.setPassengerPhone(passengerPhone);
            passengerUser.setState((byte) 0);

            LocalDateTime now = LocalDateTime.now();
            passengerUser.setGmtCreate(now);
            passengerUser.setGmtModified(now);

            passengerUserMapper.insert(passengerUser);
        }
    }

乘客司机信息系统

乘客端

查询用户信息时序图

司机端

司机地理位置管理

司机工作状态业务流程

司机车辆相关时序图

司机有两个输入渠道，一个是直接通过boss后台输入，一个是司机在app中自己输入

司机车辆关系

支付系统

调用支付宝接口活动图

实现细节

阿里支付SDK调用

aliPayConfig（配置类，用来作工厂初始化的配置）

package com.mashibing.servicepay.config;

import com.alipay.easysdk.factory.Factory;
import com.alipay.easysdk.kernel.Config;
import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;


import javax.annotation.PostConstruct;

@Component
@ConfigurationProperties(prefix = "alipay")
@Data
public class AlipayConfig {

    private String appId;

    private String appPrivateKey;

    private String publicKey;

    private String notifyUrl;

    @PostConstruct
    public void init(){
        Config config = new Config();
        //  基础配置
        config.protocol = "https";
        config.gatewayHost = "openapi.alipaydev.com";
        config.signType = "RSA2";

        //  业务配置
        config.appId = this.appId;
        config.merchantPrivateKey = this.appPrivateKey;
        config.alipayPublicKey = this.publicKey;
        config.notifyUrl = this.notifyUrl;

        Factory.setOptions(config);
        System.out.println("支付宝配置初始化完成");
    }
}

支付服务

@GetMapping("/pay")
    public String pay(String subject,String outTradeNo,String totalAmount){
        //	设置响应信息
        AlipayTradePagePayResponse response;
        try {
            //	利用alipay的Factory生成支付窗口，进行支付即可
            response = Factory.Payment.Page().pay(subject,outTradeNo,totalAmount,"");
        } catch (Exception e) {
            e.printStackTrace();
            throw new RuntimeException();
        }
        return response.getBody();
    }

支付响应

 @RequestMapping("/notify")
    public String notify(HttpServletRequest request) throws Exception {
        System.out.println("支付回调 notify");
        String tradeStatus = request.getParameter("trade_status");
       	//	判断支付是否成功了
        if (tradeStatus.trim().equals("TRADE_SUCCESS")){
            //	获得响应头的信息进行进一步判断
            Map<String,String> param = new HashMap<>();

            Map<String,String[]> parameterMap = request.getParameterMap();
            //	获取所有响应头的key
            for (String name: parameterMap.keySet()){
                param.put(name,request.getParameter(name));
            }
		   //	一键验证
            if (Factory.Payment.Common().verifyNotify(param)){
                System.out.println("通过支付宝的验证");
			   //	获得支付的订单号并同步更新到订单中
                String out_trade_no = param.get("out_trade_no");
                Long orderId = Long.parseLong(out_trade_no);
                alipayService.pay(orderId);
            }else {
                System.out.println("支付宝验证 不通过!");
            }
        }
        return "success";
    }

计价系统

计价规则传递扩展

问题：计价规则有更新，下单时不知道

办法：当检测到计价规则有变动的时候，提示用户重新计算预估价格。

预估价格时序图

实现细节

计价规则的添加（通过拼接cityCode以及vehicleTpye形成fareType）

public ResponseResult add(PriceRule priceRule) {
        //  拼接fare_type
        String cityCode = priceRule.getCityCode();
        String vehicleType = priceRule.getVehicleType();
        //  通过城市code以及车辆类型来拼接版本类型
        String fareType = cityCode + "$" + vehicleType;

        priceRule.setFareType(fareType);

        QueryWrapper queryWrapper = new QueryWrapper();
        queryWrapper.eq("city_code", cityCode);
        queryWrapper.eq("vehicle_type", vehicleType);
        queryWrapper.orderByDesc("fare_version");

        List<PriceRule> list = priceRuleMapper.selectList(queryWrapper);
        Integer fareVersion = 0;
        if (list.size() > 0) {
            return ResponseResult.fail(CommonStatusEnum.PRICE_RULE_EXISTS.getCode(), CommonStatusEnum.PRICE_RULE_EXISTS.getValue());
        }
        priceRule.setFareVersion(++fareVersion);
        priceRuleMapper.insert(priceRule);
        return ResponseResult.success();
    }

得到最新版本的计价规则（通过orderByDesc排序）

public ResponseResult<PriceRule> getNewestVersion(String fareType){
    QueryWrapper queryWrapper = new QueryWrapper();
    queryWrapper.eq("fare_type",fareType);
    queryWrapper.orderByDesc("fare_version");

    List<PriceRule> list = priceRuleMapper.selectList(queryWrapper);
    if (list.size() > 0){
        return ResponseResult.success(list.get(0));
    }else{
        return ResponseResult.fail(CommonStatusEnum.PRICE_RULE_EMPTY.getCode(),CommonStatusEnum.PRICE_RULE_EMPTY.getValue());
    }
}

订单系统

订单状态图

订单无效（0）

订单开始（1）

司机接单（2）

司机去接乘客（3）

司机到达乘客起点（4）

乘客上车，行程开始（5）

乘客到达指定地点（6）

司机发起收款（7）

乘客支付完成（8）

订单取消（9）

在状态5之前都可以进行取消，让订单进入取消状态

乘客下订单时序图

派单业务流程图

首先验证用户信息的合理性

对于业务情况进行检验，主要包括对当地是否开通业务？是否有计价规则？是否有司机？三个方面进行检验

同时开展三个逻辑：派单业务、定时任务、消息推送

派单业务主要分为实时订单和预约订单（无需查找）

实时订单通过对2km，4km，6km的反复搜索来搜索相关的司机

最后如果找到了司机就同时向乘客和司机推送消息

实现细节

定时任务处理（在一段时间内反复进行派单直到成功）

 //  定时任务的处理
        for (int i = 0; i < 6; i++) {
            //  派单
            int result = dispatchRealTimeOrder(order);
            if (result == 1){
                break;
            }
            if (i == 5){
                //  订单无效
                order.setOrderStatus(OrderConstant.ORDER_INVALID);
                orderInfoMapper.updateById(order);
            }else{
                //  等待20秒
                try {
                    Thread.sleep(2);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        }

派单逻辑

派单的整个逻辑

获得订单中所要求的经纬度，进行周围搜索车辆终端

找到能进行该订单的车辆id

根据车辆id找到司机，查询司机是否有正在进行的订单

查询车辆是否符合订单要求的车辆类型

通知司机、通知乘客

 /**
     * 实时订单派单逻辑
     * @param orderInfo
     */
    public int dispatchRealTimeOrder(OrderInfo orderInfo){
        log.info("循环一次");
        int result = 0;

        String depLongitude = orderInfo.getDepLongitude();
        String depLatitude = orderInfo.getDepLatitude();
        String center = depLatitude + "," + depLongitude;
        List<Long> radiusList = new ArrayList<>();
        radiusList.add(2000L);
        radiusList.add(4000L);
        radiusList.add(5000L);
        ResponseResult<List<TerminalResponse>> listResponseResult = null;
        boolean ifFind = false;
        for (int i = 0; i < radiusList.size() && !ifFind; i++) {
            Long radius = radiusList.get(i);
            listResponseResult = serviceMapClient.aroundSearch(center, radius);
//            log.info("在半径为：" + radius +"的范围内寻找车辆,结果:" + JSONArray.fromObject(listResponseResult.getData()).getJSONObject(0).toString());
            //  获得终端 {"carId":1604743372085096449,"tid":"612821667"}

            //  解析终端
            List<TerminalResponse> data = listResponseResult.getData();
            for (int j = 0; j < data.size(); j++) {
                TerminalResponse terminalResponse = data.get(j);
                String latitude = terminalResponse.getLatitude();
                String longitude = terminalResponse.getLongitude();
                long carId = terminalResponse.getCarId();

                ResponseResult<OrderDriverResponse> availableDriver = serviceDriverUserClient.getAvailableDriver(carId);
                if (availableDriver.getCode() == CommonStatusEnum.AVAILABLE_DRIVER_EMPTY.getCode()){
                    log.info("没有车辆ID：" + carId + "对应的司机");
                }else{
                    log.info("车辆ID:" + carId +",找到了正在出车的司机");
                    //  查看司机是否有正在运行的订单
                    OrderDriverResponse orderDriverResponse = availableDriver.getData();
                    Long driverId = orderDriverResponse.getDriverId();
                    String licenseId = orderDriverResponse.getLicenseId();
                    String vehicleNo = orderDriverResponse.getVehicleNo();
                    String driverPhone = orderDriverResponse.getDriverPhone();
                    //  判断车辆的车型是否符合(搜索到的车辆不一定都是符合要求的)
                    String vehicleTypeFromCar = orderDriverResponse.getVehicleType();
                    String vehicleType = orderInfo.getVehicleType();
                    if (!vehicleTypeFromCar.trim().equals(vehicleType.trim())){
                        log.info("车型不符合");
                        continue;
                    }

                    String lockKey = (driverId + "").intern();
                    RLock lock = redissonClient.getLock(lockKey);
                    lock.lock();

                    Integer driverOrderGoingOn = isDriverOrderGoingOn(driverId);
                    if (driverOrderGoingOn > 0){
                        log.info("司机Id:" + driverId + "，正在进行的订单数量:" + driverOrderGoingOn);
                        lock.unlock();
                        continue;
                    }
                    //  订单直接匹配司机
                    //  查询当前车辆信息

                    //  查询当前司机信息
                    orderInfo.setDriverId(driverId);
                    orderInfo.setDriverPhone(driverPhone);
                    orderInfo.setCarId(carId);
                    orderInfo.setLicenseId(licenseId);
                    orderInfo.setVehicleNo(vehicleNo);

                    orderInfo.setReceiveOrderCarLatitude(latitude);
                    orderInfo.setReceiveOrderCarLongitude(longitude);
                    orderInfo.setReceiveOrderTime(LocalDateTime.now());

                    orderInfo.setOrderStatus(OrderConstant.DRIVER_RECEIVE_ORDER);

                    orderInfoMapper.updateById(orderInfo);
                    ifFind = true;

                    //  通知司机
                    JSONObject driverContent = new JSONObject();
                    driverContent.put("orderId",orderInfo.getId());
                    driverContent.put("passengerId",orderInfo.getPassengerId());
                    driverContent.put("passengerPhone",orderInfo.getPassengerPhone());
                    driverContent.put("departure",orderInfo.getDeparture());
                    driverContent.put("depLongitude",orderInfo.getDepLongitude());
                    driverContent.put("depLatitude",orderInfo.getDepLatitude());

                    driverContent.put("destination",orderInfo.getDestination());
                    driverContent.put("destLongitude",orderInfo.getDestLongitude());
                    driverContent.put("destLatitude",orderInfo.getDestLatitude());

                    serviceSsePushClient.push(driverId, IdentityConstant.DRIVER_IDENTITY,driverContent.toString());

                    //  通知乘客
                    JSONObject passengerContent = new JSONObject();
                    passengerContent.put("orderId",orderInfo.getId());
                    passengerContent.put("driverId",orderInfo.getDriverId());
                    passengerContent.put("driverPhone",orderInfo.getDriverPhone());
                    passengerContent.put("vehicleNo",orderInfo.getVehicleNo());
                    //  车辆信息，调用服务
                    ResponseResult<Car> carById = serviceDriverUserClient.getCarById(carId);
                    Car remoteCar = carById.getData();

                    passengerContent.put("brand",remoteCar.getBrand());
                    passengerContent.put("model",remoteCar.getModel());
                    passengerContent.put("vehicleColor",remoteCar.getVehicleColor());

                    passengerContent.put("receiveOrderCarLatitude",orderInfo.getReceiveOrderCarLatitude());
                    passengerContent.put("receiveOrderCarLongitude",orderInfo.getReceiveOrderCarLongitude());

                    serviceSsePushClient.push(orderInfo.getPassengerId(), IdentityConstant.PASSENGER_IDENTITY,passengerContent.toString());
                    result = 1;

                    lock.unlock();
                    break;
                }
            }

        }
        return result;
    }

时间转化

Long endtime = LocalDateTime.now().toInstant(ZoneOffset.of("+8")).toEpochMilli();

将时间统一成+8市区的时间

将此瞬间转换为从1970-01-01T00：00：00Z的纪元到long值的毫秒数

地图系统

实现细节

访问指定url获得Json数据

@Autowired
    private RestTemplate restTemplate;

    public String initDicDistrict(String keywords){
        //  获得数据
        //  拼接url
        StringBuilder url = new StringBuilder();
        url.append(AmapConfigConstant.DISTRICT_URL);
        url.append("?");
        url.append("keywords=" + keywords);
        url.append("&");
        url.append("subdistrict=2");
        url.append("&");
        url.append("key=" + amapkey );
        ResponseEntity<String> result = restTemplate.getForEntity(url.toString(), String.class);

        return result.getBody();
    }

解析Json数据

利用JSONObject类获得Json数据，再利用get方法获得各个关键字的信息

 /**
     * 插入行政区数据
     * @param keywords
     * @return
     */
    public ResponseResult initDicDistrict(String keywords){
        //  获得数据
        String dicDistrict = dicDistrictClient.initDicDistrict(keywords);
        //  解析结果
        JSONObject districtJSONObject = JSONObject.fromObject(dicDistrict);
        int status = districtJSONObject.getInt(AmapConfigConstant.STATUS);
        if (status == 0){
            return ResponseResult.fail(CommonStatusEnum.MAP_DISTRICT_ERROR.getCode(),CommonStatusEnum.MAP_DISTRICT_ERROR.getValue());
        }
        JSONArray countryArray = districtJSONObject.getJSONArray(AmapConfigConstant.DISTRICT);
        //  解析国家数据
        for (int c = 0; c < countryArray.size(); c++){
            JSONObject countryJsonObject = countryArray.getJSONObject(c);
            String countryCode = countryJsonObject.getString(AmapConfigConstant.ADCODE);
            String countryName = countryJsonObject.getString(AmapConfigConstant.NAME);
            String countryParentAddressCode = "0";
            String countryLevel = countryJsonObject.getString(AmapConfigConstant.LEVEL);
            insertData(countryCode,countryName,countryParentAddressCode,getLevel(countryLevel));

            //  解析省份数据
            JSONArray provinceJsonArray = countryJsonObject.getJSONArray(AmapConfigConstant.DISTRICT);
            for (int p = 0; p < provinceJsonArray.size(); p++){
                JSONObject provinceJsonObject = provinceJsonArray.getJSONObject(p);
                String provinceCode = provinceJsonObject.getString(AmapConfigConstant.ADCODE);
                String provinceName = provinceJsonObject.getString(AmapConfigConstant.NAME);
                String provinceParentAddressCode = countryCode;
                String provinceLevel = provinceJsonObject.getString(AmapConfigConstant.LEVEL);
                insertData(provinceCode,provinceName,provinceParentAddressCode,getLevel(provinceLevel));
                //  解析市县数据
                JSONArray cityJsonArray = provinceJsonObject.getJSONArray(AmapConfigConstant.DISTRICT);
                for (int city = 0; city < cityJsonArray.size(); city++){
                    JSONObject cityJsonObject = cityJsonArray.getJSONObject(city);
                    String cityCode = cityJsonObject.getString(AmapConfigConstant.ADCODE);
                    String cityName = cityJsonObject.getString(AmapConfigConstant.NAME);
                    String cityParentAddressCode = provinceCode;
                    String cityLevel = cityJsonObject.getString(AmapConfigConstant.LEVEL);
                    if (cityLevel.equals("district")){
                        continue;
                    }
                    insertData(cityCode,cityName,cityParentAddressCode,getLevel(cityLevel));
                }
            }
        }

        return ResponseResult.success();
    }

SSE通知系统

实现细节

建立连接

public static Map<String,SseEmitter> sseEmitterMap = new HashMap<>();

    /**
     * 建立连接
     * @param userId
     * @param identity
     * @return
     */
    @GetMapping("/connect")
    public SseEmitter connect(@RequestParam Long userId,@RequestParam String identity){
        log.info("用户ID:" + userId + ",身份类型:" + identity) ;
	    //	通过将内容放到SseEmitter中作为连接成功与否的判断标准
        SseEmitter sseEmitter = new SseEmitter(0L);

        String sseMapKey = SsePrefixUtils.generatorSseKey(userId, identity);
        sseEmitterMap.put(sseMapKey,sseEmitter);
        return sseEmitter;
    }

发送消息

/**
     * 发送消息
     * @param userId    用户id
     * @param identity  身份类型
     * @param content   消息内容
     * @return
     */
    @GetMapping("/push")
    public String push(@RequestParam Long userId,@RequestParam String identity,@RequestParam String content){

        log.info("用户ID:" + userId + ",身份类型:" + identity) ;
        String sseMapKey = SsePrefixUtils.generatorSseKey(userId, identity);
        try {
            if (sseEmitterMap.containsKey(sseMapKey)){
                //	通过静态成员变量再次获得SseEmitter来发送消息
                sseEmitterMap.get(sseMapKey).send(content);
            }else {
                return "推送失败";
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
        return "给用户:" + sseMapKey + "发送了消息:" + content;
    }

这边发送，html页面会有对应的事件响应器

source = new EventSource("http://localhost:9000/connect?userId=" + userId+"&identity="+identity);

    if (window.EventSource){
        console.log("此浏览器支持SSE");

        //  监听服务的推送的内容
        source.addEventListener("message",function (e) {
            content = e.data;
            console.log(content);
            sendMessageContent(content);
        });

    }else {
        console.log("此浏览器不支持");
    }

    function sendMessageContent(content) {
        document.getElementById("message").innerHTML += (content+'</br>');
    }

验证码系统

实现细节

生成验证码

这里就是用一个随机数来生成的验证码

 @GetMapping("/numberCode/{size}")
    public ResponseResult numberCode(@PathVariable("size") int size){
        System.out.println("size:" + size);
        //  生成验证码
        //  获取随机数,利用小数点往后移就可以了，就是相当于乘
        double mathRandom = (Math.random() * 9 + 1 ) * Math.pow(10,size-1);
        int resultInt = (int)mathRandom;
        System.out.println("generate src code:"+ resultInt);

        //  定义返回值
        NumberCodeResponse response = new NumberCodeResponse();
        response.setNumberCode(resultInt);

        return ResponseResult.success(response);
    }

公共包

Token工具类

Token生成

 //  生成token
    public  static String generatorToken(String passengerPhone, String identity, String tokenType){
        Map<String,String> map = new HashMap<>();
        map.put(JWT_KEY_PHONE,passengerPhone);
        map.put(JWT_KEY_IDENTITY,identity);
        map.put(JWT_TOKEN_TYPE, tokenType);

        //  token过期时间
        map.put(JWT_TOKEN_TIME,Calendar.getInstance().getTime().toString());

        //	通过JWT工具类builder来生成token
        JWTCreator.Builder builder = JWT.create();

        //  整合map
        map.forEach((k,v)->{
            builder.withClaim(k,v);
        });
        //  整合过期时间
//        builder.withExpiresAt(date);

        //  生成token
        String sign = builder.sign(Algorithm.HMAC256(SIGN));

        return sign;
    }

Token解析

//  解析token
    public static TokenResult parseToken(String token){
	    //	构建解析器
        DecodedJWT verify = JWT.require(Algorithm.HMAC256(SIGN)).build().verify(token);
        //	获得手机号信息
        String phone = verify.getClaim(JWT_KEY_PHONE).asString();
       	//	获得身份信息
        String identity = verify.getClaim(JWT_KEY_IDENTITY).asString();

        TokenResult tokenResult = new TokenResult();
        tokenResult.setPhone(phone);
        tokenResult.setIdentity(identity);
        return tokenResult;
    }

BigDecimal工具类

Java在java.math包中提供的API类BigDecimal，用来对超过16位有效位的数进行精确的运算

package com.mashibing.internalcommon.util;

import java.math.BigDecimal;

public class BigDecimalUtils {

    /**
     * 加法
     * @param v1
     * @param v2
     * @return
     */
    public static double add(double v1, double v2){
        BigDecimal b1 = BigDecimal.valueOf(v1);
        BigDecimal b2 = BigDecimal.valueOf(v2);

        return b1.add(b2).doubleValue();
    }

    /**
     * 减法
     * @param v1
     * @param v2
     * @return
     */
    public static double substract(double v1,double v2){
        BigDecimal b1 = BigDecimal.valueOf(v1);
        BigDecimal b2 = BigDecimal.valueOf(v2);
        return b1.subtract(b2).doubleValue();
    }

    /**
     * 乘法
     * @param v1
     * @param v2
     * @return
     */
    public static double multiply(double v1,double v2){
        BigDecimal b1 = BigDecimal.valueOf(v1);
        BigDecimal b2 = BigDecimal.valueOf(v2);
        return b1.multiply(b2).doubleValue();
    }

    /**
     * 除法
     * @param v1
     * @param v2
     * @return
     */
    public static double divide(int v1, int v2){
        if (v2 <= 0){
            throw new IllegalArgumentException("除数非法");
        }
        BigDecimal b1 = BigDecimal.valueOf(v1);
        BigDecimal b2 = BigDecimal.valueOf(v2);

        return b1.divide(b2,2,BigDecimal.ROUND_HALF_UP).doubleValue();
    }

}

黑名单业务流程图

BUG

feign调用post转get
