项目简介：物业管理系统分为管理员和业主两种用户角色，管理员是社区的全面管理者，负责录入物业概况、物业维修及物业投诉等重要信息。业主通过系统提交日常投诉和维修建议，其功能操作构成了系统的核心功能。主要功能包括：用户管理模块、物业缴费管理、住宅管理功能、投诉处理功能、维修处理功能、车位管理功能、数据统计功能实现、物业通知管理功能实现、用户端功能实现、业投诉功能、维修功能、车位出租功能、用户缴费功能等。

项目类型：SpringBoot源码

用户类型：2类角色（管理员+用户）

主要技术：SpringBoot+MySQL

开发工具：Idea使用

数据库：MySQL

数据库表：11张

🍅演示视频在底部🍅

🍅文末获取联系🍅

01用户端

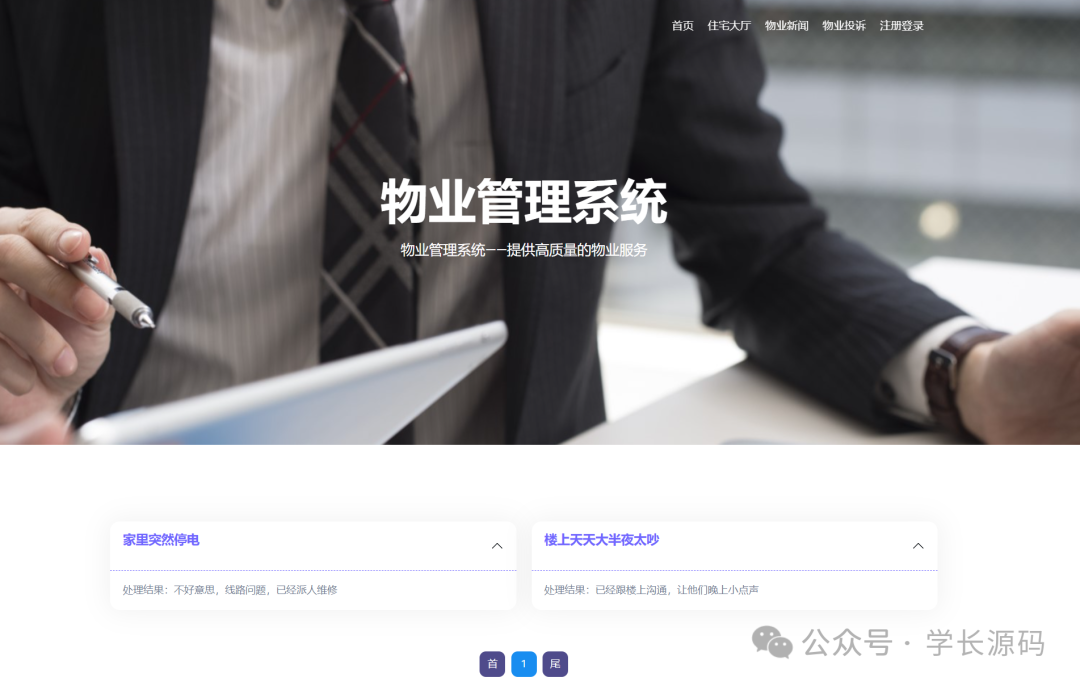

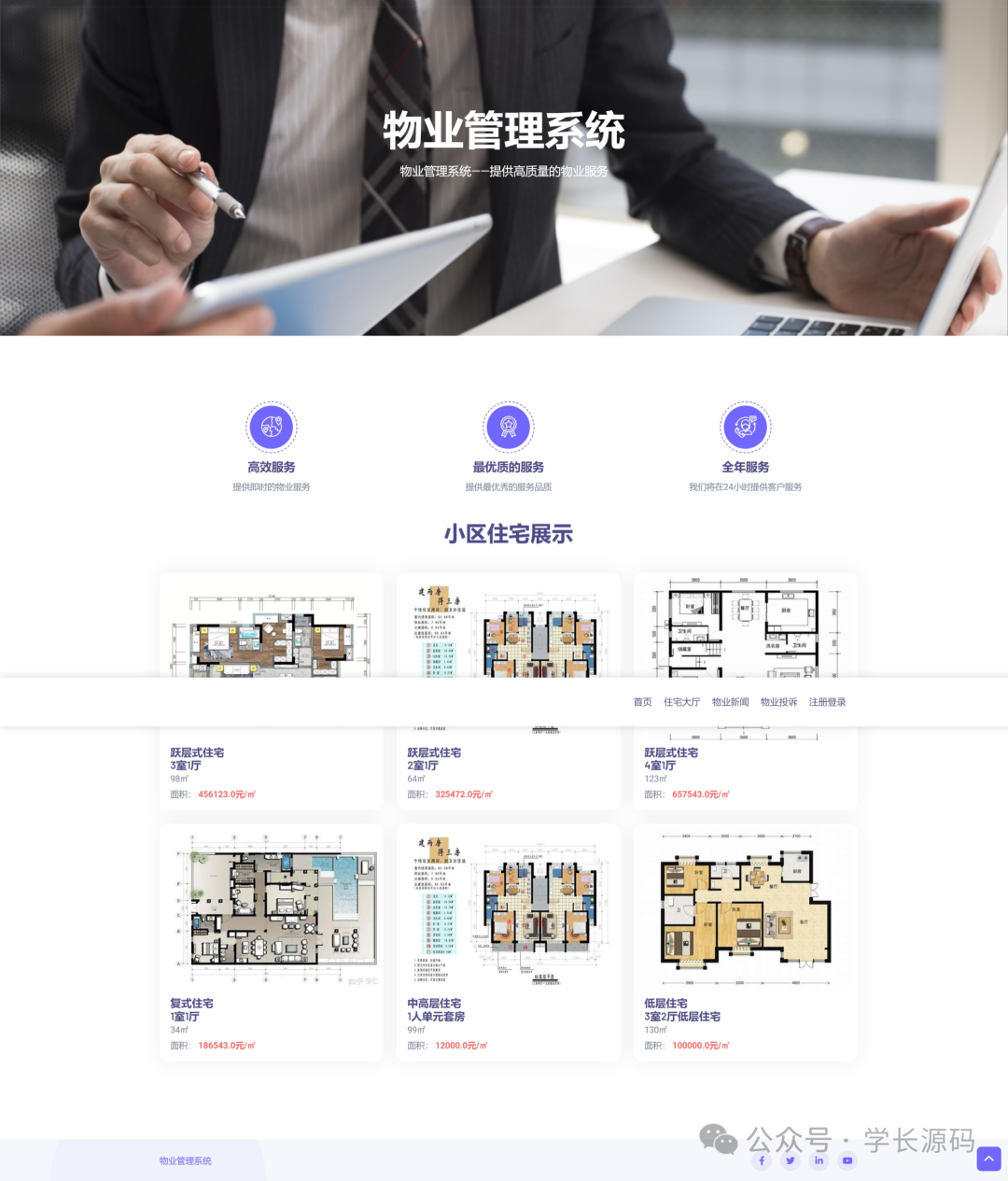

1.0用户端首页

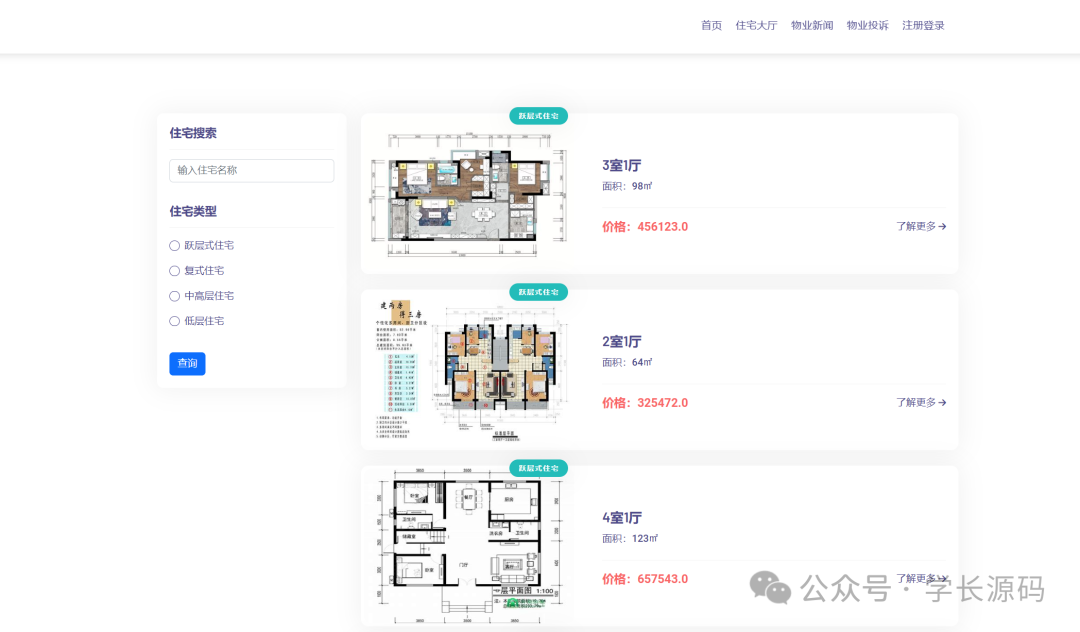

1.1住宅规格及类型查看模块

1.2物业新闻查看模块

1.3物业投诉查看模块

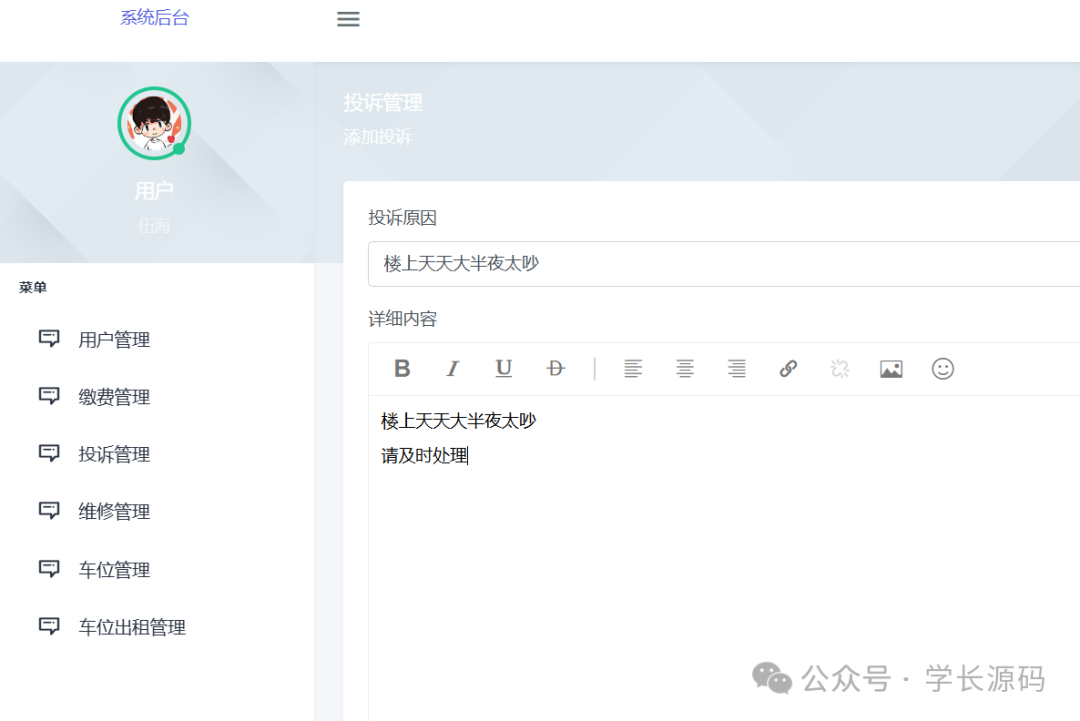

1.4物业投诉

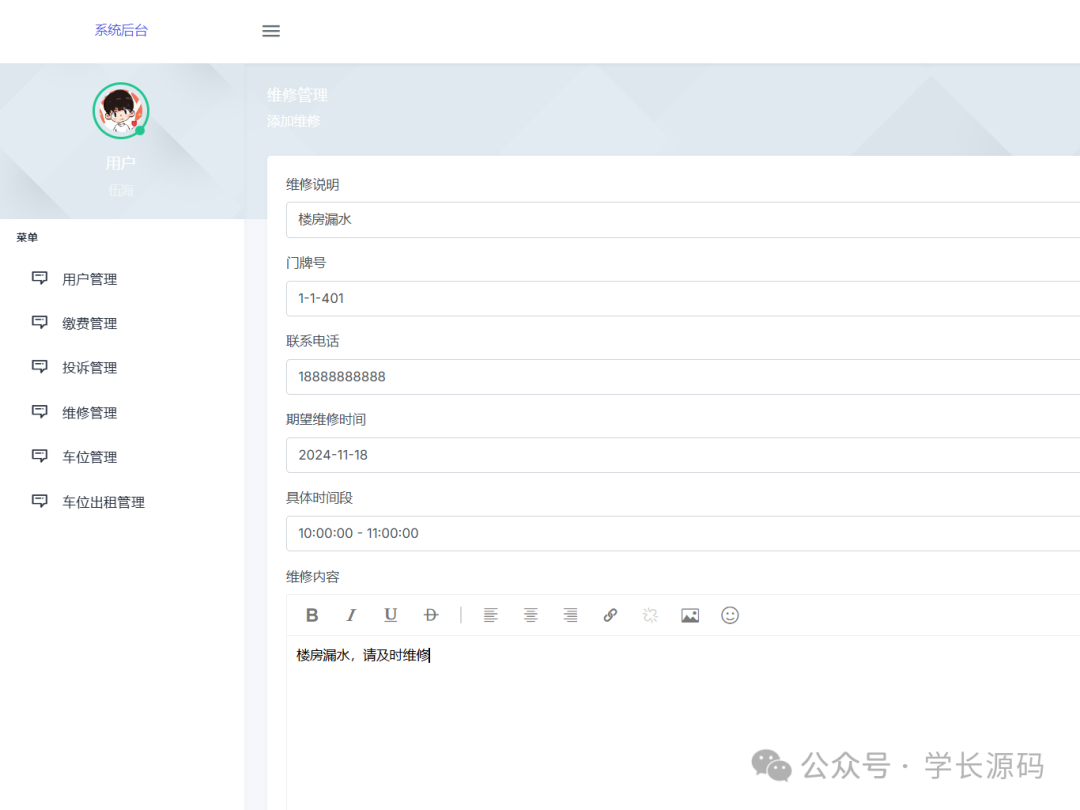

1.5物业维修申请

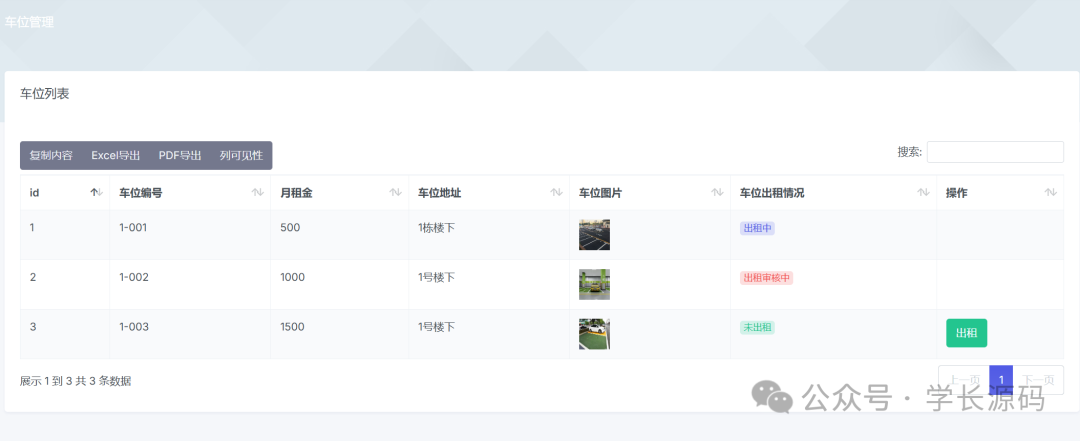

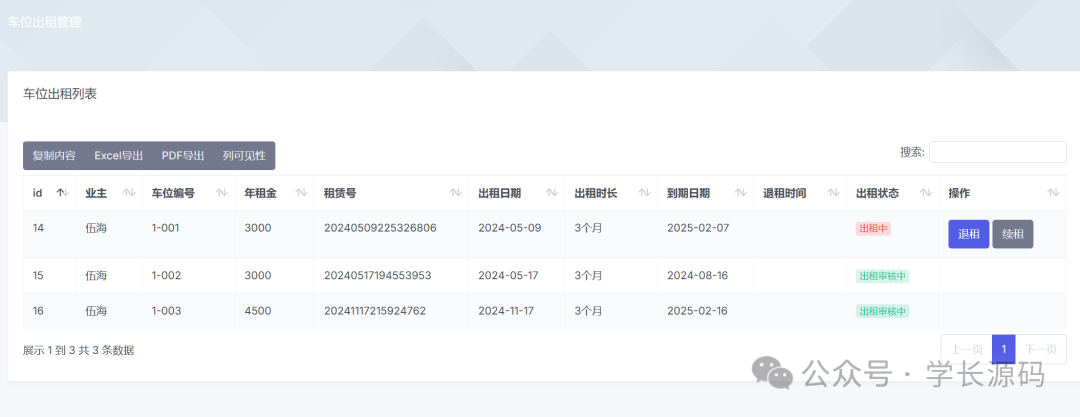

1.6车位出租模块（车位出租、续租、退租）

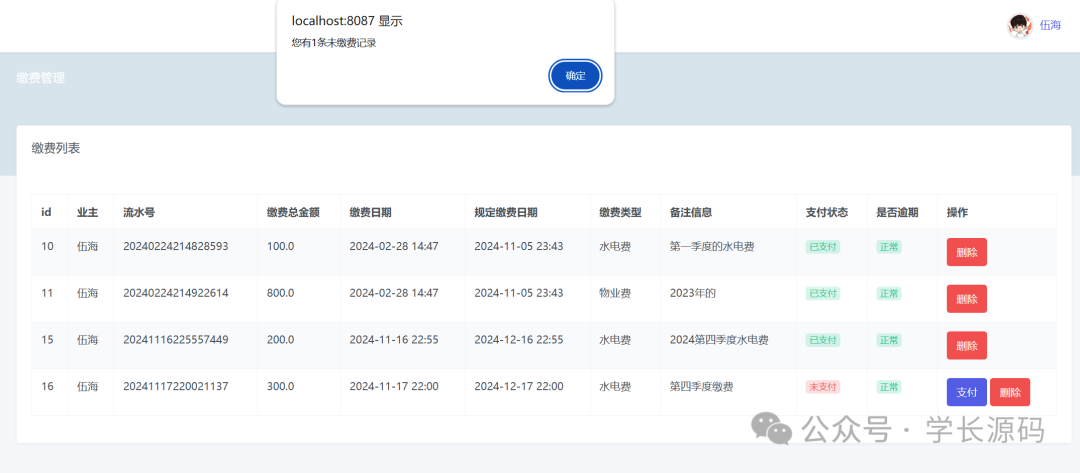

1.7物业缴费管理模块（未缴费系统自动提醒）

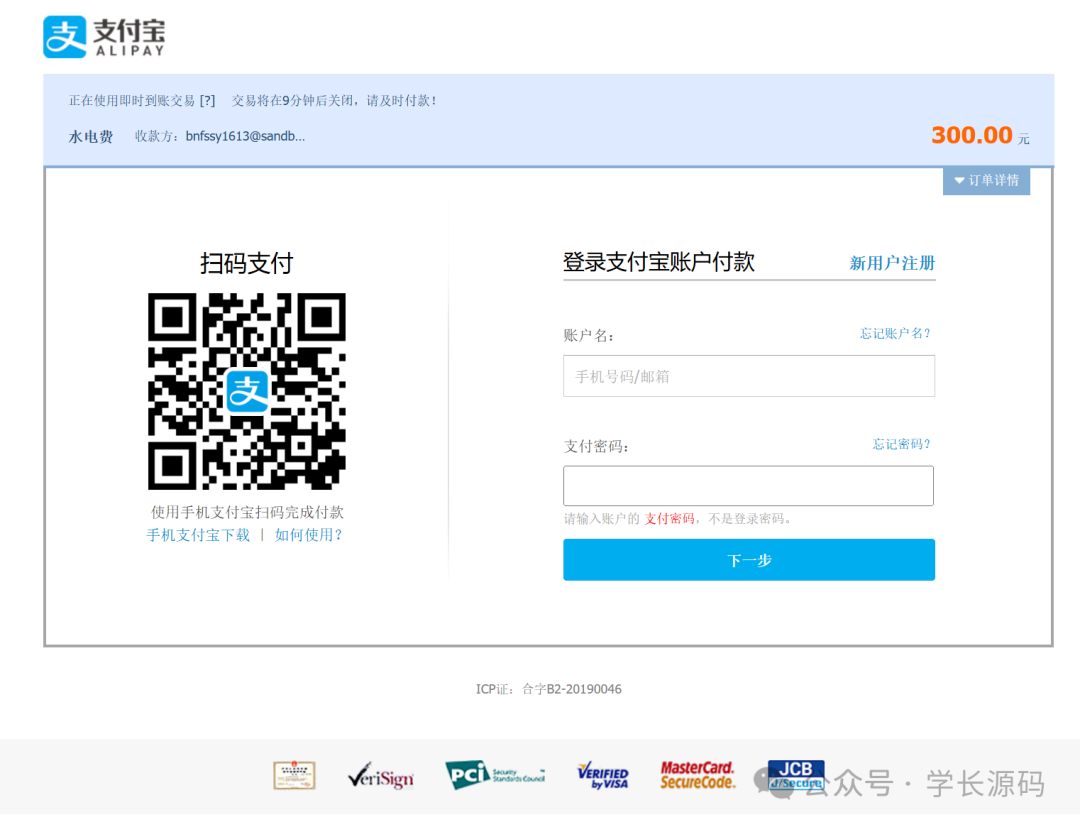

1.8物业费用在线缴费

02管理员端

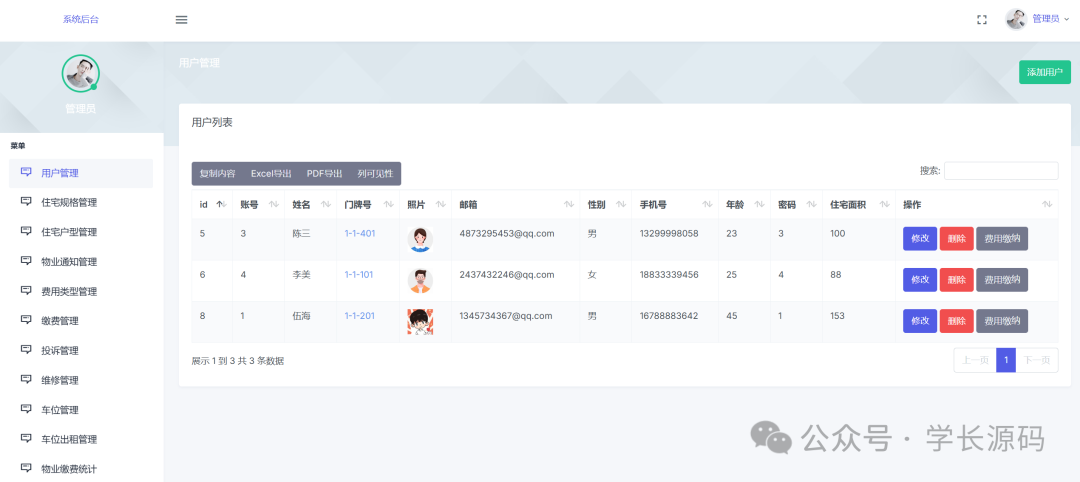

2.1用户管理模块

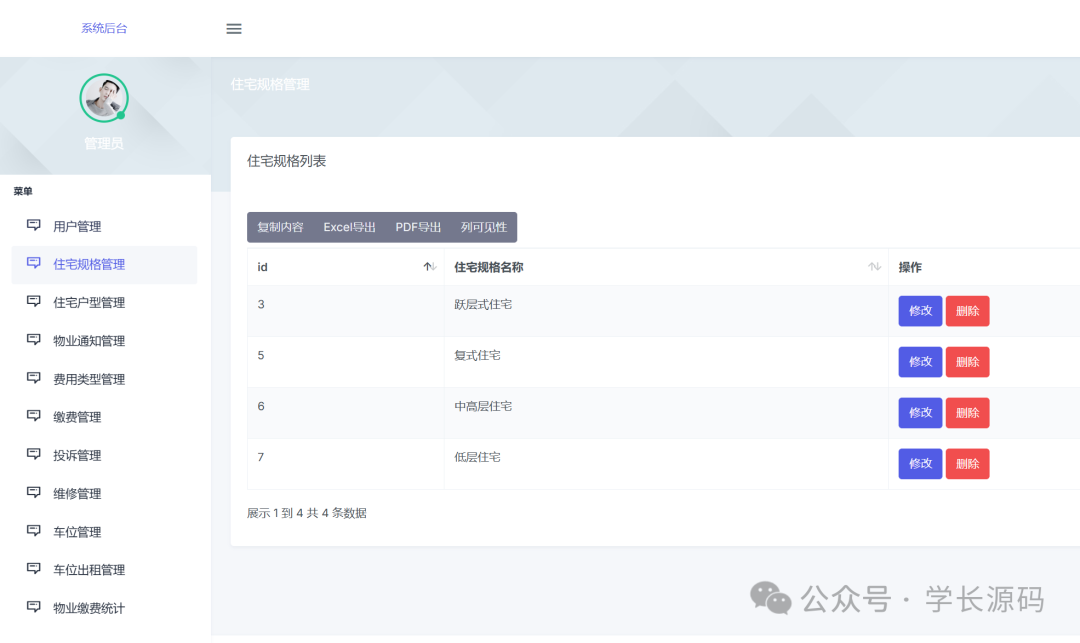

2.2小区住宅规格管理模块

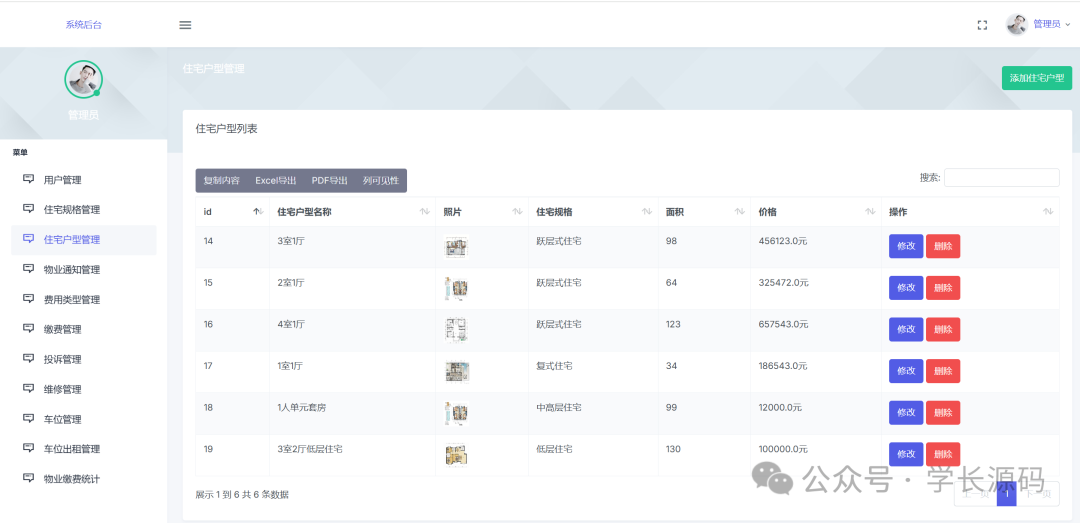

2.3小区住宅户型管理模块

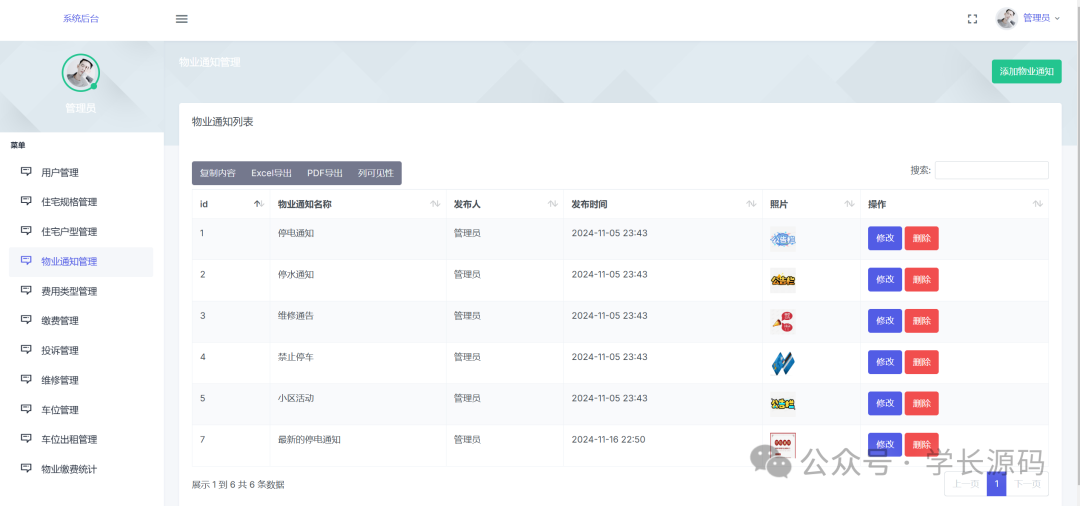

2.4物业通知管理模块

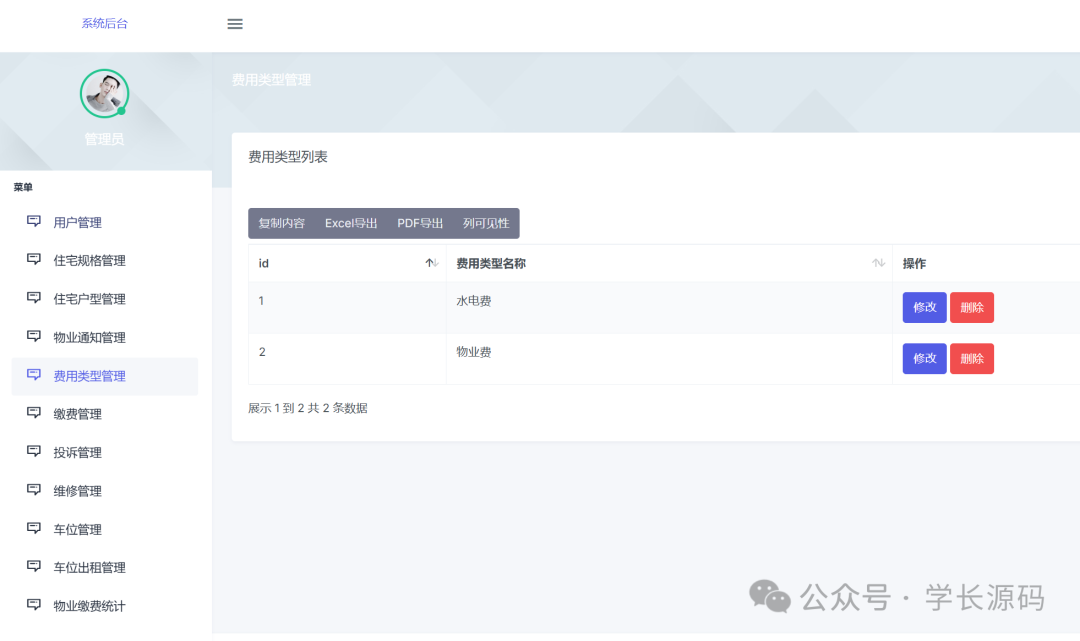

2.5物业费用类型管理模块

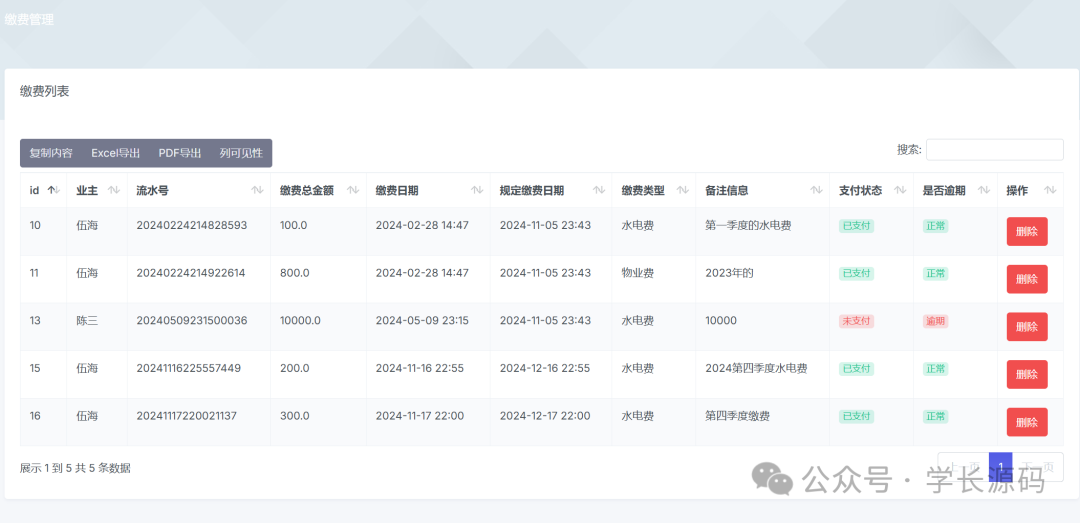

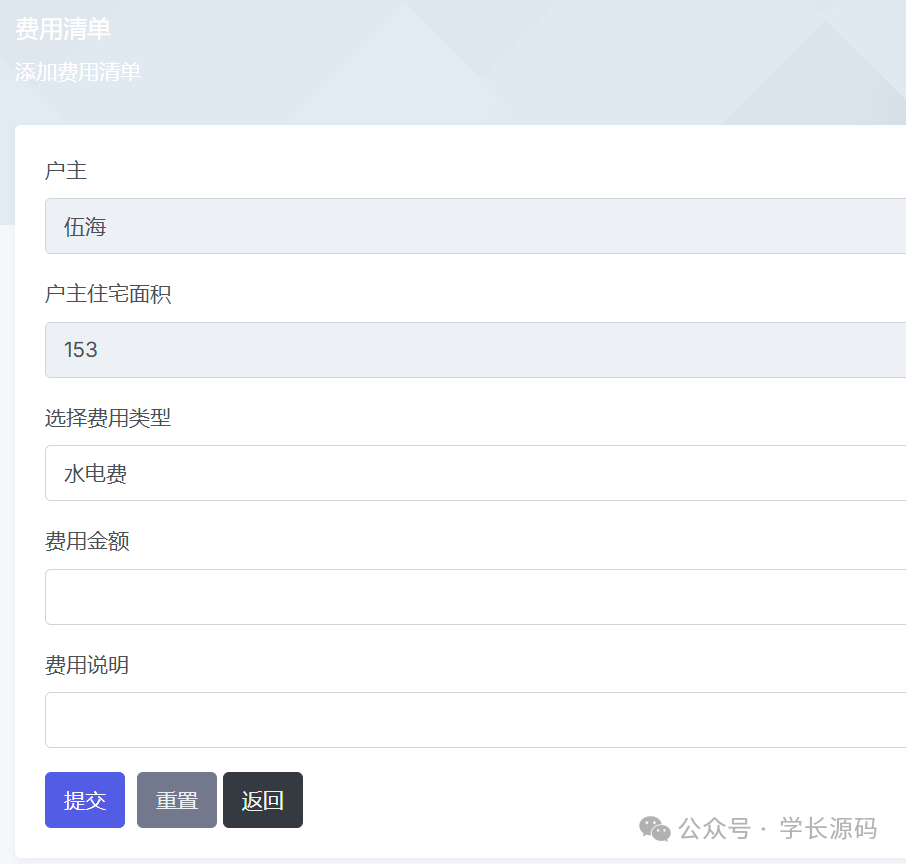

2.6用户物业费用缴纳管理模块

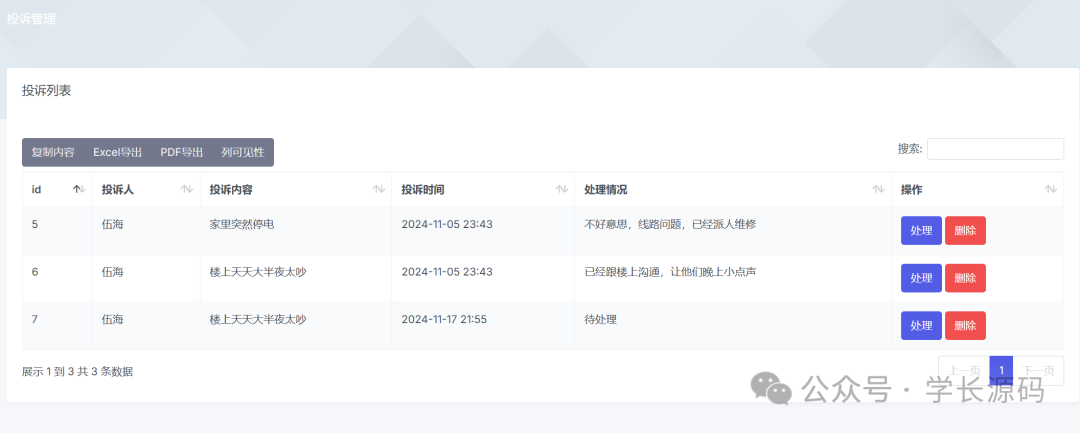

2.7物业投诉处理模块

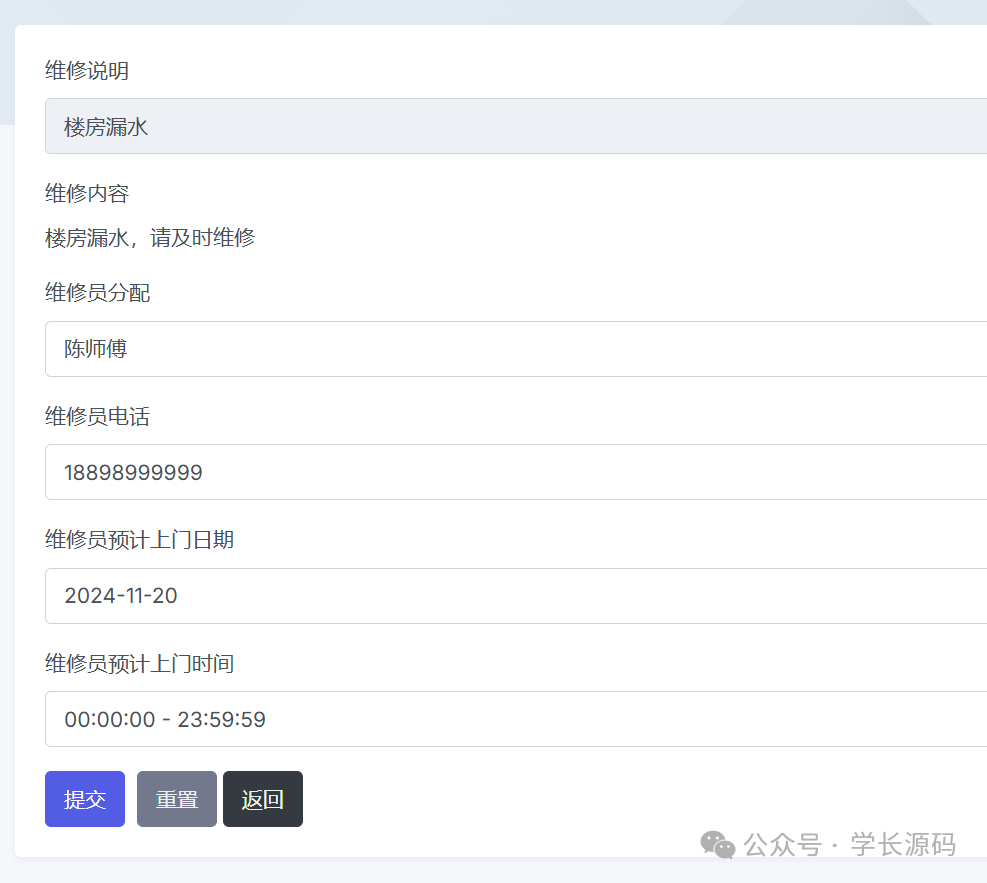

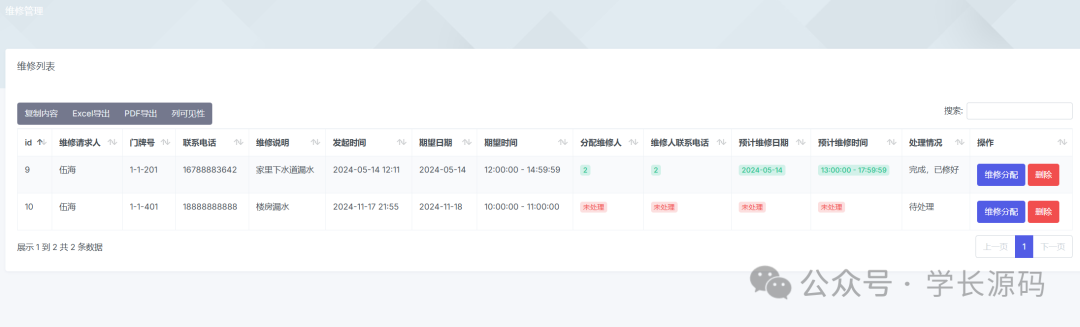

2.8物业维修处理模块

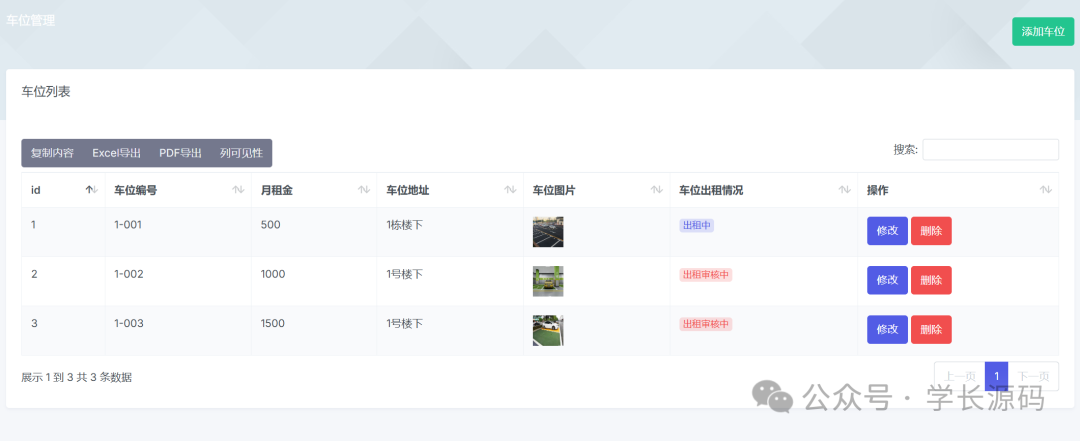

2.9车位管理模块

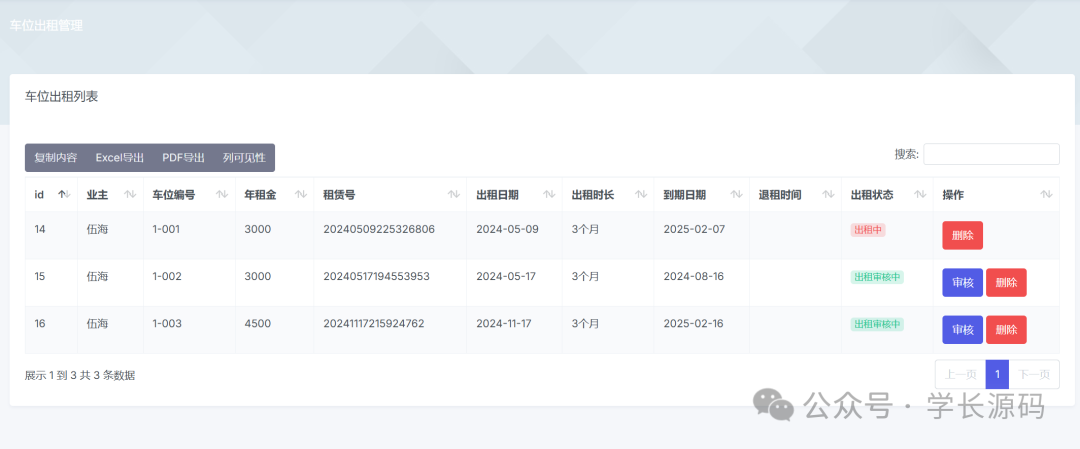

2.10车位出租审核管理模块

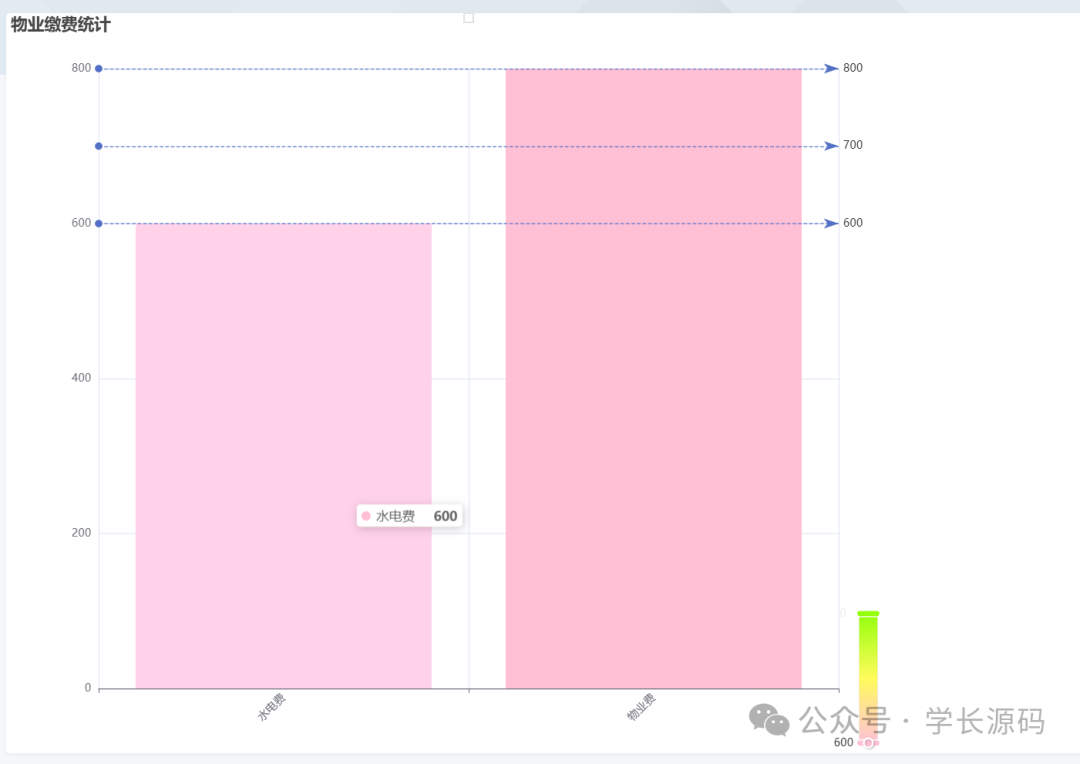

2.11物业缴费统计模块

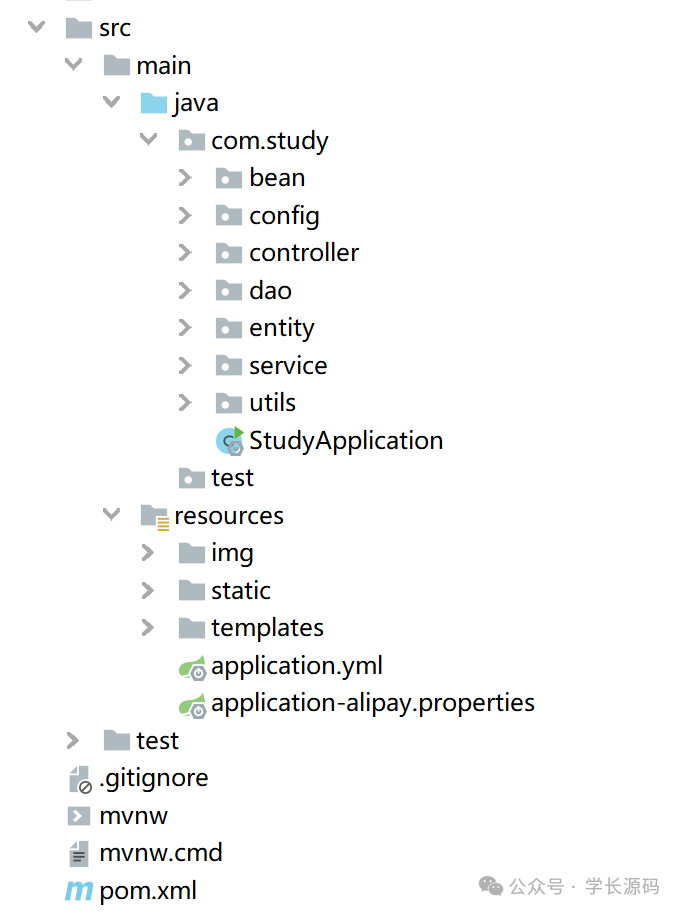

03项目结构

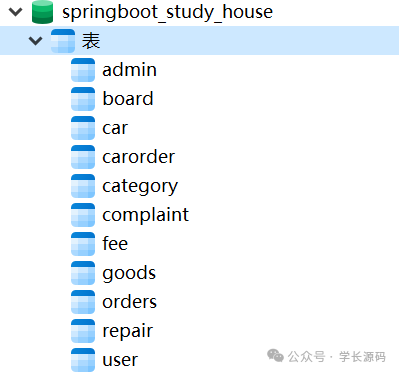

04数据库设计

05演示视频

【原创】基于SpringBoot的物业管理系统



-- ----------------------------
-- Table structure for admin
-- ----------------------------
DROP TABLE IF EXISTS `admin`;
CREATE TABLE `admin`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '管理员id',
  `username` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '管理员账号',
  `password` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '管理员密码',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for board
-- ----------------------------
DROP TABLE IF EXISTS `board`;
CREATE TABLE `board`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '公告id',
  `title` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '标题',
  `detail` longtext CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT '内容',
  `editor` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '发布人',
  `photo` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '封面图',
  `create_time` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '发布时间',
  `is_deleted` int(255) UNSIGNED NULL DEFAULT 0,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 8 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for car
-- ----------------------------
DROP TABLE IF EXISTS `car`;
CREATE TABLE `car`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `carno` varchar(33) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车位号',
  `price` int(10) NULL DEFAULT NULL COMMENT '价格',
  `address` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '位置',
  `photo` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '图片',
  `state` int(255) NULL DEFAULT 0 COMMENT '出租情况',
  `is_deleted` int(255) NULL DEFAULT 0 COMMENT '是否删除',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 4 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for carorder
-- ----------------------------
DROP TABLE IF EXISTS `carorder`;
CREATE TABLE `carorder`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `user_id` int(11) NULL DEFAULT NULL COMMENT '用户id',
  `car_id` int(11) NULL DEFAULT NULL COMMENT '车位id',
  `create_time` varchar(33) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '出租时间',
  `finish_time` varchar(33) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '出租时长',
  `is_deleted` int(255) NULL DEFAULT 0 COMMENT '是否删除',
  `ordernum` varchar(113) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '订单号',
  `state` int(255) NULL DEFAULT 0 COMMENT '出租状态',
  `money` int(255) NULL DEFAULT NULL,
  `tuitime` varchar(33) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `ztime` varchar(33) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '到期时间',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 18 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for category
-- ----------------------------
DROP TABLE IF EXISTS `category`;
CREATE TABLE `category`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '类型id',
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '名称',
  `is_deleted` int(255) NULL DEFAULT 0,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 8 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for complaint
-- ----------------------------
DROP TABLE IF EXISTS `complaint`;
CREATE TABLE `complaint`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `user_id` int(11) NULL DEFAULT NULL COMMENT '用户id',
  `detail` longtext CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT '投诉详情',
  `create_time` varchar(33) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '投诉时间',
  `is_deleted` int(255) NULL DEFAULT 0 COMMENT '是否删除',
  `result` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '处理结果',
  `title` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '标题',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 8 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for fee
-- ----------------------------
DROP TABLE IF EXISTS `fee`;
CREATE TABLE `fee`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `names` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `is_deleted` int(255) NULL DEFAULT 0,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for goods
-- ----------------------------
DROP TABLE IF EXISTS `goods`;
CREATE TABLE `goods`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `createtime` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '录入时间',
  `names` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '名称',
  `detail` text CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT '详情',
  `price` double(10, 0) NULL DEFAULT NULL COMMENT '价格',
  `nums` int(255) NULL DEFAULT NULL COMMENT '楼层',
  `photo` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '照片',
  `category_id` int(11) NULL DEFAULT NULL COMMENT '类型id',
  `is_deleted` int(255) NULL DEFAULT 0,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 20 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for repair
-- ----------------------------
DROP TABLE IF EXISTS `repair`;
CREATE TABLE `repair`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `user_id` int(11) NULL DEFAULT NULL COMMENT '用户id',
  `detail` longtext CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT '详情内容',
  `create_time` varchar(33) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '上报时间',
  `is_deleted` int(255) NULL DEFAULT 0 COMMENT '是否删除',
  `result` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '结果',
  `title` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '报修内容',
  `person` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '维修人',
  `phone` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '联系电话',
  `menpai` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '门牌号',
  `phonenum` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '维修人电话',
  `wtime` varchar(33) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '预期维修时间',
  `stime` varchar(33) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `wdate` varchar(33) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `sdate` varchar(33) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 11 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '学生id',
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '学生姓名',
  `photo` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '学生头像',
  `email` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '简介',
  `sex` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '性别',
  `phone` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '手机号',
  `ctime` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '注册时间',
  `age` int(11) NULL DEFAULT NULL COMMENT '年龄',
  `pwd` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '密码',
  `realname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `is_deleted` int(255) NULL DEFAULT 0,
  `house` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '门牌号',
  `mianji` int(255) NULL DEFAULT NULL COMMENT '面积',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 9 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;

SET FOREIGN_KEY_CHECKS = 1;
