前端使用的是Bootstrap的一个网站模板。通过2种角色使用,实现了包括了业主信息管理、楼宇信息管理、住宅信息发布、投诉处理、维修处理、车位管理、缴费管理等多个不同的模块。

项目类型：JavaWeb源码

用户类型：2个角色（物业管理员+业主）

主要技术：Jsp+Servlet+MySQL+Bootstrap

开发工具：Eclipse/Idea均可使用，有两个不同的版本

数据库：MySQL

数据库表：10张

🍅演示视频在底部🍅

🍅文末获取联系🍅

01物业管理员端功能介绍

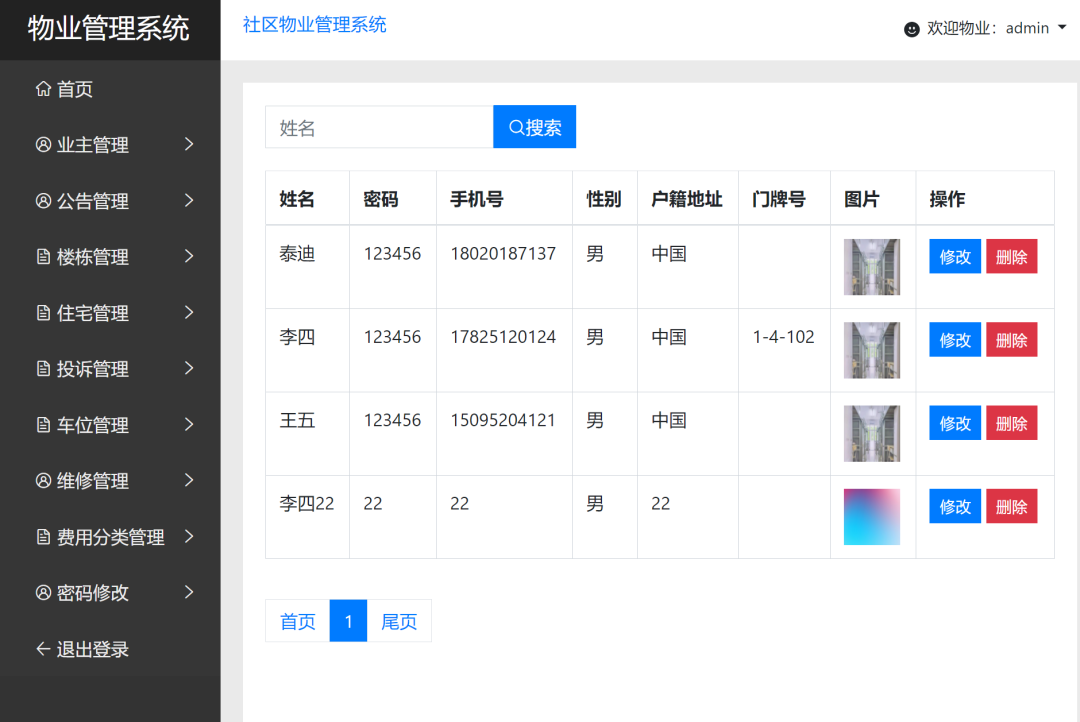

1.1业主管理

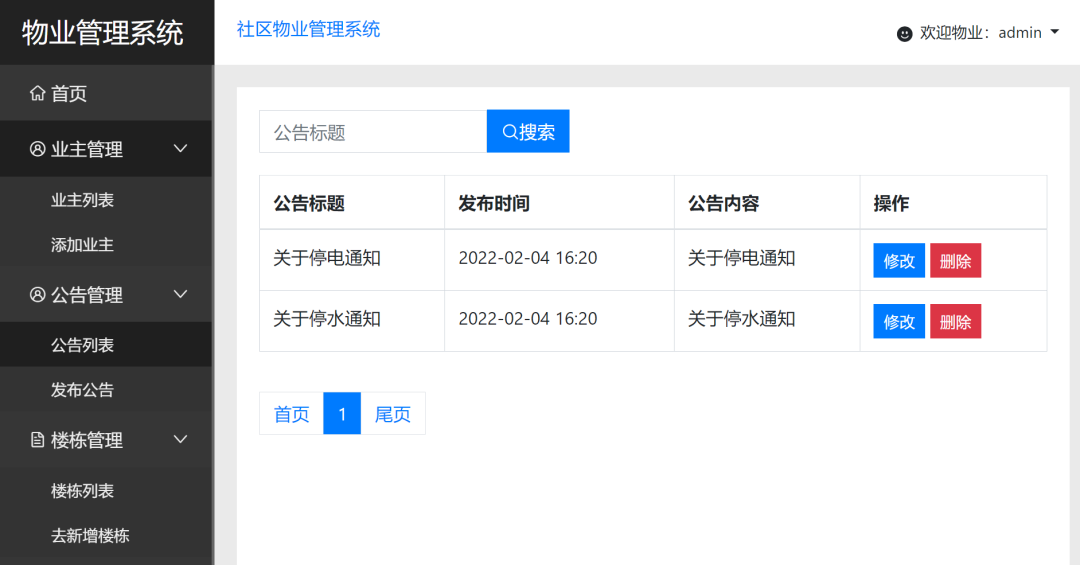

1.2公告管理

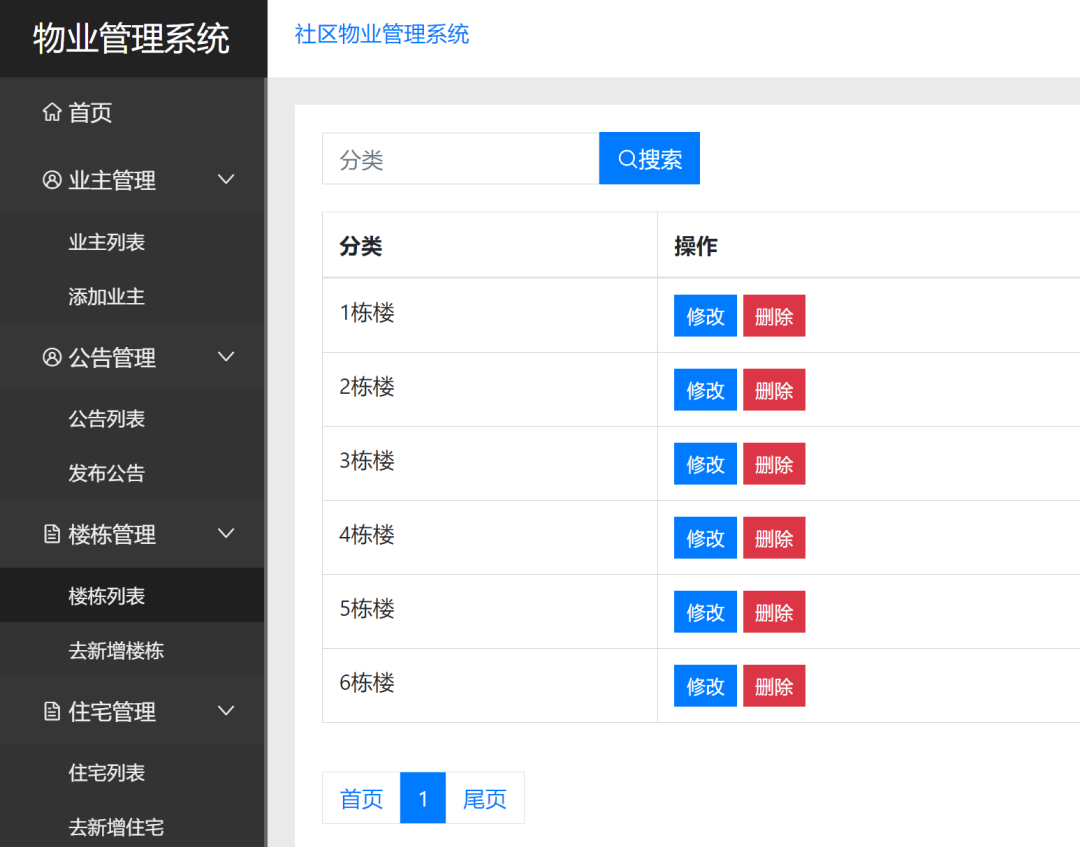

1.3楼栋管理

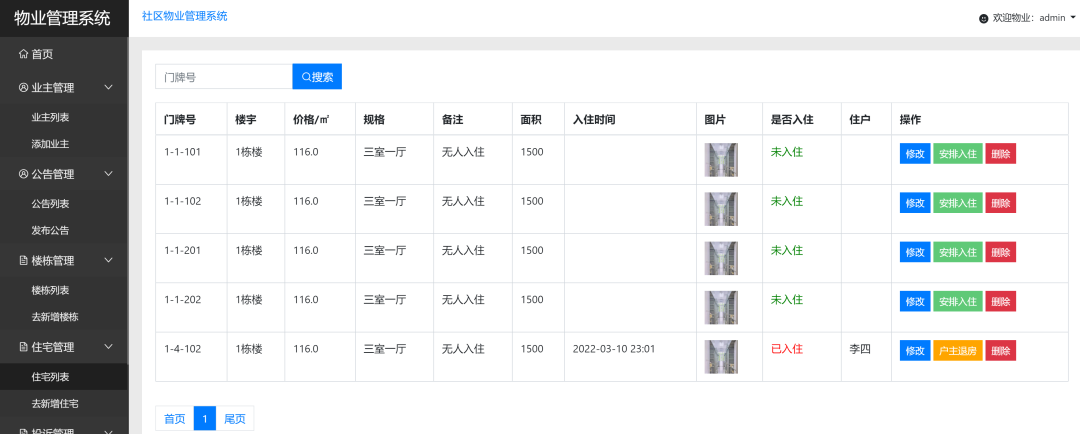

1.4住宅管理（户主入住）

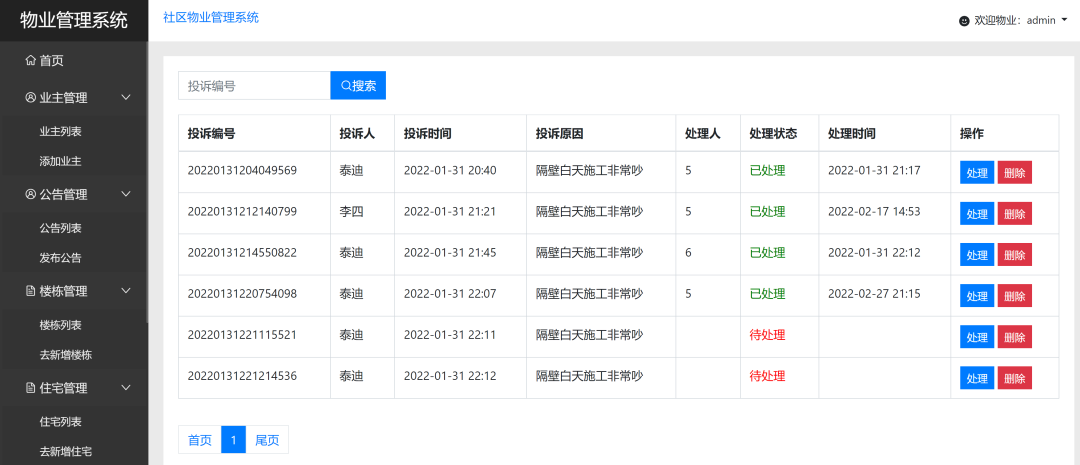

1.5投诉处理

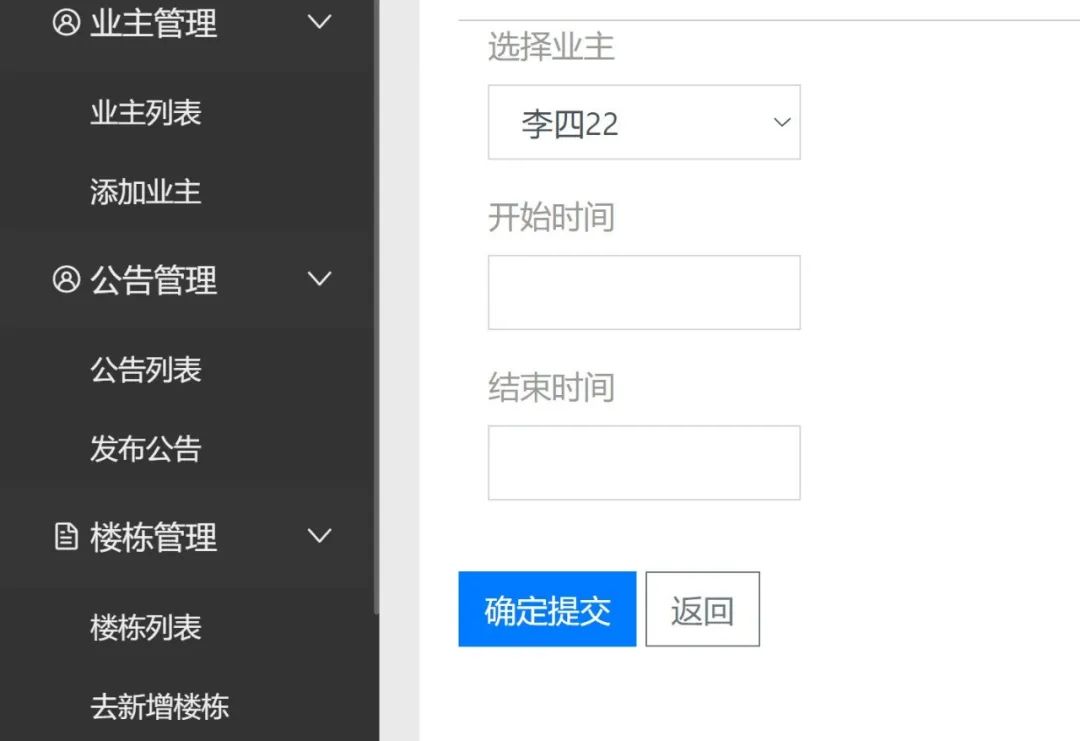

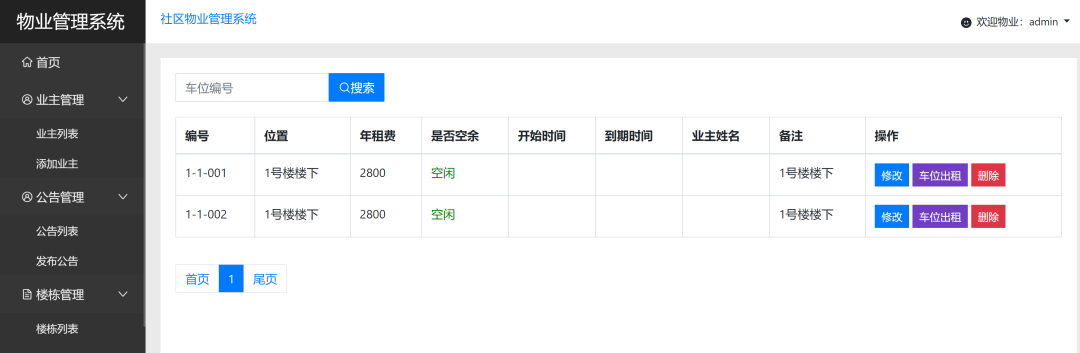

1.6车位出租

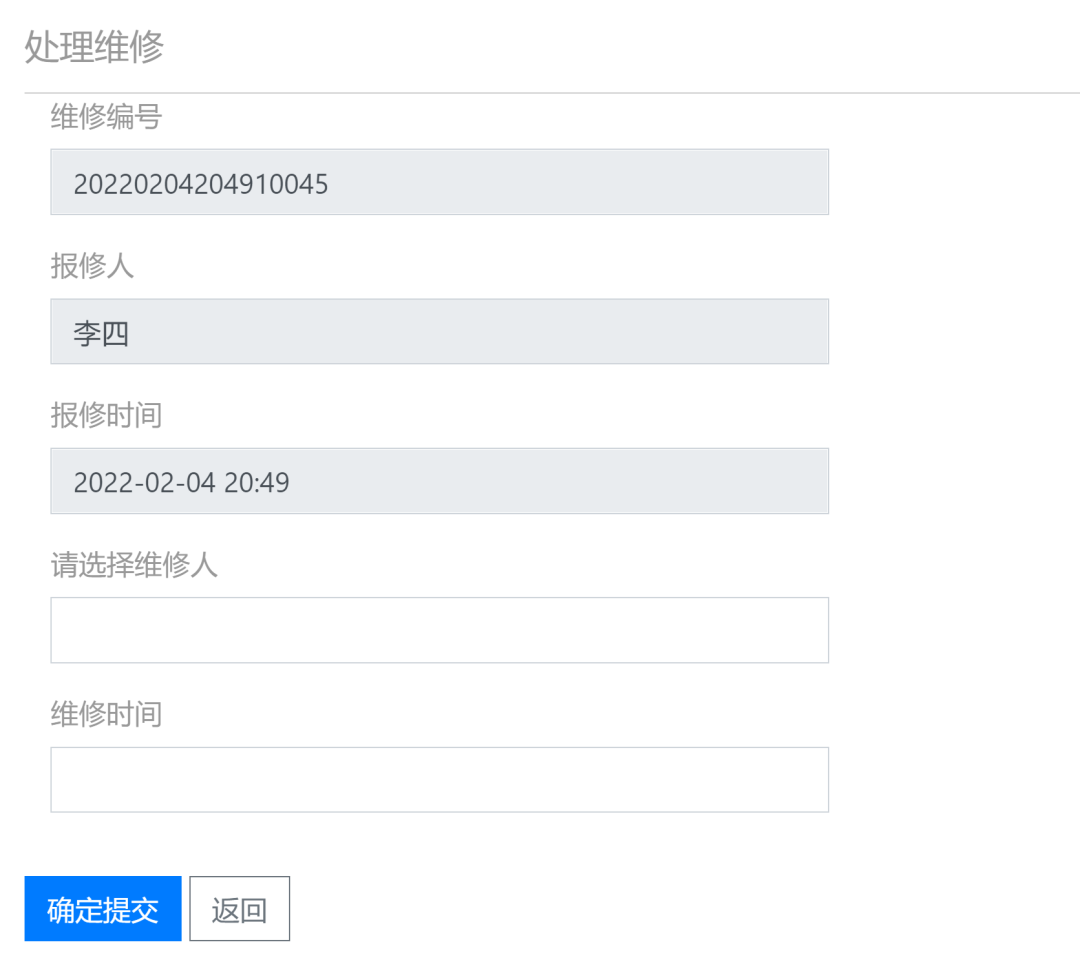

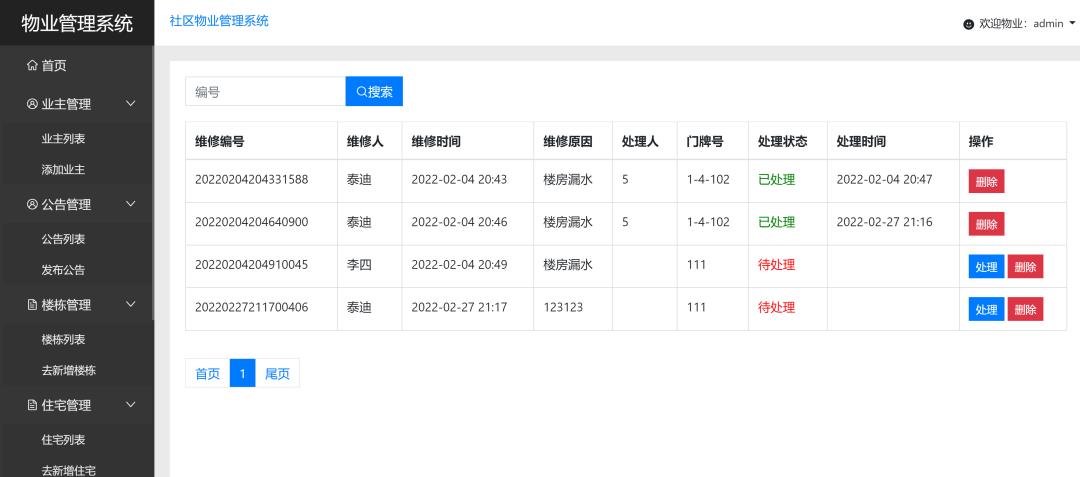

1.7维修处理

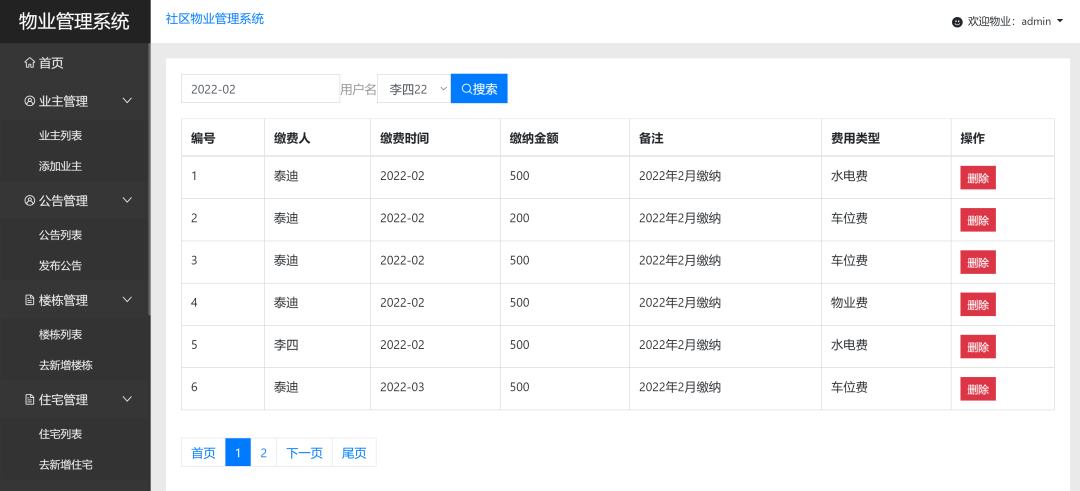

1.8缴费管理

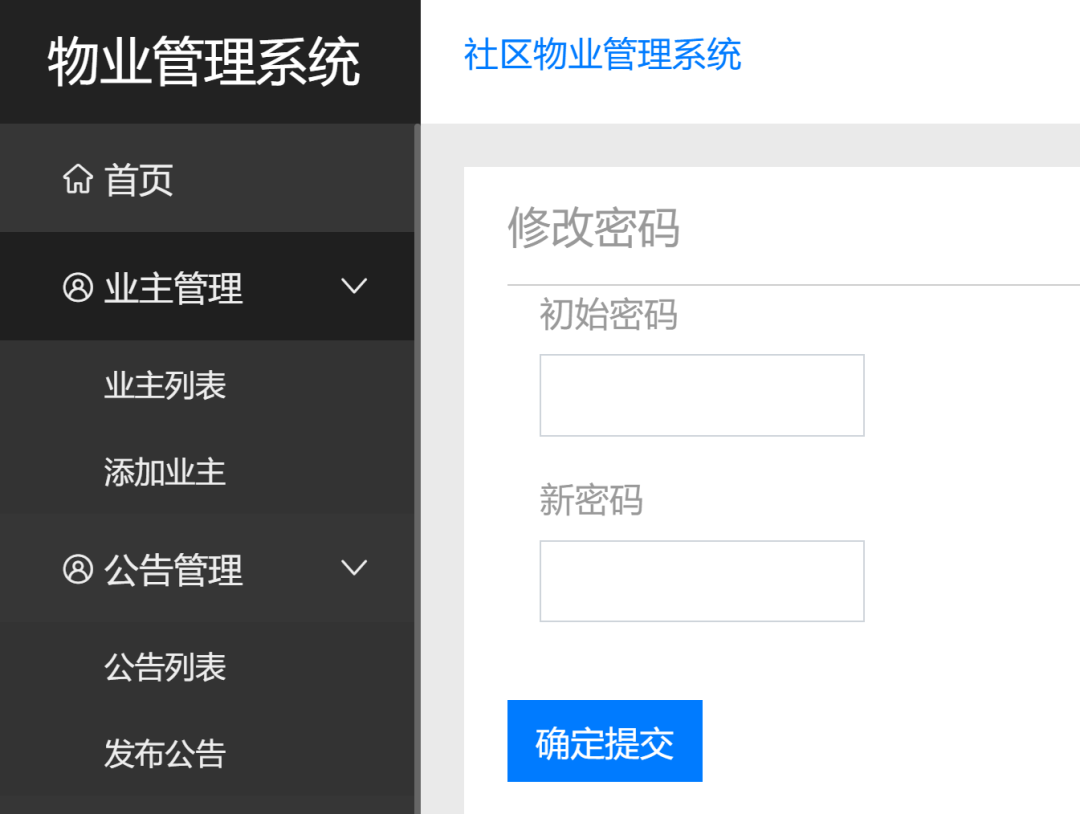

1.9密码修改

02业主端功能介绍

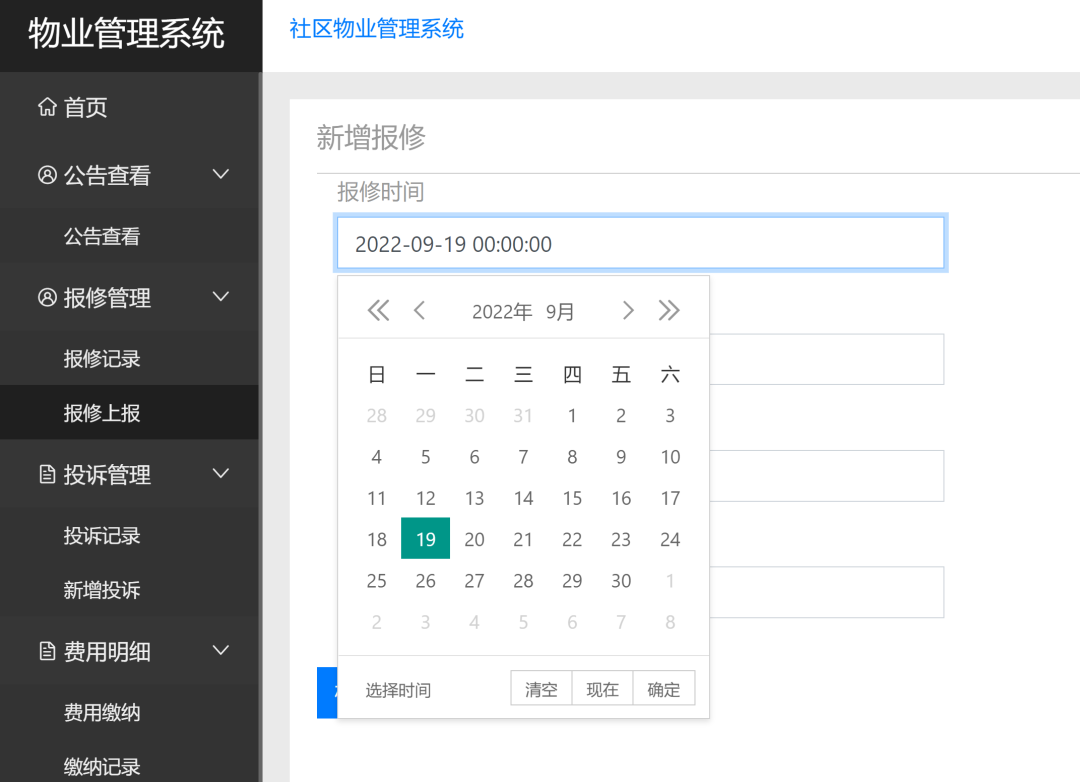

2.1 维修上报

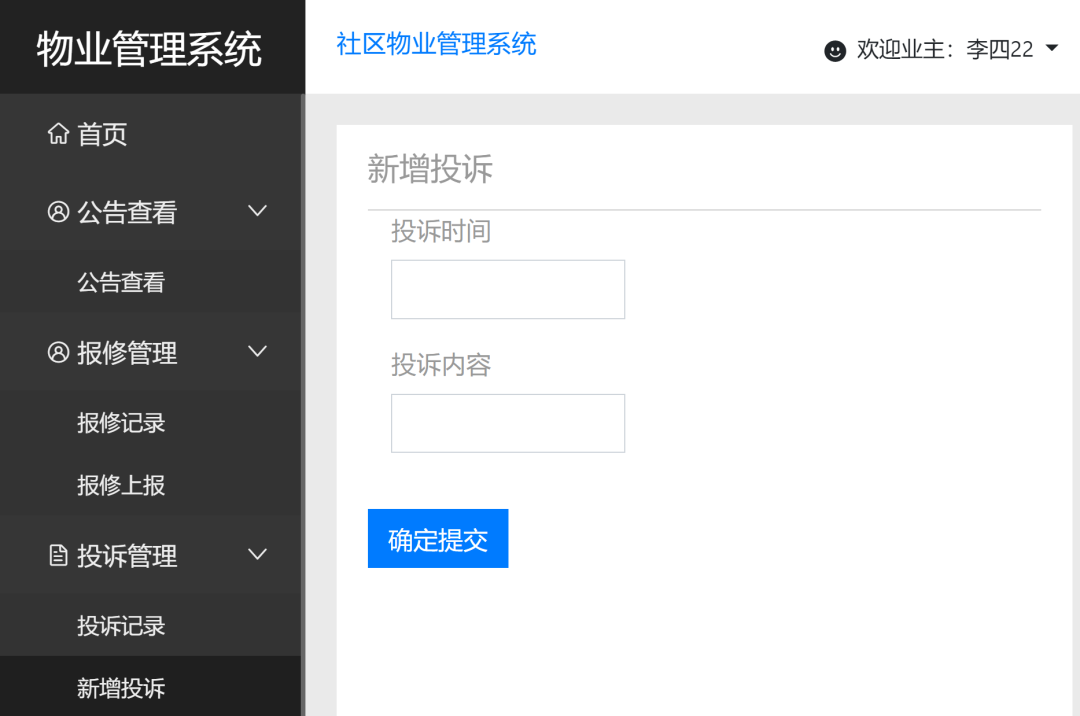

2.2投诉发布

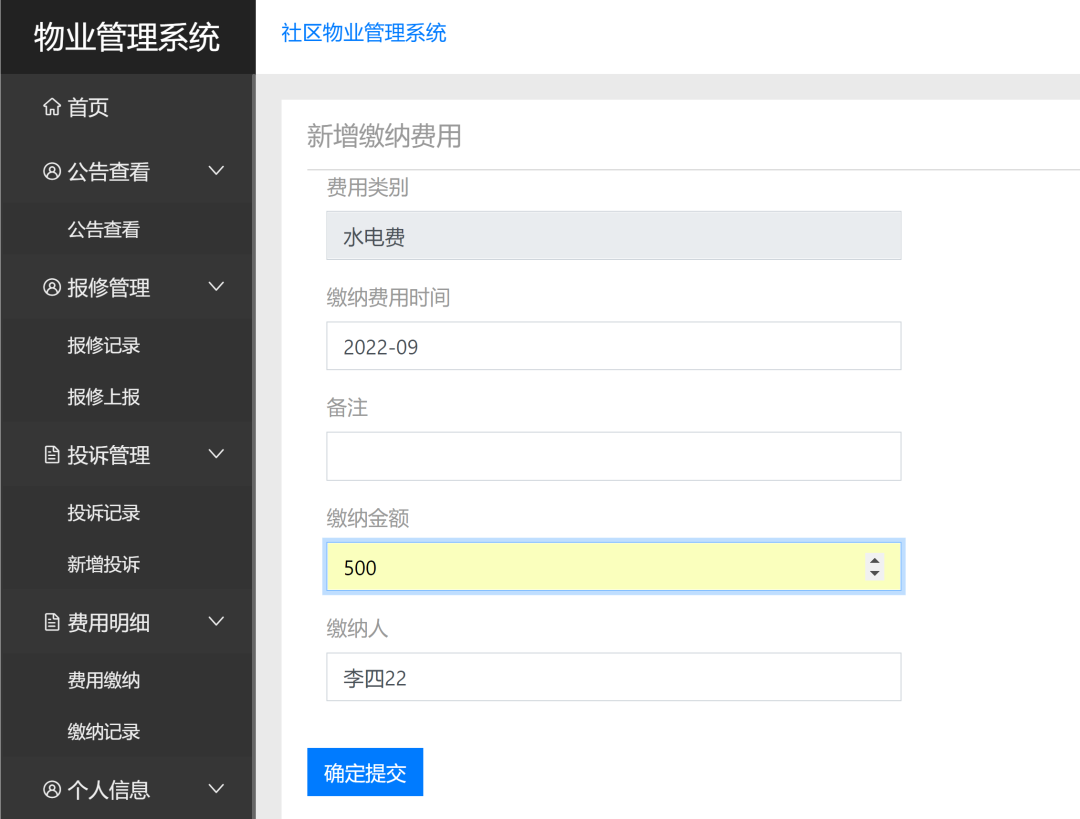

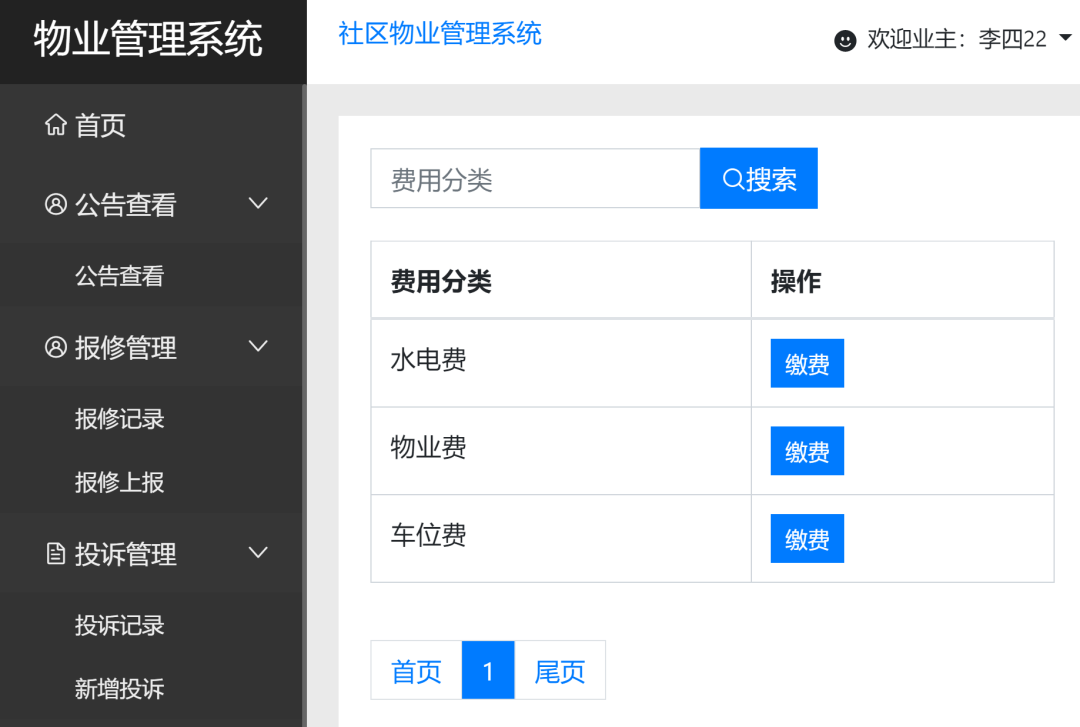

2.3费用缴纳

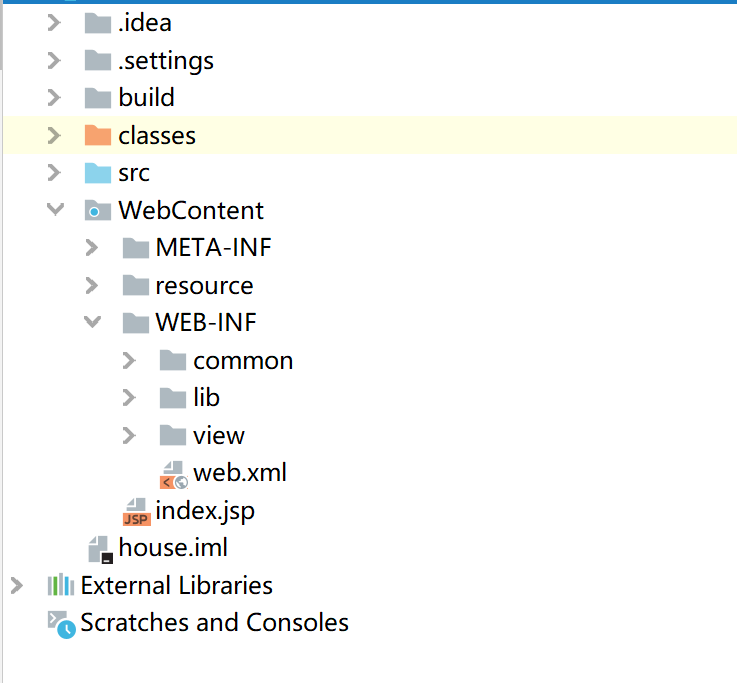

03项目结构

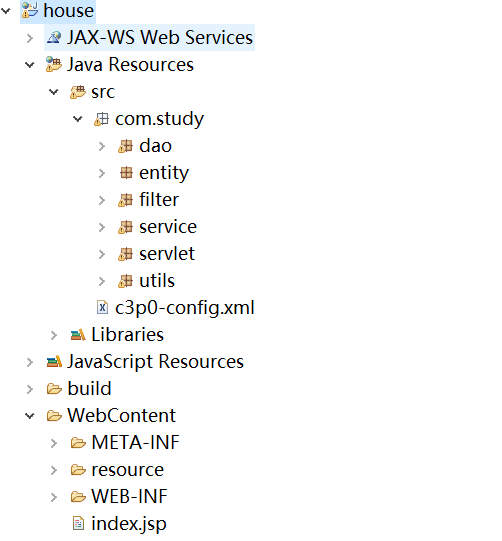

Eclipse版本目录

Idea版本目录

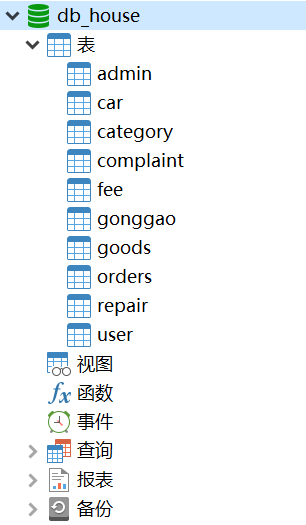

04数据库设计

05系统演示

【原创】javaweb物业管理系统（物业管理系统毕业设计）



-- ----------------------------
-- Table structure for admin
-- ----------------------------
DROP TABLE IF EXISTS `admin`;
CREATE TABLE `admin`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `nickname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '姓名',
  `username` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '账号',
  `pwd` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '密码',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for car
-- ----------------------------
DROP TABLE IF EXISTS `car`;
CREATE TABLE `car`  (
  `id` int(57) NOT NULL AUTO_INCREMENT,
  `uname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '户主',
  `state` int(255) DEFAULT NULL COMMENT '使用状态',
  `carno` varchar(57) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '编号',
  `place` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '位置',
  `ctime` varchar(57) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '开始使用时间',
  `ztime` varchar(57) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '到期时间',
  `detail` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '备注',
  `price` int(10) DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 4 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for category
-- ----------------------------
DROP TABLE IF EXISTS `category`;
CREATE TABLE `category`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `cname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 8 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for complaint
-- ----------------------------
DROP TABLE IF EXISTS `complaint`;
CREATE TABLE `complaint`  (
  `id` int(55) NOT NULL AUTO_INCREMENT,
  `cno` varchar(55) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '投诉编号',
  `uname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '投诉人',
  `ctime` varchar(55) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '投诉时间',
  `person` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '接待人',
  `state` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '处理状态',
  `stime` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `content` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `uid` int(55) DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 26 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for fee
-- ----------------------------
DROP TABLE IF EXISTS `fee`;
CREATE TABLE `fee`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `feename` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 5 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for gonggao
-- ----------------------------
DROP TABLE IF EXISTS `gonggao`;
CREATE TABLE `gonggao`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `title` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `content` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `ctime` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for goods
-- ----------------------------
DROP TABLE IF EXISTS `goods`;
CREATE TABLE `goods`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '是否入住',
  `cname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `category` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `color` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `price` double(10, 2) DEFAULT NULL COMMENT '单价',
  `address` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `totals` int(10) DEFAULT NULL COMMENT '面积',
  `img` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `createtime` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `uname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '住户',
  `state` int(255) DEFAULT NULL COMMENT '是否入住0未住，1已入住',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 10 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for orders
-- ----------------------------
DROP TABLE IF EXISTS `orders`;
CREATE TABLE `orders`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `feename` varchar(177) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '费用类型',
  `otime` varchar(77) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '缴纳时间',
  `money` int(255) DEFAULT NULL COMMENT '金额',
  `detail` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '备注',
  `uname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `uid` int(55) DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 11 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for repair
-- ----------------------------
DROP TABLE IF EXISTS `repair`;
CREATE TABLE `repair`  (
  `id` int(57) NOT NULL AUTO_INCREMENT COMMENT 'id\r\n记录编号\r\n报修人id\r\n报修人\r\n报修时间\r\n报修内容\r\n维修人\r\n维修时间\r\n维修状态\r\n门牌号\r\n',
  `cno` varchar(57) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `uid` int(57) DEFAULT NULL,
  `uname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `ctime` varchar(57) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `content` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `person` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `stime` varchar(57) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `state` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `uhouse` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 6 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `realname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '姓名',
  `sex` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '性别',
  `phone` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '手机号',
  `tx` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '头像',
  `address` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '户籍地址',
  `pwd` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '密码',
  `isrz` int(255) DEFAULT NULL COMMENT '0未入住，1入住',
  `house` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '门牌号',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 5 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;
