Nginx防盗链原理与演示

原创已于 2024-12-18 14:27:26 修改 · 502 阅读

6 ·

CC 4.0 BY-SA版权

文章标签：

#nginx #运维 #linux

于 2024-12-18 14:22:38 首次发布

2.虚拟机1(192.168.80.100)配置

3. 虚拟机2(192.168.80.101)配置

（二）演示

一、什么是防盗链

防盗链是一种保护网站资源不被其他网站非法链接的技术。防止外部网站通过直接链接的方式引用你的图片、视频、CSS文件或其他静态资源。从而避免不必要的带宽消耗和服务器负载。检查HTTP请求头中的 Referer 字段、以确定请求是否来自合法的来源。如果 Referer 不在白名单中，则拒绝提供资源或返回一个代替的内容。

二、防盗链演示

（一）准备工作

1. 准备两台虚拟机，都能与主机互通。

2.虚拟机1(192.168.80.100)配置

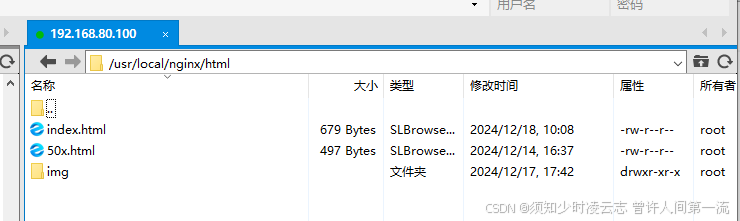

（1）准备一个静态页面（默认即可）和一个img文件夹(文件夹下放一张图片)

（2）index文件加上图片跳转链接

<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!192.168.80.100</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
<a href="http://192.168.80.100/img/1.png">img</a>
</body>
</html>

（3）修改Nginx.conf配置文件


worker_processes  1;

events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;


    sendfile        on;

    keepalive_timeout  65;


    server {
        listen       80;
        server_name  localhost;

        location / {
            #proxy_pass http://httpds;
            root   html;
            index  index.html index.htm;
        }
         location ~*/(js|img|css) {
          valid_referers 192.168.80.100;
            if ($invalid_referer){
             return 403;
          }
            root   html;
            index  index.html index.htm;
        }

        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

    }



}

通过 valid_referers 用于定义哪些来源（即 Referer 头中的 URL）是允许访问特定资源的，这里定义只有通过192.168.80.100访问才能获取图片资源。更改nginx.conf需要重启nginx。

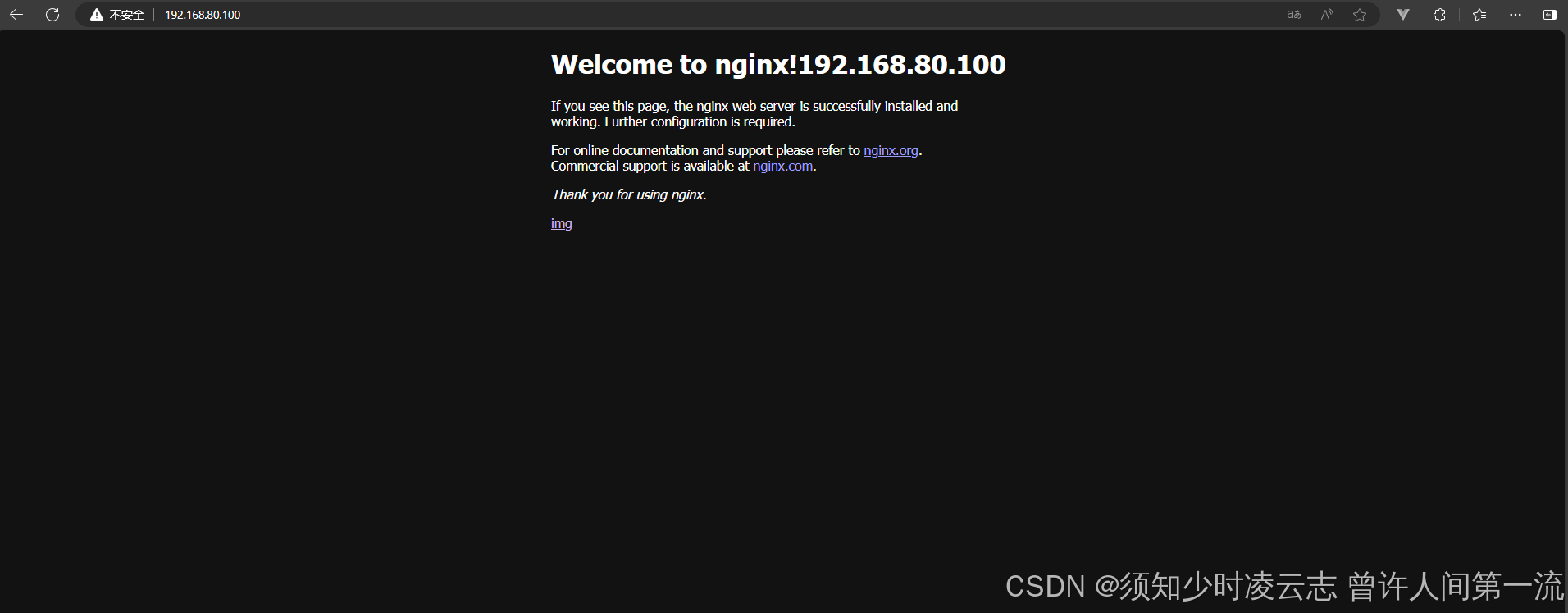

（4）通过第一台虚拟机访问静态资源

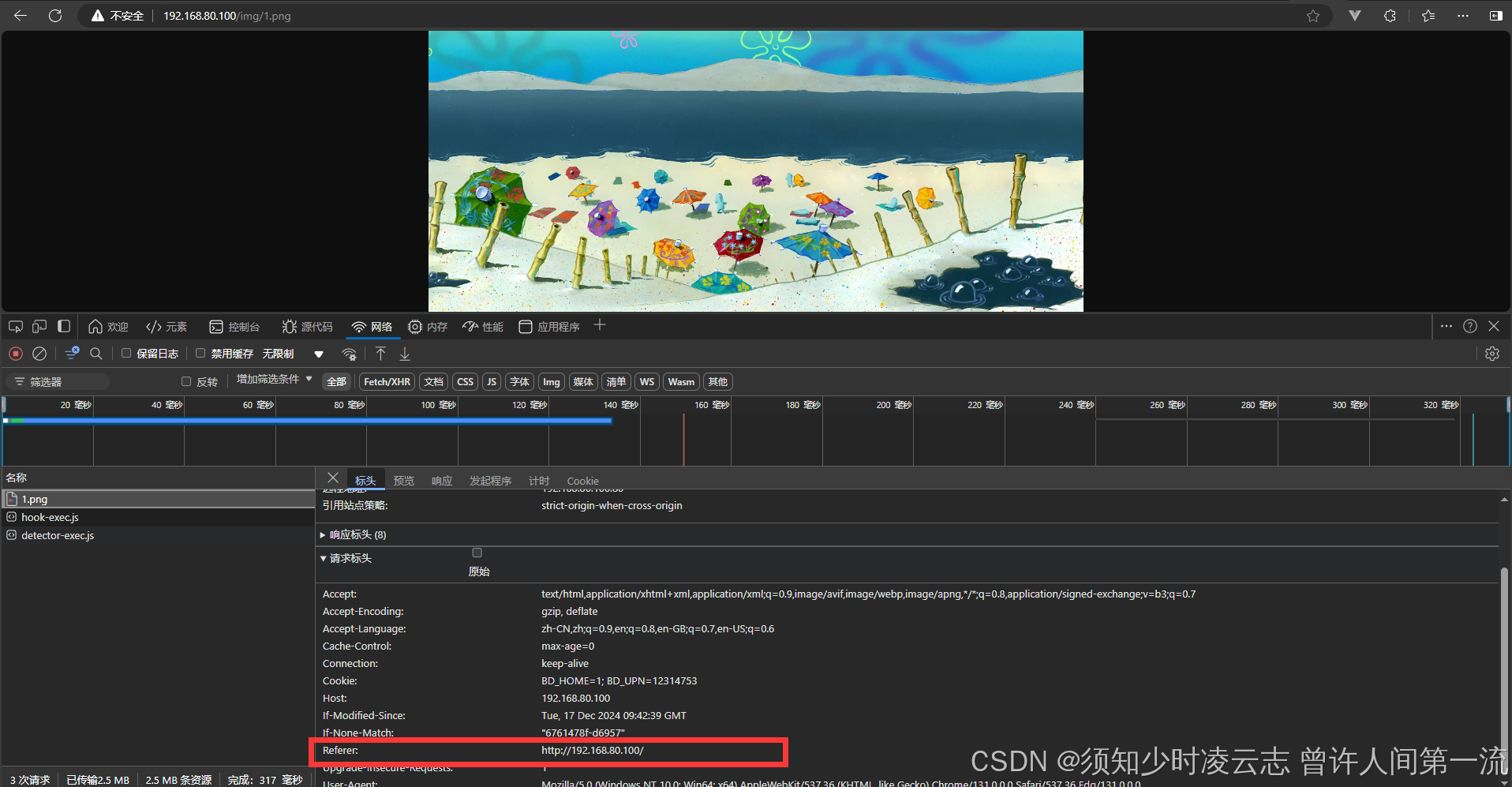

点击img访问图片资源（此时的referer是192.168.80.100）

3. 虚拟机2(192.168.80.101)配置

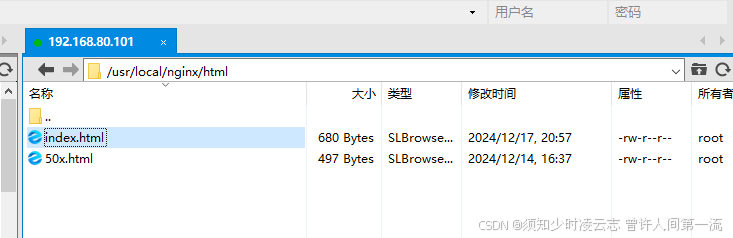

（1）准备一个静态页面,在里面放一个访问第一台虚拟机图片的链接

（2）编写index.html

<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!192.168.80.101</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
<a href="http://192.168.80.100/img/1.png">img</a>

</body>
</html>

（3）第二台虚拟机nginx.conf文件配置


#user  nobody;
worker_processes  1;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;

    sendfile        on;

    keepalive_timeout  65;


    server {
        listen       80;
        server_name  localhost;


        location / {
            root   html;
            index  index.html index.htm;
        }

        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

    }





}

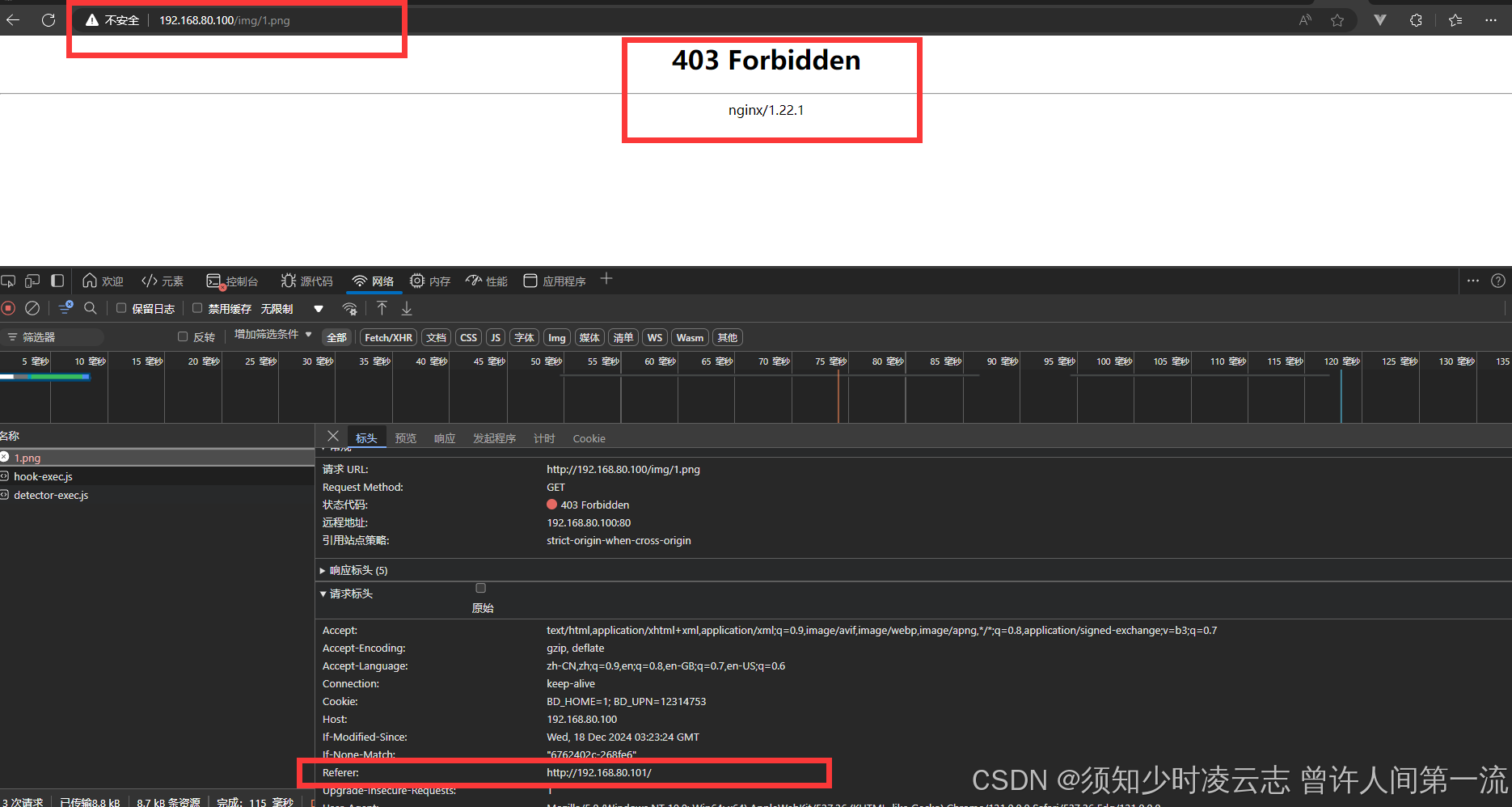

（4）访问
