虚拟子接口划分vlan

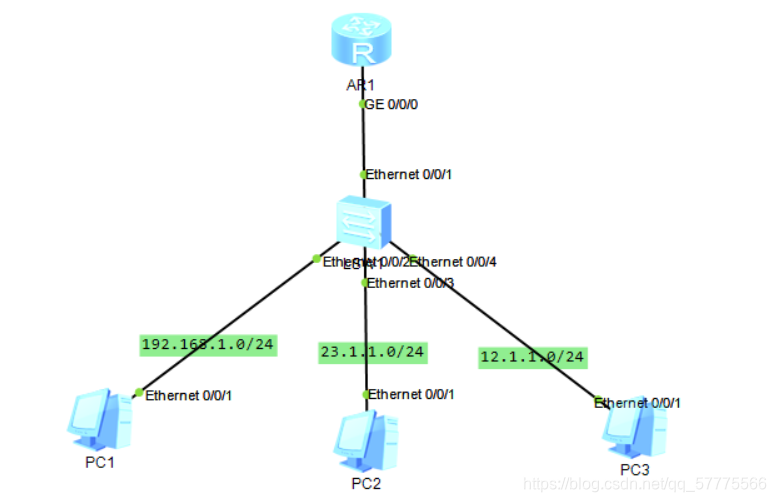

实验拓扑图如下：

指令如下：

一、创建vlan并将vlan划入接口（交换机）

[Huawei]vlan 2

[Huawei]interface e0/0/2
[Huawei-Ethernet0/0/2]port link-type access
[Huawei-Ethernet0/0/2]port default vlan 2

二、打开dhcp、创建虚拟子接口并配置IP（路由器）

[Huawei]dhcp enable //打开dhcp

[Huawei]interface g0/0/0.1
[Huawei-GigabitEthernet0/0/0.1]dot1q termination vid 2
[Huawei-GigabitEthernet0/0/0.1]ip addrees 192.168.1.1 24
[Huawei-GigabitEthernet0/0/0.1]quit

三、建立地址池并下放IP

[Huawei]ip pool 2
[Huawei-ip-pool-2]network 192.168.1.2 mask 255.255.255.0
[Huawei-ip-pool-2]gateway-list 192.168.1.1
[Huawei-ip-pool-2]dns-list 8.8.8.8
[Huawei-ip-pool-2]quit

四、调用DHCP

[Huawei]interface g0/0/0.1
[Huawei-GigabitEthernet0/0/0.1]dhcp select global
[Huawei-GigabitEthernet0/0/0.1]arp broadcast enable
[Huawei-GigabitEthernet0/0/0.1]quit

五、起trunk，串接所有vlan

[Huawei]interface e0/0/1
[Huawei-Ethernet0/0/1]port link-type trunk
[Huawei-port-group-trunk]port trunk allow-pass vlan all

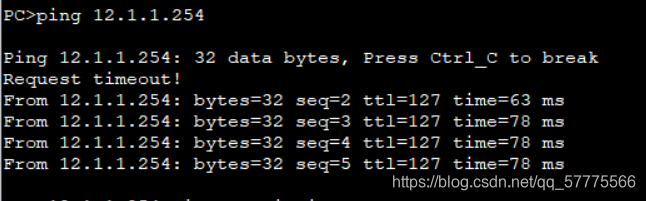

PC可以连接，实验成功。

最后如果你实在不会，你可以看看以下的指令；

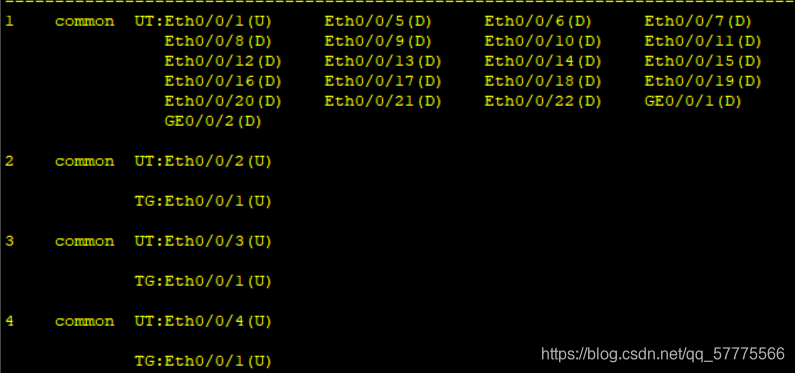

交换机:

[Huawei]vlan 2
[Huawei-vlan2]quit
[Huawei]vlan 3
[Huawei-vlan3]quit

[Huawei]vlan 4
[Huawei-vlan4]quit


[Huawei]interface e0/0/2
[Huawei-Ethernet0/0/2]port link-type access
[Huawei-Ethernet0/0/2]port default vlan 2
[Huawei-Ethernet0/0/2]quit


[Huawei]interface e0/0/3
[Huawei-Ethernet0/0/3]port link-type access
[Huawei-Ethernet0/0/3]port default vlan 3
[Huawei-Ethernet0/0/3]quit

[Huawei]interface e0/0/4
[Huawei-Ethernet0/0/4]port link-type access
[Huawei-Ethernet0/0/4]port default vlan 4
[Huawei-Ethernet0/0/4]quit

[Huawei]interface e0/0/1
[Huawei-Ethernet0/0/1]port link-type trunk
[Huawei-Ethernet0/0/1]port trunk allow-pass vlan all

[Huawei]interface e0/0/1
[Huawei-Ethernet0/0/1]port link-type trunk
[Huawei-port-group-trunk]port trunk allow-pass vlan all



路由器：

[Huawei]dhcp enable

[Huawei]interface g0/0/0.1
[Huawei-GigabitEthernet0/0/0.1]dot1q termination vid 2
[Huawei-GigabitEthernet0/0/0.1]ip addrees 192.168.1.1 24
[Huawei-GigabitEthernet0/0/0.1]quit

[Huawei]ip pool 2
[Huawei-ip-pool-2]network 192.168.1.2 mask 255.255.255.0
[Huawei-ip-pool-2]gateway-list 192.168.1.1
[Huawei-ip-pool-2]dns-list 8.8.8.8
[Huawei-ip-pool-2]quit

[Huawei]interface g0/0/0.2
[Huawei-GigabitEthernet0/0/0.2]dot1q termination vid 3
[Huawei-GigabitEthernet0/0/0.2]ip addrees 23.1.1.1 24
[Huawei-GigabitEthernet0/0/0.2]quit

[Huawei]ip pool 3
[Huawei-ip-pool-3]network 23.1.1.2 mask 255.255.255.0
[Huawei-ip-pool-3]gateway-list 23.1.1.1
[Huawei-ip-pool-3]dns-list 8.8.8.8
[Huawei-ip-pool-3]quit

[Huawei]interface g0/0/0.3
[Huawei-GigabitEthernet0/0/0.3]dot1q termination vid 4
[Huawei-GigabitEthernet0/0/0.3]ip addrees 12.1.1.1 24
[Huawei-GigabitEthernet0/0/0.3]quit

[Huawei]ip pool 4
[Huawei-ip-pool-4]network 12.1.1.2 mask 255.255.255.0
[Huawei-ip-pool-4]gateway-list 12.1.1.1
[Huawei-ip-pool-4]dns-list 8.8.8.8
[Huawei-ip-pool-4]quit

[Huawei]interface g0/0/0.1
[Huawei-GigabitEthernet0/0/0.1]dhcp select global
[Huawei-GigabitEthernet0/0/0.1]arp broadcast enable
[Huawei-GigabitEthernet0/0/0.1]quit

[Huawei]interface g0/0/0.2
[Huawei-GigabitEthernet0/0/0.2]dhcp select global
[Huawei-GigabitEthernet0/0/0.2]arp broadcast enable
[Huawei-GigabitEthernet0/0/0.2]quit

[Huawei]interface g0/0/0.3
[Huawei-GigabitEthernet0/0/0.3]dhcp select global
[Huawei-GigabitEthernet0/0/0.3]arp broadcast enable
