springboot整合swaggers3文档框架

依赖

<!--         https://mvnrepository.com/artifact/io.springfox/springfox-swagger2 -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>3.0.0</version>
</dependency>
<!--         https://mvnrepository.com/artifact/io.springfox/springfox-swagger-ui -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>3.0.0</version>
</dependency>

或者

<!--         https://mvnrepository.com/artifact/io.springfox/springfox-boot-starter -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>3.0.0</version>
</dependency>

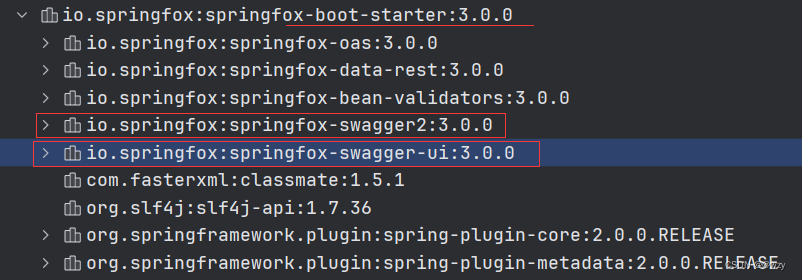

原因

需要的必要配置

这一项跟springmvc的默认配置相关,所以把默认配置改掉

spring.mvc.pathmatch.matching-strategy=ant_path_matcher

配置类

@Configuration
@EnableOpenApi
public class SwaggerConfig {
    @Bean
    public Docket docket() {
        return new Docket(DocumentationType.OAS_30)
//        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .groupName("develop")
                .enable(true)
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.carplay.controller"))
                .paths(PathSelectors.ant("/car/**"))
                .build();
    }

    private ApiInfo apiInfo() {
        Contact contact = new Contact("", "https://blog.youkuaiyun.com/qq_57516353?spm=1011.2415.3001.5343", "");
        return new ApiInfo(
                "car",
                "carPlay",
                "v1.0",
                "https://blog.youkuaiyun.com/qq_57516353?spm=1011.2415.3001.5343",
                contact,
                "Apache 2.0",
                null,
                new ArrayList<>()
        );
    }
}

访问地址

http://localhost:9999/car/swagger-ui/index.html

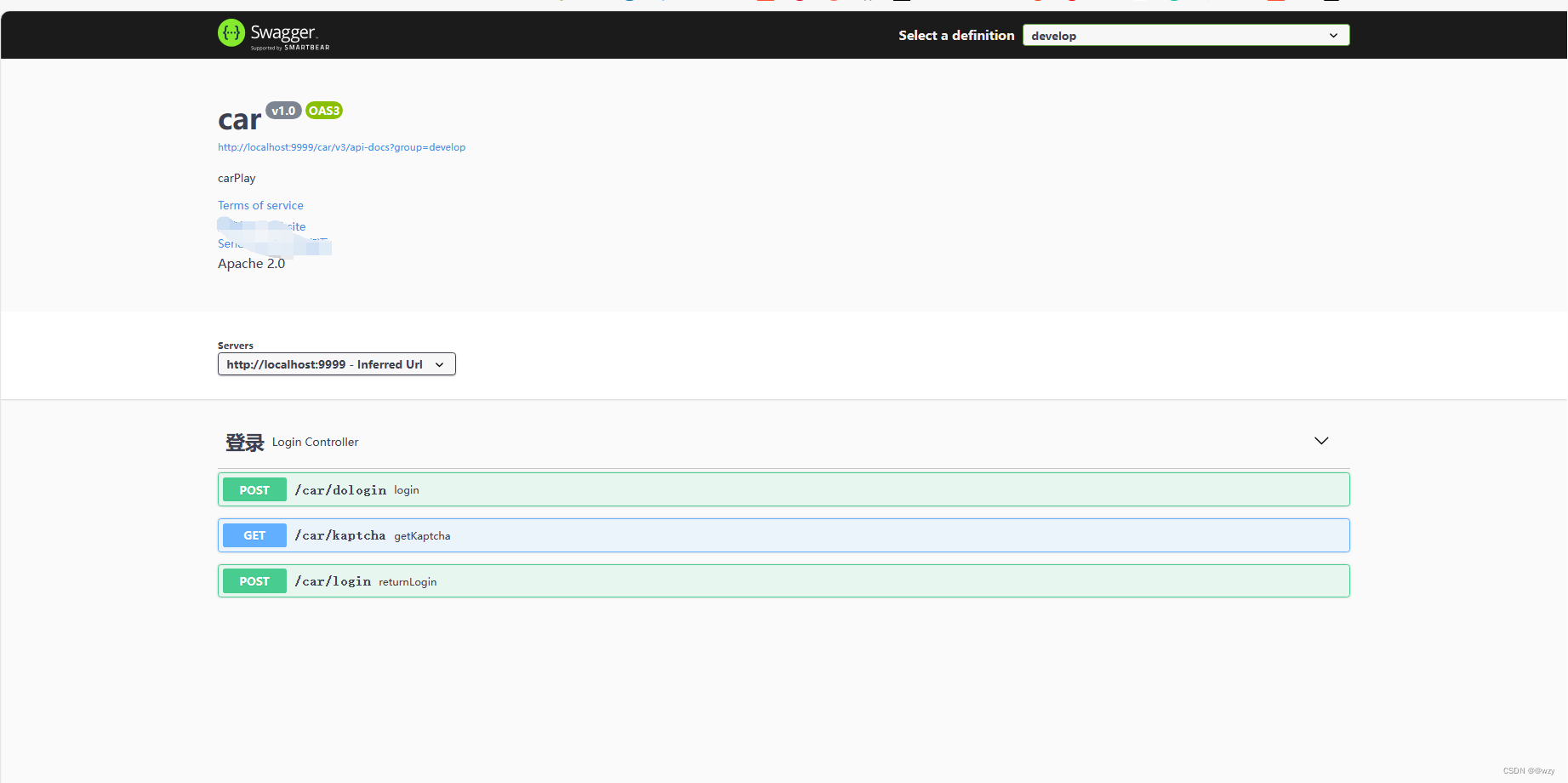

效果

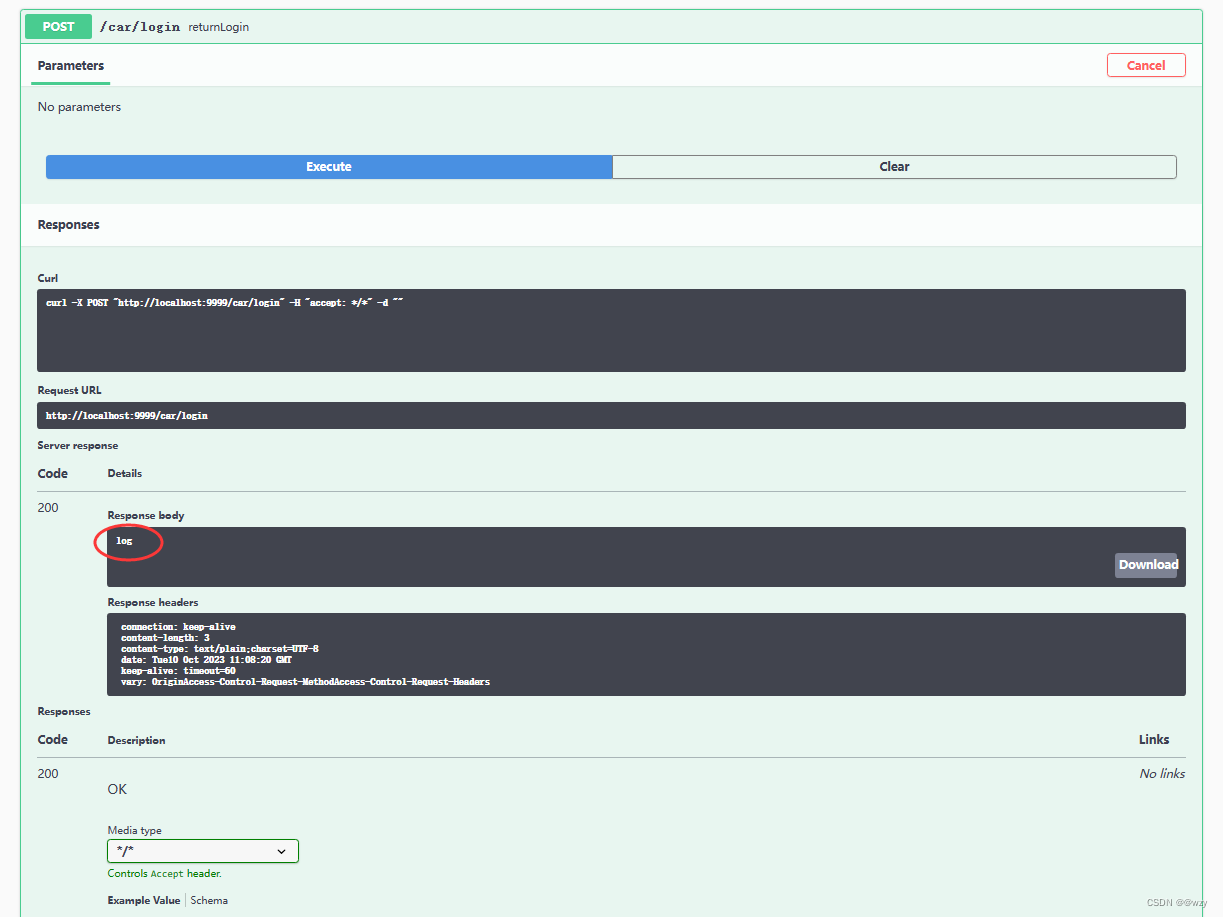

进行测试

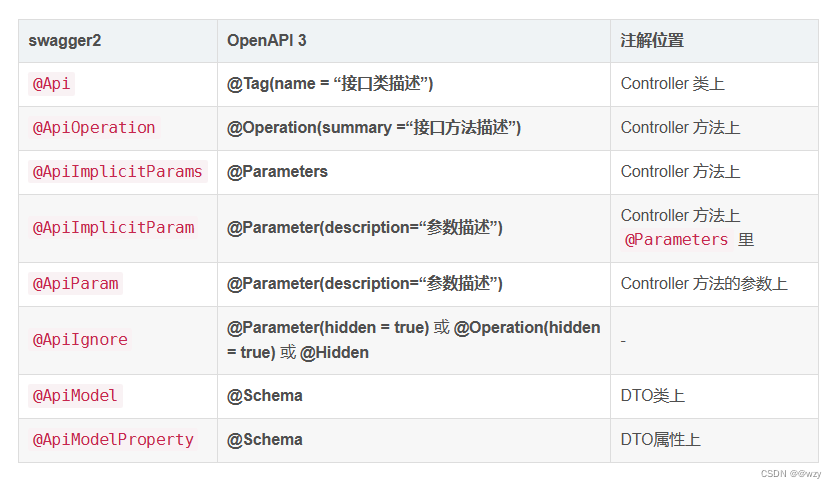

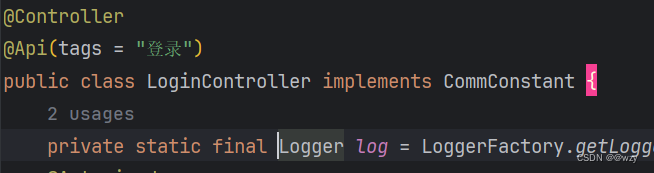

注解
