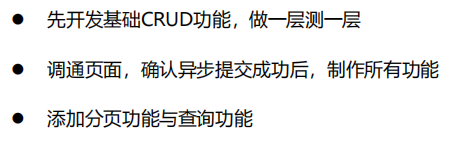

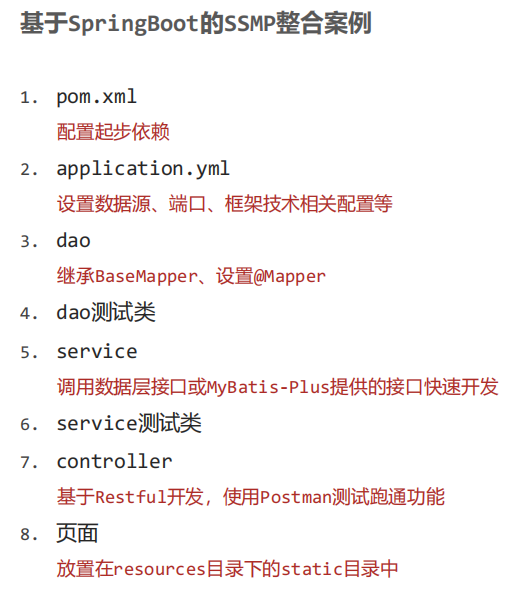

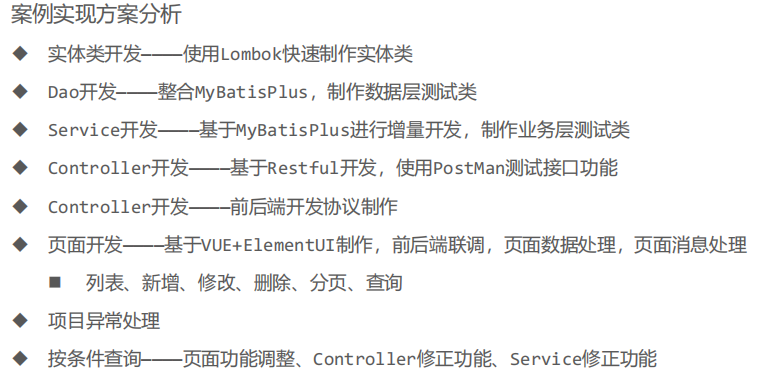

简而言之：
具体步骤如下：
一、创建项目

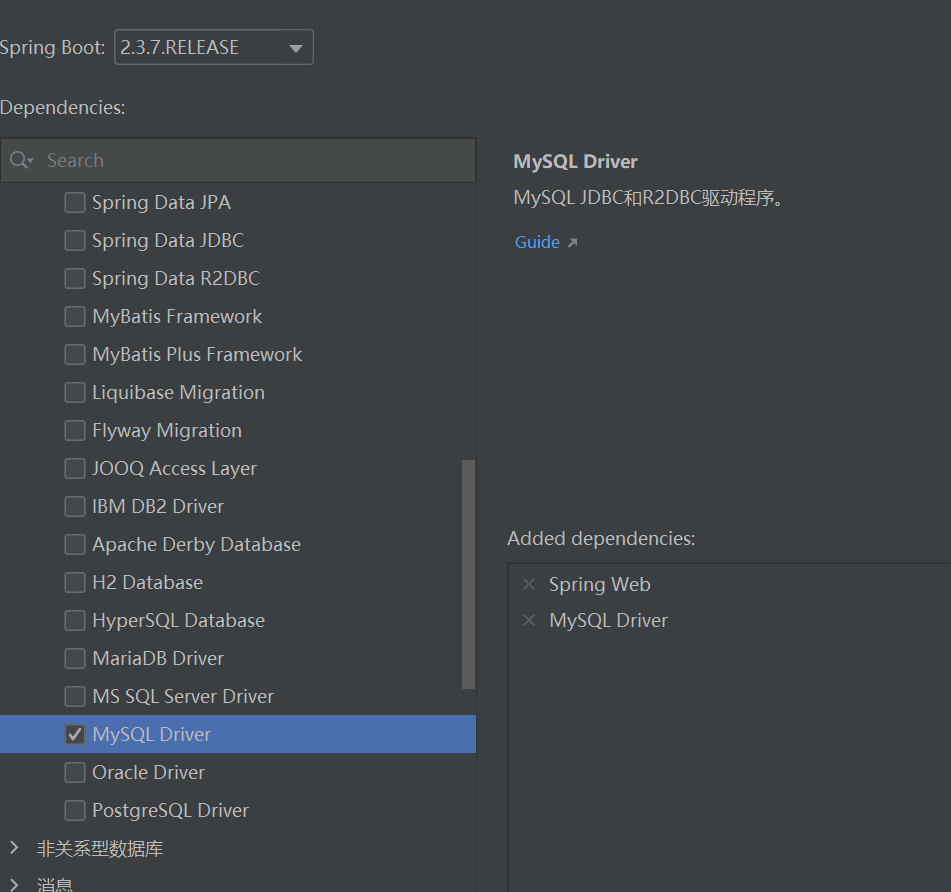

1、创建新模块，并勾选web与sql技术集：
2、手动导入所需的额外依赖：
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.5.1</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>1.2.6</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>3、修改配置文件：
server:
port: 80
spring:
datasource:
druid:
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://localhost:3306/test?rewriteBatchedStatements=true
username: root
password: mypassword
mybatis-plus:
configuration:
log-impl: org.apache.ibatis.logging.stdout.StdOutImpl4、表：
5、构建实体类：
@Data
@NoArgsConstructor
@AllArgsConstructor
@TableName("boot_book")
public class Book extends Model<Book> {
@TableId(type = IdType.AUTO)
private Integer id;
private String type;
private String name;
private String description;
}
二、数据层开发
1、构建mapper接口：
@Mapper
public interface BookMapper extends BaseMapper<Book> {
}2、配置文件中开启日志，并设置为标准输出：
mybatis-plus:
configuration:
log-impl: org.apache.ibatis.logging.stdout.StdOutImpl3、配置MP分页插件：
由于没有applicationContext.xml，配置方法与传统MP不同
package com.kvno.config;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class MPConfig {
//分页插件
@Bean
public MybatisPlusInterceptor mybatisPlusInterceptor(){
MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
interceptor.addInnerInterceptor(new PaginationInnerInterceptor());
return interceptor;
}
}
4、编写测试类：
@SpringBootTest
public class MapperTestCase {
@Autowired
BookMapper bookMapper;
@Test
public void testGetById() {
System.out.println(bookMapper.selectById(1));
}
@Test
public void testInsert() {
Book book = new Book();
book.setName("海绵宝宝");
book.setType("CH");
book.setDescription("yellow");
boolean result = book.insert();
System.out.println(result);
}
@Test
public void testUpdate() {
Book book = new Book();
book.setId(3);
book.setName("海绵宝宝");
book.setType("CH");
book.setDescription("square");
boolean result = book.updateById();
System.out.println(result);
}
@Test
public void testGetAll() {
List<Book> books = bookMapper.selectList(null);
for (Book book: books) {
System.out.println(book);
}
}
@Test
public void testGetPage() {
IPage<Book> page = new Page<>(1,1);
bookMapper.selectPage(page,null);
System.out.println(page.getCurrent());
System.out.println(page.getSize());
System.out.println(page.getTotal());
System.out.println(page.getPages());
System.out.println(page.getRecords());
}
@Test
public void testWrapper() {
QueryWrapper<Book> userQueryWrapper = new QueryWrapper<>();
userQueryWrapper.eq("type","CH");
bookMapper.selectList(userQueryWrapper);
}
}三、业务层开发

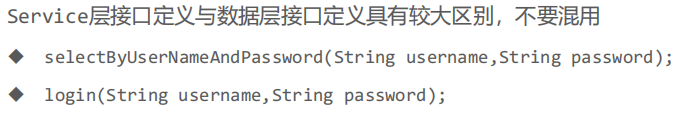

1、定义接口并编写实现类：
public interface BookService {
Boolean insert(Book book);
Boolean update(Book book);
Boolean delete(Integer id);
Book getById(Integer id);
List<Book> getAll();
IPage getPage(Integer currentpage,Integer sizePage);
}@Service
public class BookServiceImpl implements BookService {
@Autowired
private BookMapper bookMapper;
@Override
public Boolean insert(Book book) {
return book.insert();
}
@Override
public Boolean update(Book book) {
return book.updateById();
}
@Override
public Boolean delete(Integer id) {
return bookMapper.deleteById(id) > 0;
}
@Override
public Book getById(Integer id) {
return bookMapper.selectById(id);
}
@Override
public List<Book> getAll() {
return bookMapper.selectList(null);
}
@Override
public IPage getPage(Integer currentpage, Integer sizePage) {
IPage page = new Page(currentpage,sizePage);
return bookMapper.selectPage(page,null);
}
}2、编写测试类：
@SpringBootTest
public class ServiceTestCase {
@Autowired
private BookService bookService;
@Test
void testGetById() {
System.out.println(bookService.getById(1));
}
@Test
public void testInsert() {
Book book = new Book();
book.setName("test");
book.setType("CH");
book.setDescription("service");
bookService.insert(book);
}
@Test
void testUpdate(){
Book book = new Book();
book.setId(4);
book.setDescription("测试数据service");
bookService.update(book);
}
@Test
void testDelete(){
bookService.delete(4);
}
@Test
void testGetAll(){
bookService.getAll();
}
@Test
public void testGetPage() {
IPage page = bookService.getPage(2,1);
System.out.println(page.getCurrent());
System.out.println(page.getSize());
System.out.println(page.getTotal());
System.out.println(page.getPages());
System.out.println(page.getRecords());
}
}快速开发方案
-
使用MyBatisPlus提供有业务层通用接口（ISerivce<T>）快速开发service接口，使用业务层通用实现类（ServiceImpl<M,T>)快速开发service实现类；
-
在通用类基础上做功能重载或功能追加；
-
可以编写额外方法，注意重载时不要覆盖原始操作，避免原始提供的功能丢失。
与MP提供的BaseMapper类似，封装了各种业务层方法。简化了开发过程。
1、接口与实现类：
public interface IBookService extends IService<Book> {
boolean saveBook(Book book);
IPage<Book> getPage(int currentPage, int pageSize, Book book);
}@Service
public class QuickBookServiceImp extends ServiceImpl<BookMapper, Book> implements IBookService {
@Autowired
private BookMapper bookMapper;
@Override
public boolean saveBook(Book book) {
return bookMapper.insert(book) > 0;
}
@Override
public IPage<Book> getPage(int currentPage, int pageSize, Book book) {
LambdaQueryWrapper<Book> wrapper = new LambdaQueryWrapper<Book>();
wrapper.like(Strings.isNotEmpty(book.getType()),Book::getType,book.getType());
wrapper.like(Strings.isNotEmpty(book.getName()),Book::getName,book.getName());
wrapper.like(Strings.isNotEmpty(book.getDescription()),Book::getDescription,book.getDescription());
IPage page = new Page(currentPage,pageSize);
bookMapper.selectPage(page,wrapper);
return page;
}
}2、测试：
@SpringBootTest
public class QuickServiceTestCase {
@Autowired
private IBookService bookService;
@Test
void testGetById() {
System.out.println(bookService.getById(1));
}
@Test
public void testSave() {
Book book = new Book();
book.setName("test");
book.setType("CH");
book.setDescription("service");
bookService.save(book);
}
@Test
void testUpdate(){
Book book = new Book();
book.setId(4);
book.setDescription("测试数据service");
bookService.updateById(book);
}
@Test
void testDelete(){
bookService.removeById(4);
}
@Test
void testGetAll(){
bookService.list();
}
@Test
public void testGetPage() {
IPage page = new Page(2,1);
bookService.page(page);
System.out.println(page.getCurrent());
System.out.println(page.getSize());
System.out.println(page.getTotal());
System.out.println(page.getPages());
System.out.println(page.getRecords());
}
}四、表现层开发
- 基于Restful进行表现层接口开发
- 使用Postman测试接口功能
表现层业务接口测试
1、编写controller：
注：@RequestBody：接收前端传递给后端的请求体中的数据。
/*
表现层 测试业务层接口
@RequestBody:接收前端传递给后端的请求体中的数据
*/
//@RestController
@RequestMapping("/books")
public class BookControllerTest {
@Autowired
private IBookService bookService;
@GetMapping
public List<Book> getAll() {
return bookService.list();
}
@PostMapping
public Boolean save(@RequestBody Book book) { //@RequestBody
return bookService.save(book);
}
@PutMapping
public Boolean update(@RequestBody Book book) {
return bookService.updateById(book);
}
@DeleteMapping("/{id}")
public Boolean delete(@PathVariable(value = "id") Integer id) {
return bookService.removeById(id);
}
@GetMapping("/{id}")
public Book getById(@PathVariable(value = "id") Integer id) {
return bookService.getById(id);
}
@GetMapping("/{currentPage}/{pageSize}")
public IPage<Book> getPage(@PathVariable int currentPage, @PathVariable int pageSize){
IPage page = new Page(currentPage,pageSize);
return bookService.page(page);
}

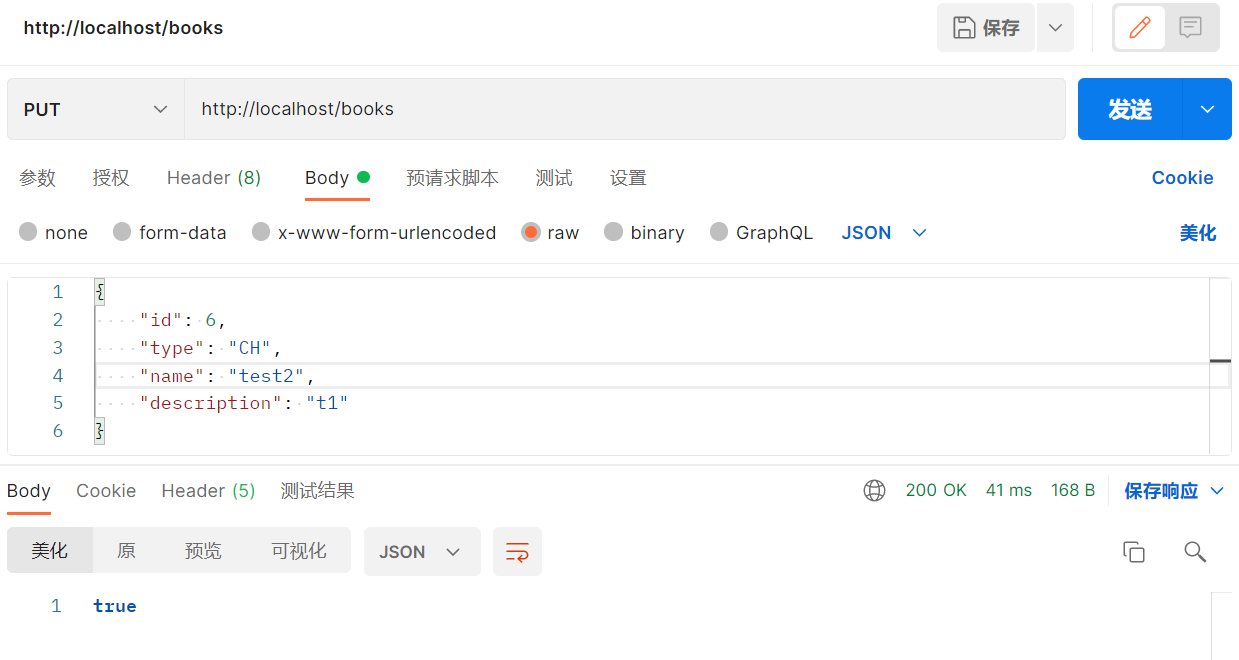

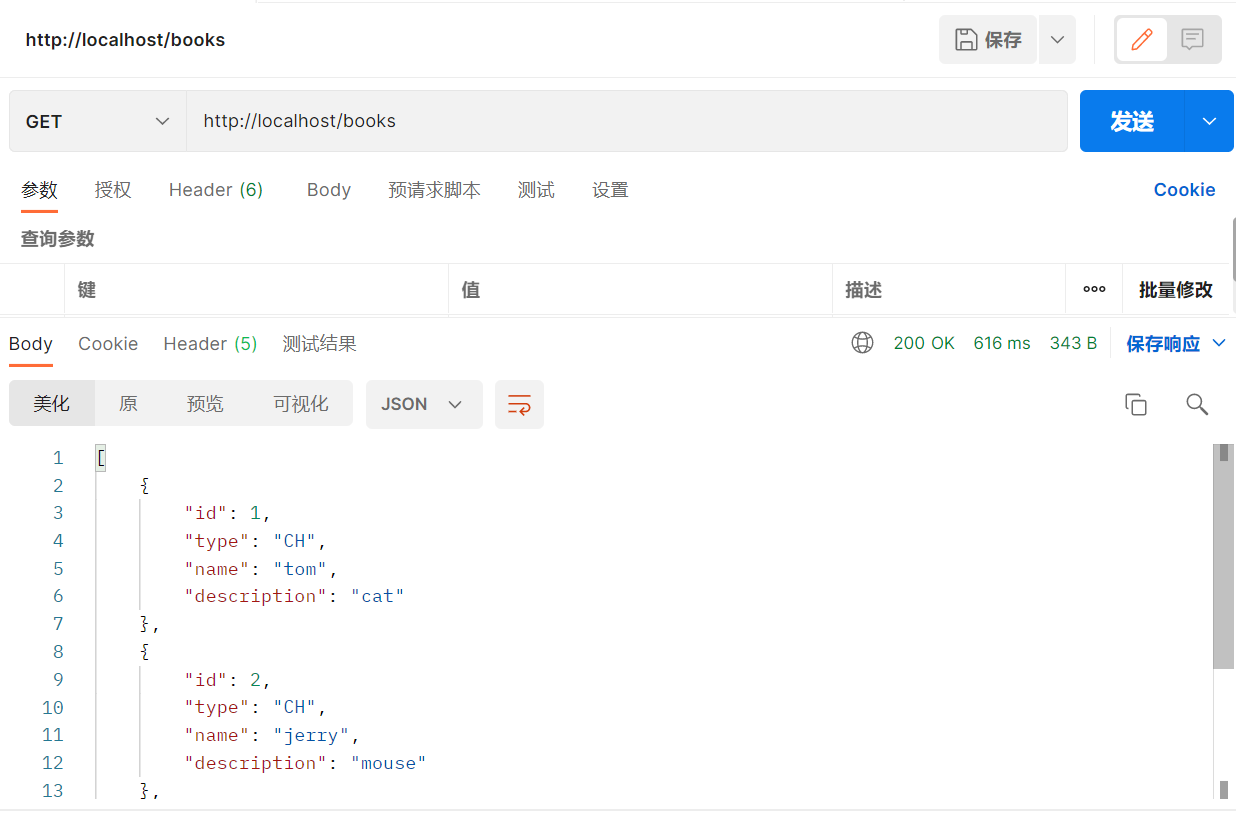

}2、测试：
表现层消息一致性处理

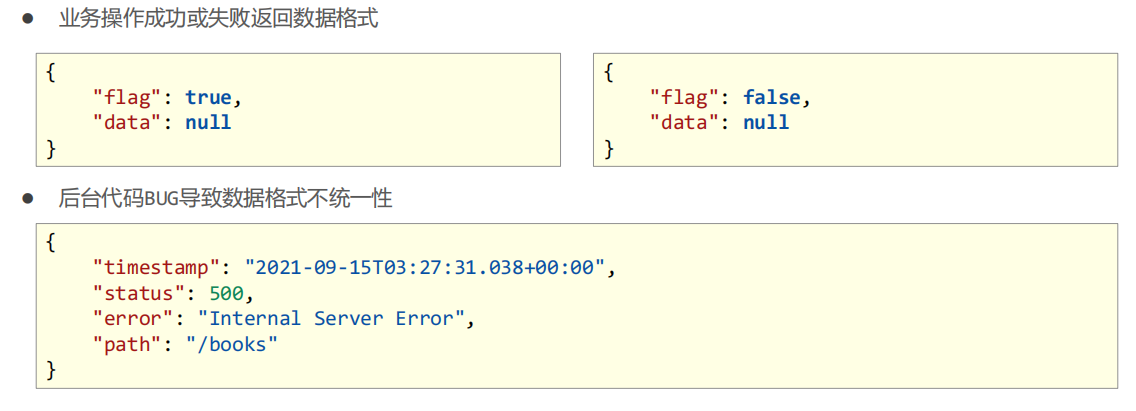

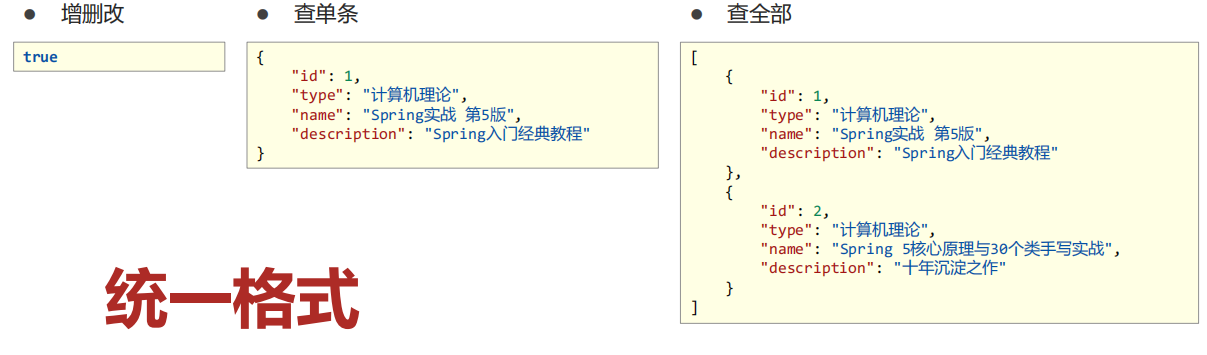

返回数据类型不一致会给前端带来不便：

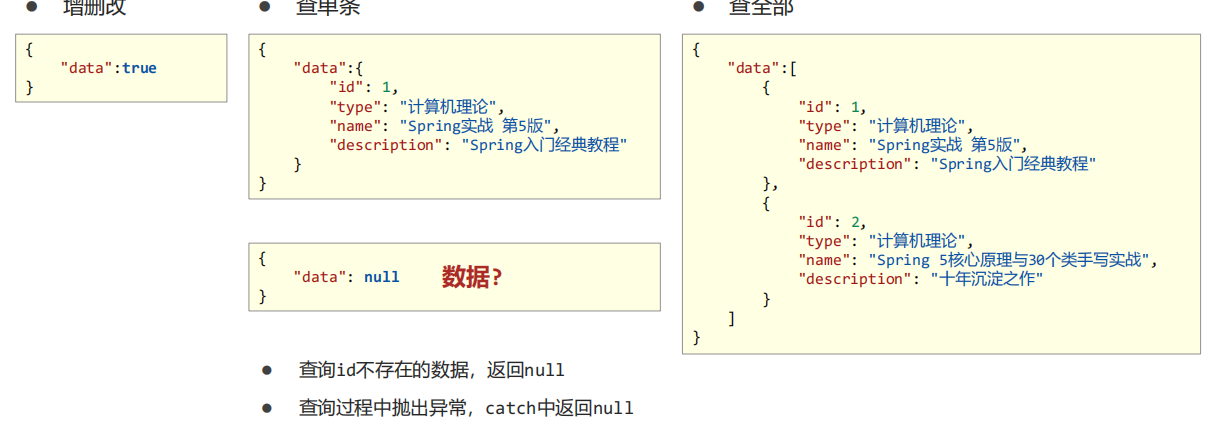

单纯地封装数据又会造成误解，如数据为null时：

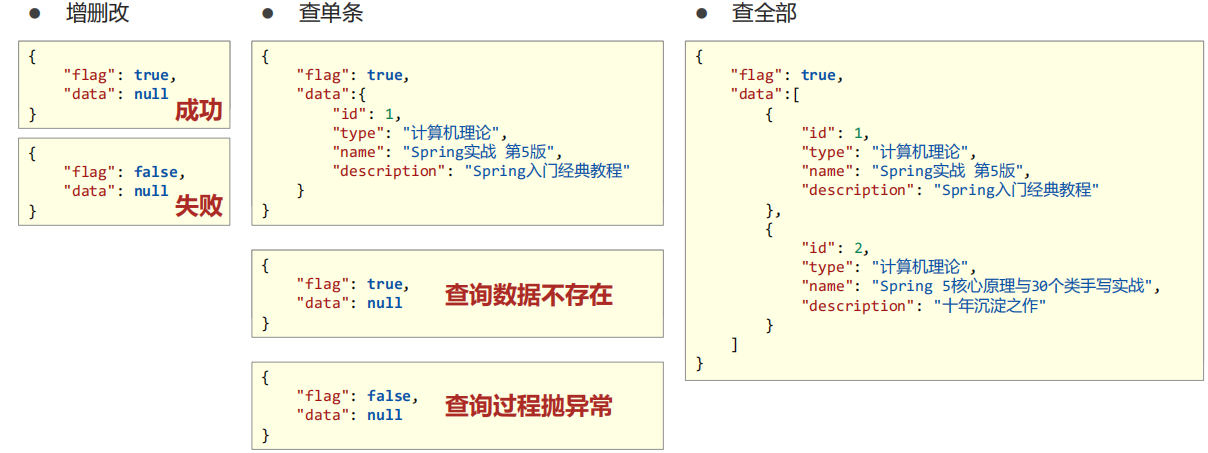

故采用以下格式：

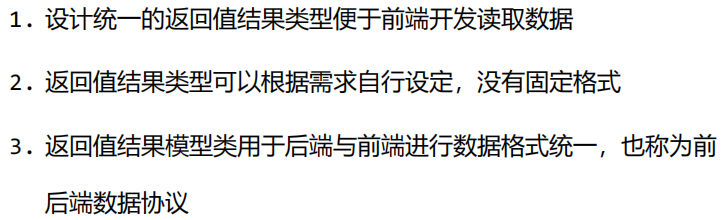

优点：
示例：
1、设计表现层返回结果的模型类，用于后端与前端进行数据格式统一，也称为前后端数据协议：
/*
统一表现层响应的数据返回值类型
*/
@Data
@NoArgsConstructor
@AllArgsConstructor
public class R { //Result
private Boolean flag;
private Object data;
public R(Boolean flag) {
this.flag = flag;
}
}
2、编写controller：
/*
统一了返回值类型的正式版表现层
*/
@RestController
@RequestMapping("/books")
public class BookController {
@Autowired
private IBookService bookService;
@GetMapping
public R getAll() {
return new R(true,bookService.list());
}
@PostMapping
public R save(@RequestBody Book book) { //@RequestBody:接收前端传递给后端的请求体中的数据
return new R(bookService.save(book));
}
@PutMapping
public R update(@RequestBody Book book) {
return new R(bookService.updateById(book));
}
@DeleteMapping("/{id}")
public R delete(@PathVariable(value = "id") Integer id) {
return new R(bookService.removeById(id));
}
@GetMapping("/{id}")
public R getById(@PathVariable(value = "id") Integer id) {
return new R(true,bookService.getById(id));
}
@GetMapping("/{currentPage}/{pageSize}")
public R getPage(@PathVariable int currentPage, @PathVariable int pageSize){
return new R(true,bookService.page(new Page(currentPage,pageSize)));
}

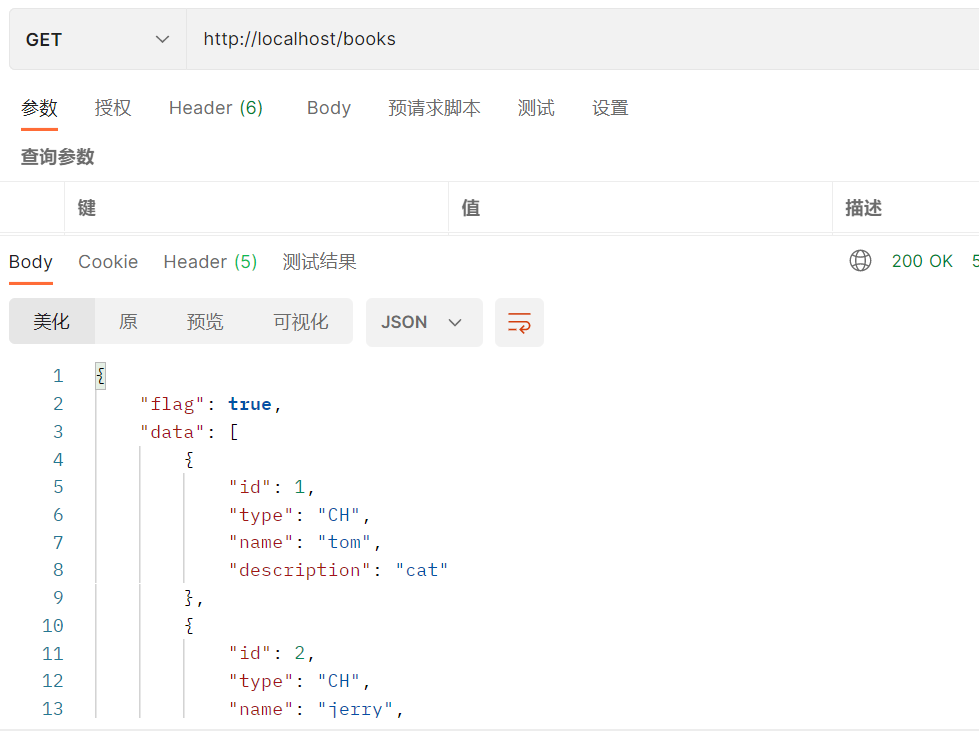

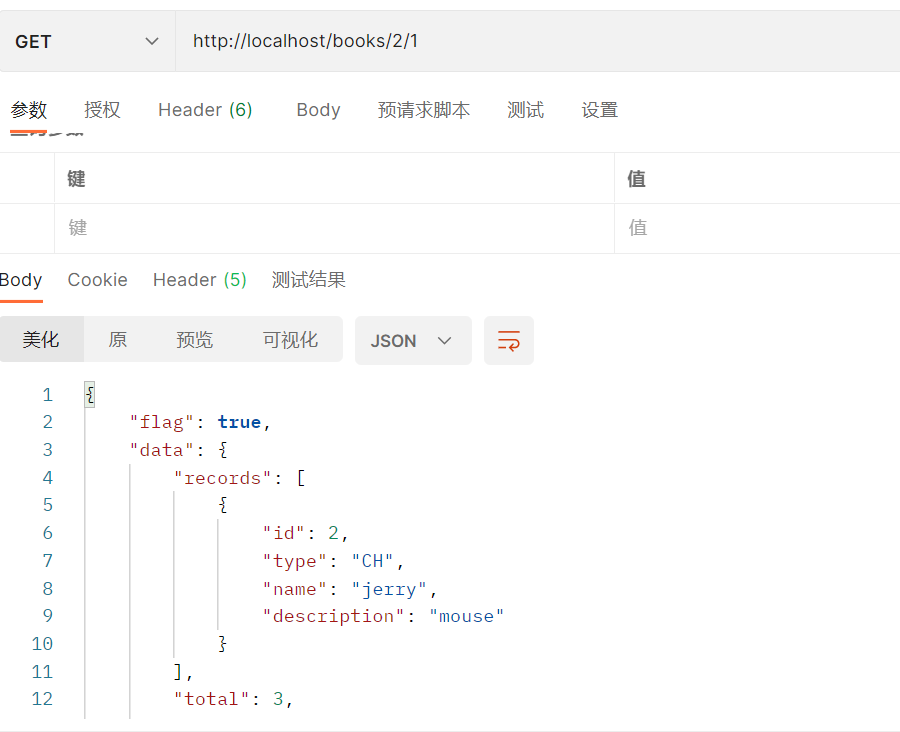

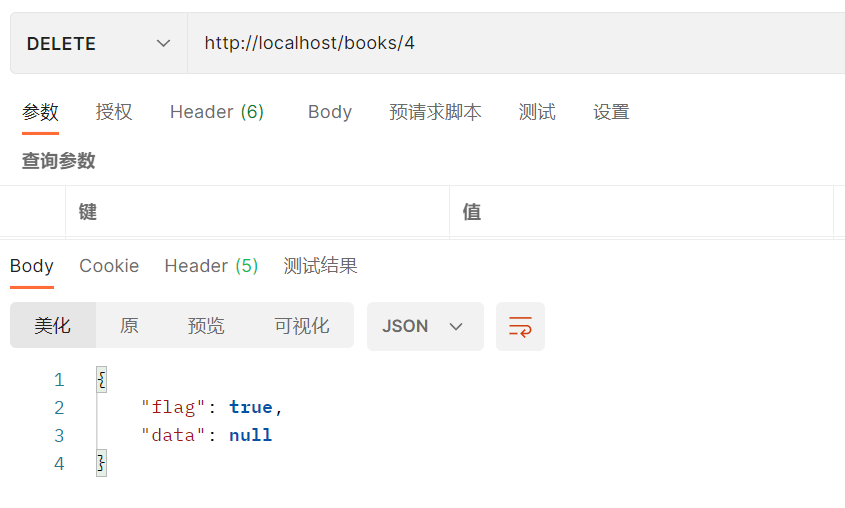

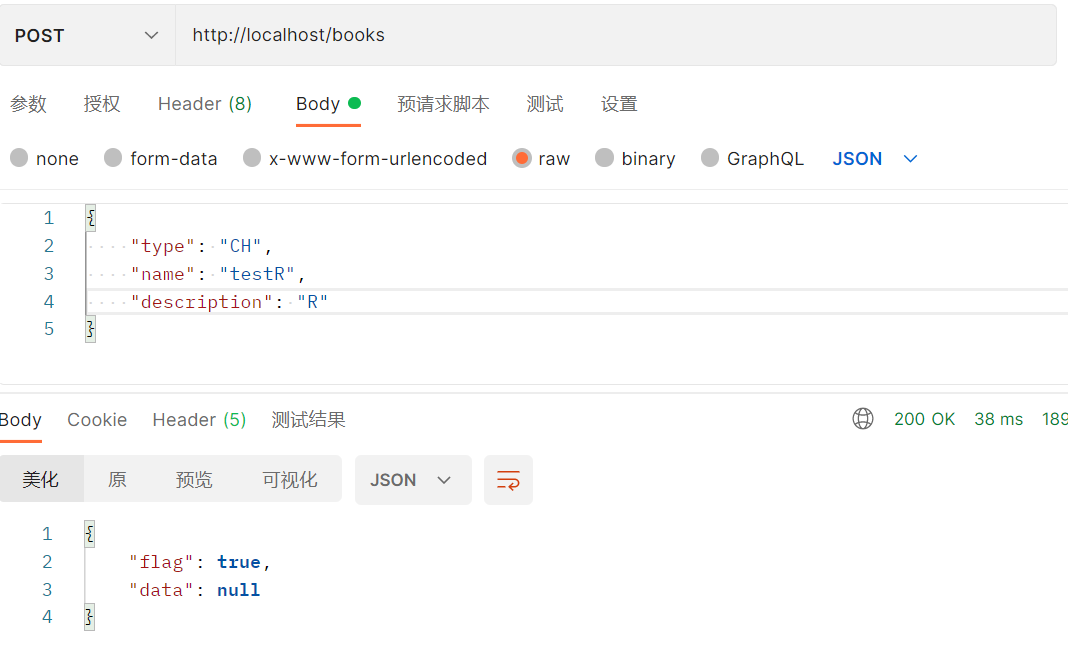

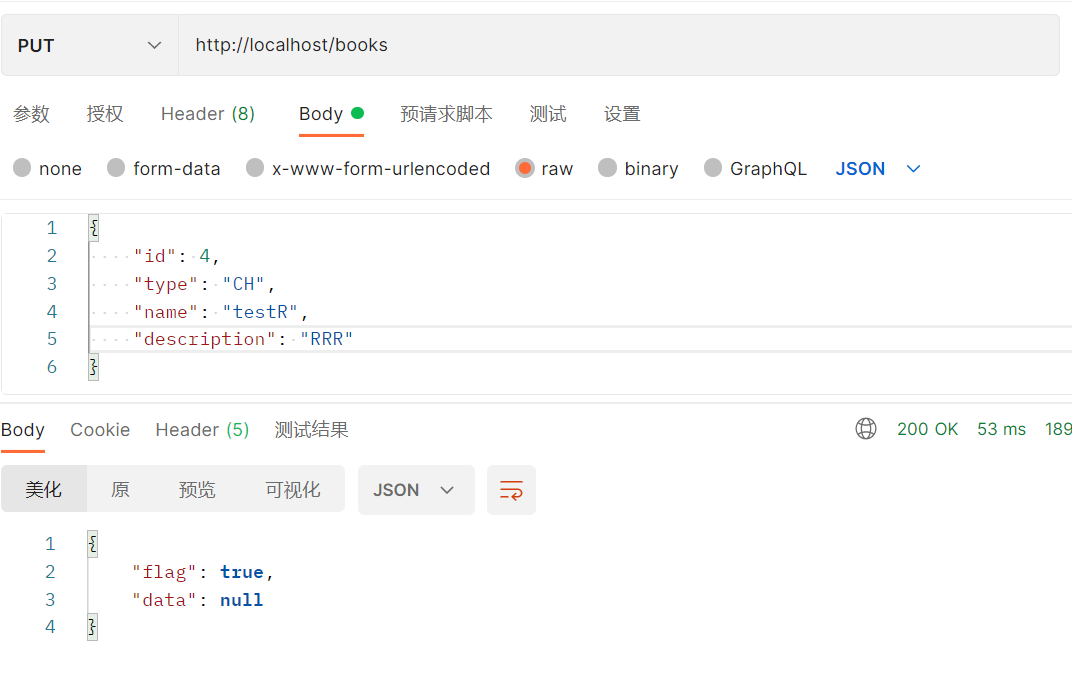

}3、测试：
异常消息一致性处理
1、使用注解@RestControllerAdvice定义SpringMVC异常处理器，异常处理器必须被扫描加载，否则无法生效；对异常消息进行统一处理，出现异常后返回指定类型：
@RestControllerAdvice
public class ProjectExceptionAdvice {
//拦截所有的异常信息
@ExceptionHandler(Exception.class)
public R doException(Exception ex){
//记录日志
//通知运维
//通知开发
ex.printStackTrace(); //控制台仍然要显示异常
return new R(false,"服务器故障，请稍后再试！");
}
}2、修改表现层返回结果的模型类，封装出现异常后对应的信息：
@Data
@NoArgsConstructor
@AllArgsConstructor
public class R { //Result
private Boolean flag;
private Object data;
private String msg;
public R(Boolean flag) {
this.flag = flag;
}
public R(Boolean flag,Object data) {
this.flag = flag;
this.data = data;
}
public R(Boolean flag,String msg) {
this.flag = flag;
this.msg = msg;
}

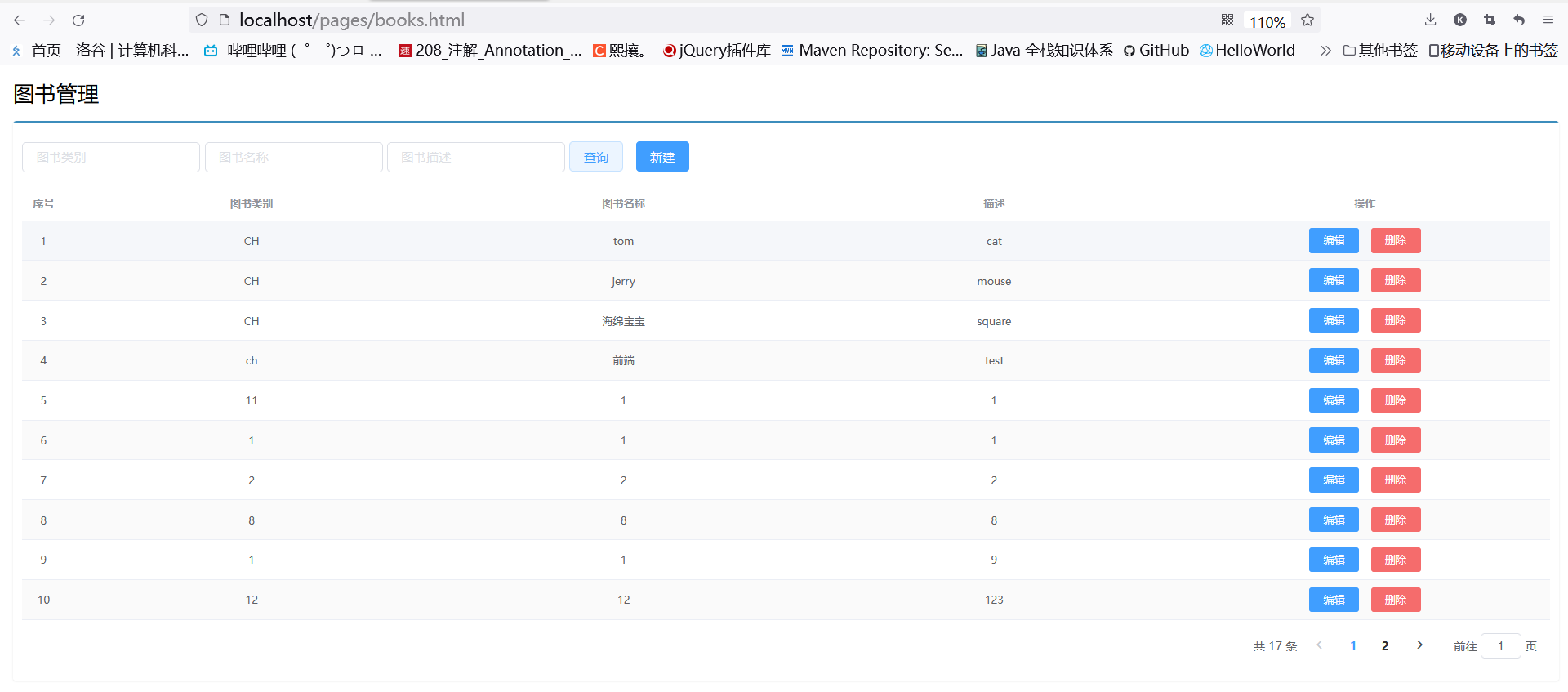

}五、前端页面开发
前后端分离结构设计中页面归属前端服务器，但本案例是但服务器结构，故将页面放在项目工程resources
目录下的
static

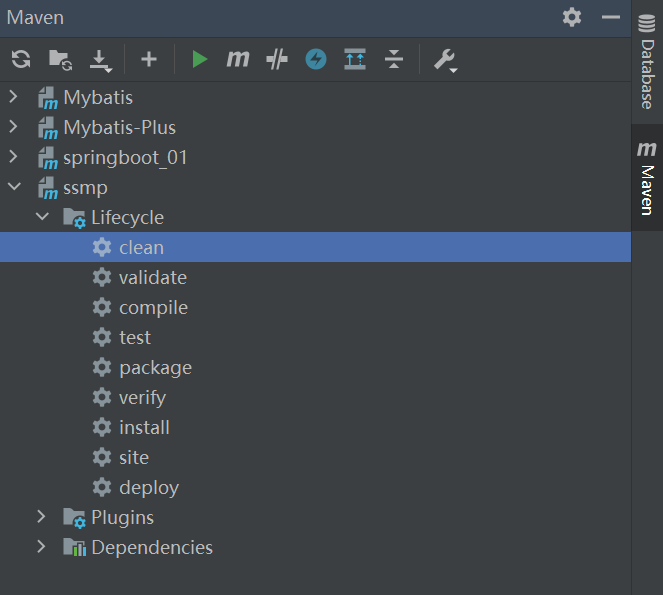

目录中，建议放置完后执行Maven的clean命令：
页面html：
<!DOCTYPE html>
<html>
<head>
<!-- 页面meta -->
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<title>SpringBoot整合SSM案例</title>
<meta content="width=device-width,initial-scale=1,maximum-scale=1,user-scalable=no" name="viewport">
<!-- 引入样式 -->
<link rel="stylesheet" href="../plugins/elementui/index.css">
<link rel="stylesheet" href="../plugins/font-awesome/css/font-awesome.min.css">
<link rel="stylesheet" href="../css/style.css">
</head>
<body class="hold-transition">
<div id="app">
<div class="content-header">
<h1>图书管理</h1>
</div>
<div class="app-container">
<div class="box">
<div class="filter-container">
<el-input placeholder="图书类别" v-model="pagination.type" style="width: 200px;" class="filter-item"></el-input>
<el-input placeholder="图书名称" v-model="pagination.name" style="width: 200px;" class="filter-item"></el-input>
<el-input placeholder="图书描述" v-model="pagination.description" style="width: 200px;" class="filter-item"></el-input>
<el-button @click="getAll()" class="dalfBut">查询</el-button>
<el-button type="primary" class="butT" @click="handleCreate()">新建</el-button>
</div>
<el-table size="small" current-row-key="id" :data="dataList" stripe highlight-current-row>
<el-table-column type="index" align="center" label="序号"></el-table-column>
<el-table-column prop="type" label="图书类别" align="center"></el-table-column>
<el-table-column prop="name" label="图书名称" align="center"></el-table-column>
<el-table-column prop="description" label="描述" align="center"></el-table-column>
<el-table-column label="操作" align="center">
<template slot-scope="scope">
<el-button type="primary" size="mini" @click="handleUpdate(scope.row)">编辑</el-button>
<el-button type="danger" size="mini" @click="handleDelete(scope.row)">删除</el-button>
</template>
</el-table-column>
</el-table>
<!--分页组件-->
<div class="pagination-container">
<!-- @current-change 要放在以“:”开头的所有参数的上方 -->
<el-pagination
class="pagiantion"
layout="total, prev, pager, next, jumper"
@current-change="handleCurrentChange"
:current-page.sync="pagination.currentPage"
:page-size="pagination.pageSize"
:total="pagination.total">
</el-pagination>
</div>
<!-- 新增标签弹层 -->
<div class="add-form">
<el-dialog title="新增图书" :visible.sync="dialogFormVisible">
<el-form ref="dataAddForm" :model="formData" :rules="rules" label-position="right" label-width="100px">
<el-row>
<el-col :span="12">
<el-form-item label="图书类别" prop="type">
<el-input v-model="formData.type"/>
</el-form-item>
</el-col>
<el-col :span="12">
<el-form-item label="图书名称" prop="name">
<el-input v-model="formData.name"/>
</el-form-item>
</el-col>
</el-row>
<el-row>
<el-col :span="24">
<el-form-item label="描述">
<el-input v-model="formData.description" type="textarea"></el-input>
</el-form-item>
</el-col>
</el-row>
</el-form>
<div slot="footer" class="dialog-footer">
<el-button @click="cancel()">取消</el-button>
<el-button type="primary" @click="handleAdd()">确定</el-button>
</div>
</el-dialog>
</div>
<!-- 编辑标签弹层 -->
<div class="add-form">
<el-dialog title="编辑检查项" :visible.sync="dialogFormVisible4Edit">
<el-form ref="dataEditForm" :model="formData" :rules="rules" label-position="right" label-width="100px">
<el-row>
<el-col :span="12">
<el-form-item label="图书类别" prop="type">
<el-input v-model="formData.type"/>
</el-form-item>
</el-col>
<el-col :span="12">
<el-form-item label="图书名称" prop="name">
<el-input v-model="formData.name"/>
</el-form-item>
</el-col>
</el-row>
<el-row>
<el-col :span="24">
<el-form-item label="描述">
<el-input v-model="formData.description" type="textarea"></el-input>
</el-form-item>
</el-col>
</el-row>
</el-form>
<div slot="footer" class="dialog-footer">
<el-button @click="cancel()">取消</el-button>
<el-button type="primary" @click="handleEdit()">确定</el-button>
</div>
</el-dialog>
</div>
</div>
</div>
</div>
</body>
<!-- 引入组件库 -->
<script src="../js/vue.js"></script>
<script src="../plugins/elementui/index.js"></script>
<script type="text/javascript" src="../js/jquery.min.js"></script>
<script src="../js/axios-0.18.0.js"></script>
<script>
var vue = new Vue({
el: '#app',
data:{
dataList: [],//当前页要展示的列表数据
dialogFormVisible: false,//添加表单是否可见
dialogFormVisible4Edit:false,//编辑表单是否可见
formData: {},//表单数据
rules: {//校验规则
type: [{ required: true, message: '图书类别为必填项', trigger: 'blur' }],
name: [{ required: true, message: '图书名称为必填项', trigger: 'blur' }]
},
pagination: {//分页相关模型数据
currentPage: 1,//当前页码
pageSize:10,//每页显示的记录数
total:0,//总记录数
//条件查询
type: "",
name: "",
description: ""
},
},
//钩子函数，VUE对象初始化完成后自动执行，效果为每次打开页面都会执行该操作
created() {
this.getAll();
},
methods: {
// //列表
// getAll() {
// //发送异步请求
// axios.get("/books").then((res)=>{
// // console.log(res.data);
// this.dataList = res.data.data;
// });
// },
//分页查询
getAll() {
//组织条件查询参数，拼接url请求地址
param = "?type="+this.pagination.type;
param +="&name="+this.pagination.name;
param +="&description="+this.pagination.description;
//发送异步请求
axios.get("/books/"+this.pagination.currentPage+"/"+this.pagination.pageSize+param).then((res)=>{
this.pagination.pageSize = res.data.data.size;
this.pagination.currentPage = res.data.data.current;
this.pagination.total = res.data.data.total;
this.dataList = res.data.data.records;
});
},
//切换页码
handleCurrentChange(currentPage) {
//修改页码值为当前选中的页码值
this.pagination.currentPage = currentPage;
//执行查询
this.getAll();
},
//弹出添加窗口
handleCreate() {
this.dialogFormVisible = true;
this.resetForm(); //重置表单
},
//重置表单
resetForm() {
this.formData = {};
},
//添加
handleAdd () {
axios.post("/books",this.formData).then((res)=>{
//判断当前操作是否成功
if(res.data.flag){
//1.关闭弹层
this.dialogFormVisible = false;
this.$message.success(res.data.msg);
}else{
this.$message.error(res.data.msg);
}
}).finally(()=>{
//2.重新加载数据
this.getAll();
});
},
//取消
cancel(){
this.dialogFormVisible = false;
this.dialogFormVisible4Edit = false;
this.$message.info("当前操作取消");
},
// 删除
handleDelete(row) {
this.$confirm("此操作永久删除当前信息，是否继续？","提示",{type:"info"}).then(()=>{
axios.delete("/books/"+row.id).then((res)=>{
if(res.data.flag){
this.$message.success("删除成功");
}else{
this.$message.error("数据同步失败，自动刷新");
}
}).finally(()=>{
//2.重新加载数据
this.getAll();
});
}).catch(()=>{
this.$message.info("取消操作");
});
},
//弹出编辑窗口
handleUpdate(row) {
axios.get("/books/"+row.id).then((res)=>{
if(res.data.flag && res.data.data != null ){
this.dialogFormVisible4Edit = true;
this.formData = res.data.data;
}else{
this.$message.error("数据同步失败，自动刷新");
}
}).finally(()=>{
//2.重新加载数据
this.getAll();
});
},
//修改
handleEdit() {
axios.put("/books",this.formData).then((res)=>{
//判断当前操作是否成功
if(res.data.flag){
//1.关闭弹层
this.dialogFormVisible4Edit = false;
this.$message.success("修改成功");
}else{
this.$message.error("修改失败");
}
}).finally(()=>{
//2.重新加载数据
this.getAll();
});
},
}
})
</script>
</html>整合需求后的controller：
@RestController
@RequestMapping("/books")
public class BookController {
@Autowired
private IBookService bookService;
@GetMapping
public R getAll() {
return new R(true,bookService.list());
}
@PostMapping
public R save(@RequestBody Book book) throws IOException { //@RequestBody:接收前端传递给后端的请求体中的数据
//测试异常消息一致性处理
/*if(book.getName().equals("123")) {
throw new IOException();
}*/
Boolean flag = bookService.save(book);
return new R(flag,flag ? "添加成功" : "添加失败");
}
@PutMapping
public R update(@RequestBody Book book) {
return new R(bookService.updateById(book));
}
@DeleteMapping("/{id}")
public R delete(@PathVariable(value = "id") Integer id) {
return new R(bookService.removeById(id));
}
@GetMapping("/{id}")
public R getById(@PathVariable(value = "id") Integer id) {
return new R(true,bookService.getById(id));
}
@GetMapping("/{currentPage}/{pageSize}")
public R getPage(@PathVariable int currentPage, @PathVariable int pageSize,Book book){
IPage<Book> page = bookService.getPage(currentPage, pageSize,book);
//如果当前页码值大于了总页码值，那么重新执行查询操作，使用最大页码值作为当前页码值
if( currentPage > page.getPages()){
page = bookService.getPage((int)page.getPages(), pageSize,book);
}
return new R(true, page);
}
}效果：
六、总结
至此，SpringBoot基础篇学习完毕。
扫一扫
1758
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
