Mybatis-flex的增、删、改，查，使用swagger (knife4J)

在现代的 Java 开发中，Mybatis - Flex 为数据库操作提供了高效灵活的方式，而 Swagger（Knife4J）则极大地改善了 API 的文档化和测试体验。将两者结合起来，对于开发人员来说是提高效率、增强协作以及保证代码质量的有效手段。本文将详细介绍 Mybatis - Flex 在增删改方面的操作，并阐述如何与 Swagger（Knife4J）协同工作。
针对Mybatis - Flex 的增、删、改、查，前期准备可参考我的第一篇博客，且沿用了前期的配置环境。

一、项目目录结构

新增的包：config
新增类和接口：Knife4jConfig、BuildingController、Building、BuildingMapper、BuildingServiceImpl、BuildingService

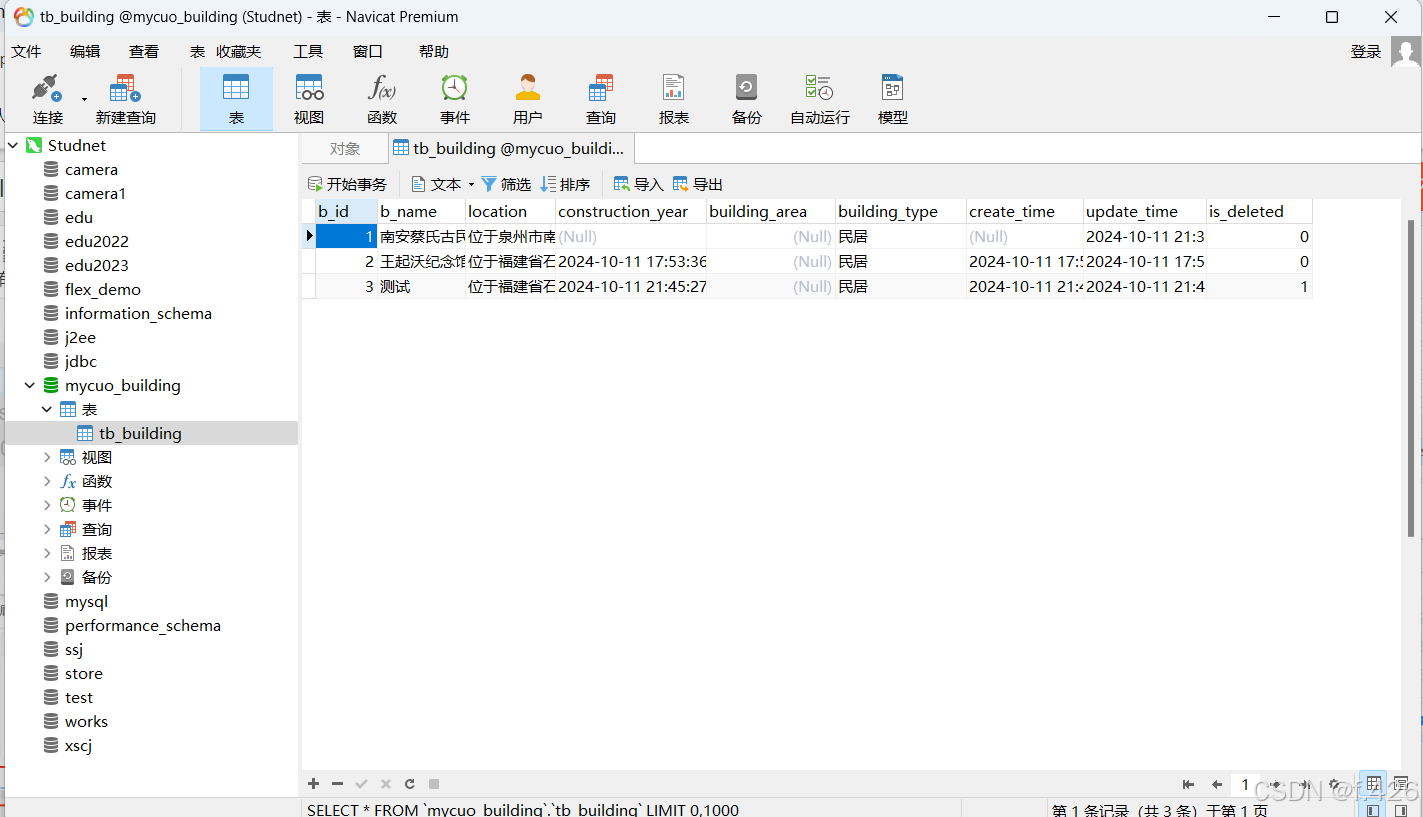

二、创建数据库

CREATE TABLE `tb_building`  (
  `b_id` int(0) NOT NULL AUTO_INCREMENT,
  `b_name` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `location` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `construction_year` datetime(0) NULL DEFAULT NULL,
  `building_area` double NULL DEFAULT NULL,
  `building_type` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `create_time` datetime(0) NULL DEFAULT NULL,
  `update_time` datetime(0) NULL DEFAULT NULL,
  `is_deleted` int(0) NULL DEFAULT 1,
  PRIMARY KEY (`b_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

三、引入Knife4J依赖包并配置

（1）添加在pom.xml中

<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>knife4j-spring-boot-starter</artifactId>
    <version>2.0.9</version>
</dependency>

（2）配置Knife4jConfig.java类

具体代码:

package com.mybatisflex.demo.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2WebMvc;

import java.util.ArrayList;

@Configuration
@EnableSwagger2WebMvc
public class Knife4jConfig {
    @Bean
    public Docket docket(){
        return  new Docket(DocumentationType.SWAGGER_2)
            .apiInfo(apiInfo())
            .select()
            .apis(RequestHandlerSelectors.basePackage("com.mybatisflex.demo.controlle"))
            .paths(PathSelectors.any())
            .build();
    }
    private ApiInfo apiInfo() {
        Contact author = new Contact("xxx", "地址", "邮箱");
        return new ApiInfo(
            "闽南古厝建筑文档",
            "闽南古厝建筑文档",
            "1.0",
            "",
            author,
            "",
            "",
            new ArrayList()
        );
    }
}

（3）配置yml文件

具体代码：

  mvc:
    pathmatch:
      matching-strategy: ant_path_matcher

运行测试： http://localhost:8080/doc.html#/home

四、对其进行增、删、改、查

创建所需要的映射文件
（1）创建实体类Building.java

具体代码：

package com.mybatisflex.demo.entity;

import com.mybatisflex.annotation.Column;
import com.mybatisflex.annotation.Id;
import com.mybatisflex.annotation.KeyType;
import com.mybatisflex.annotation.Table;
import lombok.Data;

import java.util.Date;

@Data
@Table("tb_building")
public class Building {
    @Id(keyType = KeyType.Auto)
    private Integer b_id;
    private String b_name;
    @Column(isLarge = true)//判断是否是大字段，大字段APT不会生成到 DEFAULT_COLUMNS 里
    private String location;
    @Column(onInsertValue = "now()")//insert 的时候默认值，这个值会直接被拼接到 sql 而不通过参数设置
    private Date construction_year;
    private Double building_area;
    private String building_type;
    @Column(onInsertValue = "now()")
    private Date create_time;
    @Column(onInsertValue = "now()",onUpdateValue = "now()")//update 的时候自动赋值，这个值会直接被拼接到 sql 而不通过参数设置
    private Date update_time;
    @Column(isLogicDelete = true)
    private Boolean isDeleted;
}

（2）创建Service层的接口BuildingService

具体代码：

package com.mybatisflex.demo.service;

import com.mybatisflex.core.service.IService;
import com.mybatisflex.demo.entity.Building;

public interface BuildingService extends IService<Building> {
}

（3）创建Service的具体类BuildingServiceImpl.java

具体代码：

package com.mybatisflex.demo.service.impl;

import com.mybatisflex.demo.entity.Building;
import com.mybatisflex.demo.mapper.BuildingMapper;
import com.mybatisflex.demo.service.BuildingService;
import com.mybatisflex.spring.service.impl.ServiceImpl;
import org.springframework.stereotype.Service;
@Service
public class BuildingServiceImpl extends ServiceImpl<BuildingMapper, Building> implements BuildingService {
}

（4）创建Mapper层上的接口BuildingMapper

具体代码：

package com.mybatisflex.demo.mapper;

import com.mybatisflex.core.BaseMapper;
import com.mybatisflex.demo.entity.Building;
public interface BuildingMapper extends BaseMapper<Building> {
}

（5）创建controller层上的类BuildingController.java

具体代码：

package com.mybatisflex.demo.controller;

import com.mybatisflex.demo.entity.Building;
import com.mybatisflex.demo.service.BuildingService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
@RequestMapping("/api/building")
public class BuildingController {
    @Autowired
    private BuildingService buildingService;
    @PostMapping("/create")
    public Boolean create(Building building){
        return buildingService.save(building);
    }
    @PostMapping("/update")
    public Boolean update(Building building){
        return  buildingService.updateById(building);
    }
    @GetMapping("/delete")
    public Boolean delete(Integer b_id){
        return buildingService.removeById(b_id);
    }
    @GetMapping("/all")
    public List<Building> all(){
        return buildingService.list();
    }
    @GetMapping("/one")
    public Building one(Integer b_id){
        return buildingService.getById(b_id);
    }
}

五、测试

对各个功能进行测试
增加数据

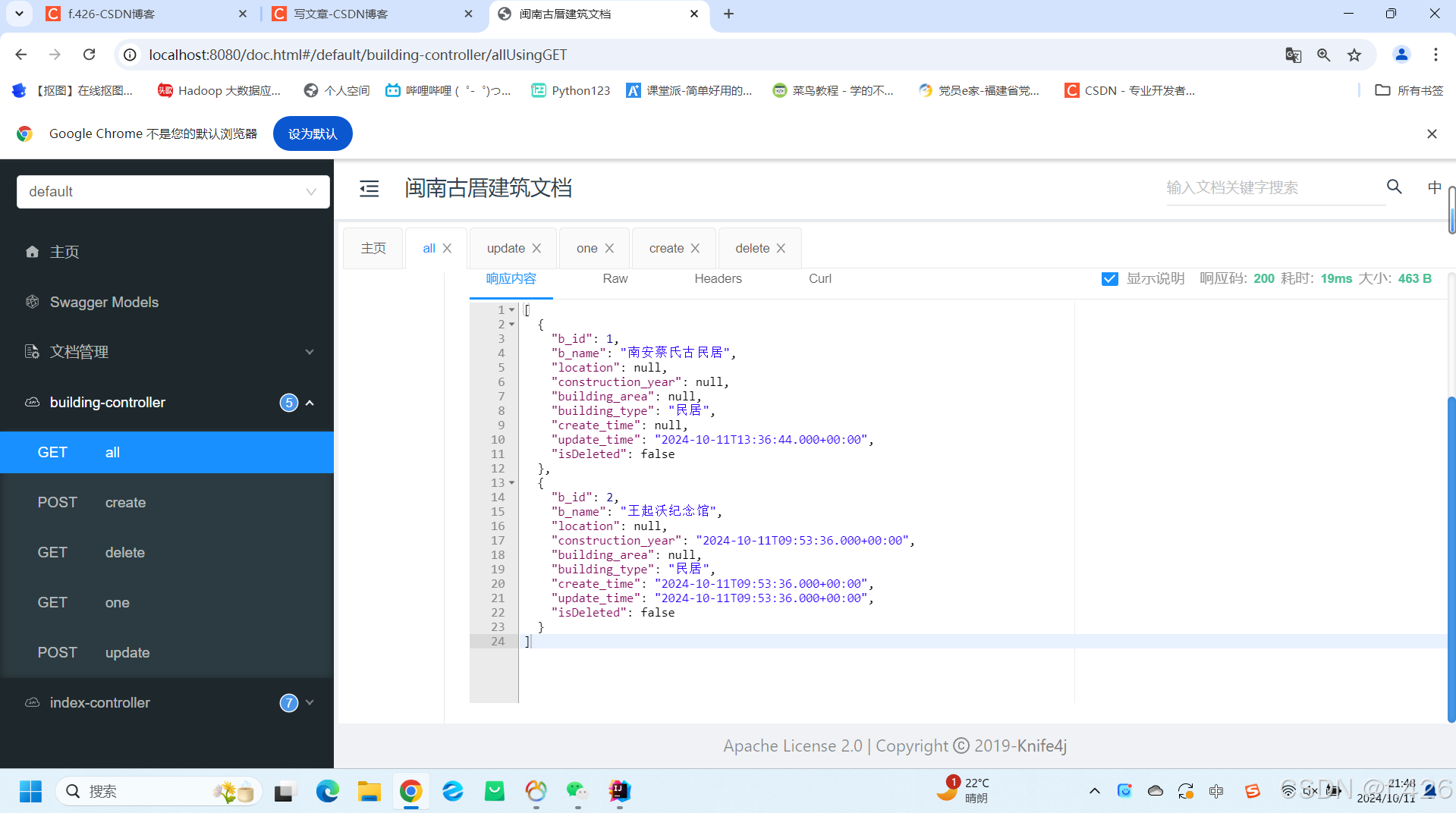

查询所有数据

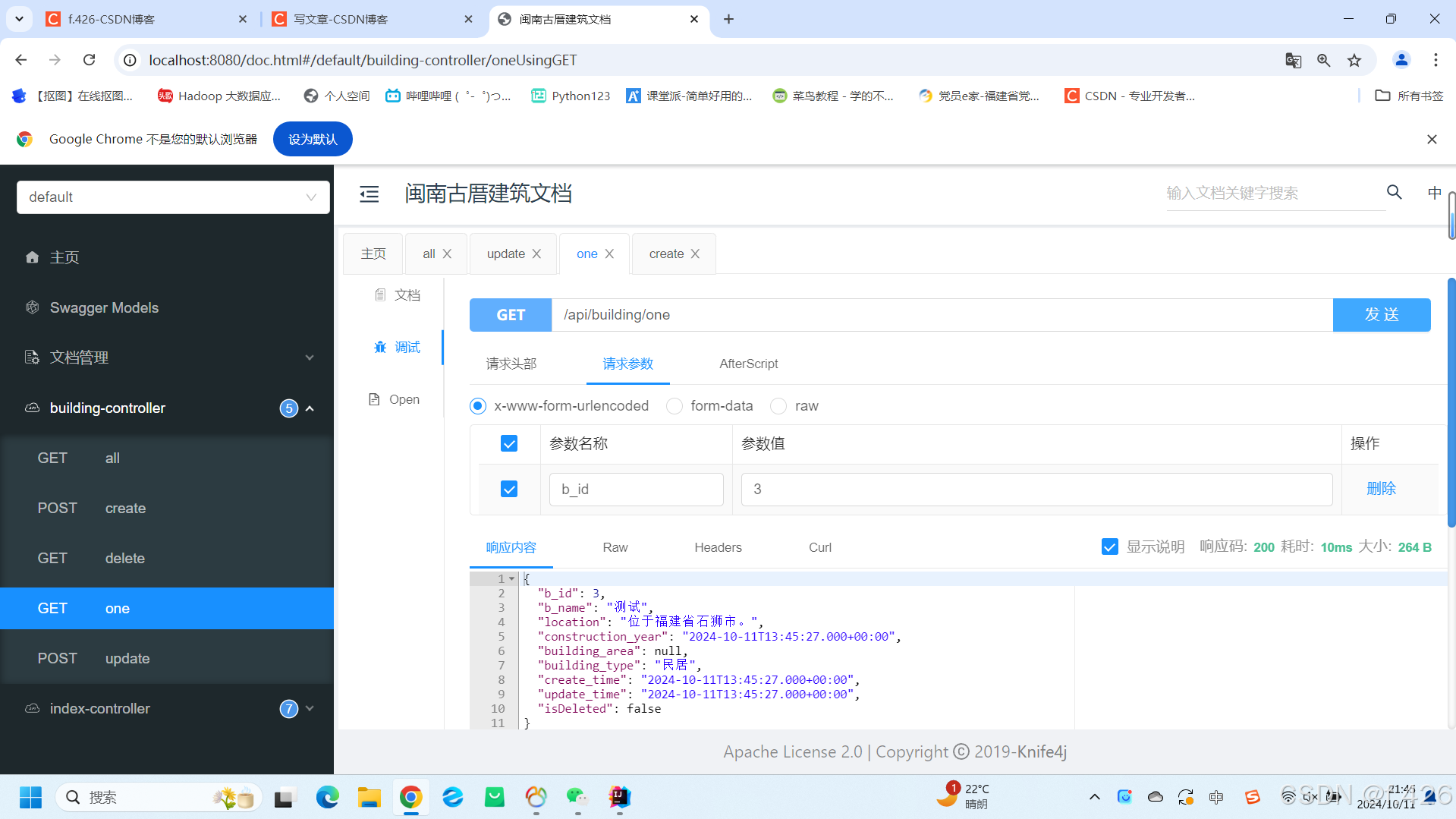

查询单个数据

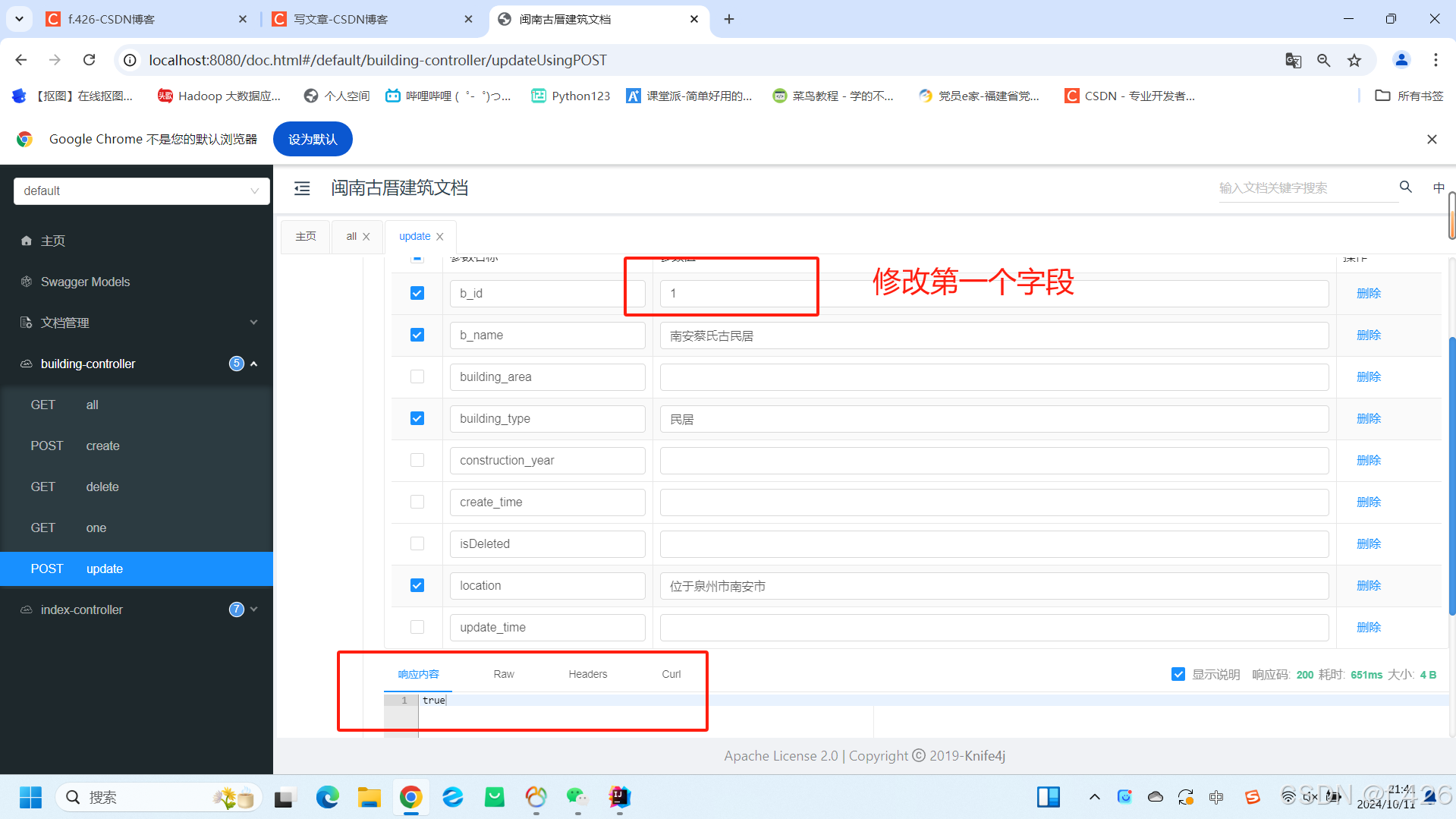

修改数据

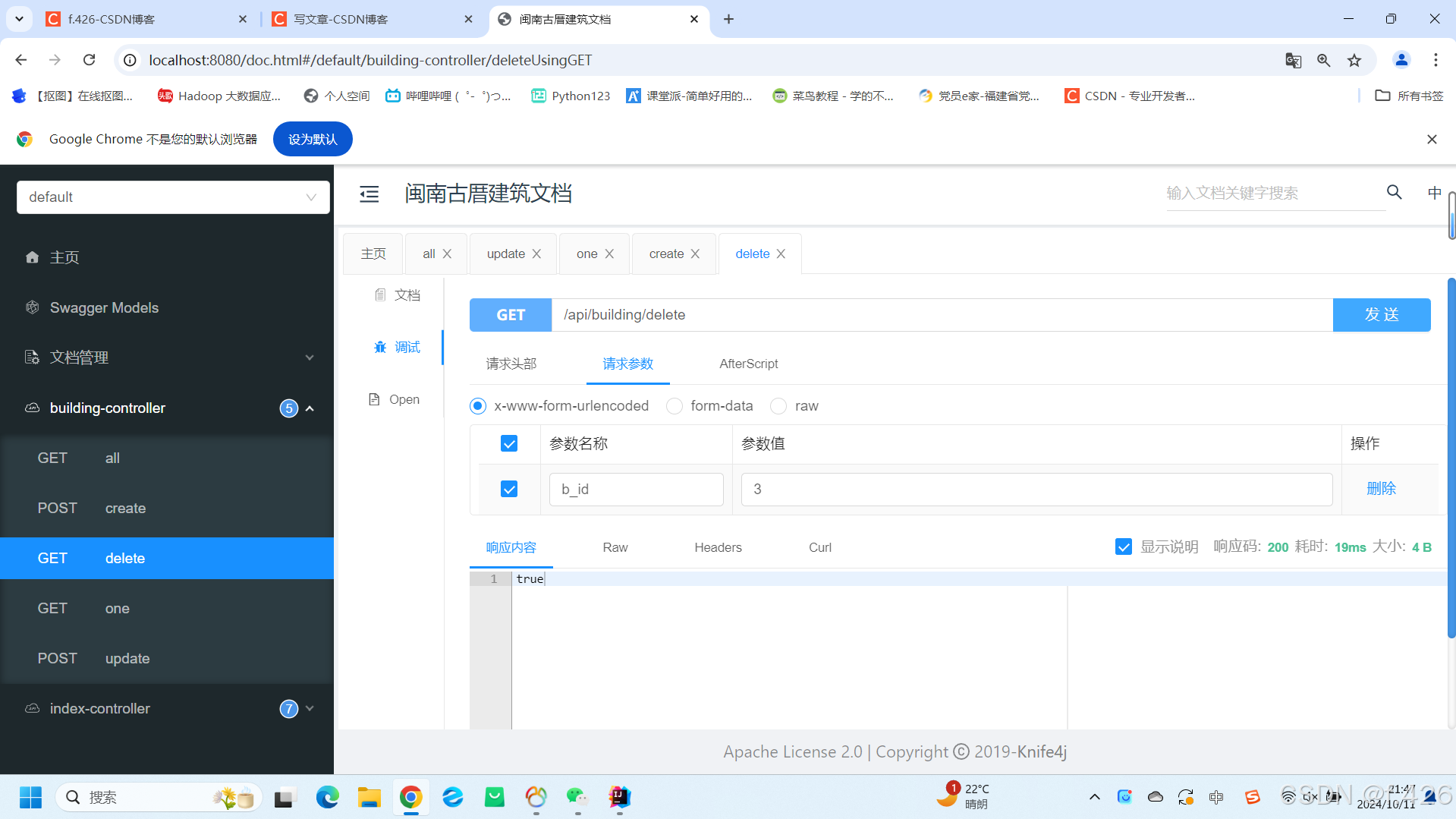

删除数据（删除是只删除在线文档上的，实际的数据库中是没有被删除的）
