官方代码脚本

Generate certificates using cryptogen tool
export PATH=${PWD}/../bin:${PWD}:$PATH
cryptogen generate --config=./crypto-config.yaml

Generating Orderer Genesis block
configtxgen -profile TwoOrgsOrdererGenesis -channelID byfn-sys-channel -outputBlock ./channel-artifacts/genesis.block

Generating channel configuration transaction 'channel.tx'
configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID mychannel

Generating anchor peer update for Org1MSP
configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID mychannel -asOrg Org1MSP

Generating anchor peer update for Org2MSP
configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID mychannel -asOrg Org2MSP

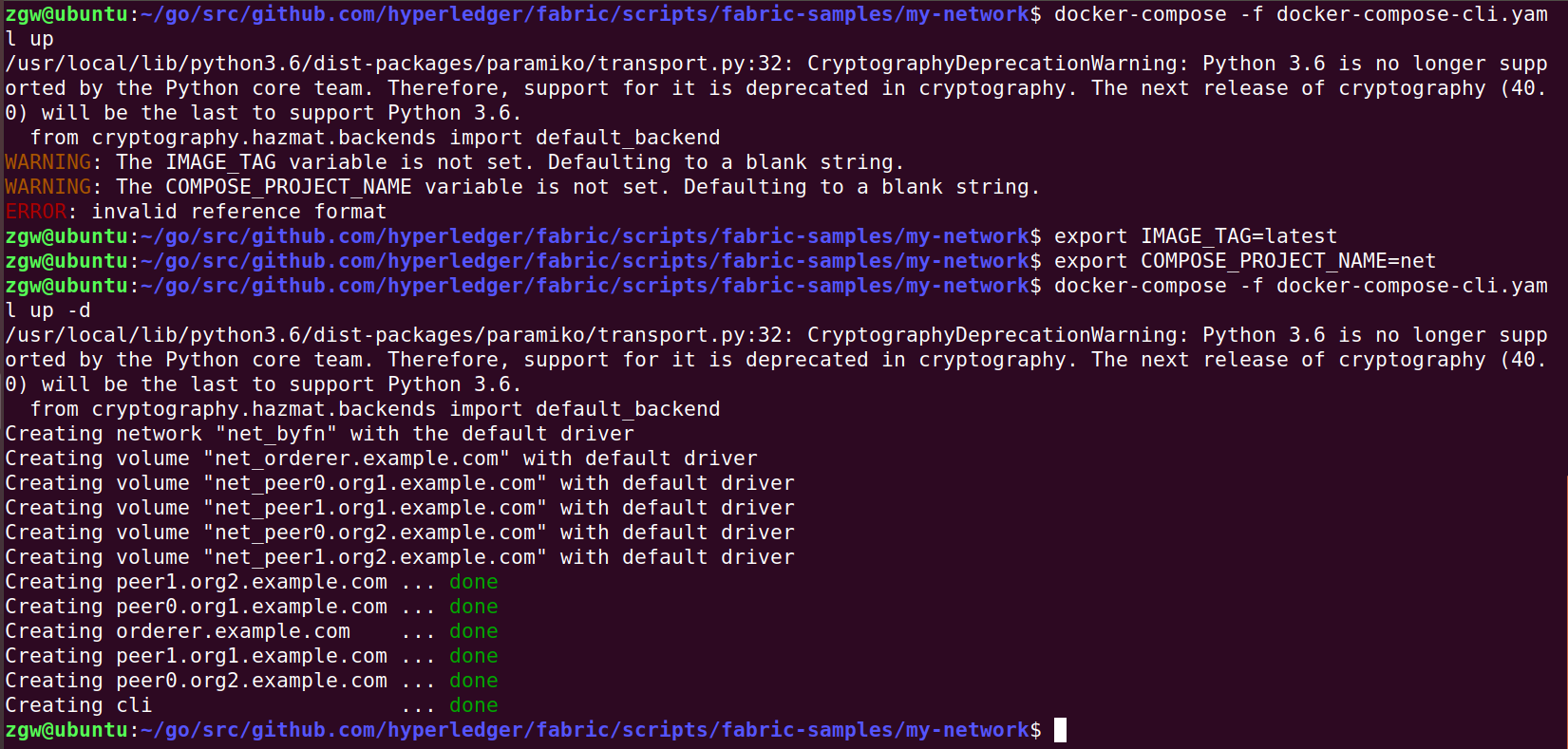

start docker
docker-compose -f docker-compose-cli.yaml up -d

切换到docker容器中的cli“用户”
docker exec -it cli bash

规定有谁创建通道
CORE_PEER_LOCALMSPID="Org1MSP"

将证书目录指定进来
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin\@org1.example.com/msp/


Creating channel...
peer channel create -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/channel.tx --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

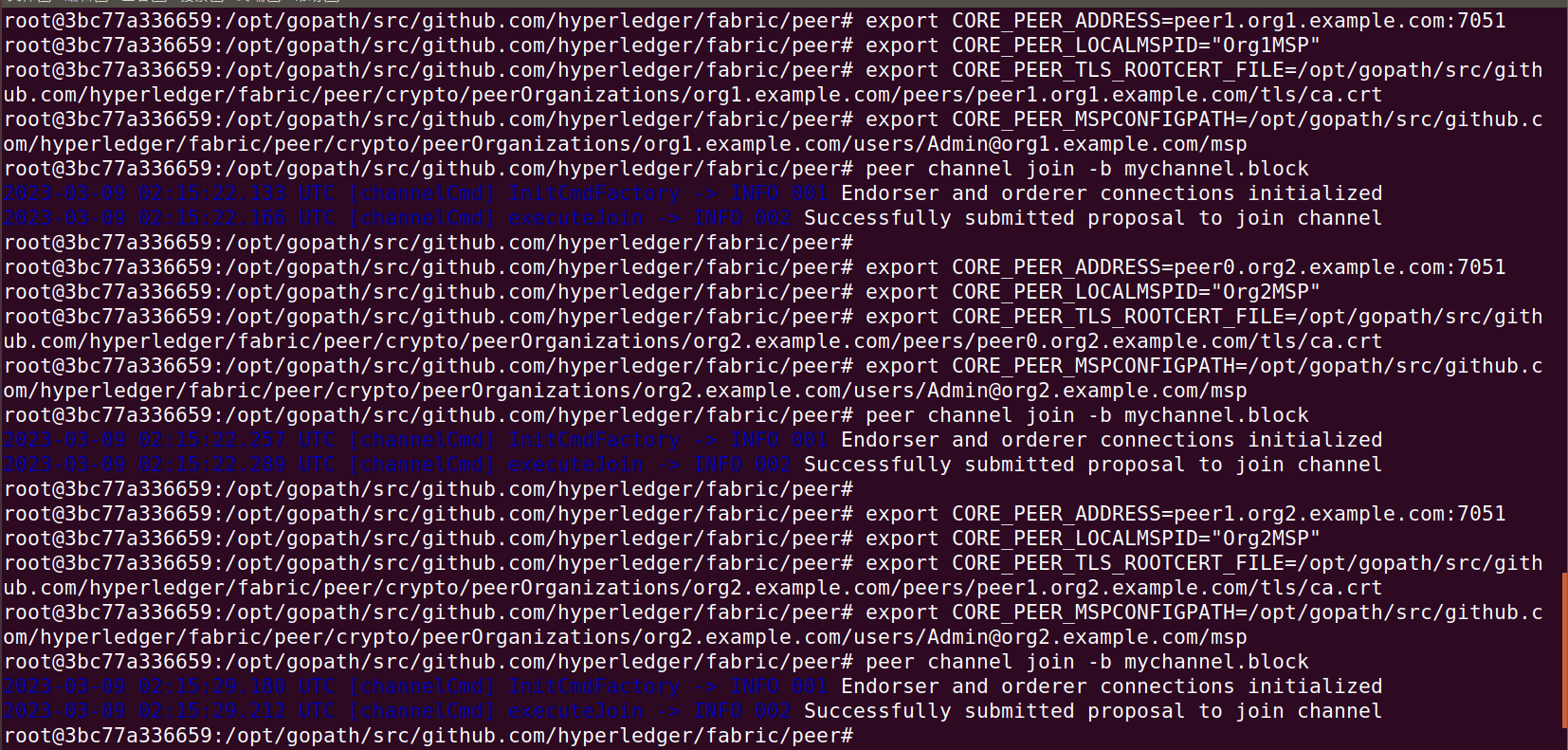

Having all peers join the channel...
peer channel join -b mychannel.block

Updating anchor peers for org1...
peer channel update -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/Org1MSPanchors.tx --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

Updating anchor peers for org2...
peer channel update -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/Org2MSPanchors.tx --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

Installing chaincode on peer0.org1...
peer chaincode install -n mycc -v 1.0 -l golang -p github.com/chaincode/chaincode_example02/go/

Instantiating chaincode on peer0.org2...
peer chaincode instantiate -o orderer.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n mycc -l golang -v 1.0 -c '{"Args":["init","a","100","b","200"]}' -P 'AND ('\''Org1MSP.peer'\'','\''Org2MSP.peer'\'')'

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

Sending invoke transaction on peer0.org1 peer0.org2...
peer chaincode invoke -o orderer.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n mycc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["invoke","a","b","10"]}'

Installing chaincode on peer1.org2...
peer chaincode install -n mycc -v 1.0 -l golang -p github.com/chaincode/chaincode_example02/go/

Querying chaincode on peer1.org2...

自己创建新项目手动实现

首先进入fabric-samples目录下

cd go/src/github.com/hyperledger/fabric/scripts/fabric-samples/

创建项目文件夹

mkdir my-network

创建系统文件

touch crypto-config.yaml

写入网络、节点、用户等信息

vim crypto-config.yaml

OrdererOrgs:
        - Name: Orderer
          Domain: example.com
          Specs:
                  - Hostname: orderer
PeerOrgs:
        - Name: Org1
          Domain: org1.example.com
          Template:
                  Count: 2
          Users:
                  Count: 1
        - Name: Org2
          Domain: org2.example.com
          Template:
                  Count: 2
          Users:
                  Count: 1

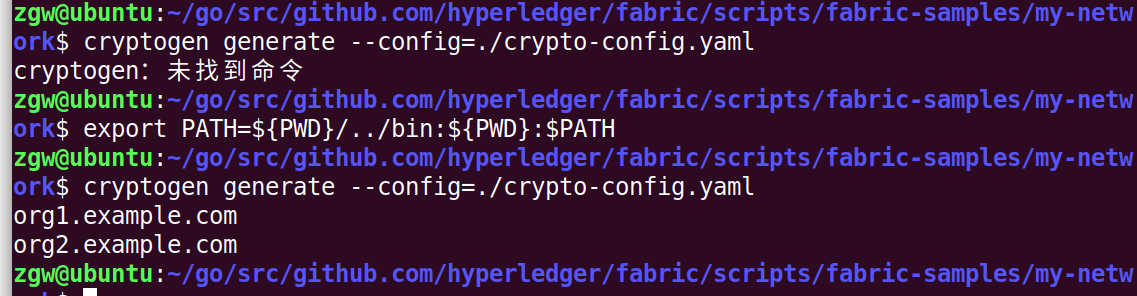

配置bin目录环境变量

export PATH=${PWD}/../bin:${PWD}:$PATH

执行完cryptogen generate --config=./crypto-config.yaml以后会出现一个crypto-config文件夹。

安装tree工具查看文件结构

.
├── ordererOrganizations
│   └── example.com
│       ├── ca
│       │   ├── b3518f2294796ef7c907275e8a20aa678257ece798318acde0942a219323dcd3_sk
│       │   └── ca.example.com-cert.pem
│       ├── msp
│       │   ├── admincerts
│       │   │   └── Admin@example.com-cert.pem
│       │   ├── cacerts
│       │   │   └── ca.example.com-cert.pem
│       │   └── tlscacerts
│       │       └── tlsca.example.com-cert.pem
│       ├── orderers
│       │   └── orderer.example.com
│       │       ├── msp
│       │       │   ├── admincerts
│       │       │   │   └── Admin@example.com-cert.pem
│       │       │   ├── cacerts
│       │       │   │   └── ca.example.com-cert.pem
│       │       │   ├── keystore
│       │       │   │   └── 62bd900de18826c1d9d53502de4bc1b21a74db91addcd646ba6f74c522f2f3e9_sk
│       │       │   ├── signcerts
│       │       │   │   └── orderer.example.com-cert.pem
│       │       │   └── tlscacerts
│       │       │       └── tlsca.example.com-cert.pem
│       │       └── tls
│       │           ├── ca.crt
│       │           ├── server.crt
│       │           └── server.key
│       ├── tlsca
│       │   ├── 0f0d0ee453f2675c9f01d35fd7c6ed5a20f2c217da8814018e0c050099bf57d3_sk
│       │   └── tlsca.example.com-cert.pem
│       └── users
│           └── Admin@example.com
│               ├── msp
│               │   ├── admincerts
│               │   │   └── Admin@example.com-cert.pem
│               │   ├── cacerts
│               │   │   └── ca.example.com-cert.pem
│               │   ├── keystore
│               │   │   └── 699115638cda32228325fa5e550aa9b68333d4f780b61a145bf41bbcb454f4d4_sk
│               │   ├── signcerts
│               │   │   └── Admin@example.com-cert.pem
│               │   └── tlscacerts
│               │       └── tlsca.example.com-cert.pem
│               └── tls
│                   ├── ca.crt
│                   ├── client.crt
│                   └── client.key
└── peerOrganizations
    ├── org1.example.com
    │   ├── ca
    │   │   ├── ca612f57af39952ebf24afbc34b3203061372080f0c03bd42fc95d7d5be1be51_sk
    │   │   └── ca.org1.example.com-cert.pem
    │   ├── msp
    │   │   ├── admincerts
    │   │   │   └── Admin@org1.example.com-cert.pem
    │   │   ├── cacerts
    │   │   │   └── ca.org1.example.com-cert.pem
    │   │   └── tlscacerts
    │   │       └── tlsca.org1.example.com-cert.pem
    │   ├── peers
    │   │   ├── peer0.org1.example.com
    │   │   │   ├── msp
    │   │   │   │   ├── admincerts
    │   │   │   │   │   └── Admin@org1.example.com-cert.pem
    │   │   │   │   ├── cacerts
    │   │   │   │   │   └── ca.org1.example.com-cert.pem
    │   │   │   │   ├── keystore
    │   │   │   │   │   └── 8a5bd23b7bec663a9da37184882bd49696879ed770620f6f67169846d840975c_sk
    │   │   │   │   ├── signcerts
    │   │   │   │   │   └── peer0.org1.example.com-cert.pem
    │   │   │   │   └── tlscacerts
    │   │   │   │       └── tlsca.org1.example.com-cert.pem
    │   │   │   └── tls
    │   │   │       ├── ca.crt
    │   │   │       ├── server.crt
    │   │   │       └── server.key
    │   │   └── peer1.org1.example.com
    │   │       ├── msp
    │   │       │   ├── admincerts
    │   │       │   │   └── Admin@org1.example.com-cert.pem
    │   │       │   ├── cacerts
    │   │       │   │   └── ca.org1.example.com-cert.pem
    │   │       │   ├── keystore
    │   │       │   │   └── e50998252bead167cd99d73309e507960c96f8082be72939768f73d268436402_sk
    │   │       │   ├── signcerts
    │   │       │   │   └── peer1.org1.example.com-cert.pem
    │   │       │   └── tlscacerts
    │   │       │       └── tlsca.org1.example.com-cert.pem
    │   │       └── tls
    │   │           ├── ca.crt
    │   │           ├── server.crt
    │   │           └── server.key
    │   ├── tlsca
    │   │   ├── 384ca7faaf8dc024ee05a287468b87745f4a165a25c82443c5850c3698575ae1_sk
    │   │   └── tlsca.org1.example.com-cert.pem
    │   └── users
    │       ├── Admin@org1.example.com
    │       │   ├── msp
    │       │   │   ├── admincerts
    │       │   │   │   └── Admin@org1.example.com-cert.pem
    │       │   │   ├── cacerts
    │       │   │   │   └── ca.org1.example.com-cert.pem
    │       │   │   ├── keystore
    │       │   │   │   └── 64e164ec2c40932f00f3e4927ed6377bd716cfd9e853091d335b3442a1590f10_sk
    │       │   │   ├── signcerts
    │       │   │   │   └── Admin@org1.example.com-cert.pem
    │       │   │   └── tlscacerts
    │       │   │       └── tlsca.org1.example.com-cert.pem
    │       │   └── tls
    │       │       ├── ca.crt
    │       │       ├── client.crt
    │       │       └── client.key
    │       └── User1@org1.example.com
    │           ├── msp
    │           │   ├── admincerts
    │           │   │   └── User1@org1.example.com-cert.pem
    │           │   ├── cacerts
    │           │   │   └── ca.org1.example.com-cert.pem
    │           │   ├── keystore
    │           │   │   └── 9512100c7bf00d9d788bf7a2905a2a61d1ba591e5ab125a87b482bfe139ae86b_sk
    │           │   ├── signcerts
    │           │   │   └── User1@org1.example.com-cert.pem
    │           │   └── tlscacerts
    │           │       └── tlsca.org1.example.com-cert.pem
    │           └── tls
    │               ├── ca.crt
    │               ├── client.crt
    │               └── client.key
    └── org2.example.com
        ├── ca
        │   ├── bc41ac2c992915a9310e119e7d6cd9549db7181048d56dd12adc27da8e031a6a_sk
        │   └── ca.org2.example.com-cert.pem
        ├── msp
        │   ├── admincerts
        │   │   └── Admin@org2.example.com-cert.pem
        │   ├── cacerts
        │   │   └── ca.org2.example.com-cert.pem
        │   └── tlscacerts
        │       └── tlsca.org2.example.com-cert.pem
        ├── peers
        │   ├── peer0.org2.example.com
        │   │   ├── msp
        │   │   │   ├── admincerts
        │   │   │   │   └── Admin@org2.example.com-cert.pem
        │   │   │   ├── cacerts
        │   │   │   │   └── ca.org2.example.com-cert.pem
        │   │   │   ├── keystore
        │   │   │   │   └── 81b101f0c6d3b461bd862cc6af84b688717cb92946ab2d9d8f3c61cf2d91b1d3_sk
        │   │   │   ├── signcerts
        │   │   │   │   └── peer0.org2.example.com-cert.pem
        │   │   │   └── tlscacerts
        │   │   │       └── tlsca.org2.example.com-cert.pem
        │   │   └── tls
        │   │       ├── ca.crt
        │   │       ├── server.crt
        │   │       └── server.key
        │   └── peer1.org2.example.com
        │       ├── msp
        │       │   ├── admincerts
        │       │   │   └── Admin@org2.example.com-cert.pem
        │       │   ├── cacerts
        │       │   │   └── ca.org2.example.com-cert.pem
        │       │   ├── keystore
        │       │   │   └── 534935d6cdf92df41e5b68b79759bf48b7eb4e1ea86928f5c0b5570ce5960c08_sk
        │       │   ├── signcerts
        │       │   │   └── peer1.org2.example.com-cert.pem
        │       │   └── tlscacerts
        │       │       └── tlsca.org2.example.com-cert.pem
        │       └── tls
        │           ├── ca.crt
        │           ├── server.crt
        │           └── server.key
        ├── tlsca
        │   ├── 880dbeb99c89728357fa9b5401eb3d46d665184ab5a21a06eb7b8990541efb6c_sk
        │   └── tlsca.org2.example.com-cert.pem
        └── users
            ├── Admin@org2.example.com
            │   ├── msp
            │   │   ├── admincerts
            │   │   │   └── Admin@org2.example.com-cert.pem
            │   │   ├── cacerts
            │   │   │   └── ca.org2.example.com-cert.pem
            │   │   ├── keystore
            │   │   │   └── 5d2930f80e9d857fdd89b35ba9a9dd1fd14cbcb6c82a0b8760bed42506ec2b3a_sk
            │   │   ├── signcerts
            │   │   │   └── Admin@org2.example.com-cert.pem
            │   │   └── tlscacerts
            │   │       └── tlsca.org2.example.com-cert.pem
            │   └── tls
            │       ├── ca.crt
            │       ├── client.crt
            │       └── client.key
            └── User1@org2.example.com
                ├── msp
                │   ├── admincerts
                │   │   └── User1@org2.example.com-cert.pem
                │   ├── cacerts
                │   │   └── ca.org2.example.com-cert.pem
                │   ├── keystore
                │   │   └── f66033fe7869d6ec2e926906df245daf485fb52284c0f5cccc529532524a7dcd_sk
                │   ├── signcerts
                │   │   └── User1@org2.example.com-cert.pem
                │   └── tlscacerts
                │       └── tlsca.org2.example.com-cert.pem
                └── tls
                    ├── ca.crt
                    ├── client.crt
                    └── client.key

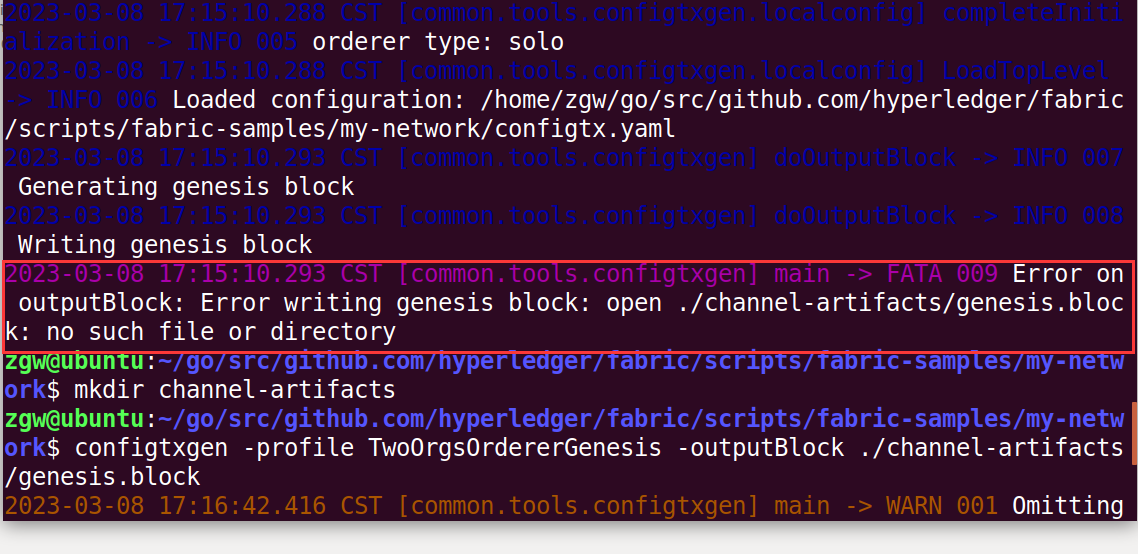

创建创世区块

创建创世区块使用到的是configtx.yaml

文件主体

Organizations配置

Organizations:

    - &OrdererOrg
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: OrdererOrg

        # ID to load the MSP definition as
        ID: OrdererMSP

        # MSPDir is the filesystem path which contains the MSP configuration
        MSPDir: crypto-config/ordererOrganizations/example.com/msp

        //背书策略   测试时可写可不写
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Writers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Admins:
                Type: Signature
                Rule: "OR('OrdererMSP.admin')"

    - &Org1
        Name: Org1MSP
        ID: Org1MSP
        MSPDir: crypto-config/peerOrganizations/org1.example.com/msp

        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org1MSP.admin')"

        AnchorPeers:
            - Host: peer0.org1.example.com
              Port: 7051

    - &Org2
        Name: Org2MSP
        ID: Org2MSP
        MSPDir: crypto-config/peerOrganizations/org2.example.com/msp

        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org2MSP.admin')"

        AnchorPeers:
            - Host: peer0.org2.example.com
              Port: 7051

Orderer配置

Orderer: &OrdererDefaults

    # Orderer Type: The orderer implementation to start
    # Available types are "solo" and "kafka"
    OrdererType: solo     //kafka 是消息集群队列，用于大型开发，但是2.0以后已经舍弃

    Addresses:
        - orderer.example.com:7050   //域名

    # Batch Timeout: The amount of time to wait before creating a batch
    BatchTimeout: 2s    //超时时间

    # Batch Size: Controls the number of messages batched into a block
    BatchSize:

        # Max Message Count: The maximum number of messages to permit in a batch
        MaxMessageCount: 10    //最大消息数量

        # Absolute Max Bytes: The absolute maximum number of bytes allowed for
        # the serialized messages in a batch.
        AbsoluteMaxBytes: 99 MB    //最大区块大小

        # Preferred Max Bytes: The preferred maximum number of bytes allowed for
        # the serialized messages in a batch. A message larger than the preferred
        # max bytes will result in a batch larger than preferred max bytes.
        PreferredMaxBytes: 512 KB

    Kafka:
        # Brokers: A list of Kafka brokers to which the orderer connects
        # NOTE: Use IP:port notation
        Brokers:
            - 127.0.0.1:9092

Profiles配置

Profiles:

最重要的是前两个设置

    //定义orderer和org1和org2的配置
    TwoOrgsOrdererGenesis:
        <<: *ChannelDefaults
        Orderer:
            <<: *OrdererDefaults
            Organizations:
                - *OrdererOrg
            Capabilities:
                <<: *OrdererCapabilities
        Consortiums:
            SampleConsortium:
                Organizations:
                    - *Org1
                    - *Org2

    //规定channel允许谁加入
    TwoOrgsChannel:
        Consortium: SampleConsortium
        Application:
            <<: *ApplicationDefaults
            Organizations:
                - *Org1
                - *Org2
            Capabilities:
                <<: *ApplicationCapabilities

    SampleDevModeKafka:
        <<: *ChannelDefaults
        Capabilities:
            <<: *ChannelCapabilities
        Orderer:
            <<: *OrdererDefaults
            OrdererType: kafka
            Kafka:
                Brokers:
                - kafka.example.com:9092

            Organizations:
            - *OrdererOrg
            Capabilities:
                <<: *OrdererCapabilities
        Application:
            <<: *ApplicationDefaults
            Organizations:
            - <<: *OrdererOrg
        Consortiums:
            SampleConsortium:
                Organizations:
                - *Org1
                - *Org2

1创建创世区块

if [ "$CONSENSUS_TYPE" == "solo" ]; then

    configtxgen -profile TwoOrgsOrdererGenesis （-channelID byfn-sys-channel） -outputBlock ./channel-artifacts/genesis.block

elif [ "$CONSENSUS_TYPE" == "kafka" ]; then

    configtxgen -profile SampleDevModeKafka （-channelID byfn-sys-channel） -outputBlock ./channel-artifacts/genesis.block

执行完会报错，原因是没有创建相应路径

2创建channel

允许org1和org2的MSP加入，允许管理员管理

configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID $CHANNEL_NAME

3更新锚节点

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID $CHANNEL_NAME -asOrg Org1MSP
configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID $CHANNEL_NAME -asOrg Org2MSP

2与3的CHANNEL_NAME定义相同
configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID mychannel -asOrg Org2MSP

4拷贝docker-compose文件配置

cp ../first-network/docker-compose-cli.yaml .
cp -r ../first-network/base/ .

5启动服务

配置镜像版本和项目名字

export IMAGE_TAG=latest
export IMAGE_TAG=1.4.0   //二选一
export COMPOSE_PROJECT_NAME=net   //这个名字随便取

docker-compose -f docker-compose-cli.yaml up -d

6创建通道

切换到docker容器中的cli“用户”

docker exec -it cli bash

规定有谁创建通道

CORE_PEER_LOCALMSPID="Org1MSP"

将证书目录指定进来

CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin\@org1.example.com/msp/

规定使用谁的身份并进行加密

peer channel create -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/channel.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/msp/tlscacerts/tlsca.example.com-cert.pem

7加入通道

export CORE_PEER_ADDRESS=peer0.org1.example.com:7051
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
peer channel join -b mychannel.block

export CORE_PEER_ADDRESS=peer1.org1.example.com:7051
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
peer channel join -b mychannel.block

export CORE_PEER_ADDRESS=peer0.org2.example.com:7051
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
peer channel join -b mychannel.block

export CORE_PEER_ADDRESS=peer1.org2.example.com:7051
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
peer channel join -b mychannel.block

8安装链码

首先安装工具nodejs与npm，

在chaincode路径下创建mycc文件夹
进入mycc
curl -sL https://deb.nodesource.com/setup_8.x | sudo -E bash -
sudo apt-get install -y nodejs

node -v 查看版本
npm init初始化，会出现一个package.json

修改test为start 引号中为node XXX.js，保存
"scripts": {
    "start": "node xxx.js"
  },
创建xxx.js文件

导入fabric-shim组件
npm install --save fabric-shim@1.4.0

当使用官方给予的node文件

export CORE_PEER_ADDRESS=peer0.org1.example.com:7051
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
peer chaincode install -n mycc -v 1.0 -l node -p /opt/gopath/src/github.com/chaincode/chaincode_example02/node/


export CORE_PEER_ADDRESS=peer1.org1.example.com:7051
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
peer chaincode install -n mycc -v 1.0 -l node -p /opt/gopath/src/github.com/chaincode/chaincode_example02/node/


export CORE_PEER_ADDRESS=peer0.org2.example.com:7051
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
peer chaincode install -n mycc -v 1.0 -l node -p /opt/gopath/src/github.com/chaincode/chaincode_example02/node/


export CORE_PEER_ADDRESS=peer1.org2.example.com:7051
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
peer chaincode install -n mycc -v 1.0 -l node -p /opt/gopath/src/github.com/chaincode/chaincode_example02/node/

链码下载代码解析

peer chaincode install -n（name） mycc -v（版本） 1.0 -l（语言） node -p（路径） /opt/gopath/src/github.com/chaincode/mycc/

使用自己创建的链码

peer chaincode install -n mycc -v 1.0 -l node -p /opt/gopath/src/github.com/chaincode/mycc/

使用官方脚本

peer chaincode install -n mycc -v 1.0 -l golang -p github.com/chaincode/chaincode_example02/go/

查看下载的链码和已经实例化的链码

peer chaincode list --installed
peer chaincode list -C mychannel --instantiated

9实例化链码

自己手动创建时实例化操作

peer chaincode instantiate -o orderer.example.com:7050 --tls $CORE_PEER_TLS_ENABLED --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n mycc -l node -v 1.0 -c '{"Args":["init","zhangsan","168","lisi","288"]}' -P "OR ('Org1MSP.member','Org2MSP.member')"

官方脚本执行操作

peer chaincode instantiate -o orderer.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n mycc -l golang -v 1.0 -c '{"Args":["init","a","100","b","200"]}' -P 'AND ('\''Org1MSP.peer'\'','\''Org2MSP.peer'\'')'

一直报错，但是不显示错误信息，暂时搁置
2023-03-16 13:58:15.422 UTC [ConnProducer] DisableEndpoint -> WARN 224 Only 1 endpoint remained, will not black-list it
2023-03-16 13:58:15.447 UTC [blocksProvider] DeliverBlocks -> ERRO 225 [mychannel] Got error &{FORBIDDEN}
2023-03-16 13:58:15.848 UTC [ConnProducer] DisableEndpoint -> WARN 226 Only 1 endpoint remained, will not black-list it
2023-03-16 13:58:15.858 UTC [blocksProvider] DeliverBlocks -> ERRO 227 [mychannel] Got error &{FORBIDDEN}
2023-03-16 13:58:16.667 UTC [ConnProducer] DisableEndpoint -> WARN 228 Only 1 endpoint remained, will not black-list it
2023-03-16 13:58:16.684 UTC [blocksProvider] DeliverBlocks -> ERRO 229 [mychannel] Got error &{FORBIDDEN}
2023-03-16 13:58:18.286 UTC [ConnProducer] DisableEndpoint -> WARN 22a Only 1 endpoint remained, will not black-list it
2023-03-16 13:58:18.337 UTC [blocksProvider] DeliverBlocks -> ERRO 22b [mychannel] Got error &{FORBIDDEN}

10调用链码

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","zhangsan"]}'
