本文链接：https://blog.youkuaiyun.com/qq_53488289/article/details/141096523

png

py文件

import os
import pyautogui
import time
from typing import Callable, Tuple
from datetime import datetime
import cv2
import schedule

#通过图像模板匹配在屏幕上找到指定区域并操作
def imgAutoClick(tempFile: str, whatDo: Callable[[Tuple[int, int, int, int]], None], debug: bool = False):
    #截图
    screenshot_path = 'big.png'
    pyautogui.screenshot(screenshot_path)
    #加载和处理图像
    gray = cv2.imread(screenshot_path, cv2.IMREAD_GRAYSCALE)
    img_template = cv2.imread(tempFile, cv2.IMREAD_GRAYSCALE)
    #获取模板尺寸
    w, h = img_template.shape[::-1]
    #模板匹配
    res = cv2.matchTemplate(gray, img_template, cv2.TM_SQDIFF)
    min_val, _, min_loc, _ = cv2.minMaxLoc(res)
    #计算边界框坐标
    top_left = min_loc
    bottom_right = (top_left[0] + w, top_left[1] + h)
    #移动鼠标并执行操作
    pyautogui.moveTo(top_left[0] + w / 2, top_left[1] + h / 2)
    whatDo((top_left[0], top_left[1], w, h))
    #调试
    if debug:
        img = cv2.imread(screenshot_path)
        cv2.rectangle(img, top_left, bottom_right, (0, 0, 255), 2)
        img_resized = cv2.resize(img, (0, 0), fx=0.5, fy=0.5, interpolation=cv2.INTER_NEAREST)
        cv2.imshow("Processed", img_resized)
        cv2.waitKey(0)
        cv2.destroyAllWindows()
    #清理截图
    os.remove(screenshot_path)

#登录会议
def signIn(meeting_id):
    #会议路径
    os.startfile(r"xxxxxxxx")
    time.sleep(10)
    #会议图标
    imgAutoClick("xxxxtubiao.png", pyautogui.click, False)
    time.sleep(1)
    #加入会议
    imgAutoClick("xxxxjoinbtn.png", pyautogui.click, False)
    time.sleep(1)
    #输入会议号
    imgAutoClick("xxxxmeeting_id.png", pyautogui.click, False)
    pyautogui.write(meeting_id)
    time.sleep(2)
    #最后加入会议
    imgAutoClick("xxxxxfinal.png", pyautogui.click, False)
    time.sleep(1)


#再次登录会议
def signIn_two(meeting_id):
    #加入会议
    imgAutoClick("xxxxxxjoinbtn.png", pyautogui.click, False)
    time.sleep(1)
    #输入会议号
    imgAutoClick("xxxxxmeeting_id.png", pyautogui.click, False)
    pyautogui.write(meeting_id)
    time.sleep(2)
    #最后加入会议
    imgAutoClick("xxxxxfinal.png", pyautogui.click, False)
    time.sleep(1)

def job():
    while True:
        #获取当前时间
        now = datetime.now()
        #判断是否是周六
        if now.weekday() == 5:
            #开始时间
            start_time = datetime(now.year, now.month, now.day, 14, 0, 0).strftime("%H:%M:%S")
            #结束时间
            end_time = datetime(now.year, now.month, now.day, 17, 30, 0).strftime("%H:%M:%S")
            #当前时间
            current = now.strftime("%H:%M:%S")
            #会议号
            meeting_id = '111-111-111'
            #间隔一小时进行操作
            if start_time <= current <= end_time:
                if current == "14:00:00":
                    signIn(meeting_id)
                    time.sleep(5)
                elif current == "15:00:00":
                    signIn_two(meeting_id)
                    time.sleep(5)
                elif current == "16:00:00":
                    signIn_two(meeting_id)
                    time.sleep(5)
                elif current == "17:00:00":
                    signIn_two(meeting_id)
                    time.sleep(5)
        else:
            print("Today is not Saturday.")
            break

if __name__ == '__main__':
    #设置定时任务
    schedule.every().saturday.at("13:58").do(job)
    while True:
        schedule.run_pending()
        time.sleep(1)

bat文件

@echo off
输出当前工作目录
echo Current directory: %cd%
输出Python 解释器的路径
echo Python path: "xxxxx.exe"
输出py脚本的路径
echo Script path: "xxxxx.py"
执行指定的 py脚本
"xxxxx.exe" "xxxxx.py"
pause

vbs

在后台最小化命令提示符窗口并执行批处理文件
Set WshShell = CreateObject("WScript.Shell")
WshShell.Run chr(34) & "xxxxxxx.bat" & Chr(34), 7

py1文件：增加图形化窗口

import os
import pyautogui
import time
from typing import Callable, Tuple
from datetime import datetime
import cv2
import schedule
import tkinter as tk
from tkinter import messagebox

#通过图像模板匹配在屏幕上找到指定区域并操作
def imgAutoClick(tempFile: str, whatDo: Callable[[Tuple[int, int, int, int]], None], debug: bool = False):
    #截图
    screenshot_path = 'big.png'
    pyautogui.screenshot(screenshot_path)
    #加载和处理图像
    gray = cv2.imread(screenshot_path, cv2.IMREAD_GRAYSCALE)
    img_template = cv2.imread(tempFile, cv2.IMREAD_GRAYSCALE)
    #获取模板尺寸
    w, h = img_template.shape[::-1]
    #模板匹配
    res = cv2.matchTemplate(gray, img_template, cv2.TM_SQDIFF)
    min_val, _, min_loc, _ = cv2.minMaxLoc(res)
    #计算边界框坐标
    top_left = min_loc
    bottom_right = (top_left[0] + w, top_left[1] + h)
    #移动鼠标并执行操作
    pyautogui.moveTo(top_left[0] + w / 2, top_left[1] + h / 2)
    whatDo((top_left[0], top_left[1], w, h))
    #调试
    if debug:
        img = cv2.imread(screenshot_path)
        cv2.rectangle(img, top_left, bottom_right, (0, 0, 255), 2)
        img_resized = cv2.resize(img, (0, 0), fx=0.5, fy=0.5, interpolation=cv2.INTER_NEAREST)
        cv2.imshow("Processed", img_resized)
        cv2.waitKey(0)
        cv2.destroyAllWindows()
    #清理截图
    os.remove(screenshot_path)

#登录会议
def signIn(meeting_id):
    #会议路径
    os.startfile(r"xxxxxxxx")
    time.sleep(10)
    #会议图标
    imgAutoClick("xxxxtubiao.png", pyautogui.click, False)
    time.sleep(1)
    #加入会议
    imgAutoClick("xxxxjoinbtn.png", pyautogui.click, False)
    time.sleep(1)
    #输入会议号
    imgAutoClick("xxxxmeeting_id.png", pyautogui.click, False)
    pyautogui.write(meeting_id)
    time.sleep(2)
    #最后加入会议
    imgAutoClick("xxxxxfinal.png", pyautogui.click, False)
    time.sleep(1)


#再次登录会议
def signIn_two(meeting_id):
    #加入会议
    imgAutoClick("xxxxxxjoinbtn.png", pyautogui.click, False)
    time.sleep(1)
    #输入会议号
    imgAutoClick("xxxxxmeeting_id.png", pyautogui.click, False)
    pyautogui.write(meeting_id)
    time.sleep(2)
    #最后加入会议
    imgAutoClick("xxxxxfinal.png", pyautogui.click, False)
    time.sleep(1)

def job(meeting_id):
    while True:
        #获取当前时间
        now = datetime.now()
        #判断是否是周六
        if now.weekday() == 5:
            #开始时间
            start_time = datetime(now.year, now.month, now.day, 14, 0, 0).strftime("%H:%M:%S")
            #结束时间
            end_time = datetime(now.year, now.month, now.day, 17, 30, 0).strftime("%H:%M:%S")
            #当前时间
            current = now.strftime("%H:%M:%S")

            #间隔一小时进行操作
            if start_time <= current <= end_time:
                if current == "14:00:00":
                    signIn(meeting_id)
                    time.sleep(5)
                elif current == "15:00:00":
                    signIn_two(meeting_id)
                    time.sleep(5)
                elif current == "16:00:00":
                    signIn_two(meeting_id)
                    time.sleep(5)
                elif current == "17:00:00":
                    signIn_two(meeting_id)
                    time.sleep(5)

def start_automation():
    meeting_id = entry.get().strip()
    meeting_id = meeting_id.replace('-', '').replace(' ','')
    if  meeting_id.isdigit() and len(meeting_id) in range(9,13):
        #设置定时任务
        schedule.every().saturday.at("13:58").do(job,meeting_id)
         messagebox.showinfo("自动化启动", "自动化任务已启动")
        while True:
            schedule.run_pending()
            time.sleep(1)
     else:
        messagebox.showwarning("输入错误", "请输入有效的会议号。")


if __name__ == '__main__':
    # 创建主窗口
    root = tk.Tk()
    root.title("会议自动化工具")

    # 设置窗口大小
    root.geometry("330x180")
    root.resizable(False, False)

    # 创建标签
    label = tk.Label(root, text="请输入会议号:")
    label.pack(pady=10)

    # 创建文本输入框
    entry = tk.Entry(root, width=30)
    entry.pack(pady=5)

    # 创建按钮
    button = tk.Button(root, text="启动自动化", command=start_automation)
    button.pack(pady=20)


    # 运行主循环
    root.mainloop()

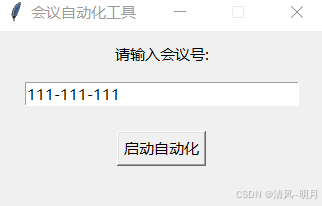

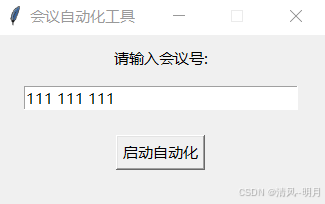

运行截图：
