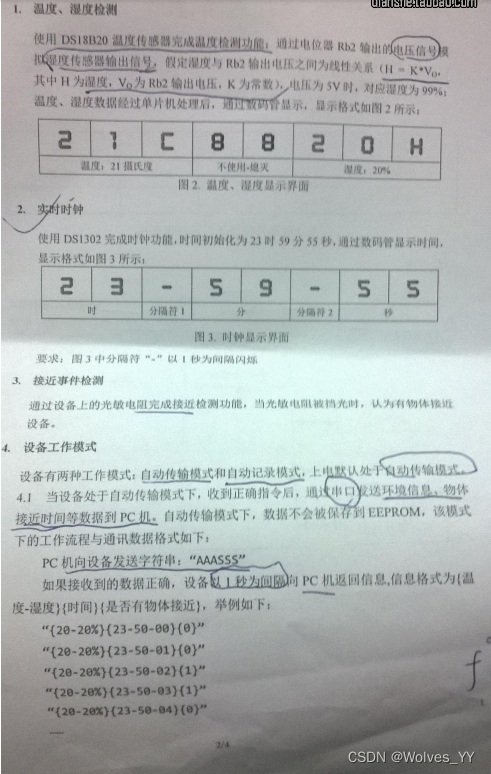

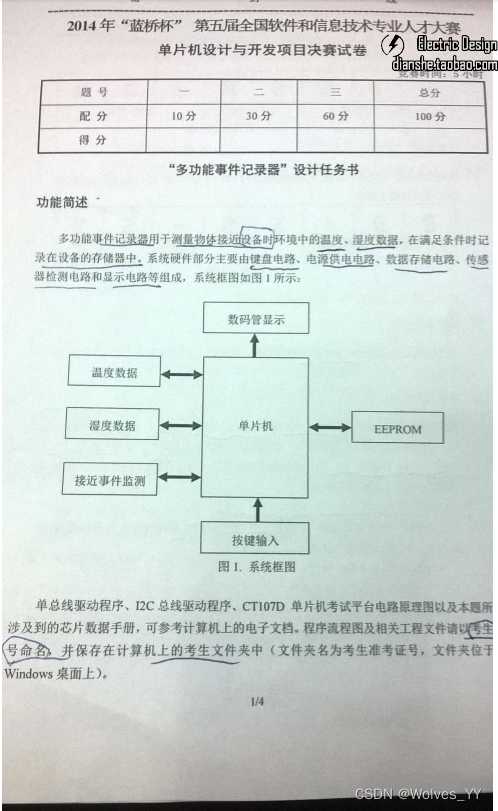

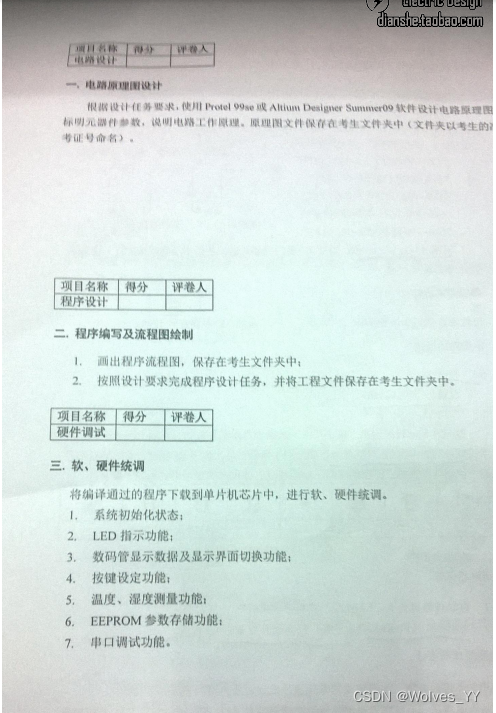

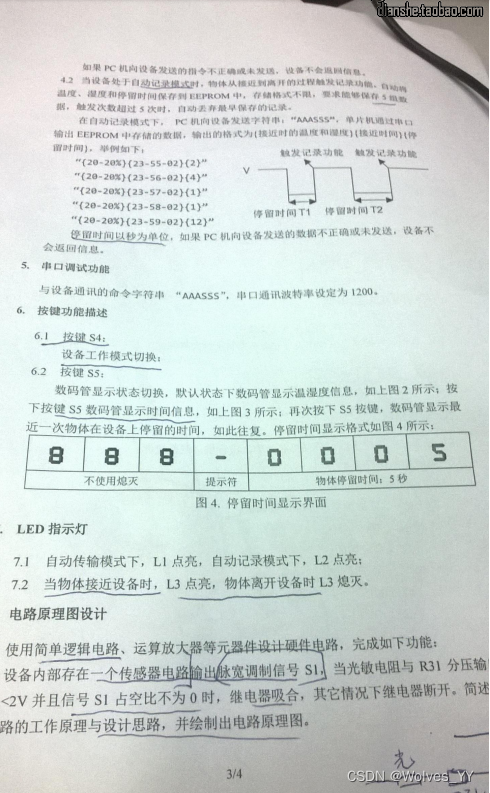

这段代码包含针对STC15F2K60S2单片机的一系列驱动程序，用于与DS18B20温度传感器、I2C通信协议和DS1302实时时钟芯片的交互。提供了初始化、数据读写和时序控制等关键函数。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

onewire.c

/*	# 	单总线代码片段说明
	1. 	本文件夹中提供的驱动代码供参赛选手完成程序设计参考。
	2. 	参赛选手可以自行编写相关代码或以该代码为基础，根据所选单片机类型、运行速度和试题
		中对单片机时钟频率的要求，进行代码调试和修改。
*/

//
#include <STC15F2K60S2.H>
#include "onewire.h"

sbit DQ = P1^4;

void Delay_OneWire(unsigned int t)
{
	unsigned char i;
	while(t--){
		for(i=0;i<12;i++);
	}
}

//
void Write_DS18B20(unsigned char dat)
{
	unsigned char i;
	for(i=0;i<8;i++)
	{
		DQ = 0;
		DQ = dat&0x01;
		Delay_OneWire(5);
		DQ = 1;
		dat >>= 1;
	}
	Delay_OneWire(5);
}

//
unsigned char Read_DS18B20(void)
{
	unsigned char i;
	unsigned char dat;

	for(i=0;i<8;i++)
	{
		DQ = 0;
		dat >>= 1;
		DQ = 1;
		if(DQ)
		{
			dat |= 0x80;
		}
		Delay_OneWire(5);
	}
	return dat;
}

//
bit init_ds18b20(void)
{
  	bit initflag = 0;

  	DQ = 1;
  	Delay_OneWire(12);
  	DQ = 0;
  	Delay_OneWire(80);
  	DQ = 1;
  	Delay_OneWire(10);
    initflag = DQ;
  	Delay_OneWire(5);

  	return initflag;
}

unsigned int Read_temp()
{
	unsigned int temp;
	unsigned char MSB,LSB;
	init_ds18b20();
	Write_DS18B20(0xcc);
	Write_DS18B20(0x44);
	init_ds18b20();
	Write_DS18B20(0xcc);
	Write_DS18B20(0xbe);
	LSB = Read_DS18B20();
	MSB = Read_DS18B20();
	temp = MSB << 8 | LSB;
	return temp * 0.0625;
}

onewire.h

#ifndef __onewire_h
#define __onewire_h

void Delay_OneWire(unsigned int t);
void Write_DS18B20(unsigned char dat);
unsigned char Read_DS18B20(void);
bit init_ds18b20(void);
unsigned int Read_temp();


#endif

iic.c

/*	#   I2C代码片段说明
	1. 	本文件夹中提供的驱动代码供参赛选手完成程序设计参考。
	2. 	参赛选手可以自行编写相关代码或以该代码为基础，根据所选单片机类型、运行速度和试题
		中对单片机时钟频率的要求，进行代码调试和修改。
*/
#include <STC15F2K60S2.H>
#include "iic.h"
#include "intrins.h"

#define DELAY_TIME	5

sbit scl = P2^0;
sbit sda = P2^1;

//
static void I2C_Delay(unsigned char n)
{
    do
    {
        _nop_();_nop_();_nop_();_nop_();_nop_();
        _nop_();_nop_();_nop_();_nop_();_nop_();
        _nop_();_nop_();_nop_();_nop_();_nop_();
    }
    while(n--);
}

//
void I2CStart(void)
{
    sda = 1;
    scl = 1;
	I2C_Delay(DELAY_TIME);
    sda = 0;
	I2C_Delay(DELAY_TIME);
    scl = 0;
}

//
void I2CStop(void)
{
    sda = 0;
    scl = 1;
	I2C_Delay(DELAY_TIME);
    sda = 1;
	I2C_Delay(DELAY_TIME);
}

//
void I2CSendByte(unsigned char byt)
{
    unsigned char i;

    for(i=0; i<8; i++){
        scl = 0;
		I2C_Delay(DELAY_TIME);
        if(byt & 0x80){
            sda = 1;
        }
        else{
            sda = 0;
        }
		I2C_Delay(DELAY_TIME);
        scl = 1;
        byt <<= 1;
		I2C_Delay(DELAY_TIME);
    }

    scl = 0;
}

//
unsigned char I2CReceiveByte(void)
{
	unsigned char da;
	unsigned char i;
	for(i=0;i<8;i++){
		scl = 1;
		I2C_Delay(DELAY_TIME);
		da <<= 1;
		if(sda)
			da |= 0x01;
		scl = 0;
		I2C_Delay(DELAY_TIME);
	}
	return da;
}

//
unsigned char I2CWaitAck(void)
{
	unsigned char ackbit;

    scl = 1;
	I2C_Delay(DELAY_TIME);
    ackbit = sda;
    scl = 0;
	I2C_Delay(DELAY_TIME);

	return ackbit;
}

//
void I2CSendAck(unsigned char ackbit)
{
    scl = 0;
    sda = ackbit;
	I2C_Delay(DELAY_TIME);
    scl = 1;
	I2C_Delay(DELAY_TIME);
    scl = 0;
	sda = 1;
	I2C_Delay(DELAY_TIME);
}

unsigned int Read_v()
{
	unsigned int temp;
	I2CStart();
	I2CSendByte(0x90);
	I2CWaitAck();
	I2CSendByte(0x03);
	I2CWaitAck();
	I2CStart();
	I2CSendByte(0x91);
	I2CWaitAck();
	temp = I2CReceiveByte();
	I2CSendAck(1);
	I2CStop();
	return temp;
}

unsigned int Read_light()
{
	unsigned int temp;
	I2CStart();
	I2CSendByte(0x90);
	I2CWaitAck();
	I2CSendByte(0x01);
	I2CWaitAck();
	I2CStart();
	I2CSendByte(0x91);
	I2CWaitAck();
	temp = I2CReceiveByte();
	I2CSendAck(1);
	I2CStop();
	return temp;
}

void Write_AT24C02_Page(unsigned char *buf,unsigned char addr,unsigned char num)
{
	I2CStart();
	I2CSendByte(0xa0);
	I2CWaitAck();
	I2CSendByte(addr);
	I2CWaitAck();
	while(num--)
	{
		I2CSendByte(*buf++);
		I2CWaitAck();
	}
	I2CStop();
}

void Read_AT24C02_Page(unsigned char *buf,unsigned char addr,unsigned char num)
{
	I2CStart();
	I2CSendByte(0xa0);
	I2CWaitAck();
	I2CSendByte(addr);
	I2CWaitAck();
	I2CStart();
	I2CSendByte(0xa1);
	I2CWaitAck();
	while(num--)
	{
		*buf++ = I2CReceiveByte();
		if(num)		I2CSendAck(0);
		else	I2CSendAck(1);
	}
	I2CStop();
}

iic.h

#ifndef __iic_h
#define __iic_h

static void I2C_Delay(unsigned char n);
void I2CStart(void);
void I2CStop(void);
void I2CSendByte(unsigned char byt);
unsigned char I2CReceiveByte(void);
unsigned char I2CWaitAck(void);
void I2CSendAck(unsigned char ackbit);
unsigned int Read_v();
unsigned int Read_light();
void Write_AT24C02_Page(unsigned char *buf,unsigned char addr,unsigned char num);
void Read_AT24C02_Page(unsigned char *buf,unsigned char addr,unsigned char num);

#endif

ds1302.c

/*	# 	DS1302代码片段说明
	1. 	本文件夹中提供的驱动代码供参赛选手完成程序设计参考。
	2. 	参赛选手可以自行编写相关代码或以该代码为基础，根据所选单片机类型、运行速度和试题
		中对单片机时钟频率的要求，进行代码调试和修改。
*/

//
#include <STC15F2K60S2.H>
#include "ds1302.h"
#include "intrins.h"

sbit SCK = P1^7;
sbit SDA = P2^3;
sbit RST = P1^3;

code unsigned char Write_addr[] = {0x80,0x82,0x84,0x86,0x88,0x8a,0x8c};
code unsigned char Read_addr[] = {0x81,0x83,0x85,0x87,0x89,0x8b,0x8d};
unsigned char time[] = {0x55,0x59,0x23};

void Write_Ds1302(unsigned  char temp)
{
	unsigned char i;
	for (i=0;i<8;i++)
	{
		SCK = 0;
		SDA = temp&0x01;
		temp>>=1;
		SCK=1;
	}
}

//
void Write_Ds1302_Byte( unsigned char address,unsigned char dat )
{
 	RST=0;	_nop_();
 	SCK=0;	_nop_();
 	RST=1; 	_nop_();
 	Write_Ds1302(address);
 	Write_Ds1302(dat);
 	RST=0;
}

//
unsigned char Read_Ds1302_Byte ( unsigned char address )
{
 	unsigned char i,temp=0x00;
 	RST=0;	_nop_();
 	SCK=0;	_nop_();
 	RST=1;	_nop_();
 	Write_Ds1302(address);
 	for (i=0;i<8;i++)
 	{
		SCK=0;
		temp>>=1;
 		if(SDA)
 		temp|=0x80;
 		SCK=1;
	}
 	RST=0;	_nop_();
 	SCK=0;	_nop_();
	SCK=1;	_nop_();
	SDA=0;	_nop_();
	SDA=1;	_nop_();
	return (temp);
}

void Write_time()
{
	char i;
	Write_Ds1302_Byte(0x8e,0x00);
	for(i = 0;i < 3;i++)
		Write_Ds1302_Byte(Write_addr[i],time[i]);
	Write_Ds1302_Byte(0x8e,0x80);
}

void Read_time()
{
	char i;
	for(i = 0;i < 3;i++)
		time[i] = Read_Ds1302_Byte(Read_addr[i]);
}

ds1302.h

#ifndef __ds1302_h
#define __ds1302_h

void Write_Ds1302(unsigned  char temp);
void Write_Ds1302_Byte( unsigned char address,unsigned char dat );
unsigned char Read_Ds1302_Byte ( unsigned char address );
void Write_time();
void Read_time();


#endif

sys.c

#include <STC15F2K60S2.H>
#include "sys.h"

void Delay_ms(unsigned int t)		//@12.000MHz
{
	while(t--)
	{
		unsigned char i, j;
		i = 12;
		j = 169;
		do
		{
			while (--j);
		} while (--i);
	}
}

void Select_Hc573(char n)
{
	switch(n)
	{
		case 4:P2 = P2 & 0x1f | 0x80;break;
		case 5:P2 = P2 & 0x1f | 0xa0;break;
		case 6:P2 = P2 & 0x1f | 0xc0;break;
		case 7:P2 = P2 & 0x1f | 0xe0;break;
	}
	P2 = P2 & 0x1f;
}

void Sys_Init()
{
	P0 = 0x00;
	Select_Hc573(5);
	P0 = 0xff;
	Select_Hc573(4);
}

void Select_Bit(unsigned char pos,dat)
{
	P0 = 0x01 << pos;
	Select_Hc573(6);
	P0 = dat;
	Select_Hc573(7);
	Delay_ms(1);
	P0 = 0xff;
	Select_Hc573(7);
}

sys.h

#ifndef __sys_h
#define __sys_h

void Delay_ms(unsigned int t);
void Select_Hc573(char n);
void Sys_Init();
void Select_Bit(unsigned char pos,dat);

#endif

main.c

#include <STC15F2K60S2.H>
#include "sys.h"
#include "ds1302.h"
#include "iic.h"
#include "onewire.h"
#include "stdio.h"

sbit S5 = P3^2;
sbit S4 = P3^3;


code unsigned char SMG[] = { ~0x3F,~0x06,~0x5B,~0x4F,~0x66,~0x6D,~0x7D,~0x07,~0x7F,~0x6F,~0x39,~0x76,~0x40};
extern unsigned char time[];
xdata unsigned int temp;
xdata unsigned int v,light,hum;
xdata unsigned char str[20];
xdata unsigned char rec[20];
unsigned char index,index_old;
bit flag_10ms,flag_500ms,flag_1s;
unsigned char count1,count2,count3;
bit str_judge;
bit flag_send;
bit yes;
bit mode;//0-自动传输模式	1-手动记录模式
unsigned char mode_dis;//0-温湿度	1-时钟	2-停留时间
unsigned char key_val;
unsigned char time_stop;
xdata unsigned char save[10];
xdata unsigned char rec2[10];


unsigned char Key_Scan()
{
	unsigned char key_temp = 0;
	static unsigned char cnt4 = 0;
	static unsigned char cnt5 = 0;
	if(S4 == 0)	cnt4++;
	if(S4 == 1)
	{
		if(cnt4 > 2)	key_temp = 4;
		cnt4 = 0;
	}
	if(S5 == 0)	cnt5++;
	if(S5 == 1)
	{
		if(cnt5 > 2)	key_temp = 5;
		cnt5 = 0;
	}
	return key_temp;
}

void Key_Pro()
{
	if(key_val == 4)
	{
		mode = ~mode;
	}
	else if(key_val == 5)
	{
		if(++mode_dis > 2)
			mode_dis = 0;
	}
}

void Display_temp()
{
	Select_Bit(0,SMG[temp / 10]);
	Select_Bit(1,SMG[temp % 10]);
	Select_Bit(2,SMG[10]);
	Select_Bit(5,SMG[hum / 10]);
	Select_Bit(6,SMG[hum % 10]);
	Select_Bit(7,SMG[11]);
}

void Display_time()
{
	Select_Bit(0,SMG[time[2] / 16]);
	Select_Bit(1,SMG[time[2] % 16]);
	Select_Bit(2,SMG[12]);
	Select_Bit(3,SMG[time[1] / 16]);
	Select_Bit(4,SMG[time[1] % 16]);
	Select_Bit(5,SMG[12]);
	Select_Bit(6,SMG[time[0] / 16]);
	Select_Bit(7,SMG[time[0] % 16]);
}

void Display_time_stop()
{
	Select_Bit(3,SMG[12]);
	Select_Bit(4,SMG[time_stop / 1000]);
	Select_Bit(5,SMG[time_stop / 100 % 10]);
	Select_Bit(6,SMG[time_stop / 10 % 10]);
	Select_Bit(7,SMG[time_stop % 10]);
}

void UartInit(void)		//115200bps@11.0592MHz
{
	SCON = 0x50;		//8位数据,可变波特率
	AUXR &= 0xBF;		//定时器1时钟为Fosc/12,即12T
	AUXR &= 0xFE;		//串口1选择定时器1为波特率发生器
	TMOD &= 0x0F;		//设定定时器1为16位自动重装方式
	TL1 = 0xFE;		//设定定时初值
	TH1 = 0xFF;		//设定定时初值
	ET1 = 0;		//禁止定时器1中断
	TR1 = 1;		//启动定时器1
	ES = 1;
}


void Send_byte(unsigned char dat)
{
	SBUF = dat;
	while(TI == 0);
	TI = 0;
}

void Send_string(unsigned char *dat)
{
	while(*dat != '\0')
		Send_byte(*dat++);
}

void Uart_isr() interrupt 4
{
	if(RI)
	{
		rec[index++] = SBUF;
		RI = 0;
	}
}

void Uart_Pro()
{
	if(index > 0)
	{
		if(flag_500ms)
		{
			if(index != index_old)
			{
				index_old = index;
				str_judge = 0;
			}
			else
			{
				str_judge = 1;
			}
			flag_500ms = 0;
		}
	}
	if(str_judge)
	{
		if(!mode)
		{
			if(index == 6)
			{
				if(rec[0] == 'A' && rec[1] == 'A' && rec[2] == 'A' && rec[3] == 'S' && rec[4] == 'S' && rec[5] == 'S')
					flag_send = 1;
				else	flag_send = 0;
			}
			else	flag_send = 0;
		}
		else
		{
			if(index == 6)
			{
				if(rec[0] == 'A' && rec[1] == 'A' && rec[2] == 'A' && rec[3] == 'S' && rec[4] == 'S' && rec[5] == 'S')
				{
					sprintf(str,"12345\r\n");
					Send_string(str);
				}
			}
		}
		index = 0;
		str_judge = 0;
	}
}

void Timer0Init(void)		//10毫秒@12.000MHz
{
	AUXR &= 0x7F;		//定时器时钟12T模式
	TMOD &= 0xF0;		//设置定时器模式
	TL0 = 0xF0;		//设置定时初值
	TH0 = 0xD8;		//设置定时初值
	TF0 = 0;		//清除TF0标志
	TR0 = 1;		//定时器0开始计时
	ET0 = 1;
}


void Timer0_isr() interrupt 1
{
	flag_10ms = 1;
	if(++count1 > 50)
	{
		count1 = 0;
		flag_500ms = 1;
	}
	if(mode)	flag_send = 0;
	if(++count2 > 100)
	{
		count2 = 0;
		if(flag_send)
		{
			sprintf(str,"{%d-%d}{%d-%d-%d}{%d}\r\n",temp,hum,(int)(time[2] / 16 * 10+ time[2] % 16),(int)(time[1] / 16 * 10 + time[1] % 16),(int)(time[0] / 16 * 10 + time[0] % 16),(int)yes);
			Send_string(str);
		}
	}
	if(mode && light < 160)
	{
		if(++count3 > 100)
		{
			count3 = 0;
			time_stop++;
		}
	}
}

void Led(unsigned char addr,enable)
{
	static unsigned char temp = 0x00;
	static unsigned char temp_old = 0xff;
	if(enable)	temp |= 0x01 << addr;
	else	temp &= ~(0x01 << addr);
	if(temp != temp_old)
	{
		P0 = ~temp;
		Select_Hc573(4);
		temp_old = temp;
	}
}

void Led_Pro()
{
	if(!mode)	Led(0,1);
	else	Led(0,0);
	if(yes)	Led(2,1);
	else	Led(2,0);
}

void main()
{
	Sys_Init();
	Timer0Init();
	Read_temp();
	Delay_ms(750);
	Write_time();
	UartInit();
	EA = 1;
	while(1)
	{
		Read_time();
		temp = Read_temp();
		hum = Read_light() / 51.0 * 20;
		if(hum > 99)	hum = 99;
		light = Read_v();
		if(light < 160)		yes = 1;
		else	yes = 0;
		if(light < 160)
			if(light > 160)
			{
				save[0] = temp;save[1] = hum;
				save[2] = time[0];save[3] = time[1];save[4] = time[2];
				save[5] = time_stop;
				Write_AT24C02_Page(save,0x00,6);
			}
		key_val = Key_Scan();
		Key_Pro();
		Uart_Pro();
		Led_Pro();
		switch(mode_dis)
		{
			case 0:Display_temp();break;
			case 1:Display_time();break;
			case 2:Display_time_stop();break;
		}
	}
}
