Swagger2+Knife4j接口文档初使用

简介

Knife4j基于swagger2再次封装的一个接口测试工具，是开发中较为常用的接口测试工具，该工具可以使前后端接口连通更加简便，前端程序员更直观的发现后端接口所需的必要参数，从而使我们后端程序员可以减少和前端交流沟通的工作量。

1.依赖

<!--knife4j-->
<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>knife4j-spring-boot-starter</artifactId>
    <version>2.0.7</version>
</dependency>
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>3.0.0</version>
    <exclusions>
        <exclusion>
            <groupId>io.swagger</groupId>
            <artifactId>swagger-models</artifactId>
        </exclusion>
    </exclusions>
</dependency>
<!-- 防止进入swagger页面报类型转换错误，排除3.0.0中的引用，手动增加1.6.2版本 -->
<dependency>
    <groupId>io.swagger</groupId>
    <artifactId>swagger-models</artifactId>
    <version>1.6.2</version>
</dependency>

2.application.yaml文件

spring:
  profiles:
    active: test
---
server:
  port: 9988
spring:
  profiles: test

# Swagger配置
swagger:
  # 是否开启swagger
  enabled: true
  # 请求前缀
  pathMapping: /

3.swagger配置

package com.diswdata.basic.config;

import com.diswdata.basic.vo.ResultCode;
import com.github.xiaoymin.knife4j.spring.annotations.EnableKnife4j;
import io.swagger.annotations.ApiOperation;
import io.swagger.models.auth.In;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.builders.ResponseBuilder;
import springfox.documentation.service.*;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.contexts.SecurityContext;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

import static org.springframework.http.HttpMethod.*;

/**
 * Swagger2的接口配置
 */
@EnableSwagger2
@EnableKnife4j
@Configuration
public class SwaggerConfig {

    /**
     * 是否开启swagger
     */
    @Value("${swagger.enabled}")
    private boolean enabled;

    /**
     * 设置请求的统一前缀
     */
    @Value("${swagger.pathMapping}")
    private String pathMapping;

    /**
     * 创建API
     */
    @Bean
    public Docket createRestApi() {
        List<Response> responseList = new ArrayList<>();
        Arrays.stream(ResultCode.values()).forEach(resultCode -> {
            responseList.add(new ResponseBuilder().code(resultCode.getCode().toString()).description(resultCode.getMsg()).build());
        });

        return new Docket(DocumentationType.SWAGGER_2)
                // 是否启用Swagger
                .enable(enabled)
                // 用来创建该API的基本信息，展示在文档的页面中（自定义展示的信息）
                .apiInfo(apiInfo())
                // 设置哪些接口暴露给Swagger展示
                .select()
                // 扫描所有有注解的api，用这种方式更灵活
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                // 扫描指定包中的swagger注解
                // .apis(RequestHandlerSelectors.basePackage("com.ruoyi.project.tool.swagger"))
                // 扫描所有
//                .apis(RequestHandlerSelectors.any())
                .paths(PathSelectors.any())
                .build()
                /* 设置安全模式，swagger可以设置访问token */
//                .securitySchemes(securitySchemes())
//                .securityContexts(securityContexts())
                .pathMapping(pathMapping)
                .globalResponses(GET, responseList)
                .globalResponses(POST, responseList)
                .globalResponses(PUT, responseList)
                .globalResponses(DELETE, responseList);
    }

    /**
     * 安全模式，这里指定token通过Authorization头请求头传递
     */
    private List<SecurityScheme> securitySchemes() {
        List<SecurityScheme> apiKeyList = new ArrayList<SecurityScheme>();
        apiKeyList.add(new ApiKey("Authorization", "易启勇", In.HEADER.toValue()));
        return apiKeyList;
    }

    /**
     * 安全上下文
     */
    private List<SecurityContext> securityContexts() {
        List<SecurityContext> securityContexts = new ArrayList<>();
        securityContexts.add(
                SecurityContext.builder()
                        .securityReferences(defaultAuth())
                        .operationSelector(o -> o.requestMappingPattern().matches("/.*"))
                        .build());
        return securityContexts;
    }

    /**
     * 默认的安全上引用
     */
    private List<SecurityReference> defaultAuth() {
        AuthorizationScope authorizationScope = new AuthorizationScope("global", "accessEverything");
        AuthorizationScope[] authorizationScopes = new AuthorizationScope[1];
        authorizationScopes[0] = authorizationScope;
        List<SecurityReference> securityReferences = new ArrayList<>();
        securityReferences.add(new SecurityReference("Authorization", authorizationScopes));
        return securityReferences;
    }

    /**
     * 添加摘要信息
     */
    private ApiInfo apiInfo() {
        // 用ApiInfoBuilder进行定制
        return new ApiInfoBuilder()
                // 设置标题
                .title("标题：基础管理系统接口文档")
                // 描述
                .description("描述：基础管理系统接口文档")
                // 作者信息
                .contact(new Contact("", null, null))
                // 版本
                .version("版本号: ")
                .build();
    }
}

4.响应VO的封装

package com.diswdata.basic.vo;

import lombok.*;

/**
 * @className: ResultCode
 * @author: houqd
 * @date: 2022/11/1
 **/
@Getter
@AllArgsConstructor
@NoArgsConstructor
public enum ResultCode {
    SUCCESS(1,"成功"),
    ERROR(0,"失败"),
    SERVER_ERROR(500,"服务器错误"),
    UNLAWFUL(401,"无权限"),
    PARAM_ERROR(405,"参数错误"),
    NOT_LOGIN(406,"未登录");
    private Integer code;
    private String msg;
}
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//

package com.diswdata.basic.vo;

import io.swagger.annotations.ApiModel;
import org.springframework.http.HttpStatus;

import java.io.Serializable;

@ApiModel("返回信息封装类")
public class ResponseVO<T> implements Serializable {
    private Integer code;
    private String msg;
    private T data;

    public ResponseVO(Integer code) {
        this.code = code;
    }

    public ResponseVO(Integer code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    public ResponseVO(Integer code, String msg, T data) {
        this.code = code;
        this.msg = msg;
        this.data = data;
    }

    public static ResponseVO success() {
        return new ResponseVO(HttpStatus.OK.value());
    }

    public static ResponseVO success(String msg) {
        return new ResponseVO(HttpStatus.OK.value(), msg);
    }

    public static ResponseVO success(Object data) {
        return new ResponseVO(HttpStatus.OK.value(), "成功", data);
    }

    public static ResponseVO success(String msg, Object data) {
        return new ResponseVO(HttpStatus.OK.value(), msg, data);
    }

    public static ResponseVO fail() {
        return new ResponseVO(HttpStatus.INTERNAL_SERVER_ERROR.value());
    }

    public static ResponseVO fail(Object data) {
        return new ResponseVO(HttpStatus.INTERNAL_SERVER_ERROR.value(), (String)null, data);
    }

    public static ResponseVO fail(String msg) {
        return new ResponseVO(HttpStatus.INTERNAL_SERVER_ERROR.value(), msg);
    }

    public static ResponseVO fail(String msg, Object data) {
        return new ResponseVO(HttpStatus.INTERNAL_SERVER_ERROR.value(), msg, data);
    }

    public static ResponseVO fail(Integer code, String msg) {
        return new ResponseVO(code, msg);
    }

    public static ResponseVO tips(String msg) {
        return new ResponseVO(HttpStatus.BAD_REQUEST.value(), msg);
    }

    public static <T> ResponseVOBuilder<T> builder() {
        return new ResponseVOBuilder();
    }

    public ResponseVO() {
    }

    public Integer getCode() {
        return this.code;
    }

    public String getMsg() {
        return this.msg;
    }

    public T getData() {
        return this.data;
    }

    public void setCode(final Integer code) {
        this.code = code;
    }

    public void setMsg(final String msg) {
        this.msg = msg;
    }

    public void setData(final T data) {
        this.data = data;
    }

    public boolean equals(final Object o) {
        if (o == this) {
            return true;
        } else if (!(o instanceof ResponseVO)) {
            return false;
        } else {
            ResponseVO<?> other = (ResponseVO)o;
            if (!other.canEqual(this)) {
                return false;
            } else {
                label47: {
                    Object this$code = this.getCode();
                    Object other$code = other.getCode();
                    if (this$code == null) {
                        if (other$code == null) {
                            break label47;
                        }
                    } else if (this$code.equals(other$code)) {
                        break label47;
                    }

                    return false;
                }

                Object this$msg = this.getMsg();
                Object other$msg = other.getMsg();
                if (this$msg == null) {
                    if (other$msg != null) {
                        return false;
                    }
                } else if (!this$msg.equals(other$msg)) {
                    return false;
                }

                Object this$data = this.getData();
                Object other$data = other.getData();
                if (this$data == null) {
                    if (other$data != null) {
                        return false;
                    }
                } else if (!this$data.equals(other$data)) {
                    return false;
                }

                return true;
            }
        }
    }

    protected boolean canEqual(final Object other) {
        return other instanceof ResponseVO;
    }

    public int hashCode() {
        int result = 1;
        Object $code = this.getCode();
        result = result * 59 + ($code == null ? 43 : $code.hashCode());
        Object $msg = this.getMsg();
        result = result * 59 + ($msg == null ? 43 : $msg.hashCode());
        Object $data = this.getData();
        result = result * 59 + ($data == null ? 43 : $data.hashCode());
        return result;
    }

    public String toString() {
        return "ResponseVO(code=" + this.getCode() + ", msg=" + this.getMsg() + ", data=" + this.getData() + ")";
    }

    public static class ResponseVOBuilder<T> {
        private Integer code;
        private String msg;
        private T data;

        ResponseVOBuilder() {
        }

        public ResponseVOBuilder<T> code(final Integer code) {
            this.code = code;
            return this;
        }

        public ResponseVOBuilder<T> msg(final String msg) {
            this.msg = msg;
            return this;
        }

        public ResponseVOBuilder<T> data(final T data) {
            this.data = data;
            return this;
        }

        public ResponseVO<T> build() {
            return new ResponseVO(this.code, this.msg, this.data);
        }

        public String toString() {
            return "ResponseVO.ResponseVOBuilder(code=" + this.code + ", msg=" + this.msg + ", data=" + this.data + ")";
        }
    }
}

5.控制层测试

package com.diswdata.demo.controller;

import com.diswdata.basic.vo.ResponseVO;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/deviceInstance")
@Api(tags = "入侵报警设备实例控制器")
@CrossOrigin//该注解表示该类跨域
public class Knife4jController {

    @GetMapping("/getPartition")
    @ApiOperation(value = "获取入侵报警分区列表树", notes = "获取入侵报警分区列表树")
    public ResponseVO getPartition() {
        return ResponseVO.success();
    }
}

6.启动类

package com.diswdata;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletComponentScan;

@SpringBootApplication
public class DiswMuseumApp {
    @Autowired
    public static void main(String[] args) {
        SpringApplication.run(DiswMuseumApp.class, args);
    }
}

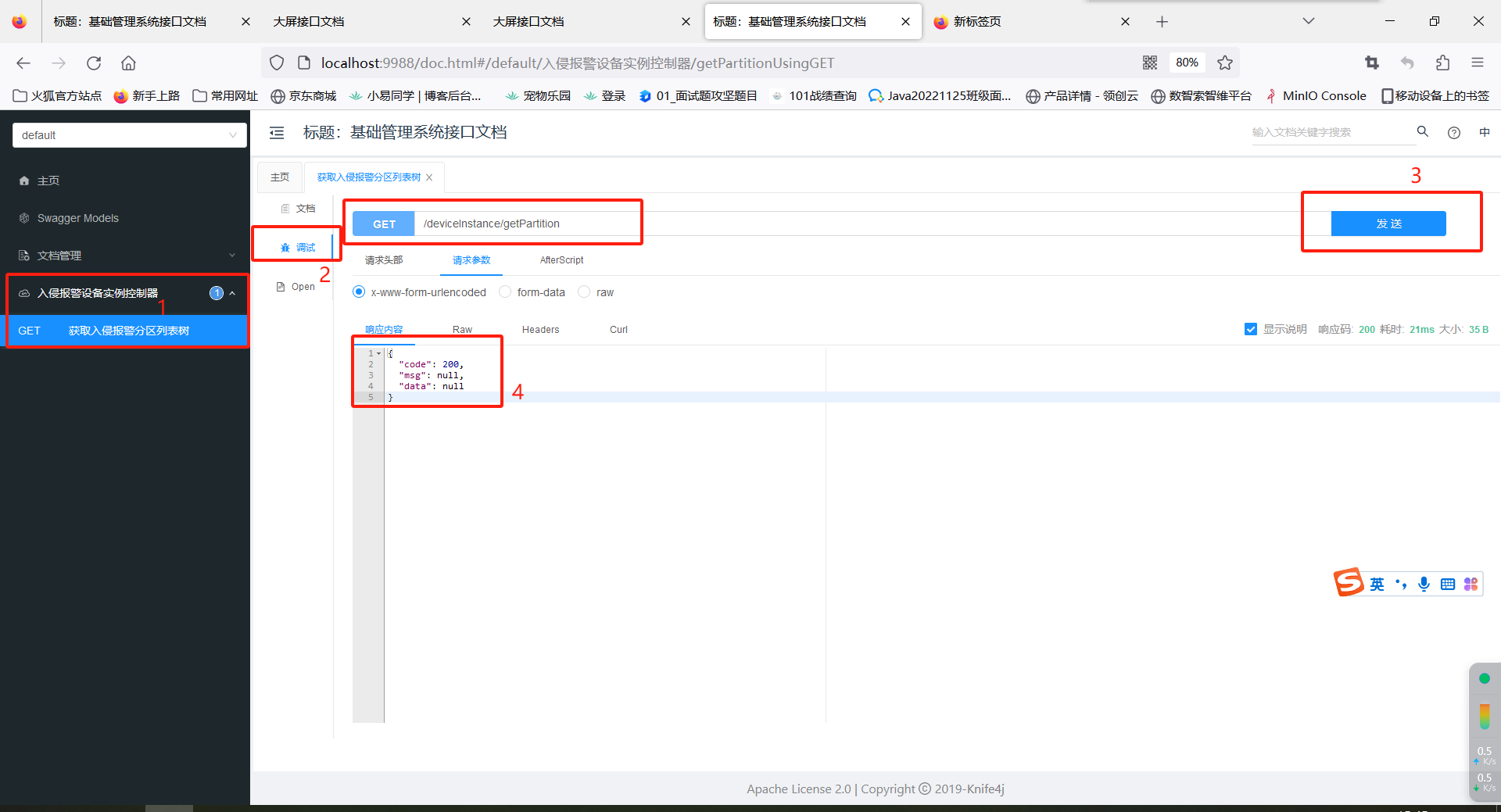

7.启动效果
