又更新了一点子3.0
最后代码更新到3.0了呜呜呜
这次的改进：ftp客户端和服务器端的确认以及输出
更新了一小下子2.0
后面代码已经改成最新的了

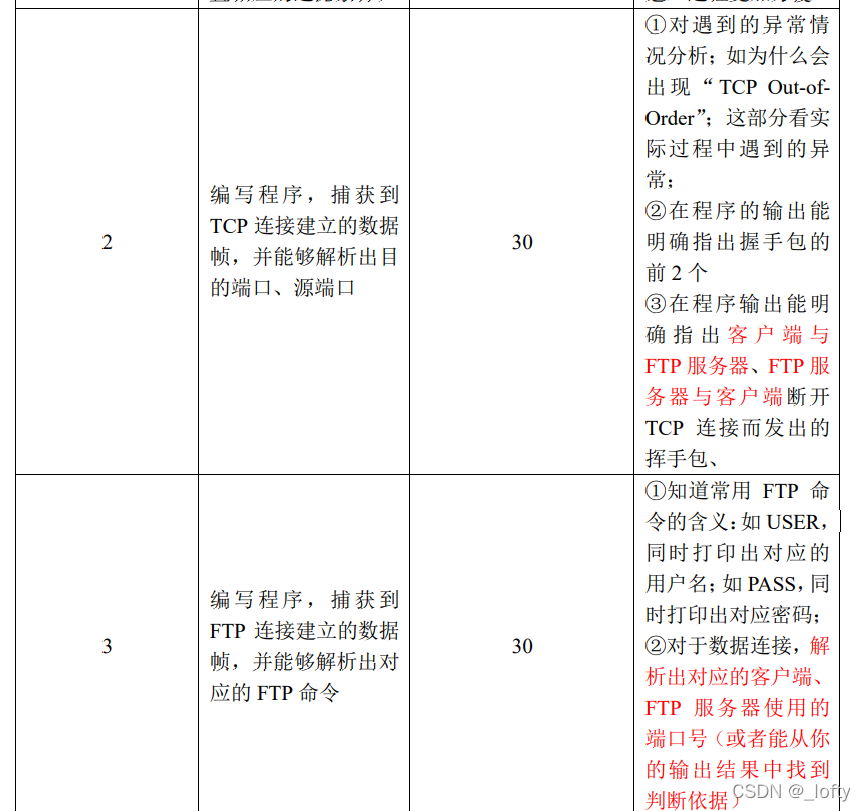

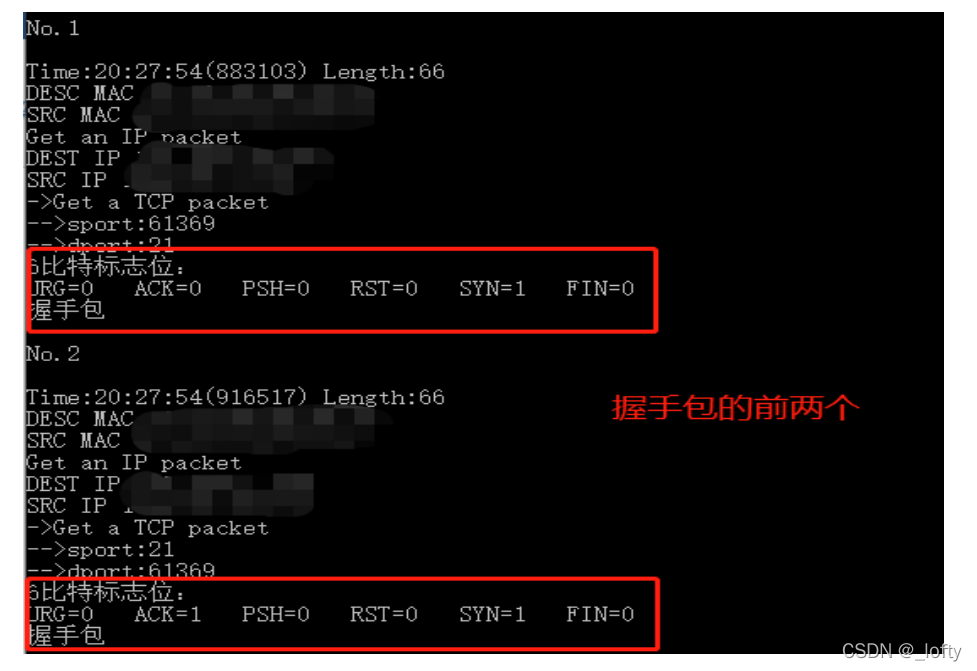

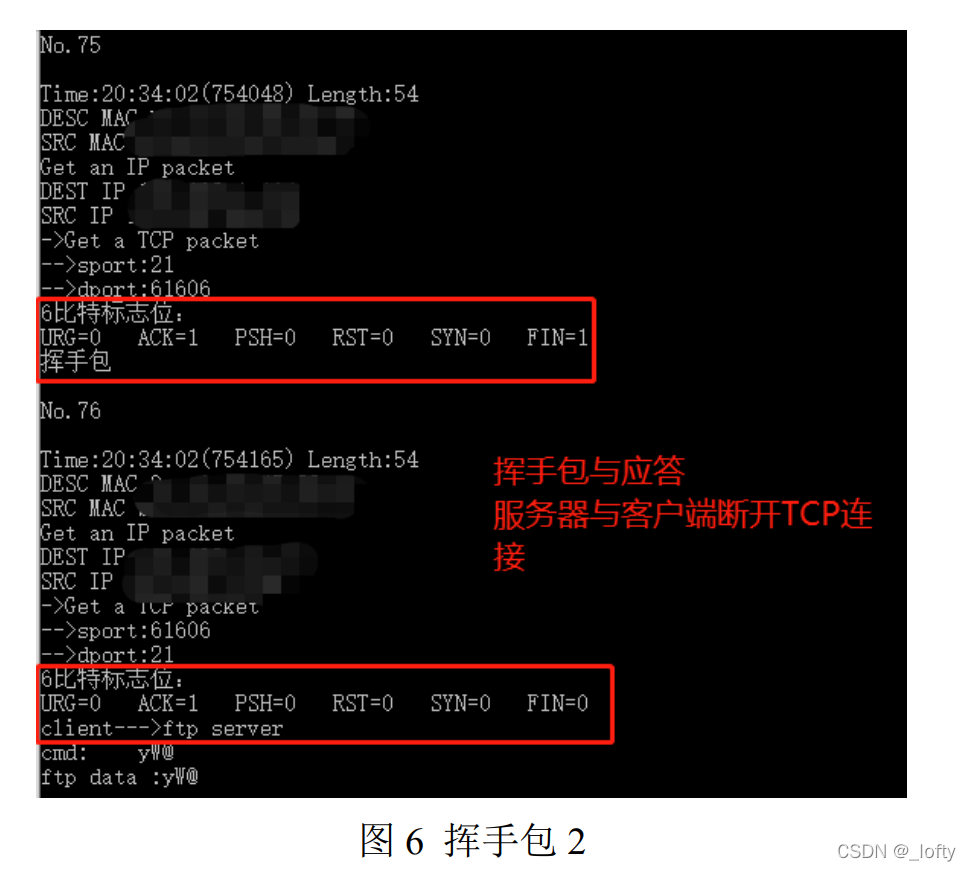

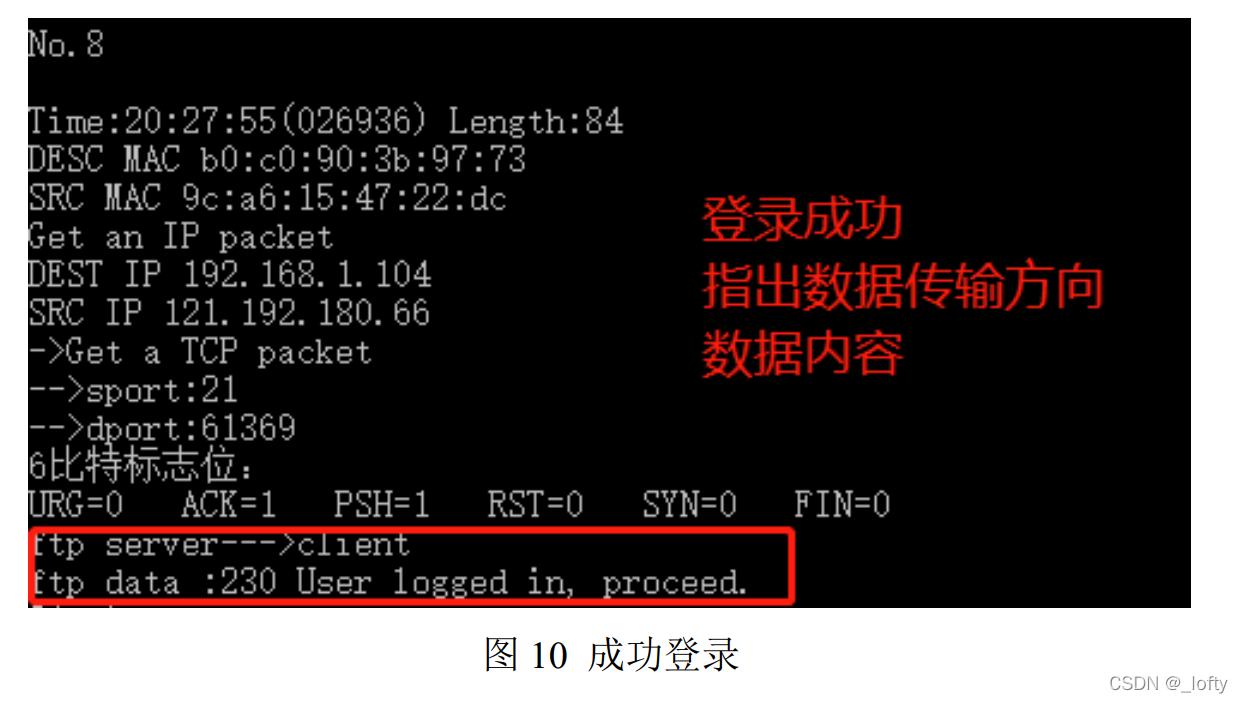

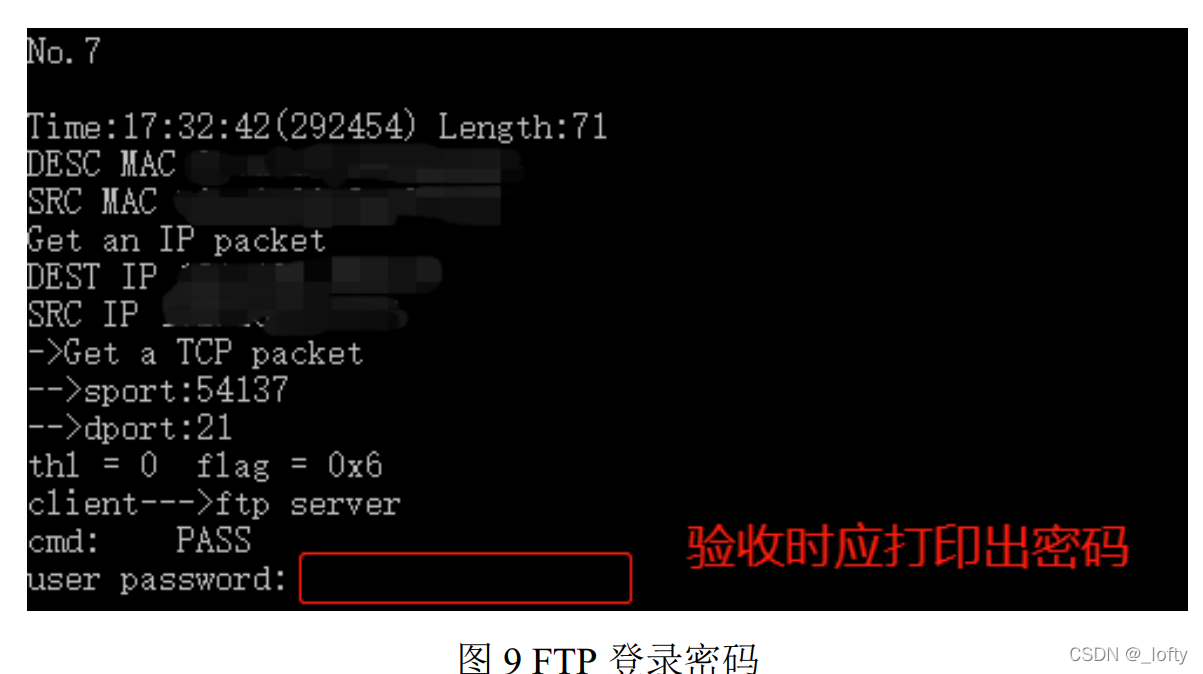

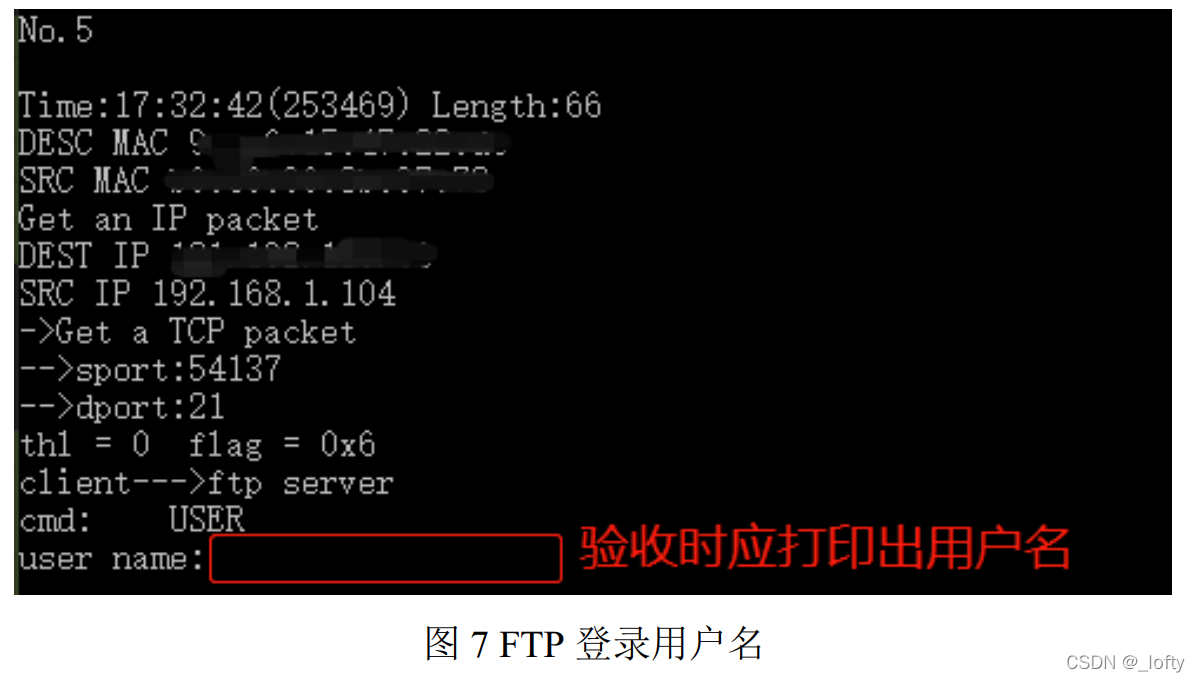

实验要求：
在网上扒了一段代码，然后自己又添了一点，明个就要验收了，没做完嘻嘻。上实验课的时候再完善一下子。
#define WIN32
#include<iostream>
#include<sstream>
#include<string>
#include<map>
#include<fstream>
#include <pcap.h>
#pragma warning(disable:4996)
using namespace std;
map<string, string[3]> ftp;
bool flag;
ofstream out("mark.txt");
typedef struct mac_header
{
u_char dest_addr[6];
u_char src_addr[6];
u_char type[2];
} mac_header;
/* IPv4 首部 ,20字节*/
typedef struct ip_header {
u_char ver_ihl; // 版本 (4 bits) + 首部长度 (4 bits)
u_char tos; // 服务类型(Type of service)
u_short tlen; // 总长(Total length)
u_short identification; // 标识(Identification)
u_short flags_fo; // 标志位(Flags) (3 bits) + 段偏移量(Fragment offset) (13 bits)
u_char ttl; // 存活时间(Time to live)
u_char proto; // 协议(Protocol)
u_short crc; // 首部校验和(Header checksum)
u_char saddr[4]; // 源地址(Source address)
u_char daddr[4]; // 目的地址(Destination address)
u_int op_pad; // 选项与填充(Option + Padding)
}ip_header;
//TCP头部，总长度20字节
typedef struct tcp_header
{
u_short sport; //源端口号
u_short dport; //目的端口号
u_int th_seq; //序列号
u_int th_ack; //确认号
u_int th1 : 4; //tcp头部长度
u_int th_res : 4; //6位中的4位首部长度
u_int th_res2 : 2; //6位中的2位首部长度
u_char th_flags; //6位标志位
u_short th_win; //16位窗口大小
u_short th_sum; //16位tcp检验和
u_short th_urp; //16位紧急指针
}tcp_header;
/* 回调函数原型 */
void packet_handler(u_char* param, const struct pcap_pkthdr* header, const u_char* pkt_data);
string get_request_m_ip_message(const u_char* pkt_data);
string get_response_m_ip_message(const u_char* pkt_data);
void print(const struct pcap_pkthdr* header, string m_ip_message, const u_char* pkt_data);
int main()
{
flag = false;
pcap_if_t* alldevs;
pcap_if_t* d;
int inum;
int i = 0;
pcap_t* adhandle;
char errbuf[PCAP_ERRBUF_SIZE];
u_int netmask;
char packet_filter[] = "tcp";
struct bpf_program fcode;
/* 获得设备列表 */
if (pcap_findalldevs_ex(PCAP_SRC_IF_STRING, NULL, &alldevs, errbuf) == -1)
{
fprintf(stderr, "Error in pcap_findalldevs: %s\n", errbuf);
exit(1);
}
/* 打印列表 */
for (d = alldevs; d; d = d->next)
{
printf("%d. %s", ++i, d->name);
if (d->description)
printf(" (%s)\n", d->description);
else
printf(" (No description available)\n");
}
if (i == 0)
{
printf("\nNo interfaces found! Make sure WinPcap is installed.\n");
return -1;
}
printf("Enter the interface number (1-%d):", i);
cin >> inum;
if (inum < 1 || inum > i)
{
printf("\nInterface number out of range.\n");
/* 释放设备列表 */
pcap_freealldevs(alldevs);
return -1;
}
/* 跳转到已选设备 */
for (d = alldevs, i = 0; i < inum - 1; d = d->next, i++);
/* 打开适配器 */
if ((adhandle = pcap_open(d->name, // 设备名
65536, // 要捕捉的数据包的部分
// 65535保证能捕获到不同数据链路层上的每个数据包的全部内容
PCAP_OPENFLAG_PROMISCUOUS, // 混杂模式
1000, // 读取超时时间
NULL, // 远程机器验证
errbuf // 错误缓冲池
)) == NULL)
{
fprintf(stderr, "\nUnable to open the adapter. %s is not supported by WinPcap\n", d->name);
/* 释放设备列表 */
pcap_freealldevs(alldevs);
return -1;
}
/* 检查数据链路层，为了简单，我们只考虑以太网 */
if (pcap_datalink(adhandle) != DLT_EN10MB)
{
fprintf(stderr, "\nThis program works only on Ethernet networks.\n");
/* 释放设备列表 */
pcap_freealldevs(alldevs);
return -1;
}
if (d->addresses != NULL)
/* 获得接口第一个地址的掩码 */
netmask = ((struct sockaddr_in*)(d->addresses->netmask))->sin_addr.S_un.S_addr;
else
/* 如果接口没有地址，那么我们假设一个C类的掩码 */
netmask = 0xffffff;
//编译过滤器
if (pcap_compile(adhandle, &fcode, packet_filter, 1, netmask) < 0)
{
fprintf(stderr, "\nUnable to compile the packet filter. Check the syntax.\n");
/* 释放设备列表 */
pcap_freealldevs(alldevs);
return -1;
}
//设置过滤器
if (pcap_setfilter(adhandle, &fcode) < 0)
{
fprintf(stderr, "\nError setting the filter.\n");
/* 释放设备列表 */
pcap_freealldevs(alldevs);
return -1;
}
printf("\nlistening on %s...\n", d->description);
/* 释放设备列表 */
pcap_freealldevs(alldevs);
/* 开始捕捉 */
pcap_loop(adhandle, 0, packet_handler, NULL);
out.close();
return 0;
}
static int cnt = 0;
/* 回调函数，当收到每一个数据包时会被libpcap所调用 */
void packet_handler(u_char* param, const struct pcap_pkthdr* header, const u_char* pkt_data)
{
int head = 54;//14位以太网头，20位ip头，20位tcp头
//选择出command为USER和PASS的包，当然这里就简单的以首字母来代表了，反正其他的
//command 没有以U和P开头的
string com;
string m_ip_message;
//对数据包的处理，先提前前四个字符，查看是什么命令
for (int i = 0; i < 4; i++)
com += (char)pkt_data[head + i];
if (com == "USER")
{
m_ip_message = get_request_m_ip_message(pkt_data);
string user;
ostringstream sout;
for (int i = head + 5; pkt_data[i] != 13; i++)
{
sout << pkt_data[i];
}
user = sout.str();
ftp[m_ip_message][0] = user;
print(header, m_ip_message, pkt_data);
}
else if (com == "PASS")
{
m_ip_message = get_request_m_ip_message(pkt_data);
string pass;
ostringstream sout;
for (int i = head + 5; pkt_data[i] != 13; i++)
{
sout << pkt_data[i];
}
pass = sout.str();
ftp[m_ip_message][1] = pass;
print(header, m_ip_message, pkt_data);
}
else if (com == "230 ")
{
m_ip_message = get_response_m_ip_message(pkt_data);
ftp[m_ip_message][2] = "SUCCEED";
print(header, m_ip_message,pkt_data);
}
else if (com == "530 ")
{
m_ip_message = get_response_m_ip_message(pkt_data);
ftp[m_ip_message][2] = "FAILD";
print(header, m_ip_message,pkt_data);
}
}
string get_request_m_ip_message(const u_char* pkt_data)
{
mac_header* mh;
ip_header* ih;
string m_ip_message;
string str;//empty string
ostringstream sout;
int length = sizeof(mac_header) + sizeof(ip_header);
mh = (mac_header*)pkt_data;
ih = (ip_header*)(pkt_data + sizeof(mac_header));
//sout << "SRC MAC:";
//sout << "DESC MAC:";
for (int i = 0; i < 3; i++)
sout << dec << (int)(ih->saddr[i]) << ".";
sout << (int)(ih->saddr[3]) << ",";
for (int i = 0; i < 5; i++)
sout << hex << (int)(mh->dest_addr[i]) << "-";
sout << (int)(mh->dest_addr[5]) << ",";
for (int i = 0; i < 3; i++)
sout << dec << (int)(ih->daddr[i]) << ".";
sout << (int)(ih->daddr[3]);
m_ip_message = sout.str();
return m_ip_message;
}
string get_response_m_ip_message(const u_char* pkt_data)
{
mac_header* mh;
ip_header* ih;
string m_ip_message;
string str;//empty string
ostringstream sout;
int length = sizeof(mac_header) + sizeof(ip_header);
mh = (mac_header*)pkt_data;
ih = (ip_header*)(pkt_data + sizeof(mac_header));
for (int i = 0; i < 5; i++)
sout << hex << (int)(mh->dest_addr[i]) << "-";
sout << (int)(mh->dest_addr[5]) << ",";
for (int i = 0; i < 3; i++)
sout << dec << (int)(ih->daddr[i]) << ".";
sout << (int)(ih->daddr[3]) << ",";
for (int i = 0; i < 5; i++)
sout << hex << (int)(mh->src_addr[i]) << "-";
sout << (int)(mh->src_addr[5]) << ",";
for (int i = 0; i < 3; i++)
sout << dec << (int)(ih->saddr[i]) << ".";
sout << (int)(ih->saddr[3]);
m_ip_message = sout.str();
return m_ip_message;
}
void print(const struct pcap_pkthdr* header, string m_ip_message,const u_char* pkt_data)
{
mac_header* mh;
ip_header* ih;
mh = (mac_header*)pkt_data;
ih = (ip_header*)(pkt_data + sizeof(mac_header));
tcp_header* th;
th = (tcp_header*)(pkt_data + 34);
cnt++;
cout << "No." << cnt << endl << endl;
time_t tt = time(NULL);
tm* t = localtime(&tt);
cout << "Time:";
printf("%d:%d:%d(%d)", t->tm_hour, t->tm_min, t->tm_sec, header->ts.tv_usec);
cout << endl;
//计算tcp报文数据长度还有点子错
/*u_int len = ih->tlen-ih->ver_ihl-th->th1;
cout << "TCP_Data_Length:" << len << endl;*/
cout << "get an ip packet" << endl;
cout << "get a tcp packet" << endl;
cout << "源端口：" << ntohs(th->sport) << endl;
cout << "目的端口：" << ntohs(th->dport) << endl;
u_short server = 21;//这里需要自己写服务器的端口，才能在后面判断到底是客户端到服务器端还是服务器端到客户端
if (ntohs(th->dport) == server)
cout << "ftp:client->server" << endl;
else
cout << "ftp:server->client" << endl;
cout << "SRC MAC ";
for (int i = 0; i < 5; i++) {//源MAC地址
printf("%02X-", mh->src_addr[i]);
}
printf("%02X,", mh->src_addr[5]);
cout << endl;
cout << "SOURCE IP ";
for (int i = 0; i < 3; i++) {//源IP地址
printf("%d.", ih->saddr[i]);
}
//fprintf_s(file, "%d,", ih->saddr[3]);
printf("%d,", ih->saddr[3]);
cout << endl;
cout << "DEST MAC ";
for (int i = 0; i < 5; i++) {//目的MAC地址
printf("%02X-", mh->dest_addr[i]);
}
printf("%02X,", mh->dest_addr[5]);
cout << endl;
cout << "DEST IP ";
for (int i = 0; i < 3; i++) {//目的IP地址
printf("%d.", ih->daddr[i]);
}
printf("%d,", ih->daddr[3]);
cout << endl;
u_short dport;
u_char flags = '\0';
dport = ntohs(th->dport);
flags = th->th_flags;
printf("6比特标志位：\n");
bool URG = flags & 0x20;
bool ACK = flags & 0x10;
bool PSH = flags & 0x08;
bool RST = flags & 0x04;
bool SYN = flags & 0x02;
bool FIN = flags & 0x01;
printf("URG=%d\tACK=%d\tPSH=%d\tRST=%d\tSYN=%d\tFIN=%d\n", URG, ACK, PSH, RST, SYN, FIN);
if (SYN) printf("握手包");
else if (FIN)printf("挥手包");
cout << endl;
cout << "USER:" << ftp[m_ip_message][0]<<" ";
cout<< "PASSWORD:"<<ftp[m_ip_message][1]<<" ";
cout << ftp[m_ip_message][2] << endl;
ftp.erase(m_ip_message);
cout << endl << endl;
}

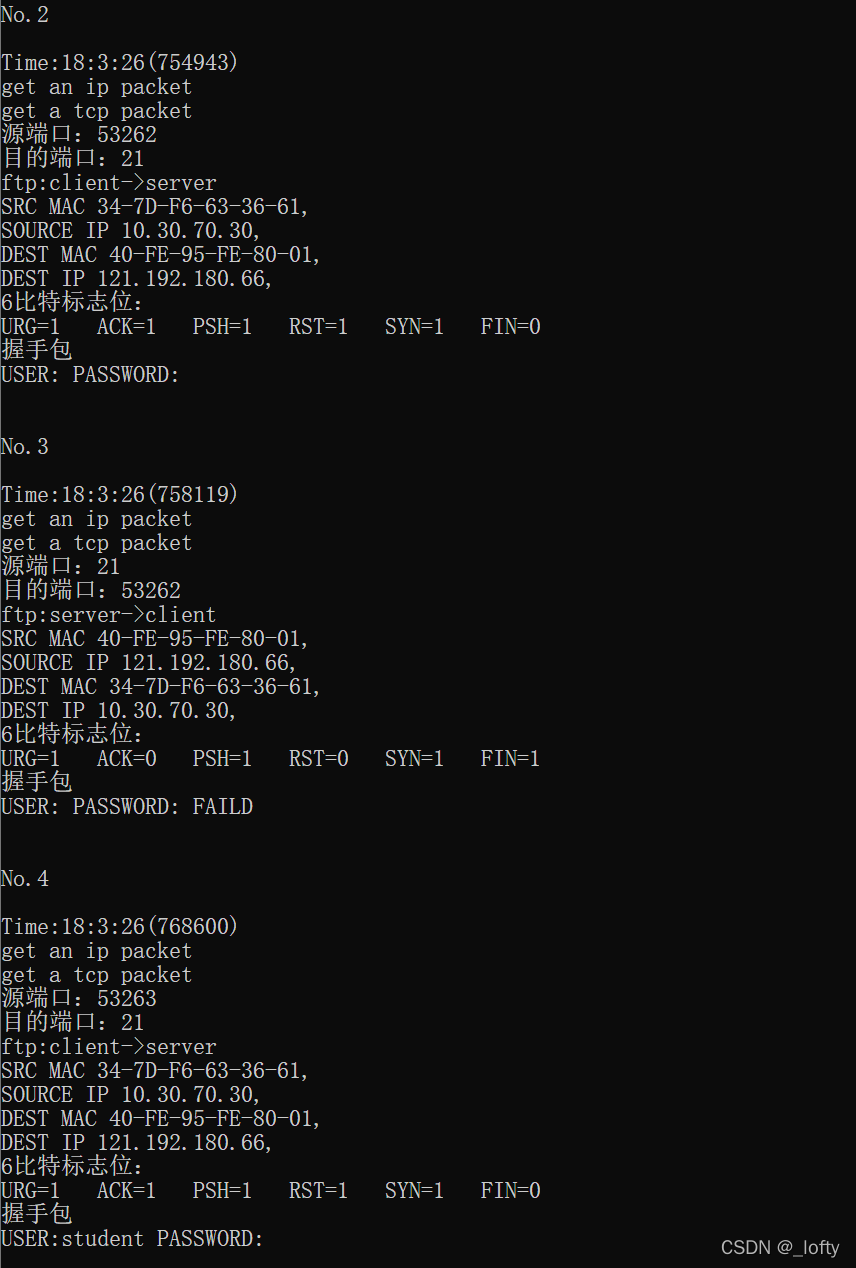

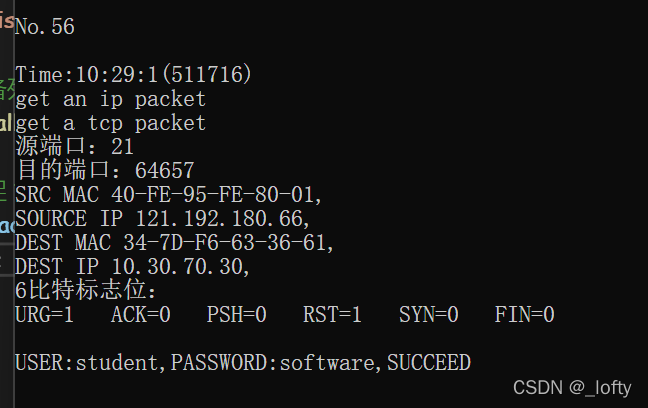

实现效果

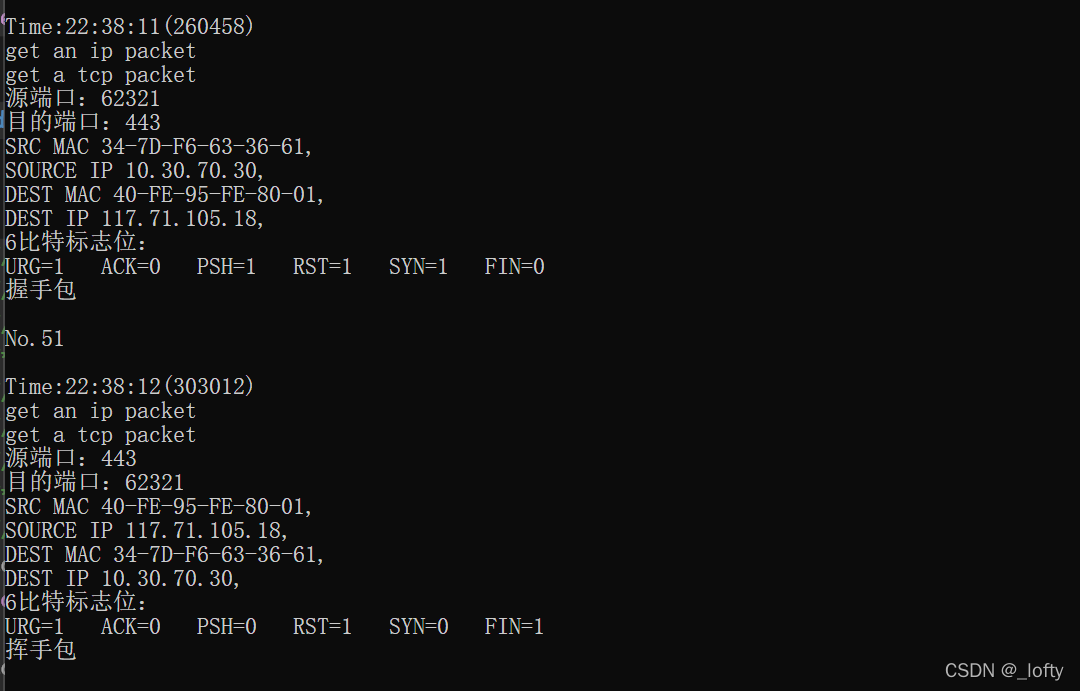

tcp:

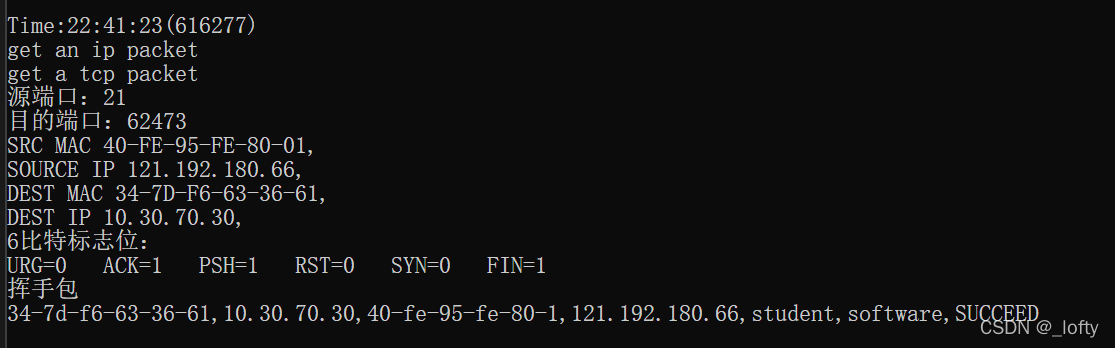

最后一行需要小改，因为源MAC，目的MAC，源IP和目的IP之前已经输出了，后面又输出了一次，但是我要回宿舍了，明天再改。最后面三个分别代表用户名密码和成功与否。
