java项目-图像处理2

多种效果处理的选择方法与存储

1.UI类

  -初始化界面

  -添加监听器  -创建监听器对象

 -获取Graphics 传入监听器中

package cs0122;

import javax.swing.*;
import java.awt.*;
/*
* image processing class01
* -@author cs0122
* -@version v1.0
* */
public class ImageUI extends JFrame {

    //Create listener instance
    ImageListener imglisten = new ImageListener();
    public void initUI(){  //  Initialization interface
        setTitle("图像处理");
        setSize(800,800);
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        setLocationRelativeTo(null); //居中显示
        FlowLayout flow  = new FlowLayout(); //add layout: flow layout
        setLayout(flow);
        addButton();
        setVisible(true);

        imglisten.g = getGraphics();


    }
    //add button function
    public void addButton(){
        String[] btnstrs = {
          "Original","Mosaic","Negative","Brightenface","Gray","Binarization","Whitening","Oil","Outline","fuse","withdraw"
        };
        for (int i = 0 ; i < btnstrs.length;i++){
            String btnstr = btnstrs[i];
            JButton btn = new JButton(btnstr);
            add(btn);
            //add Action Listener
            btn.addActionListener(imglisten);
        }
    }

    //  @param  args
    public static void main(String[] args){
        ImageUI imageUI = new ImageUI();
        imageUI.initUI();
    }
}

2.Listener类

 -实现监听器

 -重写监听器的方法

 -在方法中可以获取按钮上的字符串

 -通过字符串 选择使用哪种滤镜来绘制图片

package cs0122;

import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
/*
*  implements ActionListener

/*@author cs0122
  -version1.0
* */
public class ImageListener implements ActionListener {
    Graphics g = null ; // Graphics class
    ImageEff imgeff = new ImageEff(); //initialize the instance image processing class


    int[][] imgarr =  {};
    int[][] imgarr01 = {};
    int[][] imgarr02 ={};

    public ImageListener(){
        //Initialize the image array according to the path
        String imagPath01 = "C:\\Users\\ch\\Desktop\\zxc.png";
        String imagPath02 = "C:\\Users\\ch\\Desktop\\fj1.png";
        String imagPath03 = "C:\\Users\\ch\\Desktop\\fj2.png";
        imgarr = imgeff.getImagePixArray(imagPath01);
        imgarr01 = imgeff.getImagePixArray(imagPath02);
        imgarr02 = imgeff.getImagePixArray(imagPath03);
    }
    @Override
    public void actionPerformed(ActionEvent e){
        //Get the string on the button
        String btnstr = e.getActionCommand();
        System.out.println("click"+btnstr);

        if(btnstr.equals ("Original")){
            imgeff.drawImage_01 (imgarr, g);
        } else if(btnstr.equals ("Mosaic")){
            imgeff.drawImage_02 (imgarr, g);
        } else if(btnstr.equals ("Negative")){
            imgeff.drawImage_03 (imgarr, g);
        } else if(btnstr.equals ("Brightenface")){
            imgeff.drawImage_04 (imgarr, g);
        } else if(btnstr.equals ("Gray")){
            imgeff.drawImage_05 (imgarr, g);
        } else if(btnstr.equals ("Binarization")){
            imgeff.drawImage_06 (imgarr, g);
        } else if(btnstr.equals ("Whitening")){
            imgeff.drawImage_07 (imgarr, g);
        } else if(btnstr.equals ("Oil")){
            imgeff.drawImage_08 (imgarr, g);
        } else if(btnstr.equals ("Outline")){
            System.out.println ("btnstr=-" + btnstr);
            imgeff.drawImage_09 (imgarr, g);
        } else if(btnstr.equals ("fuse")){
            imgeff.drawImage_10 (imgarr01, imgarr02, g);
        } else if(btnstr.equals ("withdraw")){
        }

    }
}

3.ImageEff 图片处理类

 -将计算机图片转为二维数组

 -提供各种滤镜处理方法

package cs0122;

import javax.imageio.ImageIO;
import java.awt.*;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.IOException;
import java.util.Random;

/**
 * Image processing class
 * Convert the picture on the computer into a two-dimensional array
 * Provides methods for image processing
 *
 * @author cs0122
 * @version v1.0
 *
 */
public class ImageEff{

    // start coordinate
    final int X = 100;
    final int Y = 100;

    /**
     * Get the picture on the computer according to the path
     * and return the two-dimensional array represented by the picture
     * @param path
     *
     * @return two-dimensional
     */
    public int[][] getImagePixArray(String path){
        File file = new File (path);
        BufferedImage buffimg = null;
        try {
            buffimg = ImageIO.read (file);
        } catch (IOException e) {
            e.printStackTrace ();
        }
        // ????????
        int w = buffimg.getWidth ();
        int h = buffimg.getHeight ();
        int[][] imgarr = new int[w][h];
        for(int i = 0; i < w; i++){
            for(int j = 0; j < h; j++){
                imgarr[i][j] = buffimg.getRGB (i, j);
            }
        }
        return imgarr;
    }

    /**
     * Original
     * @param imgarr
     * @param g
     */
    public void drawImage_01(int[][] imgarr, Graphics g){
        for(int i = 0; i < imgarr.length; i++){
            for(int j = 0; j < imgarr[i].length; j++){
                int rgb = imgarr[i][j];
                Color color = new Color (rgb);
                g.setColor (color);
                g.fillRect (X + i, Y + j, 1, 1);
            }
        }
    }

    /**
     * Mosaic
     * @param imgarr
     * @param g
     */
    public void drawImage_02(int[][] imgarr, Graphics g){
        for(int i = 0; i < imgarr.length - 10; i += 10){
            for(int j = 0; j < imgarr[i].length - 10; j += 10){
                int rgb = imgarr[i][j];
                Color color = new Color (rgb);
                g.setColor (color);
                g.fillRect (X + i, Y + j, 10, 10);
            }
        }
    }

    /**
     * Negative
     *
     * @param imgarr
     * @param g
     */
    public void drawImage_03(int[][] imgarr, Graphics g){
        for(int i = 0; i < imgarr.length; i++){
            for(int j = 0; j < imgarr[i].length; j++){
                int rgb = imgarr[i][j];
                Color color = new Color (rgb);
                int red = color.getRed ();
                int green = color.getGreen ();
                int blue = color.getBlue ();
                Color ncolor = new Color (255 - red, 255 - green, 255 - blue);
                g.setColor (ncolor);
                g.fillRect (X + i, Y + j, 1, 1);
            }
        }
    }
    /*
    * Brighten face
    * @param imgarr
    * @param g
    * */
    public void drawImage_04(int[][] imgarr, Graphics g){
        for(int i = 0 ; i < imgarr.length; i++){
            for(int j = 0 ; j < imgarr[i].length;j++){
                int rgb = imgarr[i][j];
                Color color = new Color(rgb);
                int red = color.getRed();
                int green = color.getGreen();
                int blue = color.getBlue();
                int nred = red > 220 ? 250 : red + 30;
                int ngreen = green > 220 ? 250 : green + 30;
                int nblue = blue > 220 ? 250: blue + 30;
                Color ncolor = new Color(nred,ngreen,nblue);
                int gray = (red+green+blue)/3;
                if(gray<100){
                    g.setColor(color);
                }else {
                    g.setColor(ncolor);
                }
                g.fillRect(X+i,Y+j,1,1);
            }
        }
    }

    /**
     * Gray
     *
     * @param imgarr
     * @param g
     */
    public void drawImage_05(int[][] imgarr, Graphics g){
        for(int i = 0; i < imgarr.length; i++){
            for(int j = 0; j < imgarr[i].length; j++){
                int rgb = imgarr[i][j];
                Color color = new Color (rgb);
                int red = color.getRed ();
                int green = color.getGreen ();
                int blue = color.getBlue ();
                int gray = (int) (red * 0.41 + green * 0.36 + blue * 0.23);
                Color ncolor = new Color (gray, gray, gray);
                g.setColor (ncolor);
                g.fillRect (X + i, Y + j, 1, 1);
            }
        }
    }
    /*
    * Binarization
    * @param imgarr
    * @param g
    * */
    public void drawImage_06(int[][] imgarr, Graphics g){
        for(int i = 0; i < imgarr.length; i++){
            for(int j = 0; j < imgarr[i].length; j++){
                int rgb = imgarr[i][j];
                Color color = new Color(rgb);
                int red = color.getRed();
                int green = color.getGreen();
                int blue = color.getBlue();
                int gray = (red + green + blue)/3;
                if(gray<165){
                    g.setColor(Color.BLACK);
                }else{
                    g.setColor(Color.WHITE);
                }

                g.fillRect(50+i,50+j,1,1);
            }
        }

    }
    /*
    * Whitening
    * @param imgarr
    * @param g
    * */
    public void drawImage_07(int[][] imgarr, Graphics g){
        for(int i = 0 ; i < imgarr.length; i++){
            for(int j = 0 ; j < imgarr[i].length;j++){
                int rgb = imgarr[i][j];
                Color color = new Color(rgb);
                int red = color.getRed();
                int green = color.getGreen();
                int blue = color.getBlue();
                int nred = red > 220 ? 250 : red + 30;
                int ngreen = green > 220 ? 250 : green + 30;
                int nblue = blue > 220 ? 250: blue + 30;
                Color ncolor = new Color(nred,ngreen,nblue);
                int gray = (red+green+blue)/3;
                if(gray<100){
                    g.setColor(color);
                }else {
                    g.setColor(ncolor);
                }
                g.fillRect(X+i,Y+j,1,1);
            }
        }
    }
    /*
    * oil painting
    * @param imgarr
    * @param g
    * */
    public void drawImage_08(int[][] imgarr, Graphics g){
        for(int i = 0; i < imgarr.length ; i+=5){
            for(int j= 0 ; j < imgarr[i].length ; j+=5){
                int rgb = imgarr[i][j];
                Color color = new Color(rgb);
                Random random = new Random();
                int ran = random.nextInt(20)+5;
                g.setColor(color);
                g.fillOval(X+i,Y+j,ran,ran);

            }
        }

    }

    /**
     * Outline
     *
     * @param imgarr
     * @param g
     */
    public void drawImage_09(int[][] imgarr, Graphics g){
        for(int i = 0; i < imgarr.length-2; i++){
            for(int j = 0; j < imgarr[i].length-2; j++){
                int rgb = imgarr[i][j];
                Color color = new Color (rgb);
                int red = color.getRed ();
                int green = color.getGreen ();
                int blue = color.getBlue ();
                int gray = (int) (red * 0.41 + green * 0.36 + blue * 0.23);

                // ???????б?????????? ???? ?????
                int nrgb = imgarr[i + 2][j + 2];
                Color ncolor = new Color (nrgb);
                int nred = ncolor.getRed ();
                int ngreen = ncolor.getGreen ();
                int nblue = ncolor.getBlue ();
                int ngray = (int) (nred * 0.41 + ngreen * 0.36 + nblue * 0.23);

                if(Math.abs (gray - ngray) > 15){
                    g.setColor (Color.black);
                } else{
                    g.setColor (Color.white);
                }
                g.fillRect (X + i, Y + j, 1, 1);
            }
        }
    }

    /**
     * fuse
     * Merge the two picture
     * Take half each
     * @param imgarr01 imgarr02
     * @param g
     */
    public void drawImage_10(int[][] imgarr01, int[][] imgarr02,Graphics g){
        for(int i = 0; i < imgarr01.length; i++){
            for(int j = 0; j < imgarr01[i].length; j++){
                int rgb1 = imgarr01[i][j];
                int rgb2 = imgarr02[i][j];
                Color color1 = new Color (rgb1);
                Color color2 = new Color (rgb2);
                int red1 = color1.getRed();
                int green1 = color1.getGreen();
                int blue1 = color1.getBlue();
                int red2 = color2.getRed();
                int green2 = color2.getGreen();
                int blue2 = color2.getBlue();
                Color ncolor = new Color((red1+red2)/2,(green1+green2)/2,(blue1+blue2)/2);
                g.setColor (ncolor);
                g.fillRect (X + i, Y + j, 1, 1);
            }
        }


    }
}

最终实现效果：

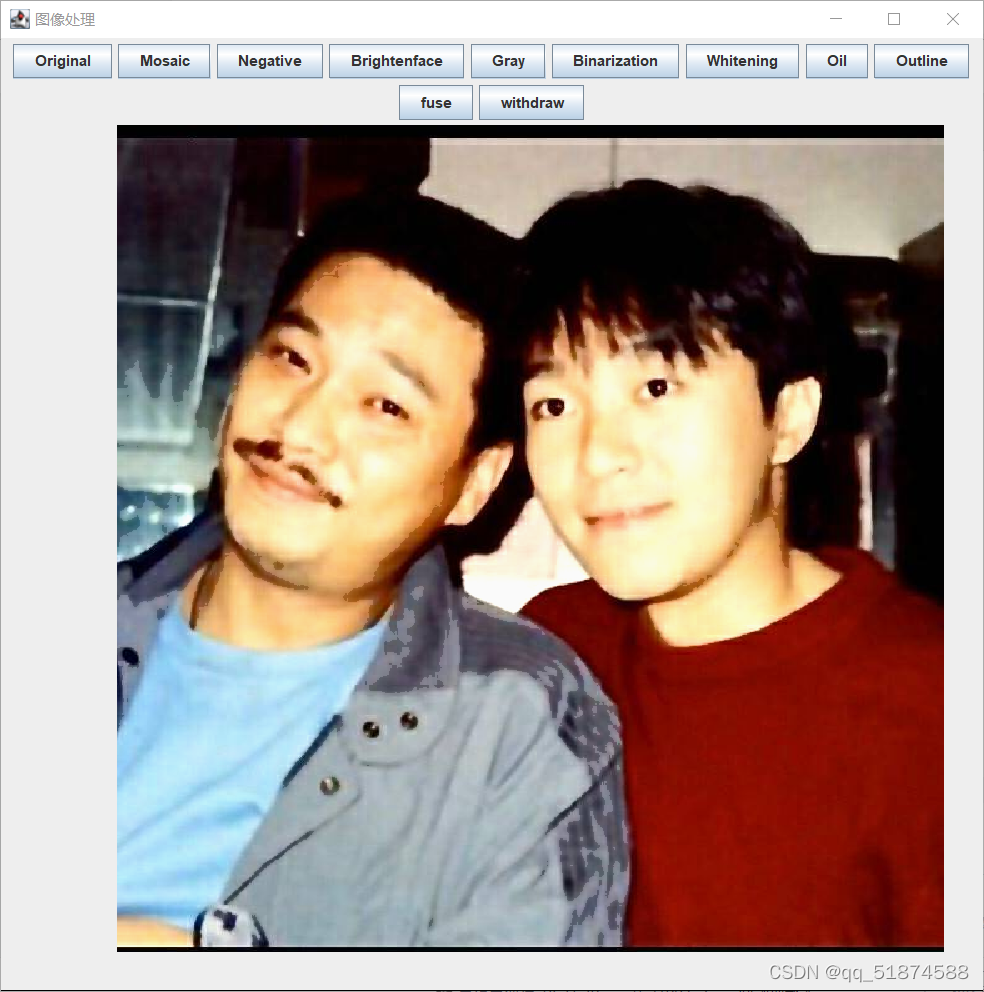

原图：

马赛克：

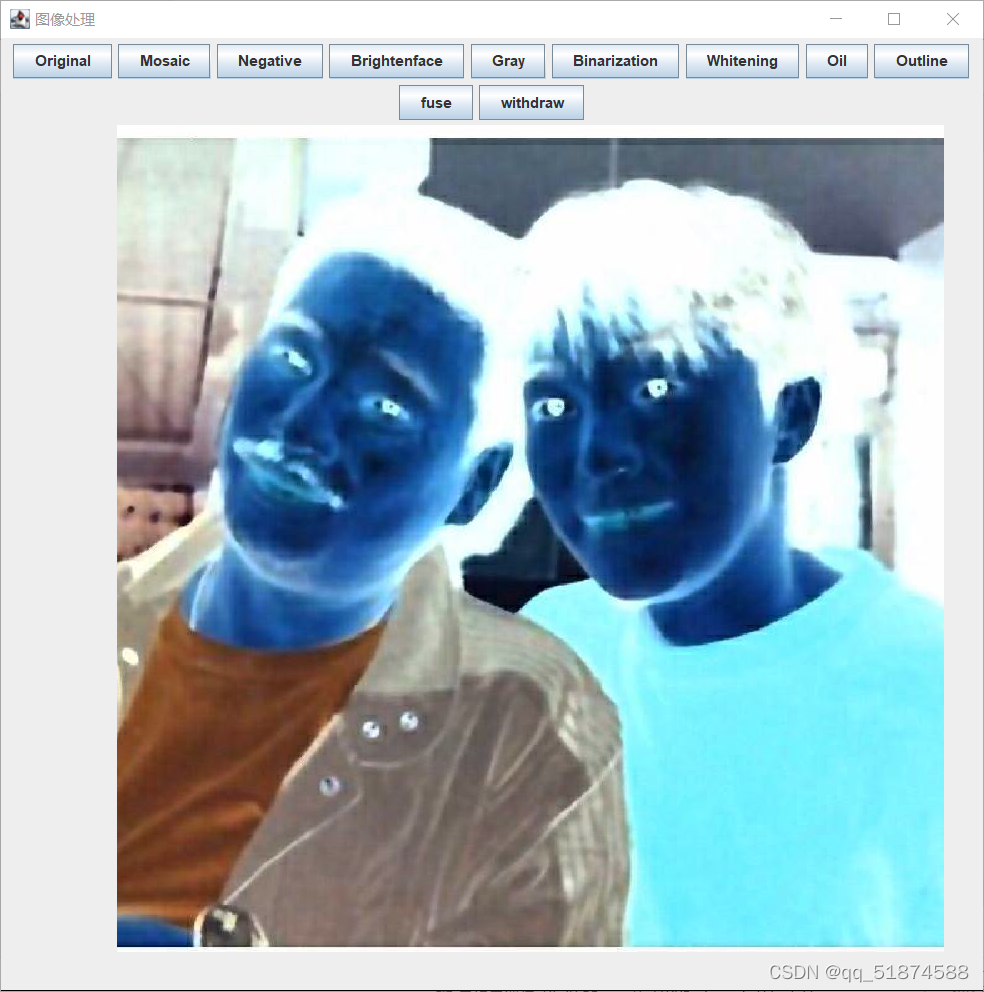

 反片：

脸部提亮：

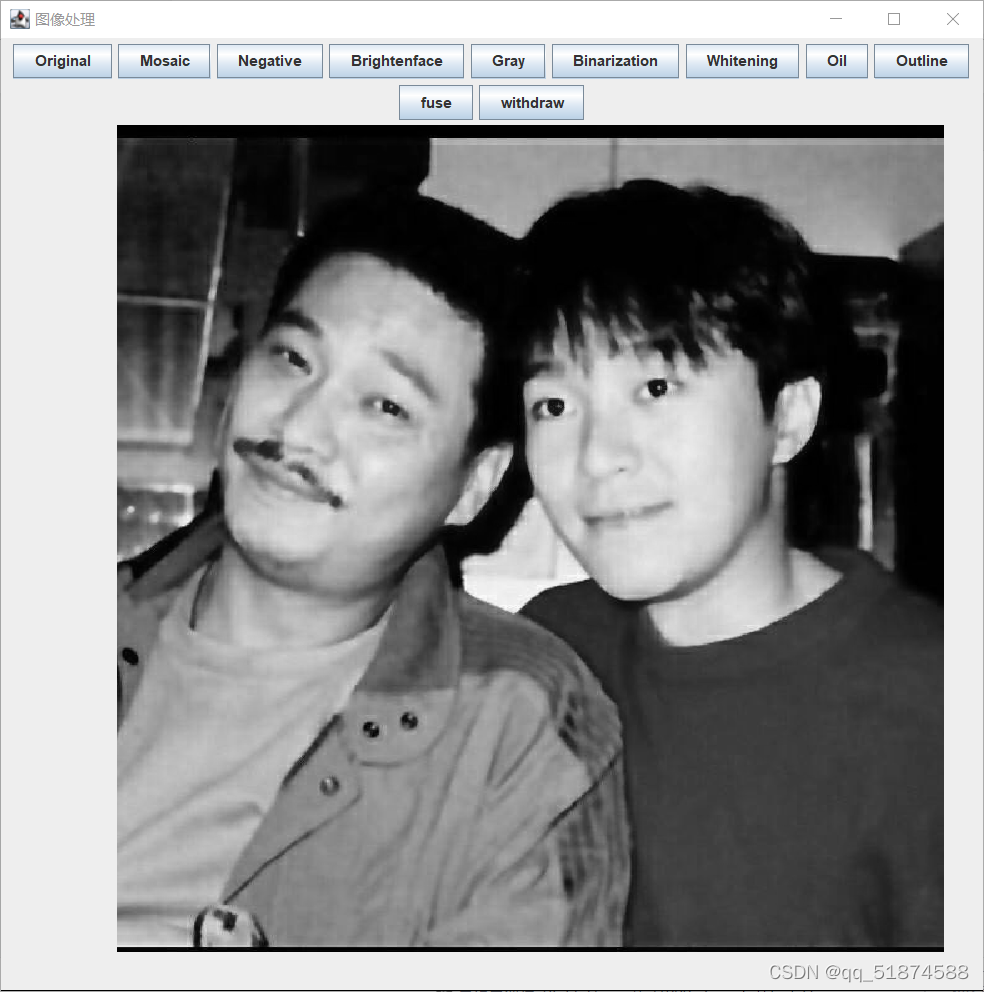

灰度：

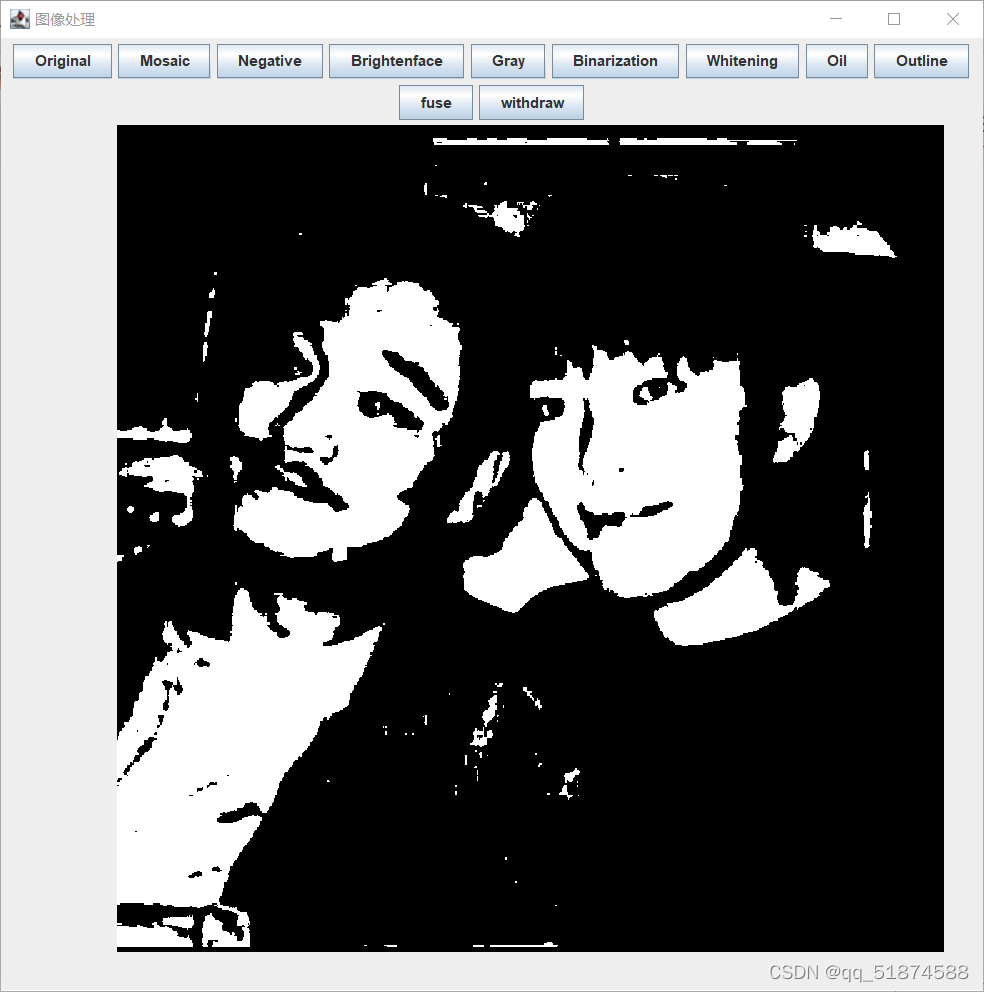

二值化：

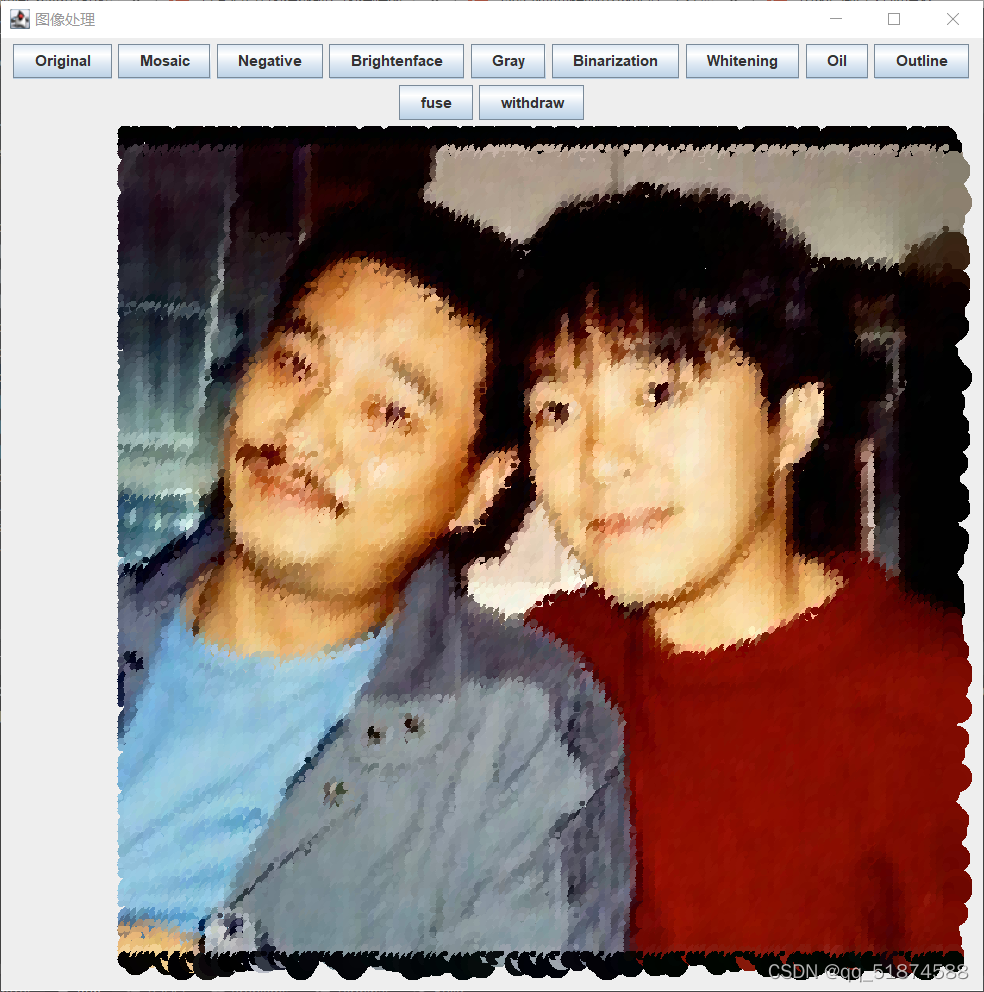

油画：

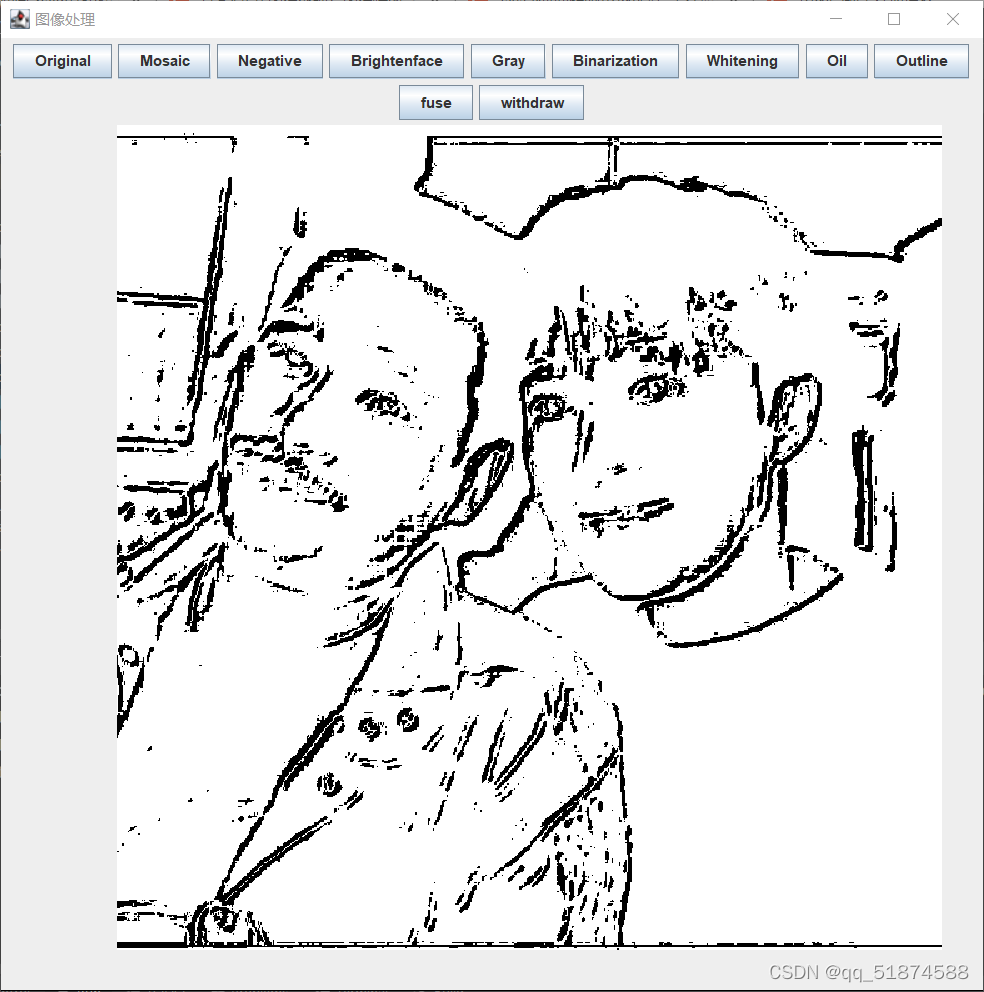

轮廓提取:

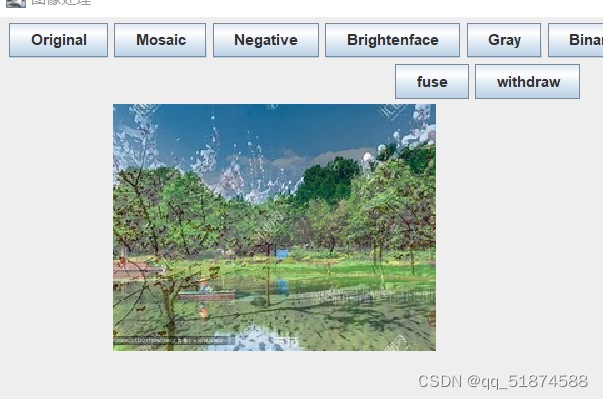

 图片融合：

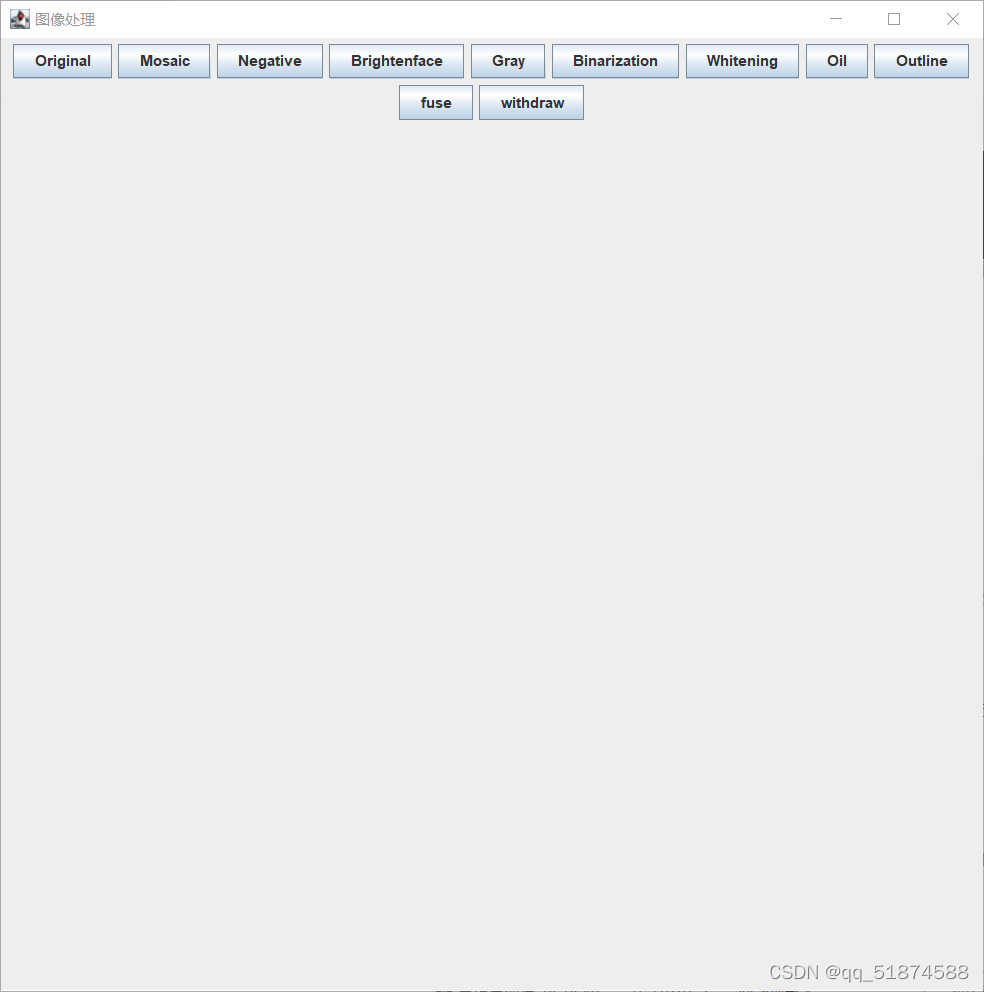

 还有一些功能尚未解决，如撤回，界面拉长导致图片消失等问题。
