本文详细介绍了如何使用LabVIEW 2018配合Unity3D，通过数据采集卡实现实时数据的传输和在Unity中显示的过程。通过TCP连接，Unity3D能够接收来自LabVIEW的多个端口的数据，包括位置坐标和测量参数。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

准备：Labview2018，unity 3D，数据采集卡

实现方法：

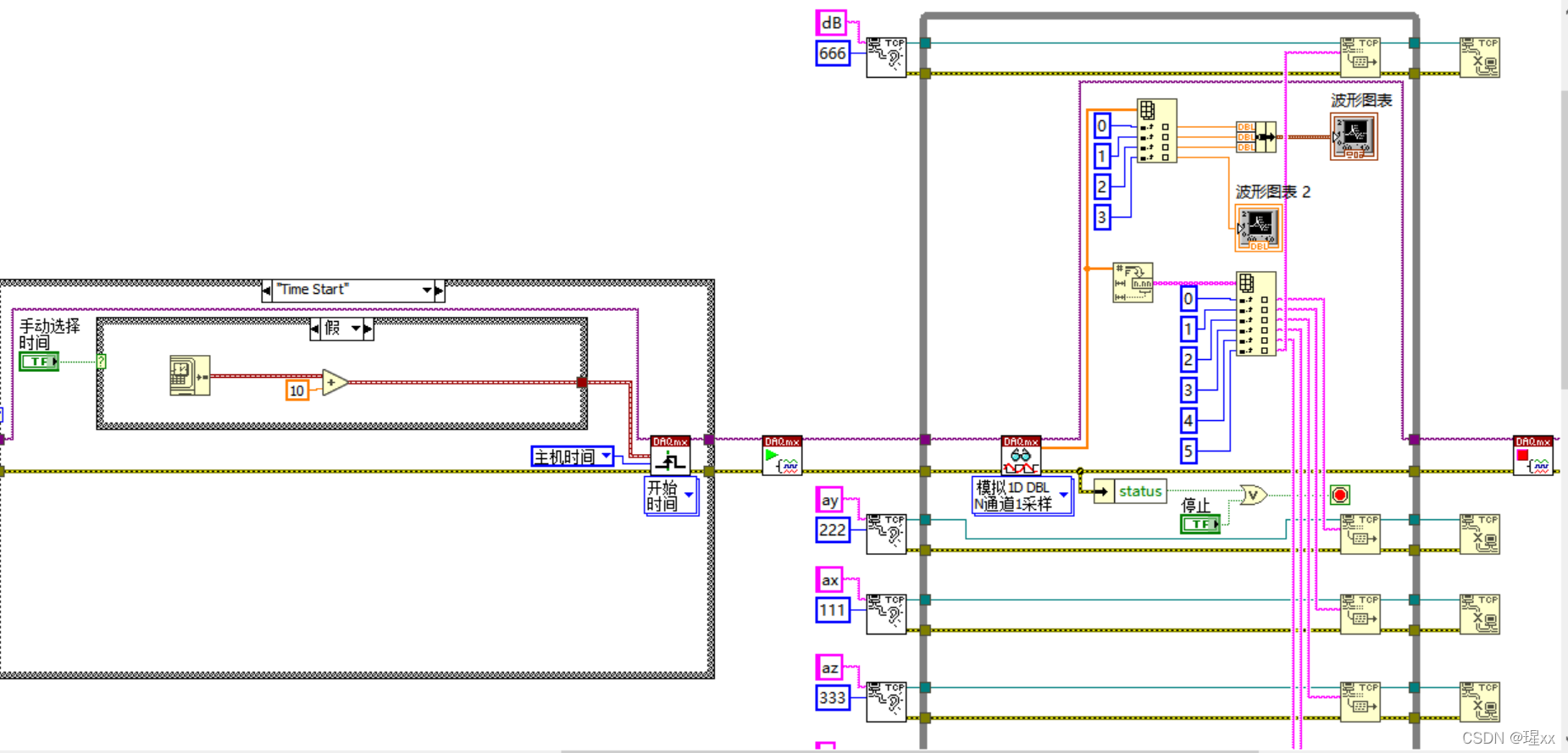

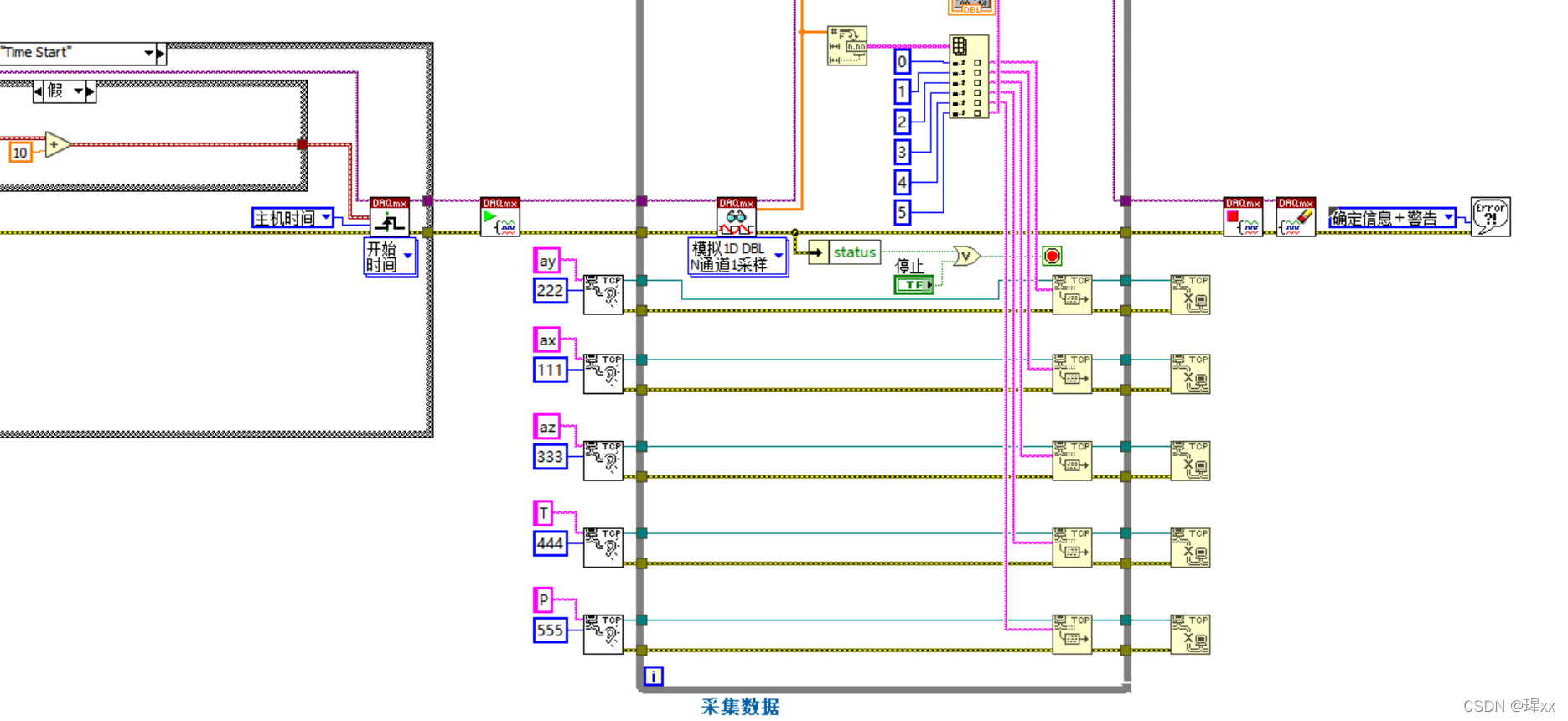

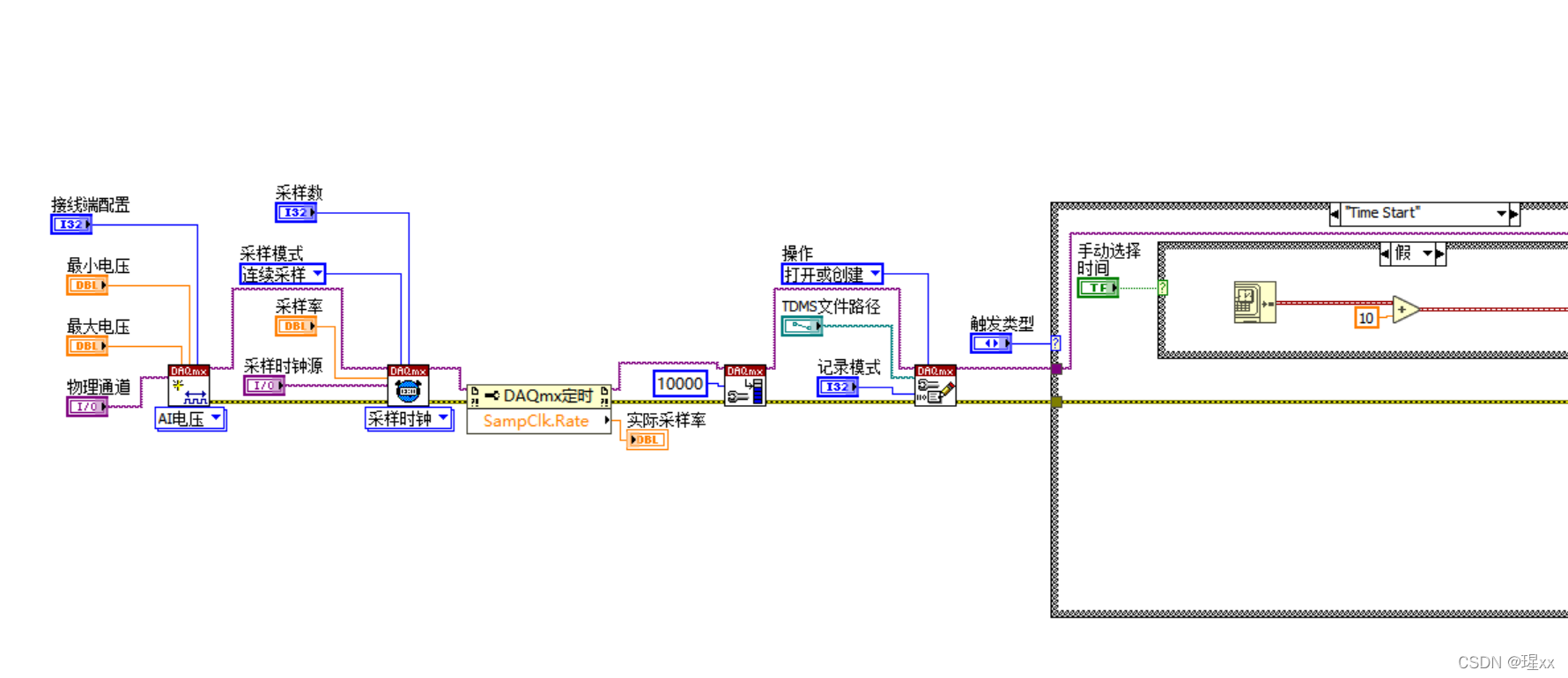

labview后面板：

unity 3D代码：

using System;
using System.Collections;
using System.Collections.Generic;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.IO;
using System.Threading;
using UnityEngine;
using UnityEngine.UI;



public class tcp : MonoBehaviour
{
    private string inputIp = "192.168.244.202";   //输入ip地址
    private string inputPort = "111";           //输入端口号
    private string inputPort2 = "222";
    private string inputPort3 = "333";
    private string inputPort4 = "444";
    private string inputPort5 = "555";
    private string inputPort6 = "666";



    public string recMes = "NULL";


    public static double ax;
    public static double ay;
    public static double az;
    public static double T;
    public static double P;
    public static double dB;

    private Socket socketSend1;                   //客户端套接字，用来链接远端服务器
    private Socket socketSend2;
    private Socket socketSend3;
    private Socket socketSend4;
    private Socket socketSend5;
    private Socket socketSend6;

    public static string s="False";




    //建立链接
    private void ClickConnect()
    {
        try
        {
//端口1
            int _port = Convert.ToInt32(inputPort);             //获取端口号
            string _ip = inputIp;                               //获取ip地址

            //创建客户端Socket，获得远程ip和端口号
            socketSend1 = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
            IPAddress ip = IPAddress.Parse(_ip);
            IPEndPoint point = new IPEndPoint(ip, _port);

            socketSend1.Connect(point);
            Debug.Log("连接成功 , " + " ip = " + ip + " port = " + _port);

            Thread r_thread1 = new Thread(Received1);             //开启新的线程，不停的接收服务器发来的消息
            r_thread1.IsBackground = true;
            r_thread1.Start();

//端口2
            int _port2 = Convert.ToInt32(inputPort2);
