IO软件滤波实现

UWORD *uwIoNewStatus[XINPUT_PORT_NUM] = {&BXBrkL, &BXBrkR, &BXBrk1, &BXBrk2, &BXBKShotEr, &BXBRY, &BXBKVHST, &BXBKSTYPE};

/***************************************************************
 Function: voIOinputFilter;
 Description: IOinput filter
 Call by: voIOinput 1ms;
 Input Variables: filter CNT (0~255)
 Output/Return Variables: N/A
 Subroutine Call: ...;
 Reference: N/A
****************************************************************/
void voIOinputFilter(UBYTE filtercnt)
{
	UWORD i = 0;

	ulIoBufStatusTemp =  (BKSTYPE<<7) | (BKVH<<6) | (BRY<<5) | (GNDERR<<4) | (BKY2<<3) | (BKY1<<2) | (BK2<<1) |  BK1;

	for(i = 0; i < XINPUT_PORT_NUM; i++)
	{
		uwIoBufStatus[i] = (ulIoBufStatusTemp>>i)&0x0001;
	}
	for(i = 0; i < XINPUT_PORT_NUM; i++)
	{
		if(uwIoBufStatus[i] != uwIoOldStatus[i])
		{
		    uwIoOldStatus[i] = uwIoBufStatus[i];
		    uwFiltercnt[i] = 0;
		}
		else
		{
			if(uwFiltercnt[i] >= filtercnt)//(filtercnt+1)ms
			{
				*uwIoNewStatus[i] = uwIoOldStatus[i];
				uwFiltercnt[i] = 0;
			}
			else
			uwFiltercnt[i]++;
		}
	}
}

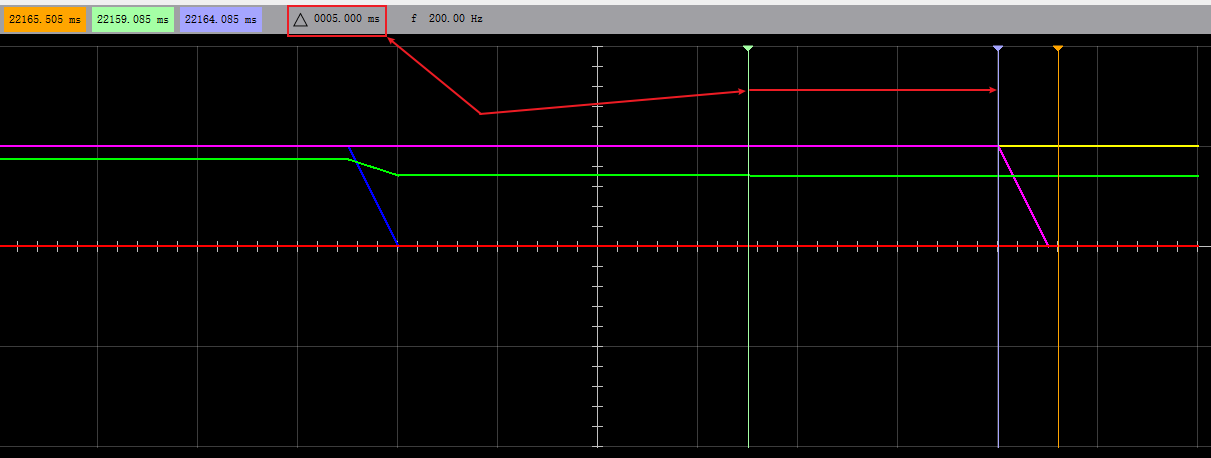

通过J-scope观察滤波效果（filtercnt设为4），在第五毫秒输出
