WPF throw new InvalidOperationException(SR.Get(“Storyboard_ImmutableTargetNotSupported“, path.Path))

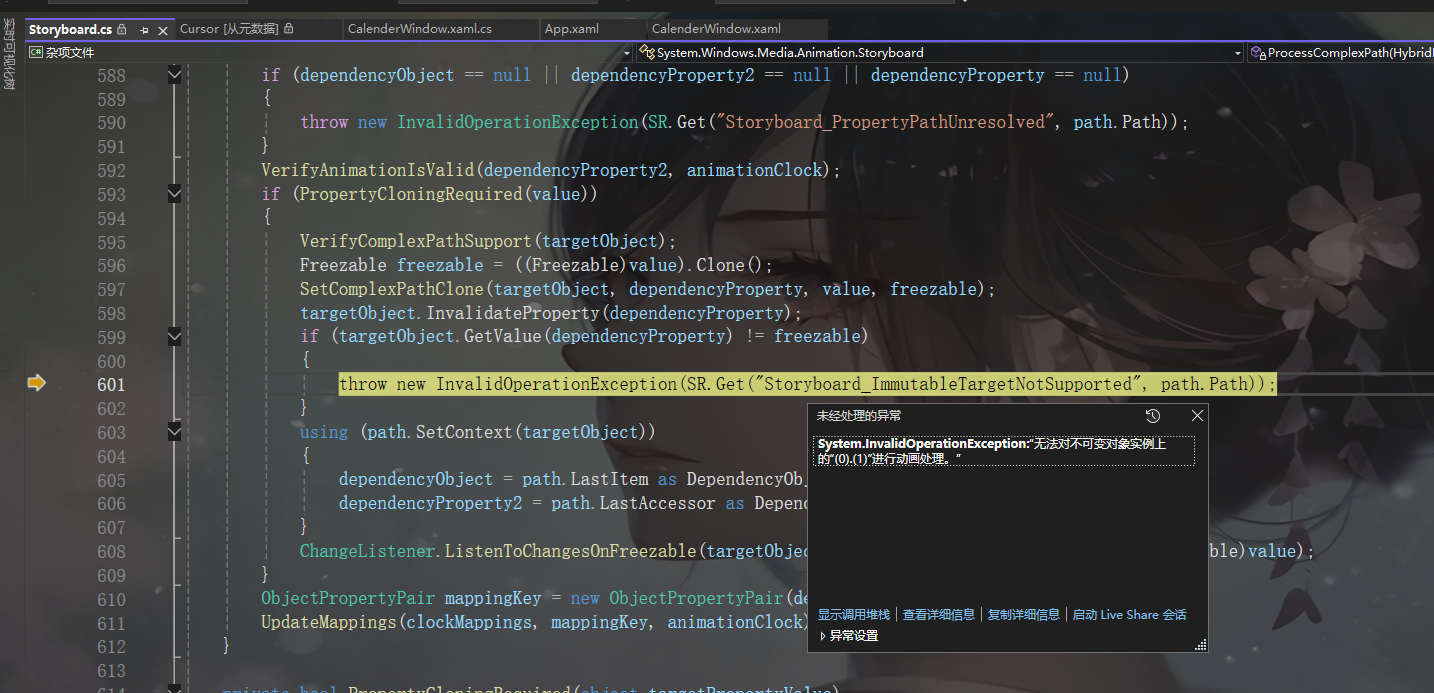

报错如图：

原因解析：

今天我在写Calender自定义控件的时候，遇到的问题

是因为他在变化按钮颜色的时候用的是Visual动画，而我又加个Trigger导致的：

动画和事件会导致报这个错误：throw new InvalidOperationException(SR.Get("Storyboard_ImmutableTargetNotSupported", path.Path));

代码如下：

<ControlTemplate x:Key="PreviousButtonTemplate" TargetType="{x:Type Button}">
    <Grid Cursor="Hand">
        <VisualStateManager.VisualStateGroups>
            <VisualStateGroup x:Name="CommonStates">
                <VisualState x:Name="Normal"/>
                <VisualState x:Name="MouseOver">
                    <Storyboard>
                        <ColorAnimation Duration="0" Storyboard.TargetName="path" To="#FF73A9D8" Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)"/>
                    </Storyboard>
                </VisualState>
                <VisualState x:Name="Disabled">
                    <Storyboard>
                        <DoubleAnimation Duration="0" Storyboard.TargetName="path" To=".5" Storyboard.TargetProperty="(Shape.Fill).(Brush.Opacity)"/>
                    </Storyboard>
                </VisualState>
            </VisualStateGroup>
        </VisualStateManager.VisualStateGroups>
        <Rectangle Fill="Transparent" Opacity="1" Stretch="Fill"/>
        <Grid>
            <Path x:Name="path"
                  Data="M288.75,232.25 L288.75,240.625 L283,236.625 z"
                  Fill="Green"
                  HorizontalAlignment="Left"
                  Height="10"
                  Margin="14,-6,0,0"
                  Stretch="Fill"
                  VerticalAlignment="Center"
                  Width="6"/>
        </Grid>
    </Grid>
    <ControlTemplate.Triggers>
        <Trigger Property="IsMouseOver" Value="True">
            <Setter TargetName="path" Property="Fill" Value="White"/>
        </Trigger>
    </ControlTemplate.Triggers>
</ControlTemplate>

注释掉任何一个都可以 ，我注释掉动画 留下Trigger

如下：

 <ControlTemplate x:Key="PreviousButtonTemplate" TargetType="{x:Type Button}">
     <Grid Cursor="Hand">
         <!--<VisualStateManager.VisualStateGroups>
             <VisualStateGroup x:Name="CommonStates">
                 <VisualState x:Name="Normal"/>
                 <VisualState x:Name="MouseOver">
                     <Storyboard>
                         <ColorAnimation Duration="0" Storyboard.TargetName="path" To="#FF73A9D8" Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)"/>
                     </Storyboard>
                 </VisualState>
                 <VisualState x:Name="Disabled">
                     <Storyboard>
                         <DoubleAnimation Duration="0" Storyboard.TargetName="path" To=".5" Storyboard.TargetProperty="(Shape.Fill).(Brush.Opacity)"/>
                     </Storyboard>
                 </VisualState>
             </VisualStateGroup>
         </VisualStateManager.VisualStateGroups>-->
         <Rectangle Fill="Transparent" Opacity="1" Stretch="Fill"/>
         <Grid>
             <Path x:Name="path"
                   Data="M288.75,232.25 L288.75,240.625 L283,236.625 z"
                   Fill="Green"
                   HorizontalAlignment="Left"
                   Height="10"
                   Margin="14,-6,0,0"
                   Stretch="Fill"
                   VerticalAlignment="Center"
                   Width="6"/>
         </Grid>
     </Grid>
     <ControlTemplate.Triggers>
         <Trigger Property="IsMouseOver" Value="True">
             <Setter TargetName="path" Property="Fill" Value="White"/>
         </Trigger>
     </ControlTemplate.Triggers>
 </ControlTemplate>

效果如下：成功
