圆形进度条

圆形的进度条

1.用css实现

<template>
  <div class="wrap" :style="{'--finalProcess': barProcess, '--finalValue': process }">
    <div class="g-progress-wrap">
        <div class="circle bottom" ref="circle">
        </div>
        <div class="circle top" :class="{'zero': (process == 0 && readProcess === 0), 'single': process <= 25}">
          <div class="dot" :class="{'zero': (process == 0 && readProcess === 0), 'single': process <= 25}"></div>
        </div>
    </div>
  </div>
</template>
<script>
export default {
  name: 'CircularProgressBar',
  props: {
    barProcess: {}, // 传过来的是百分比
    readProcess: {}, // 数字
  },
  computed: {
    process() {
      const num = (this.barProcess && this.barProcess.slice(0, this.barProcess.length - 1)) || 0;
      return num;
    },
  },
};
</script>

<style lang="stylus">
.wrap
  display flex
  justify-content center
  align-items center
  width 100%
  &.night
    .g-progress-wrap
      .circle
        &.top
          background: conic-gradient(#115941 0, #40806E var(--finalProcess), transparent var(--finalProcess), transparent 100%)!important;
          &::before
            background #115941!important
          &.single
            background: conic-gradient(#115941 0, #115941 var(--finalProcess), transparent var(--finalProcess), transparent 100%)!important;
        .dot
          &::before
            background #40806E!important
          &.single
            &::before
              background #115941!important
.g-progress-wrap
  display flex
  justify-content center
  align-items center
  width 100%
  position relative
  padding-top 100%
  .circle
    position absolute
    --width: 65%
    --progressGap: 17%
    width: var(--width);
    height: var(--width);
    border-radius: 50%;
    top 50%
    left 50%
    transform translate(-50%, -50%);
    mask: radial-gradient(transparent,transparent 47%, #000 48%,#000 48%, #000 100%);
    &.bottom
      background-color rgba(35,179,131,0.10);
    &.mask
      width 50%
      height 50%
      background-color transparent
      z-index 4
    &.top
      z-index 2;
      background: conic-gradient(#23B383 0, #28D49B var(--finalProcess), transparent var(--finalProcess), transparent 100%);
      &.zero
        opacity: var(--finalValue);
      &::before
        content: '';
        position absolute
        width: var(--progressGap);
        height: var(--progressGap);
        left: 50%
        top: 0;
        transform translate(-50%, 0)
        border-radius: 50%;
        background: #23B383;
        z-index: 1;
      &.single
        background: conic-gradient(#23B383 0, #23B383 var(--finalProcess), transparent var(--finalProcess), transparent 100%);
    .dot
      width: 100%;
      height: 100%;
      position absolute
      top 0
      left 0
      z-index 6
      transform translateX(-50%)
      transform: rotate(calc(var(--finalValue) * 3.6deg));
      &.zero
        &::before
          opacity: var(--finalValue);
      &::before
        content: '';
        position absolute
        width: var(--progressGap);
        height: var(--progressGap);
        left: 50%
        top: 0;
        transform translate(-50%, 0)
        border-radius: 50%;
        background #28D49B
        z-index 10
      &.single
        &::before
          content: '';
          position absolute
          width: var(--progressGap);
          height: var(--progressGap);
          left: 50%
          top: 0;
          transform translate(-50%, 0)
          border-radius: 50%;
          background #23B383
          z-index 10
</style>

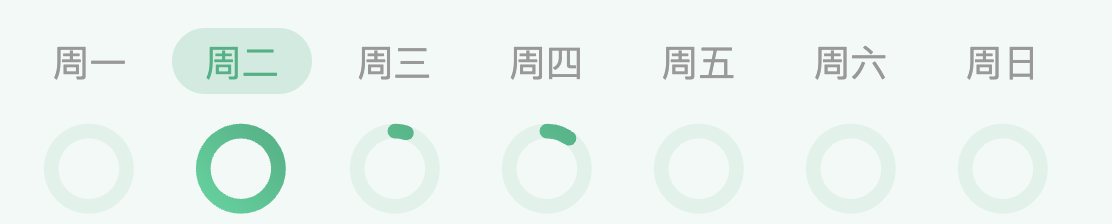

缺点：符合设计的需求，但是用的属性值不兼容低版本的chrome，chrome的版本号必须大于69，还有低版本的安卓机也不兼容。

2.用svg

<template>
  <div class="wrap">
    <svg viewBox="0 0 250 250" ref="svg" :style="{'--finalProcess': process}" class="circular-progress">
      <defs>
        <linearGradient
          id="linear"
          x1="0%"
          y1="0%"
          x2="100%"
          y2="100%"
        >
          <stop
            offset="0%"
            :style="{stopColor: theme === 'night' ? '#40806E' : '#28D49B'}"
          />
          <stop
            offset="100%"
            :style="{stopColor: theme === 'night' ? '#115941 ' : '#23B383'}"
          />
        </linearGradient>
      </defs>
      <circle class="bg" :r="radius"  :cx="cx" :cy="cy" :stroke-width="strokeWidth" ></circle>
      <circle class="fg" :r="radius"  :cx="cx" :cy="cy" :stroke-width="strokeWidth" :style="{strokeDasharray: `${dash} ${space}`}" stroke="url(#linear)" :class="{'zero': (process == 0 && readProcess === 0) }"></circle>
    </svg>
  </div>
</template>
<script>
export default {
  name: 'CircularProgressBarSvg',
  inheritAttrs: false,
  props: {
    barProcess: {},
    theme: {},
    readProcess: {},
  },
  data() {
    return {
      size: 220,
      strokeWidth: 36,
      // 圆心x轴坐标
    };
  },
  computed: {
    cx() {
      return (this.size + 32) / 2;
    },
    // 圆心y轴坐标
    cy() {
      return (this.size + 30) / 2;
    },
    // 半径
    radius() {
      return (this.size - this.strokeWidth) / 2;
    },
    circumference() {
      return 2 * Math.PI * this.radius;
    },
    process() {
      const num = (this.barProcess && this.barProcess.slice(0, this.barProcess.length - 1)) || 0;
      if (num > 62 && +num !== 100) {
        return num - 6;
      } else {
        return num;
      }
    },
    dash() {
      return this.process * this.circumference / 100;
    },
    space() {
      return this.circumference - this.dash;
    },
  },
  method: {
  },
};
</script>

<style lang="stylus">
.wrap
  display flex
  justify-content center
  align-items center
  margin 4px 0
  width 100%
.circular-progress
  width 80%
  height 84%
.circular-progress circle
  fill: none;
  stroke-linecap: round;
.circular-progress circle.bg
  stroke: rgba(35,179,131,0.1); // 描边颜色
  transform: rotate(-90deg);
  transform-origin: 50% 50%
  background: conic-gradient(#23B383 0, #28CC95 var(--finalProcess));
.circular-progress circle.fg
  transform: rotate(-90deg);
  transform-origin: 50% 50%;
  &.zero
    opacity: var(--finalProcess);
</style>

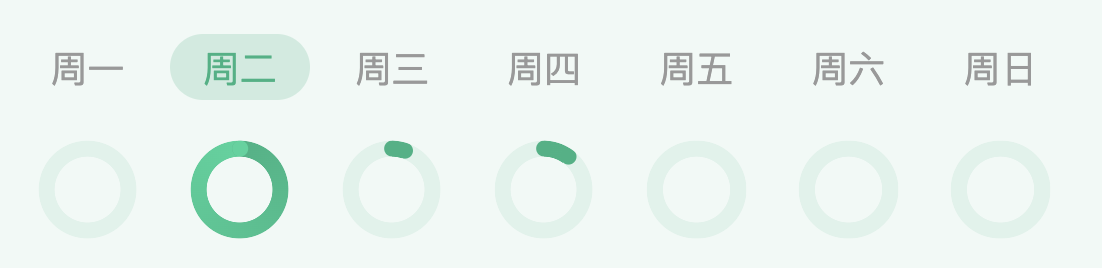

说明：不存在兼容问题，但是不符合设计的需求。
