DispatcherServlet源码详解

1.导论

DispatcherServlet其实就是一个Servlet类，无非就是包装来根据url能够映射找到我们SpringMVC中定义的请求方法。

2.源码分析

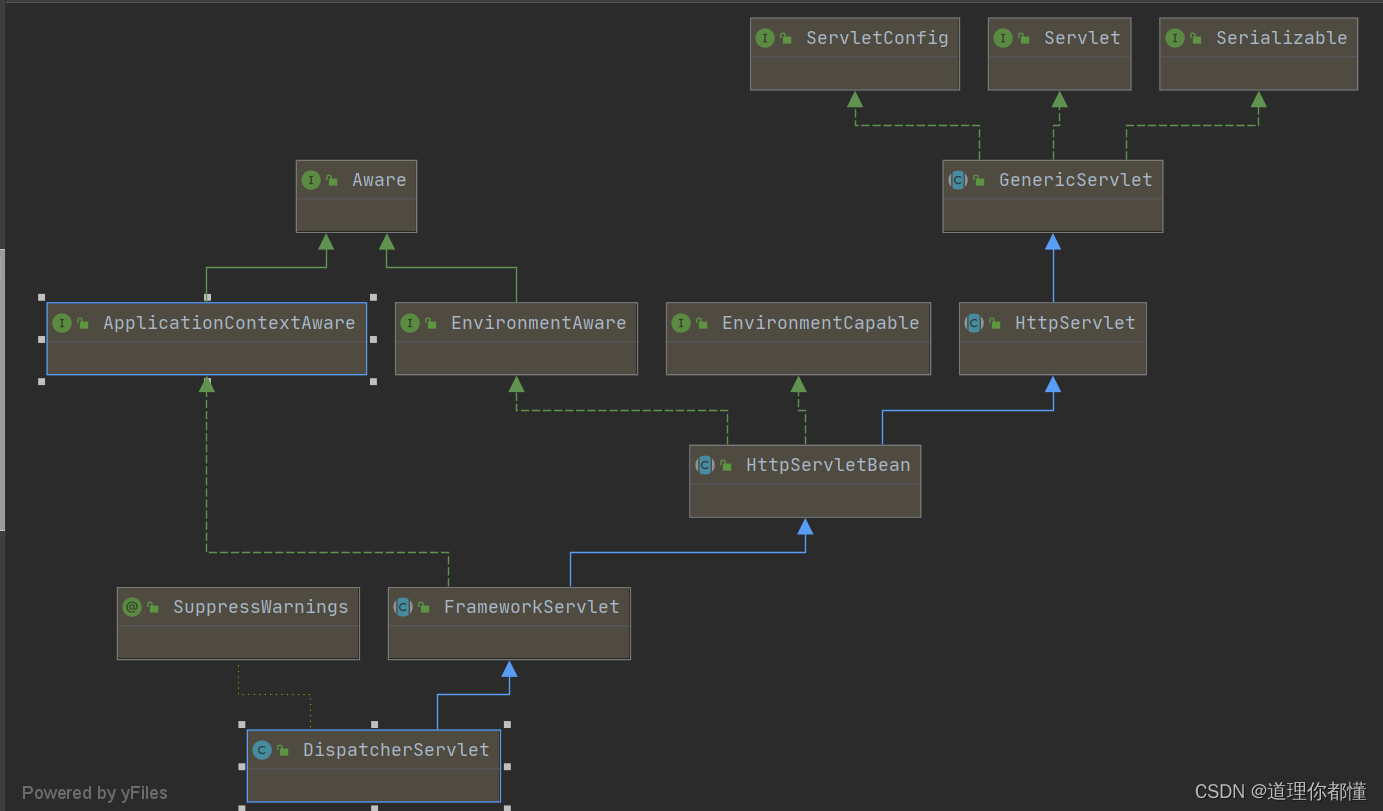

这里我们可以看出DispatcherServlet继承FrameworkServlet继承HttpServlet。根据面向基本思想，重写是先走父类，再走子类。所以我们从父类开始分析
1.首先肯定会走到HttpServlet中的Service方法，在该方法中会对请求类型进行判断

protected void service(HttpServletRequest req, HttpServletResponse resp)
        throws ServletException, IOException {

        String method = req.getMethod();

        if (method.equals(METHOD_GET)) {
            long lastModified = getLastModified(req);
            if (lastModified == -1) {
                // servlet doesn't support if-modified-since, no reason
                // to go through further expensive logic
                doGet(req, resp);
            } else {
                long ifModifiedSince;
                try {
                    ifModifiedSince = req.getDateHeader(HEADER_IFMODSINCE);
                } catch (IllegalArgumentException iae) {
                    // Invalid date header - proceed as if none was set
                    ifModifiedSince = -1;
                }
                if (ifModifiedSince < (lastModified / 1000 * 1000)) {
                    // If the servlet mod time is later, call doGet()
                    // Round down to the nearest second for a proper compare
                    // A ifModifiedSince of -1 will always be less
                    maybeSetLastModified(resp, lastModified);
                    doGet(req, resp);
                } else {
                    resp.setStatus(HttpServletResponse.SC_NOT_MODIFIED);
                }
            }

        } else if (method.equals(METHOD_HEAD)) {
            long lastModified = getLastModified(req);
            maybeSetLastModified(resp, lastModified);
            doHead(req, resp);

        } else if (method.equals(METHOD_POST)) {
            doPost(req, resp);

        } else if (method.equals(METHOD_PUT)) {
            doPut(req, resp);

        } else if (method.equals(METHOD_DELETE)) {
            doDelete(req, resp);

        } else if (method.equals(METHOD_OPTIONS)) {
            doOptions(req,resp);

        } else if (method.equals(METHOD_TRACE)) {
            doTrace(req,resp);

        } else {
            //
            // Note that this means NO servlet supports whatever
            // method was requested, anywhere on this server.
            //

            String errMsg = lStrings.getString("http.method_not_implemented");
            Object[] errArgs = new Object[1];
            errArgs[0] = method;
            errMsg = MessageFormat.format(errMsg, errArgs);

            resp.sendError(HttpServletResponse.SC_NOT_IMPLEMENTED, errMsg);
        }
    }

2.这里我们从doGet方法进行分析，因为FrameworkServlet继承了HttpServlet，并对doGet方法进行了重写，因此，执行时候执行的是FrameworkServlet中的doGet方法。

// HttpServlet中
protected void doGet(HttpServletRequest req, HttpServletResponse resp)
        throws ServletException, IOException
    {
        String protocol = req.getProtocol();
        String msg = lStrings.getString("http.method_get_not_supported");
        if (protocol.endsWith("1.1")) {
            resp.sendError(HttpServletResponse.SC_METHOD_NOT_ALLOWED, msg);
        } else {
            resp.sendError(HttpServletResponse.SC_BAD_REQUEST, msg);
        }
    }

// FrameWorkServlet中
@Override
protected final void doGet(HttpServletRequest request, HttpServletResponse response)
		throws ServletException, IOException {

	processRequest(request, response);
}

3.然后我们看这里调用了processRequest方法，在processRequest方法中我们看到调用了doService方法

protected final void processRequest(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		long startTime = System.currentTimeMillis();
		Throwable failureCause = null;

		LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
		LocaleContext localeContext = buildLocaleContext(request);

		RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
		ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes);

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
		asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());

		initContextHolders(request, localeContext, requestAttributes);

		try {
			// 这里调用了该方法
			doService(request, response);
		}
		catch (ServletException | IOException ex) {
			failureCause = ex;
			throw ex;
		}
		catch (Throwable ex) {
			failureCause = ex;
			throw new NestedServletException("Request processing failed", ex);
		}

		finally {
			resetContextHolders(request, previousLocaleContext, previousAttributes);
			if (requestAttributes != null) {
				requestAttributes.requestCompleted();
			}

			if (logger.isDebugEnabled()) {
				if (failureCause != null) {
					this.logger.debug("Could not complete request", failureCause);
				}
				else {
					if (asyncManager.isConcurrentHandlingStarted()) {
						logger.debug("Leaving response open for concurrent processing");
					}
					else {
						this.logger.debug("Successfully completed request");
					}
				}
			}

			publishRequestHandledEvent(request, response, startTime, failureCause);
		}
	}

4.在FrameworkServlet中我们可以看到doSercice方法是一个抽象方法，真正的实现在DispatcherServlet中,所以最终执行的doService方法是DispatcherServlet的doService方法

//FrameworkServlet
protected abstract void doService(HttpServletRequest request, HttpServletResponse response)
			throws Exception;

//DispatcherServlet
@Override
protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
	if (logger.isDebugEnabled()) {
		String resumed = WebAsyncUtils.getAsyncManager(request).hasConcurrentResult() ? " resumed" : "";
		logger.debug("DispatcherServlet with name '" + getServletName() + "'" + resumed +
				" processing " + request.getMethod() + " request for [" + getRequestUri(request) + "]");
	}

	// Keep a snapshot of the request attributes in case of an include,
	// to be able to restore the original attributes after the include.
	Map<String, Object> attributesSnapshot = null;
	if (WebUtils.isIncludeRequest(request)) {
		attributesSnapshot = new HashMap<>();
		Enumeration<?> attrNames = request.getAttributeNames();
		while (attrNames.hasMoreElements()) {
			String attrName = (String) attrNames.nextElement();
			if (this.cleanupAfterInclude || attrName.startsWith(DEFAULT_STRATEGIES_PREFIX)) {
				attributesSnapshot.put(attrName, request.getAttribute(attrName));
			}
		}
	}

	// Make framework objects available to handlers and view objects.
	request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
	request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
	request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
	request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());

	if (this.flashMapManager != null) {
		FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
		if (inputFlashMap != null) {
			request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
		}
		request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
		request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
	}

	try {
	    // 最为核心的方法
		doDispatch(request, response);
	}
	finally {
		if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
			// Restore the original attribute snapshot, in case of an include.
			if (attributesSnapshot != null) {
				restoreAttributesAfterInclude(request, attributesSnapshot);
			}
		}
	}
}

4.在doSevice方法中调用了doDispatch方法（核心方法）

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

				// Determine handler for the current request.
				// 1.调用该方法，获得一个handler执行链，也就是我们控制层的方法
				mappedHandler = getHandler(processedRequest);
				// 如果没有找到，这时候会抛出一个异常，这也是我们前端页面经常看到的404
				if (mappedHandler == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// Determine handler adapter for the current request.
				// 2、根据handler执行链中的handler，找到相应的适配器
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				String method = request.getMethod();
				boolean isGet = "GET".equals(method);
				if (isGet || "HEAD".equals(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (logger.isDebugEnabled()) {
						logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
					}
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}
				// 3.执行拦截器前置方法，mappedHandler（handler执行链）
				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// Actually invoke the handler.
				// 4.执行目标方法
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}

				applyDefaultViewName(processedRequest, mv);
				// 5.执行后置方法
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {
				// As of 4.3, we're processing Errors thrown from handler methods as well,
				// making them available for @ExceptionHandler methods and other scenarios.
				dispatchException = new NestedServletException("Handler dispatch failed", err);
			}
			// 6.渲染页面
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		// 7.执行拦截器afterCompletion方法
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Throwable err) {
			triggerAfterCompletion(processedRequest, response, mappedHandler,
					new NestedServletException("Handler processing failed", err));
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				// Instead of postHandle and afterCompletion
				if (mappedHandler != null) {
					mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				}
			}
			else {
				// Clean up any resources used by a multipart request.
				if (multipartRequestParsed) {
					cleanupMultipart(processedRequest);
				}
			}
		}
	}

// 1.调用getHandler方法，我们可以看到从handlerMapping中获得一个handler执行链
@Nullable
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
	if (this.handlerMappings != null) {
		for (HandlerMapping hm : this.handlerMappings) {
			if (logger.isTraceEnabled()) {
				logger.trace(
						"Testing handler map [" + hm + "] in DispatcherServlet with name '" + getServletName() + "'");
			}
			HandlerExecutionChain handler = hm.getHandler(request);
			if (handler != null) {
				return handler;
			}
		}
	}
	return null;
}

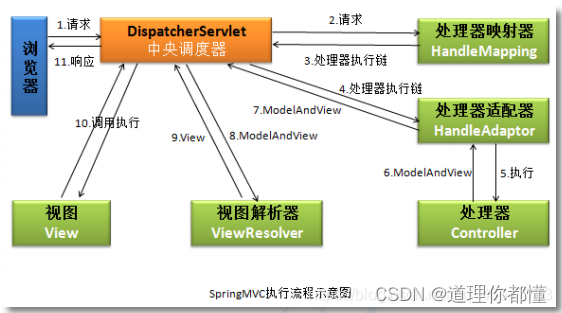

3.总结

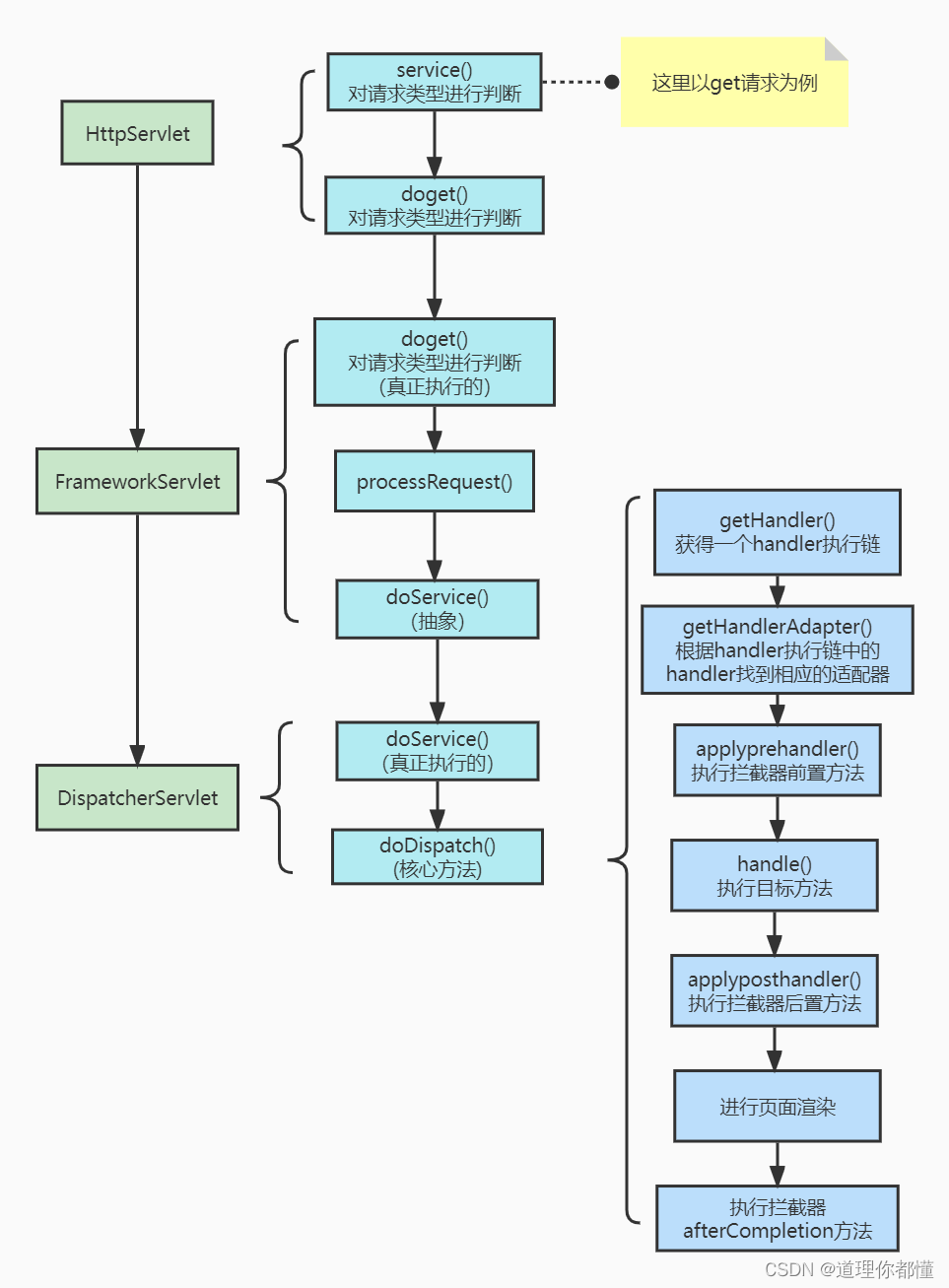

HttpServlet中的service方法，判断请求，如果是get请求->最终执行的是FrameworkServlet中的doGet方法->最终执行DispatcherServlet中的doService方法->执行doDispatch方法（核心方法）
1.执行doDispatch（下面步骤都在doDispatch方法中）
2.调用getHandler方法获取目标的方法，也就是请求url映射路径对应的控制层具体的方法。
handlerMappings的作用查找控制器位置，比如xml和注解方式
3.调用getHandlerAdapter获取控制层适配器RequestMappingHandlerAdapter
4.执行拦截器前置方法preHandle()
5.执行实际请求目标方法，返回ModelAndView对象
6.执行拦截器PostHandler()方法
7.设置渲染视图层内容
8.执行拦截器afterCompletion方法

*SpringMVC控制层容器初始化
1.HttpServletBean init()方法
2.FrameworkServlet initServletBean方法->initWebApplicationContext()
3.DispatcherServlet onFresh()方法->initStrategies()方法
