SpringMVC整合以及案例

5.5 控制器响应前端请求

5.4.1 响应同步请求

响应同步请求：前端发送请求到控制器类中的方法，控制器方法处理完请求之后需要跳转到下一个页面

• 前端请求

  <a href="book/list?pageNum=1&pageSize=10">获取图书信息（同步）<a>


• 控制器响应同步请求：处理同步请求的控制器方法返回类型为String或ModelAndView

  • 转发

  @RequestMapping("/list")
  public String list(int pageNum,int pageSize){
      //...
      return "/book-list.jsp";
  }

  @RequestMapping("/list")
  public ModelAndView list(int pageNum, int pageSize){
  	//...
      ModelAndView modelAndView = new ModelAndView("/book-list.jsp");
      return modelAndView;
  }


  • 重定向

  @RequestMapping("/list")
  public String list(int pageNum, int pageSize){
      //...
      return "redirect:/book-list.jsp";
  }

  @RequestMapping("/list")
  public ModelAndView list(int pageNum, int pageSize){
  	//...
      ModelAndView modelAndView = new ModelAndView("redirect:/book-list.jsp");
      return modelAndView;
  }


5.4.2 响应异步请求

响应异步请求：不会发生页面跳转，直接将数据返回给ajax请求

• 前端发送ajax请求

  <button id="listBtn">获取图书信息（异步）</button>
  <script type="text/javascript" src="js/jquery-3.6.0.min.js"></script>
  <script type="text/javascript">
      $("#listBtn").click(function(){
      $.ajax({
          url:"book/list2",
          type:"get",
          data:{pageNum:1,pageSize:10},
          success:function (res) {
              console.log(res);
          }
      });
  });
  </script>


• 控制方法响应ajax请求

  方式1：使用response对象的输出流响应ajax请求

  @RequestMapping("/list2")
  public void list2(int pageNum, int pageSize, HttpServletResponse response) throws IOException {
      List<Book> bookList = new ArrayList<Book>();
      bookList.add(new Book(1,"Java1","张小三",22.22,new Date(),"666"));
      bookList.add(new Book(2,"Java2","张三",22.22,new Date(),"666"));
      bookList.add(new Book(3,"Java3","张大三",22.22,new Date(),"666"));

      String jsonStr = new ObjectMapper().writeValueAsString(bookList);

      response.setContentType("application/json;charset=utf-8");
      PrintWriter out = response.getWriter();
      out.write(jsonStr);
      out.flush();
      out.close();
  }


  方式2：将控制方法的返回类型修改为要响应的数据的类型，在控制器方法中直接return要响应的数据

  • 需要依赖jackson-databind依赖
  • 需要在控制器方法上添加@ResponseBody注解

  @ResponseBody
  @RequestMapping("/list2")
  public List<Book> list2(int pageNum, int pageSize) throws IOException {
      List<Book> bookList = new ArrayList<Book>();
      bookList.add(new Book(1,"Java1","张小三",22.22,new Date(),"666"));
      bookList.add(new Book(2,"Java2","张三",22.22,new Date(),"666"));
      bookList.add(new Book(3,"Java3","张大三",22.22,new Date(),"666"));
      return bookList;
  }


5.6 控制器传值到下一个页面

针对处理同步请求的控制器方法

方式一：控制器方法返回类型为ModelAndView，直接使用ModelAndView对象携带数据

@RequestMapping("/list")
public ModelAndView list(int pageNum, int pageSize){
    List<Book> bookList = new ArrayList<Book>();
    bookList.add(new Book(1,"Java1","张小三",22.22,new Date(),"666"));
    bookList.add(new Book(2,"Java2","张三",22.22,new Date(),"666"));
    bookList.add(new Book(3,"Java3","张大三",22.22,new Date(),"666"));

    ModelAndView modelAndView = new ModelAndView("/book-list.jsp");
    modelAndView.addObject("bookList",bookList);
    return modelAndView;
}

方式二：控制器方法返回类型为String，在控制方法中添加HttpServletRequest参数，使用request对象传值

@RequestMapping("/list")
public String list(int pageNum, int pageSize, HttpServletRequest request){
    List<Book> bookList = new ArrayList<Book>();
    bookList.add(new Book(1,"Java1","张小三",22.22,new Date(),"666"));
    bookList.add(new Book(2,"Java2","张三",22.22,new Date(),"666"));
    bookList.add(new Book(3,"Java3","张大三",22.22,new Date(),"666"));

    request.setAttribute("bookList",bookList);
    return "/book-list.jsp";
}

方式三：控制器方法返回类型为String，在控制方法中添加Model参数，使用model对象传值

@RequestMapping("/list")
public String list(int pageNum, int pageSize, Model model){
    List<Book> bookList = new ArrayList<Book>();
    bookList.add(new Book(1,"Java1","张小三",22.22,new Date(),"666"));
    bookList.add(new Book(2,"Java2","张三",22.22,new Date(),"666"));
    bookList.add(new Book(3,"Java3","张大三",22.22,new Date(),"666"));

    model.addAttribute("bookList",bookList);
    return "/book-list.jsp";
}

5.7 解决中文乱码问题

5.7.1 前端编码设置

• JSP

  <%@ page contentType="text/html;charset=UTF-8" language="java" pageEncoding="UTF-8" %>


• html

  <meta charset="UTF-8">


5.7.2 服务器Tomcat编码设置

• tomcat_home/conf/server.xml

  <Connector port="80" protocol="HTTP/1.1"
             connectionTimeout="20000"
             redirectPort="8443" URIEncoding="UTF-8" />


5.7.3 项目中的编码设置

• Servlet类

  request.setCharacterEncoding("UTF-8");  //必须在接收request中第一个数据之前


• SpringMVC： SpringMVC提供了专门的编码过滤器，我们只需在web.xml中进行配置即可：

  <filter>
      <filter-name>springmvcEncodingFilter</filter-name>
      <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
      <init-param>
          <param-name>encoding</param-name>
          <param-value>utf-8</param-value>
      </init-param>
      <init-param>
          <param-name>forceEncoding</param-name>
          <param-value>true</param-value>
      </init-param>
  </filter>
  <filter-mapping>
      <filter-name>springmvcEncodingFilter</filter-name>
      <url-pattern>/*</url-pattern>
  </filter-mapping>


六、日期格式处理

自定义SpringMVC的日期格式转换器

6.1 自定义日期转换器

/**
* 实现Converter接口
*/
public class MyDateConverter implements Converter<String, Date> {

    SimpleDateFormat sdf1 = new SimpleDateFormat("yyyy-MM-dd");
    SimpleDateFormat sdf2 = new SimpleDateFormat("yyyy/MM/dd");

    @Override
    public Date convert(String source) {

        Date date = null;
        try {
            if(source.matches("[0-9]{4}-[0-9]{2}-[0-9]{2}")){
                date = sdf1.parse(source);
            }else if(source.matches("[0-9]{4}/[0,1][0-9]/[0-3][0-9]")){
                date = sdf2.parse(source);
            }
        } catch (ParseException e) {
            e.printStackTrace();
        }
        return date;
    }

}

6.2 配置给SpringMVC

 <mvc:annotation-driven conversion-service="conversionService"/>

<bean id="conversionService"
      class="org.springframework.format.support.FormattingConversionServiceFactoryBean">
    <property name="converters">
        <set>
            <bean class="com.qfedu.converters.MyDateConverter"/>
        </set>
    </property>
</bean>

七、统一异常处理

我们的应用系统在运行过程，可能由于运行环境、用户操作、资源不足、程序偶发性异常等等各方面的原因导致系统出现异常（http状态、程序中的exception）；如果系统出现了异常，这些异常就会通过浏览器显示在网页中，但是这些异常提示显示给用户是没有必要，用户体验性也不好，我们可以针对这些异常显示特定的网页给用户。

7.1 HTTP状态异常统一处理

404 为例

1. 创建状态异常跳转页面 404.jsp

   <%@ page contentType="text/html;charset=UTF-8" language="java" %>
   <html>
       <head>
           <title>Title</title>
       </head>
       <body>
       	您访问的页面不存在，请检查输入的网址是否正常。
       </body>
   </html>


2. 在web.xml文件中配置异常状态码和异常页面的映射

   <error-page>
       <error-code>404</error-code>
       <location>/404.jsp</location>
   </error-page>


7.2 程序异常统一处理

程序抛出的各种exception： NullPointerException ArithmeticException…

1. Servlet处理方式：

   <error-page>
       <exception-type>java.lang.NullPointerException</exception-type>
       <location>/err.jsp</location>
   </error-page>


2. SpringMVC处理方式：

   @ControllerAdvice
   public class MyExceptionHandler {

       @ExceptionHandler(NullPointerException.class)
       public String nullHandler(Model model){
           model.addAttribute("tips","空指针");
           return "/err.jsp";
       }

       @ExceptionHandler(ArithmeticException.class)
       public String arithmeticHandler(Model model){
           return "/err.jsp";
       }

   }


八、拦截器

8.1 拦截器介绍

SpringMVC提供的拦截器就类似于servlet-api中的过滤器，可以对控制器的请求进行拦截实现相关的预处理和后处理工作。

• 过滤器
  • 是Servlet规范的一部分，所有的web项目都可以使用过滤器
  • 过滤器在web.xml进行配置（可以使用注解），能够拦截所有请求
• 拦截器
  • 是SpringMVC框架的实现，只有在SpringMVC项目中才能使用
  • 拦截器是在SpringMVC的配置文件进行配置，不会拦截被SpringMVC放行的资源（mvc:resources）

8.2 自定义拦截器

1. 创建拦截器

   public class MyInterceptor implements HandlerInterceptor {

       /**
        * 拦截器的预处理方法，在进入到控制器方法之前执行
        * return true表示放行，进入到控制器方法的执行
        * return false表示不放行，通过response直接响应浏览器，控制方法不会执行
        */
       public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
           System.out.println("--------------------preHandle");
           //示例：如果提交的参数中不包含bookId则不放行
           Enumeration<String> keys = request.getParameterNames();
           while(keys.hasMoreElements()){
               String key = keys.nextElement();
               if("bookId".equals(key)){
                   return true;
               }
           }
           response.setStatus(400);
           return false;
       }

       /**
        * 后处理方法：控制器方法执行完成之后，响应浏览器之前执行
        */
       public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
           System.out.println("--------------------postHandle");
       }
   }


2. 配置拦截器: 在springmvc的配置文件

   <mvc:interceptors>
       <mvc:interceptor>
           <mvc:mapping path="/book/**"/>
           <mvc:exclude-mapping path="/book/list"/>
           <mvc:exclude-mapping path="/book/list2"/>
           <bean class="com.qfedu.handlers.MyInterceptor"></bean>
       </mvc:interceptor>
   </mvc:interceptors>

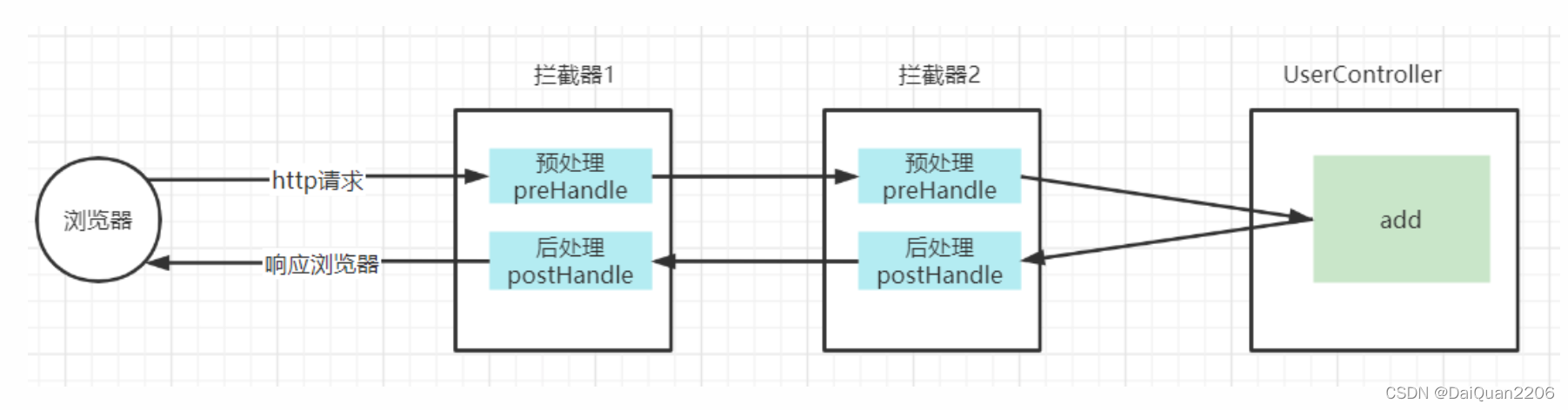

8.3 拦截器链

将多个拦截器配置拦截同一个控制器请求，构成一个拦截器链，多个拦截器按照配置顺序执行。

九、SSM整合

9.1 创建web项目

略

9.2 添加依赖

9.2.1 MyBatis

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>8.0.26</version>
</dependency>

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid</artifactId>
    <version>1.2.8</version>
</dependency>

<dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis</artifactId>
    <version>3.5.7</version>
</dependency>

9.2.2 Spring

<properties>
  <spring.version>5.3.15</spring.version>
</properties>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>${spring.version}</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-aspects</artifactId>
    <version>${spring.version}</version>
</dependency>
<dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.12</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-test</artifactId>
    <version>${spring.version}</version>
</dependency>
<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.13.1</version>
</dependency>

9.2.3 整合

<dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis-spring</artifactId>
    <version>2.0.7</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jdbc</artifactId>
    <version>${spring.version}</version>
</dependency>

9.2.4 其他

<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <version>1.18.22</version>
</dependency>

9.3 配置文件

9.3.1 myabtis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

</configuration>

9.3.2 druid.properties

druid.driver=com.mysql.cj.jdbc.Driver
druid.url=jdbc:mysql://localhost:3306/db_2111?characterEncoding=utf-8
druid.username=root
druid.password=@QFedu123

druid.pool.init=1
druid.pool.minIdle=3
druid.pool.maxActive=20
druid.pool.timeout=30000

9.3.3 spring-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/tx
        http://www.springframework.org/schema/tx/spring-tx.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd ">

    <!-- 声明注解配置   -->
    <context:annotation-config/>
    <!-- 声明注解扫描范围 -->
    <context:component-scan base-package="com.qfedu"/>
    <!--  声明MVC注解配置  -->
    <mvc:annotation-driven/>

    <!-- 数据库连接池 -->
    <context:property-placeholder location="classpath:druid.properties"></context:property-placeholder>
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${druid.driver}"/>
        <property name="url" value="${druid.url}"/>
        <property name="username" value="${druid.username}"/>
        <property name="password" value="${druid.password}"/>
        <property name="maxActive" value="${druid.pool.maxActive}"/>
        <property name="minIdle" value="${druid.pool.minIdle}"/>
        <property name="initialSize" value="${druid.pool.init}"/>
        <property name="maxWait" value="${druid.pool.timeout}"/>
    </bean>

    <!--  SqlSessionFactory  -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
        <property name="mapperLocations" value="classpath:mappers/*Mapper.xml"/>
        <property name="typeAliasesPackage" value="com.qfedu.beans"/>
    </bean>

    <!--  MapperScannerConfigurer  -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <property name="basePackage" value="com.qfedu.dao"/>
    </bean>

    <!-- 配置Spring事务管理 -->
    <bean id="transactionManager"
          class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
     	<property name="dataSource" ref="dataSource"/>
    </bean>
    <tx:annotation-driven transaction-manager="transactionManager"/>

    <!-- mvc静态资源 -->
    <mvc:resources mapping="/js/**" location="/js/"></mvc:resources>
    <mvc:resources mapping="/css/**" location="/css/"></mvc:resources>
    <mvc:resources mapping="/images/**" location="/images/"></mvc:resources>
    <mvc:resources mapping="/pages/**" location="/pages/"></mvc:resources>

</beans>

9.3.4 web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <!--SpringMVC 前端控制器-->
    <servlet>
        <servlet-name>springMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-servlet.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springMVC</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--  SpringMVC编码过滤器  -->
    <filter>
        <filter-name>springmvcEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>springmvcEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

</web-app>

十、SSM整合应用

案例：图书信息管理

10.1 准备工作

• SSM整合配置

• 创建图书信息表

  create table tb_books(
      book_id int primary key auto_increment,
      book_name varchar(100) not null,
      book_author varchar(20) not null,
      book_price decimal(10,2) not null,
      book_img varchar(100) ,
      book_date datetime not null,
      book_desc varchar(200)
  );

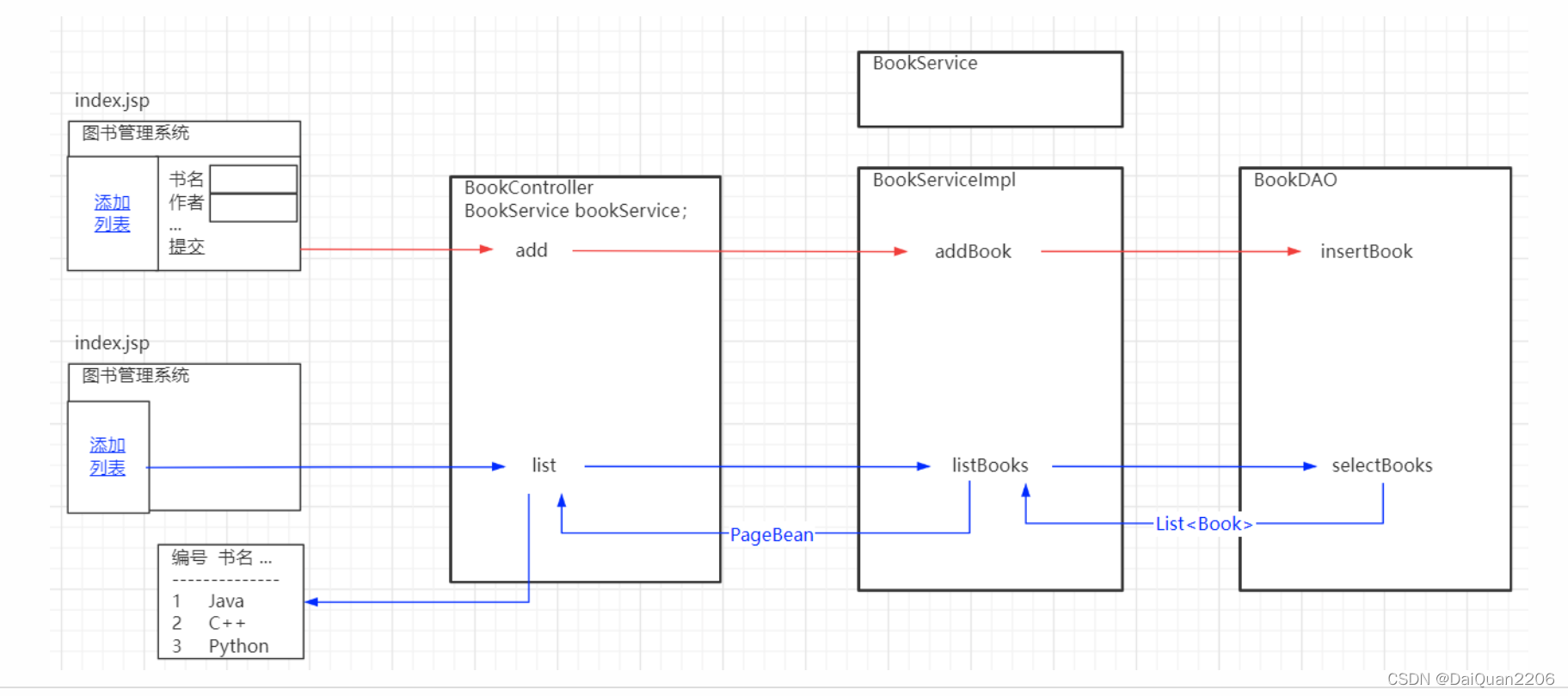

• 案例业务流程

  • 添加图书
  • 图书列表

10.2 图书列表功能

10.2.1 数据库操作实现

1. 创建实体类

   @Data
   @NoArgsConstructor
   @AllArgsConstructor
   @ToString
   public class Book {

       private int bookId;
       private String bookName;
       private String bookAuthor;
       private double bookPrice;
       private String bookImg;
       private Date bookDate;
       private String bookDesc;

   }


2. 创建DAO接口，定义操作方法

   public interface BookDAO {

       public List<Book> selectBooks();

   }


3. MyBatis映射文件配置

   <?xml version="1.0" encoding="UTF-8" ?>
   <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
           "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

   <!--namespace = 所需实现的接口全限定名-->
   <mapper namespace="com.qfedu.dao.BookDAO">

       <resultMap id="bookMap" type="Book">
           <id column="book_id" property="bookId"/>
           <result column="book_name" property="bookName"/>
           <result column="book_author" property="bookAuthor"/>
           <result column="book_price" property="bookPrice"/>
           <result column="book_img" property="bookImg"/>
           <result column="book_date" property="bookDate"/>
           <result column="book_desc" property="bookDesc"/>
       </resultMap>

       <select id="selectBooks" resultMap="bookMap">
           select book_id,book_name,book_author,book_price,book_img,book_date,book_desc
           from tb_books
       </select>

   </mapper>


10.2.2 业务逻辑层实现

1. 创建分页帮助类

   @Data
   @NoArgsConstructor
   @AllArgsConstructor
   public class PageBean<T> {

       private int pageNum;
       private int pageSize;
       private int pageCount;
       private int prePage;
       private int nextPage;
       private List<T> data;

   }


2. 添加MyBatis分页插件

   • 添加依赖
   • 配置分页插件

3. 创建servcie接口

   public interface BookService {

       public PageBean listBooks(int pageNum, int pageSize);

   }


4. 创建service实现类

   @Service
   public class BookServiceImpl implements BookService {

       @Autowired
       private BookDAO bookDAO;

       public PageBean listBooks(int pageNum, int pageSize) {
           PageHelper.startPage(pageNum,pageSize);
           List<Book> books = bookDAO.selectBooks();
           PageInfo<Book> pageInfo = new PageInfo<Book>(books);

           int pageCount = pageInfo.getPages();
           int prePage = pageNum-1==0?1:pageNum-1;
           int nextPage = pageNum+1>pageCount?pageCount:pageNum+1;
           PageBean<Book> bookPageBean = new PageBean<Book>(pageNum, pageSize, pageCount, prePage, nextPage, pageInfo.getList());

           return bookPageBean;
       }
   }


10.2.3 业务流程实现

1. 创建控制器及处理图书列表请求的方法

   @Controller
   @RequestMapping("/book")
   public class BookController {

       @Autowired
       private BookService bookService;

       @RequestMapping("/list")
       public String list(@RequestParam(defaultValue = "1") int pageNum,
                          @RequestParam(defaultValue = "5") int pageSize, Model model){
           PageBean pageBean = bookService.listBooks(pageNum, pageSize);
           model.addAttribute("pageBean",pageBean);
           return "/book-list.jsp";
       }

   }


2. 创建index.jsp,点击“图书列表”发送同步请求到 book/list

   <%@ page contentType="text/html;charset=UTF-8" language="java" %>
   <html>
       <head>
           <title>Title</title>
       </head>
       <body>
           <table  style="width: 100%; height: 800px">
               <tr style="height: 100px; background: deepskyblue">
                   <td colspan="2">图书信息管理系统</td>
               </tr>

               <tr style="height: 700px">
                   <td width="200" valign="top">
                       <ul>
                           <li><a href="book-add.jsp" target="mainFrame">添加图书</a></li>
                           <li><a href="book/list" target="mainFrame">图书列表</a></li>
                       </ul>
                   </td>
                   <td>
                       <iframe name="mainFrame" width="100%" height="700px"></iframe>
                   </td>
               </tr>
           </table>
       </body>
   </html>


3. 在book-list.jsp显示图书列表信息

   • 添加jstl依赖

   <%@ page contentType="text/html;charset=UTF-8" language="java" %>
   <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
   <html>
       <head>
           <base href="${pageContext.request.contextPath}/">
           <title>Title</title>
       </head>
       <body>
           图书列表页面
           <table style="width: 96%;" align="center" border="1" cellspacing="0">
               <thead>
                   <tr>
                       <th>编号</th>
                       <th>名称</th>
                       <th>作者</th>
                       <th>价格</th>
                       <th>图片</th>
                       <th>日期</th>
                       <th>描述</th>
                       <th>操作</th>
                   </tr>
               </thead>

               <tbody>
                   <c:forEach items="${pageBean.data}" var="book">
                       <tr>
                           <td>${book.bookId}</td>
                           <td>${book.bookName}</td>
                           <td>${book.bookAuthor}</td>
                           <td>${book.bookPrice}</td>
                           <td><img src="${book.bookImg}" height="35"/></td>
                           <td>${book.bookDate}</td>
                           <td>${book.bookDesc}</td>
                           <td>
                               <a href="">删除</a>
                               <a href="">修改</a>
                           </td>
                       </tr>
                   </c:forEach>

                   <tr>
                       <td colspan="8" align="center">
                           <c:if test="${pageBean.pageNum == 1}">
                               <label style="color: gray">首页</label>
                               |
                               <label style="color: gray">上一页</label>
                           </c:if>
                           <c:if test="${pageBean.pageNum > 1}">
                               <a href="book/list?pageNum=1">首页</a>
                               |
                               <a href="book/list?pageNum=${pageBean.prePage}">上一页</a>
                           </c:if>

                           当前第${pageBean.pageNum}页 / 共${pageBean.pageCount}页

                           <c:if test="${pageBean.pageNum < pageBean.pageCount}">
                               <a href="book/list?pageNum=${pageBean.nextPage}">下一页</a>
                               |
                               <a href="book/list?pageNum=${pageBean.pageCount}">尾页</a>
                           </c:if>
                           <c:if test="${pageBean.pageNum == pageBean.pageCount}">
                               <label style="color: gray">下一页</label>
                               |
                               <label style="color: gray">尾页</label>
                           </c:if>
                       </td>
                   </tr>
               </tbody>
           </table>
       </body>
   </html>


10.3 添加图书功能—文件上传

添加图书信息，图书中包含图片——涉及文件上传

10.3.1 数据库操作实现

1. 在BookDAO中定义添加方法

   public interface BookDAO {

       public List<Book> selectBooks();

       public int insertBook(Book book);

   }


2. 配置映射文件

   <insert id="insertBook">
       insert into tb_books(book_name,book_author,book_price,book_img,book_date,book_desc)
       values(#{bookName},#{bookAuthor},#{bookPrice},#{bookImg},#{bookDate},#{bookDesc})
   </insert>


10.3.2 业务逻辑层实现

1. 在BookService接口中定义添加业务方法

   public interface BookService {

       public PageBean listBooks(int pageNum, int pageSize);

       public int addBook(Book book);

   }


2. 在BookServiceImpl实现类中实现添加图书业务

   @Service
   public class BookServiceImpl implements BookService {

       @Autowired
       private BookDAO bookDAO;

       public PageBean listBooks(int pageNum, int pageSize) {
          //....
           return bookPageBean;
       }

       public int addBook(Book book) {
           int i = bookDAO.insertBook(book);
           return i;
       }
   }


10.3.3 业务流程实现

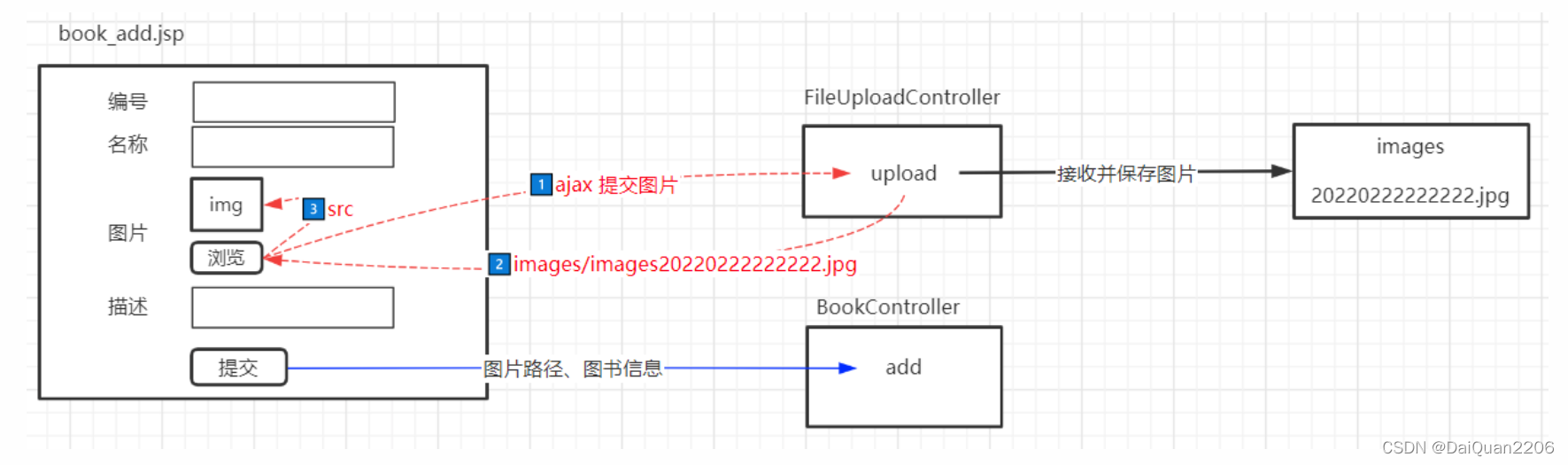

1. 图片异步上传流程图

2. 设计book-add.jsp

   <%@ page contentType="text/html;charset=UTF-8" language="java" %>
   <html>
       <head>
           <title>Title</title>
       </head>
       <body>
           <form action="" method="post">
               <p>名称:<input type="text" name="bookName"/></p>
               <p>作者:<input type="text" name="bookAuthor"/></p>
               <p>价格:<input type="text" name="bookPrice"/></p>
               <p>图片:
                   <br/>
                   <img src="" height="100" id="imgTag"/><br/>
                   <input type="file" id="bookImgFile"/>
                   <input type="hidden" name="bookImg" id="bookImg"/>
               </p>
               <p>日期:<input type="text" name="bookDate"/></p>
               <p>描述:<input type="text" name="bookDesc"/></p>
               <p><input type="submit" value="提交"/></p>
           </form>
       </body>
   </html>


3. 当选择图片触发ajax异步提交图片信息到控制器

   <img src="" height="100" id="imgTag"/><br/>
   <input type="file" onchange="uploadImg()" id="bookImgFile"/>
   <input type="hidden" name="bookImg" id="bookImg"/>


   <script type="text/javascript" src="js/jquery-3.6.0.min.js"></script>
   <script type="text/javascript">
       function uploadImg(){
           //前端提交图片：1.表单post提交文件，2.非压缩提交
           var file = $("#bookImgFile")[0].files[0];
           var formData = new FormData();
           formData.append("bookImgFile",file);
           $.ajax({
               url:"file/upload",
               type:"post",
               data:formData,
               processData:false,
               contentType:false,
               success:function(res){
                   console.log(res);
               }
           });
       }
   </script>


4. 创建接收上传图片的控制器

   • 导入文件上传所需要的jar

     <dependency>
         <groupId>commons-io</groupId>
         <artifactId>commons-io</artifactId>
         <version>2.4</version>
     </dependency>
     <dependency>
         <groupId>commons-fileupload</groupId>
         <artifactId>commons-fileupload</artifactId>
         <version>1.4</version>
     </dependency>


   • SpringMVC文件上传配置: 在Spring配置文件配置文件上传解析器

     <bean id="multipartResolver"
           class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
         <property name="maxUploadSize" value="10240000"/>
         <property name="maxInMemorySize" value="102400"/>
         <property name="defaultEncoding" value="utf-8"/>
     </bean>


   • 在控制器接收文件

     @Controller
     @RequestMapping("/file")
     public class FileController {

         @ResponseBody
         @RequestMapping("/upload")
         public Map<String, String> upload(MultipartFile bookImgFile, HttpServletRequest request) throws IOException {
             //文件保存
             String originalFilename = bookImgFile.getOriginalFilename();
             String ext = originalFilename.substring(originalFilename.lastIndexOf("."));
             String fileName = UUID.randomUUID().toString().replace("-","")+ext;

             String dir = request.getServletContext().getRealPath("images");
             bookImgFile.transferTo( new File(dir+"/"+fileName));

             Map<String, String> map = new HashMap<String, String>();
             map.put("filePath","images/"+fileName);
             return map;
         }

     }


   5. 在book-add.jsp将文件上传请求返回的图片路径设置到img标签的src属性 和 隐藏域的value属性

      <script type="text/javascript">
          function uploadImg(){
              //前端提交图片：1.表单post提交文件，2.非压缩提交
              var file = $("#bookImgFile")[0].files[0];
              var formData = new FormData();
              formData.append("bookImgFile",file);
              $.ajax({
                  url:"file/upload",
                  type:"post",
                  data:formData,
                  processData:false,
                  contentType:false,
                  success:function(res){
                      if(res.code == "200"){
                          $("#imgTag").attr("src",res.filePath);
                          $("#bookImg").val(res.filePath);
                      }
                  }
              });
          }
      </script>


   6. 在BookController创建保存图书的方法（创建tips.jsp提示页面）

      @RequestMapping("/add")
      public String add(Book book,Model model){
          int i = bookService.addBook(book);
          String tips = i>0? "<label style='color:green'>添加成功！</label>":
          "<label style='color:red'>添加失败！</label>";
          model.addAttribute("tips",tips);
          return "/tips.jsp";
      }


   7. book-add.jsp提交图书信息到 book/add （保证输入框的name属性与控制器Book对象属性名一致）

      <form action="book/add" method="post">
          <p>名称:<input type="text" name="bookName"/></p>
          <p>作者:<input type="text" name="bookAuthor"/></p>
          <p>价格:<input type="text" name="bookPrice"/></p>
          <p>图片:
              <br/>
              <img src="" height="100" id="imgTag"/><br/>
              <input type="file" onchange="uploadImg()" id="bookImgFile"/>
              <input type="hidden" name="bookImg" id="bookImg"/>
          </p>
          <p>日期:<input type="text" name="bookDate"/></p>
          <p>描述:<input type="text" name="bookDesc"/></p>
          <p><input type="submit" value="提交"/></p>
      </form>


   8. tips.jsp页面显示提示信息

      <%@ page contentType="text/html;charset=UTF-8" language="java" %>
      <html>
          <head>
              <title>Title</title>
          </head>
          <body>
          	${tips}
          </body>
      </html>


";
model.addAttribute(“tips”,tips);
return “/tips.jsp”;
}
```

7. book-add.jsp提交图书信息到 book/add （保证输入框的name属性与控制器Book对象属性名一致）

   <form action="book/add" method="post">
       <p>名称:<input type="text" name="bookName"/></p>
       <p>作者:<input type="text" name="bookAuthor"/></p>
       <p>价格:<input type="text" name="bookPrice"/></p>
       <p>图片:
           <br/>
           <img src="" height="100" id="imgTag"/><br/>
           <input type="file" onchange="uploadImg()" id="bookImgFile"/>
           <input type="hidden" name="bookImg" id="bookImg"/>
       </p>
       <p>日期:<input type="text" name="bookDate"/></p>
       <p>描述:<input type="text" name="bookDesc"/></p>
       <p><input type="submit" value="提交"/></p>
   </form>


8. tips.jsp页面显示提示信息

   <%@ page contentType="text/html;charset=UTF-8" language="java" %>
   <html>
       <head>
           <title>Title</title>
       </head>
       <body>
       	${tips}
       </body>
   </html>
