import pickle
import random
import cv2
import numpy as np
import matplotlib.pyplot as plt
def threshold_data(data, threshold):
data2 = {"name": [], "truncated": [], "occluded": [], "alpha": [], "bbox": [], "dimensions": [], "location": [], "rotation_y": [], "score": [], "boxes_lidar": [], "frame_id": data['frame_id']}
scores = data['score']
# print(len(scores))
for i in range(len(scores)):
if scores[i] > threshold:
data2['name'].append(data['name'][i])
data2['truncated'].append(data['truncated'][i])
data2['occluded'].append(data['occluded'][i])
data2['alpha'].append(data['alpha'][i])
data2['bbox'].append(data['bbox'][i])
data2['dimensions'].append(data['dimensions'][i])
data2['location'].append(data['location'][i])
data2['rotation_y'].append(data['rotation_y'][i])
data2['score'].append(data['score'][i])
data2['boxes_lidar'].append(data['boxes_lidar'][i])
print("After thresholding, boxes num is ",len(data2['score']))
return data2
def get_calib( calib_path):
with open(calib_path, 'r') as f:
lines = f.readlines()
P0 = np.array( [float(info) for info in lines[0].split(' ')[1:13]]).reshape( [3, 4])
P1 = np.array( [float(info) for info in lines[1].split(' ')[1:13]]).reshape( [3, 4])
P2 = np.array( [float(info) for info in lines[2].split(' ')[1:13]]).reshape( [3, 4])
P3 = np.array( [float(info) for info in lines[3].split(' ')[1:13]]).reshape( [3, 4])
R0_rect = np.array([ float(info) for info in lines[4].split(' ')[1:10] ]).reshape([3, 3])
Tr_velo_to_cam = np.array([ float(info) for info in lines[5].split(' ')[1:13] ]).reshape([3, 4])
Tr_imu_to_velo = np.array([ float(info) for info in lines[6].split(' ')[1:13] ]).reshape([3, 4])
return P0, P1, P2, P3, R0_rect, Tr_velo_to_cam, Tr_imu_to_velo

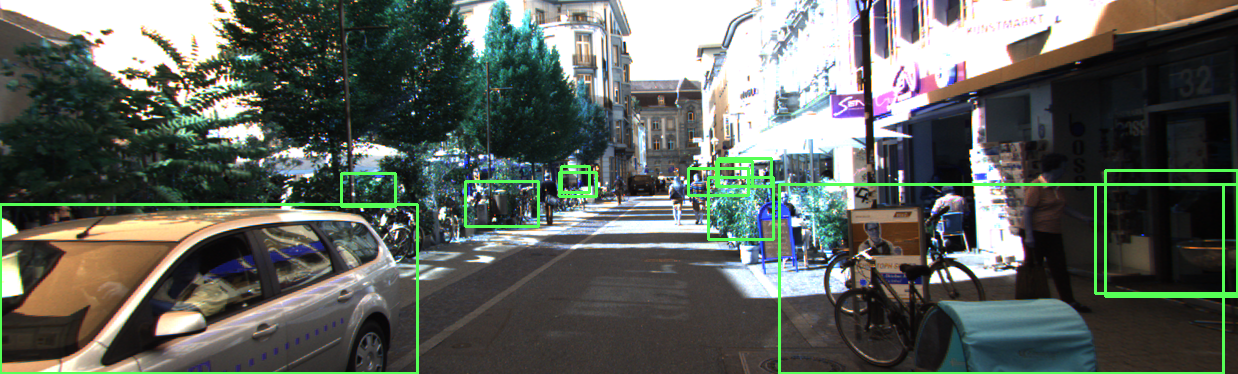

def visual_img_2d(img_path, data2):
id=data2['frame_id']
image = cv2.imread(img_path)
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
for i in range(len(data2['bbox'])):
x_min, y_min, x_max, y_max = map(int, data2['bbox'][i])
cv2.rectangle(image, (x_min, y_min), (x_max, y_max), color=color_dt[data2['name'][i]], thickness=2)
plt.imshow(image)
plt.axis('off') # Hide the axis
plt.show()
cv2.imwrite(f"pred/img_2d/{id}.png", image)
print("img_2d saved to pred/img_2d/" + id + ".png")
plt.close()
def calculate_iou(box1, box2):
# 这里需要实现3D框的IOU计算
# box格式为 [x, y, z, length, width, height, yaw]
# 请根据具体的3D框计算方法来实现此函数
# 返回值应该是计算得到的IOU
pass
# def filter_boxes(data, threshold=0.3, iou_threshold=0.01):
# def calculate_iou(box1, box2):
# x1, y1, z1, l1, w1, h1, yaw1 = box1
# x2, y2, z2, l2, w2, h2, yaw2 = box2
# x1_min = x1 - l1 / 2
# x1_max = x1 + l1 / 2
# y1_min = y1 - w1 / 2
# y1_max = y1 + w1 / 2
# x2_min = x2 - l2 / 2
# x2_max = x2 + l2 / 2
# y2_min = y2 - w2 / 2
# y2_max = y2 + w2 / 2
# inter_x_min = max(x1_min, x2_min)
# inter_x_max = min(x1_max, x2_max)
# inter_y_min = max(y1_min, y2_min)
# inter_y_max = min(y1_max, y2_max)
# inter_width = max(0, inter_x_max - inter_x_min)
# inter_height = max(0, inter_y_max - inter_y_min)
# intersection_area = inter_width * inter_height
# area1 = l1 * w1
# area2 = l2 * w2
# union_area = area1 + area2 - intersection_area
# iou = intersection_area / union_area if union_area > 0 else 0
# return iou
# data2 = {"name": [], "truncated": [], "occluded": [], "alpha": [], "bbox": [], "dimensions": [], "location": [], "rotation_y": [], "score": [], "boxes_lidar": [], "frame_id": data['frame_id']}
# keep_indices=list(range(len(data['score'])))
# while len(keep_indices):
# scores=[data['score'][i] for i in keep_indices]
# if max(scores)< threshold:
# break
# i = np.argmax(scores)
# max_index=keep_indices[i]
# max_score_box = data['boxes_lidar'][max_index]
# iou_values = [calculate_iou(max_score_box, data['boxes_lidar'][index]) for index in keep_indices ]
# print("Before thresholding, boxes num is ",len(data2['score']))
# keep_indices = [keep_indices[i] for i in range(len(iou_values)) if iou_values[i] <= iou_threshold]
# data2['name'].append(data['name'][max_index])
# data2['truncated'].append(data['truncated'][max_index])
# data2['occluded'].append(data['occluded'][max_index])
# data2['alpha'].append(data['alpha'][max_index])
# data2['bbox'].append(data['bbox'][max_index])
# data2['dimensions'].append(data['dimensions'][max_index])
# data2['location'].append(data['location'][max_index])
# data2['rotation_y'].append(data['rotation_y'][max_index])
# data2['score'].append(data['score'][max_index])
# data2['boxes_lidar'].append(data['boxes_lidar'][max_index])
# print("After filtering, boxes num is ", len(data2['score']))
# return data2

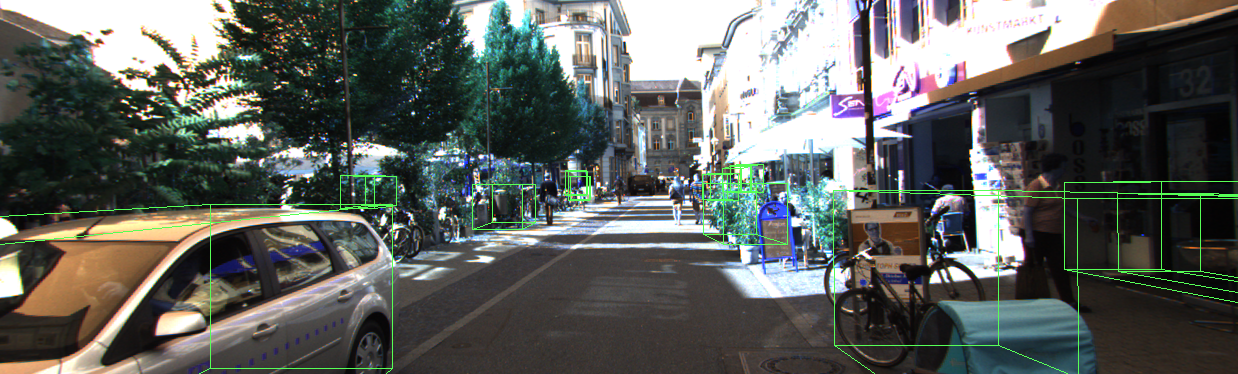

def visual_img_3d(img_path, data2, calib_path):
"""
7 -------- 4
/| /|
6 -------- 5 .
| | | |
. 3 -------- 0
|/ |/
2 -------- 1
目前不对
"""
id=data2['frame_id']
image = cv2.imread(img_path)
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
P0, P1, P2, P3, R0_rect, Tr_velo_to_cam, Tr_imu_to_velo = get_calib( calib_path)
for i in range(len(data2['bbox'])):
x_min, y_min, x_max, y_max = map(int, data2['bbox'][i])
# cv2.rectangle(image, (x_min, y_min), (x_max, y_max), color=color_dt[data2['name'][i]], thickness=2)
box_3d = data2['boxes_lidar'][i] # [39.689312 20.123287 -0.9484792 3.800696 1.5940567 1.478453 -3.1090808]
x, y, z, l, w, h, yaw = box_3d
corners = np.array([
[x - l / 2, y - w / 2, z - h / 2],
[x + l / 2, y - w / 2, z - h / 2],
[x + l / 2, y + w / 2, z - h / 2],
[x - l / 2, y + w / 2, z - h / 2],
[x - l / 2, y - w / 2, z + h / 2],
[x + l / 2, y - w / 2, z + h / 2],
[x + l / 2, y + w / 2, z + h / 2],
[x - l / 2, y + w / 2, z + h / 2],
])
# 旋转矩阵
corners_hom = np.hstack((corners, np.ones((8, 1)))) # 将点转换为齐次坐标
corners_cam = np.dot(Tr_velo_to_cam, corners_hom.T).T
corners_cam = corners_cam[:, :3] # 忽略齐次坐标
corners_hom_cam = np.hstack((corners_cam, np.ones((8, 1))))
corners_img = np.dot(P2, corners_hom_cam.T).T
corners_img = corners_img[:, :2] / corners_img[:, 2:3] # 归一化
for k1, k2 in zip([0, 0, 0, 1, 1, 2, 2, 3, 4, 4, 5, 6],
[1, 3, 4, 2, 5, 3, 6, 7, 5, 7, 6, 7]):
pt1 = tuple(corners_img[k1].astype(int))
pt2 = tuple(corners_img[k2].astype(int))
color = color_dt[data2['name'][i]]
cv2.line(image, pt1, pt2, color, 1)
plt.imshow(image)
plt.axis('off') # 隐藏坐标轴
plt.show()
cv2.imwrite(f"pred/img_3d/{id}.png", image)
print("img_3d saved to pred/img_3d/" + id + ".png")
plt.close()

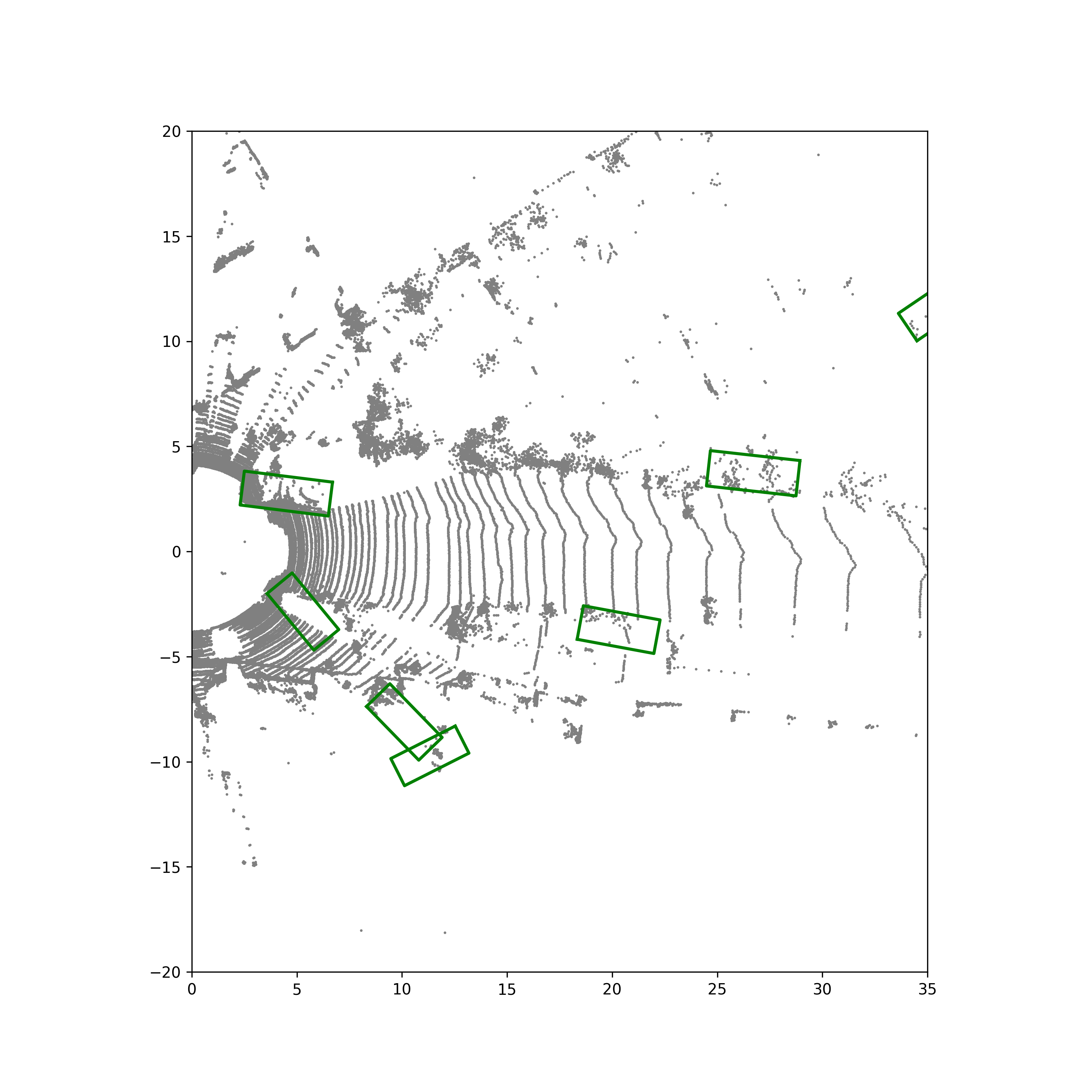

def visual_lidar_2d(lidar_path, data2):
"""
绘制lidar点云的鸟瞰图BEV
"""
color_dt={"Car":"green", "Pedestrian":"blue", "Cyclist":"pink"}
def sample_lidar(lidar,percentage):
num = int(len(lidar) * percentage)
n=len(lidar)
for i in range(num):
x,y=random.randint(0,n-1),random.randint(0,n-1)
lidar[x],lidar[y]=lidar[y],lidar[x]
per=int(percentage*100)
lidar_=[ lidar[i] for i in range(0,n,per)]
return np.array(lidar_)
id=data2['frame_id']
lidar = np.fromfile(lidar_path, dtype=np.float32).reshape(-1, 4)
# lidar = sample_lidar(lidar,0.4)
x = lidar[:, 0]
y = lidar[:, 1]
r = np.sqrt(x ** 2 + y ** 2)
fig,ax = plt.subplots(figsize=(10, 10))
ax.scatter(x, y, c='gray', s=0.5)
ax.set_xlim(0, 35)
ax.set_ylim(-20,20)
ax.set_aspect('equal')
box_3d = data2['boxes_lidar']
for i, box in enumerate(data2['boxes_lidar']):
x_center, y_center, z, length, width, height, yaw = box
corners = np.array([
[-length / 2, -width / 2],
[length / 2, -width / 2],
[length / 2, width / 2],
[-length / 2, width / 2],
[-length / 2, -width / 2] # 回到起始点
])
rotation_matrix = np.array([
[np.cos(yaw), -np.sin(yaw)],
[np.sin(yaw), np.cos(yaw)]
])
rotated_corners = corners @ rotation_matrix.T
rotated_corners[:, 0] += x_center
rotated_corners[:, 1] += y_center
ax.plot(rotated_corners[:, 0], rotated_corners[:, 1], c=color_dt[data2['name'][i]], linewidth=2)
plt.show()
fig.savefig(f"pred/lidar_2d/{id}.png", dpi=300)
print("lidar_bev saved to pred/lidar_2d/" + id + ".png")
plt.close()
def visual(datas):
for data in datas:
print(data['frame_id'])
id=data['frame_id']
img_path="/home/zbh/project/CoIn-main/data/kitti/training/image_2/"+id+".png"
calib_path="/home/zbh/project/CoIn-main/data/kitti/training/calib/"+id+".txt"
lidar_path="/home/zbh/project/CoIn-main/data/kitti/training/velodyne/"+id+".bin"
data2=threshold_data(data, threshold=0.5)
# data2=filter_boxes(data)
# visual_img_2d(img_path, data2)
# visual_img_3d(img_path, data2, calib_path)
visual_lidar_2d(lidar_path, data2)
print("\n")
if int(data['frame_id'])>100:
break
color_dt={"Car":(86,255,86), "Pedestrian":(255,255,0), "Cyclist":(255,170,212)}
if __name__ == '__main__':
file_path = "/home/zbh/project/CoIn-main/output/kitti_models/aug_20_20/default/eval/eval_all_default/default/epoch_80/val/result.pkl"
file_path = "/home/zbh/project/CoIn-main/output/kitti_models/aug_25/default/eval/eval_all_default/default/epoch_100/val/result.pkl"
# file_path = "/home/zbh/project/CoIn-main/output/kitti_models/aug_25/default/ckpt/checkpoint_epoch_100.pth"
with open(file_path, 'rb') as file:
datas = pickle.load(file)
"datas is list"
"datas[0] is dict ,and its keys are ['name', 'truncated', 'occluded', 'alpha', 'bbox', 'dimensions', 'location', 'rotation_y', 'score', 'boxes_lidar', 'frame_id']"
visual(datas)
