CDH6.2.1部署操作手册

第5章 CM&CDH安装

说明

本文档旨在描述相关CDH6.2.1的安装配置操作，便于相关使用人员后参考。

系统环境准备

Hosts配置（所有主机）

[root@cdh01 ~]# vi /etc/hosts

127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4

::1 localhost localhost.localdomain localhost6 localhost6.localdomain6

10.128.21.41 cdh01.paraview.cn cdh01

10.128.21.42 cdh02.paraview.cn cdh02

10.128.21.43 cdh03.paraview.cn cdh03

配置免密（所有主机）

[root@cdh01 ~]# ssh-keygen -t rsa (连按三次回车)

[root@cdh01 .ssh]# ssh-copy-id cdh01.paraview.cn

[root@cdh01 .ssh]# ssh-copy-id cdh02.paraview.cn

[root@cdh01 .ssh]# ssh-copy-id cdh03.paraview.cn

修改yum源

cd /etc/yum.repos.d/

yum install -y wget

mv CentOS-Base.repo CentOS-Base.repo.bak

wget http://mirrors.aliyun.com/repo/Centos-7.repo

mv Centos-7.repo CentOS-Base.repo

yum clean all

yum makecache

关闭SELINUX（所有节点）

[root@cdh01 ~]# vi /etc/selinux/config

将这一行修改为 SELINUX=disabled

配置集群时间同步

安装ntp（所有节点）

[root@cdh01 ~]# yum install ntp -y

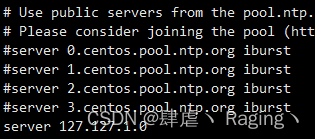

在主节点配置时间同步

[root@cdh01 ~]# vi /etc/ntp.conf

#server 0.centos.pool.ntp.org iburst

#server 1.centos.pool.ntp.org iburst

#server 2.centos.pool.ntp.org iburst

#server 3.centos.pool.ntp.org iburst

server 127.127.1.0

修改系统时间与硬件时间同步

vi /etc/sysconfig/ntpd

# Command line options for ntpd

OPTIONS="-g"

SYNC_HWCLOCK=yes

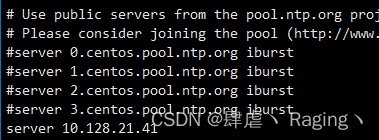

配置其他节点时间同步

server 10.128.21.41

开启自启（所有节点）

systemctl start ntpd

systemctl enable ntpd

优化虚拟内存（所有节点）

[root@cdh01 ~]# echo 'vm.swappiness = 0' > /etc/sysctl.d/swappiness.conf

[root@cdh01 ~]# sysctl -p

禁用大页内存（所有节点）

[root@cdh01 ~]# echo never > /sys/kernel/mm/transparent_hugepage/defrag

[root@cdh01 ~]# echo never > /sys/kernel/mm/transparent_hugepage/enabled

[root@cdh01 ~]# echo "echo never > /sys/kernel/mm/transparent_hugepage/enabled" >> /etc/rc.local

[root@cdh01 ~]# echo "echo never > /sys/kernel/mm/transparent_hugepage/defrag" >> /etc/rc.local

[root@cdh01 ~]# chmod u+x /etc/rc.local

所有节点(所有节点关闭防火墙)

[root@cdh01 ~]# systemctl stop firewalld.service

[root@cdh01 ~]# systemctl disable firewalld.service

重启所有节点

reboot

安装mysql

准备

先卸载系统自带mariadb-lib

rpm -qa | grep mariadb

rpm -e --nodeps mariadb-libs-5.5.56-2.el7.x86_64

安装MySQL

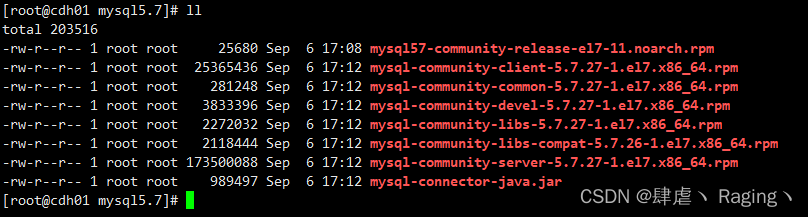

上传mysql包，解压

rpm -ivh mysql-community-common-5.7.27-1.el7.x86_64.rpm

rpm -ivh mysql-community-libs-5.7.27-1.el7.x86_64.rpm

rpm -ivh mysql-community-libs-compat-5.7.26-1.el7.x86_64.rpm

rpm -ivh mysql-community-client-5.7.27-1.el7.x86_64.rpm

rpm -ivh mysql-community-server-5.7.27-1.el7.x86_64.rpm

启动MySQL

systemctl start mysqld.service

systemctl status mysqld.service

修改密码

grep "password" /var/log/mysqld.log

mysql -uroot -p

然后输入我们之前获取到的密码

ALTER USER 'root'@'localhost' IDENTIFIED BY '[Root123]';

初始化数据库：

/usr/bin/mysql_secure_installation

Securing the MySQL server deployment.

Enter password for user root: （输入前面修改的root密码：[Root123]）

The 'validate_password' plugin is installed on the server.

The subsequent steps will run with the existing configuration

of the plugin.

Using existing password for root.

Estimated strength of the password: 100

Change the password for root ? ((Press y|Y for Yes, any other key for No) :

... skipping.

By default, a MySQL installation has an anonymous user,

allowing anyone to log into MySQL without having to have

a user account created for them. This is intended only for

testing, and to make the installation go a bit smoother.

You should remove them before moving into a production

environment.

Remove anonymous users? (Press y|Y for Yes, any other key for No) : y

Success.

Normally, root should only be allowed to connect from

'localhost'. This ensures that someone cannot guess at

the root password from the network.

Disallow root login remotely? (Press y|Y for Yes, any other key for No) :

... skipping.

By default, MySQL comes with a database named 'test' that

anyone can access. This is also intended only for testing,

and should be removed before moving into a production

environment.

Remove test database and access to it? (Press y|Y for Yes, any other key for No) : y

- Dropping test database...

Success.

- Removing privileges on test database...

Success.

Reloading the privilege tables will ensure that all changes

made so far will take effect immediately.

Reload privilege tables now? (Press y|Y for Yes, any other key for No) : y

Success.

All done!

配置root用户远程访问

mysql -uroot -p[Root123]

grant all privileges on *.* to 'root' @'%' identified by '[Root123]';

flush privileges;

创建数据及日志目录

更新mysql配置，以root用户执行如下命令，创建目录：

export MySQLDataDir=/data/mysql_data 指定mysql data根目录

export MySQLLogDIR=/data/mysql_log 指定mysql log的根目录

mkdir -p $MySQLDataDir/data;

mkdir $MySQLDataDir/run;

touch $MySQLDataDir/run/health_3430.sock;

touch $MySQLDataDir/run/health_3430.pid

touch $MySQLDataDir/run/health.pid;

mkdir $MySQLDataDir/tmp;

mkdir -p $MySQLLogDIR/log/error_log;

touch $MySQLLogDIR/log/error_log/error.log;

mkdir -p $MySQLLogDIR/log/binary_log/;

touch $MySQLLogDIR/log/binary_log/health-5049-bin;

touch $MySQLLogDIR/log/binary_log/health-5049-bin.index;

mkdir -p $MySQLLogDIR/log/slow_log;

touch $MySQLLogDIR/log/slow_log/slow.log;

mkdir -p $MySQLLogDIR/log/general_log;

touch $MySQLLogDIR/log/general_log/general.log;

mkdir -p $MySQLLogDIR/log/relay_log;

touch $MySQLLogDIR/log/relay_log/mysql-relay-bin;

touch $MySQLLogDIR/log/relay_log/relay-bin.index;

mkdir -p $MySQLLogDIR/log/audit_log/;

touch $MySQLLogDIR/log/audit_log/audit.log;

mkdir -p $MySQLLogDIR/log/ibdata_log/;

mkdir -p $MySQLLogDIR/log/redo_log/;

mkdir -p $MySQLLogDIR/log/undo_log/;

迁移数据库目录

停止mysql

systemctl stop mysqld

export MySQLDataDir=/data/mysql_data

export MySQLLogDIR=/data/mysql_log

cp -a /var/lib/mysql/* $MySQLDataDir/data

chown -R mysql:mysql $MySQLDataDir

mv /var/lib/mysql /var/lib/mysql.bak

ln -s $MySQLDataDir/data /var/lib/mysql

chown -R mysql:mysql /var/lib/mysql

chown -R mysql:mysql $MySQLDataDir

chown -R mysql:mysql $MySQLLogDIR

更新my.cnf配置

备份原有配置：

mv /etc/my.cnf /etc/my.cnf.bak

执行更新配置命令：

#设置目录环境变量

export MySQLDataDir=/data/mysql_data

export MySQLLogDIR=/data/mysql_log

export id=65 #为每个mysql server-id设置一个唯一ID

#执行更新：

cat >> /etc/my.cnf <<EOF

[client]

port = 3306

socket = /var/lib/mysql/mysql.sock

user=root

password=[Root123]

[mysql-dump]

port = 3306

socket = /var/lib/mysql/mysql.sock

user=root

password=[Root123]

[mysql]

port = 3306

no-auto-rehash

default_character_set = utf8mb4

prompt = '\u@\h [\d]> '

socket = /var/lib/mysql/mysql.sock

[mysqld]

datadir=/var/lib/mysql

socket=/var/lib/mysql/mysql.sock

pid-file=/var/run/mysqld/mysqld.pid

port = 3306

user = mysql

server-id = $id

tmpdir = $MySQLDataDir/tmp

character-set-server = utf8mb4

skip-external-locking = 1

skip-name-resolve = 1

skip_networking = 0

symbolic-links = 0

max_connections = 3000

max_user_connections = 0

max_connect_errors = 100000

max_allowed_packet = 128M

lower_case_table_names = 1

sql-mode="STRICT_TRANS_TABLES,NO_ENGINE_SUBSTITUTION"

query_cache_type=0

query_cache_size=0

log-error = $MySQLLogDIR/log/error_log/error.log

log-bin = $MySQLLogDIR/log/binary_log/health-bin

log-bin-index = $MySQLLogDIR/log/binary_log/health-bin.index

binlog-format = ROW

sync-binlog = 1

expire-logs-days = 15

binlog_cache_size = 2M

max_binlog_size = 512M

binlog_stmt_cache_size = 512K

binlog_rows_query_log_events = 1

slow_query_log = 1

long_query_time = 0.1

general_log = 0

general_log_file = $MySQLLogDIR/log/general_log/general.log

log_slave_updates = 1

relay_log_recovery = 1

relay_log_purge = 1

relay_log = $MySQLLogDIR/log/relay_log/mysql-relay-bin

relay_log_index = $MySQLLogDIR/log/relay_log/relay-bin.index

relay_log_info_repository = TABLE

master_info_repository = TABLE

transaction-isolation = REPEATABLE-READ

innodb_data_home_dir = /var/lib/mysql

innodb_data_file_path = ibdata1:10M:autoextend

innodb_log_group_home_dir = $MySQLLogDIR/log/redo_log/

innodb_log_file_size = 200M

innodb_log_files_in_group = 4

innodb_log_buffer_size = 16M

innodb_file_per_table=1

innodb_undo_directory = $MySQLLogDIR/log/undo_log/

innodb_undo_logs = 128

innodb_buffer_pool_size = 4G

innodb_buffer_pool_instances = 48

innodb_flush_log_at_trx_commit = 1

innodb_lock_wait_timeout = 30

innodb_sync_spin_loops = 40

innodb_max_dirty_pages_pct = 75

innodb_support_xa = 1

innodb_thread_concurrency = 0

innodb_thread_sleep_delay = 500

innodb_concurrency_tickets = 1000

innodb_flush_method = O_DIRECT

innodb_read_io_threads = 16

innodb_write_io_threads = 16

innodb_numa_interleave = 1

key_buffer_size = 8M

table_open_cache = 1024

table_definition_cache = 1024

max_tmp_tables = 256

tmp_table_size = 32M

max_heap_table_size = 32M

table_open_cache_instances = 8

open_files_limit = 204800

join_buffer_size = 1M

sort_buffer_size = 1M

read_buffer_size = 1M

read_rnd_buffer_size = 1M

bulk_insert_buffer_size = 0

EOF

启动

systemctl start mysqld

创建CDH需要用到的库

在mysql中创建数据库：mysql -uroot -p[Root123]

create database amon DEFAULT CHARACTER SET utf8;

create database rman DEFAULT CHARACTER SET utf8;

create database metastore DEFAULT CHARACTER SET utf8;

create database ranger DEFAULT CHARACTER SET utf8;

create database hue DEFAULT CHARACTER SET utf8;

create database oozie DEFAULT CHARACTER SET utf8;

create database scm DEFAULT CHARACTER SET utf8;

create database das DEFAULT CHARACTER SET utf8;

create database schemaregistry DEFAULT CHARACTER SET utf8;

create database smm DEFAULT CHARACTER SET utf8;

create database nav DEFAULT CHARACTER SET utf8;

create database navms DEFAULT CHARACTER SET utf8;

create database hive DEFAULT CHARACTER SET utf8;

创建账户:

grant all privileges on amon.* to 'amon'@'%' identified by '[Root123]';

grant all privileges on rman.* to 'rman'@'%' identified by '[Root123]';

grant all privileges on metastore.* to 'hive'@'%' identified by '[Root123]';

grant all privileges on ranger.* to 'ranger'@'%' identified by '[Root123]';

grant all privileges on nav.* to 'nav'@'%' identified by '[Root123]';

grant all privileges on navms.* to 'navms'@'%' identified by '[Root123]';

grant all privileges on hue.* to 'hue'@'%' identified by '[Root123]';

grant all privileges on oozie.* to 'oozie'@'%' identified by '[Root123]';

grant all privileges on smm.* to 'smm'@'%' identified by '[Root123]';

grant all privileges on das.* to 'das'@'%' identified by '[Root123]';

grant all privileges on schemaregistry.* to 'schemaregistry'@'%' identified by '[Root123]';

grant all privileges on scm.* to 'scm'@'%' identified by '[Root123]';

grant all privileges on hive.* to 'hive'@'%' identified by '[Root123]';

GRANT ALL PRIVILEGES ON *.* TO 'scm'@'%' IDENTIFIED BY '[Root123]' WITH GRANT OPTION;

必须执行以下命令，不然初始化ranger会报错

SET GLOBAL innodb_file_per_table = ON,

innodb_file_format = Barracuda,

innodb_large_prefix = ON;

拷贝Mysql驱动

mkdir -p /usr/share/java

cp mysql-connector-java.jar /usr/share/java/

CM&CDH安装

准备

cm准备

unzip cm6.2.1.zip

安装createrepo:

yum -y install createrepo

进去cm目录，执行如下语句

createrepo .

看到repodata目录生成，目录里并且有repomd.xml说明成功

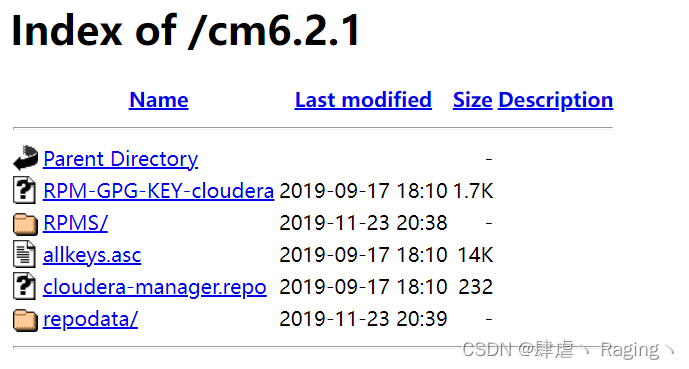

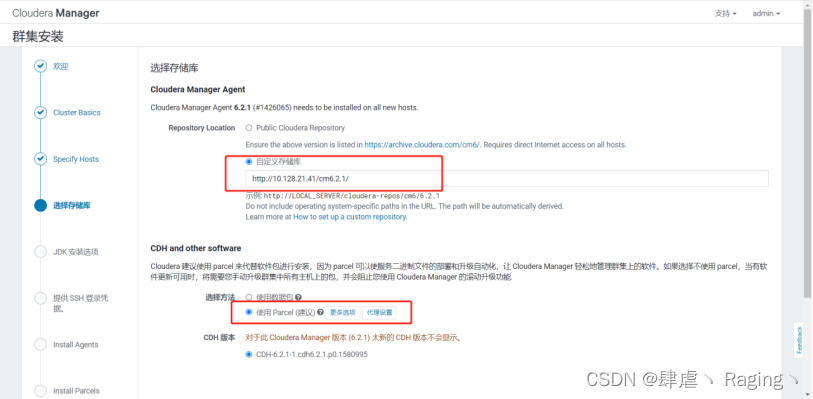

将cm6.2.1移动到/var/www/html下面。访问http://IP/cm6.2.1

parcels准备

unzip cdh6.2.1.zip

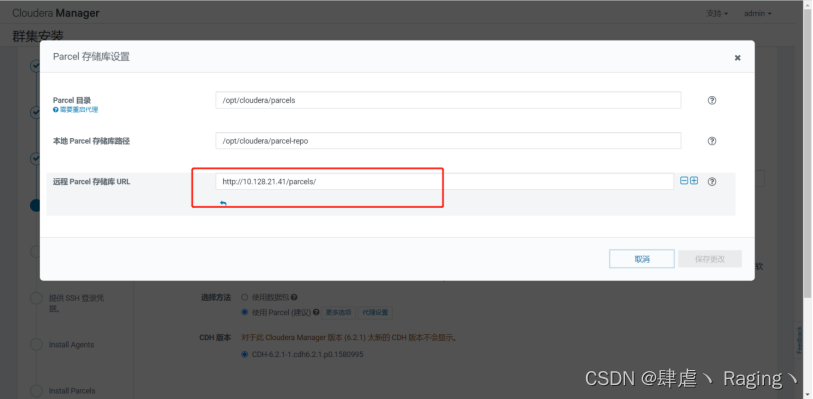

解压后软链接到/var/www/html供后续使用

在主节点/etc/yum.repos.d/下创建cm.repo源文件：

vi /etc/yum.repos.d/cm.repo

[local_cloudera_source]

name=local_cloudera

baseurl=http://10.128.21.41/cm6.2.1/

enabled=1

gpgcheck=0

验证：

yum clean all

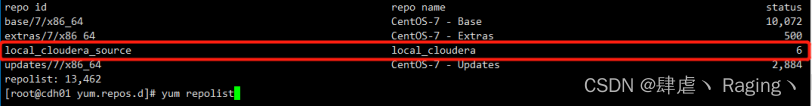

yum repolist

JDK安装

mkdir -p /usr/java/

yum -y install oracle-j2sdk1.8-1.8.0+update181-1.x86_64.rpm

vi /etc/profile

#JAVA_HOME

export JAVA_HOME=/usr/java/jdk1.8.0_181-cloudera

export PATH=$JAVA_HOME/bin:$PATH

export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar

分发jdk到其他节点：

scp -r /usr/java root@10.128.21.42:/usr/

scp -r /usr/java root@10.128.21.43:/usr/

scp /etc/profile root@10.128.21.42:/etc/

scp /etc/profile root@10.128.21.43:/etc/

所有节点刷新一下

source /etc/profile

java -version

CM安装

主节点安装CM

yum install -y cloudera-manager-server.x86_64

初始化CM数据库

/opt/cloudera/cm/schema/scm_prepare_database.sh mysql scm root [Root123]

看到Successfully connected to database即为成功

启动CM

systemctl start cloudera-scm-server

（启动时间大约需要两分钟）

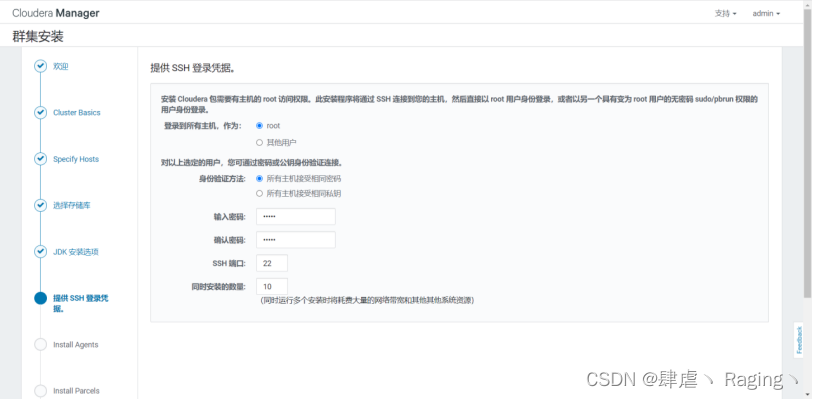

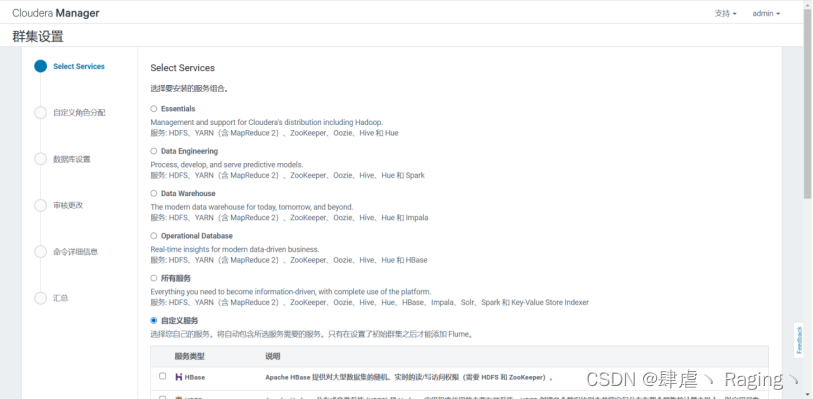

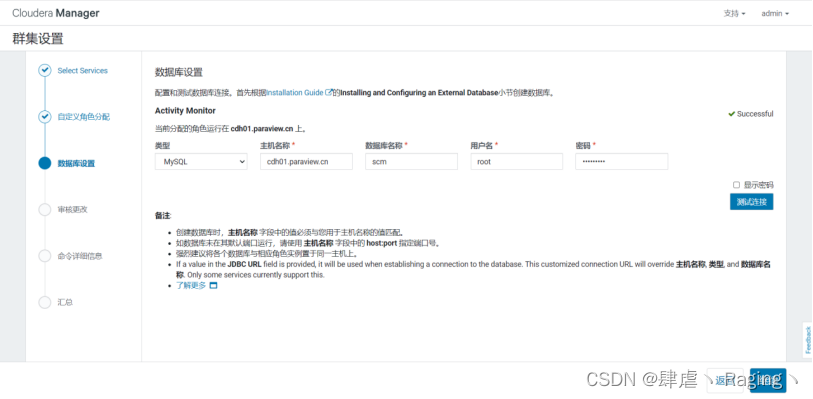

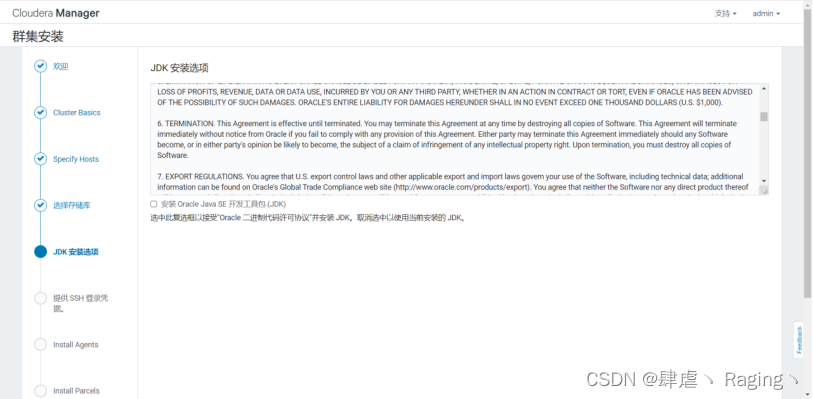

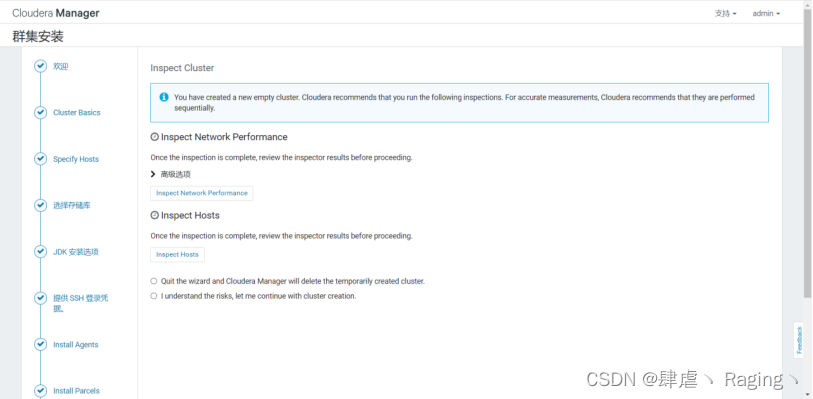

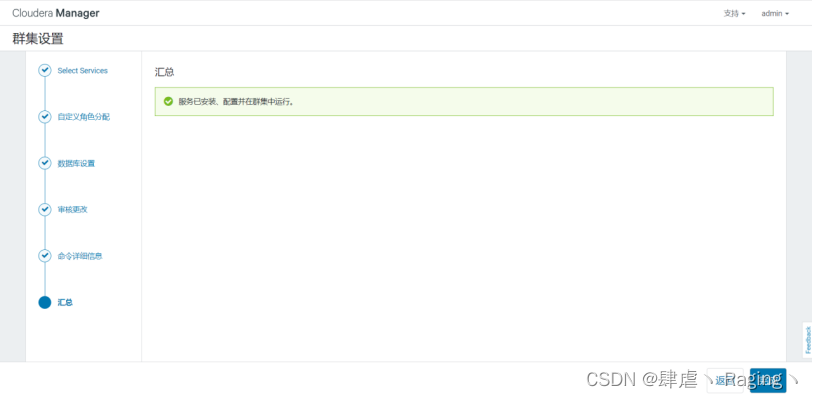

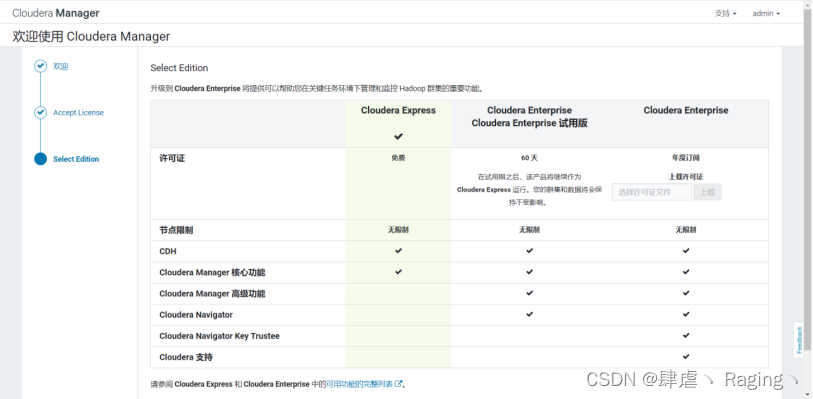

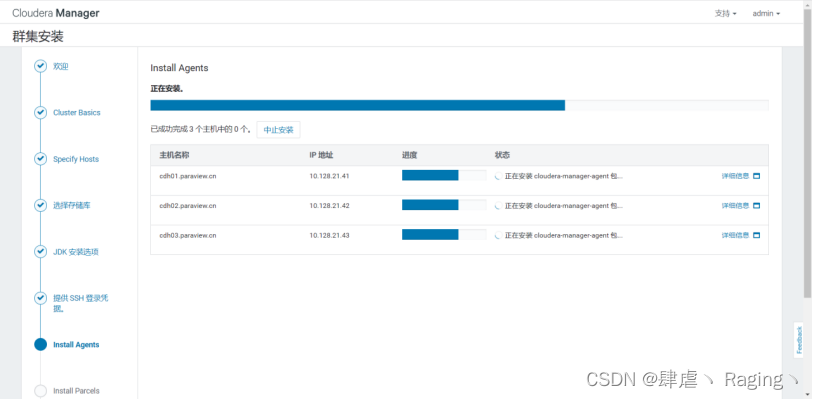

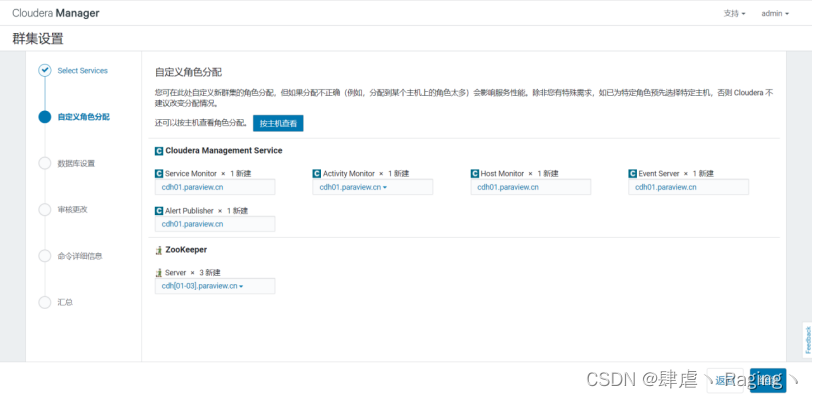

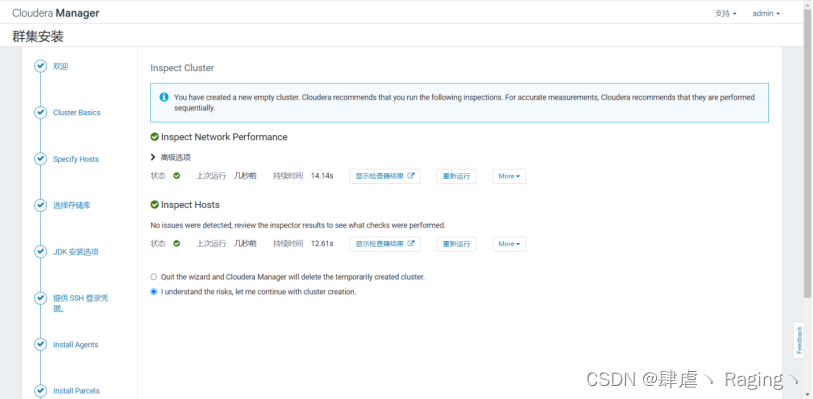

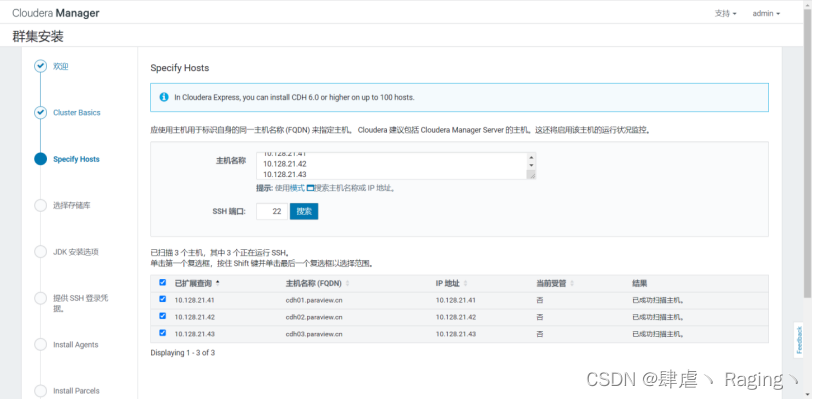

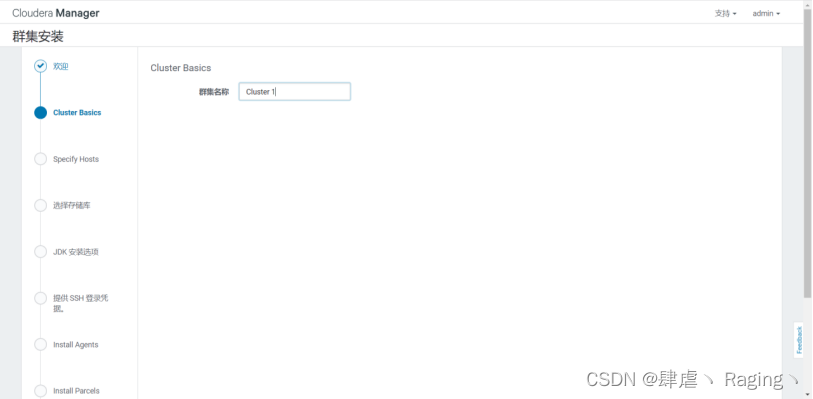

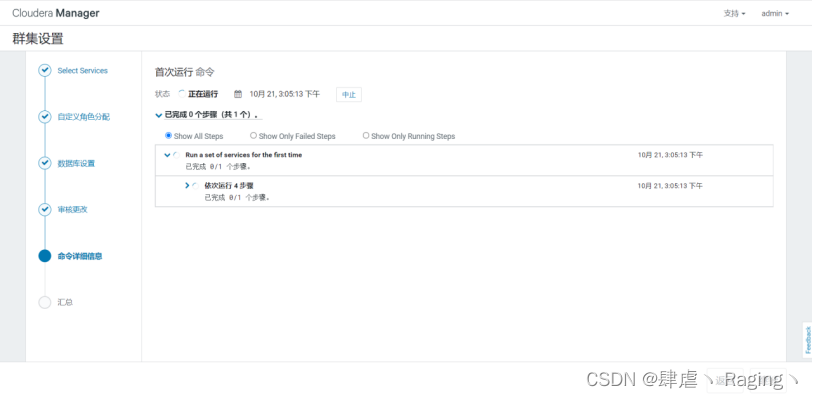

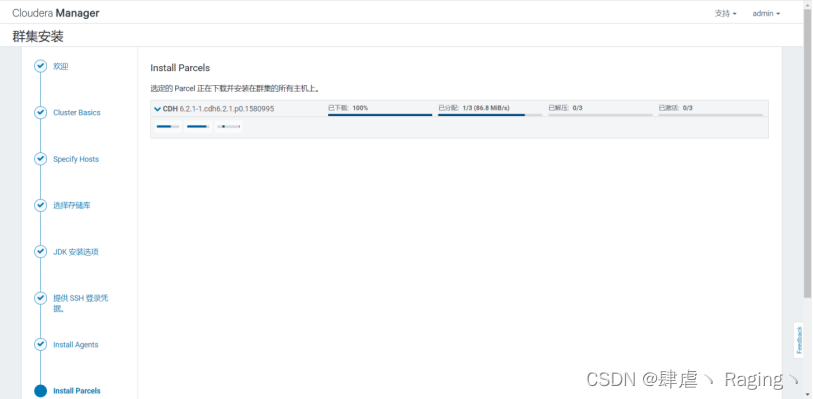

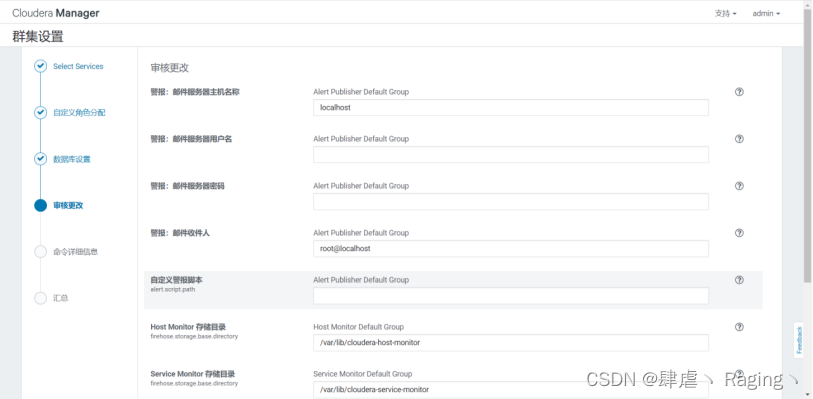

组件安装

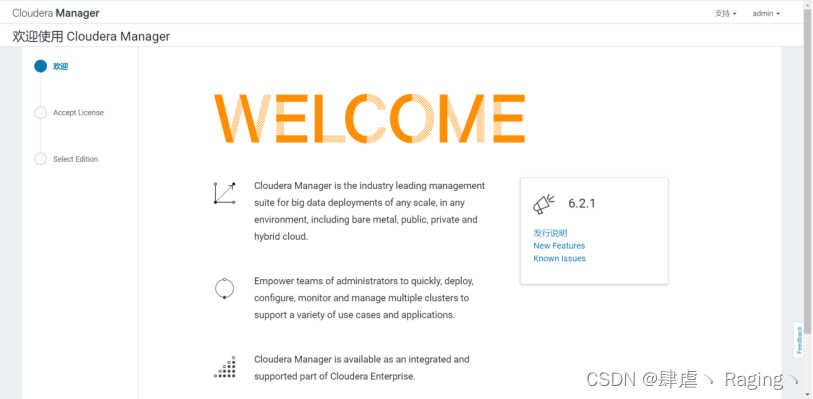

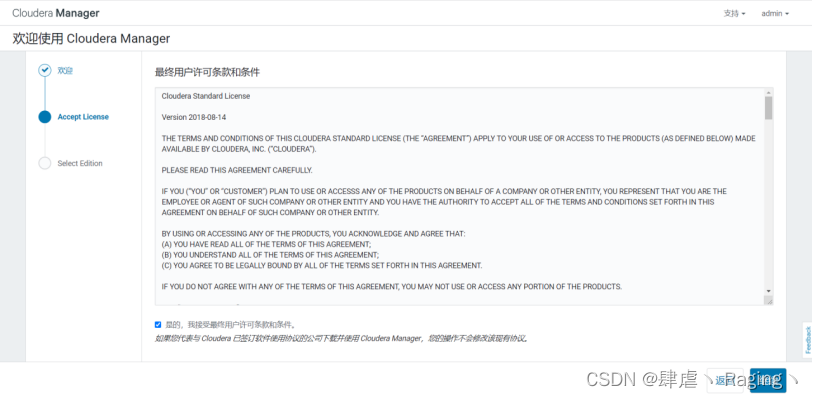

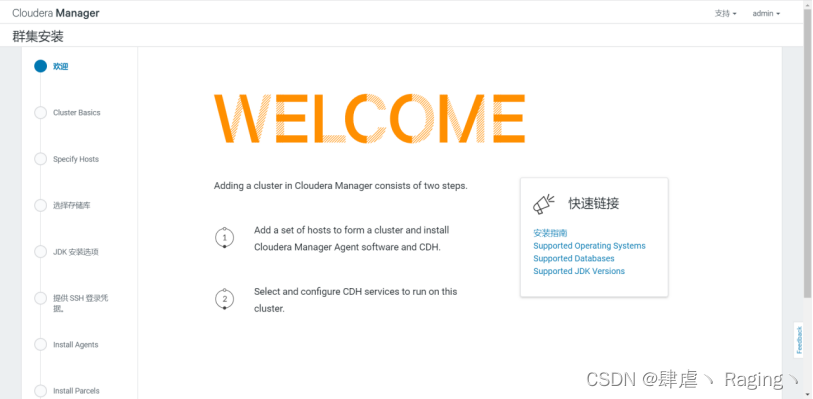

浏览器输入http://10.128.21.41:7180
账号：admin
密码：admin

代理访问地址	备注
http://10.128.21.41:7180	安装完成后，CM管理界面

配置参数	备注
/opt/cloudera/parcels	CDH程序目录

IP	主机名	角色
10.128.21.41	cdh01	Cm、nn
10.128.21.42	cdh02	datanode
10.128.21.43	cdh03	datanode

软件	信息
CDH	CDH6.2.1
OS	CentOS 7.5
MySQL	MySQL 5.7.27
