Spring+Mybatis整合做CRUD操作（内附源码）

一 前言

最近学了mybatis和spring框架，现在做一个小案例，如果有感兴趣的可以一起来做，我会把源码发出来的

二 前期准备

因为还没有学Springboot，所以前期准备挺多的

2.1 导入依赖

mybatis

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>8.0.26</version>
</dependency>

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid</artifactId>
    <version>1.2.8</version>
</dependency>

<dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis</artifactId>
    <version>3.5.7</version>
</dependency>

Spring

<properties>
  <spring.version>5.3.15</spring.version>
</properties>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>${spring.version}</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-aspects</artifactId>
    <version>${spring.version}</version>
</dependency>
<dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.12</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-test</artifactId>
    <version>${spring.version}</version>
</dependency>
<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.13.1</version>
</dependency>

整合所需要的

<dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis-spring</artifactId>
    <version>2.0.7</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jdbc</artifactId>
    <version>${spring.version}</version>
</dependency>


 <properties>
        <spring.version>5.3.15</spring.version>
    </properties>

说明：

   properties文件注意放对位置，如果后面你们有关于tomcat版本报错，可能要把版本号变一下（当然，不一定是这里的错）

2.2 配置文件

//mybaties-config.xml
//这里只稍微创建一下

 <?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

//分页插件，后面分页查询要用到，记得就好

    <plugins>
        <plugin interceptor="com.github.pagehelper.PageInterceptor"></plugin>
    </plugins>

</configuration>













<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/tx
        http://www.springframework.org/schema/tx/spring-tx.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd ">

    <!-- 声明注解配置   -->
    <context:annotation-config/>
    <!-- 声明注解扫描范围 -->
    <context:component-scan base-package="com.qfedu"/>
    <!--  声明MVC注解配置  -->
    <mvc:annotation-driven/>

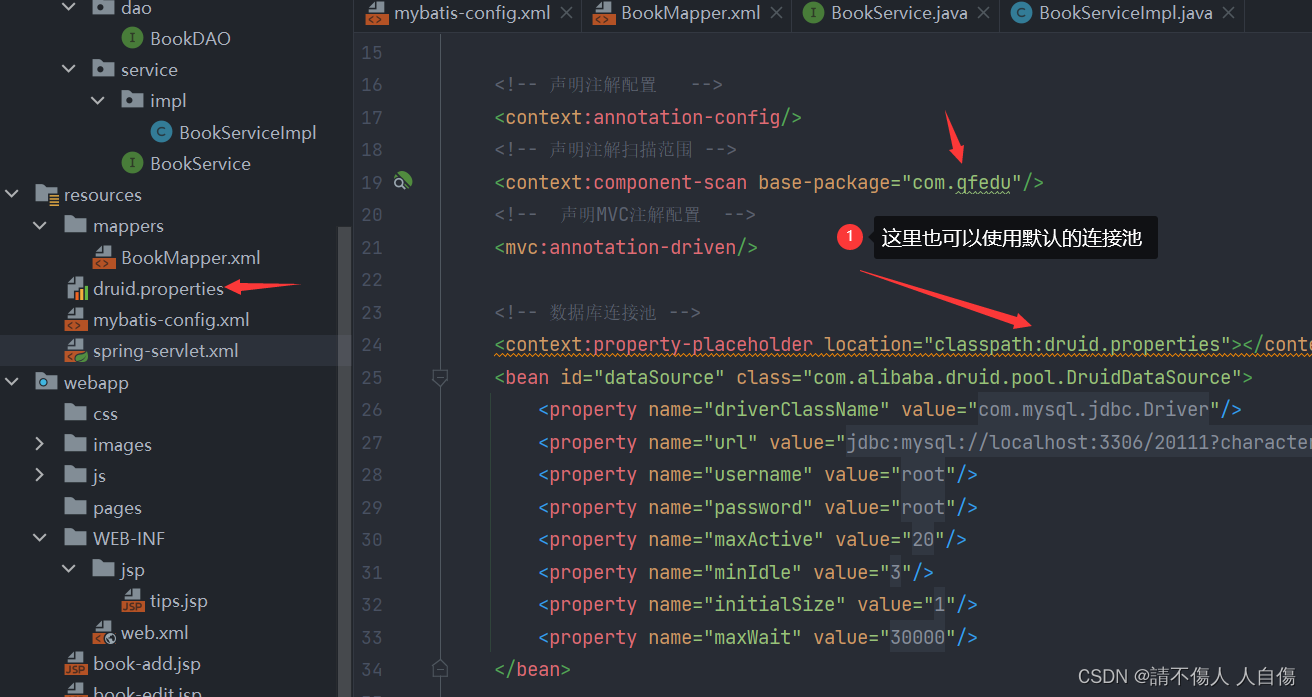

    <!-- 数据库连接池 -->

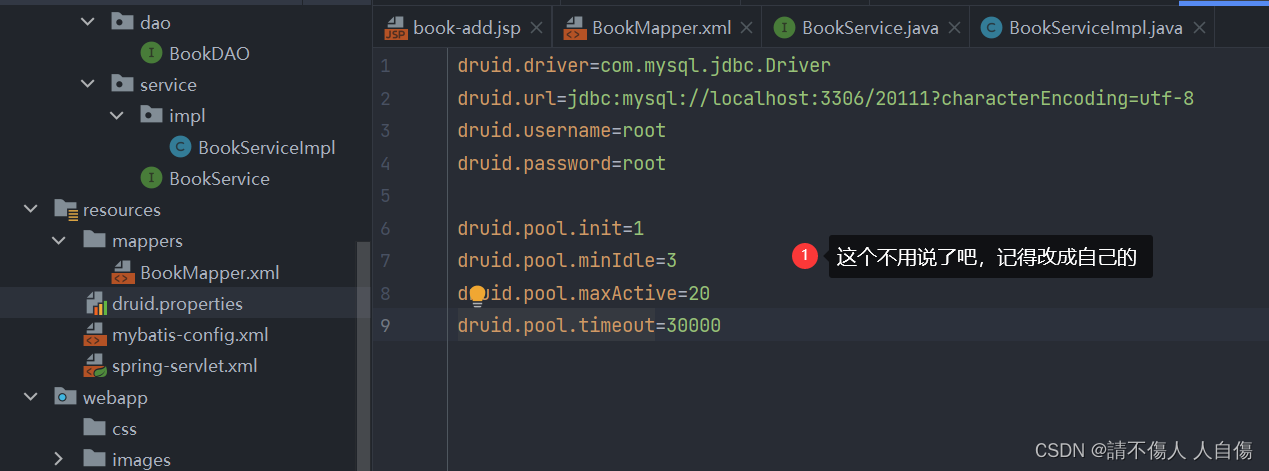

    <context:property-placeholder location="classpath:druid.properties"></context:property-placeholder>
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${druid.driver}"/>
        <property name="url" value="${druid.url}"/>
        <property name="username" value="${druid.username}"/>
        <property name="password" value="${druid.password}"/>
        <property name="maxActive" value="${druid.pool.maxActive}"/>
        <property name="minIdle" value="${druid.pool.minIdle}"/>
        <property name="initialSize" value="${druid.pool.init}"/>
        <property name="maxWait" value="${druid.pool.timeout}"/>
    </bean>

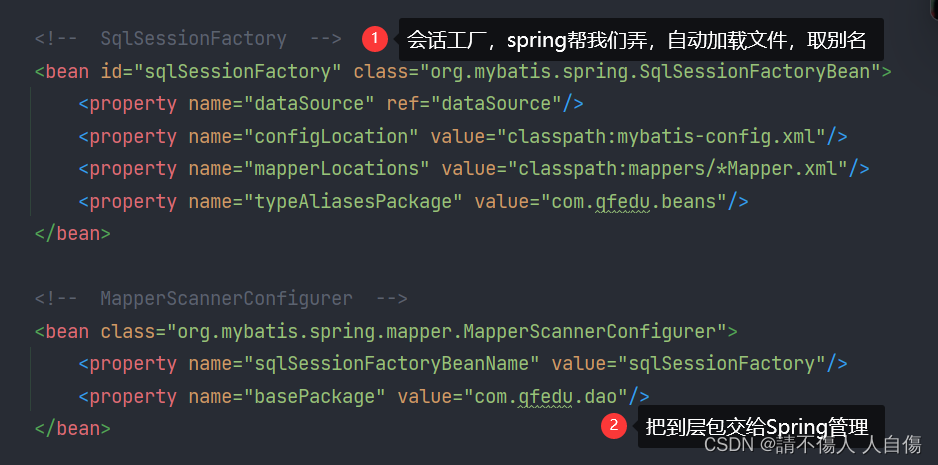

    <!--  SqlSessionFactory  -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
        <property name="mapperLocations" value="classpath:mappers/*Mapper.xml"/>
        <property name="typeAliasesPackage" value="com.qfedu.beans"/>
    </bean>

    <!--  MapperScannerConfigurer  -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <property name="basePackage" value="com.qfedu.dao"/>
    </bean>

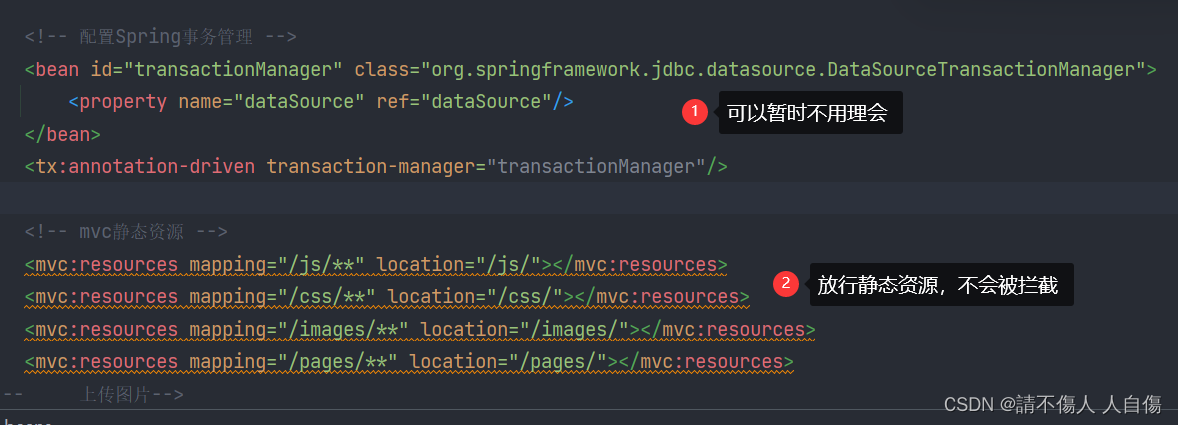

    <!-- 配置Spring事务管理 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <tx:annotation-driven transaction-manager="transactionManager"/>

    <!-- mvc静态资源 -->
    <mvc:resources mapping="/js/**" location="/js/"></mvc:resources>
    <mvc:resources mapping="/css/**" location="/css/"></mvc:resources>
    <mvc:resources mapping="/images/**" location="/images/"></mvc:resources>
    <mvc:resources mapping="/pages/**" location="/pages/"></mvc:resources>
<!--     上传图片-->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <property name="maxUploadSize" value="10240000"/>
        <property name="maxInMemorySize" value="102400"/>
        <property name="defaultEncoding" value="utf-8"/>
    </bean>

    <bean
            class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp" />
    </bean>


</beans>





2.3 实现功能

我就讲一个步骤，后面贴了代码，可以自己去试试

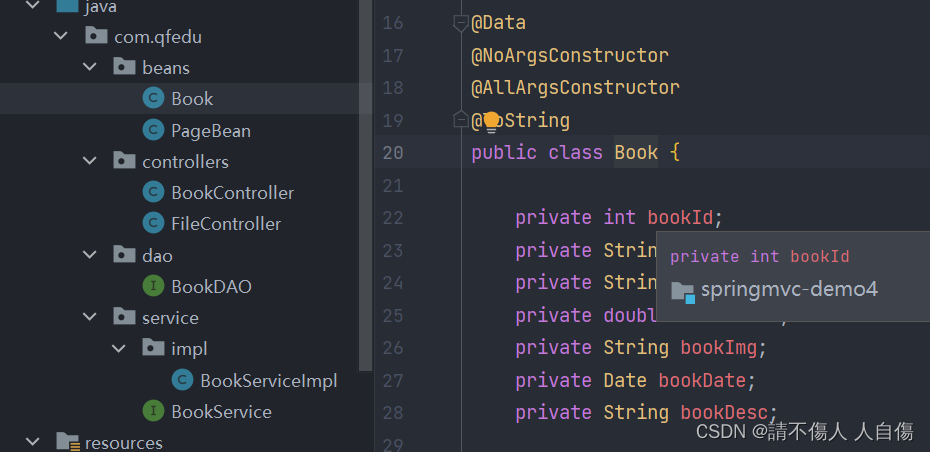

2.3.1 创建实体类

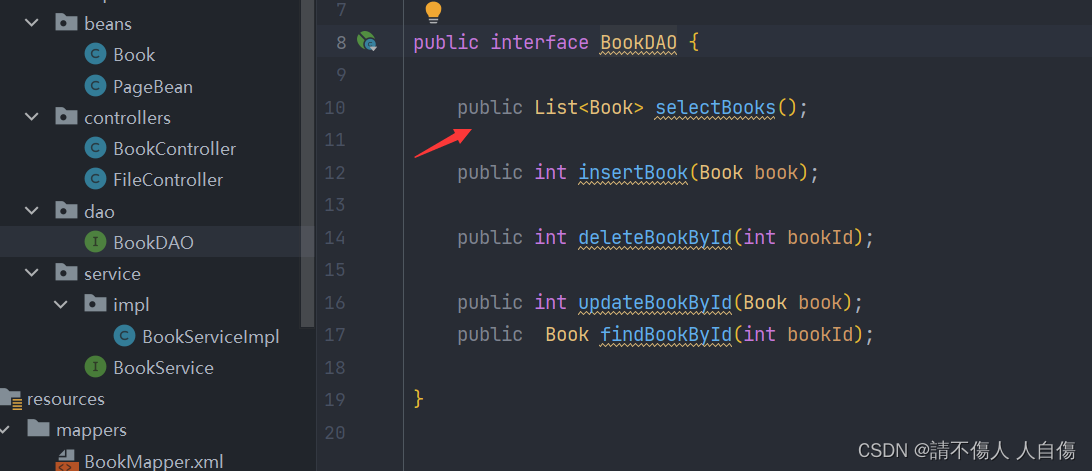

2.3.2 创建dao层并创建方法

2.3.3 创建映射文件

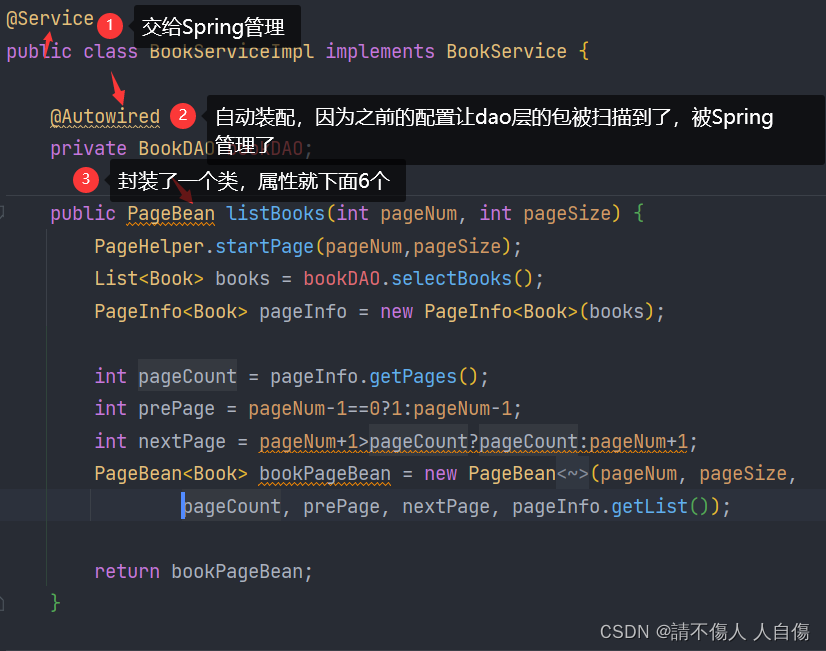

 2.3.4 创建Service层接口并实现方法

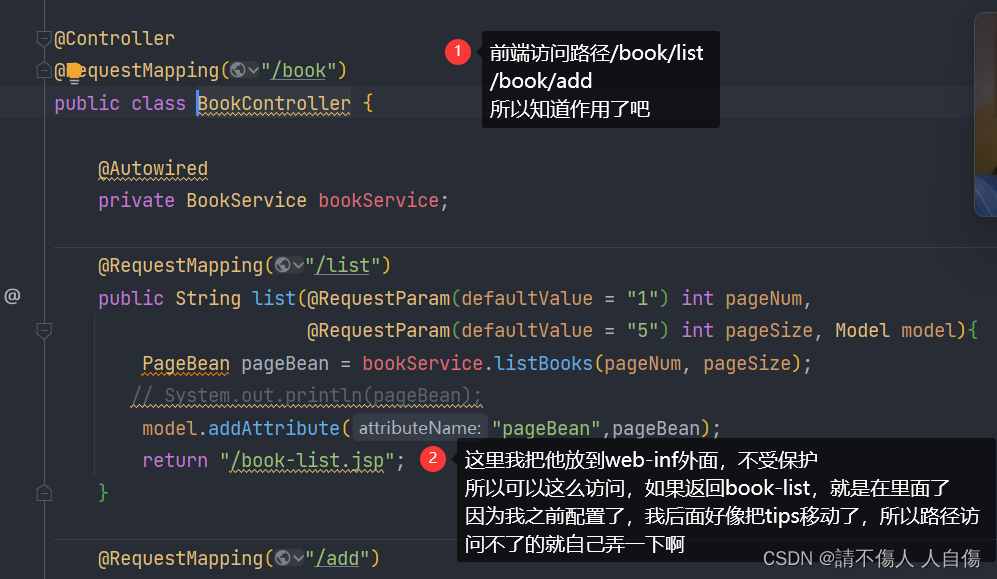

 2.3.5 控制层

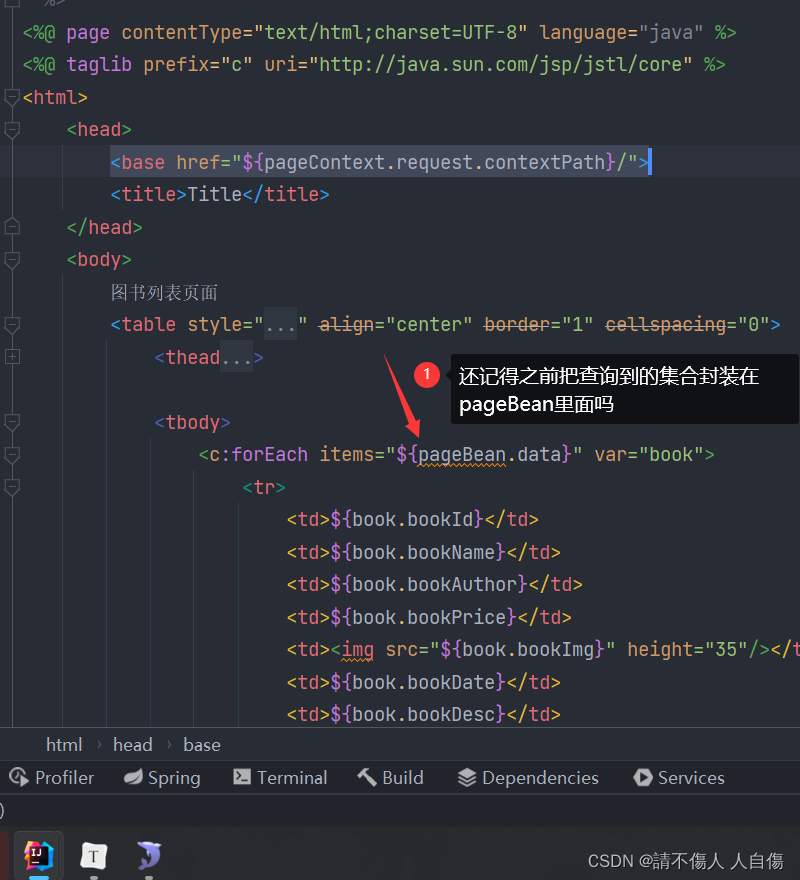

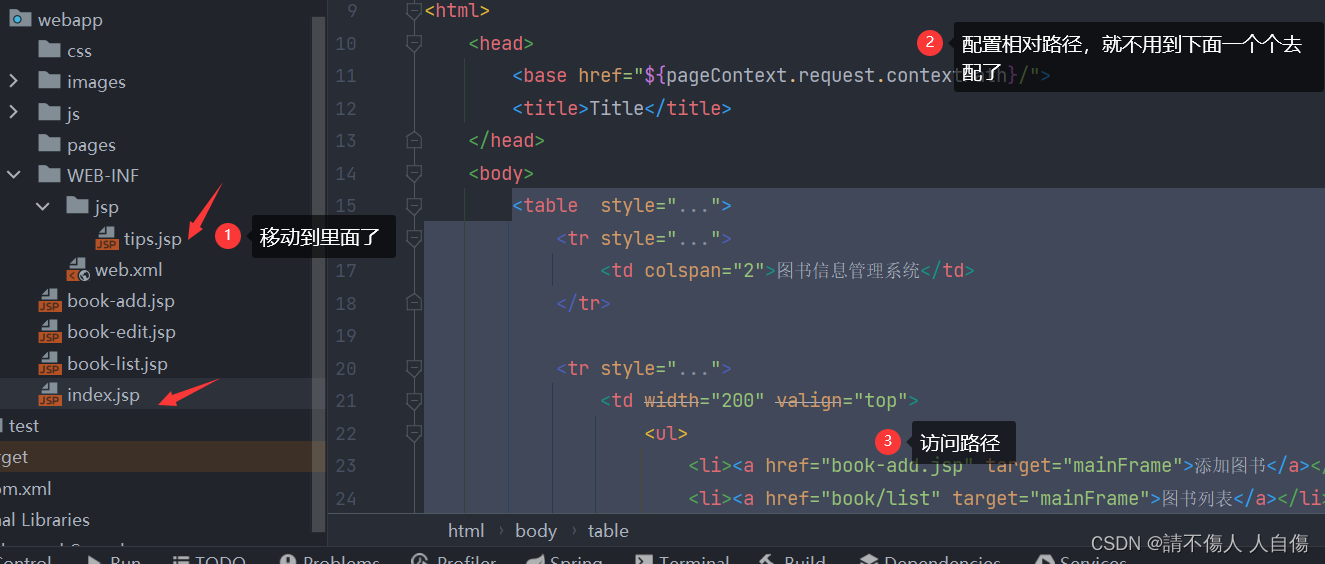

2.3.6 前端页面



vsan



 三 总结

还有一些其它的没贴出来，实在是不想写了，截图好累啊，剩下的就是页面跳转，图片上传了。

有了包，自己忘记了也能随时下载下来巩固

springmvc实现crud及图片上传.zip-Java文档类资源-优快云文库https://download.youkuaiyun.com/download/qq_45181103/82229799
