改单接口重构(以下皆为伪代码)

一.背景

当前调度改单接口逻辑混乱，一个方法里面针对订单的属性的修改包含十余处，内部逻辑强耦合在一起，职责分析不明确，不利于后续扩展.为了提高改单的效率和可维护性，我们决定将订单处理流程拆解成多个职责单一的实现类。每个实现类只负责处理订单的一个步骤，通过判断需要修改的属性来注册相应的处理器，最后滚动一遍处理所有需要修改的属性(类似于责任链模式)，生成一个修改完成的订单实体。

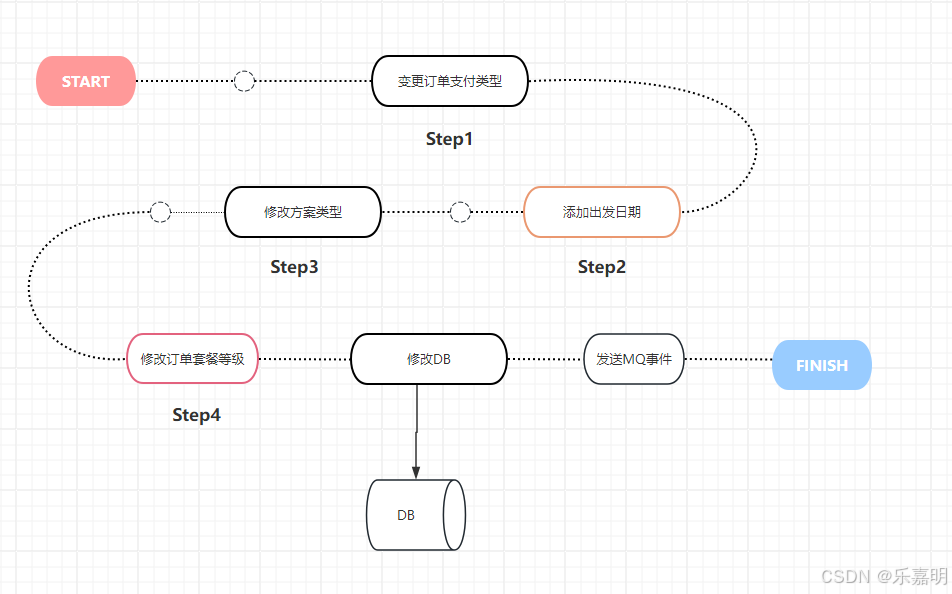

二.流程拆解

目前调度改单接口修改的操作比较多，下面仅列举出部分操作

1.变更订单支付类型

2.添加出发日期

3.修改方案类型

4.修改订单套餐等级
在这里插入图片描述

三.伪代码

1.定义修改类型枚举

package com.ctrip.train.ctripgraborder.entity.bizentity.modifyorder;

/**
 *@Author: ljm
 *@Date: 2024/12/10 16:03
 *@Version: v1.0.0
 *@Description: 改单接口修改类型
 **/
public enum ModifyOrderType {
    /*
     变更订单支付类型
     */
    MODIFY_PAY_FLAG("变更订单支付类型"),
    /*
    修改方案
     */
    MODIFY_PLANS("修改方案"),

    /*
     等级发生改变
    */
    MODIFY_PACKAGE_LEVEL("修改订单套餐等级"),

    ADD_NEW_DEPART_DATES("新增出发日期");

    private String description;

    public String getDescription() {
        return description;
    }

    ModifyOrderType(String description) {
        this.description = description;
    }

}

2.定义接口


/**
 *@Author: ljm
 *@Date: 2024/12/10 16:23
 *@Version: v1.0.0
 *@Description:
 **/

public interface IModifyOrderHandler {


    /**
     * @author ljm
     * @date 18:54 2024/12/13
     * @param context
     * 处理
     **/
    void handle(ModifyOrderInfoContext context);


    /**
     * @author ljm
     * @date 20:51 2024/12/10
     * 获取处理类型
     **/
    ModifyOrderType getModifyOrderType();
}

3.实现

3.1 变更订单支付类型实现


/**
 *@Author: ljm
 *@Date: 2024/12/10 18:02
 *@Version: v1.0.0
 *@Description: 变更订单支付类型实现
 **/
@Service
public class ModifyPayFlagHandler implements IModifyOrderHandler {

    @Override
    public void handle(ModifyOrderInfoContext context) {
        // 业务处理
    }

    @Override
    public ModifyOrderType getModifyOrderType() {
        return ModifyOrderType.MODIFY_PAY_FLAG;
    }
}

3.1 添加出发日期实现


/**
 *@Author: ljm
 *@Date: 2024/12/10 18:02
 *@Version: v1.0.0
 *@Description: 新增出发日期处理类
 **/
@Service
public class AddNewDepartDatesHandler implements IModifyOrderHandler {

    @Override
    public void handle(ModifyOrderInfoContext context) {
        //业务处理
    }


    @Override
    public ModifyOrderType getModifyOrderType() {
        return ModifyOrderType.ADD_NEW_DEPART_DATES;
    }
}

3.3 修改方案类型实现



/**
 *@Author: ljm
 *@Date: 2024/12/10 18:02
 *@Version: v1.0.0
 *@Description:修改方案类型实现
 **/
@Service
public class ModifyPlansHandler implements IModifyOrderHandler {


    @Override
    public void handle(ModifyOrderInfoContext context) {
    }


    @Override
    public ModifyOrderType getModifyOrderType() {
        return ModifyOrderType.MODIFY_PLANS;
    }

}

3.4 修改订单套餐等级实现



/**
 *@Author: ljm
 *@Date: 2024/12/10 18:02
 *@Version: v1.0.0
 *@Description: 修改订单套餐等级
 **/
@Service
public class ModifyPackageLevelHandler implements IModifyOrderHandler {

    @Override
    public void handle(ModifyOrderInfoContext context) {
        updatePackageLevel(context.getRequest(), context.getOriginOrder(), context.getOrderForUpdate());
    }

    @Override
    public ModifyOrderType getModifyOrderType() {
        return ModifyOrderType.MODIFY_PACKAGE_LEVEL;
    }
}

4.定义handler执行器


/**
 *@Author: ljm
 *@Date: 2024/12/10 16:25
 *@Version: v1.0.0
 *@Description: 改单Handler处理
 **/

@Service
public class ModifyOrderHandlerExecution {

    private Map<ModifyOrderType, IModifyOrderHandler> HANDLER_MAP = new HashMap<>();

    @Autowired
    public ModifyOrderHandlerExecution(List<IModifyOrderHandler> updateOrderHandlers) {
        updateOrderHandlers.forEach(x -> HANDLER_MAP.put(x.getModifyOrderType(), x));
    }

    /**
     * @author ljm
     * @date 18:09 2024/12/10
     * @param modifyOrderTypeList
     * @param context
     * 根据处理类型循环处理,需要注意先后顺序, 如果A依赖B的结果, 添加的时候就需要先添加A再添加B!
     **/
    public void process(List<ModifyOrderType> modifyOrderTypeList, ModifyOrderInfoContext context) {
        if (CollectionUtils.isEmpty(modifyOrderTypeList)) {
            logger.warn("UpdateOrderHandlerExecution", "handlerTypes is Empty");
            return;
        }
        // 循环处理
        for (ModifyOrderType modifyOrderType : modifyOrderTypeList) {
            IModifyOrderHandler iModifyOrderHandler = HANDLER_MAP.get(modifyOrderType);
            iModifyOrderHandler.handle(context);
        }
    }

    /**
     * @author ljm
     * @date 18:09 2024/12/10
     * @param
     * @param context
     * 处理单个类型
     **/
    public void process(ModifyOrderType modifyOrderType, ModifyOrderInfoContext context) {
        process(List.of(modifyOrderType), context);
    }

       /**
     * @author ljm
     * @date 18:17 2024/12/10
     * @param context
     * @return java.util.List<com.ctrip.train.ctripgraborder.business.service.updateorder.bean.UpdateOrderType>
     * 获取改单需要修改哪些操作
     **/
    public List<ModifyOrderType> getModifyOrderTypeList(ModifyOrderInfoContext context) {
        List<ModifyOrderType> modifyOrderTypeList = new ArrayList<>();
        if (变更订单支付类型) {
            modifyOrderTypeList.add(ModifyOrderType.MODIFY_PAY_FLAG);
        }
        if (修改方案) {
            modifyOrderTypeList.add(ModifyOrderType.MODIFY_PLANS);
        }
        if (修改订单套餐等级) {
            modifyOrderTypeList.add(ModifyOrderType.MODIFY_PACKAGE_LEVEL);
        }
        // 新增日期不为空
        if (添加出发日期) {
            modifyOrderTypeList.add(ModifyOrderType.ADD_NEW_DEPART_DATES);
        }
        return modifyOrderTypeList;
    }

}

5.处理改单

public Respone modifyOrderInfo(Request request) {
    // 1.创建上下文
    ModifyOrderInfoContext context = ModifyOrderInfoContext.create(request, originOrder, originOrderDetail);
    //2. 获取需要修改的操作
    List<ModifyOrderType> modifyOrderTypeList = modifyOrderHandlerExecution.getModifyOrderTypeList(context);
    // 3.处理
    modifyOrderHandlerExecution.process(updateOrderTypeList, context);
    // 4.db事务
    // 5.发送MQ事件
    return response;
}
