Flink之Table API& SQL

自 2015 年开始，阿里巴巴开始调研开源流计算引擎，最终决定基于 Flink 打造新一代计算引擎，针对 Flink 存在的不足进行优化和改进，并且在 2019 年初将最终代码开源，也就是Blink。Blink 在原来的 Flink 基础上最显著的一个贡献就是 Flink SQL 的实现。

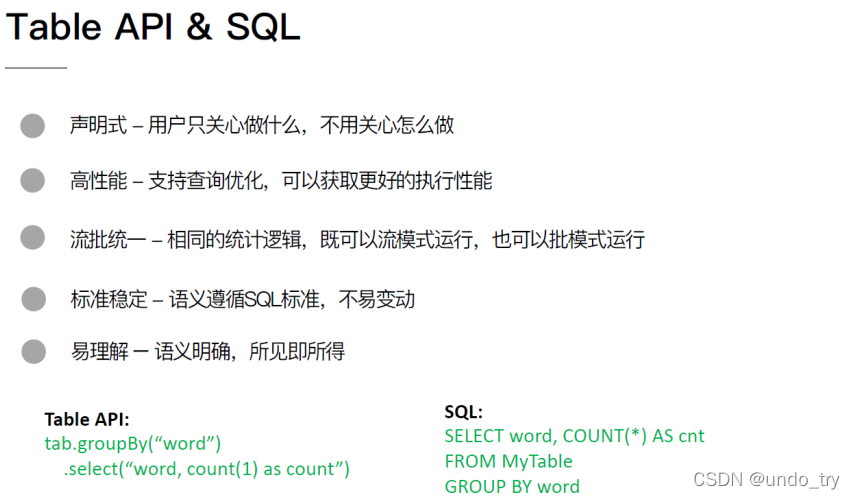

在这里插入图片描述
官网地址:https://nightlies.apache.org/flink/flink-docs-release-1.12/dev/table/common.html
注意：目前FlinkSQL性能不如SparkSQL，未来FlinkSQL可能会越来越好

(1)将DataStream注册为Table和View并进行SQL统计

package com.flinksql;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;

import java.util.Arrays;

import static org.apache.flink.table.api.Expressions.$;

/**
 * 将DataStream注册为Table和View并进行SQL统计
 */
public class _01_Flinksql {
    public static void main(String[] args) throws Exception {
        // TODO 0.准备环境
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .useBlinkPlanner()
                .inStreamingMode()
                .build();

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);


        // TODO 1.Source
        DataStream<Order> orderA = env.fromCollection(Arrays.asList(
                new Order(1L, "beer", 3),
                new Order(1L, "diaper", 4),
                new Order(3L, "rubber", 2)));

        DataStream<Order> orderB = env.fromCollection(Arrays.asList(
                new Order(2L, "pen", 3),
                new Order(2L, "rubber", 3),
                new Order(4L, "beer", 1)));


        // TODO 2.将DataStream转换为table、view，然后进行查询
        Table tableA = tableEnv.fromDataStream(orderA, $("user"), $("product"), $("amount"));
        tableEnv.createTemporaryView("viewB",orderB,$("user"), $("product"), $("amount"));

        // 查询tableA中amount > 2  viewB > 1的数据(合并)
        Table resTable = tableEnv.sqlQuery("SELECT * FROM " + tableA + " where amount > 2\n" +
                "UNION\n" +
                "SELECT * FROM viewB where amount > 1");

        // 将表准换为流
//        DataStream<Order> orderDataStream = tableEnv.toAppendStream(resTable, Order.class);
        DataStream<Tuple2<Boolean, Order>> orderDataStream = tableEnv.toRetractStream(resTable, Order.class);


        // TODO 3.sink
        orderDataStream.print("orderDataStream----");



        // TODO 4.execute
        env.execute("_01_Flinksql");
    }


    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    public static class Order {
        public Long user;
        public String product;
        public int amount;
    }
}

(2)使用SQL和Table两种方式对DataStream中的单词进行统计

SQL风格：

package com.flinksql;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;



import static org.apache.flink.table.api.Expressions.$;

/**
 * 使用SQL和Table两种方式对DataStream中的单词进行统计
 */
public class _02_Flinksql {
    public static void main(String[] args) throws Exception {
        // TODO 0.准备环境
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .useBlinkPlanner()
                .inStreamingMode()
                .build();

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);


        // TODO 1.Source
        DataStream<WordCount> input = env.fromElements(
                new WordCount("Hello", 1),
                new WordCount("World", 1),
                new WordCount("Hello", 1)
        );


        // TODO 2.将DataStream转换为view，然后进行查询
        tableEnv.createTemporaryView("wc",input,$("word"),$("frequency"));

        // select word,sum(frequency)  from wc group by word
        Table resTable = tableEnv.sqlQuery("select word,sum(frequency) as frequency from wc group by word");


        DataStream<Tuple2<Boolean, WordCount>> resDS = tableEnv.toRetractStream(resTable, WordCount.class);

        // TODO 3.sink
        resDS.print();

        // TODO 4.execute
        env.execute("_02_Flinksql");
    }


    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    public static class WordCount {
        public String word;
        public long frequency;
    }



}

API风格：

package com.flinksql;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;

import static org.apache.flink.table.api.Expressions.$;

/**
 * 使用SQL和Table两种方式对DataStream中的单词进行统计
 */
public class _02_Flinksql_DSL {
    public static void main(String[] args) throws Exception {
        // TODO 0.准备环境
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .useBlinkPlanner()
                .inStreamingMode()
                .build();

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);


        // TODO 1.Source
        DataStream<WordCount> input = env.fromElements(
                new WordCount("Hello", 1),
                new WordCount("World", 1),
                new WordCount("Hello", 1)
        );


        // TODO 2.将DataStream转换为view，然后进行查询
        Table table = tableEnv.fromDataStream(input, $("word"), $("frequency"));

        // DSL
        Table resTable = table
                .groupBy($("word"))
                .select($("word"), $("frequency").sum())
                .as("word","frequency");


        // 准换为DS
        DataStream<Tuple2<Boolean, WordCount>> resDS =
                tableEnv.toRetractStream(resTable, WordCount.class);

        // TODO 3.sink
        resDS.print();

        // TODO 4.execute
        env.execute("_02_Flinksql_DSL");
    }


    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    public static class WordCount {
        public String word;
        public long frequency;
    }



}

(3)每隔5秒统计最近5秒的每个用户的订单总数、订单的最大金额、订单的最小金额

SQL风格：

package com.flinksql;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.apache.flink.api.common.eventtime.SerializableTimestampAssigner;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.RichSourceFunction;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;

import java.time.Duration;
import java.util.Random;
import java.util.UUID;
import java.util.concurrent.TimeUnit;

import static org.apache.flink.table.api.Expressions.$;

/**
 * 每隔5秒统计最近5秒的每个用户的订单总数、订单的最大金额、订单的最小金额
 */
public class _03_Flinksql {
    public static void main(String[] args) throws Exception {
        // TODO 0.准备环境
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .useBlinkPlanner()
                .inStreamingMode()
                .build();

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);


        // TODO 1.Source
        DataStreamSource<Order> orderDS = env.addSource(new RichSourceFunction<Order>() {
            private Boolean isRunning = true;

            @Override
            public void run(SourceContext<Order> ctx) throws Exception {
                Random random = new Random();
                while (isRunning) {
                    Order order = new Order(
                            UUID.randomUUID().toString(),
                            random.nextInt(3),
                            random.nextInt(101),
                            System.currentTimeMillis()
                    );
                    TimeUnit.SECONDS.sleep(1);
                    ctx.collect(order);
                }
            }

            @Override
            public void cancel() {
                isRunning = false;
            }
        });

        SingleOutputStreamOperator<Order> orderWithWatermarks = orderDS.assignTimestampsAndWatermarks(
                WatermarkStrategy.<Order>forBoundedOutOfOrderness(Duration.ofSeconds(5))
                        .withTimestampAssigner(new SerializableTimestampAssigner<Order>() {
                            @Override
                            public long extractTimestamp(Order order, long recordTimestamp) {
                                return order.getCreateTime();
                            }
                        })
        );

        // TODO 2.将DataStream转换为view，然后进行查询
        tableEnv.createTemporaryView("t_order",orderWithWatermarks,
                $("orderId"), $("userId"), $("money"), $("createTime").rowtime());


        // select userId,count(orderId) as cntOrder,sum(money) as sumMoney,max(money) as maxMoney ,min(money) as minMoney
        // from order group by TUMBLE(rowtime, INTERVAL '5' SECOND),userId

        Table table = tableEnv.sqlQuery("SELECT\n" +
                "\tuserId,\n" +
                "\tcount(orderId) AS cntOrder,\n" +
                "\tsum(money) AS sumMoney,\n" +
                "\tmax(money) AS maxMoney,\n" +
                "\tmin(money) AS minMoney\n" +
                "FROM\n" +
                "\tt_order\n" +
                "GROUP BY\n" +
                "\tTUMBLE (createTime, INTERVAL '5' SECOND),\n" +
                "\tuserId");

        DataStream<Tuple2<Boolean, Row>> resDS = tableEnv.toRetractStream(table, Row.class);


        // TODO 3.sink
        resDS.print();


        // TODO 4.execute
        env.execute("_03_Flinksql");
    }


    @Data
    @AllArgsConstructor
    @NoArgsConstructor
    public static class Order {
        private String orderId;
        private Integer userId;
        private Integer money;
        private Long createTime;
    }

}

API风格：

package com.flinksql;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.apache.flink.api.common.eventtime.SerializableTimestampAssigner;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.RichSourceFunction;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.Tumble;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.types.Row;

import java.time.Duration;
import java.util.Random;
import java.util.UUID;
import java.util.concurrent.TimeUnit;

import static org.apache.flink.table.api.Expressions.$;
import static org.apache.flink.table.api.Expressions.lit;

/**
 * 每隔5秒统计最近5秒的每个用户的订单总数、订单的最大金额、订单的最小金额
 */
public class _03_Flinksql_DSL {
    public static void main(String[] args) throws Exception {
        // TODO 0.准备环境
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .useBlinkPlanner()
                .inStreamingMode()
                .build();

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);


        // TODO 1.Source
        DataStreamSource<Order> orderDS = env.addSource(new RichSourceFunction<Order>() {
            private Boolean isRunning = true;

            @Override
            public void run(SourceContext<Order> ctx) throws Exception {
                Random random = new Random();
                while (isRunning) {
                    Order order = new Order(
                            UUID.randomUUID().toString(),
                            random.nextInt(3),
                            random.nextInt(101),
                            System.currentTimeMillis()
                    );
                    TimeUnit.SECONDS.sleep(1);
                    ctx.collect(order);
                }
            }

            @Override
            public void cancel() {
                isRunning = false;
            }
        });

        SingleOutputStreamOperator<Order> orderWithWatermarks = orderDS.assignTimestampsAndWatermarks(
                WatermarkStrategy.<Order>forBoundedOutOfOrderness(Duration.ofSeconds(5))
                        .withTimestampAssigner(new SerializableTimestampAssigner<Order>() {
                            @Override
                            public long extractTimestamp(Order order, long recordTimestamp) {
                                return order.getCreateTime();
                            }
                        })
        );

        // TODO 2.将DataStream转换为view，然后进行查询
        tableEnv.createTemporaryView("t_order",orderWithWatermarks,
                $("orderId"), $("userId"), $("money"), $("createTime").rowtime());


        Table resTable = tableEnv.from("t_order")
                .window(
                        Tumble.over(lit(5).second())
                                .on($("createTime"))
                                .as("window")
                )
                .groupBy($("window"), $("userId"))
                .select(
                        $("userId"),
                        $("orderId").count(),
                        $("money").max(),
                        $("money").min()
                )
                .as("userId", "cnt", "max", "min");


        DataStream<Tuple2<Boolean, Row>> resDS = tableEnv.toRetractStream(resTable, Row.class);


        // TODO 3.sink
        resDS.print();


        // TODO 4.execute
        env.execute("_03_Flinksql_DSL");
    }


    @Data
    @AllArgsConstructor
    @NoArgsConstructor
    public static class Order {
        private String orderId;
        private Integer userId;
        private Integer money;
        private Long createTime;
    }

}

(4)从Kafka中消费数据并过滤出状态为success的数据再写入到Kafka

package com.flinksql;


import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.TableResult;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;


/**
 * 从Kafka中消费数据并过滤出状态为success的数据再写入到Kafka
 *
 * {"user_id": "1", "page_id":"1", "status": "success"}
 * {"user_id": "1", "page_id":"1", "status": "success"}
 * {"user_id": "1", "page_id":"1", "status": "success"}
 * {"user_id": "1", "page_id":"1", "status": "success"}
 * {"user_id": "1", "page_id":"1", "status": "fail"}
 */
public class _04_Flinksql {
    public static void main(String[] args) throws Exception {
        // TODO 0.准备环境
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .useBlinkPlanner()
                .inStreamingMode()
                .build();

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);


        // TODO 1.Source
        // https://nightlies.apache.org/flink/flink-docs-release-1.12/dev/table/connectors/kafka.html
        TableResult inputTable = tableEnv.executeSql(
                "CREATE TABLE input_kafka (\n" +
                        "  `user_id` BIGINT,\n" +
                        "  `page_id` BIGINT,\n" +
                        "  `status` STRING\n" +
                        ") WITH (\n" +
                        "  'connector' = 'kafka',\n" +
                        "  'topic' = 'input_kafka',\n" +
                        "  'properties.bootstrap.servers' = 'centos01:9092',\n" +
                        "  'properties.group.id' = 'testGroup',\n" +
                        "  'scan.startup.mode' = 'latest-offset',\n" +
                        "  'format' = 'json'\n" +
                        ")"
        );




        // TODO 2.过滤
        String sql = "select " +
                "user_id," +
                "page_id," +
                "status " +
                "from input_kafka " +
                "where status = 'success'";

        Table ResultTable = tableEnv.sqlQuery(sql);




        // TODO 3.sink  写到kafka中
        TableResult outputTable = tableEnv.executeSql(
                "CREATE TABLE output_kafka (\n" +
                        "  `user_id` BIGINT,\n" +
                        "  `page_id` BIGINT,\n" +
                        "  `status` STRING\n" +
                        ") WITH (\n" +
                        "  'connector' = 'kafka',\n" +
                        "  'topic' = 'output_kafka',\n" +
                        "  'properties.bootstrap.servers' = 'node1:9092',\n" +
                        "  'format' = 'json',\n" +
                        "  'sink.partitioner' = 'round-robin'\n" +
                        ")"
        );

        tableEnv.executeSql("insert into output_kafka select * from "+ResultTable);



        // TODO 4.execute
        env.execute("_04_Flinksql");
    }
}
