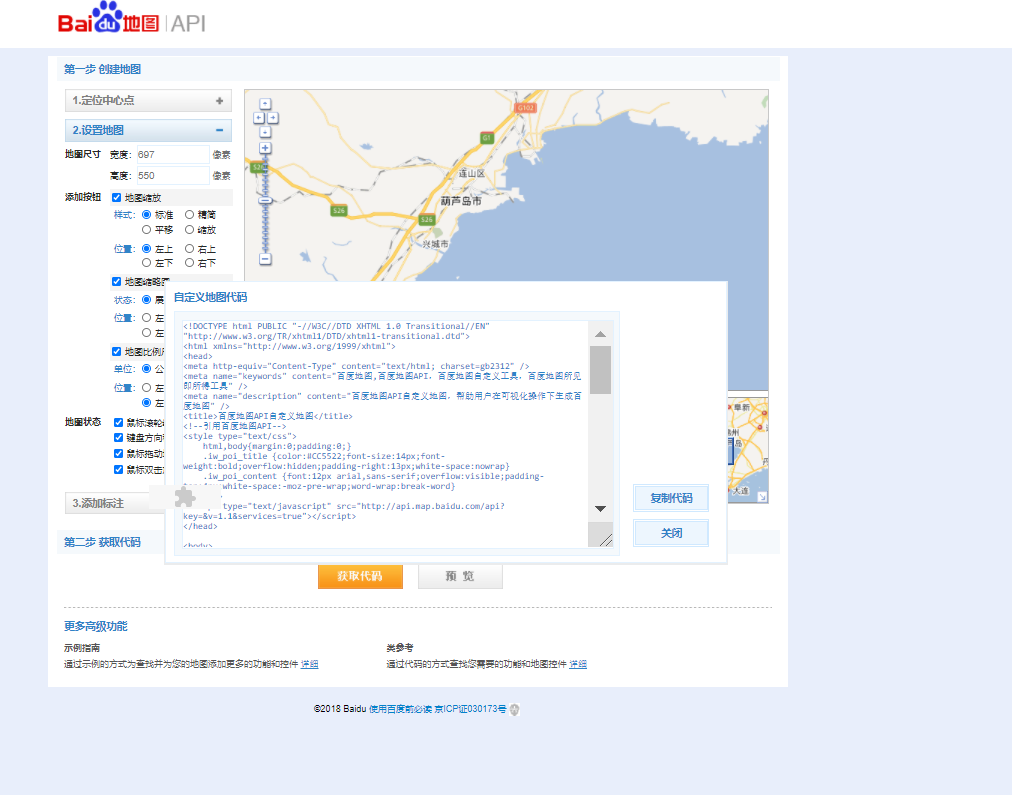

1.在搜索引擎中搜索,百度地图生成器，http://api.map.baidu.com/lbsapi/creatmap/ 2.设置中心城市 3.获取代码，运行在本地即可。  参考： https://developer.baidu.com/map/jsdemo.htm#aCreateMap http://lbsyun.baidu.com/cms/jsapi/reference/jsapi_reference.html#a6b0 http://lbsyun.baidu.com/index.php?title=jspopular3.0/guide/widget https://www.cnblogs.com/libo0125ok/p/11592667.html http://lbsyun.baidu.com/index.php?title=jspopular3.0 前后端交互参考文档: http://lbsyun.baidu.com/index.php?title=webapi/traffic https://blog.youkuaiyun.com/luyaran/article/details/52523882 地图实例 注意：地址解析就是把城市名字装换成经纬度,地址逆解析就是把经纬度变成城市名字 http://lbsyun.baidu.com/jsdemo.htm#webgl0_2 https://www.cnblogs.com/yuner-angel/p/9934008.html http://api.map.baidu.com/library/SearchControl/1.4/examples/SearchControl.html api文档: https://mapopen-pub-jsapi.bj.bcebos.com/jsapi/reference/jsapi_reference_3_0.html#a7b33
1 <!DOCTYPE html>
2 <html lang="en">
3 <head>
4 <meta charset="UTF-8">
5 <meta name="viewport" content="width=device-width, initial-scale=1.0">
6 <script type="text/javascript" src="http://api.map.baidu.com/api?type=webgl&v=1.0&ak=7Cc5Kmn672miPzG4qQhvlOrERcXMMinq"></script>
7 <title>根据城市名称定位</title>
8 <style>
9 html, body, #allmap{
10 width: 100%;
11 height: 100%;
12 padding: 0;
13 margin: 0;
14 overflow: hidden;
15 }
16 #r-result{
17 padding: 7px 10px;
18 position: fixed;
19 top: 10px;
20 left: 20px;
21 width: 600px;
22 background: #fff;
23 box-shadow: 0 2px 6px 0 rgba(27, 142, 236, 0.5);
24 border-radius: 7px;
25 z-index: 99;
26 }
27 #cityName{
28 width:170px;
29 margin-right:10px;
30 height:25px;
31 border: 1px solid rgba(27, 142, 236, 0.5);
32 border-radius: 5px;
33 }
34 #cityName1{
35 width:170px;
36 margin-right:10px;
37 height:25px;
38 border: 1px solid rgba(27, 142, 236, 0.5);
39 border-radius: 5px;
40 }
41 #r-result button{
42 border: 1px solid rgba(27, 142, 236, 0.5);
43 border-radius: 5px;
44 background: rgba(27, 142, 236, 0.5);
45 color: #fff
46 }
47 #jing,#wei{
48 /*display: none;*/
49 }
50 </style>
51 </head>
52 <body>
53 <div id='allmap' onclick="clickEvent()"></div>
54 <div id='r-result'>
55 起始城市名: <input id="cityName" class="suggestId" type="text"/>
56 终止城市名: <input id="cityName1" class="suggestId" type="text"/>
57 <div id="searchResultPanel" style="border:1px solid #C0C0C0;width:150px;height:auto; display:none;"></div>
58 <button onclick="theLocation()"/>查询最优路径</button>
59 </div>
60 <script>
61 var start; //保存起点的经纬度
62 var end; //保存终点的经纬度
63 // 百度地图API功能
64 var map = new BMapGL.Map("allmap");
65 var point = new BMapGL.Point(116.331398,39.897445);
66 map.centerAndZoom(point,11);
67
68 map.enableScrollWheelZoom(true); // 开启鼠标滚轮缩放
69 //比例尺
70 var scaleCtrl = new BMapGL.ScaleControl(); // 添加比例尺控件
71 map.addControl(scaleCtrl);
72 var zoomCtrl = new BMapGL.ZoomControl(); // 添加比例尺控件
73 map.addControl(zoomCtrl);
74
75 // 创建点标记 信息窗口
76 var marker = new BMapGL.Marker(point);
77 map.addOverlay(marker);
78
79 function theLocation(){
80 var city = document.getElementById("cityName").value;
81 var city1 = document.getElementById('cityName1').value;
82 //创建地址解析器实例
83 var myGeo = new BMapGL.Geocoder();
84 // 将地址解析结果显示在地图上，并调整地图视野
85 if (city == "" || city1 == "") {
86 alert("起点或终点为空!,请重新输入！");
87 } else{
88 alert("否接")
89 if(city){
90 // 将地址解析结果显示在地图上，并调整地图视野
91 myGeo.getPoint(city, function(point){
92 alert("1")
93 if(point){
94 alert("1_1")
95 map.centerAndZoom(point, 16);
96 alert(point.lng+'\n'+point.lat);
97 start = point; //设置起点
98 map.addOverlay(new BMapGL.Marker(point, {title: '北京市海淀区上地10街'}))
99 }else{
100 alert('您选择的地址没有解析到结果！');
101 }
102 }, '北京市');
103 alert("1_2")
104 if(city != ""){
105 alert("1_3")
106 map.centerAndZoom(city,11); // 用城市名设置地图中心点
107 }
108 }
109 alert("2")
110 if(city1){
111 // 将地址解析结果显示在地图上，并调整地图视野
112 alert("2_1")
113 myGeo.getPoint(city1, function(point){
114 if(point){
115 alert("2_2")
116 map.centerAndZoom(point, 16);
117 alert(point.lng+'\n'+point.lat);
118 end = point; //设置起点
119 map.addOverlay(new BMapGL.Marker(point, {title: '北京市海淀区上地10街'}))
120 alert("2_3")
121 }else{
122 alert('您选择的地址没有解析到结果！');
123 }
124 }, '北京市');
125 alert("2_4")
126 if(city != ""){
127 map.centerAndZoom(city,11); // 用城市名设置地图中心点
128 }
129 }
130 alert("2_5")
131 alert("start:"+start.lng)
132 alert("end:"+end.lng)
133 var driving = new BMapGL.DrivingRoute(map, {renderOptions:{map: map, autoViewport: true}});
134 driving.search(start, end);
135 }
136 }
137
138 //地图点击事件 右键菜单
139 function clickEvent(){
140 var menu = new BMapGL.ContextMenu();
141 var txtMenuItem = [ //这里可以用DOM进行详细修改
142 {
143 text: '经度:',
144 callback: function () { //回调函数用来调用具体的函数操作
145 map.zoomIn();
146 }
147 }, {
148 text: '纬度:',
149 callback: function () {
150 map.zoomOut();
151 }
152 }
153 ];
154 for (var i = 0; i < txtMenuItem.length; i++) {
155 menu.addItem(new BMapGL.MenuItem(txtMenuItem[i].text, txtMenuItem[i].callback, 100));
156 }
157 map.addContextMenu(menu);
158 }
159
160
161 function G(id) {
162 return document.getElementById(id);
163 }
164 //第一个input
165 var ac = new BMapGL.Autocomplete( //建立一个自动完成的对象
166 {"input" : "cityName",
167 "location" : map
168 });
169
170 ac.addEventListener("onhighlight", function(e) { //鼠标放在下拉列表上的事件
171 var str = "";
172 var _value = e.fromitem.value;
173 var value = "";
174 if (e.fromitem.index > -1) {
175 value = _value.province + _value.city + _value.district + _value.street + _value.business;
176 }
177 str = "FromItem<br />index = " + e.fromitem.index + "<br />value = " + value;
178
179 value = "";
180 if (e.toitem.index > -1) {
181 _value = e.toitem.value;
182 value = _value.province + _value.city + _value.district + _value.street + _value.business;
183 }
184 str += "<br />ToItem<br />index = " + e.toitem.index + "<br />value = " + value;
185 G("searchResultPanel").innerHTML = str;
186 });
187
188 var myValue;
189 ac.addEventListener("onconfirm", function(e) { //鼠标点击下拉列表后的事件
190 var _value = e.item.value;
191 myValue = _value.province + _value.city + _value.district + _value.street + _value.business;
192 G("searchResultPanel").innerHTML ="onconfirm<br />index = " + e.item.index + "<br />myValue = " + myValue;
193
194 setPlace();
195 });
196
197 function setPlace(){
198 map.clearOverlays(); //清除地图上所有覆盖物
199 function myFun(){
200 var pp = local.getResults().getPoi(0).point; //获取第一个智能搜索的结果
201 alert(pp.lng);
202 map.centerAndZoom(pp, 18);
203 map.addOverlay(new BMapGL.Marker(pp)); //添加标注
204 }
205 var local = new BMapGL.LocalSearch(map, { //智能搜索
206 onSearchComplete: myFun
207 });
208 local.search(myValue);
209 }
210
211 //第二个input
212 var ac = new BMapGL.Autocomplete( //建立一个自动完成的对象
213 {"input" : "cityName1",
214 "location" : map
215 });
216
217 ac.addEventListener("onhighlight", function(e) { //鼠标放在下拉列表上的事件
218 var str = "";
219 var _value = e.fromitem.value;
220 var value = "";
221 if (e.fromitem.index > -1) {
222 value = _value.province + _value.city + _value.district + _value.street + _value.business;
223 }
224 str = "FromItem<br />index = " + e.fromitem.index + "<br />value = " + value;
225
226 value = "";
227 if (e.toitem.index > -1) {
228 _value = e.toitem.value;
229 value = _value.province + _value.city + _value.district + _value.street + _value.business;
230 }
231 str += "<br />ToItem<br />index = " + e.toitem.index + "<br />value = " + value;
232 G("searchResultPanel").innerHTML = str;
233 });
234
235 var myValue1;
236 ac.addEventListener("onconfirm", function(e) { //鼠标点击下拉列表后的事件
237 var _value = e.item.value;
238 myValu1e = _value.province + _value.city + _value.district + _value.street + _value.business;
239 G("searchResultPanel").innerHTML ="onconfirm<br />index = " + e.item.index + "<br />myValue = " + myValue;
240
241 setPlace();
242 });
243
244 function setPlace(){
245 map.clearOverlays(); //清除地图上所有覆盖物
246 function myFun(){
247 var pp = local.getResults().getPoi(0).point; //获取第一个智能搜索的结果
248 alert(pp.lng);
249 map.centerAndZoom(pp, 18);
250 map.addOverlay(new BMapGL.Marker(pp)); //添加标注
251 }
252 var local = new BMapGL.LocalSearch(map, { //智能搜索
253 onSearchComplete: myFun
254 });
255 local.search(myValue1);
256 }
257
258 </script>
259 </body>
260 </html>
