一、Sequential 简介

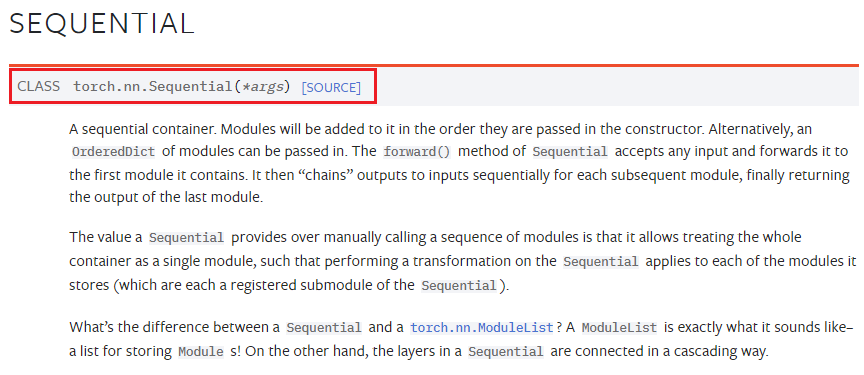

官网介绍：https://pytorch.org/docs/stable/generated/torch.nn.Sequential.html?highlight=sequential#torch.nn.Sequential

它的作用是一个序列容器，把各种层按照网络模型的顺序进行放置，简化代码的编写。
Example:

# Using Sequential to create a small model. When `model` is run,
# input will first be passed to `Conv2d(1,20,5)`. The output of
# `Conv2d(1,20,5)` will be used as the input to the first
# `ReLU`; the output of the first `ReLU` will become the input
# for `Conv2d(20,64,5)`. Finally, the output of
# `Conv2d(20,64,5)` will be used as input to the second `ReLU`
model = nn.Sequential(
          nn.Conv2d(1,20,5),
          nn.ReLU(),
          nn.Conv2d(20,64,5),
          nn.ReLU()
        )

二、小实战-CIFAR10网络模型搭建

目标模型：

卷积 -> 最大池化 -> 卷积 -> 最大池化 -> 卷积 -> 最大池化 -> 展平 -> 全连接

• 最大池化不改变 channel 数量

三、未使用 sequential 时网络代码

import torch
from torch import nn
from torch.nn import Conv2d, MaxPool2d, Flatten, Linear

class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.conv1 = Conv2d(3, 32, 5, padding=2)
        self.maxpool1 = MaxPool2d(2)
        self.conv2 = Conv2d(32, 32, 5, padding=2)
        self.maxpool2 = MaxPool2d(2)
        self.conv3 = Conv2d(32, 64, 5, padding=2)
        self.maxpool3 = MaxPool2d(2)
        self.flatten = Flatten()
        self.linear1 = Linear(1024, 64)
        self.linear2 = Linear(64, 10)

    def forward(self, x):
        x = self.conv1(x)
        x = self.maxpool1(x)
        x = self.conv2(x)
        x = self.maxpool2(x)
        x = self.conv3(x)
        x = self.maxpool3(x)
        x = self.flatten(x)
        x = self.linear1(x)
        x = self.linear2(x)
        return x

net = Net()
print(net)

input = torch.ones((64, 3, 32, 32))
output = net(input)
print(output.shape)

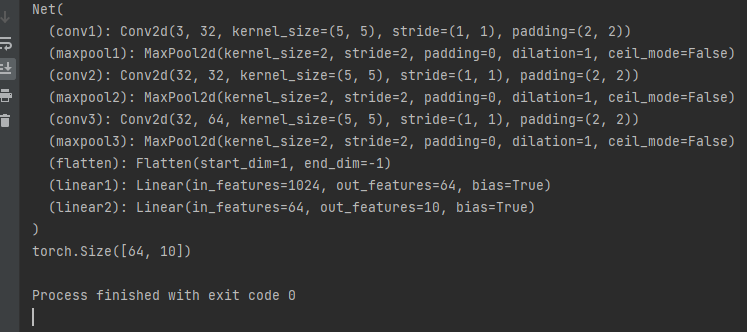

输出：

四、使用了 Sequential 后的网络代码

import torch
from torch import nn
from torch.nn import Conv2d, MaxPool2d, Flatten, Linear, Sequential
from torch.utils.tensorboard import SummaryWriter


class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.model1 = Sequential(
            Conv2d(3, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 64, 5, padding=2),
            MaxPool2d(2),
            Flatten(),
            Linear(1024, 64),
            Linear(64, 10)
        )

    def forward(self, x):
        x = self.model1(x)
        return x

net = Net()
print(net)

input = torch.ones((64, 3, 32, 32))
output = net(input)
print(output.shape)

writer = SummaryWriter("./logs_seq")
writer.add_graph(net, input)
writer.close()

可以看到代码简洁了一点。

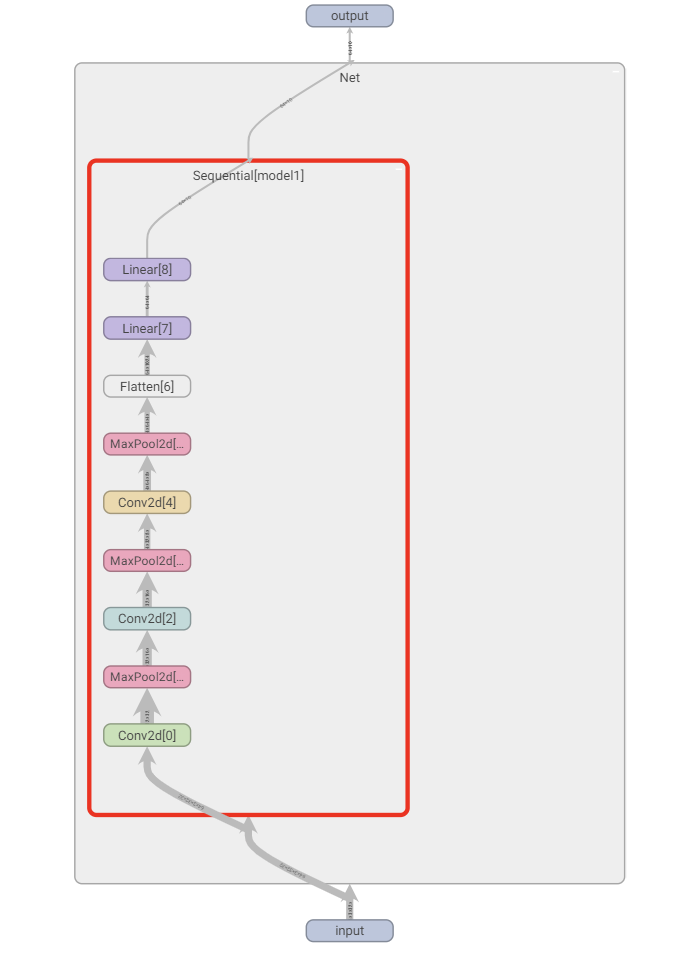

使用 tensorboard进行查看：
