用HTML绘制哆啦A梦

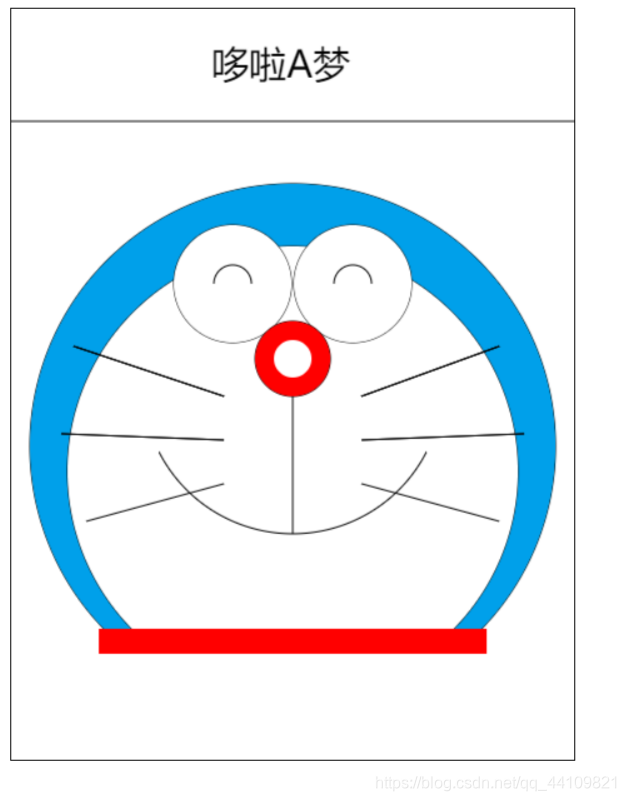

在这里插入图片描述

<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title>绘制叮当猫</title>
	</head>
	<body>
		<div>
			<canvas id="mycanvas" width="450" height="600"style="border: 1px solid black;"></canvas>
			<script type="text/javascript">
			var c=document.getElementById("mycanvas");
			var ctx=c.getContext("2d");
			ctx .font="30px 微软雅黑";
			ctx.fillText("哆啦A梦",160,55)
			ctx.moveTo(0,90);ctx.lineTo(450,90);
			ctx.stroke();
//			头部外圆
             ctx.beginPath();
             ctx.fillStyle="#00a0ea"
             ctx.beginPath();ctx.arc(225,350,210,0.25*Math.PI,0.75*Math.PI,true);ctx.stroke()
             ctx.fill()
//            头部内圆
            ctx.beginPath();
             ctx.fillStyle="#FFFFFF"
             ctx.beginPath();ctx.arc(225,370,180,0.25*Math.PI,0.75*Math.PI,true);ctx.stroke()
             ctx.fill()
//            左眼
            ctx.beginPath();
             ctx.fillStyle="#FFFFFF"
             ctx.beginPath();ctx.arc(177,220,47,0*Math.PI,2*Math.PI,true);ctx.stroke()
             ctx.fill()
             ctx.beginPath();
             ctx.beginPath();ctx.arc(177,220,15,0*Math.PI,1*Math.PI,true);ctx.stroke()
//           右眼
            ctx.beginPath();
             ctx.fillStyle="#FFFFFF"
             ctx.beginPath();ctx.arc(273,220,47,0*Math.PI,2*Math.PI,true);ctx.stroke()
             ctx.fill()
             ctx.beginPath();
             ctx.beginPath();ctx.arc(273,220,15,0*Math.PI,1*Math.PI,true);ctx.stroke()
//            鼻子
            ctx.beginPath();
             ctx.fillStyle="red"
             ctx.beginPath();ctx.arc(225,280,30,0*Math.PI,2*Math.PI,true);ctx.stroke()
             ctx.fill()
             ctx.beginPath();
             ctx.fillStyle="#FFFFFF"
            ctx.beginPath();ctx.arc(225,280,15,0*Math.PI,2*Math.PI,true);
             ctx.fill()
//            左胡须
            ctx.beginPath();
            ctx.moveTo(170,310);ctx.lineTo(50,270);
            ctx.stroke()
             ctx.moveTo(170,345);ctx.lineTo(40,340);
            ctx.stroke()
             ctx.moveTo(170,380);ctx.lineTo(60,410);
            ctx.stroke()
//           右胡须
            ctx.beginPath();
            ctx.moveTo(280,310);ctx.lineTo(390,270);
            ctx.stroke()
             ctx.moveTo(280,345);ctx.lineTo(410,340);
            ctx.stroke()
             ctx.moveTo(280,380);ctx.lineTo(390,410);
            ctx.stroke()
//           嘴巴
           ctx.beginPath();
            ctx.moveTo(225,310);ctx.lineTo(225,420);
            ctx.stroke()
            ctx.beginPath();
            ctx.arc(225,300,120,0.15*Math.PI,0.85*Math.PI)
            ctx.stroke()
//           项圈
             ctx.beginPath();
             ctx.fillStyle="#ff0000"
             ctx.fillRect(70,496,310,20)
            ctx.strokeRect2(70,496,310,20)
//           铃铛
                ctx.beginPath();
				ctx.fillStyle = "#FFFF00";
				ctx.arc(225,515,30,0*Math.PI,2*Math.PI,false);
				ctx.fill();
				ctx.stroke();
				ctx.beginPath();
				ctx.fillStyle = "#000000";
				ctx.arc(225,520,10,0,2*Math.PI,false);
				ctx.fill();
				ctx.stroke();
				ctx.beginPath();
				ctx.fillStyle = "#FFFF00";
				ctx.fillRect(190, 496, 70, 10);
				ctx.strokeRect(190, 496, 70, 10);
				ctx.fill();
				ctx.stroke();
				ctx.moveTo(225, 510);
				ctx.lineTo(225, 545);
				ctx.stroke();

			</script>
		</div>
	</body>
</html>
