本文介绍了如何使用Java编程语言来创建一个时钟应用。通过编程，实现了时钟的实时显示，包括小时、分钟和秒针的动态更新。运行截图展示了程序的实际效果。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

java编写时钟

//java编写时钟
package test;
import java.awt.Color;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.geom.Ellipse2D;
import java.awt.geom.Line2D;
import java.util.Calendar;
import java.util.GregorianCalendar;
import java.util.Timer;
import java.util.TimerTask;
import javax.swing.JLabel;
import javax.swing.JFrame;
import javax.swing.JPanel;
/**
 * @author stu
 */
@SuppressWarnings("serial")
public class huitu extends JFrame {
    MyPanel clockPanel;
    Ellipse2D.Double e;
    int x;
    int y;
    Line2D.Double hourLine;
    int hourLinex;
    int hourLiney;
    Line2D.Double minLine;
    int minLinex;
    int minLiney;
    Line2D.Double secondLine;
    int secondLinex;
    int secondLiney;
    GregorianCalendar calendar;
    int hour;
    int minute;
    int second;
    public static final int X = 125;
    public static final int Y = 125;
    public static final int RADIAN = 100;
    JLabel label1 = new JLabel("Hour" + hour + "Minute" + minute + "second" + second);

    public huitu() {
        setBounds(400,200,300,400);
        clockPanel = new MyPanel();
        label1.setBounds(50, 235, 200, 30);
        label1.setForeground(Color.red);
        add(label1);
        add(clockPanel);
        Timer t = new Timer();
        Task task = new Task();
        t.schedule(task, 0, 1000);
    }

    public static void main(String[] args) {
        huitu t = new huitu();
        t.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        t.setSize(300, 300);
        t.setVisible(true);
    }

 class MyPanel extends JPanel
    {
        @Override
        public void paintComponent(Graphics g) {
            super.paintComponent(g);
            Graphics2D g2 = (Graphics2D) g;
            int i = 0;
            for(i = 0; i < 60; i ++)
            {
         int zx1 = (int) (X + 100  * Math.sin(i * (Math.PI / 30) ));
         int zy1 = (int) (Y + 100  * Math.cos(i * (Math.PI / 30) ));
         int h;
         if( i % 5 == 0)
             h = 90;
         else
             h = 95;
             int zx2 = (int) (X + h  * Math.sin(i * (Math.PI / 30) ));
             int zy2 = (int) (Y + h  * Math.cos(i * (Math.PI / 30) ));
             g2.setColor(Color.red);
             g2.drawLine(zx1, zy1, zx2, zy2);
            }
            g2.setColor(Color.black);
            g2.drawString("12", 120, 22);
            g2.drawString("6", 122, 238);
            g2.drawString("9", 15, 130);
            g2.drawString("3", 228, 130);
            g2.drawOval(25, 25, 200, 200);
            g2.setColor(Color.green);          //时针颜色
            g2.drawLine(X, Y, hourLinex, hourLiney);
            g2.setColor(Color.blue);           //分针颜色
            g2.drawLine(X, Y, minLinex, minLiney);
            g2.setColor(Color.red);            //秒针颜色
            g2.drawLine(X, Y, secondLinex, secondLiney);
        }
    }

    class Task extends TimerTask {
        @Override
        public void run() {
            calendar = new GregorianCalendar();
            hour = calendar.get(Calendar.HOUR);
            minute = calendar.get(Calendar.MINUTE);
            second = calendar.get(Calendar.SECOND);
            hourLinex = (int) (X + 60 * Math.sin(hour * (Math.PI / 6)));
            hourLiney = (int) (Y - 60 * Math.cos(hour * (Math.PI / 6)));
            minLinex = (int) (X + 75  * Math.sin(minute * (Math.PI / 30)));
            minLiney = (int) (Y - 75  * Math.cos(minute * (Math.PI / 30)));
            secondLinex = (int) (X + 85  * Math.sin(second * (Math.PI / 30)) );
            secondLiney = (int) (Y - 85  * Math.cos(second * (Math.PI / 30)) );
            label1.setText("Hour:" + hour + "  " + "Minute:"+ minute + "  " + "second:" + second);
            repaint();
        }
    }

}

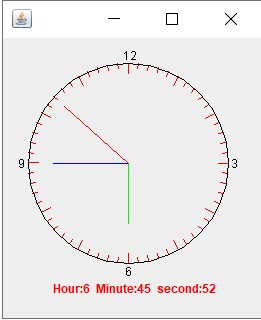

运行截图：
在这里插入图片描述
