pytorch笔记6-mnist、cifar10卷积神经网络搭建

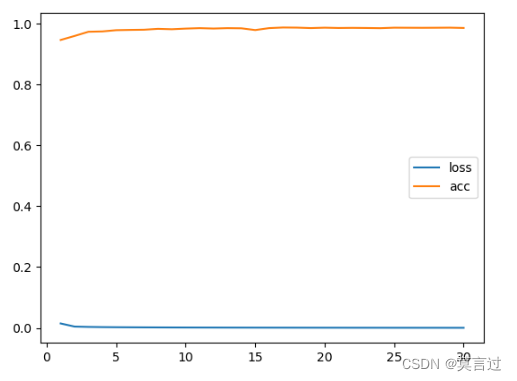

mnist使用全连接网络和卷积网络差别不大，只有小幅度提升，训练17轮之后准确率最高达到98.74%
ps：昨天有同学汇报论文，使用遗忘分数处理mnist数据集，删除90%的训练集准确率只下降了0.5%

import torch
import matplotlib.pyplot as plt
from torchvision import transforms
from torchvision import datasets
from torch.utils.data import DataLoader
batchsize=32
lr=0.01
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
mean,sqr=0.1307,0.3081 #minist数据集的均值和方差,transforms.ToTensor()会将数据转换至0-1，compose是将操作组合
transform=transforms.Compose([transforms.ToTensor(), transforms.Normalize((mean,), (sqr,))])
traindata=datasets.MNIST(root='./datasets/mnist',download=False,train=True,transform=transform)
testdata=datasets.MNIST(root='./datasets/mnist',download=False,train=False,transform=transform)
trainloard=DataLoader(dataset=traindata,batch_size=batchsize,shuffle=True,num_workers=0,drop_last=True)
testloard=DataLoader(dataset=testdata,batch_size=batchsize,shuffle=False,num_workers=0,drop_last=True)

class Model(torch.nn.Module):
    def __init__(self):
        super(Model,self).__init__()
        self.c1=torch.nn.Conv2d(in_channels=1,out_channels=10,kernel_size=3)
        self.c2=torch.nn.Conv2d(in_channels=10,out_channels=5,kernel_size=3)
        self.mp=torch.nn.MaxPool2d(2)
        self.l1=torch.nn.Linear(5*5*5,64)
        self.l2=torch.nn.Linear(64,32)
        self.l3=torch.nn.Linear(32,10)
        self.relu=torch.nn.ReLU()
    def forward(self,x):
        x=self.mp(self.relu(self.c1(x)))
        x=self.mp(self.relu(self.c2(x)))
        x=x.view(-1,5*5*5)
        x=self.relu(self.l1(x))
        x=self.relu(self.l2(x))
        x=self.l3(x)
        return x
model=Model()
model.to(device)

criterion=torch.nn.CrossEntropyLoss()
optimizer=torch.optim.SGD(model.parameters(),lr=lr,momentum=0.5)

def train(allepoch):
    lepoch=[]
    llost=[]
    lacc=[]
    for epoch in range(allepoch):
        lost=0
        count=0
        for num,(x,y) in enumerate(trainloard,1):
            x,y=x.to(device),y.to(device)
            y_h=model(x)
            loss=criterion(y_h,y)
            optimizer.zero_grad()
            loss.backward()
            optimizer.step()
            lost+=loss.item()
            count+=batchsize
        print('epoch:',epoch+1,'loss:',lost/count,end=' ')
        lepoch.append(epoch+1)
        llost.append(lost/count)
        acc=test()
        lacc.append(acc)
        print('acc:',acc)
    plt.plot(lepoch,llost,label='loss')
    plt.plot(lepoch,lacc,label='acc')
    plt.legend()
    plt.show()
def test():
    with torch.no_grad():
        acc=0
        count=0
        for num, (x, y) in enumerate(testloard, 1):
            x,y=x.to(device),y.to(device)
            y_h = model(x)
            _,y_h=torch.max(y_h.data,dim=1)
            acc+= (y_h==y).sum().item()
            count+=x.size(0)
        return acc/count

if __name__=='__main__':
    train(20)

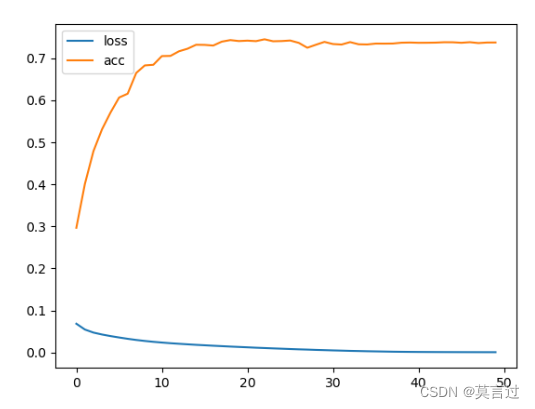

使用卷积网络训练cifar10训练23轮时准确率达到最高（0.745），之后就有点过拟合了

import torch
import matplotlib.pyplot as plt
from torchvision import transforms
from torchvision import datasets
from torch.utils.data import DataLoader
batchsize=32
lr=0.01
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
transform=transforms.Compose([transforms.ToTensor(),transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])
traindata=datasets.CIFAR10(root='./datasets/cifar10',download=False,train=True,transform=transform)
testdata=datasets.CIFAR10(root='./datasets/cifar10',download=False,train=False,transform=transform)
trainloard=DataLoader(dataset=traindata,batch_size=batchsize,shuffle=True,num_workers=0,drop_last=True)
testloard=DataLoader(dataset=testdata,batch_size=batchsize,shuffle=False,num_workers=0,drop_last=True)
class model(torch.nn.Module):
    def __init__(self):
        super(model,self).__init__()
        self.c1=torch.nn.Conv2d(in_channels=3,out_channels=32,kernel_size=5,padding=2)
        self.mp=torch.nn.MaxPool2d(2)
        self.c2=torch.nn.Conv2d(in_channels=32,out_channels=32,kernel_size=5,padding=2)
        self.c3=torch.nn.Conv2d(in_channels=32,out_channels=64,kernel_size=5,padding=2)
        self.l1=torch.nn.Linear(64*4*4,64)
        self.l2=torch.nn.Linear(64,10)
        self.relu=torch.nn.ReLU()
        self.sig=torch.nn.Sigmoid()
    def forward(self,x):
        x=self.relu(self.mp(self.c1(x)))
        x=self.relu(self.mp(self.c2(x)))
        x=self.relu(self.mp(self.c3(x)))
        x=x.view(-1,64*4*4)
        x=self.sig(self.l1(x))
        x=self.l2(x)
        return x
model=model()
model.to(device)
criterion=torch.nn.CrossEntropyLoss()
optimizer=torch.optim.SGD(model.parameters(),momentum=0.5,lr=lr)
def train(allepoch):
    lepoch=[]
    llost=[]
    lacc=[]
    for epoch in range(allepoch):
        lost=0
        count=0
        for num,(x,y) in enumerate(trainloard,1):
            x,y=x.to(device),y.to(device)
            y_h=model(x)
            loss=criterion(y_h,y)
            optimizer.zero_grad()
            loss.backward()
            optimizer.step()
            lost+=loss.item()
            count+=batchsize
        print('epoch:',epoch+1,'loss:',lost/count,end=' ')
        lepoch.append(epoch+1)
        llost.append(lost/count)
        acc=test()
        lacc.append(acc)
        print('acc:',acc)
    plt.plot(lepoch,llost,label='loss')
    plt.plot(lepoch,lacc,label='acc')
    plt.legend()
    plt.show()
def test():
    with torch.no_grad():
        acc=0
        count=0
        for num, (x, y) in enumerate(testloard, 1):
            x,y=x.to(device),y.to(device)
            y_h = model(x)
            _,y_h=torch.max(y_h.data,dim=1)
            acc+= (y_h==y).sum().item()
            count+=x.size(0)
        return acc/count

if __name__=='__main__':
    train(50)

另外，之前代码一直不能在GPU运行，昨天终于解决了，之前是直接安装了pytorch的包，没有安装cuda和cudann，后来安装上之后重装了pytorch就可以用GPU运行了，运行时报错Hint: This means that multiple copies of the OpenMP runtime have been linked into the program.
参考博客https://zhuanlan.zhihu.com/p/371649016解决了问题（我没有直接删除那个文件，而是重命名加了个下划线）
