5. 原著小说《长夜难明》的数据分析结果
5.1. 主要人物社交网络

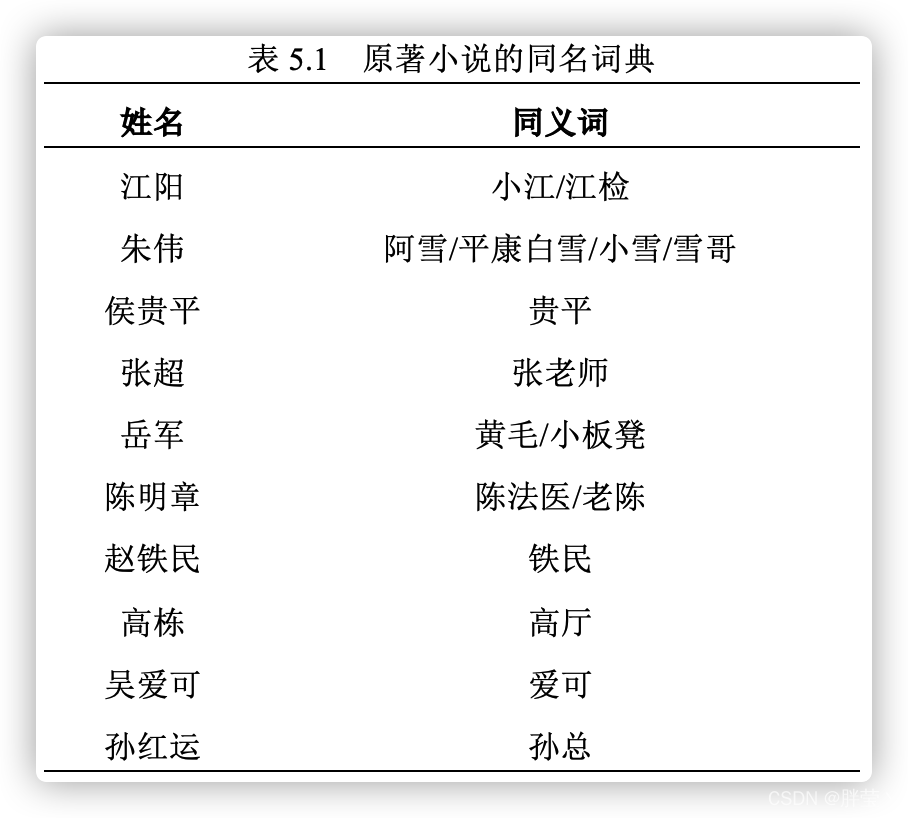

由于网络剧《沉默的真相》改编自原著《长夜难明》,其主要角色没有太大变动,但仍有微小差异,例如小说中的“乐乐”在剧中名为“小树”,重新构建同名词典(见表5.1)在此基础上本文构建原著小说中的主要人物社交网络图谱,这里对小说全文使用jieba.cut精准文字模式,只检索指定人名。角色中的连接信息由是否在同一段出现来确定,有则边的值+1,最终得到28个节点(人物名称以及出现次数)和231条人物关系统计边。

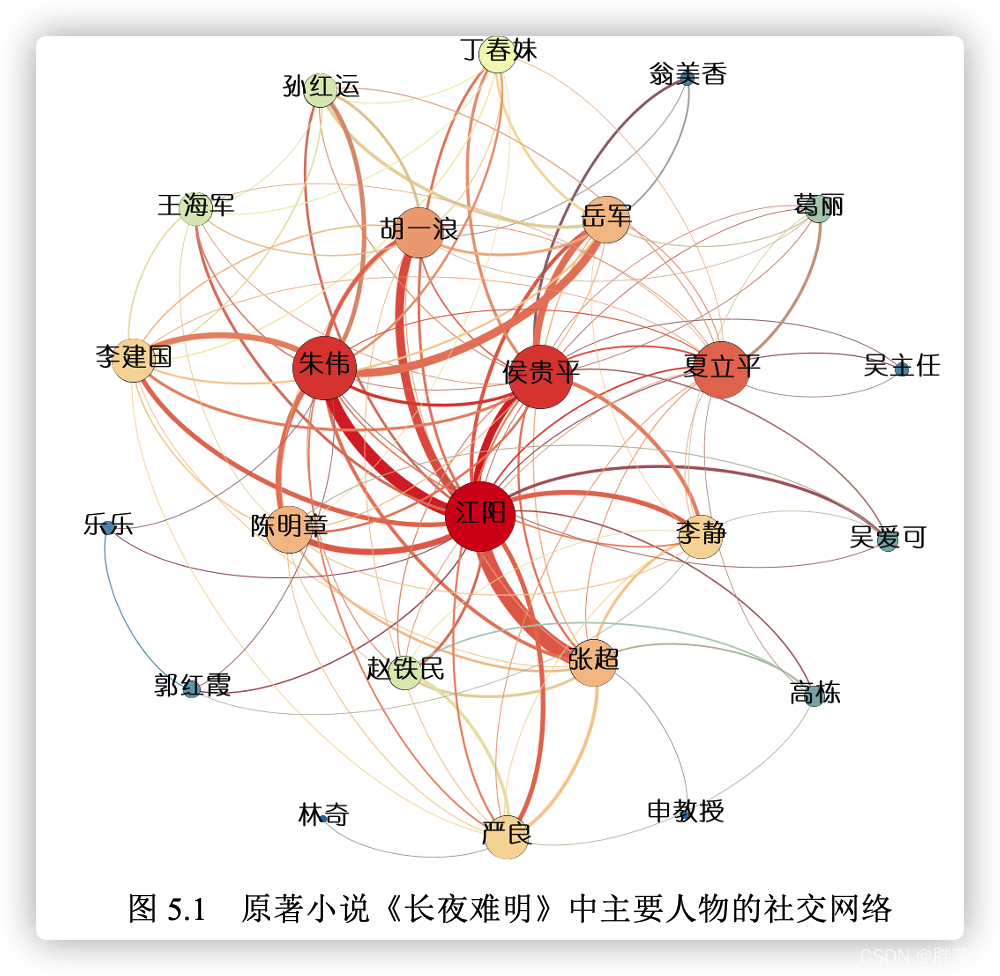

最终的人物关系是在Gephi中绘制,其是一个开源的复杂网络数据可视化软件,可用于对链路分析、社交网络分析、生物网络分析等进行探索分析。通过Python把数据处理成Gephi可接受的csv格式,然后再进行绘制。这里我使用Fruchterman Reingold布局,是基于再次改进的弹性模型提出了FR算法。最终得到人物关系图见图5.1。
import os
import time
import jieba
import codecs
import chardet
import jieba.posseg as pseg
content_path= r"D:\Learning\LPython\bigDataClass_2020Fall\paper_TheLongNight\Character-interaction-visualization-master\长夜难明.txt"
dict_path = r"D:\Learning\LPython\bigDataClass_2020Fall\paper_TheLongNight\Character-interaction-visualization-master\人名.txt"
'''
核心业务代码是 self.gephi_node_name 和 self.gephi_edge 用于处理检查统计的人物
其中 gephi_cofig.gephi_node_name 会统计人物出现的次数,并且生成给 gephi_config.gephi_edege 处理所需要的 _lineNames
'''
class gephi_config:
def __init__(self,content_path,dict_path,name_mode = True):
start = time.time()
# 获取py文件所在的path
self._src = os.path.split(os.path.realpath(__file__))[0]
self.local_file_path()
# 确认生成文件的名称
now = self.get_time()
dirname = os.path.dirname(self._content_path)
content_name = os.path.splitext(os.path.split(self._content_path)[1])[0]
self._dst_node = os.path.join(dirname,(content_name +'gephi_node-' + now +'.csv'))
self._dst_edge = os.path.join(dirname,(content_name +'gephi_edge-' + now +'.csv'))
print('生成的节点文件是:{} \n生成的连接文件是:{}'.format(self._dst_node[-19:],self._dst_edge[-19:]))
# 初始化状态、列表、指点对象
self._name_mode = name_mode # 确定使用那种模式
self._lineNames= [] # 姓名检索列表
self._names = {
} # 姓名字典
self._relationships = {
} # 关系字典
# 读取self.dict_name内容并且构建出jieba 需要的文本。
with codecs.open(self._dict_path,'r',self.content_coding(self._dict_path)) as f:
self._name_list = f.read().split('\r\n')
list_name = self._name_list
list_name[-1] = list_name[-1] + ' 10 nr\r\n'
self._jieba_dict = ' 10 nr\r\n'.join(list_name)
# 进入处理流程
self.do_first()
# 打印处理时间
end = time.time()
usetime = end - start
if usetime > 60.0:
use_min = usetime // 60
use_sec = int(usetime - (use_min*60
