本文介绍了线性回归和逻辑回归的基本原理及实现过程。通过具体示例展示了如何使用Java进行线性回归的批量梯度下降和随机梯度下降算法，并实现了逻辑回归，包括Sigmoid函数的应用与梯度下降法的矩阵运算。
线性回归：
参考：https://blog.youkuaiyun.com/dong_lxkm/article/details/80551795
通过阶梯递减，训练出我们想要的参数：
事先给出一个我我们想要的值，比如说：1
然后通过这个参数算出结果于已知的结果做对比，看是加上还是减去一定的数值；
eg:代码：
package com.example.dtest.regressionArithmetic;
import java.util.Random;
/**
* 参考：https://blog.youkuaiyun.com/dong_lxkm/article/details/80551795
* */
public class LinearRegression {
public static void main(String[] args) {
//模拟的表达式： y=3*x1+4*x2+5*x3+10
Random random = new Random();
double[] results = new double[100];
double[][] features = new double[100][3];
for (int i = 0; i < 100; i++) {
for (int j = 0; j < features[i].length; j++) {
// 模拟数据：
features[i][j] = random.nextDouble();
}
results[i] = 3 * features[i][0] + 4 * features[i][1] + 5 * features[i][2] + 10;
}
double[] parameters = new double[] { 1.0, 1.0, 1.0, 1.0 };
double learningRate = 0.01;
for (int i = 0; i < 30; i++) {
SGD(features, results, learningRate, parameters);
}
parameters = new double[] { 1.0, 1.0, 1.0, 1.0 };
System.out.println("==========================");
for (int i = 0; i < 3000; i++) {
BGD(features, results, learningRate, parameters);
}
}
private static void SGD(double[][] features, double[] results, double learningRate, double[] parameters) {
for (int j = 0; j < results.length; j++) {
double gradient = (parameters[0] * features[j][0] + parameters[1] * features[j][1]
+ parameters[2] * features[j][2] + parameters[3] - results[j]) * features[j][0];
parameters[0] = parameters[0] - 2 * learningRate * gradient;
gradient = (parameters[0] * features[j][0] + parameters[1] * features[j][1] + parameters[2] * features[j][2]
+ parameters[3] - results[j]) * features[j][1];
parameters[1] = parameters[1] - 2 * learningRate * gradient;
gradient = (parameters[0] * features[j][0] + parameters[1] * features[j][1] + parameters[2] * features[j][2]
+ parameters[3] - results[j]) * features[j][2];
parameters[2] = parameters[2] - 2 * learningRate * gradient;
gradient = (parameters[0] * features[j][0] + parameters[1] * features[j][1] + parameters[2] * features[j][2]
+ parameters[3] - results[j]);
parameters[3] = parameters[3] - 2 * learningRate * gradient;
}
double totalLoss = 0;
for (int j = 0; j < results.length; j++) {
totalLoss = totalLoss + Math.pow((parameters[0] * features[j][0] + parameters[1] * features[j][1]
+ parameters[2] * features[j][2] + parameters[3] - results[j]), 2);
}
System.out.println(parameters[0] + " " + parameters[1] + " " + parameters[2] + " " + parameters[3]);
System.out.println("totalLoss:" + totalLoss);
}
private static void BGD(double[][] features, double[] results, double learningRate, double[] parameters) {
double sum = 0;
for (int j = 0; j < results.length; j++) {
sum = sum + (parameters[0] * features[j][0] + parameters[1] * features[j][1]
+ parameters[2] * features[j][2] + parameters[3] - results[j]) * features[j][0];
}
double updateValue = 2 * learningRate * sum / results.length;
parameters[0] = parameters[0] - updateValue;
sum = 0;
for (int j = 0; j < results.length; j++) {
sum = sum + (parameters[0] * features[j][0] + parameters[1] * features[j][1]
+ parameters[2] * features[j][2] + parameters[3] - results[j]) * features[j][1];
}
updateValue = 2 * learningRate * sum / results.length;
parameters[1] = parameters[1] - updateValue;
sum = 0;
for (int j = 0; j < results.length; j++) {
sum = sum + (parameters[0] * features[j][0] + parameters[1] * features[j][1]
+ parameters[2] * features[j][2] + parameters[3] - results[j]) * features[j][2];
}
updateValue = 2 * learningRate * sum / results.length;
parameters[2] = parameters[2] - updateValue;
sum = 0;
for (int j = 0; j < results.length; j++) {
sum = sum + (parameters[0] * features[j][0] + parameters[1] * features[j][1]
+ parameters[2] * features[j][2] + parameters[3] - results[j]);
}
updateValue = 2 * learningRate * sum / results.length;
parameters[3] = parameters[3] - updateValue;
double totalLoss = 0;
for (int j = 0; j < results.length; j++) {
totalLoss = totalLoss + Math.pow((parameters[0] * features[j][0] + parameters[1] * features[j][1]
+ parameters[2] * features[j][2] + parameters[3] - results[j]), 2);
}
System.out.println(parameters[0] + " " + parameters[1] + " " + parameters[2] + " " + parameters[3]);
System.out.println("totalLoss:" + totalLoss);
}
}
2、逻辑回归：思想和线性回归差不多，但多了一步函数映射转换，将数据映射再0到1上去：映射到：
Sigmoid函数中（将我们的函数值y，作为该函数的x带入）：
参考：https://blog.youkuaiyun.com/ccblogger/article/details/81739200

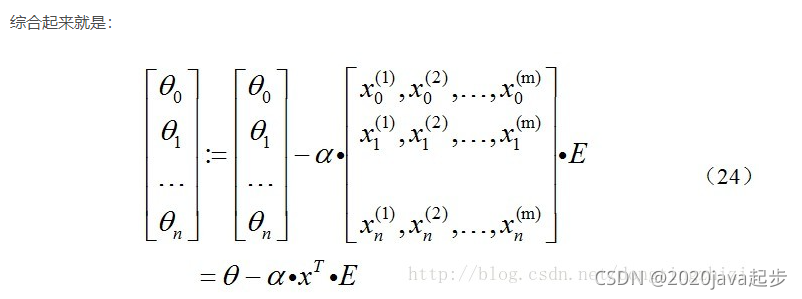

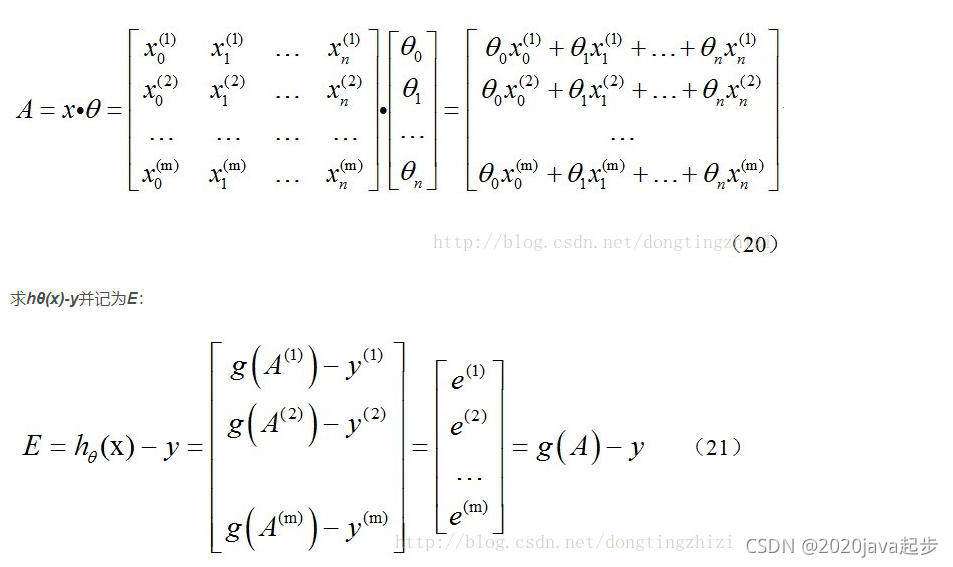

举证公式为：
a为训练速率，x为已知的输入值，e是输出值和预期值之差y-y0
代码如下：
<!-- 用于矩阵运算 -->
<dependency>
<groupId>org.ujmp</groupId>
<artifactId>ujmp-core</artifactId>
<version>0.3.0</version>
</dependency>
package com.example.dtest.regressionArithmetic.logisticregression;
import org.ujmp.core.DenseMatrix;
import org.ujmp.core.Matrix;
/**
* 参考：https://blog.youkuaiyun.com/weixin_45040801/article/details/102542209
* https://blog.youkuaiyun.com/ccblogger/article/details/81739200
* */
public class LogisticRegression {
public static double[] train(double[][] data, double[] classValues) {
if (data != null && classValues != null && data.length == classValues.length) {
// 期望矩阵
// Matrix matrWeights = DenseMatrix.Factory.zeros(data[0].length + 1, 1);
Matrix matrWeights = DenseMatrix.Factory.zeros(data[0].length, 1);
System.out.println("data[0].length + 1========"+data[0].length + 1);
// 数据矩阵
// Matrix matrData = DenseMatrix.Factory.zeros(data.length, data[0].length + 1);
Matrix matrData = DenseMatrix.Factory.zeros(data.length, data[0].length);
// 标志矩阵
Matrix matrLable = DenseMatrix.Factory.zeros(data.length, 1);
// 训练速率矩阵
// Matrix matrRate = DenseMatrix.Factory.zeros(data[0].length + 1,data.length);
// 统计difference的总体失误的辅助矩阵
Matrix matrDiffUtil = DenseMatrix.Factory.zeros(data[0].length,data.length);
for(int i=0;i<data.length;i++){
for(int j=0;j<data[0].length;j++) {
matrDiffUtil.setAsDouble(1, j, i);
}
}
System.out.println("matrDiffUtil="+matrDiffUtil);
/**
* 行数应该和期望矩阵一致列数
* 列数应该和标志矩阵一致
* */
// System.out.println("matrRate======="+matrRate);
// 设置训练速率矩阵
// for(int i=0;i<data[0].length + 1;i++){
// for(int j=0;j<data.length;j++){
// }
// }
for (int i = 0; i < data.length; i++) {
// matrData.setAsDouble(1.0, i, 0);
// 初始化标志矩阵
matrLable.setAsDouble(classValues[i], i, 0);
for (int j = 0; j < data[0].length; j++) {
// 初始化数据矩阵
// matrData.setAsDouble(data[i][j], i, j + 1);
matrData.setAsDouble(data[i][j], i, j);
if (i == 0) {
// 初始化期望矩阵
// matrWeights.setAsDouble(1.0, j+1, 0);
matrWeights.setAsDouble(1.0, j, 0);
}
}
}
// matrWeights.setAsDouble(-0.5, data[0].length, 0);
// matrRate = matrData.transpose().times(0.9);
// System.out.println("matrRate============"+matrRate);
double step = 0.011;
int maxCycle = 5000000;
// int maxCycle = 5;
System.out.println("matrData======"+matrData);
System.out.println("matrWeights"+matrWeights);
System.out.println("matrLable"+matrLable);
/**

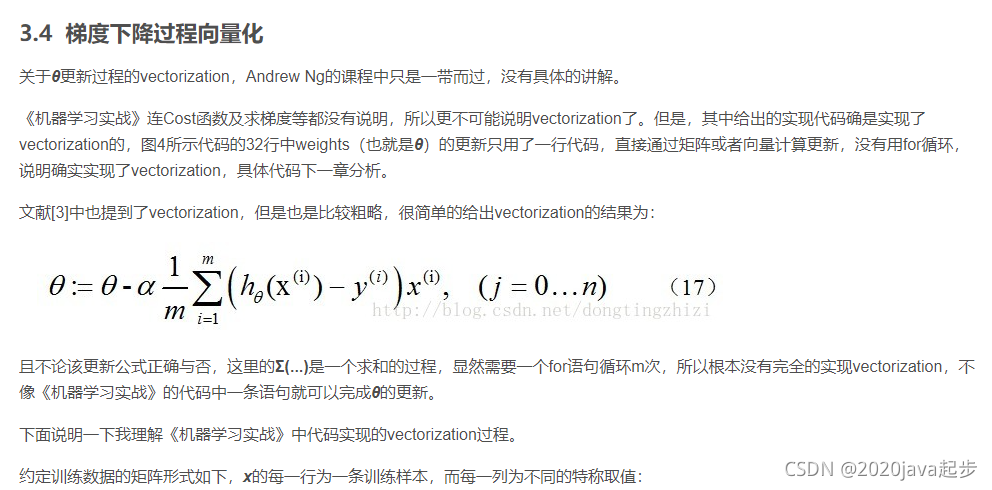

* 使用梯度下降法的思想：
* 矩阵运算，参考：https://blog.youkuaiyun.com/lionel_fengj/article/details/53400715
*
* */
for (int i = 0; i < maxCycle; i++) {
// 将想要函数转换为sigmoid函数并得到的值
Matrix h = sigmoid(matrData.mtimes(matrWeights));
// System.out.println("h=="+h);
// 求出预期和真实的差值
Matrix difference = matrLable.minus(h);
// System.out.println("difference "+difference);
// matrData转置后和difference相乘，得到预期和真实差值的每一个值
// 公式：@0 = @0 - ax(y0-y),可以参考：https://blog.youkuaiyun.com/ccblogger/article/details/81739200
matrWeights = matrWeights.plus(matrData.transpose().mtimes(difference).times(step));
// matrWeights = matrWeights.plus(matrRate.mtimes(difference).times(step));
// matrWeights = matrWeights.plus(matrDiffUtil.mtimes(difference).times(step));
}
double[] rtn = new double[(int) matrWeights.getRowCount()];
for (long i = 0; i < matrWeights.getRowCount(); i++) {
rtn[(int) i] = matrWeights.getAsDouble(i, 0);
}
return rtn;
}
return null;
}
public static Matrix sigmoid(Matrix sourceMatrix) {
Matrix rtn = DenseMatrix.Factory.zeros(sourceMatrix.getRowCount(), sourceMatrix.getColumnCount());
for (int i = 0; i < sourceMatrix.getRowCount(); i++) {
for (int j = 0; j < sourceMatrix.getColumnCount(); j++) {
rtn.setAsDouble(sigmoid(sourceMatrix.getAsDouble(i, j)), i, j);
}
}
return rtn;
}
public static double sigmoid(double source) {
return 1.0 / (1 + Math.exp(-1 * source));
}
// 测试预测值：
public static double getValue(double[] sourceData, double[] model) {
// double logisticRegressionValue = model[0];
double logisticRegressionValue = 0;
for (int i = 0; i < sourceData.length; i++) {
// logisticRegressionValue = logisticRegressionValue + sourceData[i] * model[i + 1];
logisticRegressionValue = logisticRegressionValue + sourceData[i] * model[i];
}
logisticRegressionValue = sigmoid(logisticRegressionValue);
return logisticRegressionValue;
}
}
package com.example.dtest.regressionArithmetic.logisticregression;
public class LogisicRegressionTest {
public static void main(String[] args) {
double[][] sourceData = new double[][] { { -1, 1 }, { 0, 1 }, { 1, -1 }, { 1, 0 }, { 0, 0.1 }, { 0, -0.1 }, { -1, -1.1 }, { 1, 0.9 } };
double[] classValue = new double[] { 1, 1, 0, 0, 1, 0, 0, 0 };
double[] modle = LogisticRegression.train(sourceData, classValue);
// double logicValue = LogisticRegression.getValue(new double[] { 0, 0 }, modle);
double logicValue0 = LogisticRegression.getValue(new double[] { -1, 1 }, modle);
double logicValue1 = LogisticRegression.getValue(new double[] { 0, 1 }, modle);
double logicValue2 = LogisticRegression.getValue(new double[] { 1, -1}, modle);//3.1812246935599485E-60无限趋近于0
double logicValue3 = LogisticRegression.getValue(new double[] { 1, 0}, modle);//3.091713602147872E-30无限趋近于0
double logicValue4 = LogisticRegression.getValue(new double[] { 0, 0.1}, modle);//3.091713602147872E-30无限趋近于0
double logicValue5 = LogisticRegression.getValue(new double[] { 0, -0.1 }, modle);//3.091713602147872E-30无限趋近于0
System.out.println("---model---");
for (int i = 0; i < modle.length; i++) {
System.out.println(modle[i]);
}
System.out.println("-----------");
// System.out.println(logicValue);
System.out.println(logicValue0);
System.out.println(logicValue1);
System.out.println(logicValue2);
System.out.println(logicValue3);
System.out.println(logicValue4);
System.out.println(logicValue5);
// 绘制散点图
// double[][][] chartData = new double[3][][];
// double[][] c0 = new double[2][5];
// double[][] c1 = new double[2][3];
// c1[0][0] = sourceData[0][0];
// c1[1][0] = sourceData[0][1];
//
// c1[0][1] = sourceData[1][0];
// c1[1][1] = sourceData[1][1];
//
// c0[0][0] = sourceData[2][0];
// c0[1][0] = sourceData[2][1];
//
// c0[0][1] = sourceData[3][0];
// c0[1][1] = sourceData[3][1];
//
// c1[0][2] = sourceData[4][0];
// c1[1][2] = sourceData[4][1];
//
// c0[0][2] = sourceData[5][0];
// c0[1][2] = sourceData[5][1];
//
// c0[0][3] = sourceData[6][0];
// c0[1][3] = sourceData[6][1];
//
// c0[0][4] = sourceData[7][0];
// c0[1][4] = sourceData[7][1];
//
// String[] c = new String[] { "1", "0", "L" };
// double[][] c2 = new double[2][21];
// int ind = 0;
// for (double x = -1; x <= 1; x = x + 0.1) {
// c2[0][ind] = x;
// c2[1][ind] = (-modle[0] - modle[1] * x) / modle[2];
// ind++;
// }
//
// chartData[0] = c0;
// chartData[1] = c1;
// chartData[2] = c2;
// ScatterPlot.showScatterPlotChart("LogisticRegression", c, chartData);
}
}
