Spring IOC源码解析(一)---读取Xml文件生成Dom对象

涉及的相关类的解释

EntityResolver

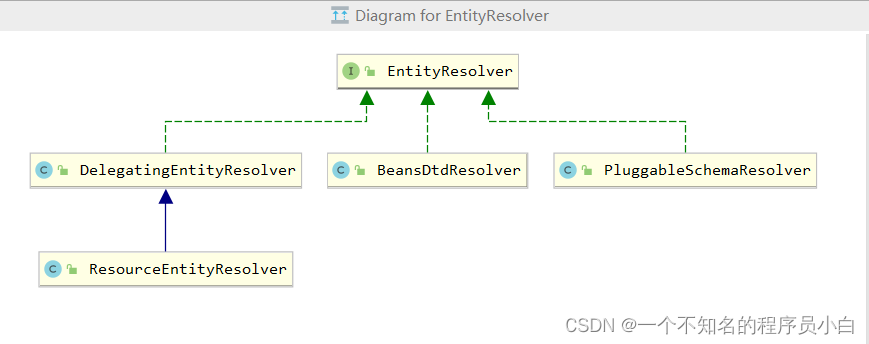

学过设计模式的看到这个图应该会联想到某些设计模式，其实就是委派模式。

委派模式中的3个参与角色：

• EntityResolver：抽象任务角色
• DelegateEntityResolver：委派者角色，负责决策，调用哪个具体任务角色的方法
• BeansDtdResolver 和 PluggableSchemaResolver：具体任务角色，真正用于执行任务的角色

抽象接口
resolveEntity有2个参数，publicId和systemId

public interface EntityResolver {

    public abstract InputSource resolveEntity (String publicId,
                                               String systemId)
        throws SAXException, IOException;
}

对于XSD头部而言

• publicId = null
• systemId = http://www.springframework.org/schema/beans/spring-beans.xsd

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">
</beans>

对于DTD头部声明而言

• publicId = -//SPRING//DTD BEAN//EN
• systemId = http://www.springframework.org/dtd/spring-beans.dtd

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN//EN" "http://www.springframework.org/dtd/spring-beans.dtd">

DelegatingEntityResolver

public class DelegatingEntityResolver implements EntityResolver {


	/** Suffix for DTD files. */
	public static final String DTD_SUFFIX = ".dtd";
	/** Suffix for schema definition files. */
	public static final String XSD_SUFFIX = ".xsd";

	//具体任务角色
	private final EntityResolver dtdResolver;
	private final EntityResolver schemaResolver;

	//采用默认的解析器
	public DelegatingEntityResolver(@Nullable ClassLoader classLoader) {

		this.dtdResolver = new BeansDtdResolver();
		this.schemaResolver = new PluggableSchemaResolver(classLoader);
	}
	//自定义解析器
	public DelegatingEntityResolver(EntityResolver dtdResolver, EntityResolver schemaResolver) {

		Assert.notNull(dtdResolver, "'dtdResolver' is required");
		Assert.notNull(schemaResolver, "'schemaResolver' is required");
		this.dtdResolver = dtdResolver;
		this.schemaResolver = schemaResolver;
	}

	//决策使用哪个解析器进行解析
	@Override
	@Nullable
	public InputSource resolveEntity(@Nullable String publicId, @Nullable String systemId)
			throws SAXException, IOException {


		if (systemId != null) {

			if (systemId.endsWith(DTD_SUFFIX)) {

				return this.dtdResolver.resolveEntity(publicId, systemId);
			}
			else if (systemId.endsWith(XSD_SUFFIX)) {

				return this.schemaResolver.resolveEntity(publicId, systemId);
			}
		}
		return null;
	}
}

需求及划分

总体需求一：对各种各样的资源文件进行读取、验证，并返回资源文件的document实例

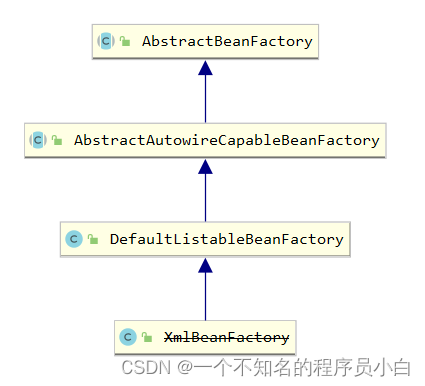

需求划分一：BeanFactory初始化过程

此处使用构造器重载给父工厂赋值了个null，是为了什么？
其实就是为了实现：若不传父工厂参数则默认为null，不需玩家手动填null

	public XmlBeanFactory(Resource resource) throws BeansException {

		this(resource, null);
	}
