本文详细解析了Spring Data JPA的继承结构，包括JpaRepository、JpaSpecificationExecutor等接口的使用，以及如何结合Repository实现高级查询、分页、排序等功能。通过具体示例，展示了依赖配置、实体类定义、不同Repository接口的功能和测试方法。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

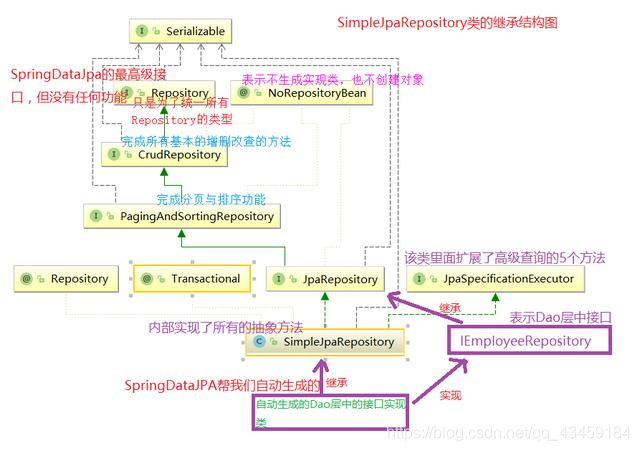

- springdataJpa的继承结构

在这里插入图片描述
其中JpaSpecificationExecutor接口是一个单独的用于高级查询（排序，分页，自定义条件分页）的接口，需要与JpaRepository组合使用。在开发中使用的最多的是JpaRepository。下面按照继承结构一一示例：

- 所需依赖

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <!-- springboot父类工程 -->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.10.RELEASE</version>
    </parent>

    <groupId>com.bjsxt.spring.boot.data.jpa</groupId>
    <artifactId>07SpringbootdataJpa</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <java.version>1.7</java.version>
        <thymeleaf.version>3.0.2.RELEASE</thymeleaf.version>
        <thymeleaf-layout-dialect.version>2.0.4</thymeleaf-layout-dialect.version>
    </properties>
    <dependencies> <!-- springBoot 的启动器 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- thymeleaf 的启动器 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <!-- spring-data-jpa 的启动器 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <!-- mysql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!-- druid 连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.0.9</version>
        </dependency>

        <!-- 测试工具的启动器 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>

    </dependencies>
</project>

- 实体化对象(举例中使用)


/**
 * @Author:CarlosXu
 * @Date:2019/8/10 0010
 * @Description:com.bjsxt.spring.boot.data.jpa
 */
@Entity
@Table(name = "users")
public class Users {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id")
    private Integer id;
    @Column(name = "name")
    private String name;
    @Column(name = "age")
    private Integer age;

    public Users() {
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public Users(String name, Integer age) {
        this.name = name;
        this.age = age;
    }

    @Override
    public String toString() {
        return "Users{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", age=" + age +
                '}';
    }
}

其中所有接口中需要传递的第一个参数为实体类，第二个为操作对象的主键

- Repository

接口：

public interface UsersRepository extends Repository<Users,Integer> {

    List<Users> findByName(String name);
    List<Users> findByNameAndAge(String name,Integer age);
    List<Users> findByNameLike(String name);

}

测试：


/**
 * @Author:CarlosXu
 * @Date:2019/8/10 0010
 * @Description:com.bjsxt.test
 */
@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest(classes = {App.class})
public class RepositoryDemoTest {

    @Autowired
    private UsersRepository usersRepository;


    @Test
    public void test01() {
        List<Users> name = this.usersRepository.findByName("伽罗");
        for (Users u:
              name) {
            System.out.println(u);
        }
    }

    @Test
    public void test02() {
        List<Users> name = this.usersRepository.findByNameAndAge("伽罗",18);
        for (Users u:
                name) {
            System.out.println(u);
        }
    }

    @Test
    public void test03() {
        List<Users> name = this.usersRepository.findByNameLike("伽%");
        for (Users u:
                name) {
            System.out.println(u);
        }
    }
}

或者基于@QUERY方式实现jdbc操作：

public interface UsersRepositoryAnnotation extends Repository<Users,Integer> {
    @Query("FROM Users WHERE name = ?")
    List<Users> findByName(String name);
    @Query(value = "select * from  users where name=? and age=?",nativeQuery = true)
    List<Users> findByNameAndAge(String name, Integer age);
    @Query("FROM Users  where  name like ?")
    List<Users> findByNameLike(String name);

    @Query("update Users set name= ? where id=?")
    @Modifying
    void updateUsers(String name,Integer id);
}

注意：当需要对数据库更新操作时需要加上@Modifying注解
测试：

@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest(classes = {App.class})
public class RepositoryAnnotationDemoTest {

    @Autowired
    private UsersRepositoryAnnotation usersRepositoryAnnotation;


    @Test
    public void test01() {
        List<Users> name = this.usersRepositoryAnnotation.findByName("伽罗");
        for (Users u:
              name) {
            System.out.println(u);
        }
    }

    @Test
    public void test02() {
        List<Users> name = this.usersRepositoryAnnotation.findByNameAndAge("伽罗",18);
        for (Users u:
                name) {
            System.out.println(u);
        }
    }

    @Test
    public void test03() {
        List<Users> name = this.usersRepositoryAnnotation.findByNameLike("伽%");
        for (Users u:
                name) {
            System.out.println(u);
        }
    }

    @Test
    @Transactional
    @Rollback(false)
    public void test04() {
        this.usersRepositoryAnnotation.updateUsers("黄忠",3);
    }
}

- CrudRepository(基本增删改查操作)

接口：

public interface UsersCrudRepository extends CrudRepository<Users,Integer> {
}

测试：

@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest(classes = {App.class})
public class CrudRepositoryDemoTest {

    @Autowired
    private UsersCrudRepository crudRepository;


    @Test
    public void test01() {
        List<Users> name = (List<Users>) this.crudRepository.findAll();
        for (Users u:
              name) {
            System.out.println(u);
        }
    }

    @Test
    public void test02() {
        Users users=new Users("伽罗",23);
       this.crudRepository.save(users);
    }

    //更新使用的也是save方法，会根据主键查询,如果数据库存在则更新，如果不存在，则添加
    //在底层已经添加了事务的注解，这里不需要再添加
    @Test
    public void test03() {
        Users users=new Users("狄仁杰",23);
        users.setId(5);
        this.crudRepository.save(users);
    }
}

- PagingAndSortingRepository(分页和查询操作)

接口：

public interface UsersPageAndSorting extends PagingAndSortingRepository<Users,Integer> {
}

测试：

@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest(classes = {App.class})
public class PageAndSortTest {

    @Autowired
    private UsersPageAndSorting usersPageAndSorting;

    //分页查询
    @Test
    public void test001() {
        Sort.Order order =new Sort.Order(Sort.Direction.DESC,"id");
        Sort sort=new Sort(order);
        List<Users> all = (List<Users>) this.usersPageAndSorting.findAll(sort);
        for (Users u:
                all) {
            System.out.println(u);
        }
    }


    //分页查询
    @Test
    public void test01() {
        //注意：分页第一页从0开始
        Pageable pageable=new PageRequest(0,2);
        Page<Users> all = this.usersPageAndSorting.findAll(pageable);
        System.out.println("总页数："+all.getTotalPages());
        System.out.println("总数："+all.getTotalElements());
        List<Users> content = all.getContent();
        for (Users u:
              content) {
            System.out.println(u);
        }
    }

    //排序-分页查询
    @Test
    public void test02() {
        Sort.Order order =new Sort.Order(Sort.Direction.DESC,"id");
        Sort sort=new Sort(order);
        //注意：分页第一页从0开始
        Pageable pageable=new PageRequest(0,2,sort);
        Page<Users> all = this.usersPageAndSorting.findAll(pageable);
        System.out.println("总页数："+all.getTotalPages());
        System.out.println("总数："+all.getTotalElements());
        List<Users> content = all.getContent();
        for (Users u:
                content) {
            System.out.println(u);
        }
    }

}

- JpaRepository

接口：

public interface UsersJpaRepository01 extends JpaRepository<Users,Integer> {
}

测试：

@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest(classes = {App.class})
public class JpaDemoTest {

    @Autowired
    private UsersJpaRepository01 usersJpaRepository01;


    @Test
    public void test01(){
        Users users=new Users("伽罗",18);
        this.usersJpaRepository01.save(users);
    }

    @Test
    public void test02(){
        Sort sort=new Sort(Sort.Direction.DESC,"id");
        Pageable pageable=new PageRequest(0,2,sort);


        Page<Users> all = this.usersJpaRepository01.findAll(pageable);
        List<Users> content = all.getContent();
        for (Users u:
                content) {
            System.out.println(u);
        }
    }

}

- JpaSpecificationExecutor

接口(不可单独使用，因为时单独的，没有继承Repository结构)：

public interface UsersJpaAndSpecification extends JpaRepository<Users,Integer>
        , JpaSpecificationExecutor<Users> {
}

测试：

@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest(classes = {App.class})
public class JpaSpecificationTest {

    @Autowired
    private UsersJpaAndSpecification usersJpaAndSpecification;


    //按照特定条件查询，并将结果进行分页和排序
    @Test
    public void test02(){
        Sort sort=new Sort(Sort.Direction.DESC,"id");
        Pageable pageable=new PageRequest(0,2,sort);
        Specification<Users> spec=new Specification<Users>() {
            @Override
            public Predicate toPredicate(Root<Users> root, CriteriaQuery<?> criteriaQuery, CriteriaBuilder criteriaBuilder) {
                List<Predicate> list=new ArrayList<>();
                list.add(criteriaBuilder.equal(root.get("age"),18));
                Predicate[] pred=new Predicate[list.size()];
                return criteriaBuilder.and(list.toArray(pred));
            }
        };

        Page<Users> all = this.usersJpaAndSpecification.findAll(spec,pageable);
        List<Users> content = all.getContent();
        for (Users u:
                content) {
            System.out.println(u);
        }
    }

}
