6.6 SpringBoot中的多事务管理

  • 【在前一天的基础上】使用springboot+jta+atomikos 来管理分布式事务

第一步：添加jta事务依赖

在这里插入图片描述

	<dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-jta-atomikos</artifactId>
    </dependency>
  • 总的依赖
<repositories>
    <repository>
      <id>alimaven</id>
      <name>aliyun maven</name>
      <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
    </repository>
  </repositories>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
  </properties>

  <parent>
    <!--SpringBoot的父依赖-->
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>1.5.9.RELEASE</version>
  </parent>

  <dependencies>
    <!--SpringBoot配置web依赖-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--引入freeMarker的依赖包-->
    <!--<dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-freemarker</artifactId>
    </dependency>-->
    <!--JDBC-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-jdbc</artifactId>
    </dependency>
    <!--数据库驱动-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>8.0.13</version>
    </dependency>
    <!--单元测试-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
    <!--Mybatis-->
    <dependency>
      <groupId>org.mybatis.spring.boot</groupId>
      <artifactId>mybatis-spring-boot-starter</artifactId>
      <version>1.1.1</version>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-jta-atomikos</artifactId>
    </dependency>
	<dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-configuration-processor</artifactId>
      <optional>true</optional>
    </dependency>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <build>
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.*</include>
        </includes>
      </resource>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.*</include>
        </includes>
      </resource>
    </resources>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>

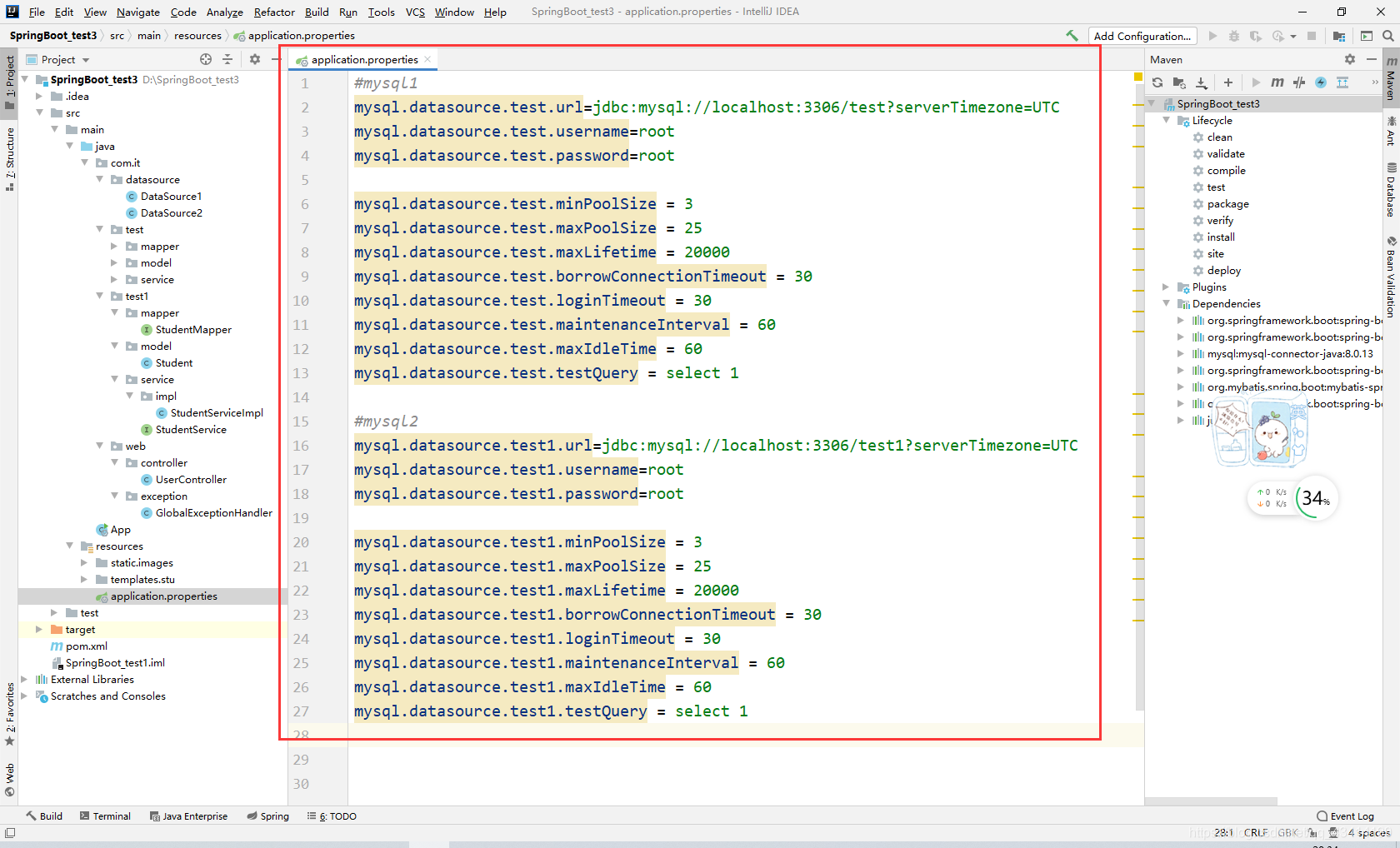

第二步：修改数据库连接配置数据

在这里插入图片描述

#mysql1
mysql.datasource.test.url=jdbc:mysql://localhost:3306/test?serverTimezone=UTC
mysql.datasource.test.username=root
mysql.datasource.test.password=root

mysql.datasource.test.minPoolSize = 3
mysql.datasource.test.maxPoolSize = 25
mysql.datasource.test.maxLifetime = 20000
mysql.datasource.test.borrowConnectionTimeout = 30
mysql.datasource.test.loginTimeout = 30
mysql.datasource.test.maintenanceInterval = 60
mysql.datasource.test.maxIdleTime = 60
mysql.datasource.test.testQuery = select 1

#mysql2
mysql.datasource.test1.url=jdbc:mysql://localhost:3306/test1?serverTimezone=UTC
mysql.datasource.test1.username=root
mysql.datasource.test1.password=root

mysql.datasource.test1.minPoolSize = 3
mysql.datasource.test1.maxPoolSize = 25
mysql.datasource.test1.maxLifetime = 20000
mysql.datasource.test1.borrowConnectionTimeout = 30
mysql.datasource.test1.loginTimeout = 30
mysql.datasource.test1.maintenanceInterval = 60
mysql.datasource.test1.maxIdleTime = 60
mysql.datasource.test1.testQuery = select 1

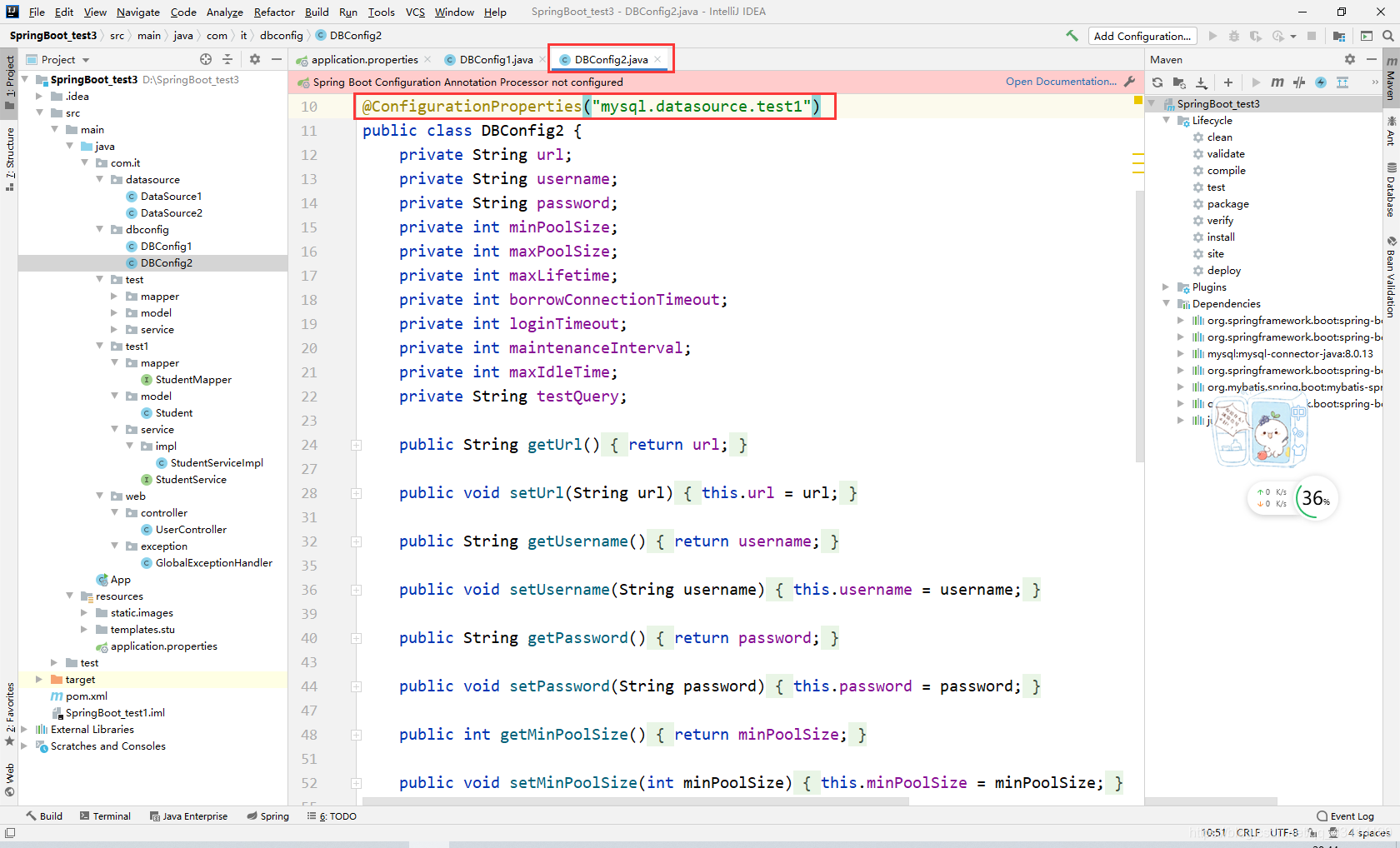

第三步：添加2个配置模型

  • 配置模型放在com.it.dbconfig包下【并为属性提供get/set】

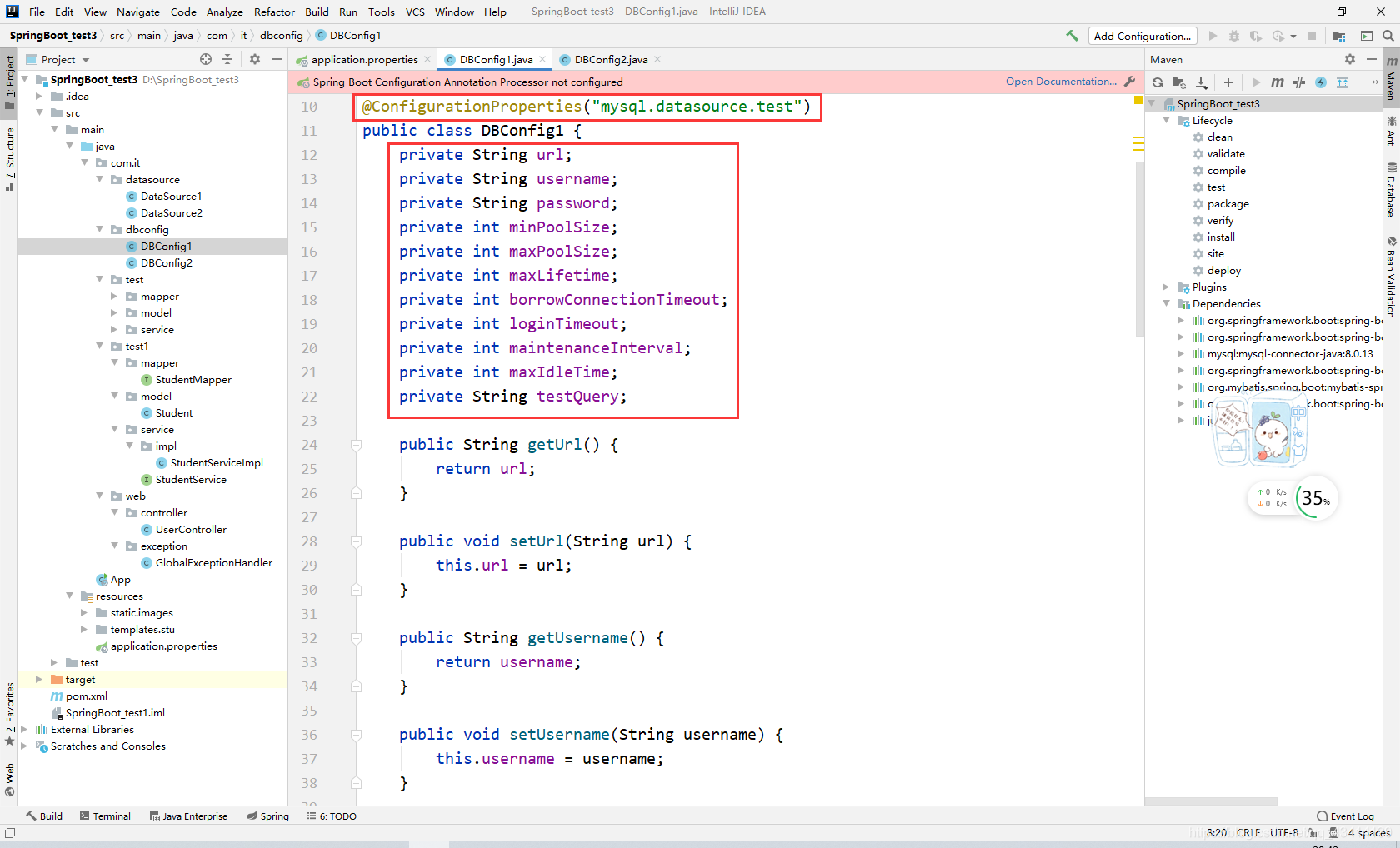

    在这里插入图片描述
  • 上面红色并不影响，加上下面这个即可
	<dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-configuration-processor</artifactId>
      <optional>true</optional>
    </dependency>

在这里插入图片描述

package com.it.dbconfig;

import org.springframework.boot.context.properties.ConfigurationProperties;

/**
 * @ClassName DBConfig1
 * @Author shuyy
 * @Date 2020/10/28
 **/
@ConfigurationProperties("mysql.datasource.test")
public class DBConfig1 {
    private String url;
    private String username;
    private String password;
    private int minPoolSize;
    private int maxPoolSize;
    private int maxLifetime;
    private int borrowConnectionTimeout;
    private int loginTimeout;
    private int maintenanceInterval;
    private int maxIdleTime;
    private String testQuery;

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public int getMinPoolSize() {
        return minPoolSize;
    }

    public void setMinPoolSize(int minPoolSize) {
        this.minPoolSize = minPoolSize;
    }

    public int getMaxPoolSize() {
        return maxPoolSize;
    }

    public void setMaxPoolSize(int maxPoolSize) {
        this.maxPoolSize = maxPoolSize;
    }

    public int getMaxLifetime() {
        return maxLifetime;
    }

    public void setMaxLifetime(int maxLifetime) {
        this.maxLifetime = maxLifetime;
    }

    public int getBorrowConnectionTimeout() {
        return borrowConnectionTimeout;
    }

    public void setBorrowConnectionTimeout(int borrowConnectionTimeout) {
        this.borrowConnectionTimeout = borrowConnectionTimeout;
    }

    public int getLoginTimeout() {
        return loginTimeout;
    }

    public void setLoginTimeout(int loginTimeout) {
        this.loginTimeout = loginTimeout;
    }

    public int getMaintenanceInterval() {
        return maintenanceInterval;
    }

    public void setMaintenanceInterval(int maintenanceInterval) {
        this.maintenanceInterval = maintenanceInterval;
    }

    public int getMaxIdleTime() {
        return maxIdleTime;
    }

    public void setMaxIdleTime(int maxIdleTime) {
        this.maxIdleTime = maxIdleTime;
    }

    public String getTestQuery() {
        return testQuery;
    }

    public void setTestQuery(String testQuery) {
        this.testQuery = testQuery;
    }
}

第四步：重写两个数据源的配置

  • 修改数据源1

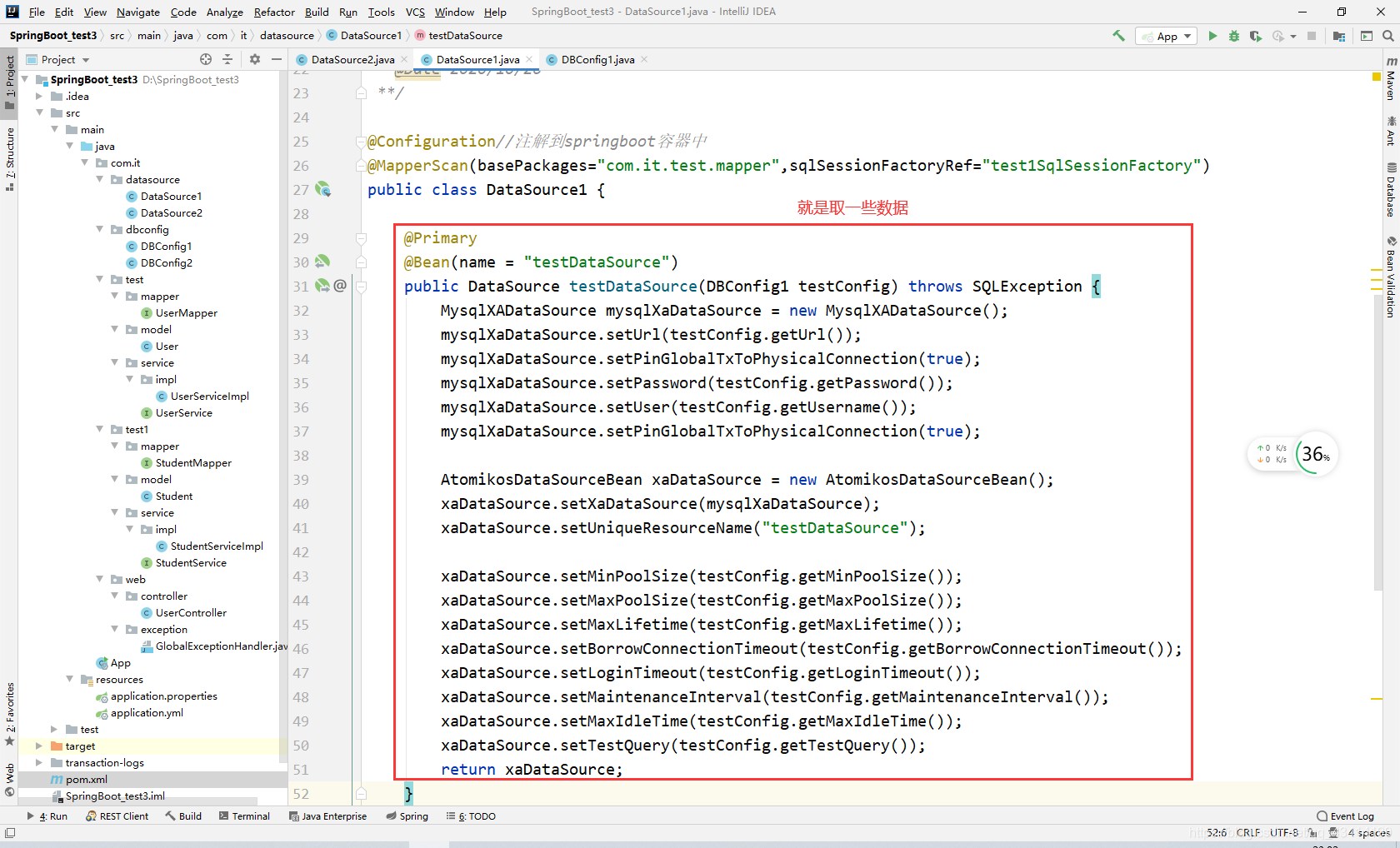

    在这里插入图片描述
package com.it.datasource;


import com.atomikos.jdbc.AtomikosDataSourceBean;
import com.it.dbconfig.DBConfig1;
import com.mysql.cj.jdbc.MysqlXADataSource;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;

import javax.sql.DataSource;
import java.sql.SQLException;

/**
 * @ClassName DataSource1
 * @Author shuyy
 * @Date 2020/10/26
 **/

@Configuration//注解到springboot容器中
@MapperScan(basePackages="com.it.test.mapper",sqlSessionFactoryRef="test1SqlSessionFactory")
public class DataSource1 {

    @Primary
    @Bean(name = "testDataSource")
    public DataSource testDataSource(DBConfig1 testConfig) throws SQLException {
        MysqlXADataSource mysqlXaDataSource = new MysqlXADataSource();
        mysqlXaDataSource.setUrl(testConfig.getUrl());
        mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);
        mysqlXaDataSource.setPassword(testConfig.getPassword());
        mysqlXaDataSource.setUser(testConfig.getUsername());
        mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);

        AtomikosDataSourceBean xaDataSource = new AtomikosDataSourceBean();
        xaDataSource.setXaDataSource(mysqlXaDataSource);
        xaDataSource.setUniqueResourceName("testDataSource");

        xaDataSource.setMinPoolSize(testConfig.getMinPoolSize());
        xaDataSource.setMaxPoolSize(testConfig.getMaxPoolSize());
        xaDataSource.setMaxLifetime(testConfig.getMaxLifetime());
        xaDataSource.setBorrowConnectionTimeout(testConfig.getBorrowConnectionTimeout());
        xaDataSource.setLoginTimeout(testConfig.getLoginTimeout());
        xaDataSource.setMaintenanceInterval(testConfig.getMaintenanceInterval());
        xaDataSource.setMaxIdleTime(testConfig.getMaxIdleTime());
        xaDataSource.setTestQuery(testConfig.getTestQuery());
        return xaDataSource;
    }


    @Bean(name = "test1SqlSessionFactory")
    public SqlSessionFactory testSqlSessionFactory(@Qualifier("testDataSource") DataSource dataSource)
            throws Exception {
        SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
        bean.setDataSource(dataSource);
        return bean.getObject();
    }

    @Bean(name = "test1SqlSessionTemplate")
    public SqlSessionTemplate testSqlSessionTemplate(
            @Qualifier("test1SqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
        return new SqlSessionTemplate(sqlSessionFactory);
    }
}

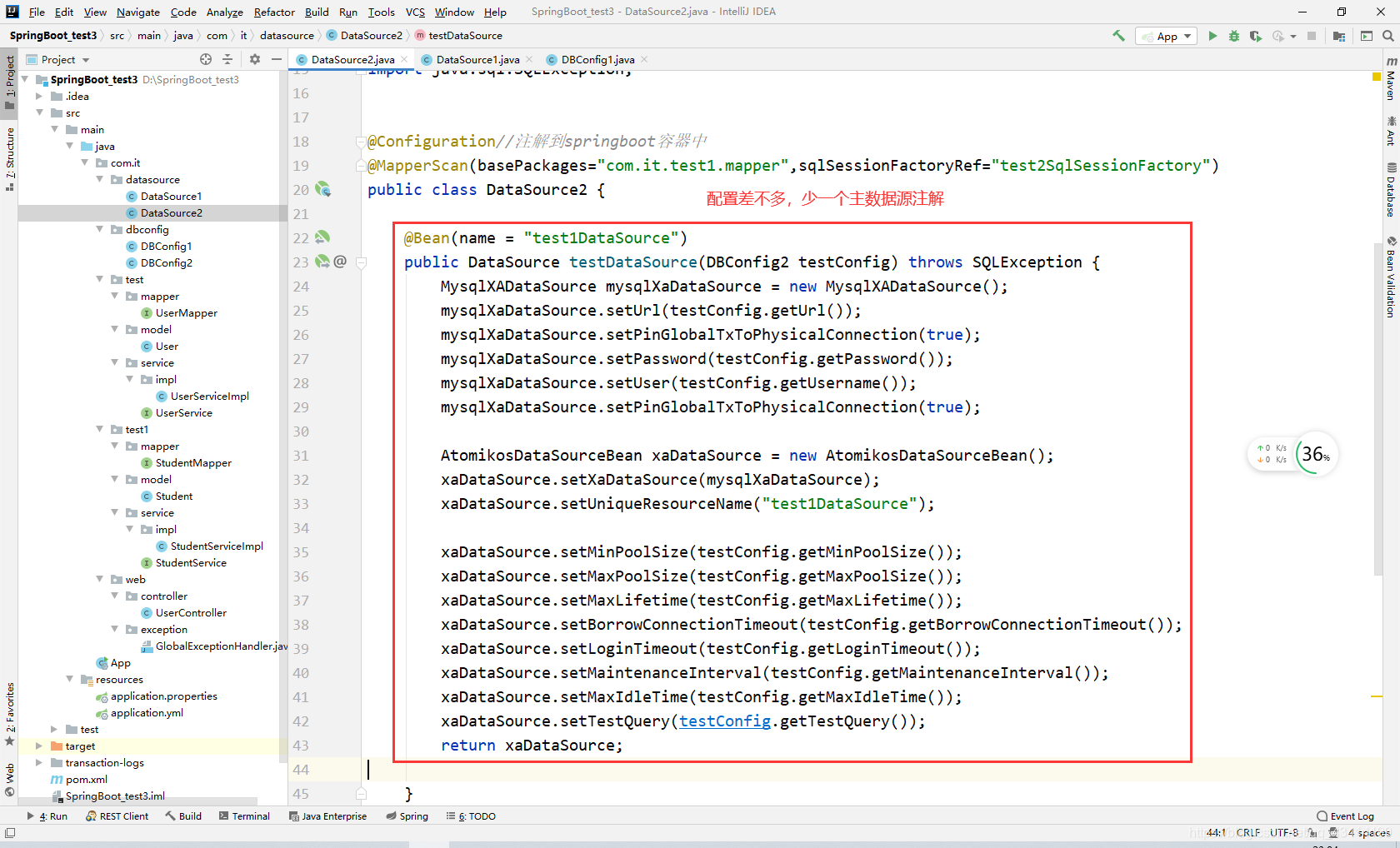

  • 数据源2
    在这里插入图片描述
package com.it.datasource;

import com.atomikos.jdbc.AtomikosDataSourceBean;
import com.it.dbconfig.DBConfig2;
import com.mysql.cj.jdbc.MysqlXADataSource;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;
import java.sql.SQLException;


@Configuration//注解到springboot容器中
@MapperScan(basePackages="com.it.test1.mapper",sqlSessionFactoryRef="test2SqlSessionFactory")
public class DataSource2 {

    @Bean(name = "test1DataSource")
    public DataSource testDataSource(DBConfig2 testConfig) throws SQLException {
         MysqlXADataSource mysqlXaDataSource = new MysqlXADataSource();
        mysqlXaDataSource.setUrl(testConfig.getUrl());
        mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);
        mysqlXaDataSource.setPassword(testConfig.getPassword());
        mysqlXaDataSource.setUser(testConfig.getUsername());
        mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);

        AtomikosDataSourceBean xaDataSource = new AtomikosDataSourceBean();
        xaDataSource.setXaDataSource(mysqlXaDataSource);
        xaDataSource.setUniqueResourceName("test1DataSource");

        xaDataSource.setMinPoolSize(testConfig.getMinPoolSize());
        xaDataSource.setMaxPoolSize(testConfig.getMaxPoolSize());
        xaDataSource.setMaxLifetime(testConfig.getMaxLifetime());
        xaDataSource.setBorrowConnectionTimeout(testConfig.getBorrowConnectionTimeout());
        xaDataSource.setLoginTimeout(testConfig.getLoginTimeout());
        xaDataSource.setMaintenanceInterval(testConfig.getMaintenanceInterval());
        xaDataSource.setMaxIdleTime(testConfig.getMaxIdleTime());
        xaDataSource.setTestQuery(testConfig.getTestQuery());
        return xaDataSource;
    }

    @Bean(name = "test2SqlSessionFactory")
    public SqlSessionFactory testSqlSessionFactory(@Qualifier("test1DataSource") DataSource dataSource)
            throws Exception {
        SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
        bean.setDataSource(dataSource);
        return bean.getObject();
    }

    @Bean(name = "test2SqlSessionTemplate")
    public SqlSessionTemplate testSqlSessionTemplate(
            @Qualifier("test2SqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
        return new SqlSessionTemplate(sqlSessionFactory);
    }
}

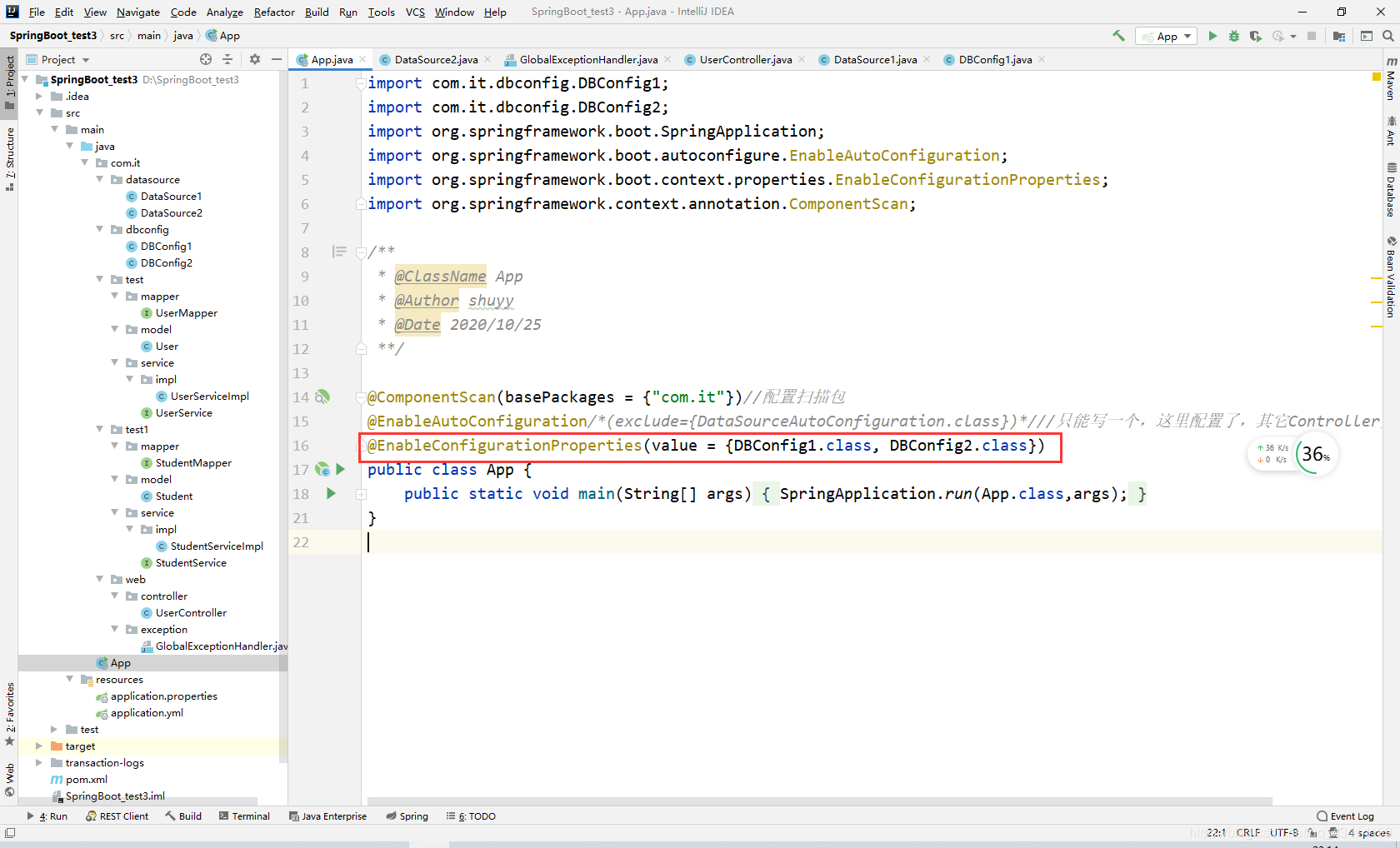

第五步：App启动程序中添加配置

  • 运行时加载配置文件

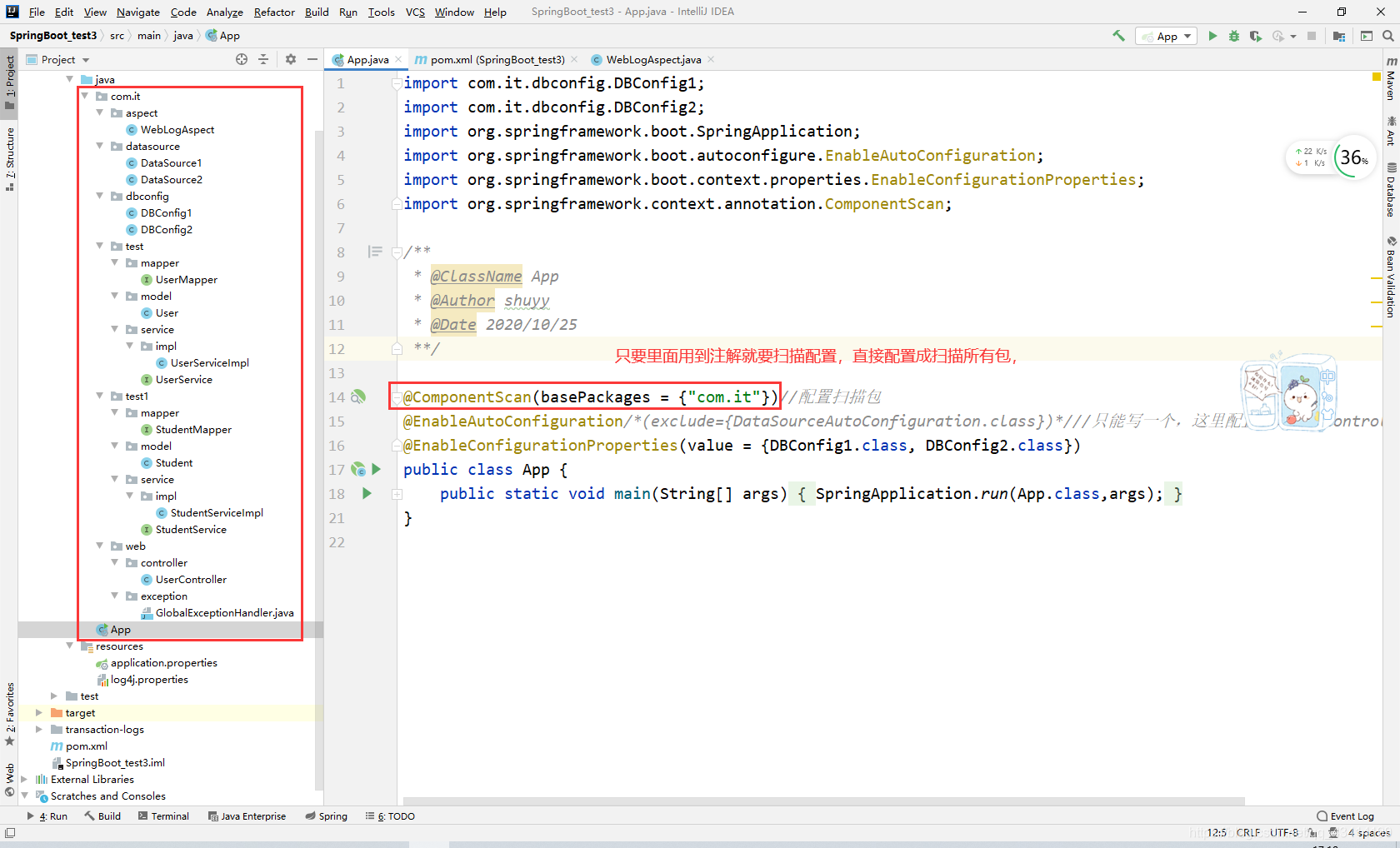

    在这里插入图片描述
@EnableConfigurationProperties(value = {DBConfig1.class, DBConfig2.class})

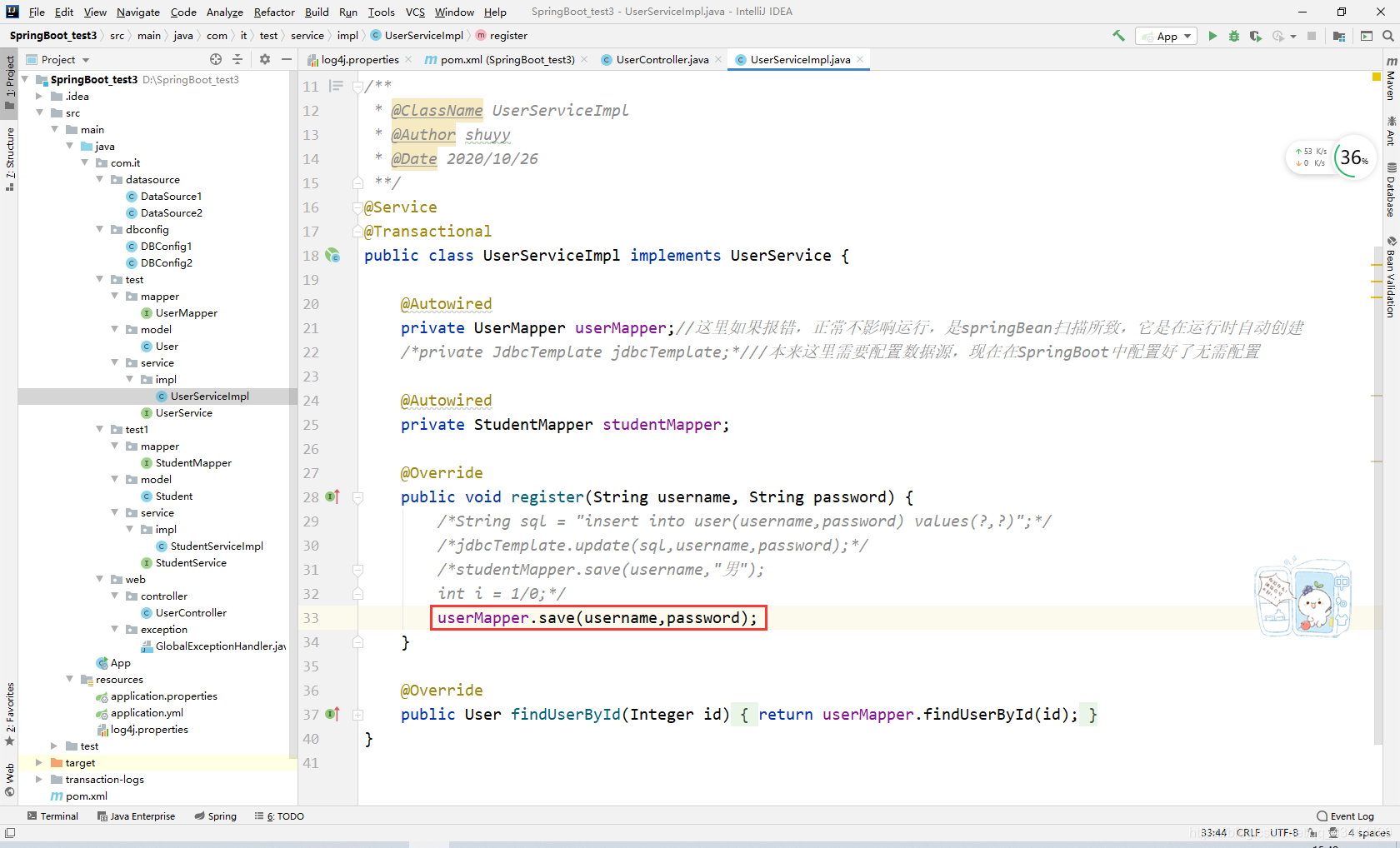

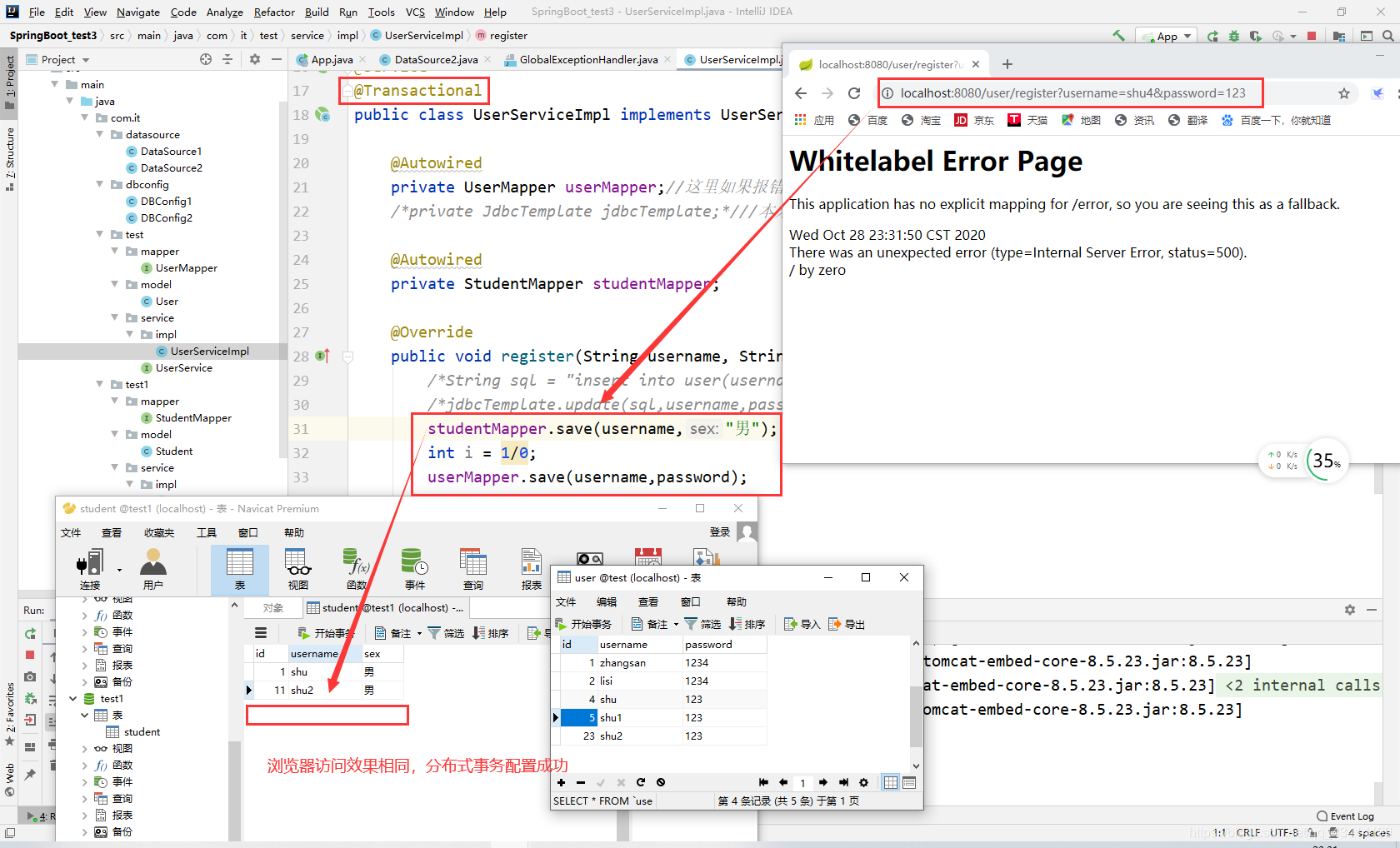

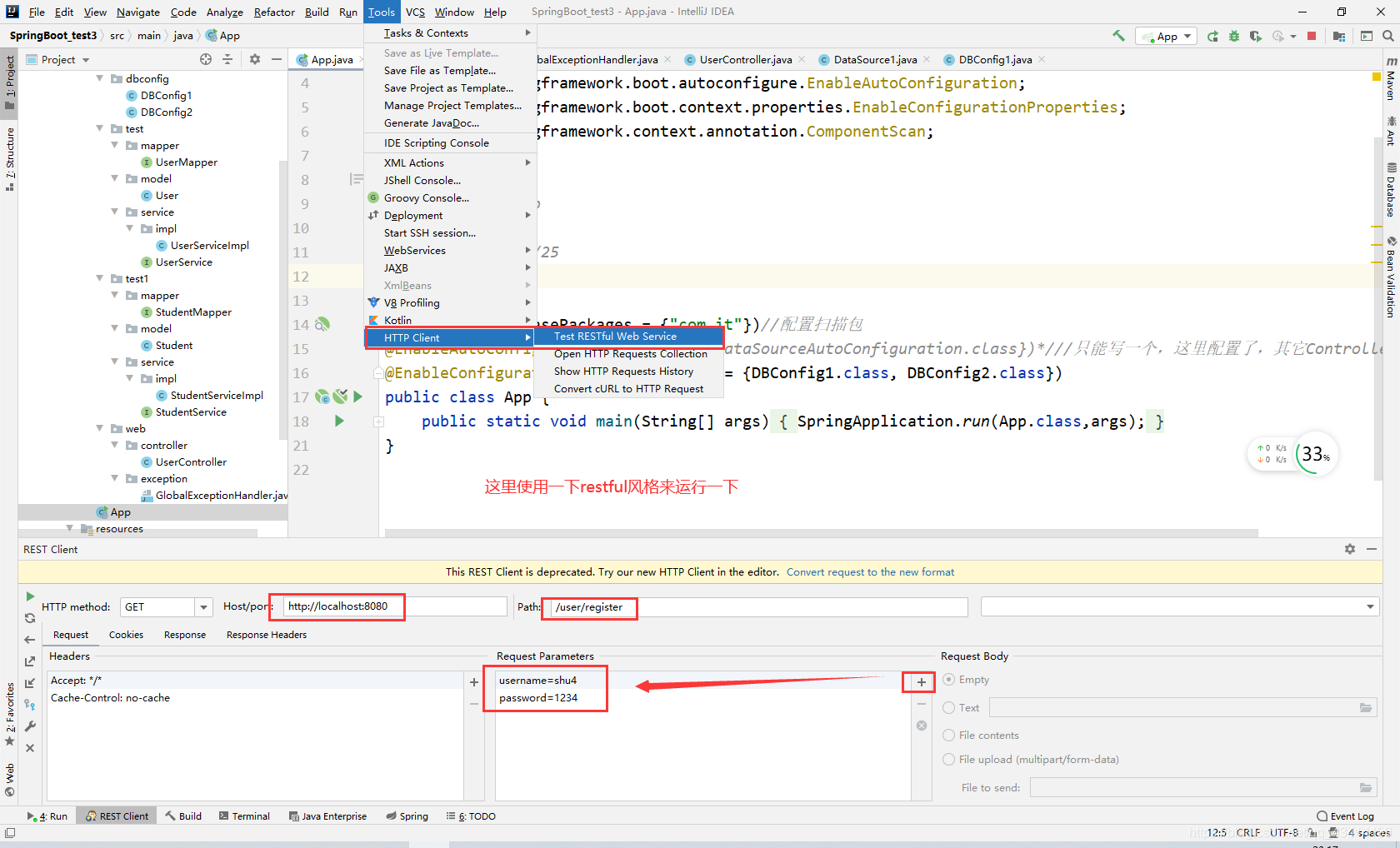

效果

  • 这里配置的是shu4
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
  • 更新版本的springboot已经有更好的方法来解决分布式事务了。这里是使用springboot+jta+atomikos解决低版本的分布式事务，记录一下。

7. SpringBoot整合log4j

第一步：导入Log4j属性文件

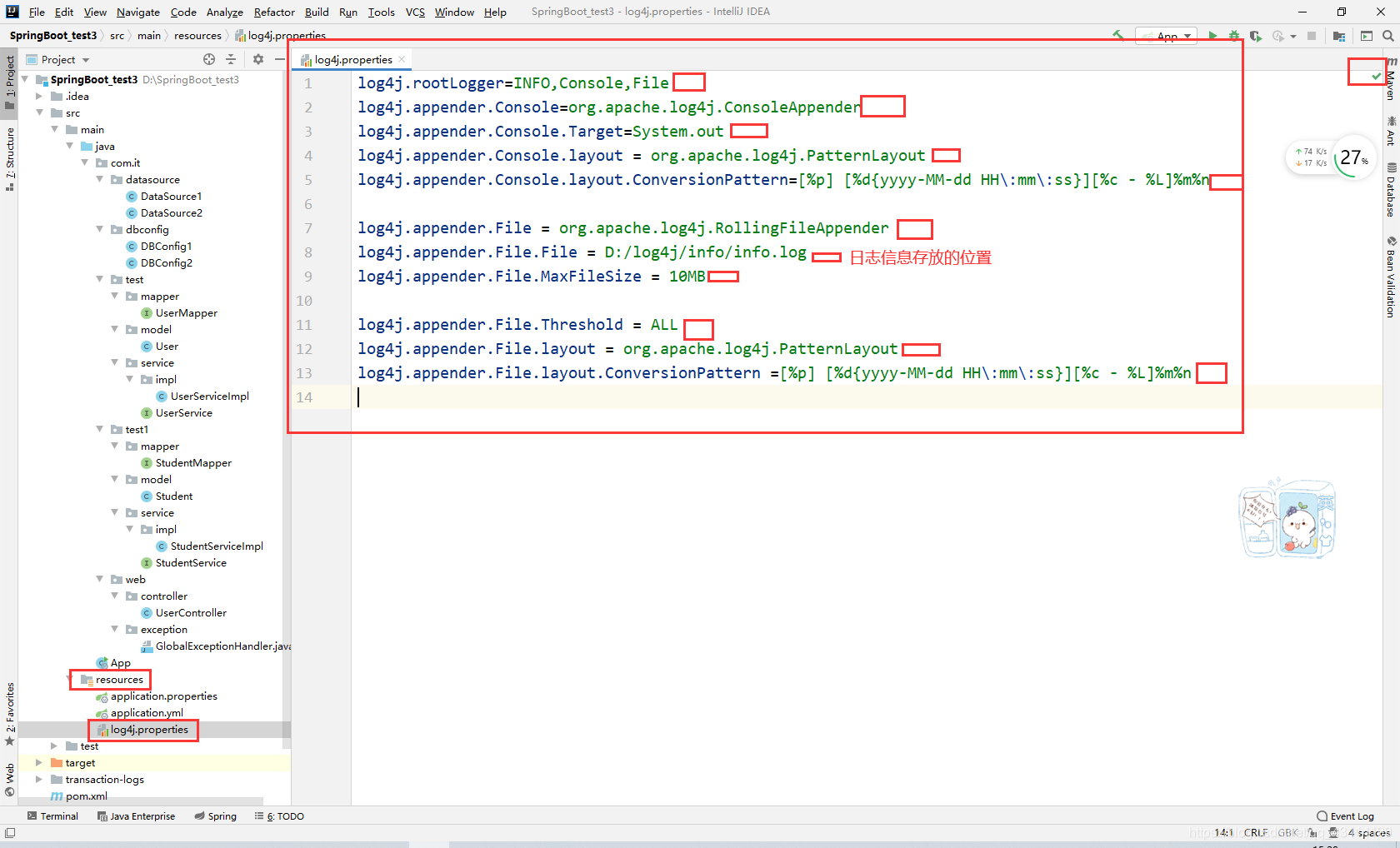

  • log4j.properties【注意：要把每一行后面的空格去除！】
    在这里插入图片描述
log4j.rootLogger=INFO,Console,File
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.Target=System.out
log4j.appender.Console.layout = org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=[%p] [%d{yyyy-MM-dd HH\:mm\:ss}][%c - %L]%m%n

log4j.appender.File = org.apache.log4j.RollingFileAppender
log4j.appender.File.File = D:/log4j/info/info.log
log4j.appender.File.MaxFileSize = 10MB

log4j.appender.File.Threshold = ALL
log4j.appender.File.layout = org.apache.log4j.PatternLayout
log4j.appender.File.layout.ConversionPattern =[%p] [%d{yyyy-MM-dd HH\:mm\:ss}][%c - %L]%m%n

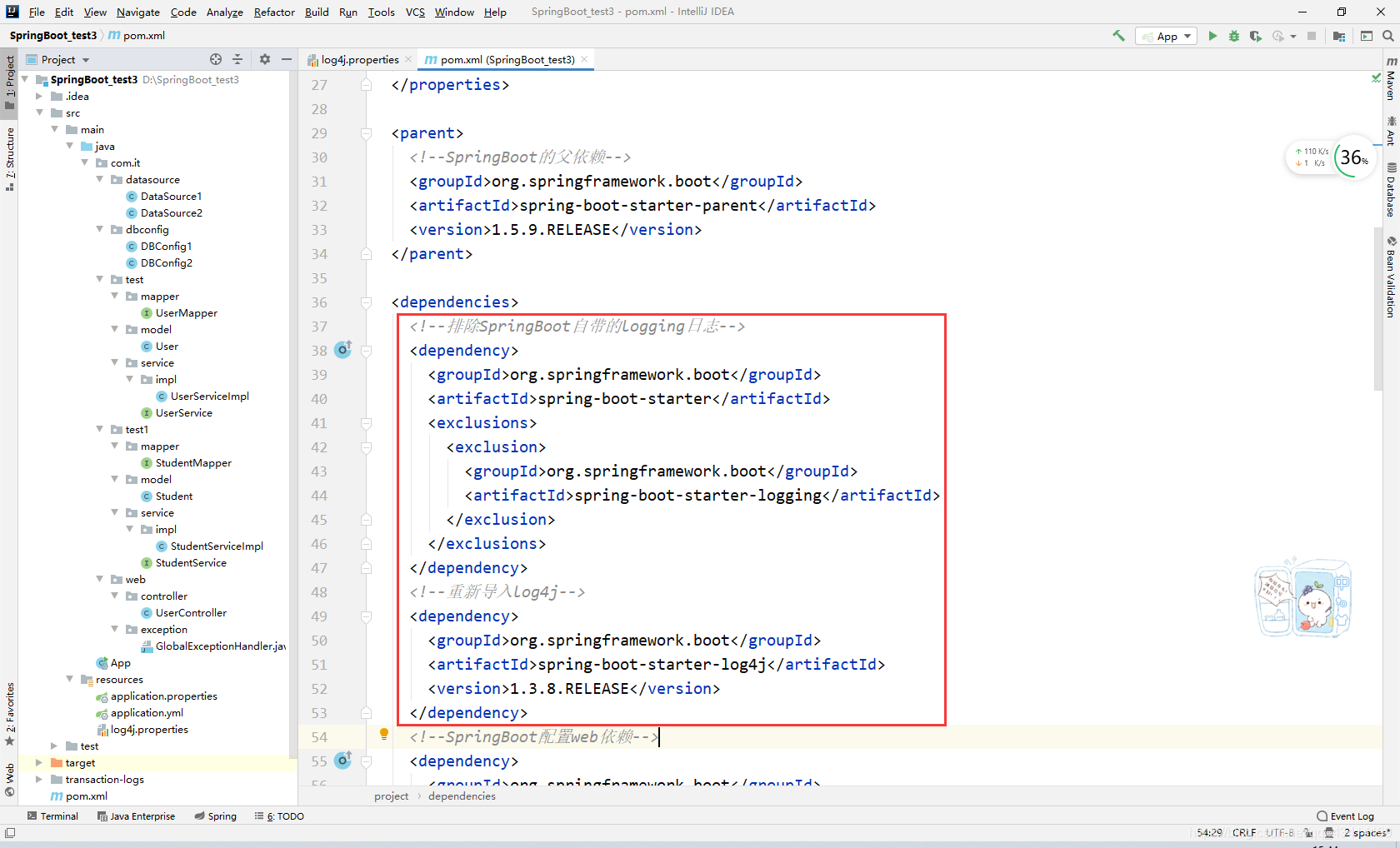

第二步：pom中添加依赖

  • 先去除springboot自带的logging，然后再添加log4j，因为自带的logging不起效果
  • springboot下的Log4j的版本最新1.3.8，如果你的springboot的parent版本过高，就需要单独为log4j添加版本号
    在这里插入图片描述
  • 加入以下build中的内容，很重要！【运行时要加载到target下的配置文件，所以打包时要加上必要的配置文件】
<!--排除SpringBoot自带的logging日志-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter</artifactId>
      <exclusions>
        <exclusion>
          <groupId>org.springframework.boot</groupId>
          <artifactId>spring-boot-starter-logging</artifactId>
        </exclusion>
      </exclusions>
    </dependency>
    <!--重新导入log4j-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-log4j</artifactId>
      <version>1.3.8.RELEASE</version>
    </dependency>
    <build>
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.*</include>
        </includes>
      </resource>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.*</include>
        </includes>
      </resource>
    </resources>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>

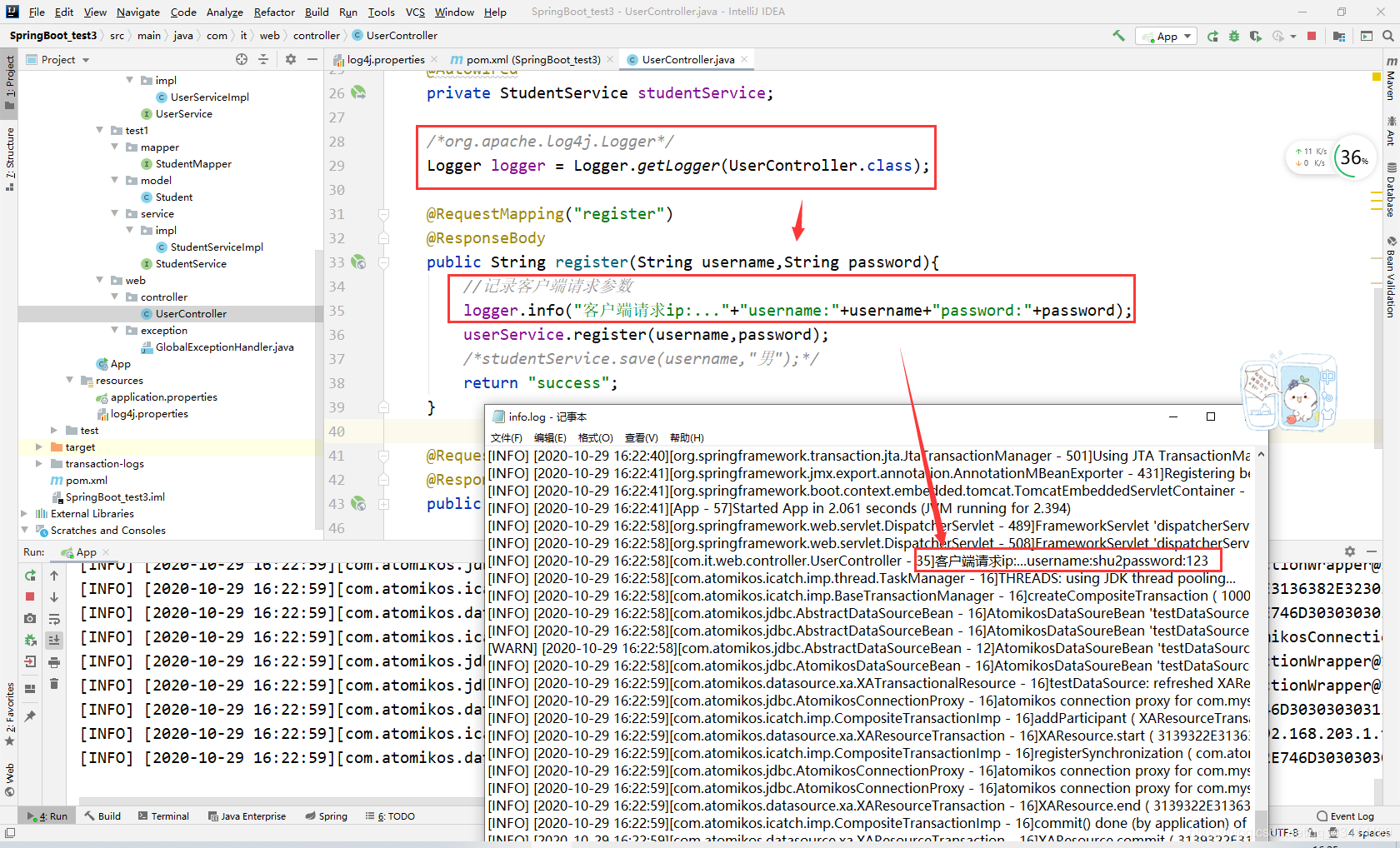

第三步：测试

在这里插入图片描述

  • 成功保存到日志中
    在这里插入图片描述

  • 发现这样保存日志信息很麻烦，每个请求都要写保存是不是很麻烦呢?所以使用aop切面类来统一管理web日志请求。

8. SpringBoot中使用AOP统一处理Web请求日志

第一步：pom中导入AOP依赖

在这里插入图片描述

	<!-- AOP -->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-aop</artifactId>
    </dependency>

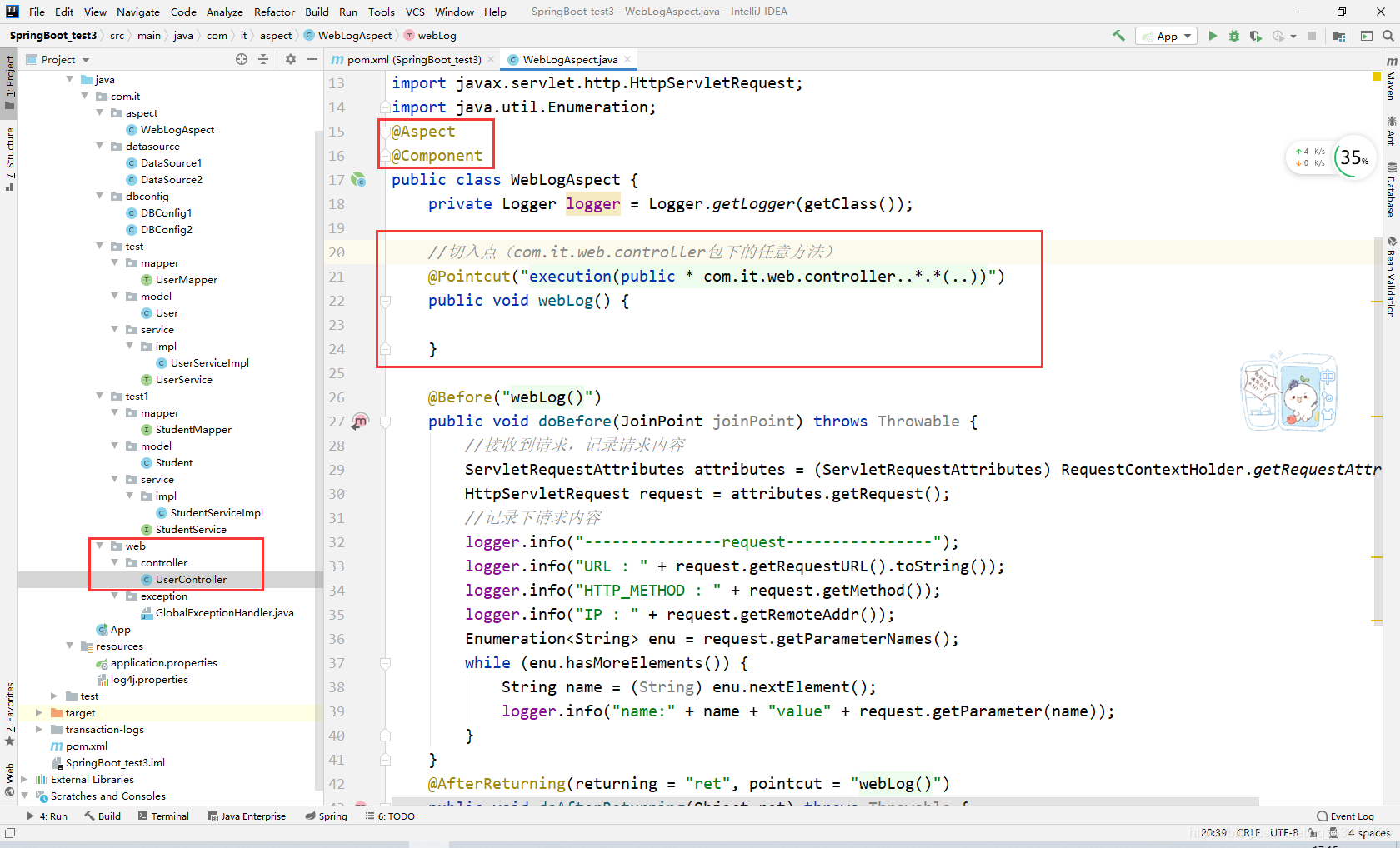

第二步：写个切面类

在这里插入图片描述

package com.it.aspect;

import org.apache.log4j.Logger;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.AfterReturning;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.aspectj.lang.annotation.Pointcut;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.servlet.http.HttpServletRequest;
import java.util.Enumeration;
@Aspect
@Component
public class WebLogAspect {
    private Logger logger = Logger.getLogger(getClass());

    //切入点（com.it.web.controller包下的任意方法）
    @Pointcut("execution(public * com.it.web.controller..*.*(..))")
    public void webLog() {

    }

    @Before("webLog()")
    public void doBefore(JoinPoint joinPoint) throws Throwable {
        //接收到请求，记录请求内容
        ServletRequestAttributes attributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
        HttpServletRequest request = attributes.getRequest();
        //记录下请求内容
        logger.info("---------------request----------------");
        logger.info("URL : " + request.getRequestURL().toString());
        logger.info("HTTP_METHOD : " + request.getMethod());
        logger.info("IP : " + request.getRemoteAddr());
        Enumeration<String> enu = request.getParameterNames();
        while (enu.hasMoreElements()) {
            String name = (String) enu.nextElement();
            logger.info("name:" + name + "value" + request.getParameter(name));
        }
    }
    @AfterReturning(returning = "ret", pointcut = "webLog()")
    public void doAfterReturning(Object ret) throws Throwable {
        logger.info("---------------response----------------");
        //处理完请求，返回内容
        logger.info("RESPONSE : " + ret);
    }
}

第三步：启动程序App配置注解扫描包

在这里插入图片描述

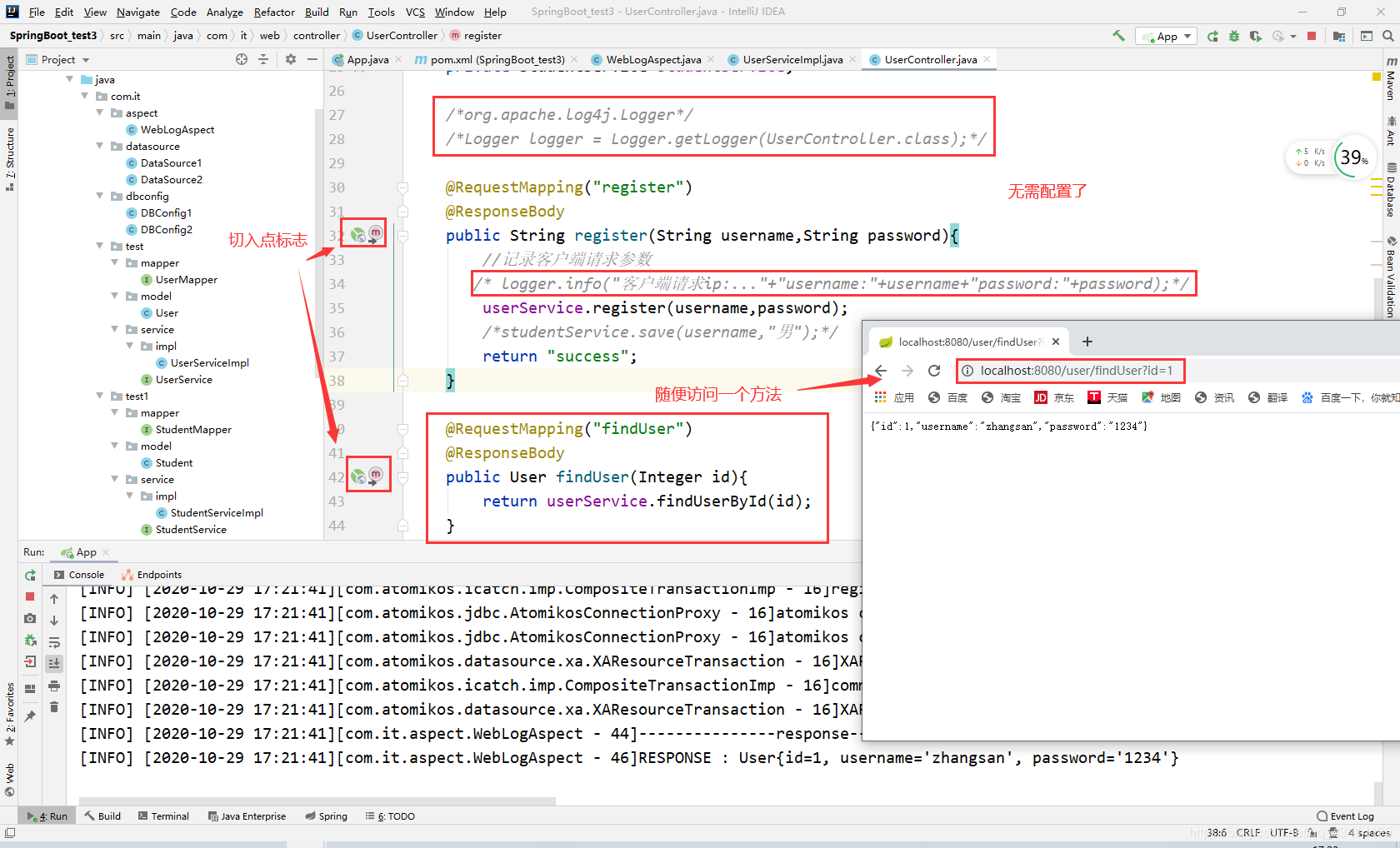

效果

在这里插入图片描述

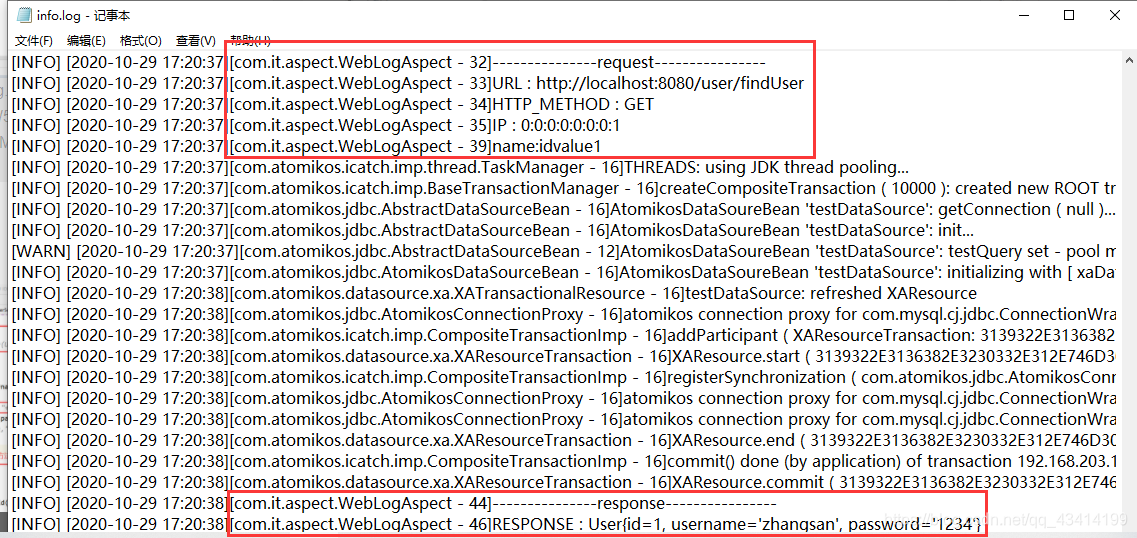

  • 日志中也成功写入
    在这里插入图片描述
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
