博客介绍了TreeList和DataTable的构造方法。TreeList构造需多添加ID和PID列，构建时要定义列名称、编码、ID和PARENTID。还需写加载TreeList和构建DataTable的方法，定义列和行后填充表，最后将DataTable赋给TreeList，并关联节点与ID、PID列。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

treelist的构造和datatable的构造方法一样，就是需要多添加ID和PID两个列并赋值

首先定义需要列名称、编码等
构建TreeList还必须定义ID和PARENTID（这是为了确定树的分层结构）

    private const string NAME_COLUMN = "NAME";
    private const string CODE_COLUMN = "CODE";
    private const string ID_COLUMN = "ID";
    private const string PARENT_COLUMN = "PARENT";

写一个加载TreeList的方法

public void LoadTreeList()
    {
        //构建datatable
        DataTable pDataTable = CreateDataTableStruct();
        FillDataTableData(pDataTable);

          //构建treelist结构
        CreateTreeListStruct();

         //将dataTable设置为treelist的datasource
        this.treeList1.ParentFieldName = PARENT_COLUMN;//定义tree的父节点列
        this.treeList1.KeyFieldName = ID_COLUMN;//定义子节点列
        this.treeList1.DataSource = pDataTable;
    }

写构建datatable的方法（定义了四个列）

     private DataTable CreateDataTableStruct()
    {
        DataTable pDataTable = new DataTable();

         //名称列
        DataColumn pNameColumn = new DataColumn();
        pNameColumn.ColumnName = NAME_COLUMN;
        pNameColumn.DataType = typeof(string);
        pNameColumn.Caption = "名称";
        pDataTable.Columns.Add(pNameColumn);

        //编码列
        DataColumn pCodeColumn = new DataColumn();
        pCodeColumn.ColumnName = CODE_COLUMN;
        pCodeColumn.DataType = typeof(string);
        pCodeColumn.Caption = "编码";
        pDataTable.Columns.Add(pCodeColumn);

        //ID列
        DataColumn pIdColumn = new DataColumn();
        pIdColumn.ColumnName = ID_COLUMN;
        pIdColumn.DataType = typeof(int);
        pIdColumn.Caption = "ID";
        pDataTable.Columns.Add(pIdColumn);

        //PID列
        DataColumn pParentIdColumn = new DataColumn();
        pParentIdColumn.ColumnName = PARENT_COLUMN;
        pParentIdColumn.DataType = typeof(int);
        pParentIdColumn.Caption = "PID";
        pDataTable.Columns.Add(pParentIdColumn);

        }

列定义好后，需要定义行来填充行

         private void FillNewRow(DataTable pDataSource, int id,int pid,string name, string  code)
    {
        DataRow pNewDataRow = pDataSource.NewRow();
        pNewDataRow[ID_COLUMN] = id;
        pNewDataRow[PARENT_COLUMN] = pid;
        pNewDataRow[NAME_COLUMN] = name;
        pNewDataRow[CODE_COLUMN] = code;

         pDataSource.Rows.Add(pNewDataRow);
    }

      private void FillNewRoadRow(DataTable pDataSource, int id, int pid, string name)
    {
        FillNewRow(pDataSource, id, pid, name, "");
    }

列和行都定义好后开始填充表

   private void FillDataTableData(DataTable dataSource)
    {
        FillNewRow(dataSource,0,-1, "图书馆");
        FillNewRow(dataSource,1,0, "山东科技大学图书馆");
        FillNewRow(dataSource,2,0, "江苏海洋大学图书馆");
        FillNewRow(dataSource, 3,1,"数值分析", "001");
        FillNewRow(dataSource, 4,1,"现代测量数据处理", "002");
        FillNewRow(dataSource, 5,1,"跨文化交际", "003");
        FillNewRow(dataSource, 6,2,"组合导航", "004");
        FillNewRow(dataSource, 7,2,"微波遥感", "005");
        FillNewRow(dataSource, 8,2,"海洋测量技术", "006");
    }

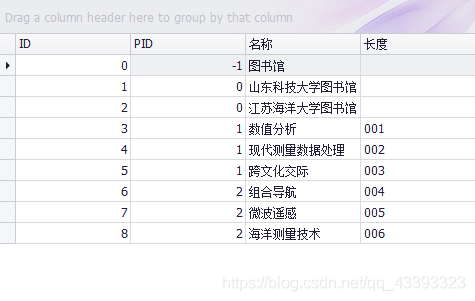

至此，一个datatable已经建好了，如下图样式在这里插入图片描述
接下来将datatable数据表赋给treelist，首先先构造出树的列，最后再把行的值传进去

  private void CreateTreeListStruct()
    {
        //清空列
        treeList1.Columns.Clear();

        //名称列
        TreeListColumn pNameColumn = this.treeList1.Columns.Add();//添加新列
        pNameColumn.FieldName = NAME_COLUMN;
        pNameColumn.Visible = true;//定义显不显示，如果不写就是默认不显示
        pNameColumn.Caption = "名称";

        //编码列
        TreeListColumn pCodeColumn = this.treeList1.Columns.Add();
        pCodeColumn.FieldName = CODE_COLUMN;
        pCodeColumn.Visible = true; // 显示
        pCodeColumn.Caption = "编码";

        //ID列
        TreeListColumn pIdColumn = this.treeList1.Columns.Add();
        pIdColumn.FieldName = ID_COLUMN;
        pIdColumn.Visible = false;//不显示
        pIdColumn.Caption = "ID";

         //PID列
         TreeListColumn pParentIdColumn = this.treeList1.Columns.Add();
        pParentIdColumn.FieldName = PARENT_COLUMN;
        pParentIdColumn.Visible = false;//不显示
        pParentIdColumn.Caption = "PID";

        }

在加载方法里已经将treelist的节点与ID列PID列关联
效果图如下
在这里插入图片描述
//获取鼠标点击的行的信息

        TreeListNode treeListNode = treeList1.FocusedNode;
