关于SSH多表联查sql语句中jion和Path expected for join!的问题！

       我的查询总共四个表:发票总表IV_Invoice 入库表IV_InInvoice  出库表IV_OutInvoice  交票表IV_Archive，然后对应关系就省略了。。。关系搭建的是没有任何问题的...直接看查询代码

//查询总表IV_InvoiceVo这个类是我查的所有数据封装类
	public List<IV_InvoiceVo> findall() {
			// TODO Auto-generated method stub
		System.out.println("查询总表daoimpl进来了。。。。");
		List<IV_InvoiceVo> list=getSession().createQuery("select new com.ssh.entity.IV_InvoiceVo(a.InvoiceType,b.StartNo,b.EndNo,b.Counts AS Sums,c.Counts,(b.Counts-c.Counts)AS Wsum,(SELECT COUNT(*) FROM IV_Invoice  WHERE Used=1)AS Used,(SELECT COUNT(*) FROM IV_Invoice  WHERE Invalid=1)AS Invalid,(d.counts) AS Archived,(c.Counts-d.counts)AS Wjcount,b.InDate)  FROM IV_Invoice AS a inner JOIN IV_INInvoice AS b ON a.InInvoiceID=b.InInvoiceID inner JOIN IV_OutInvoice AS c ON b.InInvoiceID=c.InInvoiceID inner JOIN iv_archive AS d ON d.InInvoiceID=a.InInvoiceID").list();
		return list;
		}

然后看IV_InvoiceVo类中类型（这个类是我把4张表所查的数据封装在里边了 就是查询语句as 的那些别名那些）

package com.ssh.entity;

import java.util.Date;

public class IV_InvoiceVo {
private int InvoiceType;//发票类型
	private String StartNo;//开始号码
	private String EndNo;//结束号码
	private int Sums;//总张数
	private int  Counts;//出库数
	private int Wsum;//未出数
	private int Used;//已用
	private int Invalid;//作废
	private int Archived;//已交
	private int Wjcount;//未交
	private Date InDate;//入库时间
	//private String EmpName;//入库人
     public IV_InvoiceVo() {
	}
//...省略构造方法
}

jsp页面代码使用的s标签页面过于太长剪短至循环

<thead>
						<tr>
							<th width="80">发票类型</th>
							<th width="80">起始号码</th>
							<th width="80">终止号码</th>
							<th width="60">总张数</th>
							<th width="60">出库数</th>
							<th width="60">未出数</th>
							<th width="60">已用数</th>
							<th width="60">作废数</th>
							<th width="60">待用数</th>
							<th width="60">已交数</th>
							<th width="60">未交数</th>
							<th width="80">入库日期</th>
							<th>入库操作员</th>
						</tr>
					</thead>
					<tbody>
						<s:iterator value="#request.list" var="i">
						<tr>
						<td>
						<s:if test="#i.InvoiceType==0">普通发票</s:if>
						<s:if test="#i.InvoiceType==1">增值税发票</s:if>
						</td>
							<td><s:property value="#i.StartNo"/></td>
							<td><s:property value="#i.EndNo"/></td>
							<td><s:property value="#i.Sums"/></td>
							<td><s:property value="#i.Counts"/></td>
							<td><s:property value="#i.Wsum"/></td>
							<td><s:property value="#i.Used"/></td>
							<td><s:property value="#i.Invalid"/></td>
							<td><s:property value="#i.Counts-#i.Used-#i.Invalid"/></td>
							<td><s:property value="#i.Archived"/></td>
							<td><s:property value="#i.Wjcount"/></td>
							<td><s:property value="#i.InDate"/></td>
							<td>${session.empName}</td>

						</tr>
						</s:iterator>

					</tbody>

然后再看报错

08:51:09.068 [http-nio-8080-exec-3] ERROR org.hibernate.hql.internal.ast.ErrorCounter -  Invalid path: 'b.StartNo'
org.hibernate.hql.internal.ast.InvalidPathException: Invalid path: 'b.StartNo'
----
----
----
08:51:09.079 [http-nio-8080-exec-3] ERROR org.hibernate.hql.internal.ast.ErrorCounter -  Invalid path: 'b.Counts'
org.hibernate.hql.internal.ast.InvalidPathException: Invalid path: 'b.Counts'
----
----
----
08:51:09.080 [http-nio-8080-exec-3] ERROR org.hibernate.hql.internal.ast.ErrorCounter - <AST>:0:0: unexpected end of subtree
antlr.NoViableAltException: unexpected end of subtree

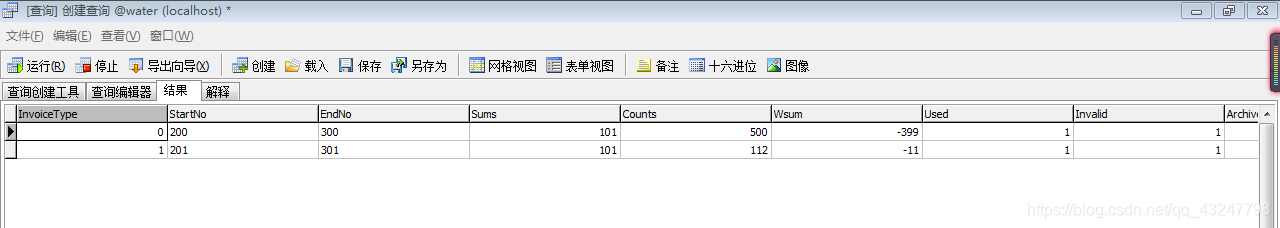

它说我这个b别名没有但是我在数据库中实现这条查询语句是可以执行的



select  a.InvoiceType,b.StartNo,b.EndNo,b.Counts AS Sums,c.Counts,(b.Counts-c.Counts)AS Wsum,(SELECT COUNT(*) FROM IV_Invoice  WHERE Used=1)AS Used,(SELECT COUNT(*) FROM IV_Invoice  WHERE Invalid=1)AS Invalid,(d.counts) AS Archived,(c.Counts-d.counts)AS Wjcount,b.InDate,e.EmpName  FROM IV_Invoice AS a inner JOIN IV_INInvoice AS b ON a.InInvoiceID=b.InInvoiceID inner JOIN IV_OutInvoice AS c ON b.InInvoiceID=c.InInvoiceID inner JOIN iv_archive AS d ON d.InInvoiceID=a.InInvoiceID inner JOIN SY_Emp AS e ON a.Empid=e.Empid

然后报那个Bug我仔细改又是找的，然后终于不报这个错了但是又换了一个错mmp...

Path expected for join!

然后我百度了看了这个博主的https://blog.youkuaiyun.com/sinat_36707441/article/details/79421313

说hql不支持join语法。

我的查询语句他是自动生成的，自动生成的语句不太能写编写复杂的，我也不确定。。。。

后面我继续弄，终于解决了这个问题...

1:实体类类型转换定义错了，定义的别名要用long型去封装。有些可能也不一样...



	private long Used;//已用
	private long Invalid;//作废

//查询总表
public List<IV_InvoiceVo> findall() {
			// TODO Auto-generated method stub
		//System.out.println("查询总表daoimpl进来了。。。。");
		List<IV_InvoiceVo> list=getSession().createQuery("select new com.ssh.entity.IV_InvoiceVo(a.InvoiceType,b.StartNo,b.EndNo,b.Counts as Sums,c.Counts,(b.Counts-c.Counts)as Wsum,(SELECT COUNT(*) FROM IV_Invoice  WHERE Used=1)as Used,(SELECT COUNT(*) FROM IV_Invoice  WHERE Invalid=1)as Invalid,(d.Counts) as Archived,(c.Counts-d.Counts)as Wjcount,b.InDate)  FROM IV_Invoice a,IV_InInvoice b inner JOIN IV_OutInvoice AS c ON b.InInvoiceID=c.InInvoiceID inner JOIN IV_Archive AS d ON d.InInvoiceID=a.InInvoiceID  and  a.InInvoiceID=b.InInvoiceID ").list();
		return list;
		}

2:关于你建了关系的表要联合起来。:

列如：FROM IV_Invoice a,IV_InInvoice b and a.id=b.id inner join.......

然后还有就是你搭建的关系可能像我这个一样empid在实体类中改为对象了，然后我把它删了，自己

放session里调

//	private String EmpName;//入库操作人

3:没有解决不了Bug！

事实证明自动生成sql还是可以编译复杂点的语句。。

总结Bug解决方法

1.hql的join不支持没使用外键连接的不同表查询

2.查询语句是你的实体类名称不是数据库里的

3.搭建关系的表要联合

4.实体类里面的你定义的类型要跟sql一样

5.还有就是你多方关系可以选择像我一样session调。哈哈哈
