1.整合思路：
持久层
sqlMapConfig.xml(可以为空、可以不存在)
applicationContext-dao.xml
数据源
sqlSessionFactory
数据源
别名
mapper扫描器
业务层
applicationContext-service.xml
事务
包扫描器 @Service
表现层
springmvc.xml
包扫描器 @Controller
注解驱动 <mvc:annotation-driven/>
视图解析器
web.xml
前端控制器：初始化springmvc容器
监听器：初始化spring容器

2、开发步骤
创建数据库

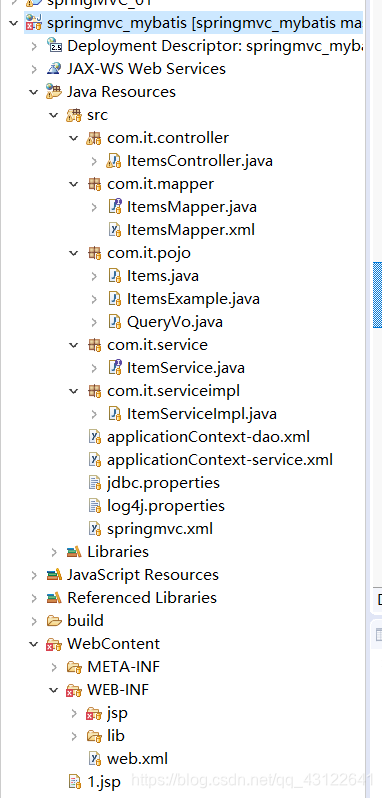

创建web工程
添加jar：mybatis、mybatis扩展包、spring、mybatis和spring整合包、junit、springmvc
添加配置文件
持久层开发：代码使用逆向工程
业务层开发：接口+实现类
表现层开发：注解开发方式

web.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">
  <filter>
    <filter-name>CharacterEncodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>utf-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>CharacterEncodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>
  <servlet>
    <servlet-name>springmvc</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:springmvc.xml</param-value>
    </init-param>
  </servlet>
  <servlet-mapping>
    <servlet-name>springmvc</servlet-name>
    <url-pattern>*.action</url-pattern>
  </servlet-mapping>
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext-*.xml</param-value>
  </context-param>
</web-app>

springmvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsd">


  <context:component-scan base-package="com.it.controller"></context:component-scan>
<!--  注解驱动 目的：加载新版本的处理器映射器、处理器适配器-->
 <mvc:annotation-driven/>



<!--  配置视图解析器的前缀和后缀 -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
 <property name="prefix" value="/WEB-INF/jsp/"></property>
 <property name="suffix" value=".jsp"></property>
</bean>

</beans>

log4j.properties

### direct log messages to stdout ###
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.err
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n

### direct messages to file mylog.log ###
log4j.appender.file=org.apache.log4j.FileAppender
log4j.appender.file.File=c\:mylog.log
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n

### set log levels - for more verbose logging change 'info' to 'debug' ###
# error warn info debug trace
log4j.rootLogger= info, stdout

jdbc.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/springmvc?characterEncoding=utf8&useSSL=false&serverTimezone=UTC&rewriteBatchedStatements=true
jdbc.username=root
jdbc.password=123


#jdbc.driver=com.mysql.jdbc.Driver
#jdbc.url=jdbc:oracle://localhost:3306/hibernate
#jdbc.username=root
#jdbc.password=1234


#jdbc.driver=com.mysql.jdbc.Driver
#jdbc.url=jdbc:db2://localhost:3306/hibernate
#jdbc.username=root
#jdbc.password=1234

applicationContext-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
		<!-- 加载配置文件 -->
	<context:property-placeholder location="classpath:jdbc.properties" />
	<!-- 数据库连接池 -->
	<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
		destroy-method="close">
		<property name="driverClassName" value="${jdbc.driver}" />
		<property name="url" value="${jdbc.url}" />
		<property name="username" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />
		<property name="maxActive" value="10" />
		<property name="maxIdle" value="5" />
	</bean>
	<!-- mapper配置 -->
	<!-- 让spring管理sqlsessionfactory 使用mybatis和spring整合包中的 -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<!-- 数据库连接池 -->
		<property name="dataSource" ref="dataSource"></property>
		<property name="typeAliasesPackage" value="com.it.pojo"></property>
	</bean>
	<!-- mapper扫描器 ：用来产生代理对象-->
     <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
       <property name="basePackage" value="com.it.mapper"></property>
     </bean>

</beans>

applicationContext-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
	<context:component-scan base-package="com.it.serviceimpl"/>

    <!-- 事务管理器 -->
	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<!-- 数据源 -->
		<property name="dataSource" ref="dataSource" />
	</bean>
	<!-- 通知 -->
	<tx:advice id="txAdvice" transaction-manager="transactionManager">
		<tx:attributes>
			<!-- 传播行为 -->
			<tx:method name="save*" propagation="REQUIRED" />
			<tx:method name="insert*" propagation="REQUIRED" />
			<tx:method name="delete*" propagation="REQUIRED" />
			<tx:method name="update*" propagation="REQUIRED" />
			<tx:method name="find*" propagation="SUPPORTS" read-only="true" />
			<tx:method name="get*" propagation="SUPPORTS" read-only="true" />
		</tx:attributes>
	</tx:advice>
	<!-- 切面 -->
	<aop:config>
		<aop:advisor advice-ref="txAdvice"
			pointcut="execution(* com.it.serviceimpl.*.*(..))" />
	</aop:config>


</beans>

ItemsController.java

package com.it.controller;

import java.util.List;

import javax.management.Query;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.ui.ModelMap;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.ModelAndView;

import com.it.pojo.Items;
import com.it.pojo.QueryVo;
import com.it.service.ItemService;


@Controller
public class ItemsController {

	@Autowired
	private ItemService itemService ;

	@RequestMapping("/list")
	public ModelAndView showList(HttpServletRequest request, HttpServletResponse response) throws Exception{
		List<Items> list = itemService.findAll();
		ModelAndView modelAndView = new ModelAndView();
		modelAndView.addObject("itemList", list);
		modelAndView.setViewName("itemList");
		return modelAndView;
	}
	//到修改界面去
	///itemEdit.action?id=${item.id}
	@RequestMapping("/itemEdit")
	public ModelAndView itemEdit(@RequestParam(value="id",required=false,defaultValue="1")int itemId) {
		Items item = itemService.findById(itemId);
		ModelAndView modelAndView=new ModelAndView();
		modelAndView.addObject("item", item);
		modelAndView.setViewName("editItem");
		return modelAndView;

	}

	//	商品修改
	@RequestMapping("/updateitem")
	public String updateitem(Items item,Model model){
		itemService.update(item);

//		逻辑视图：jsp的路径
		return "success";
	}
}

ItemService.java

package com.it.service;

import java.util.List;

import com.it.pojo.Items;


public interface ItemService {

	public List<Items> findAll();

	public Items findById(int itemId);

	public void update(Items item);

}

ItemServiceImpl.java

package com.it.serviceimpl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.it.mapper.ItemsMapper;
import com.it.pojo.Items;
import com.it.pojo.ItemsExample;
import com.it.service.ItemService;

@Service
public class ItemServiceImpl implements ItemService {

	@Autowired
	private ItemsMapper itemsMapper;
	public List<Items> findAll() {
		return itemsMapper.selectByExampleWithBLOBs(new ItemsExample());
	}
	public Items findById(int itemId) {
		return itemsMapper.selectByPrimaryKey(itemId);
	}
	public void update(Items item) {
		itemsMapper.updateByPrimaryKeySelective(item);
	}

}

ItemsMapper.java

package com.it.mapper;

import java.util.List;
import org.apache.ibatis.annotations.Param;

import com.it.pojo.Items;
import com.it.pojo.ItemsExample;

public interface ItemsMapper {
    int countByExample(ItemsExample example);

    int deleteByExample(ItemsExample example);

    int deleteByPrimaryKey(Integer id);

    int insert(Items record);

    int insertSelective(Items record);

    List<Items> selectByExampleWithBLOBs(ItemsExample example);

    List<Items> selectByExample(ItemsExample example);

    Items selectByPrimaryKey(Integer id);

    int updateByExampleSelective(@Param("record") Items record, @Param("example") ItemsExample example);

    int updateByExampleWithBLOBs(@Param("record") Items record, @Param("example") ItemsExample example);

    int updateByExample(@Param("record") Items record, @Param("example") ItemsExample example);

    int updateByPrimaryKeySelective(Items record);

    int updateByPrimaryKeyWithBLOBs(Items record);

    int updateByPrimaryKey(Items record);
}

ItemsMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.it.mapper.ItemsMapper" >
  <resultMap id="BaseResultMap" type="com.it.pojo.Items" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="name" property="name" jdbcType="VARCHAR" />
    <result column="price" property="price" jdbcType="REAL" />
    <result column="pic" property="pic" jdbcType="VARCHAR" />
    <result column="createtime" property="createtime" jdbcType="TIMESTAMP" />
  </resultMap>
  <resultMap id="ResultMapWithBLOBs" type="com.it.pojo.Items" extends="BaseResultMap" >
    <result column="detail" property="detail" jdbcType="LONGVARCHAR" />
  </resultMap>
  <sql id="Example_Where_Clause" >
    <where >
      <foreach collection="oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Update_By_Example_Where_Clause" >
    <where >
      <foreach collection="example.oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Base_Column_List" >
    id, name, price, pic, createtime
  </sql>
  <sql id="Blob_Column_List" >
    detail
  </sql>
  <select id="selectByExampleWithBLOBs" resultMap="ResultMapWithBLOBs" parameterType="com.it.pojo.ItemsExample" >
    select
    <if test="distinct" >
      distinct
    </if>
    <include refid="Base_Column_List" />
    ,
    <include refid="Blob_Column_List" />
    from items
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
    <if test="orderByClause != null" >
      order by ${orderByClause}
    </if>
  </select>
  <select id="selectByExample" resultMap="BaseResultMap" parameterType="com.it.pojo.ItemsExample" >
    select
    <if test="distinct" >
      distinct
    </if>
    <include refid="Base_Column_List" />
    from items
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
    <if test="orderByClause != null" >
      order by ${orderByClause}
    </if>
  </select>
  <select id="selectByPrimaryKey" resultMap="ResultMapWithBLOBs" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    ,
    <include refid="Blob_Column_List" />
    from items
    where id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from items
    where id = #{id,jdbcType=INTEGER}
  </delete>
  <delete id="deleteByExample" parameterType="com.it.pojo.ItemsExample" >
    delete from items
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </delete>
  <insert id="insert" parameterType="com.it.pojo.Items" >
    insert into items (id, name, price,
      pic, createtime, detail
      )
    values (#{id,jdbcType=INTEGER}, #{name,jdbcType=VARCHAR}, #{price,jdbcType=REAL},
      #{pic,jdbcType=VARCHAR}, #{createtime,jdbcType=TIMESTAMP}, #{detail,jdbcType=LONGVARCHAR}
      )
  </insert>
  <insert id="insertSelective" parameterType="com.it.pojo.Items" >
    insert into items
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        id,
      </if>
      <if test="name != null" >
        name,
      </if>
      <if test="price != null" >
        price,
      </if>
      <if test="pic != null" >
        pic,
      </if>
      <if test="createtime != null" >
        createtime,
      </if>
      <if test="detail != null" >
        detail,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        #{id,jdbcType=INTEGER},
      </if>
      <if test="name != null" >
        #{name,jdbcType=VARCHAR},
      </if>
      <if test="price != null" >
        #{price,jdbcType=REAL},
      </if>
      <if test="pic != null" >
        #{pic,jdbcType=VARCHAR},
      </if>
      <if test="createtime != null" >
        #{createtime,jdbcType=TIMESTAMP},
      </if>
      <if test="detail != null" >
        #{detail,jdbcType=LONGVARCHAR},
      </if>
    </trim>
  </insert>
  <select id="countByExample" parameterType="com.it.pojo.ItemsExample" resultType="java.lang.Integer" >
    select count(*) from items
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </select>
  <update id="updateByExampleSelective" parameterType="map" >
    update items
    <set >
      <if test="record.id != null" >
        id = #{record.id,jdbcType=INTEGER},
      </if>
      <if test="record.name != null" >
        name = #{record.name,jdbcType=VARCHAR},
      </if>
      <if test="record.price != null" >
        price = #{record.price,jdbcType=REAL},
      </if>
      <if test="record.pic != null" >
        pic = #{record.pic,jdbcType=VARCHAR},
      </if>
      <if test="record.createtime != null" >
        createtime = #{record.createtime,jdbcType=TIMESTAMP},
      </if>
      <if test="record.detail != null" >
        detail = #{record.detail,jdbcType=LONGVARCHAR},
      </if>
    </set>
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByExampleWithBLOBs" parameterType="map" >
    update items
    set id = #{record.id,jdbcType=INTEGER},
      name = #{record.name,jdbcType=VARCHAR},
      price = #{record.price,jdbcType=REAL},
      pic = #{record.pic,jdbcType=VARCHAR},
      createtime = #{record.createtime,jdbcType=TIMESTAMP},
      detail = #{record.detail,jdbcType=LONGVARCHAR}
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByExample" parameterType="map" >
    update items
    set id = #{record.id,jdbcType=INTEGER},
      name = #{record.name,jdbcType=VARCHAR},
      price = #{record.price,jdbcType=REAL},
      pic = #{record.pic,jdbcType=VARCHAR},
      createtime = #{record.createtime,jdbcType=TIMESTAMP}
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByPrimaryKeySelective" parameterType="com.it.pojo.Items" >
    update items
    <set >
      <if test="name != null" >
        name = #{name,jdbcType=VARCHAR},
      </if>
      <if test="price != null" >
        price = #{price,jdbcType=REAL},
      </if>
      <if test="pic != null" >
        pic = #{pic,jdbcType=VARCHAR},
      </if>
      <if test="createtime != null" >
        createtime = #{createtime,jdbcType=TIMESTAMP},
      </if>
      <if test="detail != null" >
        detail = #{detail,jdbcType=LONGVARCHAR},
      </if>
    </set>
    where id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKeyWithBLOBs" parameterType="com.it.pojo.Items" >
    update items
    set name = #{name,jdbcType=VARCHAR},
      price = #{price,jdbcType=REAL},
      pic = #{pic,jdbcType=VARCHAR},
      createtime = #{createtime,jdbcType=TIMESTAMP},
      detail = #{detail,jdbcType=LONGVARCHAR}
    where id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.it.pojo.Items" >
    update items
    set name = #{name,jdbcType=VARCHAR},
      price = #{price,jdbcType=REAL},
      pic = #{pic,jdbcType=VARCHAR},
      createtime = #{createtime,jdbcType=TIMESTAMP}
    where id = #{id,jdbcType=INTEGER}
  </update>
</mapper>

Items.java

package com.it.pojo;

import java.util.Date;

import org.springframework.format.annotation.DateTimeFormat;

public class Items {
    private Integer id;

    private String name;

    private Float price;

    private String pic;

    @DateTimeFormat(pattern="yyyy-MM-dd HH:mm:ss")
    private Date createtime;

    private String detail;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name == null ? null : name.trim();
    }

    public Float getPrice() {
        return price;
    }

    public void setPrice(Float price) {
        this.price = price;
    }

    public String getPic() {
        return pic;
    }

    public void setPic(String pic) {
        this.pic = pic == null ? null : pic.trim();
    }

    public Date getCreatetime() {
        return createtime;
    }

    public void setCreatetime(Date createtime) {
        this.createtime = createtime;
    }

    public String getDetail() {
        return detail;
    }

    public void setDetail(String detail) {
        this.detail = detail == null ? null : detail.trim();
    }
}

package com.it.pojo;

import java.util.ArrayList;
import java.util.Date;
import java.util.List;

public class ItemsExample {
    protected String orderByClause;

    protected boolean distinct;

    protected List<Criteria> oredCriteria;

    public ItemsExample() {
        oredCriteria = new ArrayList<Criteria>();
    }

    public void setOrderByClause(String orderByClause) {
        this.orderByClause = orderByClause;
    }

    public String getOrderByClause() {
        return orderByClause;
    }

    public void setDistinct(boolean distinct) {
        this.distinct = distinct;
    }

    public boolean isDistinct() {
        return distinct;
    }

    public List<Criteria> getOredCriteria() {
        return oredCriteria;
    }

    public void or(Criteria criteria) {
        oredCriteria.add(criteria);
    }

    public Criteria or() {
        Criteria criteria = createCriteriaInternal();
        oredCriteria.add(criteria);
        return criteria;
    }

    public Criteria createCriteria() {
        Criteria criteria = createCriteriaInternal();
        if (oredCriteria.size() == 0) {
            oredCriteria.add(criteria);
        }
        return criteria;
    }

    protected Criteria createCriteriaInternal() {
        Criteria criteria = new Criteria();
        return criteria;
    }

    public void clear() {
        oredCriteria.clear();
        orderByClause = null;
        distinct = false;
    }

    protected abstract static class GeneratedCriteria {
        protected List<Criterion> criteria;

        protected GeneratedCriteria() {
            super();
            criteria = new ArrayList<Criterion>();
        }

        public boolean isValid() {
            return criteria.size() > 0;
        }

        public List<Criterion> getAllCriteria() {
            return criteria;
        }

        public List<Criterion> getCriteria() {
            return criteria;
        }

        protected void addCriterion(String condition) {
            if (condition == null) {
                throw new RuntimeException("Value for condition cannot be null");
            }
            criteria.add(new Criterion(condition));
        }

        protected void addCriterion(String condition, Object value, String property) {
            if (value == null) {
                throw new RuntimeException("Value for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value));
        }

        protected void addCriterion(String condition, Object value1, Object value2, String property) {
            if (value1 == null || value2 == null) {
                throw new RuntimeException("Between values for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value1, value2));
        }

        public Criteria andIdIsNull() {
            addCriterion("id is null");
            return (Criteria) this;
        }

        public Criteria andIdIsNotNull() {
            addCriterion("id is not null");
            return (Criteria) this;
        }

        public Criteria andIdEqualTo(Integer value) {
            addCriterion("id =", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdNotEqualTo(Integer value) {
            addCriterion("id <>", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdGreaterThan(Integer value) {
            addCriterion("id >", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdGreaterThanOrEqualTo(Integer value) {
            addCriterion("id >=", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdLessThan(Integer value) {
            addCriterion("id <", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdLessThanOrEqualTo(Integer value) {
            addCriterion("id <=", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdIn(List<Integer> values) {
            addCriterion("id in", values, "id");
            return (Criteria) this;
        }

        public Criteria andIdNotIn(List<Integer> values) {
            addCriterion("id not in", values, "id");
            return (Criteria) this;
        }

        public Criteria andIdBetween(Integer value1, Integer value2) {
            addCriterion("id between", value1, value2, "id");
            return (Criteria) this;
        }

        public Criteria andIdNotBetween(Integer value1, Integer value2) {
            addCriterion("id not between", value1, value2, "id");
            return (Criteria) this;
        }

        public Criteria andNameIsNull() {
            addCriterion("name is null");
            return (Criteria) this;
        }

        public Criteria andNameIsNotNull() {
            addCriterion("name is not null");
            return (Criteria) this;
        }

        public Criteria andNameEqualTo(String value) {
            addCriterion("name =", value, "name");
            return (Criteria) this;
        }

        public Criteria andNameNotEqualTo(String value) {
            addCriterion("name <>", value, "name");
            return (Criteria) this;
        }

        public Criteria andNameGreaterThan(String value) {
            addCriterion("name >", value, "name");
            return (Criteria) this;
        }

        public Criteria andNameGreaterThanOrEqualTo(String value) {
            addCriterion("name >=", value, "name");
            return (Criteria) this;
        }

        public Criteria andNameLessThan(String value) {
            addCriterion("name <", value, "name");
            return (Criteria) this;
        }

        public Criteria andNameLessThanOrEqualTo(String value) {
            addCriterion("name <=", value, "name");
            return (Criteria) this;
        }

        public Criteria andNameLike(String value) {
            addCriterion("name like", value, "name");
            return (Criteria) this;
        }

        public Criteria andNameNotLike(String value) {
            addCriterion("name not like", value, "name");
            return (Criteria) this;
        }

        public Criteria andNameIn(List<String> values) {
            addCriterion("name in", values, "name");
            return (Criteria) this;
        }

        public Criteria andNameNotIn(List<String> values) {
            addCriterion("name not in", values, "name");
            return (Criteria) this;
        }

        public Criteria andNameBetween(String value1, String value2) {
            addCriterion("name between", value1, value2, "name");
            return (Criteria) this;
        }

        public Criteria andNameNotBetween(String value1, String value2) {
            addCriterion("name not between", value1, value2, "name");
            return (Criteria) this;
        }

        public Criteria andPriceIsNull() {
            addCriterion("price is null");
            return (Criteria) this;
        }

        public Criteria andPriceIsNotNull() {
            addCriterion("price is not null");
            return (Criteria) this;
        }

        public Criteria andPriceEqualTo(Float value) {
            addCriterion("price =", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceNotEqualTo(Float value) {
            addCriterion("price <>", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceGreaterThan(Float value) {
            addCriterion("price >", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceGreaterThanOrEqualTo(Float value) {
            addCriterion("price >=", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceLessThan(Float value) {
            addCriterion("price <", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceLessThanOrEqualTo(Float value) {
            addCriterion("price <=", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceIn(List<Float> values) {
            addCriterion("price in", values, "price");
            return (Criteria) this;
        }

        public Criteria andPriceNotIn(List<Float> values) {
            addCriterion("price not in", values, "price");
            return (Criteria) this;
        }

        public Criteria andPriceBetween(Float value1, Float value2) {
            addCriterion("price between", value1, value2, "price");
            return (Criteria) this;
        }

        public Criteria andPriceNotBetween(Float value1, Float value2) {
            addCriterion("price not between", value1, value2, "price");
            return (Criteria) this;
        }

        public Criteria andPicIsNull() {
            addCriterion("pic is null");
            return (Criteria) this;
        }

        public Criteria andPicIsNotNull() {
            addCriterion("pic is not null");
            return (Criteria) this;
        }

        public Criteria andPicEqualTo(String value) {
            addCriterion("pic =", value, "pic");
            return (Criteria) this;
        }

        public Criteria andPicNotEqualTo(String value) {
            addCriterion("pic <>", value, "pic");
            return (Criteria) this;
        }

        public Criteria andPicGreaterThan(String value) {
            addCriterion("pic >", value, "pic");
            return (Criteria) this;
        }

        public Criteria andPicGreaterThanOrEqualTo(String value) {
            addCriterion("pic >=", value, "pic");
            return (Criteria) this;
        }

        public Criteria andPicLessThan(String value) {
            addCriterion("pic <", value, "pic");
            return (Criteria) this;
        }

        public Criteria andPicLessThanOrEqualTo(String value) {
            addCriterion("pic <=", value, "pic");
            return (Criteria) this;
        }

        public Criteria andPicLike(String value) {
            addCriterion("pic like", value, "pic");
            return (Criteria) this;
        }

        public Criteria andPicNotLike(String value) {
            addCriterion("pic not like", value, "pic");
            return (Criteria) this;
        }

        public Criteria andPicIn(List<String> values) {
            addCriterion("pic in", values, "pic");
            return (Criteria) this;
        }

        public Criteria andPicNotIn(List<String> values) {
            addCriterion("pic not in", values, "pic");
            return (Criteria) this;
        }

        public Criteria andPicBetween(String value1, String value2) {
            addCriterion("pic between", value1, value2, "pic");
            return (Criteria) this;
        }

        public Criteria andPicNotBetween(String value1, String value2) {
            addCriterion("pic not between", value1, value2, "pic");
            return (Criteria) this;
        }

        public Criteria andCreatetimeIsNull() {
            addCriterion("createtime is null");
            return (Criteria) this;
        }

        public Criteria andCreatetimeIsNotNull() {
            addCriterion("createtime is not null");
            return (Criteria) this;
        }

        public Criteria andCreatetimeEqualTo(Date value) {
            addCriterion("createtime =", value, "createtime");
            return (Criteria) this;
        }

        public Criteria andCreatetimeNotEqualTo(Date value) {
            addCriterion("createtime <>", value, "createtime");
            return (Criteria) this;
        }

        public Criteria andCreatetimeGreaterThan(Date value) {
            addCriterion("createtime >", value, "createtime");
            return (Criteria) this;
        }

        public Criteria andCreatetimeGreaterThanOrEqualTo(Date value) {
            addCriterion("createtime >=", value, "createtime");
            return (Criteria) this;
        }

        public Criteria andCreatetimeLessThan(Date value) {
            addCriterion("createtime <", value, "createtime");
            return (Criteria) this;
        }

        public Criteria andCreatetimeLessThanOrEqualTo(Date value) {
            addCriterion("createtime <=", value, "createtime");
            return (Criteria) this;
        }

        public Criteria andCreatetimeIn(List<Date> values) {
            addCriterion("createtime in", values, "createtime");
            return (Criteria) this;
        }

        public Criteria andCreatetimeNotIn(List<Date> values) {
            addCriterion("createtime not in", values, "createtime");
            return (Criteria) this;
        }

        public Criteria andCreatetimeBetween(Date value1, Date value2) {
            addCriterion("createtime between", value1, value2, "createtime");
            return (Criteria) this;
        }

        public Criteria andCreatetimeNotBetween(Date value1, Date value2) {
            addCriterion("createtime not between", value1, value2, "createtime");
            return (Criteria) this;
        }
    }

    public static class Criteria extends GeneratedCriteria {

        protected Criteria() {
            super();
        }
    }

    public static class Criterion {
        private String condition;

        private Object value;

        private Object secondValue;

        private boolean noValue;

        private boolean singleValue;

        private boolean betweenValue;

        private boolean listValue;

        private String typeHandler;

        public String getCondition() {
            return condition;
        }

        public Object getValue() {
            return value;
        }

        public Object getSecondValue() {
            return secondValue;
        }

        public boolean isNoValue() {
            return noValue;
        }

        public boolean isSingleValue() {
            return singleValue;
        }

        public boolean isBetweenValue() {
            return betweenValue;
        }

        public boolean isListValue() {
            return listValue;
        }

        public String getTypeHandler() {
            return typeHandler;
        }

        protected Criterion(String condition) {
            super();
            this.condition = condition;
            this.typeHandler = null;
            this.noValue = true;
        }

        protected Criterion(String condition, Object value, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.typeHandler = typeHandler;
            if (value instanceof List<?>) {
                this.listValue = true;
            } else {
                this.singleValue = true;
            }
        }

        protected Criterion(String condition, Object value) {
            this(condition, value, null);
        }

        protected Criterion(String condition, Object value, Object secondValue, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.secondValue = secondValue;
            this.typeHandler = typeHandler;
            this.betweenValue = true;
        }

        protected Criterion(String condition, Object value, Object secondValue) {
            this(condition, value, secondValue, null);
        }
    }
}

QueryVo.java

package com.it.pojo;

public class QueryVo {

	private Items items;

	public Items getItems() {
		return items;
	}

	public void setItems(Items items) {
		this.items = items;
	}


}

码云https://gitee.com/ycydemo/ssm
