基于Vue的Openlayers6自定义测量组件，直接拿来用

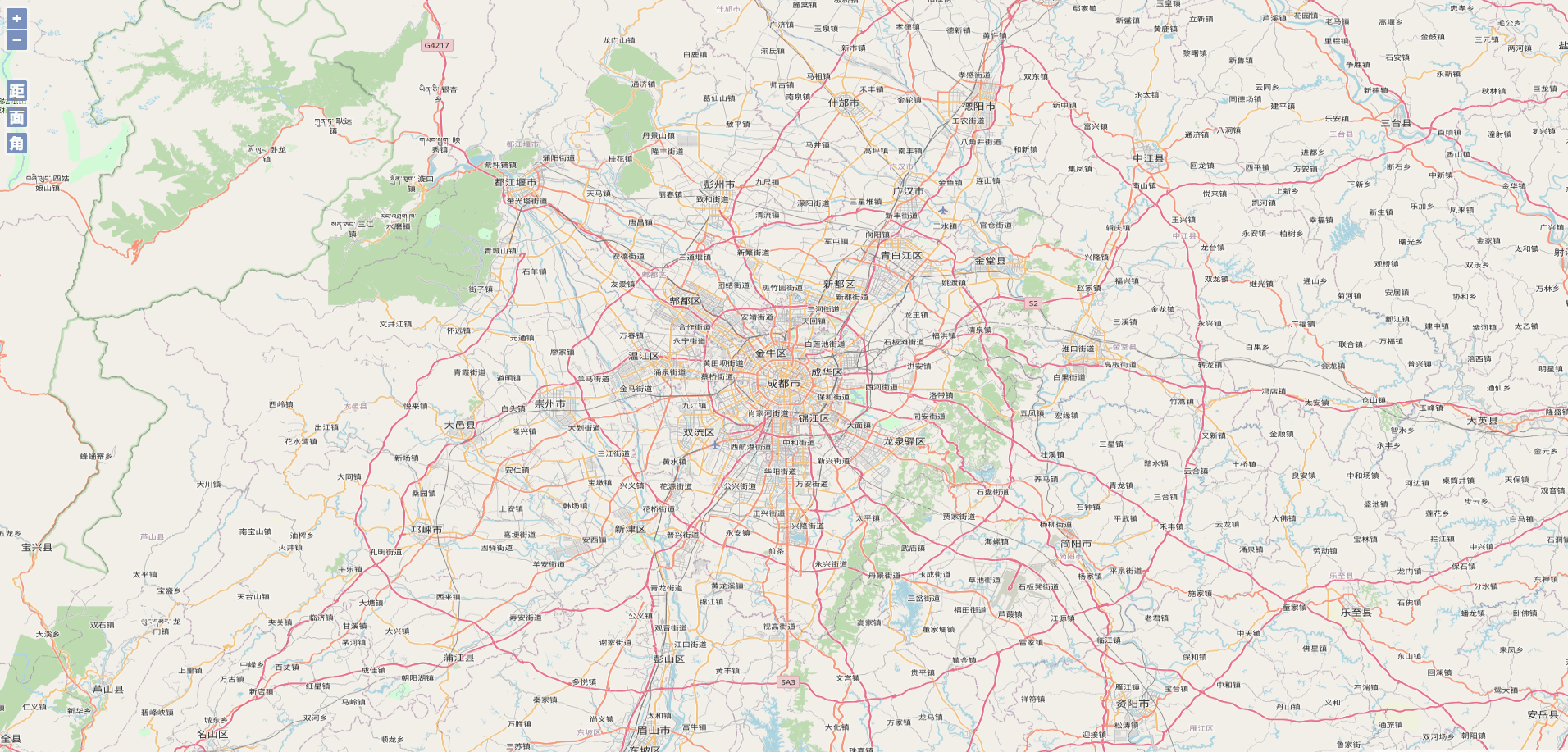

在做WebGIS项目开发时，往往都有一个测量的基础功能，这个功能虽然不算太难，但是往往确花费不少的时间去完成，以前都是基于jQuery或原生js去做，现在基于Vue还得改，索性花上一点时间，模仿了其他平台的测量功能效果做一个组件，包含了 距离测量、 面积测量和 角度测量，下次可以直接拿来用。下面是效果图：

功能需求

测量组件需要拥有距离测量、面积测量、角度测量。距离测量需要标注出起点以及起点到后面每一个点的阶段距离，最后一个点标注测量的总距离；面积测量是在地图上绘制一个多边形，完成绘制后标注出多边形的面积；角度测量是绘制三个点，将第二个点为角的顶点。
在绘制图像时有操作提示，有动态测量的结果。

实现主要API

1.ol/interaction/Draw，用于绘制图形
2.ol/source/Vector 、ol/layer/Vector ,矢量数据源和图层，显示测量绘制的图形
3.ol/Overlay，显示测量标记
4.ol/sphere/getLength、ol/sphere/getArea ，计算长度和面积
5.ol/style/*，设置样式

源代码

测量组件：

<template>
  <div class="measure-tool">
    <div class="ol-control"><button @click="measure('distence')">距</button></div>
    <div class="ol-control"><button @click="measure('area')">面</button></div>
    <div class="ol-control"><button @click="measure('angle')">角</button></div>
  </div>
</template>

<script>
import { Draw } from "ol/interaction";
import { Vector as VectorSource } from "ol/source";
import { Vector as VectorLayer } from "ol/layer";
import Overlay from 'ol/Overlay';
import { Polygon, LineString } from 'ol/geom';
import Feature from 'ol/Feature';
import { unByKey } from 'ol/Observable'
import { getLength, getArea } from 'ol/sphere';
import Style from "ol/style/Style";
import Stroke from "ol/style/Stroke";
import Fill from "ol/style/Fill";
import Circle from "ol/style/Circle";
export default {
  props: ["map"],//地图组件传值
  data() {
    return {
      measureType: "diatence",
      draw: null,
      vectorLayer: null,
      tipDiv: null,
      pointermoveEvent: null, // 地图pointermove事件
      sketchFeature: null, // 绘制的要素
      geometryListener: null, // 要素几何change事件
      measureResult: "0" // 测量结果
    }
  },
  methods: {
    creatDraw(type) {
      let maxPoints = null;
      if (this.measureType == "angle") maxPoints = 3
      else maxPoints = null

      // 矢量图层源
      let vectorSource = new VectorSource({
        wrapX: false
      });
      // 矢量图层
      this.vectorLayer = new VectorLayer({
        source: vectorSource,
        style: new Style({
          fill: new Fill({
            color: 'rgba(252, 86, 49, 0.1)'
          }),
          stroke: new Stroke({
            color: '#fc5531',
            width: 3
          }),
          image: new Circle({
            radius: 0,
            fill: new Fill({
              color: '#fc5531'
            })
          })
        }),
        name: "测量图层"
      });
      this.map.addLayer(this.vectorLayer)
      this.draw = new Draw({
        source: vectorSource,
        type: type,
        maxPoints: maxPoints,
        style: new Style({
          fill: new Fill({
            color: 'rgba(252, 86, 49, 0.1)'
          }),
          stroke: new Stroke({
            color: '#fc5531',
            lineDash: [10, 10],
            width: 3
          }),
          image: new Circle({
            radius: 0,
            fill: new Fill({
              color: '#fc5531'
            })
          })
        }),
        // 绘制时点击处理事件
        condition: (evt) => {
          // 测距时添加点标注
          if (this.measureResult != "0" && !this.map.getOverlayById(this.measureResult) && this.measureType == "distence")
            this.creatMark(null, this.measureResult, this.measureResult).setPosition(evt.coordinate)
          return true
        }
      });
      this.map.addInteraction(this.draw);

      /**
       * 绘制开始事件
       */
      this.draw.on("drawstart", e => {
        this.sketchFeature = e.feature
        let proj = this.map.getView().getProjection()
        //******距离测量开始时*****//
        if (this.measureType == "distence") {
          this.creatMark(null, "起点", "start").setPosition(this.map.getCoordinateFromPixel(e.target.downPx_))
          this.tipDiv.innerHTML = "总长：0 m</br>单击确定地点，双击结束";
          this.geometryListener = this.sketchFeature.getGeometry().on('change', (evt) => {
            this.measureResult = this.distenceFormat(getLength(evt.target, { "projection": proj, "radius": 6378137 }))
            this.tipDiv.innerHTML = "总长：" + this.measureResult + "</br>单击确定地点，双击结束";
          })
        }
        //******面积测量开始时*****//
        else if (this.measureType == "area") {
          this.tipDiv.innerHTML = "面积：0 m<sup>2</sup></br>继续单击确定地点";
          this.geometryListener = this.sketchFeature.getGeometry().on('change', (evt) => {
            if (evt.target.getCoordinates()[0].length < 4) this.tipDiv.innerHTML = "面积：0m<sup>2</sup></br>继续单击确定地点";
            else {
              this.measureResult = this.formatArea(getArea(evt.target, { "projection": proj, "radius": 6378137 }))
              this.tipDiv.innerHTML = "面积：" + this.measureResult + "</br>单击确定地点，双击结束";
            }
          })
        }
        //******角度测量开始时*****//
        else if (this.measureType == "angle") {
          this.tipDiv.innerHTML = "继续单击确定顶点";
          this.geometryListener = this.sketchFeature.getGeometry().on('change', (evt) => {
            if (evt.target.getCoordinates().length < 3) this.tipDiv.innerHTML = "继续单击确定顶点";
            else {
              this.measureResult = this.formatAngle(evt.target)
              this.tipDiv.innerHTML = "角度：" + this.measureResult + "</br>继续单击结束";
            }
          })
        }
      });

      /**
       * 绘制开始事件
       */
      this.draw.on("drawend", e => {
        let closeBtn = document.createElement('span');
        closeBtn.innerHTML = "×";
        closeBtn.title = "清除测量"
        closeBtn.style = "width: 10px;height:10px;line-height: 12px;text-align: center;border-radius: 5px;display: inline-block;padding: 2px;color: rgb(255, 68, 0);border: 2px solid rgb(255, 68, 0);background-color: rgb(255, 255, 255);font-weight: 600;position: absolute;top: -25px;right: -2px;cursor: pointer;";
        closeBtn.addEventListener('click', () => {
          this.clearMeasure()
        })
        //******距离测量结束时*****//
        if (this.measureType == "distence") {
          this.creatMark(closeBtn, null, "close1").setPosition(e.feature.getGeometry().getLastCoordinate());
          this.creatMark(null, "总长：" + this.measureResult + "", "length").setPosition(e.feature.getGeometry().getLastCoordinate())
          this.map.removeOverlay(this.map.getOverlayById(this.measureResult))
        }
        //******面积测量结束时*****//
        else if (this.measureType == "area") {
          this.creatMark(closeBtn, null, "close2").setPosition(e.feature.getGeometry().getInteriorPoint().getCoordinates());
          this.creatMark(null, "总面积：" + this.measureResult + "", "area").setPosition(e.feature.getGeometry().getInteriorPoint().getCoordinates())
        }
        //******角度测量结束时*****//
        else if (this.measureType == "angle") {
          this.creatMark(closeBtn, null, "close3").setPosition(e.feature.getGeometry().getCoordinates()[1]);
          this.creatMark(null, "角度：" + this.measureResult + "", "angle").setPosition(e.feature.getGeometry().getCoordinates()[1])
        }
        // 停止测量
        this.stopMeasure();
      });
    },
    /**
     * 测量
     */
    measure(type) {
      if (this.draw != null) return false; // 防止在绘制过程再创建测量
      this.measureType = type;
      if (this.vectorLayer != null) this.clearMeasure();
      this.tipDiv = document.createElement('div');
      this.tipDiv.innerHTML = '单击确定起点';
      this.tipDiv.className = "tipDiv";
      this.tipDiv.style = "width:auto;height:auto;padding:4px;border:1px solid #fc5531;font-size:12px;background-color:#fff;position:relative;top:60%;left:60%;font-weight:600;"

      let overlay = new Overlay({
        element: this.tipDiv,
        autoPan: false,
        positioning: "bottom-center",
        id: "tipLay",
        stopEvent: false //停止事件传播到地图
      });
      this.map.addOverlay(overlay);

      this.pointermoveEvent = this.map.on("pointermove", evt => {
        overlay.setPosition(evt.coordinate)
      })
      if (this.measureType == "distence" || this.measureType == "angle") {
        this.creatDraw("LineString")
      }
      else if (this.measureType == "area") {
        this.creatDraw("Polygon")
      }
    },
    /**
     * 创建标记
     */
    creatMark(markDom, txt, idstr) {
      if (markDom == null) {
        markDom = document.createElement('div');
        markDom.innerHTML = txt
        markDom.style = "width:auto;height:auto;padding:4px;border:1px solid #fc5531;font-size:12px;background-color:#fff;position:relative;top:60%;left:60%;font-weight:600;"
      }
      let overlay = new Overlay({
        element: markDom,
        autoPan: false,
        positioning: "bottom-center",
        id: idstr,
        stopEvent: false
      });
      this.map.addOverlay(overlay)
      return overlay;
    },
    /**
     * 格式化距离结果输出
     */
    distenceFormat(length) {
      let output;
      if (length > 100) {
        output = (Math.round(length / 1000 * 100) / 100) + ' ' + 'km'; //换算成km单位
      } else {
        output = (Math.round(length * 100) / 100) + ' ' + 'm'; //m为单位
      }
      return output;//返回线的长度
    },
    /**
     * 格式化面积输出
     */
    formatArea(area) {
      let output;
      if (area > 10000) {
        output = (Math.round(area / 1000000 * 100) / 100) + ' ' + 'km<sup>2</sup>'; //换算成km单位
      } else {
        output = (Math.round(area * 100) / 100) + ' ' + 'm<sup>2</sup>';//m为单位
      }
      return output; //返回多边形的面积
    },
    /**
     * 计算角度输出
     */
    formatAngle(line) {
      var coordinates = line.getCoordinates();
      var angle = '0°';
      if (coordinates.length == 3) {
        const disa = getLength(new Feature({
          geometry: new LineString([coordinates[0], coordinates[1]])
        }).getGeometry(), {
          radius: 6378137,
          projection: this.map.getView().getProjection()
        });

        const disb = getLength(new Feature({
          geometry: new LineString([coordinates[1], coordinates[2]])
        }).getGeometry(), {
          radius: 6378137,
          projection: this.map.getView().getProjection()
        });

        const disc = getLength(new Feature({
          geometry: new LineString([coordinates[0], coordinates[2]])
        }).getGeometry(), {
          radius: 6378137,
          projection: this.map.getView().getProjection()
        });
        var cos = (disa * disa + disb * disb - disc * disc) / (2 * disa * disb); // 计算cos值
        angle = (Math.acos(cos) * 180) / Math.PI; // 角度值
        angle = angle.toFixed(2); // 结果保留两位小数
      }
      if (isNaN(angle)) return "0°"
      else return angle + "°"; // 返回角度
    },
    /**
     * 停止测量
     */
    stopMeasure() {
      this.tipDiv = null
      this.map.removeInteraction(this.draw); // 移除绘制组件
      this.draw = null;
      this.map.removeOverlay(this.map.getOverlayById("tipLay")) // 移除动态提示框
    },
    /**
     * 清除测量
     */
    clearMeasure() {
      this.vectorLayer.getSource().clear()
      this.map.getOverlays().clear()
      //移除监听事件
      unByKey(this.pointermoveEvent) // 清除鼠标在地图的pointermove事件
      unByKey(this.geometryListener) // 清除绘制图像change事件
      this.pointermoveEvent = null;
      this.geometryListener = null;
      this.measureResult = "0"
    }
  }
}
</script>

<style scoped>
.measure-tool {
  z-index: 1;
  position: absolute;
  left: 0.5em;
  top: 6em;
  width: 50px;
  height: 40px;
}
.measure-tool div:nth-child(2) {
  margin-top: 2em;
}
.measure-tool div:nth-child(3) {
  margin-top: 4em;
}
</style>

地图组件引入测量组件：

<template>
  <div id="map">
    <measureTool v-if="map" :map="map"></measureTool>
  </div>
</template>

这就是基于Vue实现的一个测量组件，有需要的朋友可以用用，有些不足的地方可以自己再优化一下，也欢迎指正，样式可以根据自己的需求修改，奥利给~
