安装部署Keepalived

学习笔记

一、安装

yum install keepalived -y

二、部署

主配置文件为/etc/keepalived/keepalived.conf

[root@localhost ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

##全局定义
global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL #id为LVS_DEVEL,不同的keepalived.conf此ID要唯一
   vrrp_skip_check_adv_addr
   vrrp_strict
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}
##全局定义

##高可用配置
vrrp_instance VI_1 { #实例名称VI_1，相同实例的备节点名字要和这个相同
    state MASTER #主节点状态为MASTER，备节点的状态为BACKUP
    interface eth0 #通信接口为eth0，此参数备节点设置和主节点相同
    virtual_router_id 51 #实例的表示（身份证），唯一
    priority 100 #优先级为100，备用节点必须低于主节点
    advert_int 1 #通知间隔（默认1秒，表示我还活着）
    #加密的认证
    authentication {
        auth_type PASS #PAAS认证类型，此参数备节点设置和主节点相同
        auth_pass 1111 #密码是1111，此参数备节点设置和主节点相同
    }
    #VIP地址
    virtual_ipaddress {
        #192.168.200.16
        #192.168.200.17
        #192.168.200.18
        10.0.0.12/24 dev eth0 label eth0:1 #虚拟IP，即VIP为10.0.0.12，子网掩码为24位，绑定接口为eth0，别名为eth:1,此参数备节点设置和主节点相同
    }
}
##高可用配置

##下面是LVS的配置（没用）
virtual_server 192.168.200.100 443 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.201.100 443 {
        weight 1
        SSL_GET {
            url {
              path /
              digest ff20ad2481f97b1754ef3e12ecd3a9cc
            }
            url {
              path /mrtg/
              digest 9b3a0c85a887a256d6939da88aabd8cd
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.2 1358 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    sorry_server 192.168.200.200 1358

    real_server 192.168.200.2 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.3 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.3 1358 {
    delay_loop 3
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.200.4 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.5 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
[root@localhost ~]#

主节点配置

global_defs {
   router_id LVS_DEVEL
}

vrrp_instance VI_1 {
    state MASTER
    interface eno16777728
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.100.30/24 dev eno16777728 label eno16777
728:1
    }
}

备节点配置

global_defs {
   router_id LVS_BACKUP
}

vrrp_instance VI_1 {
    state BACKUP
    interface eno16777728
    virtual_router_id 51
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.100.30/24 dev eno16777728 label eno16777
728:1
    }
}

启动keepalived服务

systemctl start keepalived

查看keepalived是否成功

[root@node01 ~]# ps -ef |grep keep |grep -v grep
root       9866      1  0 18:17 ?        00:00:00 /usr/sbin/keepalived -D
root       9867   9866  0 18:17 ?        00:00:00 /usr/sbin/keepalived -D
root       9868   9866  0 18:17 ?        00:00:00 /usr/sbin/keepalived -D

[root@node02 ~]# ps -ef |grep keep |grep -v grep
root      20267      1  0 18:35 ?        00:00:00 /usr/sbin/keepalived -D
root      20268  20267  0 18:35 ?        00:00:00 /usr/sbin/keepalived -D
root      20269  20267  0 18:35 ?        00:00:00 /usr/sbin/keepalived -D

出错看日志

tail -f /var/log/messages

验证

关闭主节点

[root@node01 ~]# systemctl stop keepalived

bash 查看备节点是否接管

[root@node02 ~]# ip add |grep 30
    inet 192.168.100.30/24 scope global secondary eno16777736:1

测试成功

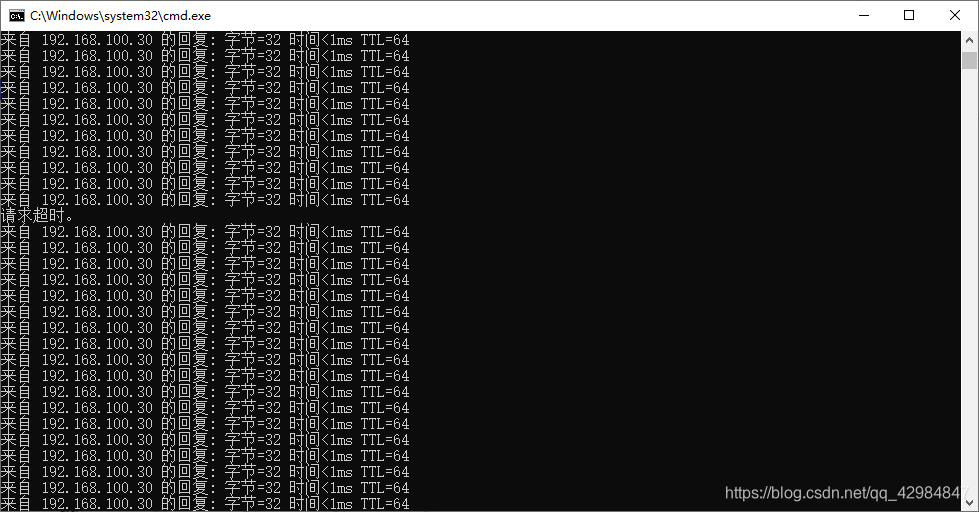

切换到备用节点中间会掉一个包

在这里插入图片描述
注意：网卡名为每个节点的网卡名！！！
