BGP实验一——路由路径选择

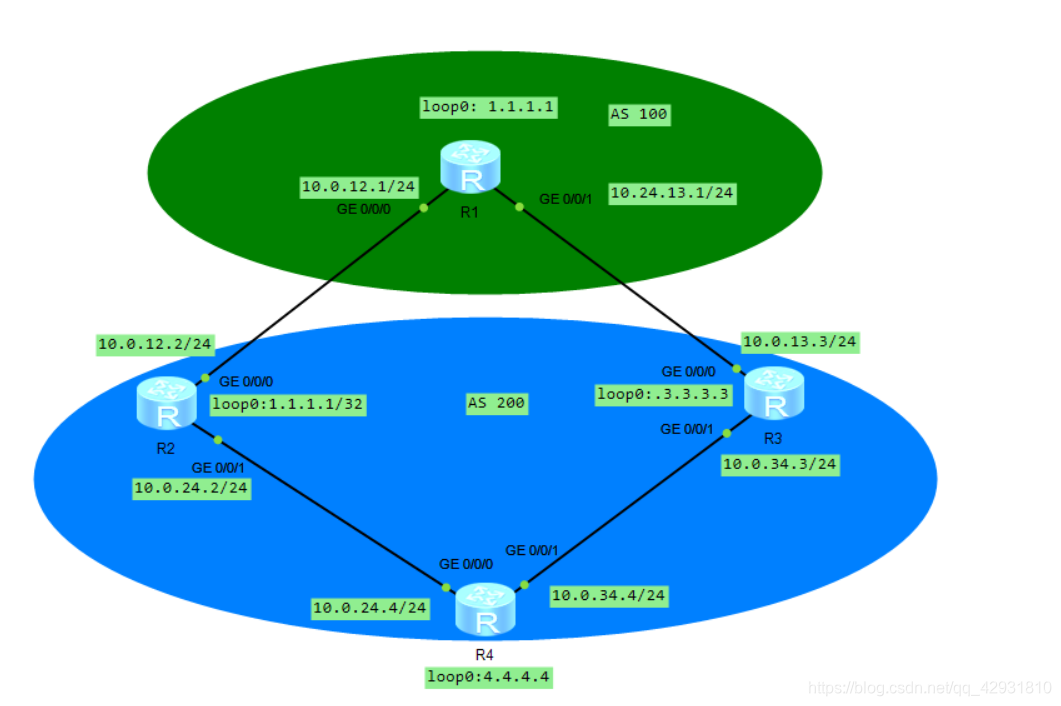

一、拓扑图

二、配置命令

1. 配置各设备ip地址

R1:

[Huawei]int GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 10.0.12.1 24
[Huawei-GigabitEthernet0/0/0]quit
[Huawei]int GigabitEthernet 0/0/1

[Huawei-GigabitEthernet0/0/1]ip address 10.0.13.1 24

[Huawei-GigabitEthernet0/0/1]int loop0
[Huawei-LoopBack0]ip address 1.1.1.1 32
[Huawei-LoopBack0]quit

R2：
[Huawei]int GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 10.0.12.2 24
[Huawei-GigabitEthernet0/0/0]quit
[Huawei]int GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 10.0.24.2 24
